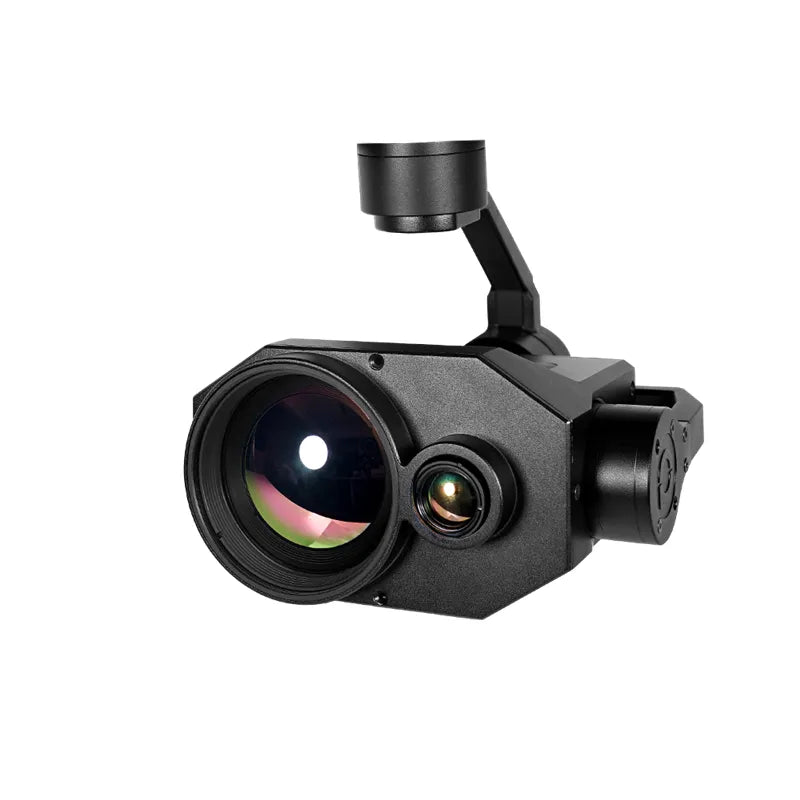

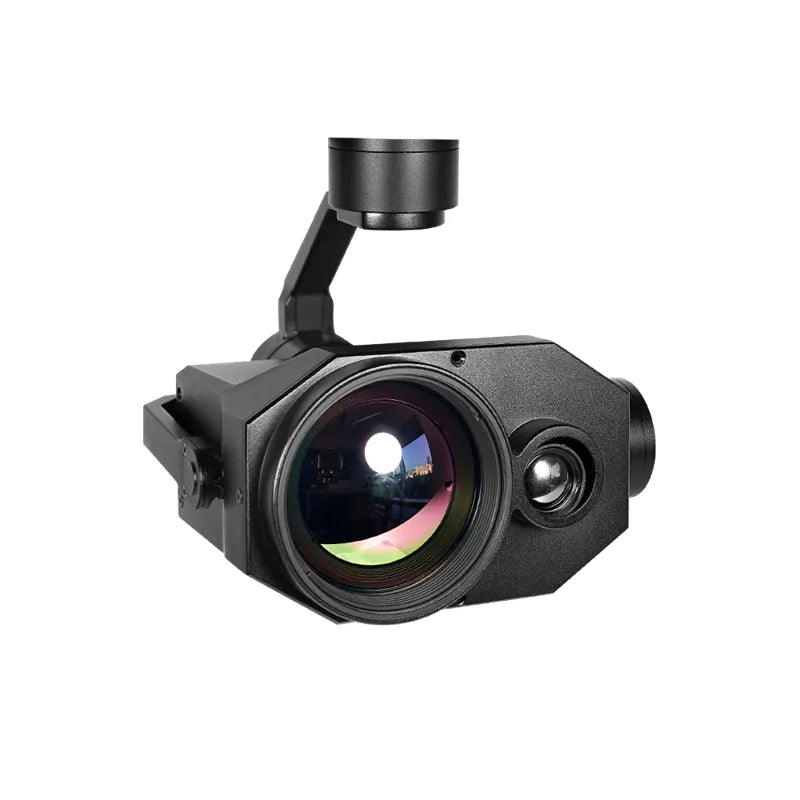

ViewPro ZIR1352T Drone Gimbal Camera - 4x Zoom 13mm 52mm 640 Dual IR Thermal Camera
ViewPro ZIR1352T Drone Gimbal Camera - 4x Zoom 13mm 52mm 640 Dual IR Thermal Camera
ViewPro
Couldn't load pickup availability
Overview
The ViewPro ZIR1352T Drone Gimbal Camera is an advanced dual-lens thermal imaging solution tailored for UAV applications. Equipped with 13mm and 52mm IR lenses, this camera supports 4x digital zoom and delivers high-resolution thermal imaging with a 640x480 detector pixel array. Its dual-lens design combines wide-angle thermal detection with long-range thermal capabilities, providing versatile functionality for surveillance, search and rescue, industrial inspections, and more. The one-key center stabilization and ±360° yaw range ensure exceptional precision and coverage, making it a reliable companion for professional UAV operations.
Features
1. Dual-Lens Thermal Imaging
-
13mm Wide-Angle Lens:
- Horizontal FOV: 45.4°, Vertical FOV: 34.8°, Diagonal FOV: 55.2°
- Detective distance: 382m for humans, 1173m for cars.
-
52mm Long-Range Lens:
- Horizontal FOV: 11.9°, Vertical FOV: 9°, Diagonal FOV: 14.9°
- Detective distance: 1529m for humans, 4690m for cars.
2. High-Resolution Thermal Imaging
- 640x480 detector pixels with a 17μm pixel size, ensuring crisp and clear imaging.
- NETD ≤50mK, enabling the detection of minor temperature differences.
- Supports temperature measurement (optional), displaying FOV center, max, and min temperatures.
3. Advanced Image Processing
- Multiple color palettes: White, iron red, pseudo color for various applications.
- Auto image enhancement: Dynamically adjusts brightness and contrast for optimal clarity.
- Non-uniform correction: Automatic shutterless calibration for seamless operations.
4. Precision Object Tracking
- Update rate of 50Hz with <5ms output delay, ensuring real-time tracking accuracy.
- Tracks objects as small as 32x32 pixels and as large as 128x128 pixels.
- Retains object memory for up to 100 frames (4 seconds) for uninterrupted tracking.
5. Stabilized 3-Axis Gimbal
- ±360° yaw, ±45° to +90° pitch, and ±55° roll, offering full range of motion.
- Vibration angle of ±0.02°, ensuring smooth and steady thermal imagery even during flight maneuvers.
6. Lightweight and Durable Design
- Net weight of 687g, perfect for integration with various UAV platforms.
- Wide operating temperature range: -20°C to +60°C, suitable for harsh environments.
Specifications
| Hardware Parameter | |
| Working voltage | 12V ~ 16V |
| Input voltage | 3S ~ 4S |
| Dynamic current | 650mA~850mA @ 12V |
| Idle current | 540mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(HD output 1080P 50fps) / IP (1080P/720P) |
| Local-storage | SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method | PWM / TTL / S.BUS / TCP (IP output) |
| Gimbal Spec | |
| Mechanical Range | Pitch/Tilt: -70～120°, Roll: ±55°, Yaw/Pan: ±300° / ±360°*N (IP output version) |
| Controllable Range | Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| Thermal Imager Spec | |
| Lens size | 52mm |
| Horizontal FOV | 11.9° |
| Vertical FOV | 9° |
| Diagonal FOV | 14.9° |
| Detective Distance (Man: 1.8x0.5m) | 1529 meters |
| Recognize Distance (Man: 1.8x0.5m) | 382 meters |
| Verified Distance (Man: 1.8x0.5m) | 191 meters |
| Detective Distance (Car: 4.2x1.8m) | 4690 meters |
| Recognize Distance (Car: 4.2x1.8m) | 1173 meters |
| Verified Distance (Car: 4.2x1.8m) | 586 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (for thermometry verson only) |
| Thermal Imager Spec | |
| Lens size | 13mm |
| Horizontal FOV | 45.4° |
| Vertical FOV | 34.8° |
| Diagonal FOV | 55.2° |
| Detective Distance (Man: 1.8x0.5m) | 382 meters |
| Recognize Distance (Man: 1.8x0.5m) | 96 meters |
| Verified Distance (Man: 1.8x0.5m) | 48 meters |
| Detective Distance (Car: 4.2x1.8m) | 1173 meters |
| Recognize Distance (Car: 4.2x1.8m) | 293 meters |
| Verified Distance (Car: 4.2x1.8m) | 147 meters |
| Working mode | Uncooled long wave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤50mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermal Imager Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| Packing Information | |
| N.W. | 687g |
| Product meas. | 127.5*155.3*126.6mm |
Package
- Net Weight: 687g
- Product Dimensions: 127.5 x 155.3 x 126.6mm
-
Included Accessories:
- Gimbal camera device
- Screws, copper cylinders, damping balls, and boards
- High-quality protective box with foam padding
Applications
- Search and Rescue: Quickly locate missing persons or objects with wide-angle and long-range thermal imaging.
- Industrial Inspections: Evaluate pipelines, power lines, and solar panels with dual-lens thermal versatility.
- Surveillance: Monitor large areas effectively with precise thermal tracking.
- Wildlife Observation: Study animals discreetly and track movement patterns in low-light conditions.
- Disaster Response: Assess and manage crisis zones effectively with high-resolution thermal data.
The ViewPro ZIR1352T Drone Gimbal Camera delivers unparalleled thermal imaging performance with its dual-lens design and cutting-edge tracking capabilities. Ideal for professional UAV missions, it sets a new standard in aerial thermal surveillance and imaging.
Professional 3-axis High-precise FOC Program
The ZIR1352T features thermal imager with 13mm & 52mm lens, supports 640*480 detector pixels, 4x optical zoom and 1x ~ 4x digital zoom. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV.
High Resolution Dual Thermal Zooming Camera
Integrated French ULIS high-precision uncooled long wave (8μm ~14μm) thermal image sensor. With 4x optical zoom capabilities that IR sensor sitches from 13mm to 52mm, provides a wide 45.4° field of view for maximum situational awareness and a narrow 11.9° field of view to get the most thermal pixels on your target. The ZIR1352T allows drone pilots from the public safety and indstrial inspection sectors to gain field of FOV flexibility for improved image detailsand magnification to assess situations and and make critical decisions.
Multi Output Methods Optional
ZIR1352T supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360 degree enless pan.
Multi Control Methods
Default PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.
Control box signal interfaces:
Compatible with Viewport
ZIR1352T is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.
For more information about Viewport, please check below video instruction:
Application
Mainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.
Dimensions
ViewPro ZIR1352T Drone Gimbal, compact and lightweight design, supports up to 3-axis gimbal stabilization, suitable for aerial photography and videography applications.
