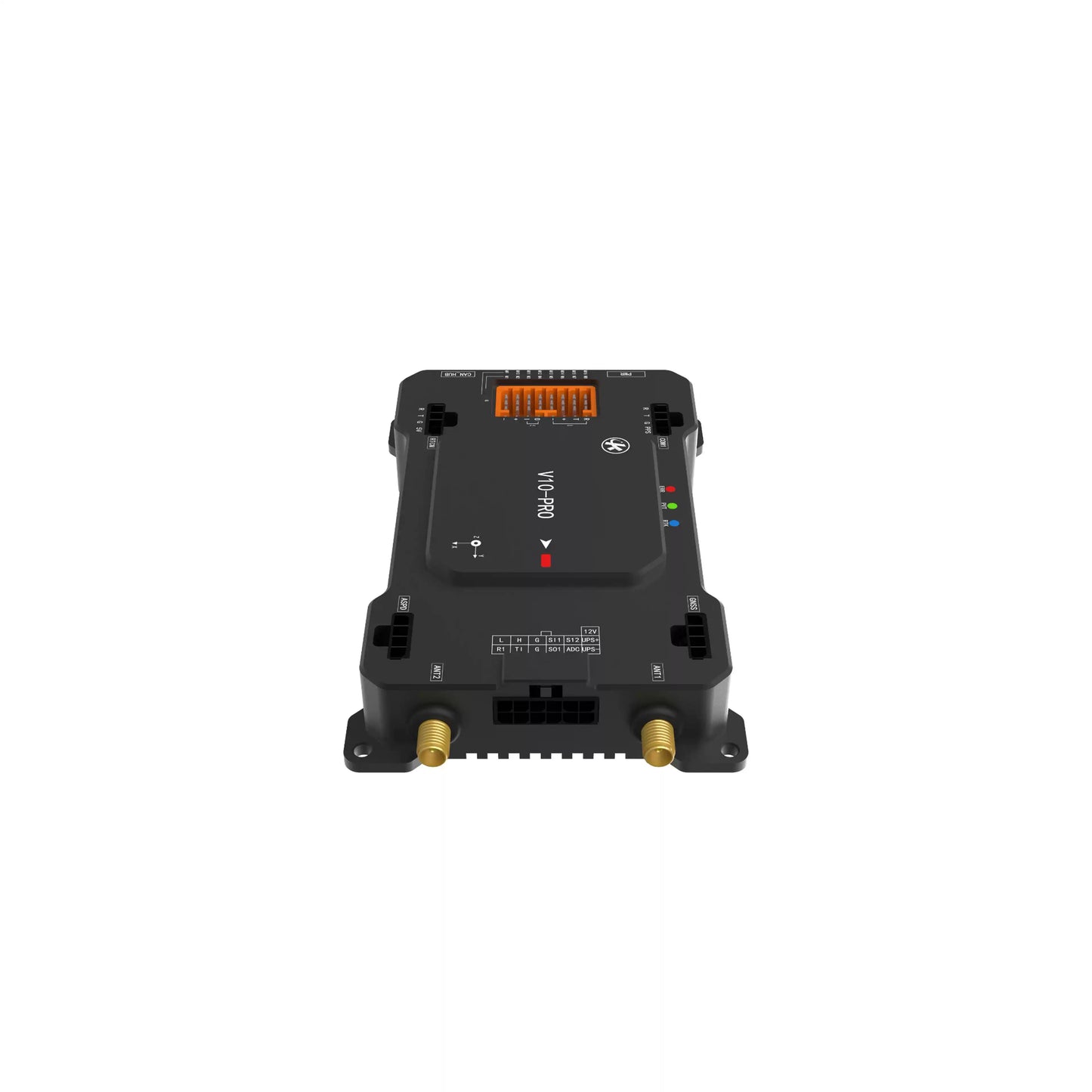

VK V10-PRO Industrial UAV Drone Autopilot Flight Controller – RTK, Delivery System, Obstacle Avoidance, Swarm Control

The VK V10-PRO is a next-generation industrial-grade UAV and drone autopilot flight controller designed for heavy-lift operations, precise RTK navigation, aerial delivery, and intelligent swarm formation. With support for up to 16 motors, 7-channel delivery control, and 480MHz high-speed MCU, it ensures real-time responsiveness and mission-critical reliability in complex environments.

This powerful industrial drone autopilot system supports MAVLink protocol, dual RTK GNSS, backup IMU, and seamless integration with obstacle radar, smart battery, and vision computing units. It is ideal for UAV logistics, inspection, surveillance, and coordinated drone operations requiring high-level automation.

Key Features

• Integrated autopilot flight controller for industrial UAVs and drones

• Supports 16-propeller heavy-lift platforms and 7 delivery mechanisms

• Triple-mode delivery: sky-drop, near-ground, long-distance relay

• Dual RTK positioning with 0.1m precision, IMU/GNSS backup redundancy

• MAVLink-compatible autopilot system

• 360° obstacle avoidance radar support

• Over-voltage and over-current protection

• 12V UPS with 25-minute backup under full load

• Works with VK VINS and target tracking for satellite-free operation

• Remote real-time video/image transmission and storage

Technical Specifications

Advanced UAV Delivery Capabilities

• Supports multiple autonomous delivery modes: sky-drop, near-ground, long-range relay

• Built-in return logic: straight-line or original path

• Smartphone control via Bluetooth, with speed/load protection logic

• Ideal for logistics, parcel drop, emergency supply delivery drones

Swarm Coordination and Cluster Autopilot

• Real-time cluster control for 100 UAVs using a single ground station

• Horizontal/vertical/triangular/rectangular swarm formation support

• Real-time spacing adjustment with mesh radio-based autopilot logic

• Collision-avoidance built into swarm formation algorithms

Interface and System Expansion

• 16 PWM motor outputs

• Dual RTK antennas for heading and positioning

• GNSS + Compass input, Airspeed sensor, RTK Link module

• Supported expansions:

  • 360° Obstacle Radar

  • Radar Altimeter

  • Smart Battery

  • CAN ESC

  • VK VTJ-1 Visual Computer

  • Weighing Modules

Ground Control & Software Integration

• Compatible with Windows, Linux, Android, Kylin OS

• Supports English and Chinese interfaces

• Efficient route planning: manual, corridor, and area-based path planning

• Map platforms: Google Maps, Amap, Bing Maps, TianDiTu, Offline Maps

• Control multiple drones via a single GCS terminal

• Seamless UAV gimbal switching and multi-drone task assignment

Integrated Autopilot Intelligence

• Target recognition and tracking via VK visual system

• Autonomous flight without GNSS using VK VINS

• Real-time video and image capture

• Remote data relay and storage for post-mission analysis

Details

V10-Pro UAV Controller offers delivery, search, format features, and multiple ports for versatility.

Advantages: 480M MCU, IMU/GNSS backup, MAVLink protocol, 12V UPS, 16 motors, full-frequency RTK, 8G storage, overvoltage protection, 7-channel delivery, single BD mode, 360° radar.

VK V10-Pro UAV Controller supports 16-propeller heavy lift UAVs, up to 7 delivery channels. Features include sky-drop, near-ground drop, long-distance delivery modes, smart speed control, and Bluetooth phone control.

VK V10-Pro UAV Controller offers flexible control, target tracking, auto flight without satellites, real-time storage, and remote data transmission. Supports cluster formation flying with anti-collision algorithms.

VK V10-Pro UAV Controller app supports multi-OS, languages, functions. Efficient route planning with manual, corridor, block area options. One ground control for multiple drones. Maps include TianDiTu, Amap, Google Maps, Bing Maps.

V10-Pro UAV Controller offers 360° obstacle avoidance, a VTJ-1 visual computer, radar altimeter, smart battery, CAN ESC, and weighing module. Its compact design provides versatile functionality with extensibility.

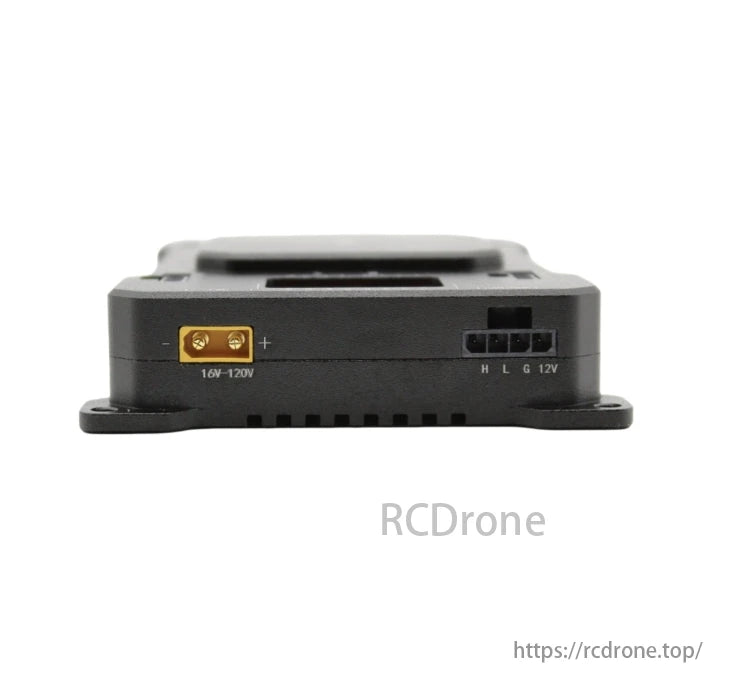

VK V10-Pro UAV Controller technical parameters: Size 117mm*76mm*22mm, power 16V-120V, UPS duration 25 minutes (max power consumption). Operating temperature -40°C to 60°C. Attitude accuracy 0.2°, heading accuracy 0.5°. Horizontal accuracy RTK: 0.1m, single: 2m; vertical accuracy RTK: 0.1m, single: 3m. Max horizontal speed 30m/s, max ascent speed 6m/s. Supports up to 100 format UAVs and 10 auxiliary landing points. Precision and robust design for reliable drone control in various conditions.

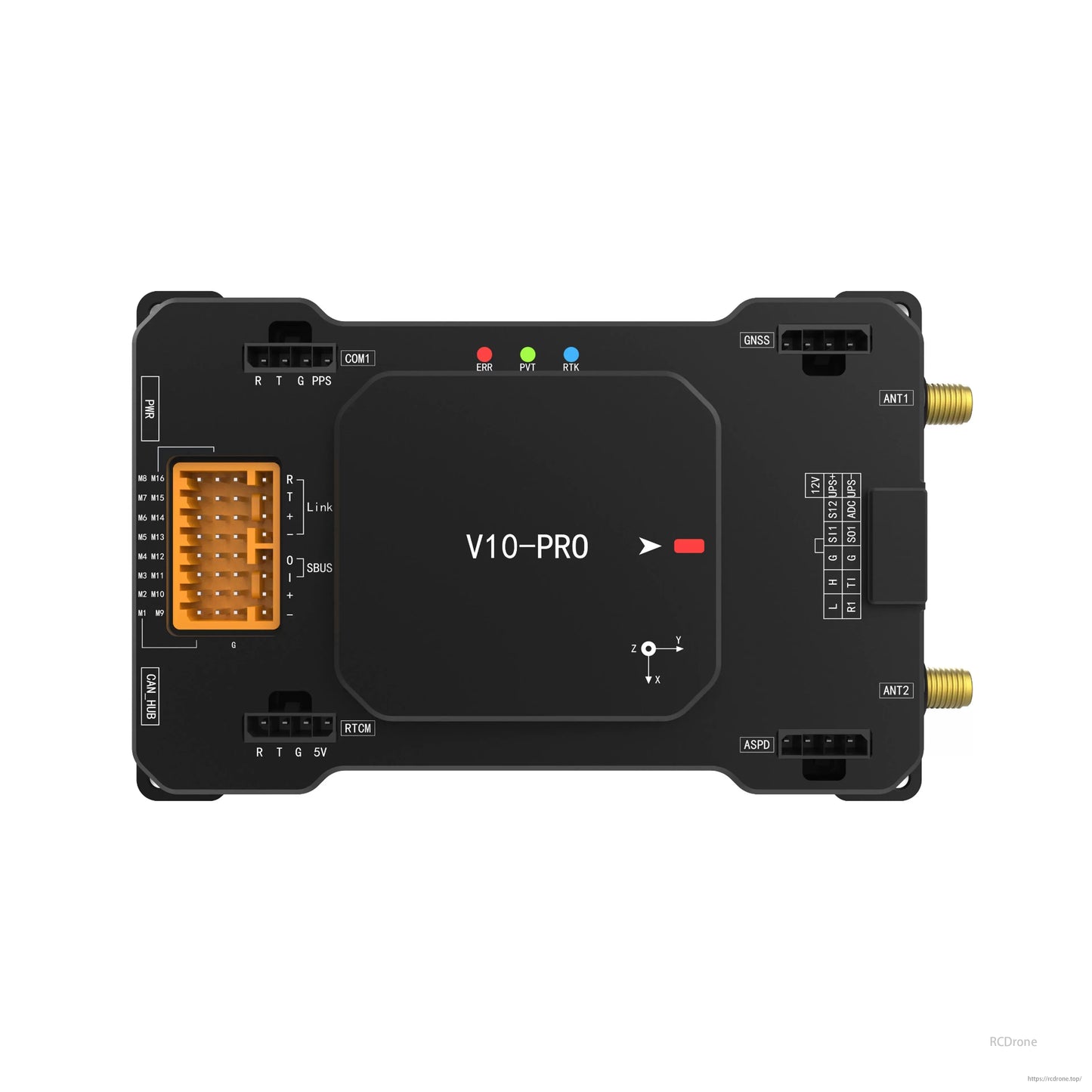

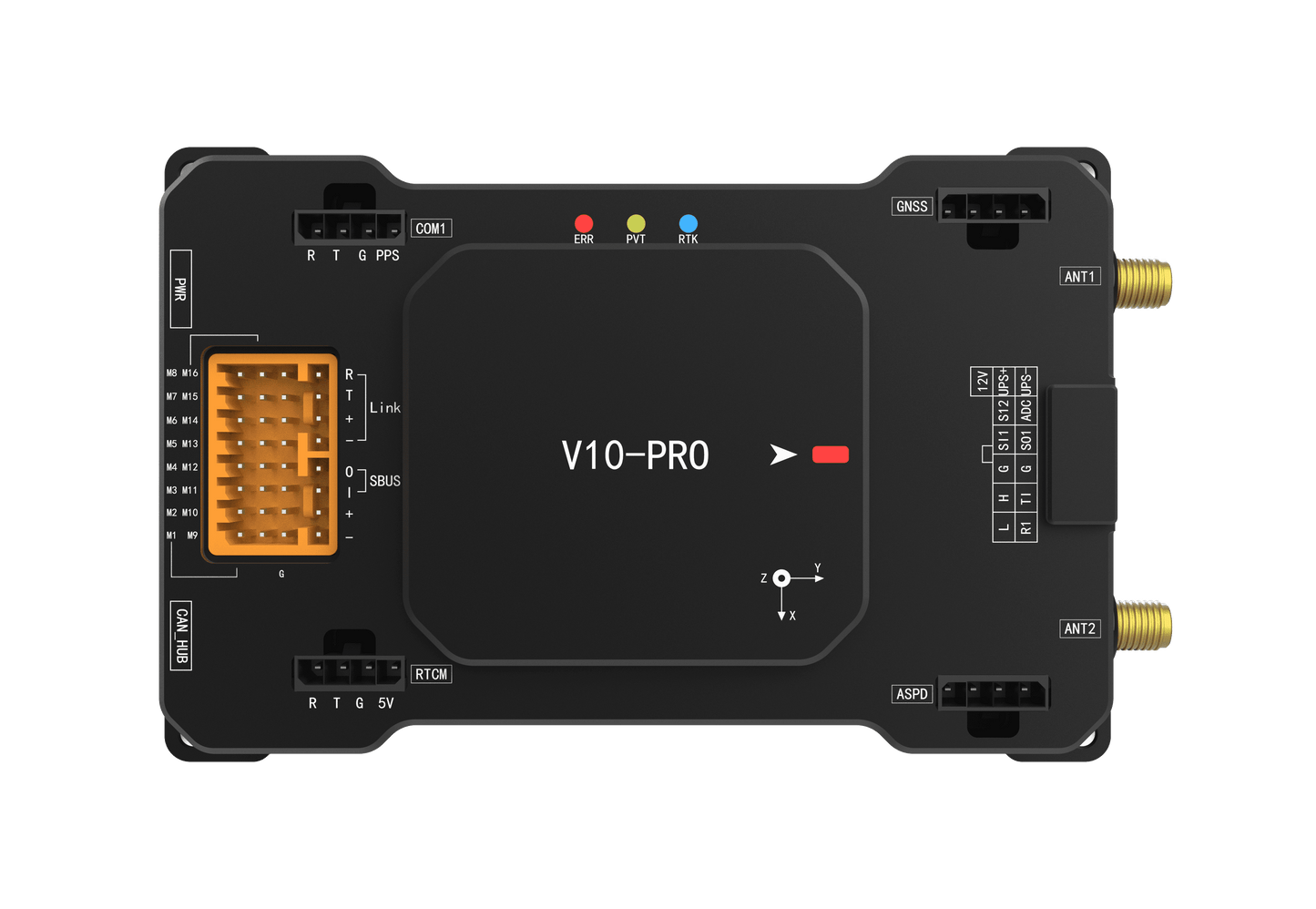

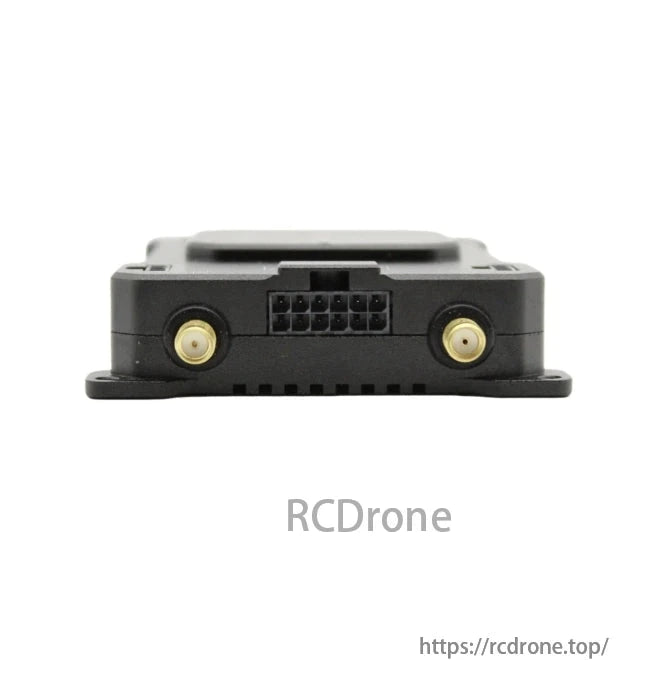

VK V10-Pro UAV Controller connects Gimbal, Datalink+SBUS, GNSS+Compass, RTK antennas, 360° Obstacle Radar, Radar Altimeter, RTK Link, and Airspeed Sensor. Supports 16V-120V, 16 PWM, various ports for versatile functionality.
