VK V7-PRO Industrial UAV Drone Autopilot Flight Controller – Dual RTK GNSS, 3D Route Planning, Obstacle Avoidance

The VK V7-PRO is a high-performance industrial UAV and drone flight controller, engineered for demanding applications such as aerial mapping, infrastructure inspection, emergency response, and public security. Featuring dual RTK GNSS, dual IMU, and precise 3D route planning capabilities, the VK V7-PRO delivers exceptional stability, centimeter-level positioning, and superior reliability in mission-critical drone operations.

With support for both fixed and moving RTK base stations, the system ensures accurate dynamic positioning. It offers rich interface compatibility (SBUS, CAN, TTL) and runs on a wide 12V~64V voltage input. The Ground Control Software (GCS) supports both Windows and Android, available in Chinese and English.

Technical Specifications

Key Features

• Industrial-Grade UAV/Drone Controller with real-time RTK/IMU redundancy

• Supports 10,000+ waypoints for complex mission mapping and path control

• 12V–64V wide input voltage range with ADC power monitoring

• Multiple peripheral interfaces: SBUS, CAN, TTL, GPS-CAN

• Operating temperature range: -20°C to 60°C

• Obstacle avoidance radar: Front and rear support

• Multiple flight modes: Auto takeoff, cruise, circling, RTH

• Supports fixed/moving RTK base stations and network RTK

Ground Control Software (GCS)

• PC GCS (Windows): 3D terrain view, GNSS/RTK telemetry, waypoint control

• Android GCS: Easy tap-based controls for route planning, camera pod control, live positioning

System Diagram Overview

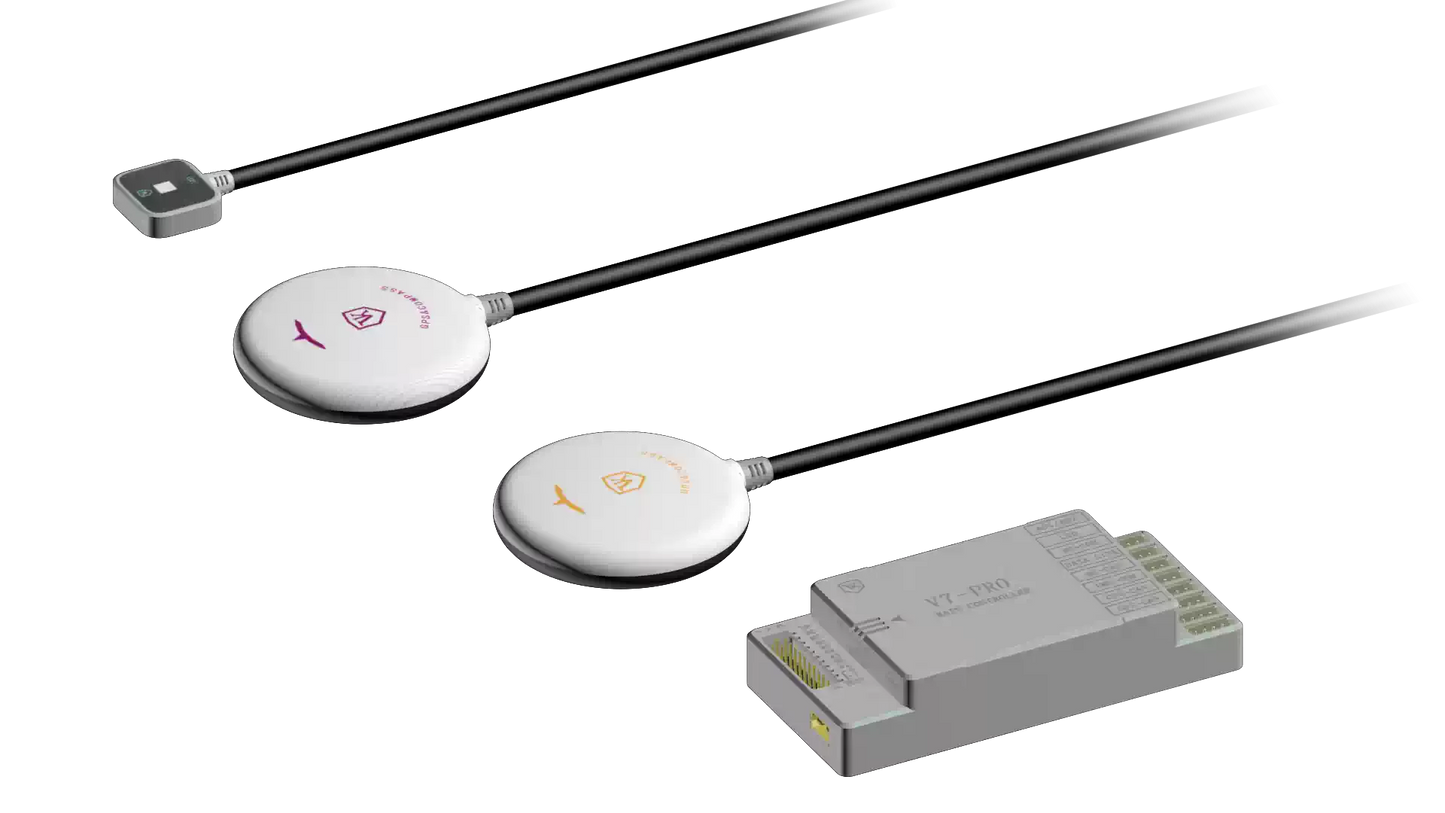

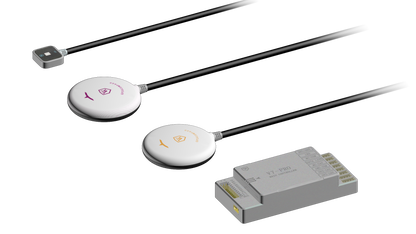

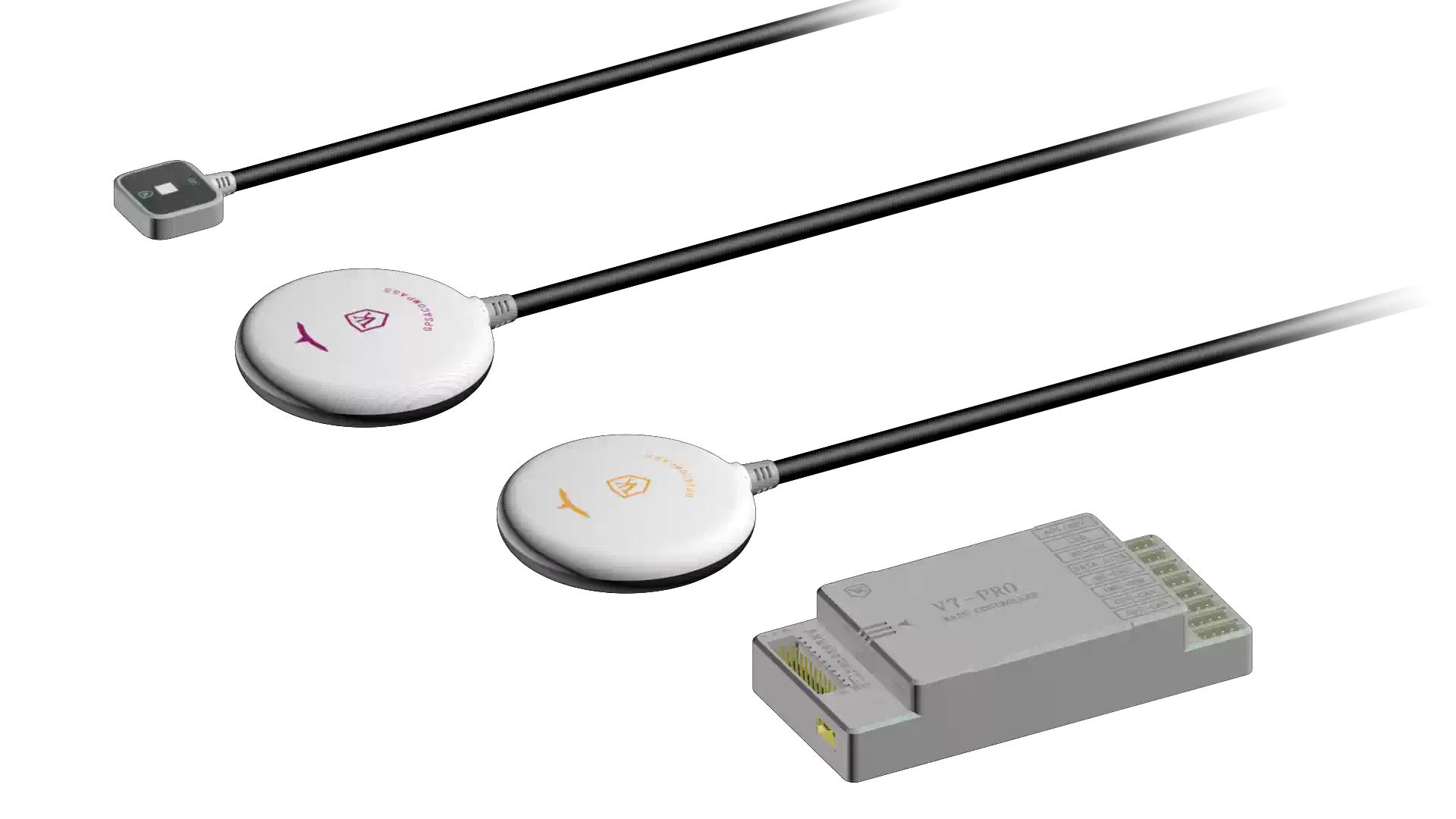

• VK V7-PRO Main Controller connects with:

  • Dual RTK antennas

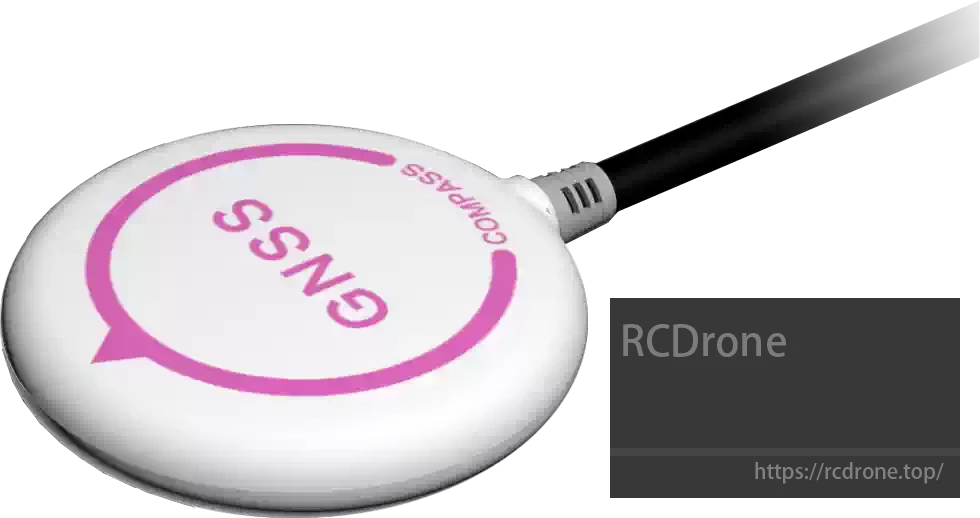

  • GPS Module

  • ESCs, LED indicator, Datalink Radio (R2-A), Dual RTK unit (D2-H)

• Data Rates:

  • SBUS-O: 115,200 bps

  • MC-COM: 115,200 bps

  • MC-CAN: 500 Kbps

Applications of VK V7-PRO UAV Drone System

• Surveying & Mapping UAVs – high-precision RTK-based 3D terrain mapping

• Inspection Drones – for utilities, pipelines, telecom, and solar farms

• Emergency Rescue Drones – rapid deployment with dynamic landing support

• Security & Law Enforcement UAVs – patrol automation, live telemetry

Details

V7-PRO is a flight control system for industrial UAVs, featuring high reliability, excellent control accuracy, and rich functions. It is widely used in security, inspection, mapping, fire protection, and other industrial areas. V7-PRO has two versions: GNSS and RTK. The ground control software supports both Chinese and English and can operate on Windows and Android platforms. This system offers robust solutions for industrial UAV control needs.

VK V7-PRO ensures safety with dual IMU, GNSS, wide voltage support, and multiple interfaces. It offers RTK modes, 3D flight planning, automatic flight modes, and obstacle avoidance radars for enhanced performance.

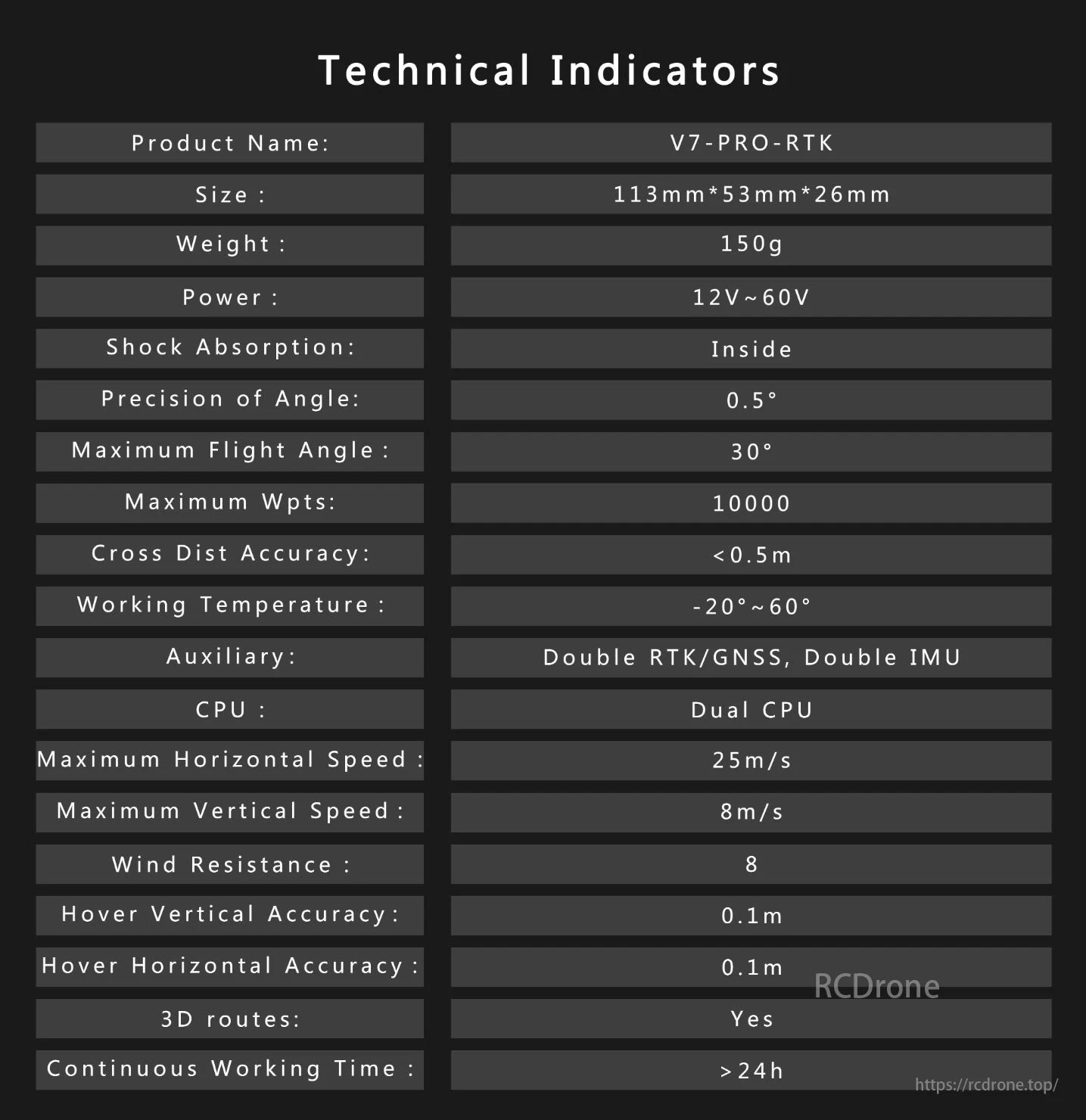

V7-PRO-RTK flight controller: 113x53x26mm, 150g, 12V-60V power. Features include 0.5° angle precision, 30° max flight angle, <0.5m cross dist accuracy, -20 to 60°C temp range, dual CPU, and >24h continuous work time.

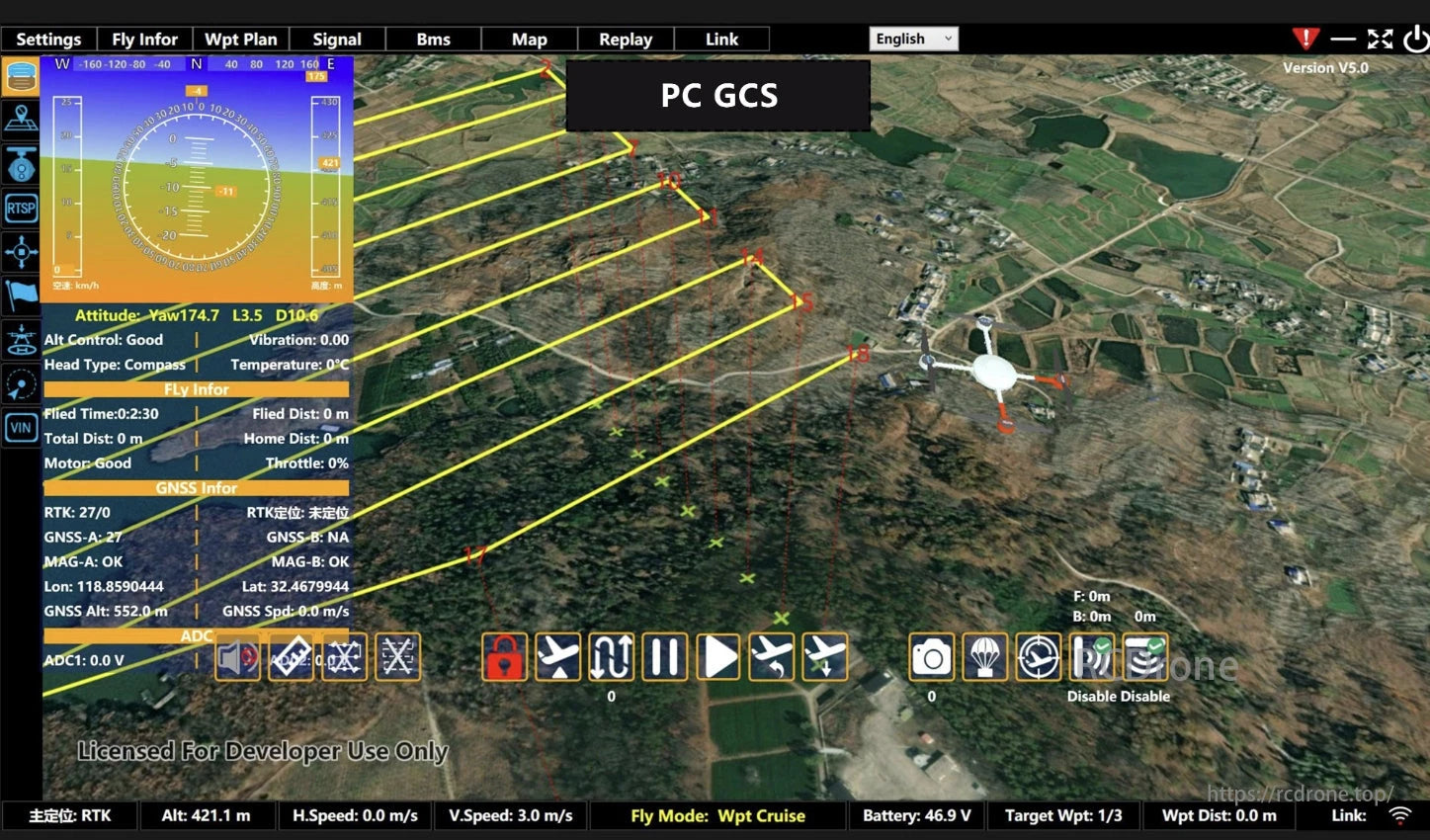

VK V7-PRO Industrial UAV Drone Flight Controller interface. Displays flight data, GNSS info, waypoints, and control options. Features altitude, speed, battery status, and navigation tools for precise drone operation.

Flight control options include unlock takeoff, start air line, point-to-point, pod control, route laps, change waypoint, and read route. Metrics: D: 5M, H: 5.0M, H.S: 5.0 M/S, V.S: 5.0M.

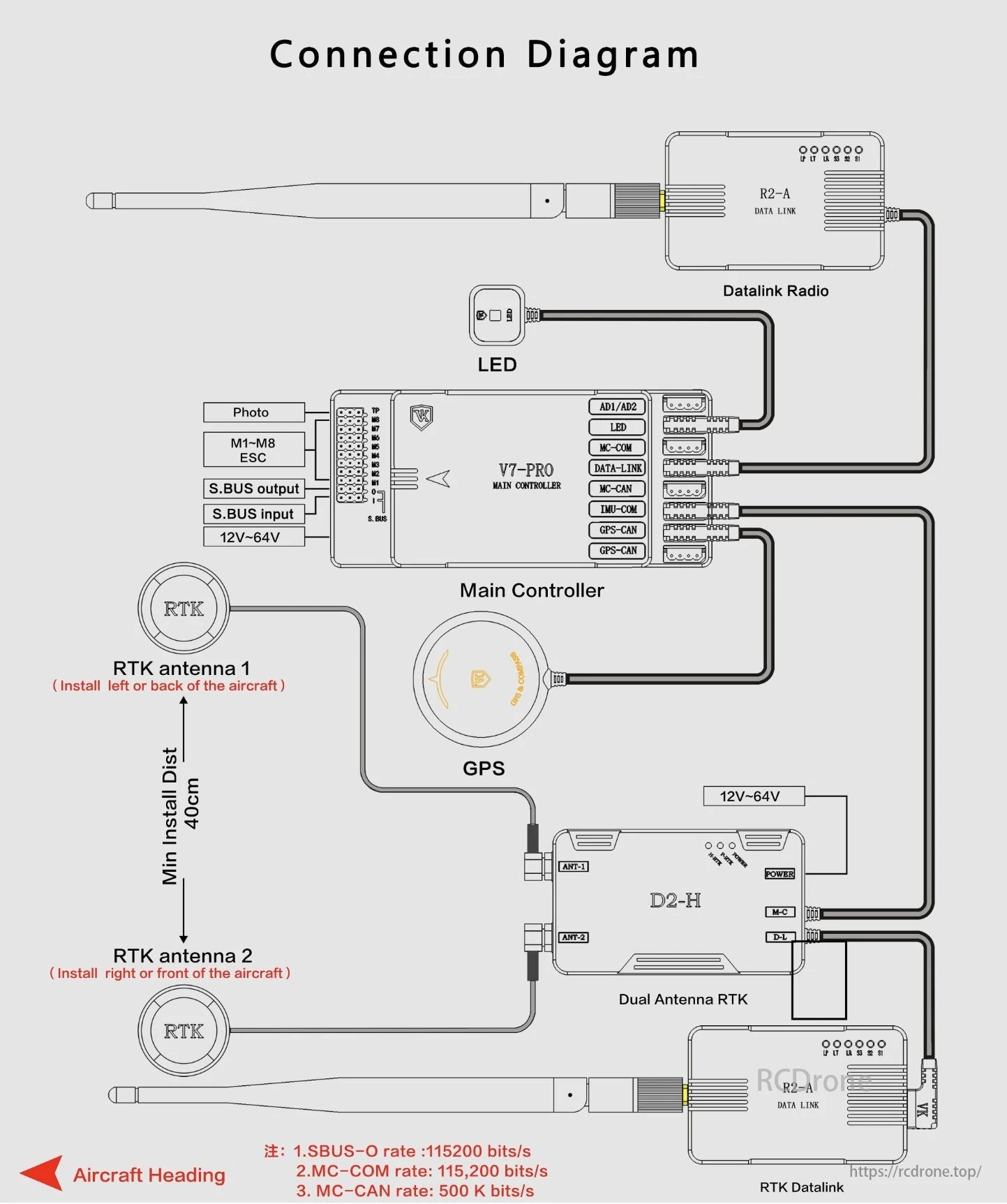

Connection diagram for VK V7-PRO UAV flight controller. Includes main controller, RTK antennas, GPS, datalink radio, and LED connections. Specifies S.BUS, MC-COM, and MC-CAN rates. Aircraft heading indicated.
