Walksnail Avatar HD Goggles L FPV Combo w/ CADDXFPV GM3 Gimbal + Avatar HD Pro Kit (Dual)

Overview

Walksnail Avatar HD Goggles L with GM3 and Pro Kit (Dual) is an FPV combo built for HD digital video transmission, head tracking, and improved low-light flying. It pairs the single-screen Avatar HD Goggles L with the CADDXFPV GM3 3-axis gimbal for real-time head movement synchronization, plus the Walksnail Avatar HD Pro Kit (Dual) for stable signal performance and onboard HD recording.

Key Features

• Single-screen HD goggles with head tracking: 4.5-inch HD display; supports 1080P/60FPS for viewing.
• Low-latency video encoding: H.265; supports 1080P/60FPS and 720P/120FPS modes.
• GM3 3-axis head tracking gimbal: Pitch ±120°, Roll ±60°, Yaw ±160°; designed to capture head movement and synchronize viewing angle.
• Pro Kit low-light camera: 1/1.8-inch Sony Starvis II sensor for dim environments.
• Dual-antenna design: Enhances signal stability and resistance to interference.
• Wide voltage input + onboard storage: 6V–25.2V input and 32GB built-in storage; supports 1080P HD recording.
• Stabilization benefit: GM3 mechanical stabilization helps reduce camera shake for a stabilized view.
• Control options: Configure gimbal modes and sensitivity via Avatar goggles menu or PWM controls.
• Convenient assembly support: 3D printing files provided for a base and antenna bracket (no physical printed parts included).

Specifications

Applications

• HD FPV flying with head tracking
• Low-light and night flying
• FPV builds needing stabilized camera perspective via a 3-axis gimbal

Notes

• 3D printing files are provided for the base and antenna bracket; no physical 3D printed items are included.
• For compatibility and setup questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Installation Tutorial Guide

Details

Head tracking support pairs naturally with a 3-axis gimbal to match camera direction to your head movement.

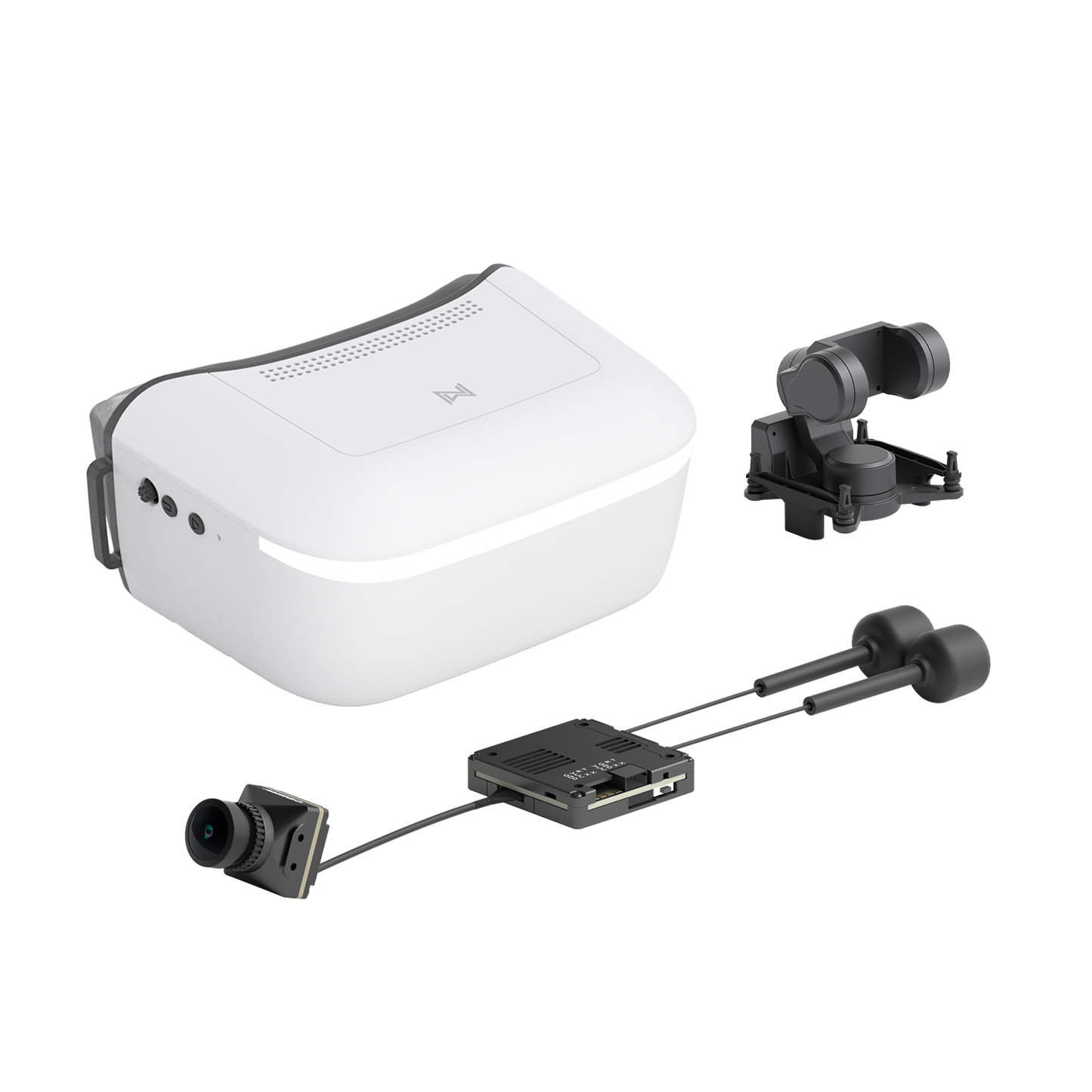

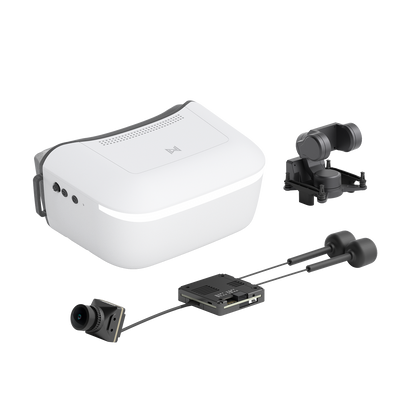

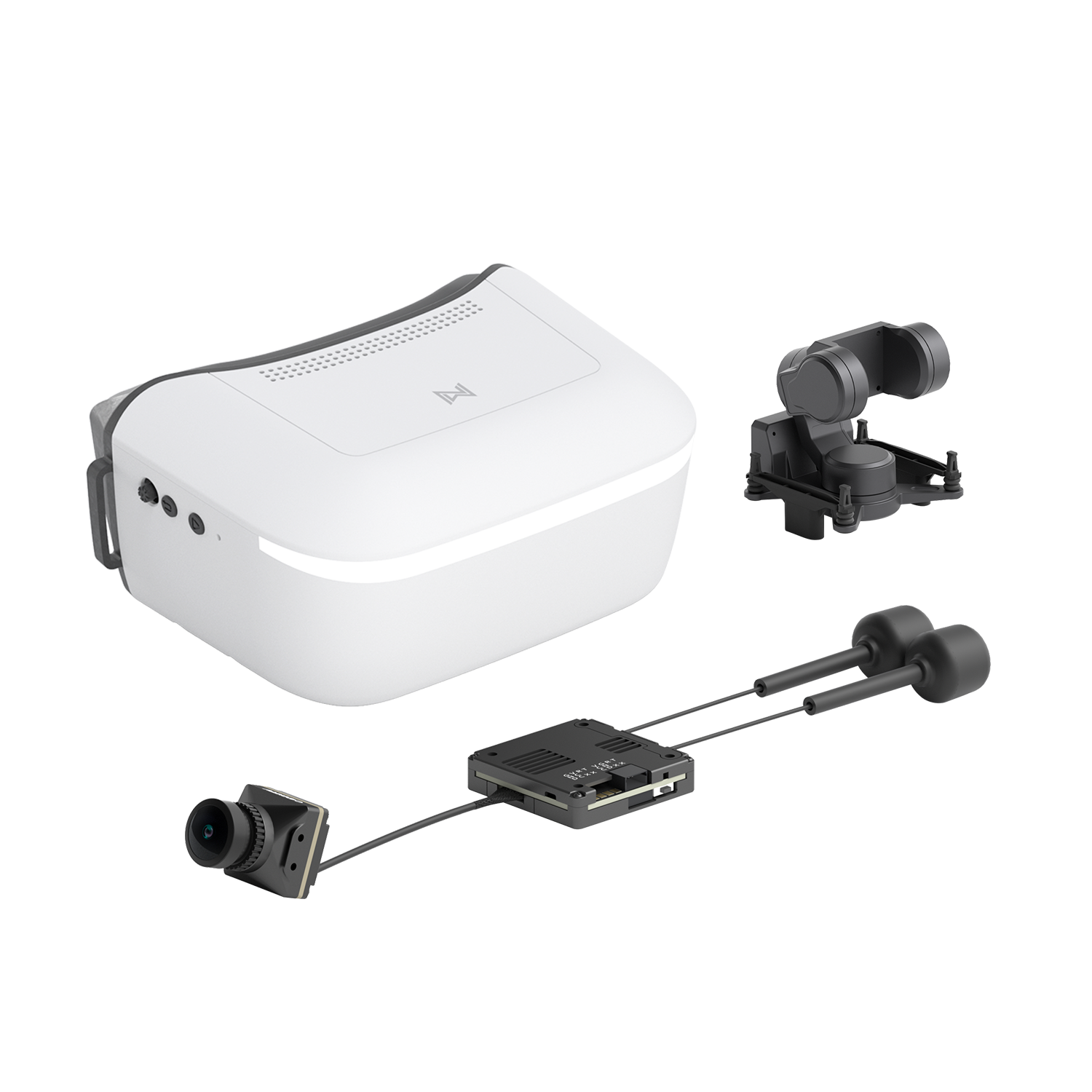

The combo includes the GM3 gimbal, Avatar HD Pro camera and HD digital transmission hardware for a complete build.

Wide gimbal travel helps keep the view responsive for scanning and looking around during flight.

The Pro camera is tuned for darker conditions, helping retain detail where typical FPV cameras fade out.

A dual-antenna layout is designed to improve link stability in challenging RF environments.

Mechanical stabilization reduces shake for a smoother, more readable HD feed.

Head-tracked viewing works across platforms, from drones to fixed-wing builds using a gimbal-mounted camera.
