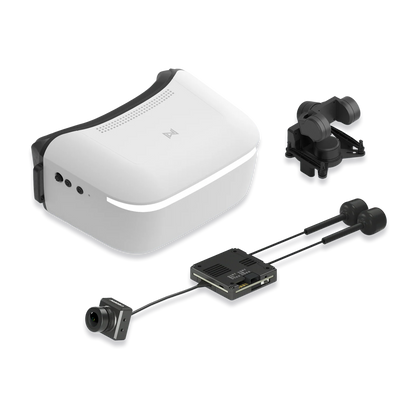

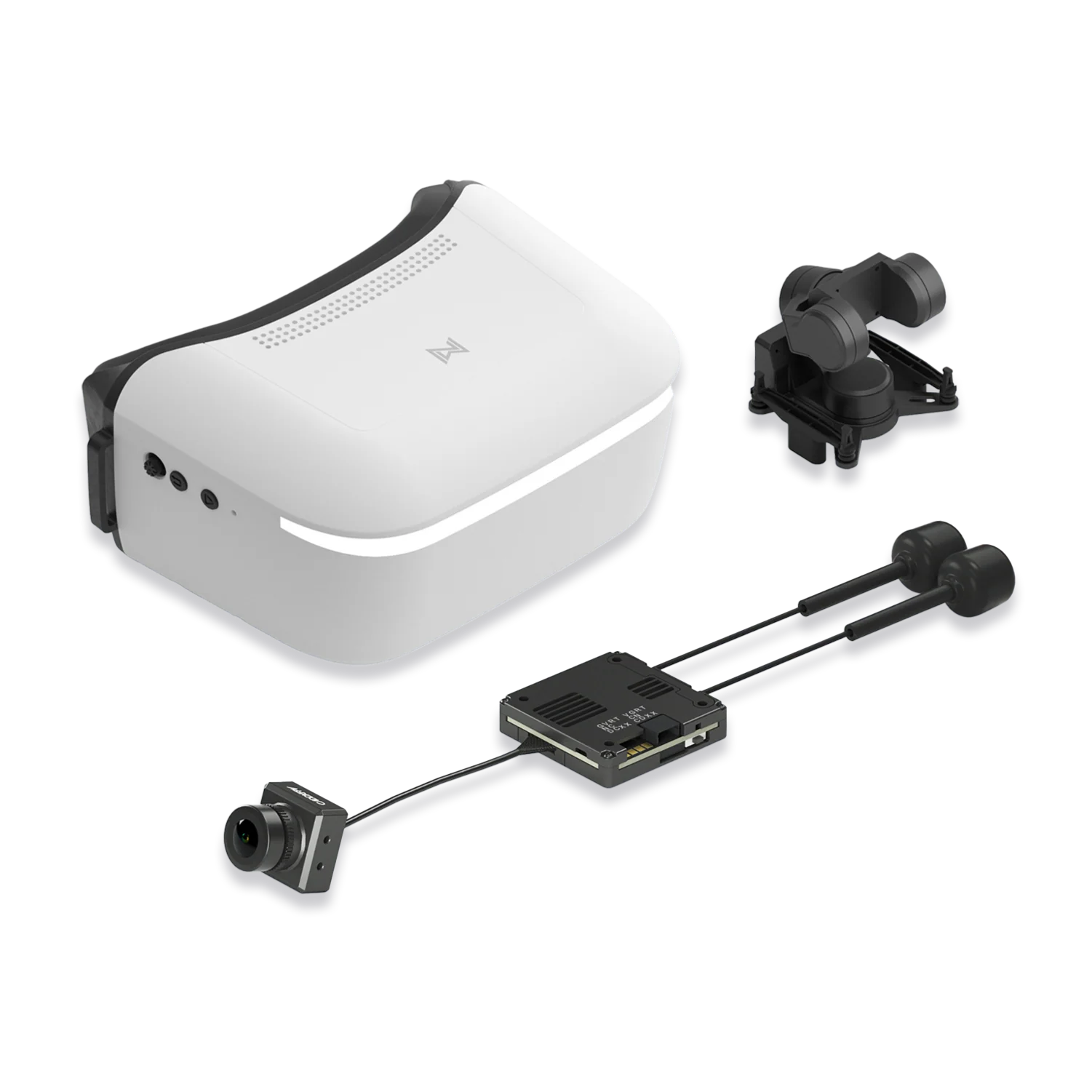

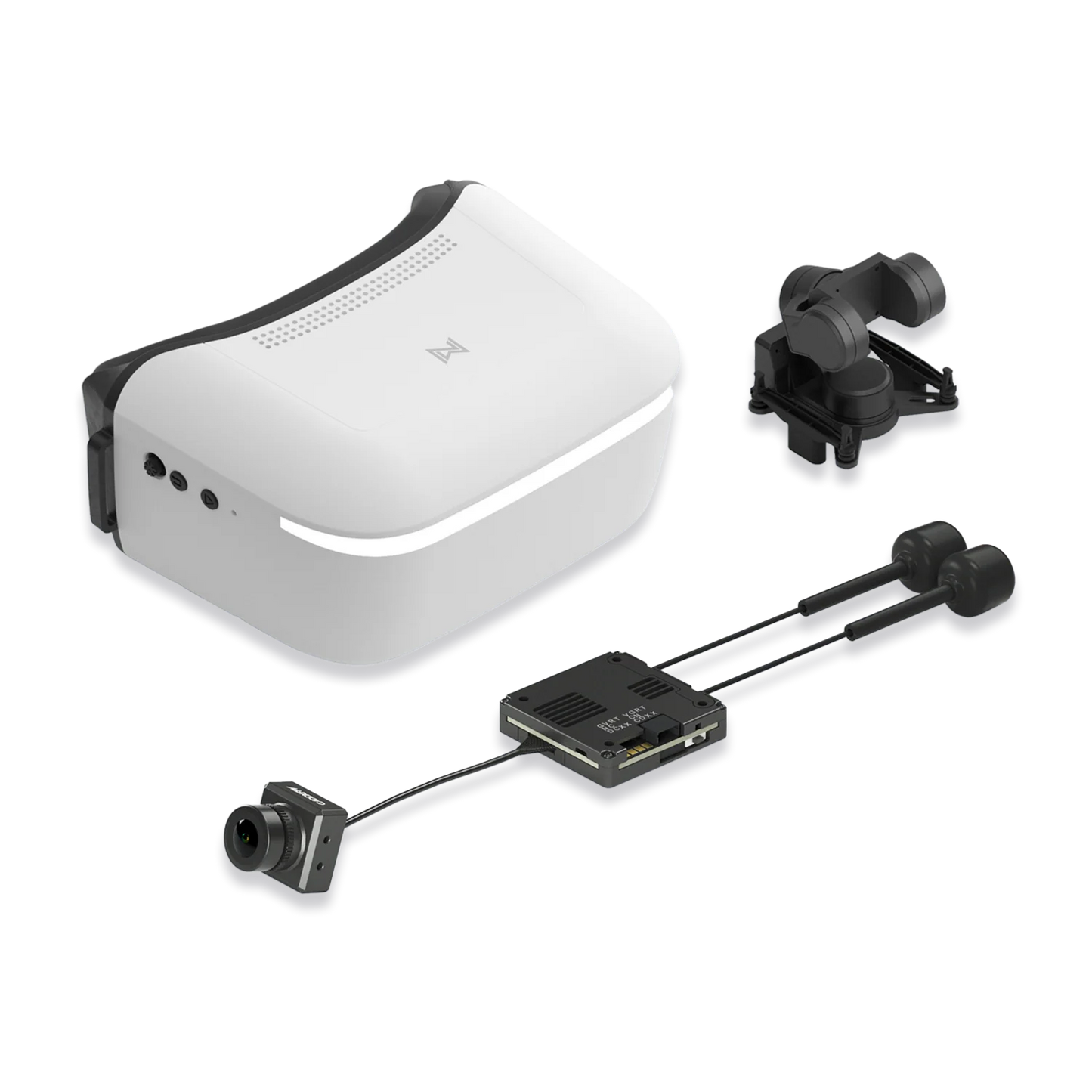

Walksnail Avatar HD Goggles L FPV Combo with GM3 Gimbal & Avatar HD Kit V2 Dual Antennas

Overview

Walksnail Avatar HD Goggles L with GM3 and Kit V2 (Dual) is an FPV goggles combo that pairs a single-screen HD headset (with head tracking) with the Avatar HD Kit V2 digital video system and a GM3 gimbal for head-tracked pan/tilt control. It supports 1080P FPV video, native 4:3 detail, and long-range transmission up to 4km.

Key Features

• Head tracking system: In-house full-stack image transmission head tracking system with an integrated nine-axis gyro module to capture head movement; works with a gimbal to control camera pan/tilt.
• HD video transmission: H.265 encoding with 1080P/60FPS FPV video quality.
• Goggles display: 4.5-inch HD display with 1920 x 1080 imaging and a new optical design for distortion-free viewing.
• Recording: Built-in Micro SD card slot for one-touch recording.
• PPM output: Supports PPM signal output to radio controllers via the Goggles L 3.5mm headphone TX connector (then outputs to the drone).
• Antenna & range: High-performance directional antenna with gain up to 4.9 dBi; stable transmission for longer flight distances.
• Power input: Goggles support 2-6S voltage input; Kit V2 supports 6V-25.2V.
• Comfort & fit: Premium polyurethane foam face mask to reduce light leakage; detachable lens design supports nearsighted, farsighted, or blue light-blocking lenses.
• Light bar: Front cover includes a light-up feature.
• Avatar HD Kit V2 (Dual): Dual antennas, Compatible 4K, 1080P/120fps compatibility, 22ms low latency, Ranging Mode, 4km range, light weight design, FOV 160°, built-in 32G storage, Support Gyroflow, and the only native 4:3 high-definition sensor in the FPV industry.
• GM3 gimbal: Head Tracking Functionality, Exceptional Stability, Quick Assembly, Compatibility, and Flexibility; uses mechanical stabilization to reduce camera shake.

Specifications

What’s Included

• Goggles L x 1
• Kit V2 (Dual) x 1
• GM3 x 1

Applications

• HD FPV flight with long-range digital video transmission (up to 4km)
• Head-tracked FPV setups using a compatible gimbal for pan/tilt control
• Onboard recording and Gyroflow-supported workflows (Kit V2 built-in 32G storage)

For setup questions and compatibility checks, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

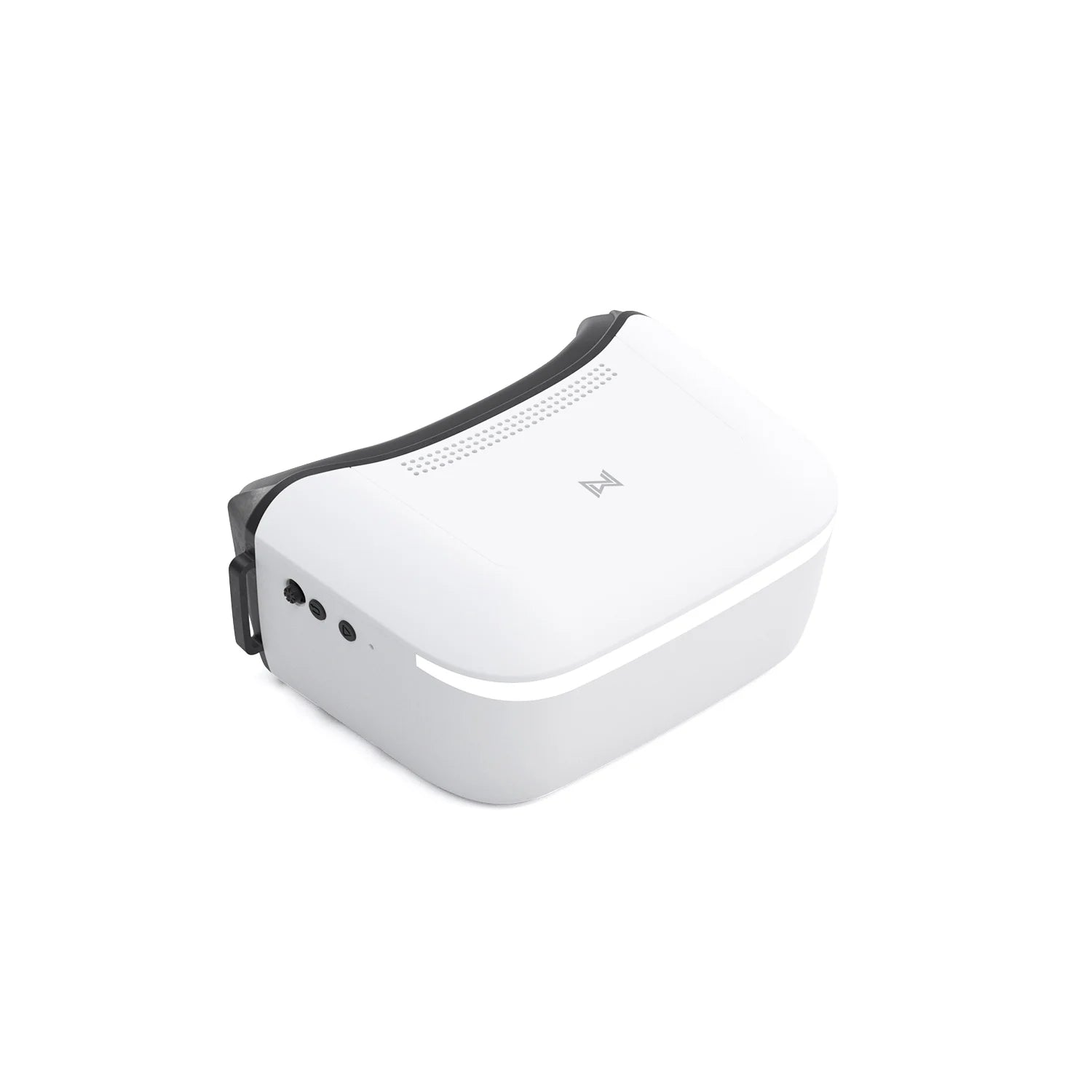

Walksnail Avatar HD Goggle (Goggles L) pairs a 4.5-inch 1080P display with built-in head tracking for immersive FPV flying.

Integrated head tracking can drive a compatible gimbal for natural pan/tilt camera control.

Long-range transmission is designed for open-area flights where stable HD video matters most.

Multiple connectivity options support recording, power input, and controller signal output where supported.

The contoured face interface helps block stray light for clearer viewing outdoors.

A built-in Micro SD card slot enables quick onboard recording without extra gear.

A nine-axis gyro module tracks head movement smoothly for responsive camera control.

Detachable lens support makes it easier to use nearsighted, farsighted, or blue-light lenses.

The polyurethane foam face mask is designed for comfort and a more secure seal.

Avatar HD Kit V2 (Dual) includes the camera and video transmitter for H.265 digital HD video transmission.
