Specification

Camera

• Model: Avatar nano/Avatar camera

• Image Sensor: 1/2.7"1nch

• Resolution: 1080P/60fps,720P/120fps,720P/60fps

• Ratio: 16/9 4/3

• Lens: 2.1mm

• FOV: 170°

• Aperture: F2.0

• Shutter: Rolling shutter

• Min.Illumination: 0.001Lux

• Weight: 3.5g/6g

• Dimensions: 14*14*17mm/19*19*22mm

• Coaxial Cable: 90mm/140mm

VTX

• Model: Avatar module

• Communication Frequency: 5.725-5.850GHz

• Transmitter Power (EIRP): FCC:<30dBm; CE:<14dBm; SRRC:<20dBm;

• MIC:<25dBm

• 1/O Interface: JST1.0*6(Power in)JST1.0*4(USB)

• Mounting Holes: 25.5*25.5mm

• Dimensions: 33*33*9.5mm

• Storage: 8G

• Recording: 1080p/720p

• Weight: 16g

• Operating Temperature: -20-40℃

• Channels: 8

• Wide Power Input: 6V-25.2V

• Supported FC System: Betaflight

• OSD: Canvas mode

• Latency: Average delay 22ms

• Antenna: 2(IPEX)

Goggles Antenna

Model: Red bird
Polarization: LHCP
Bandwidth: 5.6GHz-6.0GHZ
Average Gain: 1.9dBi
Radiation Efficiency: ≥97%
VSWR: ≤1.3
Cross-Polar Rejection: -15to-30dB
Connector: RP-SMA
Dimension: H24.8mm*R15.3mm
Weight: 4.2g

Avatar HD VRX

Model: Avatar HD VRX
Communication Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC:<30dBm;CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
I/OInterface: HDMI, microSDcardslot, DC5.5*2.1mm
HDMI Output: 1080p60fps, 720p100fps, 720p60fps
Power Input: 7-21V(2S-5S)
SD Card: Support 256G
System: Avatar HD system

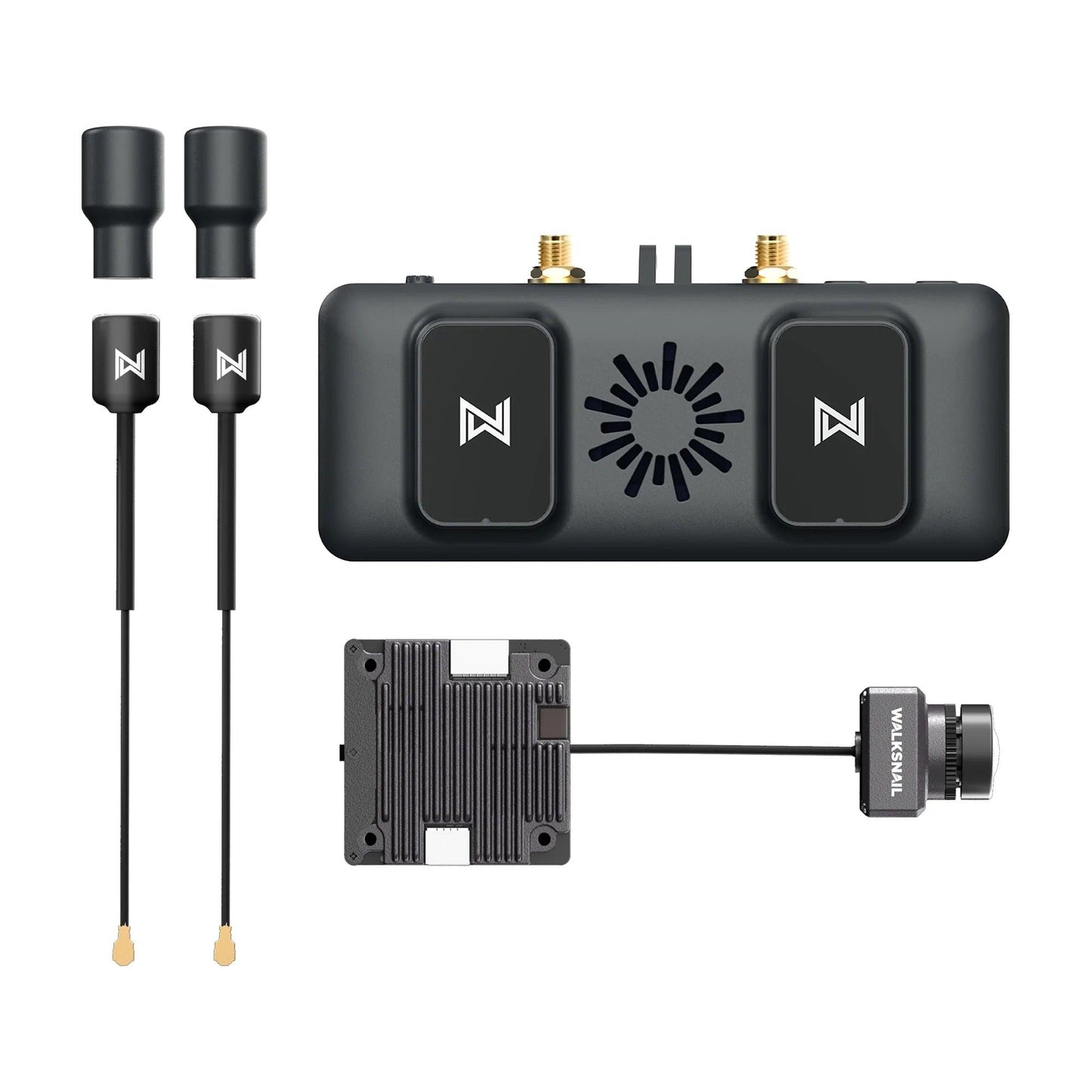

Packing List

Avatar VRX ×1
RedBird Antenna ×2
HDMI Cable ×1
2in1 direct current Power Cable ×1
Avatar HD KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4/5mm Screws X4
M1.2×1.5mm Screws X2

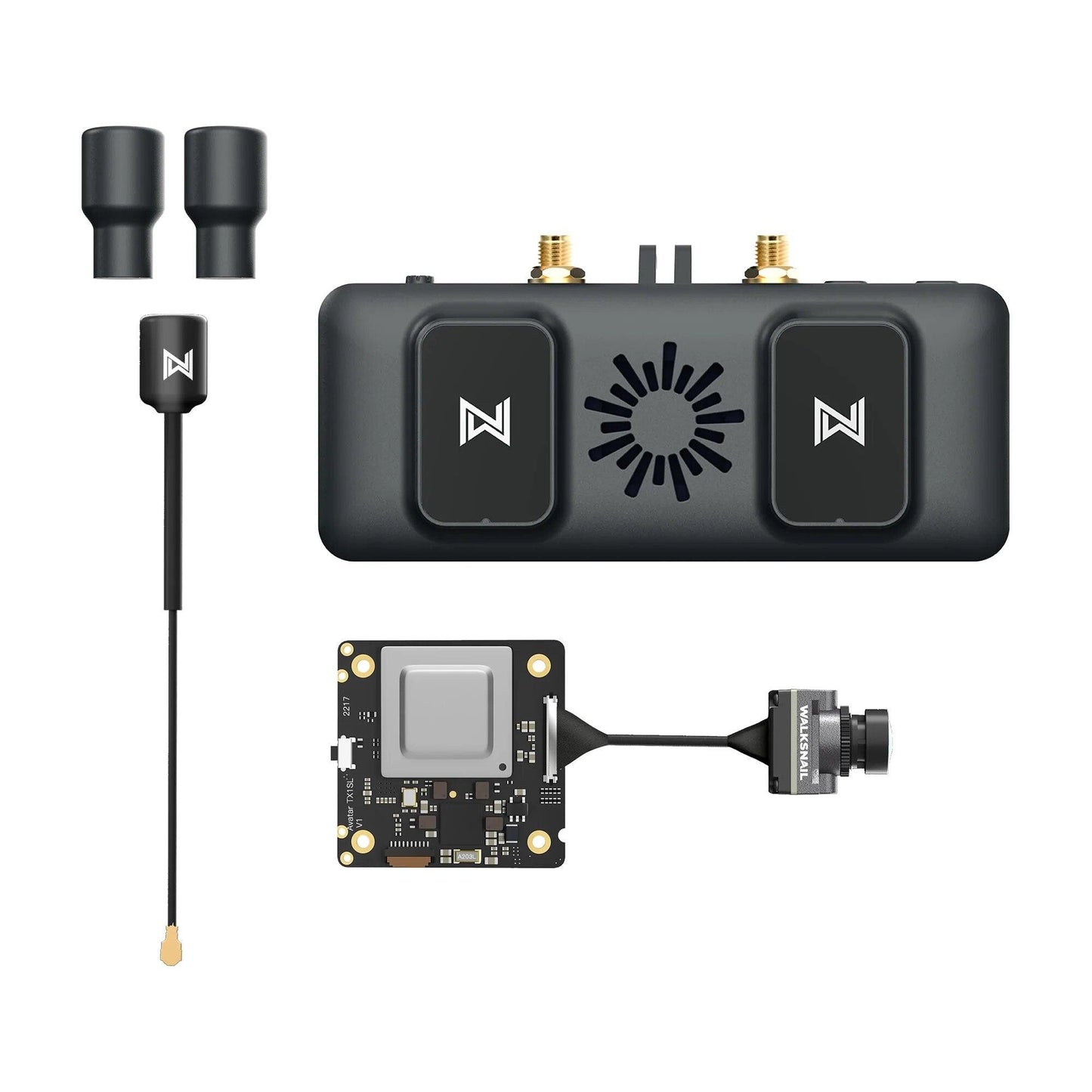

Avatar HD Nano KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4/5mm Screws X2
M1.2×1.5mm Screws X2
14-19mm Bracket X1
Avatar Mini 1S KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4mm Screws X2
M2x16mm Screws X4
M2 Screw nut X4
2.1×3.4x1mm Gasket X5

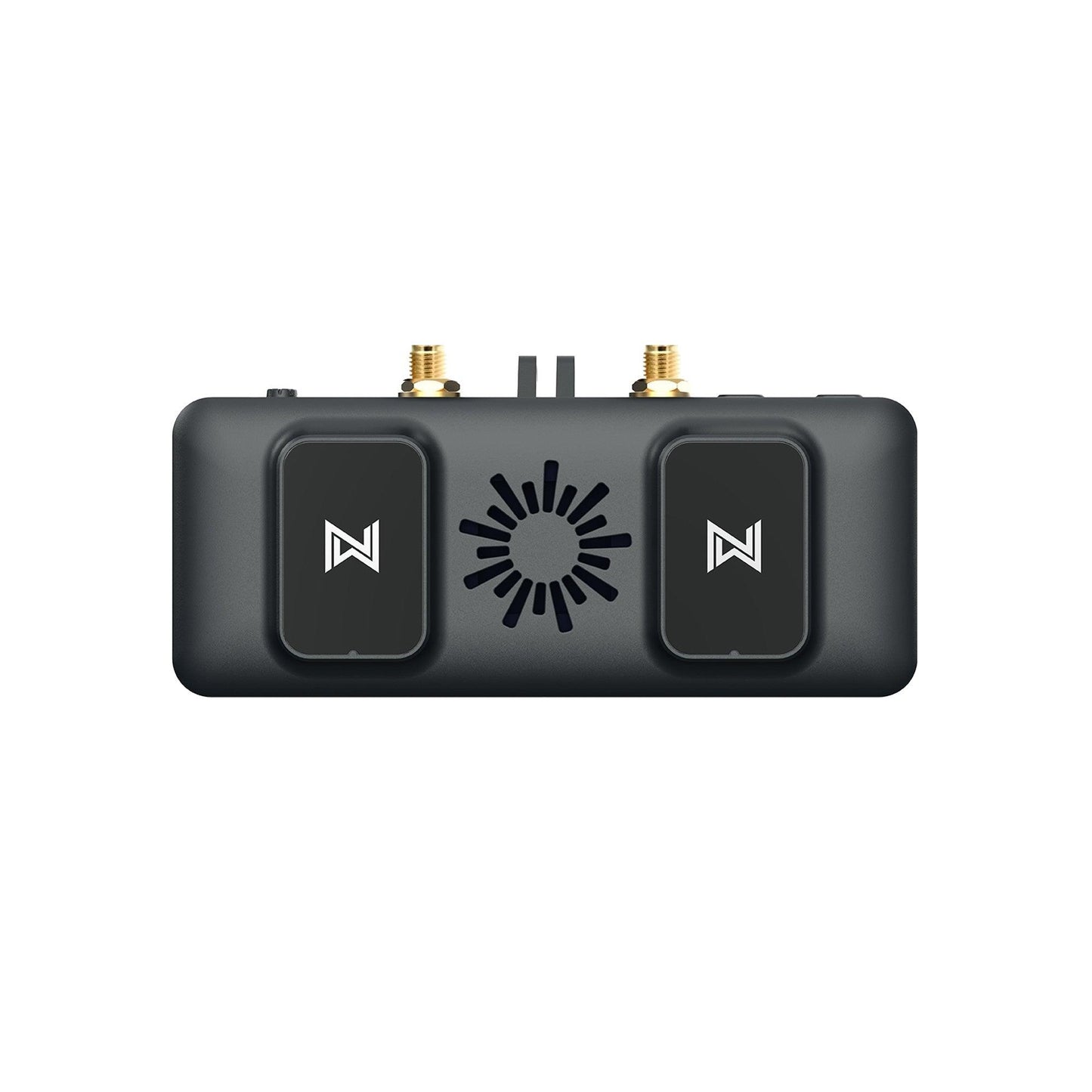

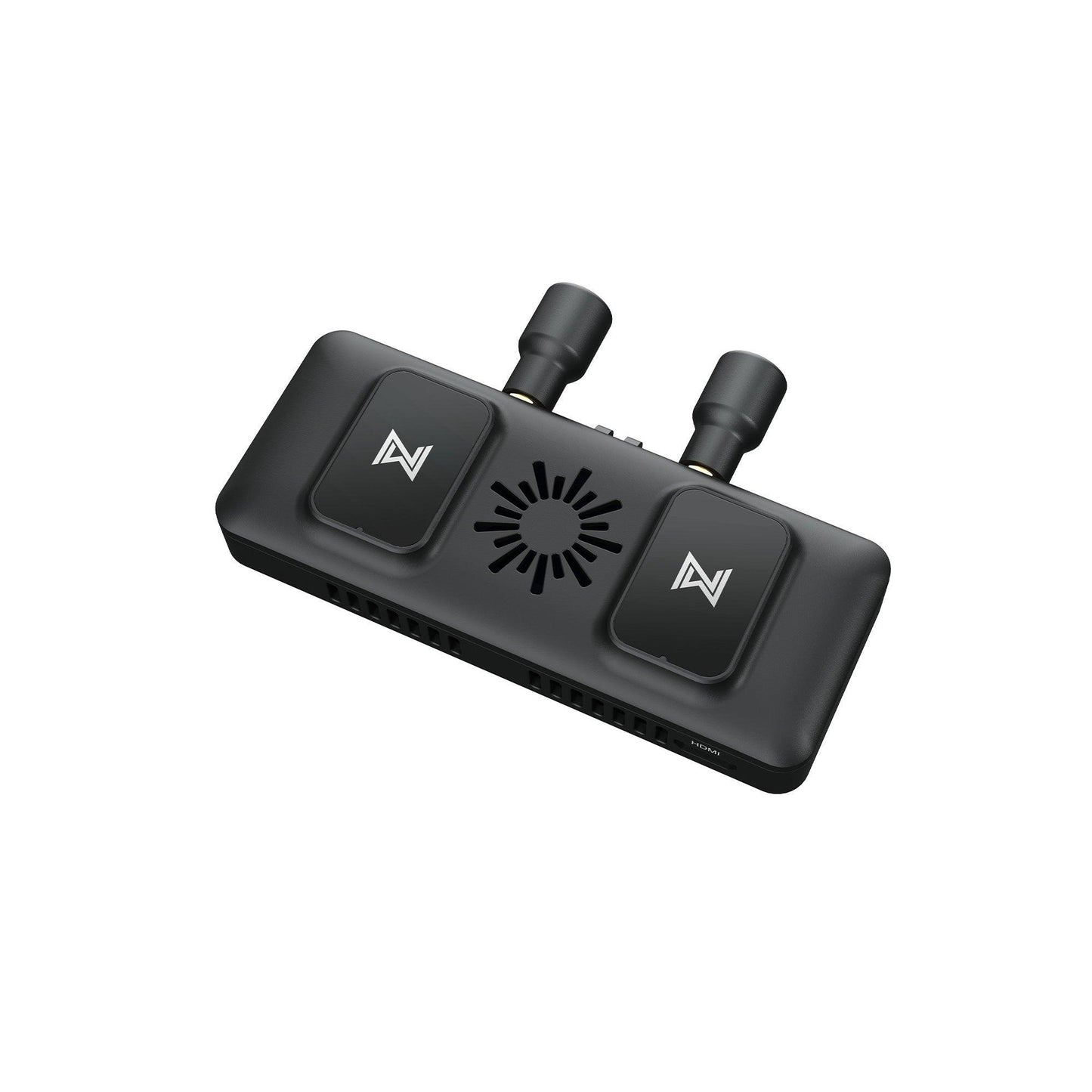

Lightweight design, ultra-thin experience

Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry.

Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km

1080P/60FPS
Walksnail VRX adopts industry-leading H.265 encoding technology,
which can provide a minimum delay of 22ms and a maximum resolution of 1080p.
The HD picture quality takes you to experience the fun of flying a drone.

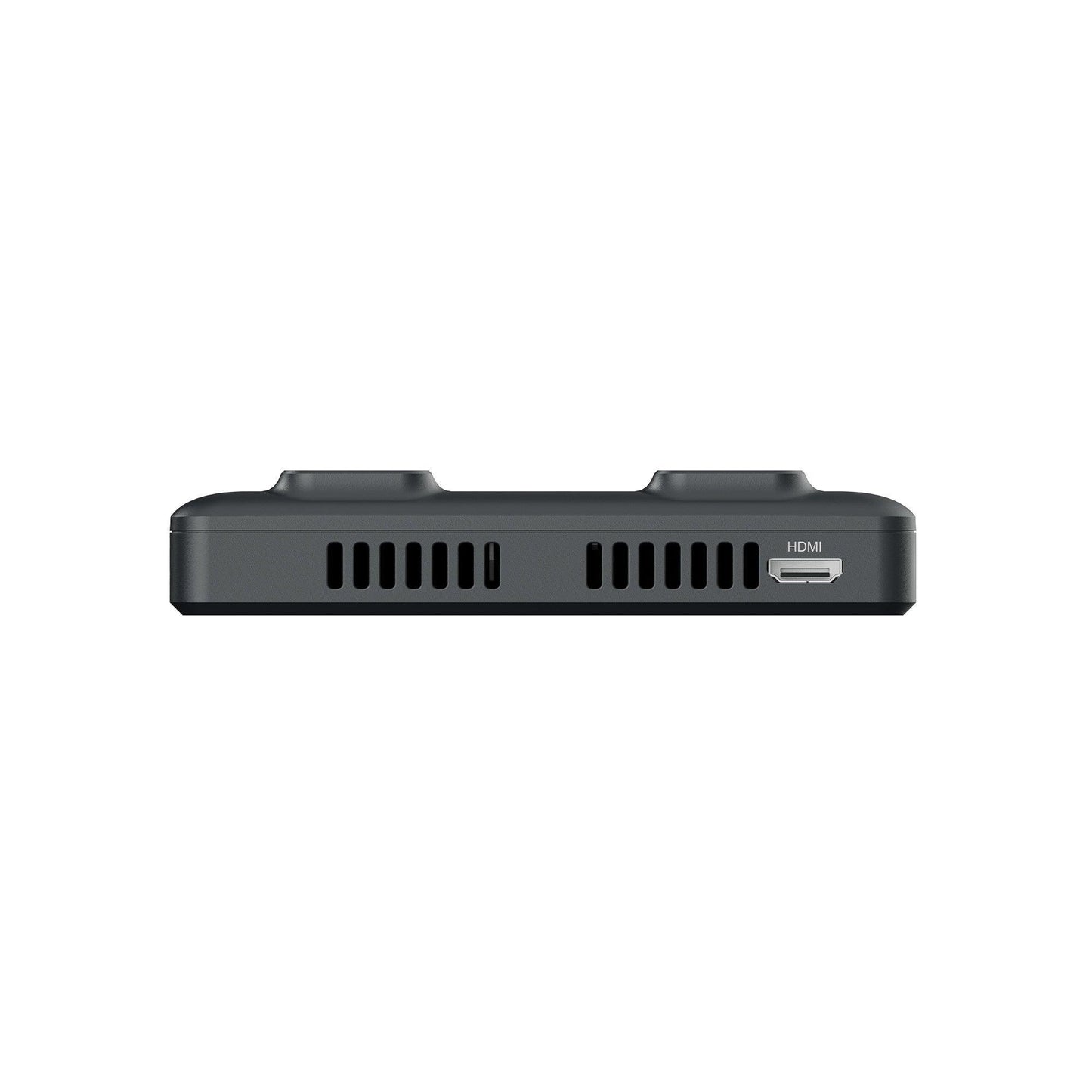

HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system

Canvas Mode
Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display
you can easily adjust the parameters you want by remote control.

Canvas Mode 123G 5.96 PROFILE-= PID PROF PID MISC PP RATE PROF RATE FILT GLB COPY .
