WFLY RC RG209S RG206S Receiver SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Receivers
Recommend Age: 12+y,14+y
RC Parts & Accs: Receivers
Quantity: 1 pcs
Origin: Mainland China
Model Number: RG209S/RG206S
Material: Polyester
For Vehicle Type: Cars
Brand Name: Wfly

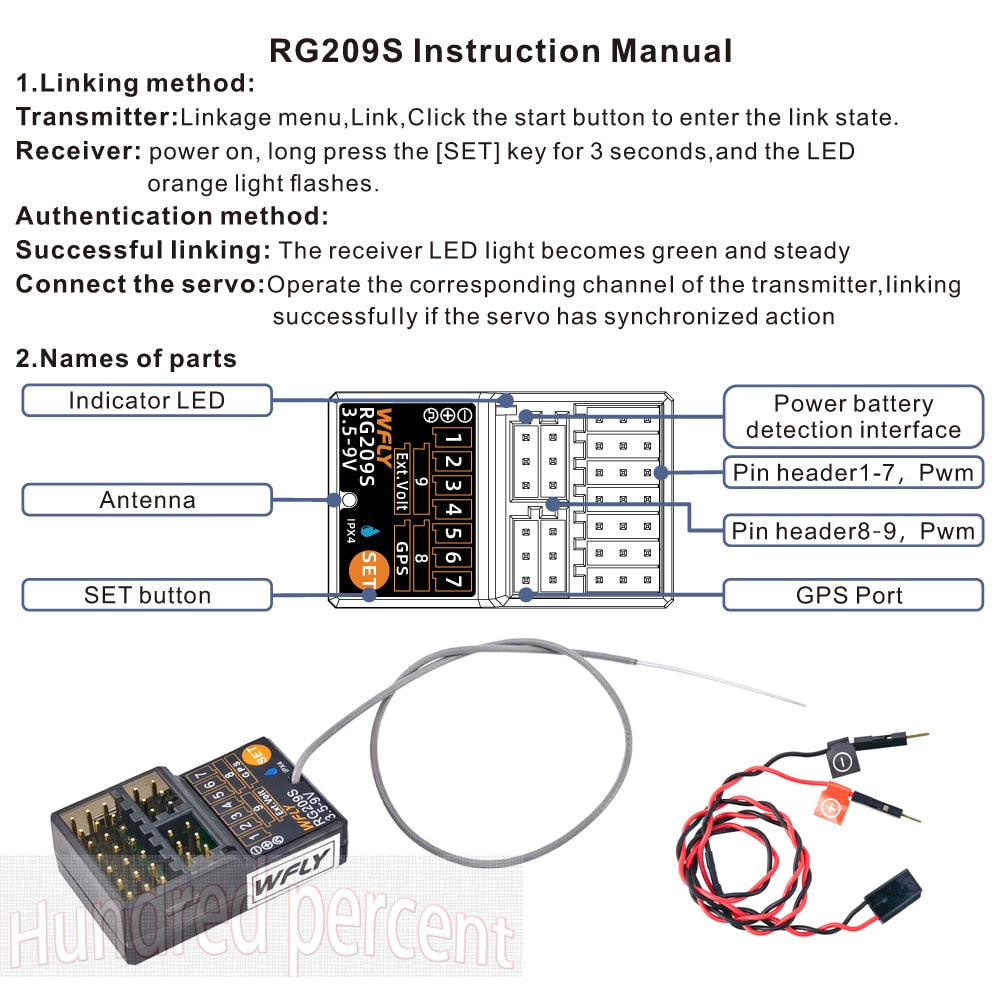

RG2O6S Instruction Manual explains how to link a transmitter to a servo . the [SET] button is pressed for 3 seconds, the orange LED flashes .
![3. Receiver RGB LED status: Color Status Function Green ON Link successfully Blue Flash Wireless upgrading mode](https://rcdrone.top/cdn/shop/files/S2e95129ec0ba4ef1874de5017f84d04c8.webp?v=1714801053)
Receiver Features: RGB LED Status Indicators: * Green: Link established successfully * Blue Flash: Wireless upgrading mode active (no signal) * Red Flash: Low voltage warning (3.7V or lower) * Orange Flash: Low link quality alert Parameters: * Resolution: 4096 * Model Name: RC206S * PWM Channels: 6 * Frequency Band: 2.4GHz * Pulse Position Modulation (PPM) Support: Yes * Working Voltage: 3.5V-9V * W-BUS Support: Yes * S-Bus Support: Yes * Working Current: 95mA * Two-Way Transmission: Supported Applications: * Remote Control Cars * Boats * Tanks * And more
![Resolution: Full channel 4096 Temperature:-10°C-+60°C External voltage](https://rcdrone.top/cdn/shop/files/Seb15149207e34fc595d61b19d42c622cK.webp?v=1714801068)
![Instruction Manual for RG2O9S Servo .](https://rcdrone.top/cdn/shop/files/S0700487bbf0c412caa8312ca06ffd319Q.webp?v=1714801081)
![3.Receiver RGB LED status Color Status Function Green ON Link successfully Biue Fi](https://rcdrone.top/cdn/shop/files/S08f3e8bfc29a403f860f5088e7992002j.webp?v=1714801097)

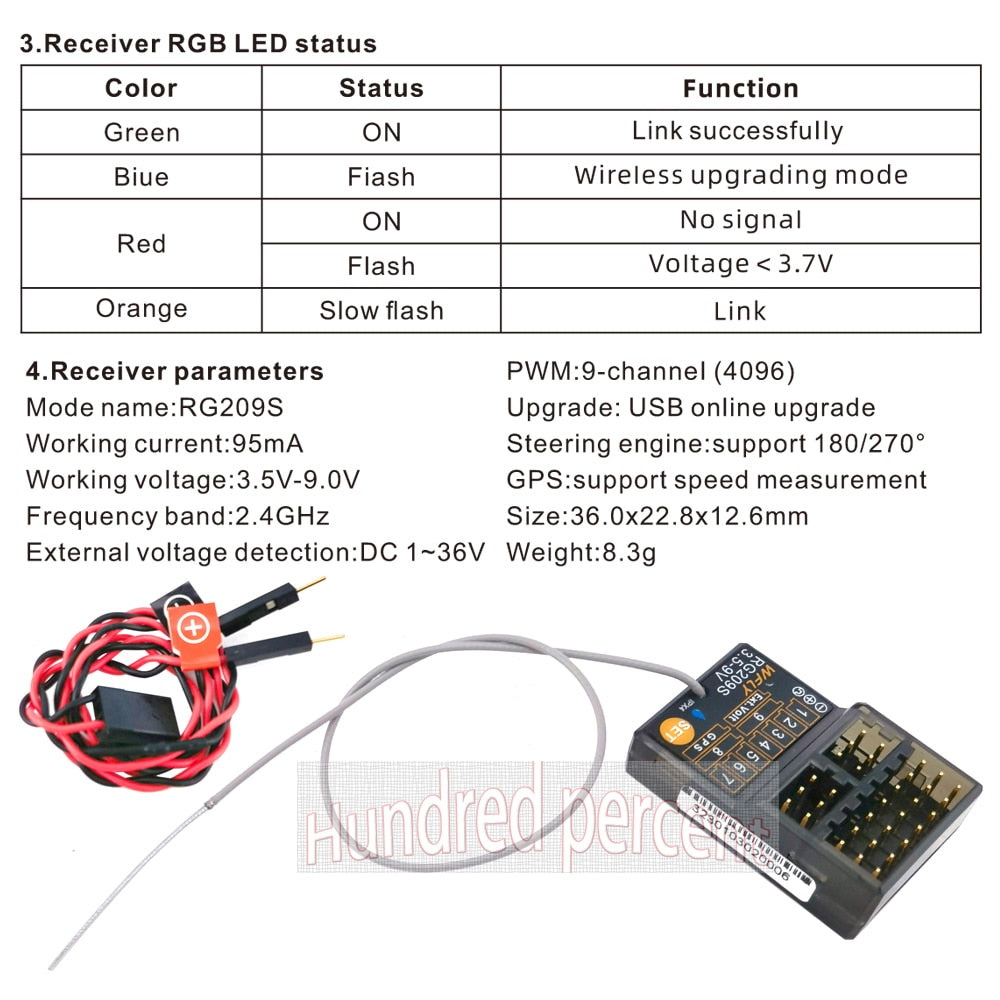

3.Receiver RGB LED status Color Status Function Green ON Link successfully Biue Fiash Wireless upgrading mode ON No signal Red Flash Voltage 3.7V Orange Slow flash Link 4.Received parameters PWM:9-channel (4096) Mode name:RG2O9S Upgrade: USB online upgrade Working current:95mA Steering engine:support 180/270 Working voltage:3.5V-9.0V GPS:support speed measurement Frequency band:2.4GHz Size.36.0x22.8x12.6
![RG206S Receiver 1 x voltage inspection wire . RG209S](https://rcdrone.top/cdn/shop/files/S1d524653cb5e4e2db56761221bed0706p.webp?v=1714801108)
Description

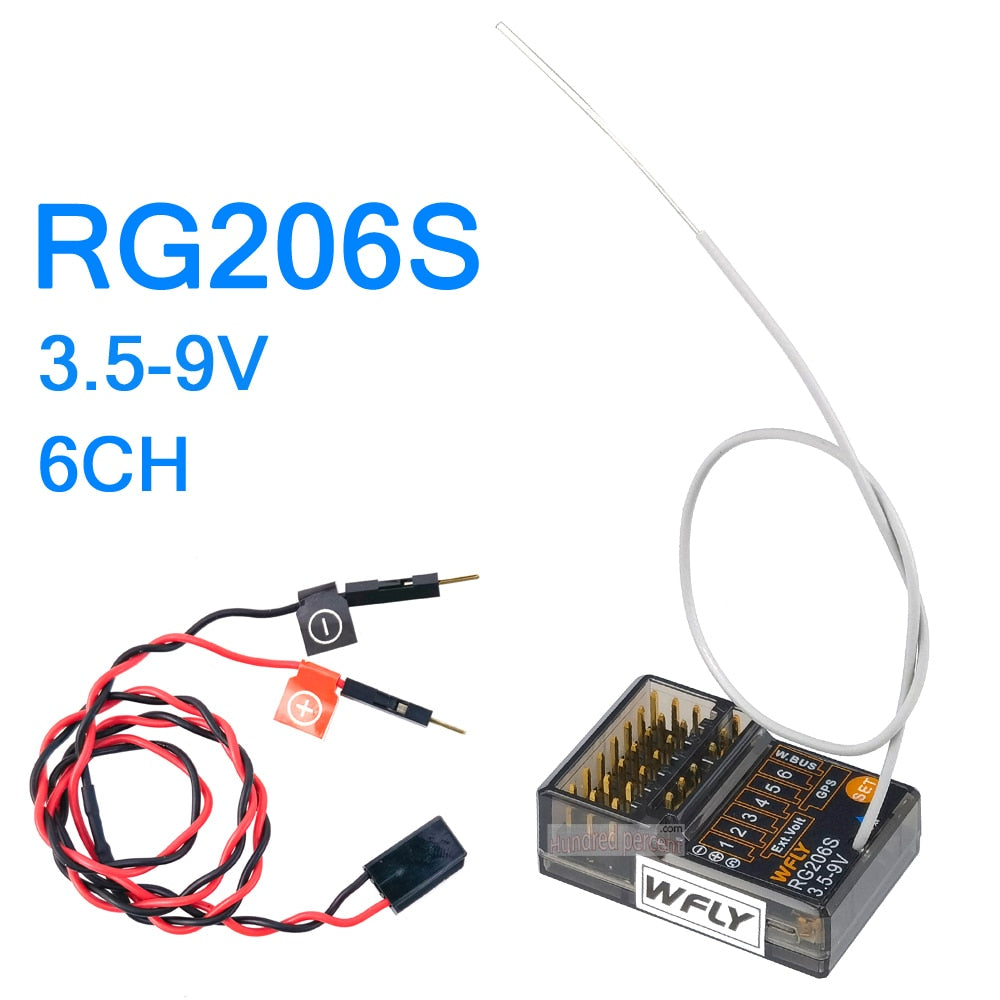

![WFLY RC RG209S RG206S Receiver -Small RX RC 9CH PWM For 6CH X9 Transmitter RC Radio SG01 GPS Module RC Car Boats Tanks Robot](http://rcdrone.top/cdn/shop/files/S35461ad93b3e435c87cf204c9d5a68a1o.jpg?v=1689427793&width=1445)
![WFLY RC RG209S RG206S Receiver -Small RX RC 9CH PWM For 6CH X9 Transmitter RC Radio SG01 GPS Module RC Car Boats Tanks Robot](http://rcdrone.top/cdn/shop/products/S252921adf8a04711a6d34f20f01b4f55y.jpg?v=1711808923&width=1445)

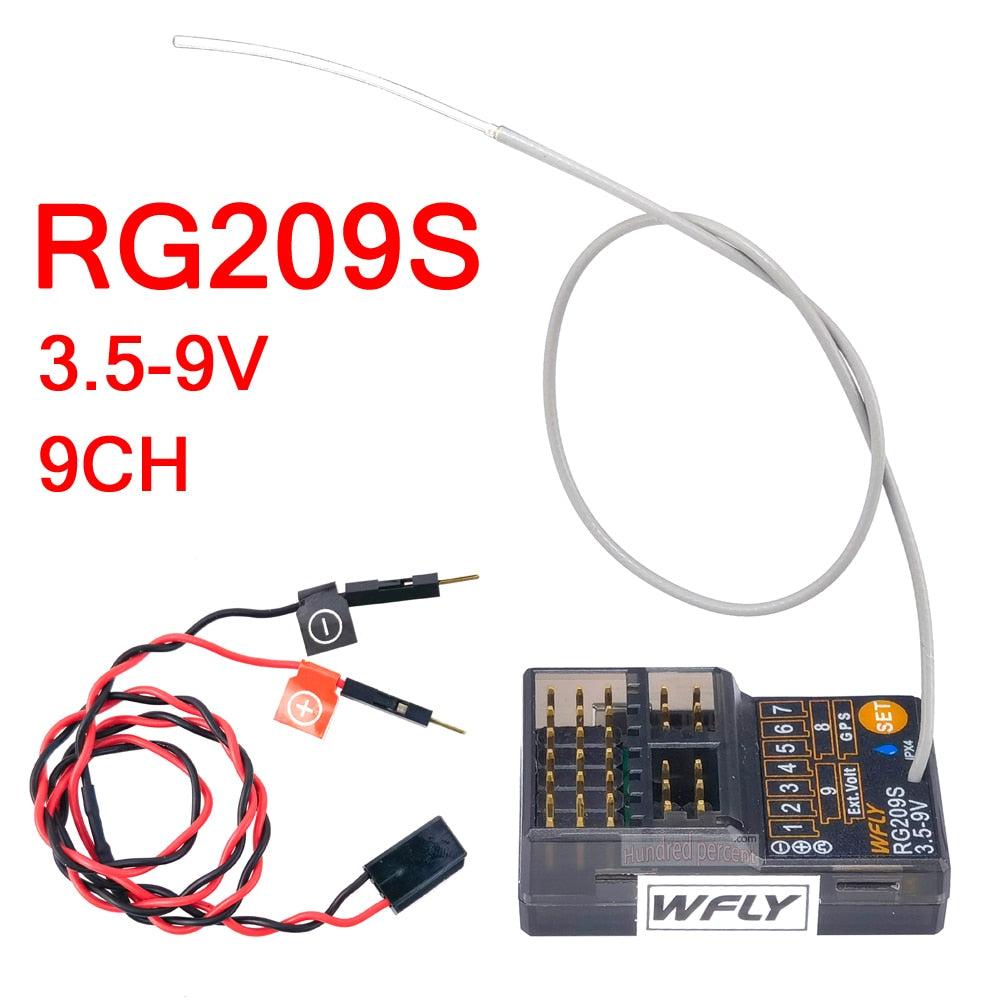

![WFLY RC RG209S RG206S Receiver -Small RX RC 9CH PWM For 6CH X9 Transmitter RC Radio SG01 GPS Module RC Car Boats Tanks Robot](http://rcdrone.top/cdn/shop/files/Seb15149207e34fc595d61b19d42c622cK.jpg?v=1689427787&width=1445)

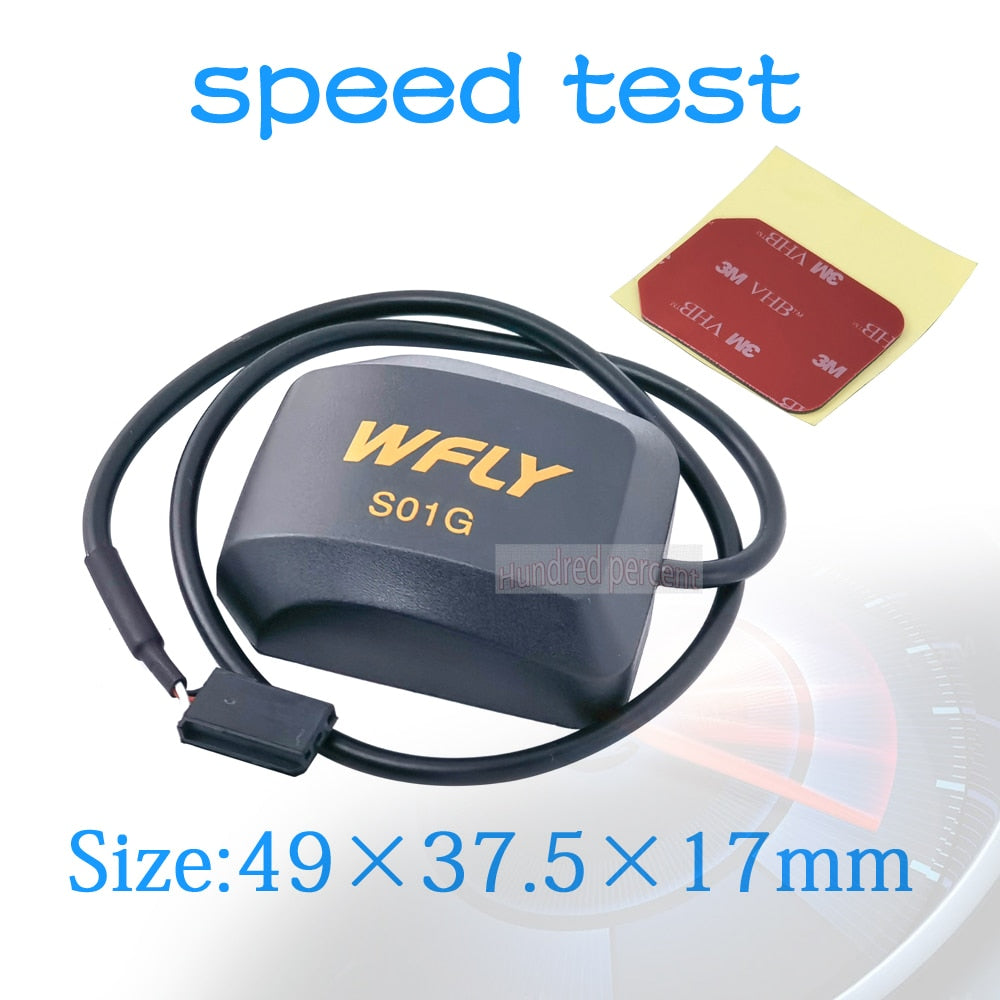

![speed test 4 4 78 4 3 Hundred pera @m Size.49x3](http://rcdrone.top/cdn/shop/files/S6dcb323c837b4ed79ced22694202b1c0i.jpg?v=1689427789&width=1445)
![3.Receiver RGB LED status Color Status Function Green ON Link successfully Biue Fi](http://rcdrone.top/cdn/shop/files/S08f3e8bfc29a403f860f5088e7992002j.jpg?v=1689427795&width=1445)
![RG2O9S Instruction Manual: Linkage menu,Link,Click the start](http://rcdrone.top/cdn/shop/files/S0700487bbf0c412caa8312ca06ffd319Q.jpg?v=1689427797&width=1445)

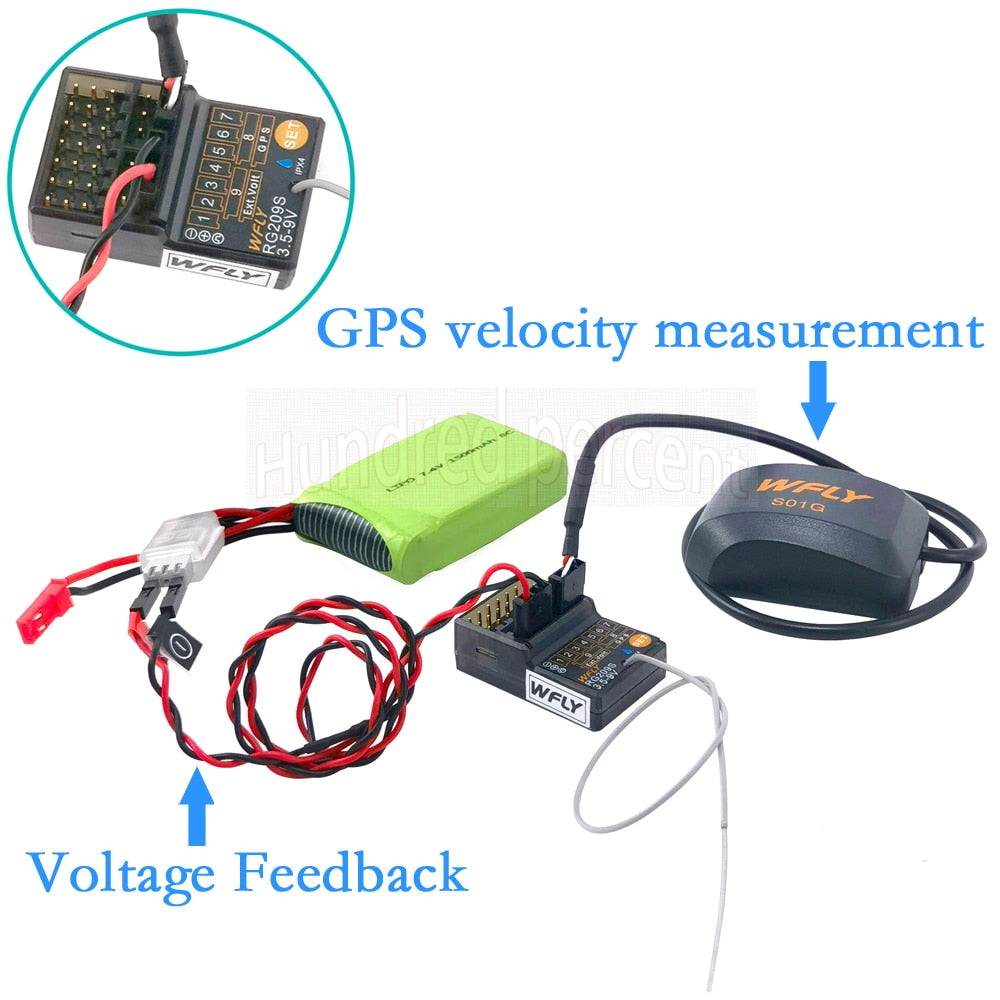

![Oq 0io 0 GPS velocity measurement Voltage Feedback 8 MMFEs](http://rcdrone.top/cdn/shop/files/Sd3c2bd92374a468886faa22c114ded578.jpg?v=1689427800&width=1445)
