WitMotion HWT605 IP67 Inclinometer – 6-Axis Gyro + 3-Axis Accelerometer, RS232/RS485/TTL/CAN, SCA3300, ±16g, 0.05° XY Accuracy

Overview

WitMotion HWT605 is a high-performance, IP67-rated inclinometer that integrates a 3-axis accelerometer and 3-axis gyroscope to output 3-axis angle (pitch/roll/yaw), quaternion, acceleration, angular velocity and timestamp. Built around the SCA3300 precision accelerometer and a 32-bit MCU (84 MHz), it delivers military-grade accuracy with temperature compensation inside an aluminum, shock-proof, anti-corrosion housing. Interfaces include TTL, RS232, RS485, and CAN to fit industrial and embedded applications.

Key Features

• IP67 waterproof & shock-proof sealed design with internal potting and aluminum shell.

• High-precision SCA3300 accelerometer with temperature compensation for stable output across changing environments.

• 32-bit high-speed processor (84 MHz) for fast attitude solving and responsive data streams.

• Rich data outputs: 3-axis acceleration, 3-axis gyro, 3-axis angle, quaternion, and time stamp.

• Multi-interface options: TTL / RS232 / RS485 / CAN (model variant HWT605-TTL shown).

• Wide supply range: 5–36 V for TTL/RS232/RS485; 5–24 V for CAN.

• Durable cabling: standard 1 m cable for easy installation.

Specifications

Mechanical & Environmental

• Rugged aluminum shell for anti-rust/anti-corrosion performance.

• Potting (internal glue) structure reduces temperature interference and enhances water ingress protection (IP67).

Interface Options

• HWT605-TTL: TTL serial.

• Additional variants provide RS232, RS485, or CAN connectivity to match different controllers and PLC/DAQ systems.

Typical Applications

Industrial attitude and tilt monitoring, mobile robotics, AGV/AMR navigation, heavy-equipment leveling, platform stabilization, and condition monitoring in harsh outdoor environments.

Details

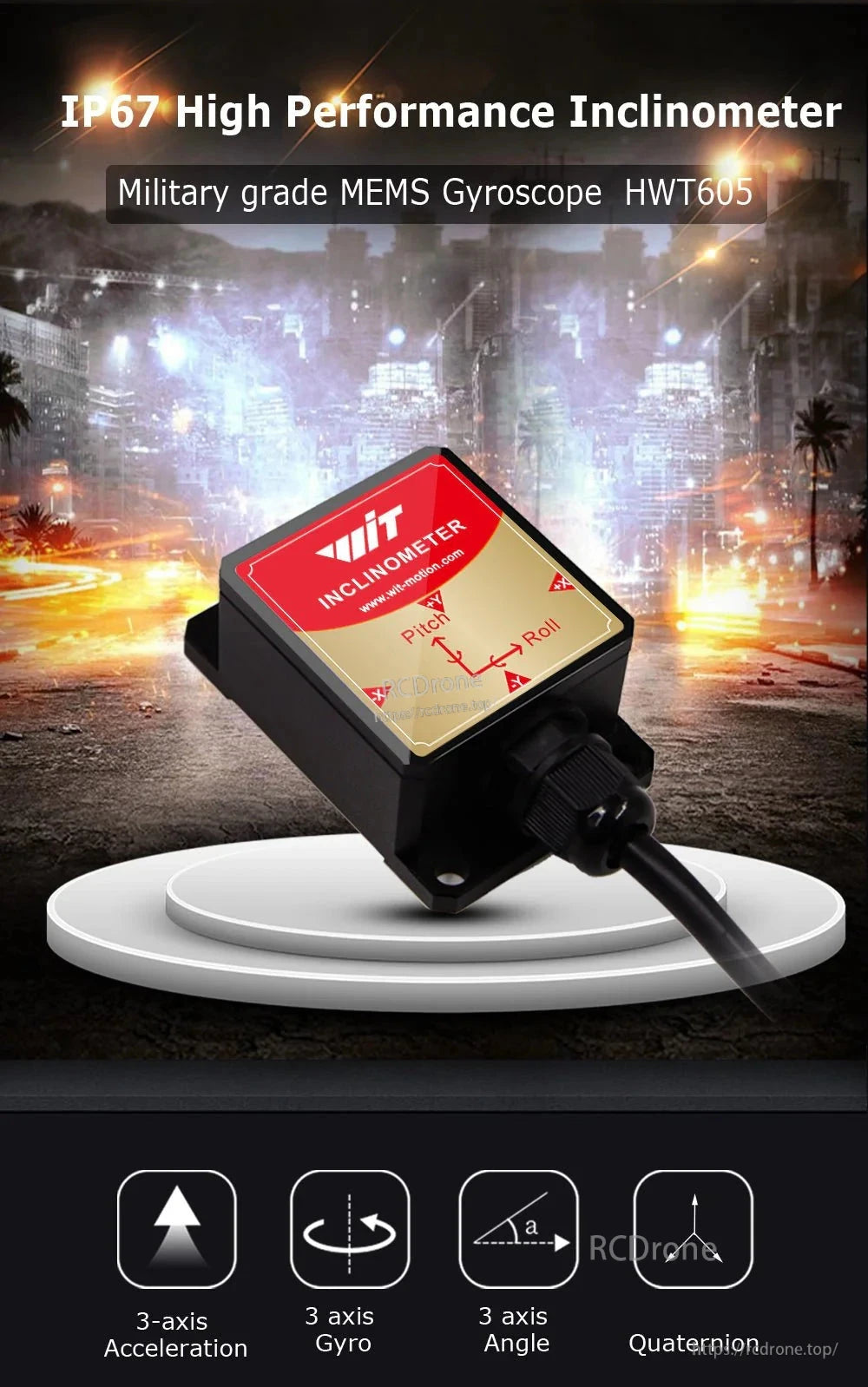

IP67 high-performance inclinometer with military-grade MEMS gyroscope HWT605, featuring 3-axis acceleration, gyro, angle, and quaternion.

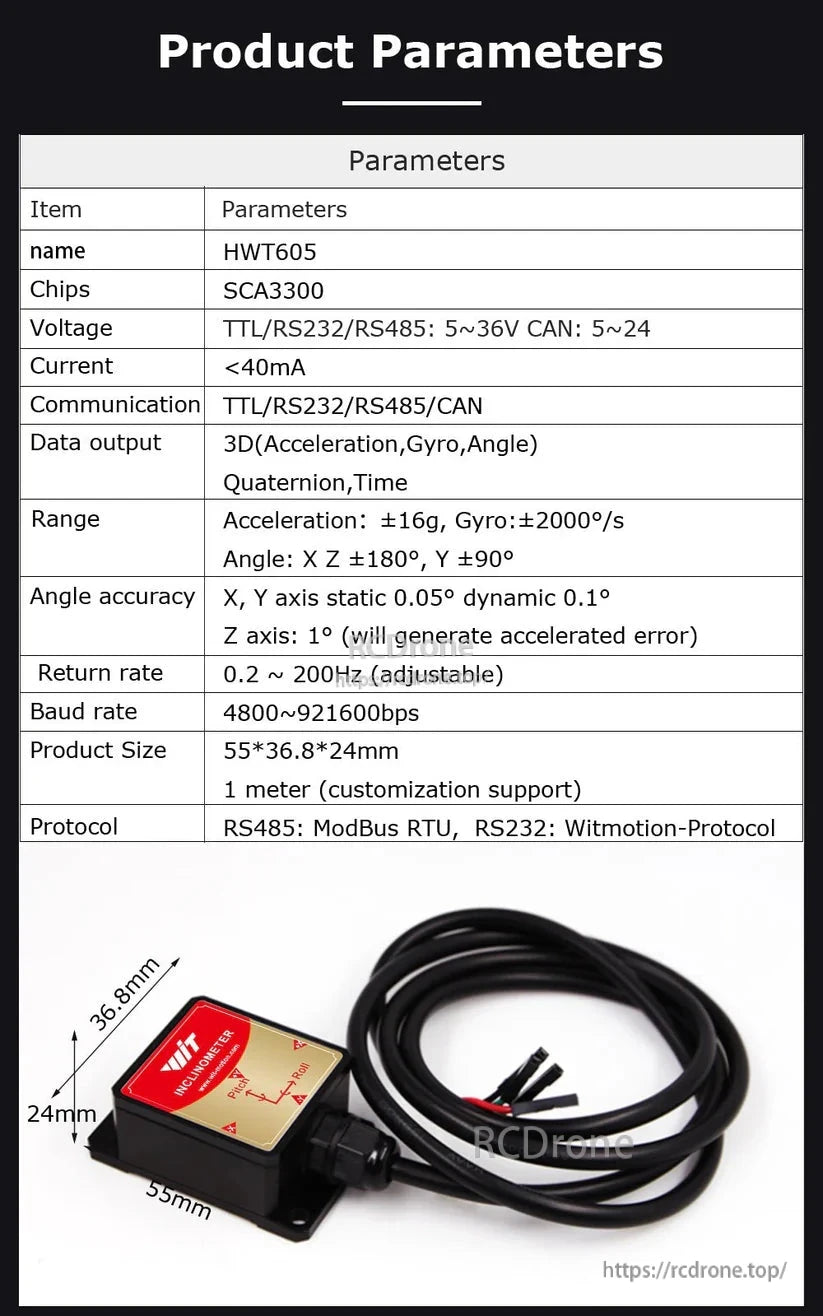

WitMotion HWT605 inclinometer includes SCA3300 chip, 3D output, ±16g acceleration, ±2000°/s gyro, ±180°/±90° angle range. Supports TTL/RS232/RS485/CAN, ModBus RTU, and Witmotion protocol in 55×36.8×24mm size.

High-speed 32-bit processor, 84MHz, low-power, fast data processing

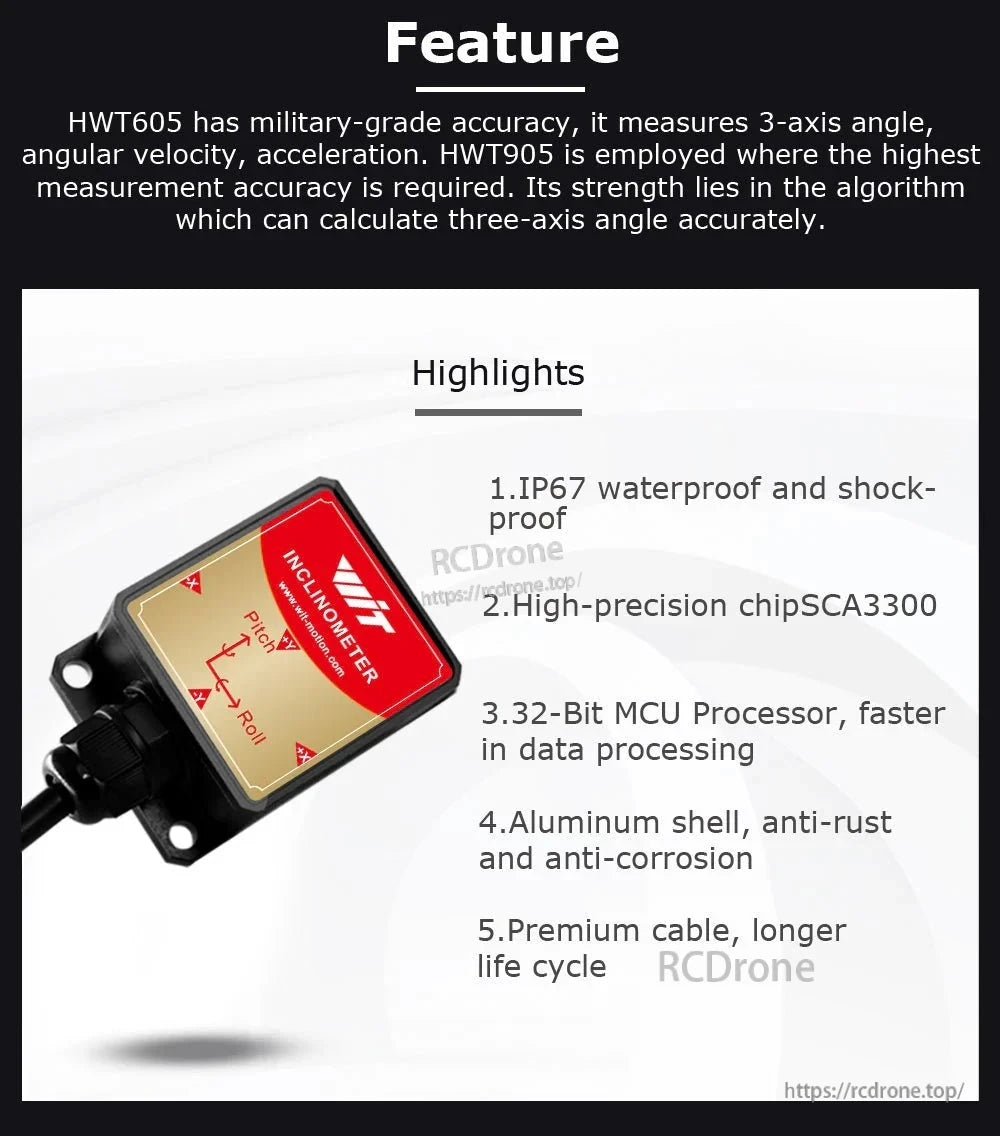

WitMotion HWT605 inclinometer offers military-grade accuracy with 3-axis angle, angular velocity, and acceleration measurement. Features IP67 waterproofing, SCA3300 chip, 32-bit MCU, aluminum shell, and durable cable.

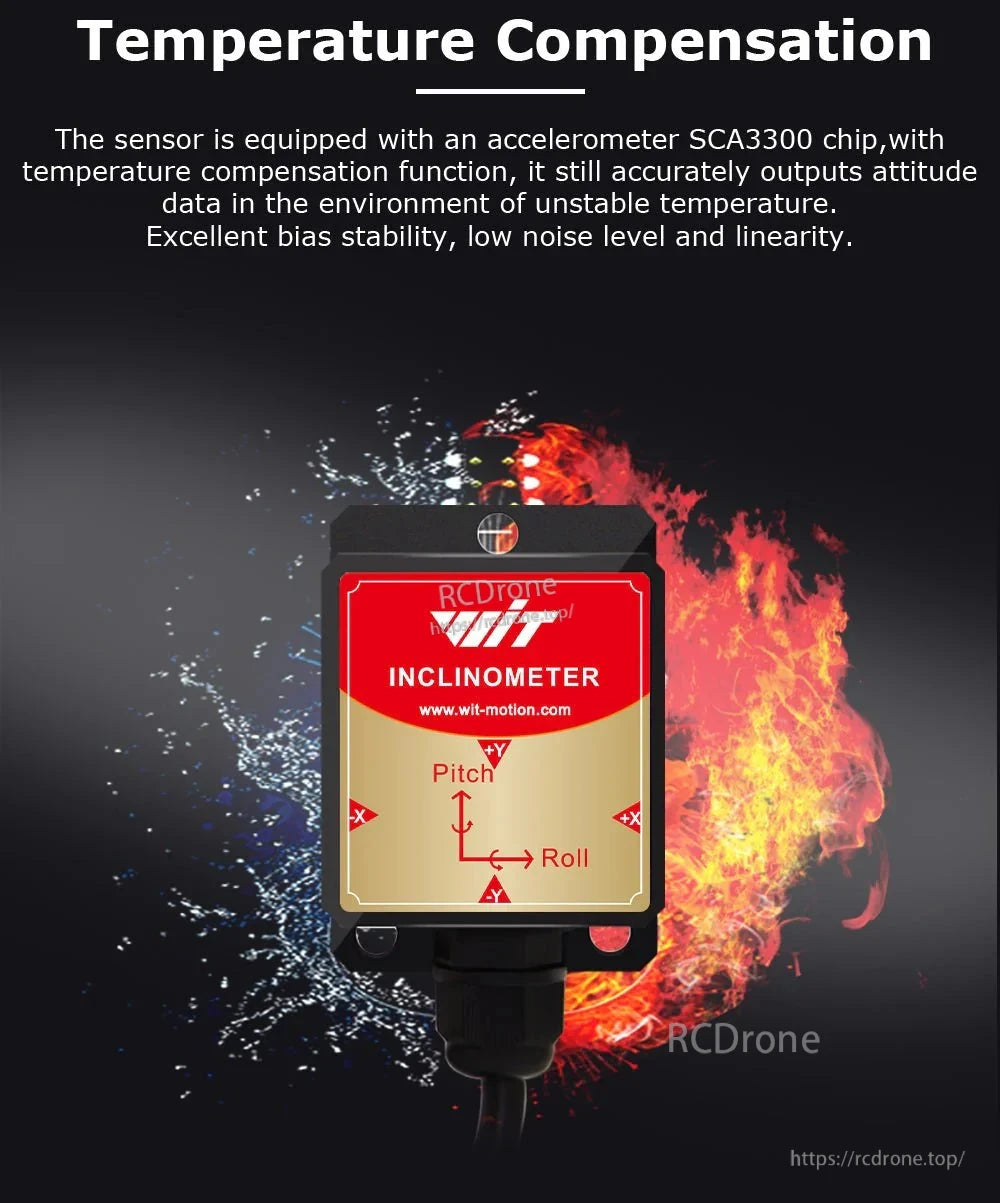

WitMotion HWT605 inclinometer with SCA3300 chip offers temperature compensation, ensuring accurate attitude data in varying temperatures.

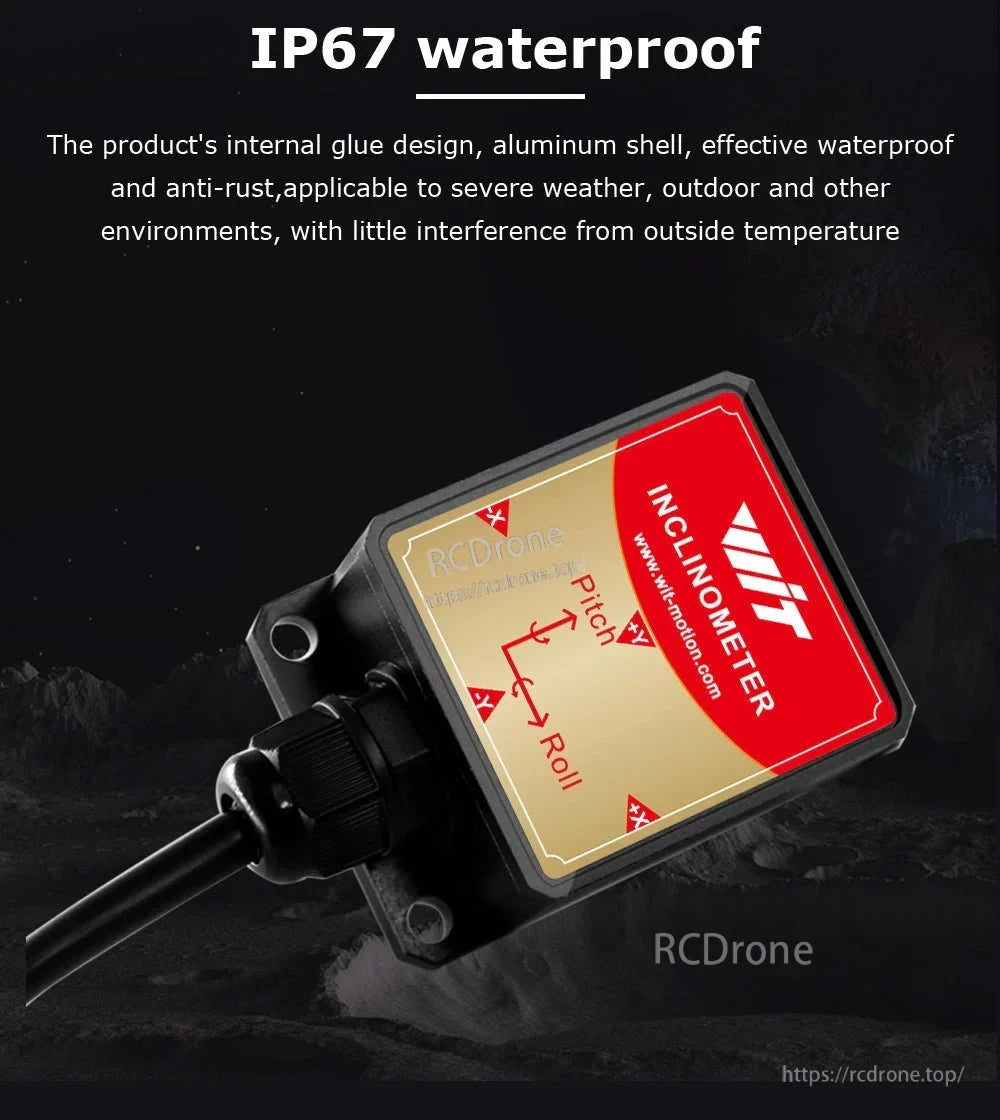

IP67 waterproof inclinometer, aluminum shell, anti-rust, outdoor use, pitch and roll measurement

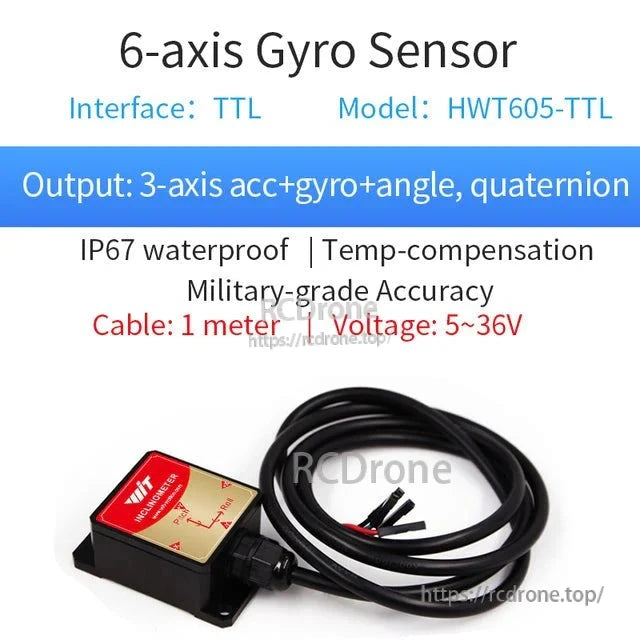

6-axis gyro sensor, HWT605-TTL, TTL interface, outputs 3-axis acc+gyro+angle, quaternion. IP67 waterproof, temperature compensated, military-grade accuracy, 1m cable, 5-36V.
