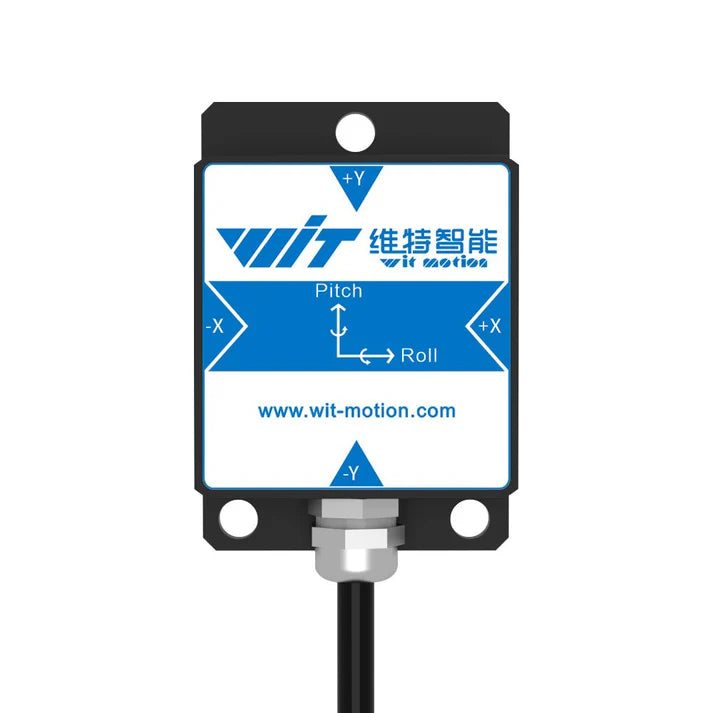

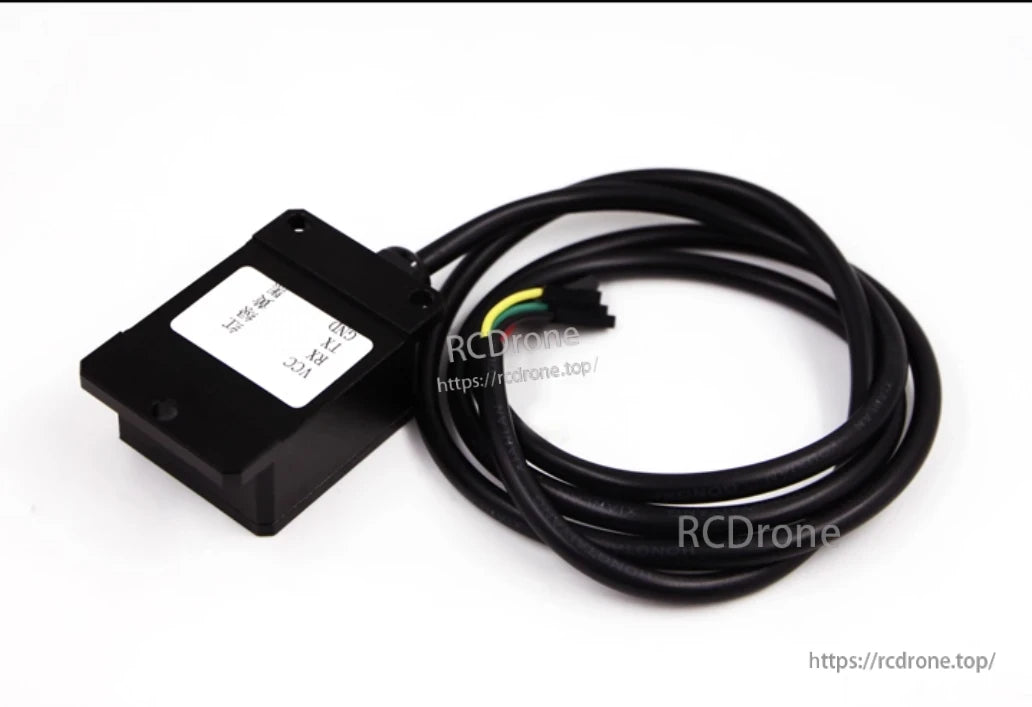

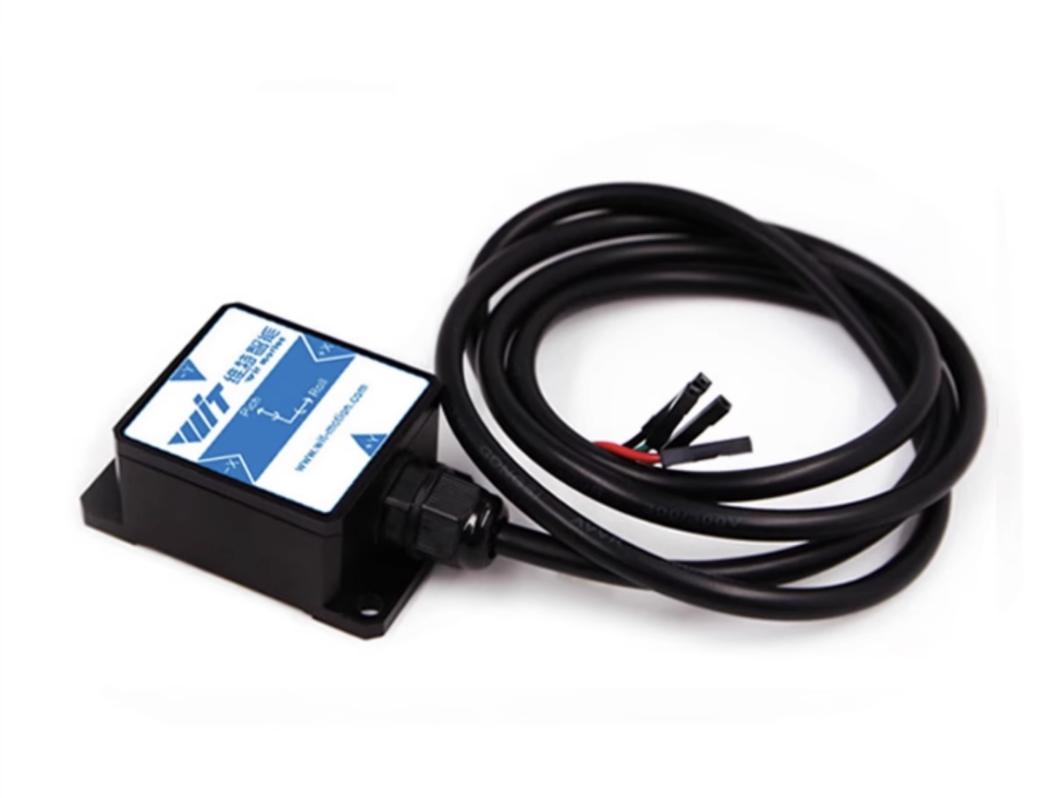

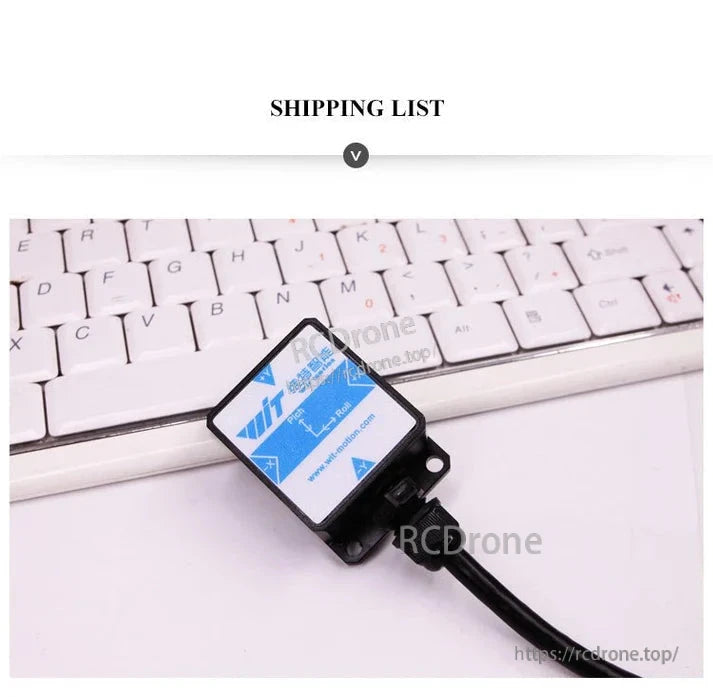

WitMotion SINET Dual-Axis AHRS Tilt Inclinometer, 0.1° Accuracy, 0.01° Resolution, Alarm, RS232/RS485/TTL, IP67 (9–36V)

Overview

WitMotion SINET is a compact, industrial dual-axis AHRS inclinometer with a built-in tilt alarm. It measures X/Y tilt from 0 to ±90°, provides switching (voltage) alarm output with a configurable threshold (default 10°), and communicates via TTL/RS232 (RS485 optional per spec banner). The rugged aluminum alloy housing is IP67 sealed and survives high shock and vibration for outdoor machinery, vehicles, lifts, and antenna positioning. Power is a wide 9–36 V DC input.

Key Features

• Dual-axis tilt monitoring (X, Y), 0~±90°

• High precision: full-range ±0.1° accuracy; 0.01° resolution

• Fast response: up to 100 Hz (DC response)

• User-settable alarm threshold (default 10°); switch output, default level high (PC software adjustable)

• Wide supply: DC 9–36 V, typical 12/24 V

• Ruggedized: IP67, aluminum shell, anti-vibration 10 grms (10–1000 Hz), impact 3500 g/0.5 ms (3×/axis)

• Wide temperature: –40 … +85 °C operation

• Small size: 55 × 36.8 × 24 mm; four M4 mounting screws

• Quick start: 0.5 s power-on time

Product Performance Indicators

Electrical Indicators

Mechanical

• Connector / lead: fixed 1 m cable

• Protection class: IP67

• Shell material: Aluminum alloy, matte anodized

• Installation: Four M4 screws

• Dimensions: 55 × 36.8 × 24 mm (mounting holes Ø 4.2 mm; lengthwise pitch ~47.9 mm)

I/O & Wiring (color ↔ function)

1. Red — VCC (9–36 V)

2. Black — GND

3. Green — RX (device receives)

4. Yellow — TX (device transmits)

5. White — +X alarm output

6. Gray — –X alarm output

7. Blue — +Y alarm output

8. Brown — –Y alarm output

9. Purple — Relative-gesture zero; ground for ~2 s to set current posture to 0°

Interfaces: UART TTL or RS232 (ordering option). Alarm default output level is high (software-configurable).

Installation Notes

• Mount the sensor flat and rigid to avoid tilt errors; the mounting surface should be smooth/level.

• Keep the sensor axes parallel to the measured axes (see diagrams).

• May be installed horizontally or vertically (right-hand coordinate rule).

• Use the purple wire zeroing function to calibrate the current position to 0° after installation.

Typical Applications

• High-voltage line/pole monitoring

• Satellite & solar antenna positioning

• Aerial work platforms and vehicle leveling

• Medical equipment angle sensing

• Pan/Tilt mechanisms

• Hydraulic lifts

• General construction machinery angle control and tilt-based monitoring

Details

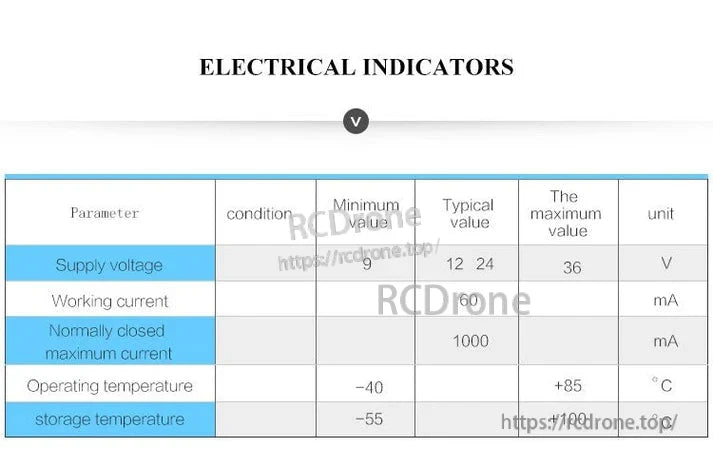

Electrical indicators: supply voltage 9–36V, working current 60mA, max current 1000mA, operating temp -40 to +85°C, storage temp -55 to +100°C.

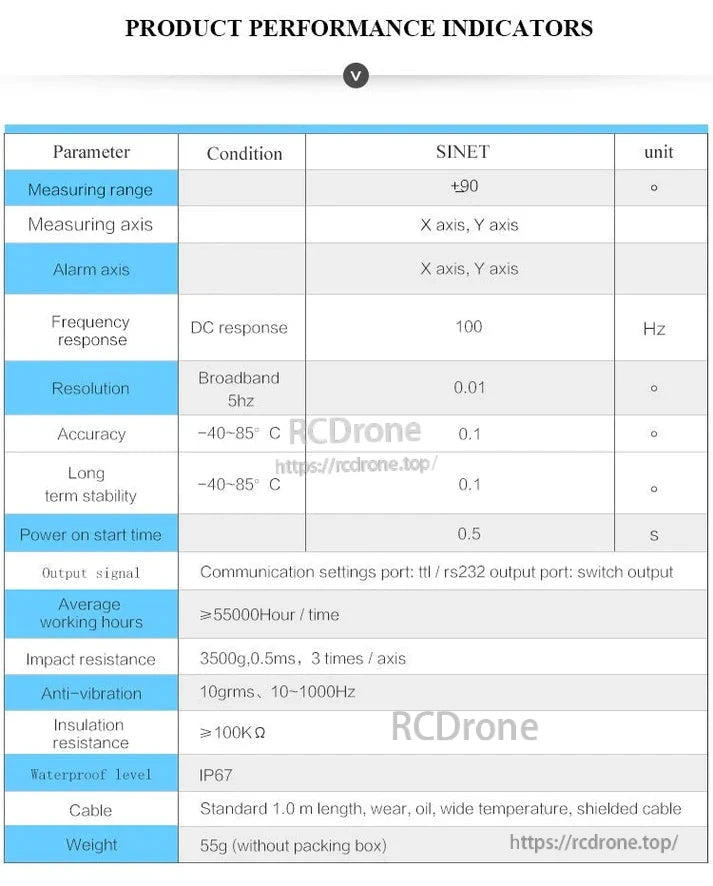

WitMotion SINET Dual-Axis AHRS offers ±90° range, 100 Hz response, 0.01° resolution, IP67 rating, TTL/RS232 output, 55g weight, stability, and impact resistance.

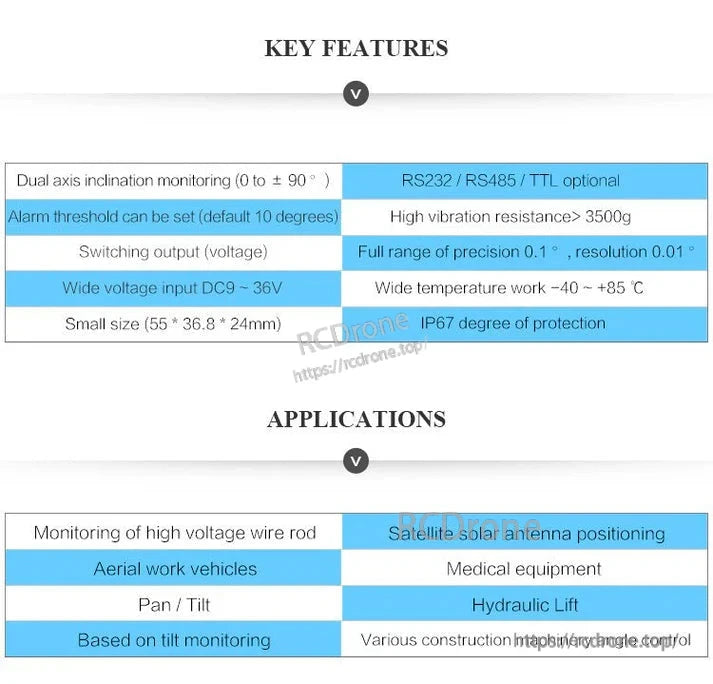

Dual-axis inclination monitoring with ±90° range, RS232/RS485/TTL output, 10° default alarm threshold, high vibration resistance, wide voltage input, small size, IP67 protection. Applications include high-voltage wire rod monitoring, satellite antenna positioning, aerial vehicles, medical equipment, hydraulic lifts, and construction machinery angle control.

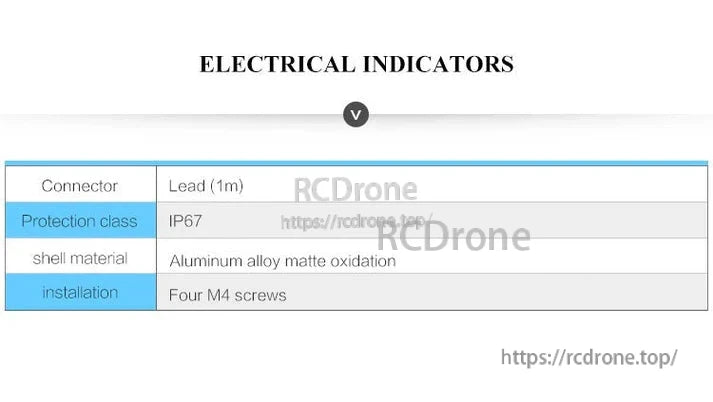

Electrical indicators: IP67, aluminum shell, M4 screws, 1m lead

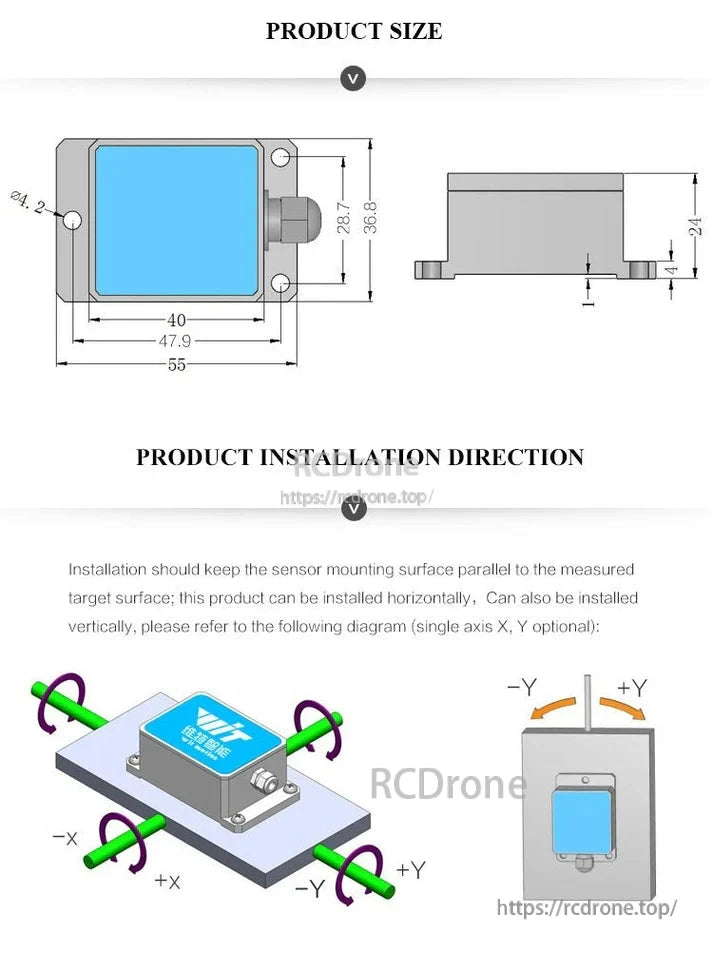

Product size: 55×47.9×36.8 mm. Installation direction: sensor surface parallel to target; horizontal or vertical mounting supported with X/Y axis options.

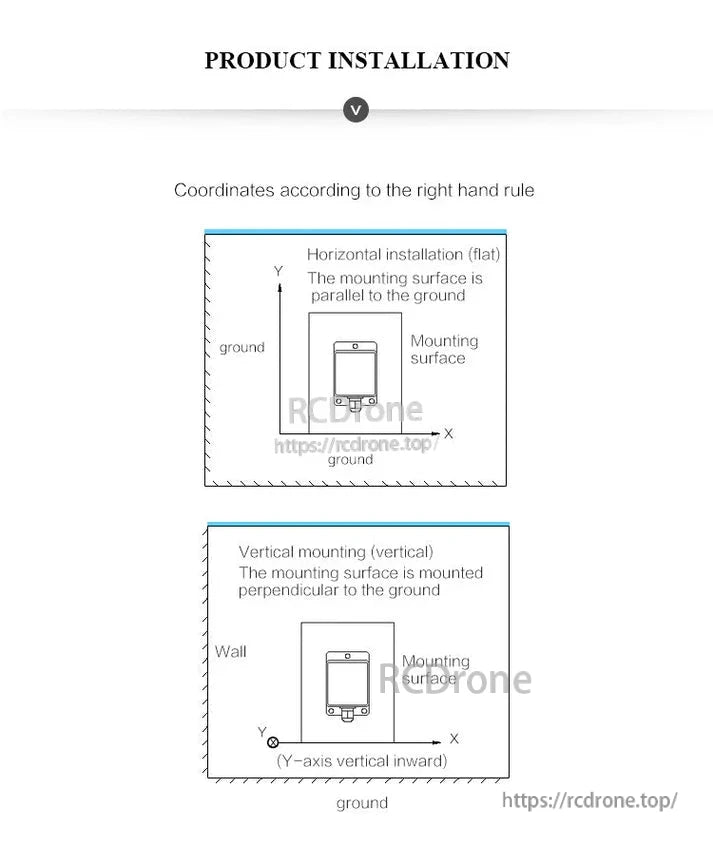

Product installation guide for WitMotion SINET Dual-Axis AHRS, illustrating horizontal and vertical mounting orientations with coordinate axes based on the right-hand rule.

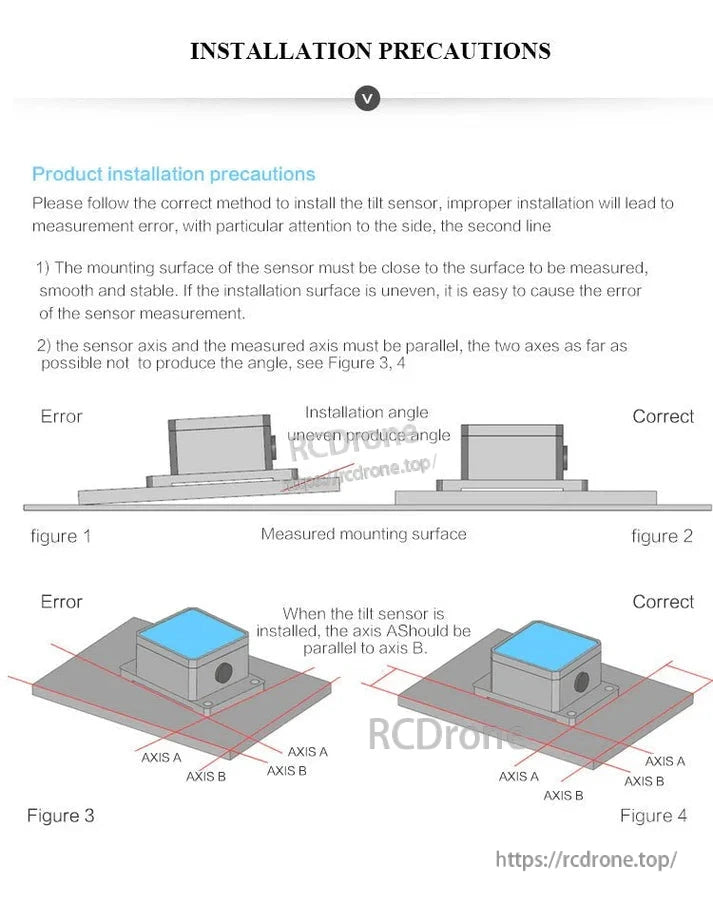

Tilt sensor installation requires a smooth, stable mounting surface. Align the sensor axis parallel to the measured axis to prevent errors. Examples show proper and improper installation techniques.

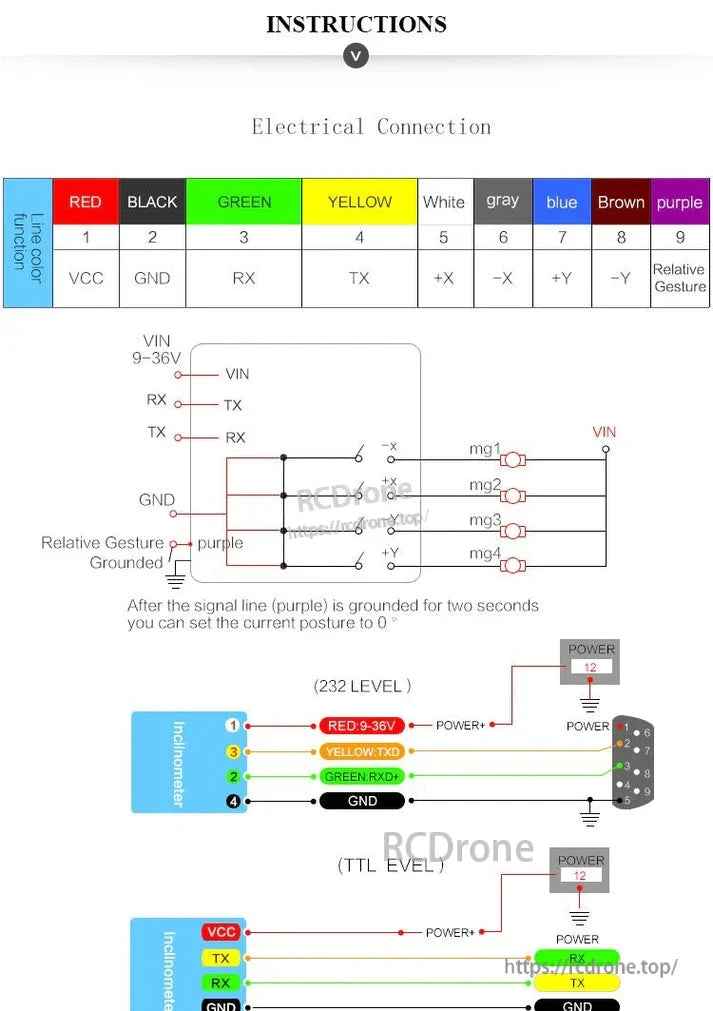

WitMotion SINET Dual-Axis AHRS electrical connection guide. Includes wiring diagrams for 232 and TTL levels, color-coded pin functions, power supply range (9-36V), and gesture calibration instructions.

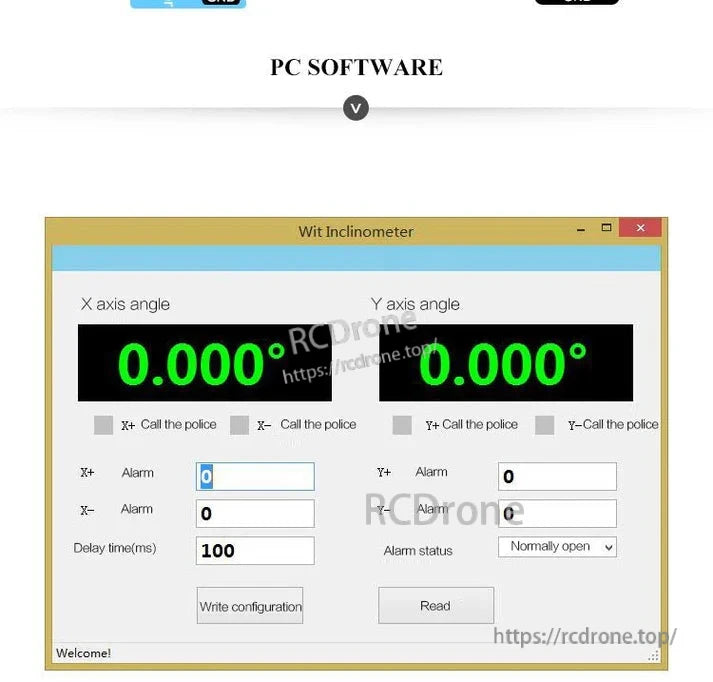

Wit Inclinometer software displays X and Y axis angles at 0.000°, with alarm settings for positive and negative directions, delay time of 100ms, and options to write configuration or read data.
