XF C-20D Vertical 2-Axis Gimbal for DJI O4/O3, Walksnail Avatar/Moonlight, 7.4-26.4 VDC, Headtracker

XF C-20D Vertical 2-Axis Gimbal for DJI O4/O3, Walksnail Avatar/Moonlight, 7.4-26.4 VDC, Headtracker

XF

$96.00 USD
$96.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

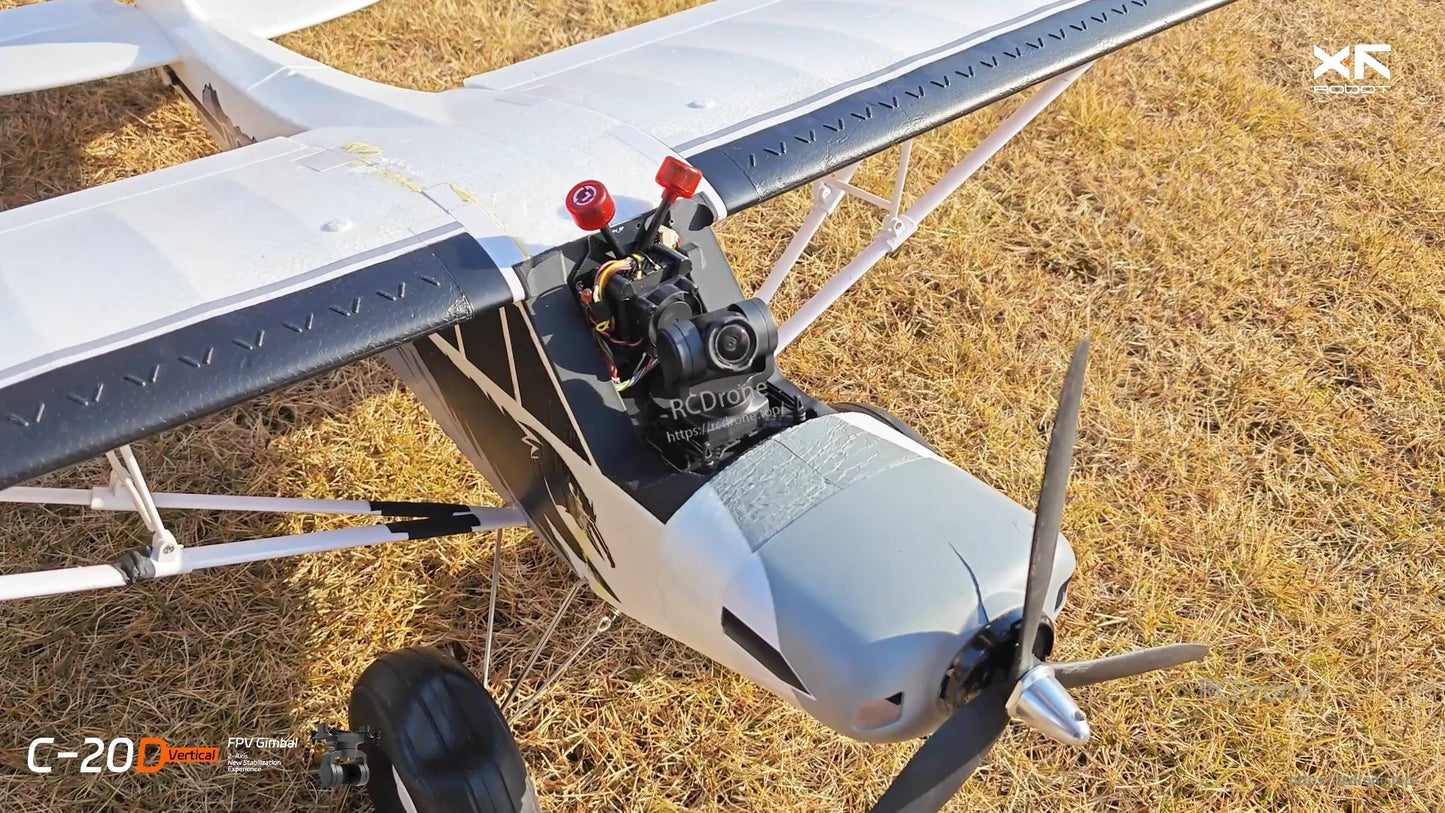

The XF C-20D Vertical 2-Axis Gimbal is a compact stabilization platform for small cameras and FPV image-transmission kits. It supports DJI O4 Pro, DJI O4, DJI O3, Walksnail Avatar, Walksnail Moonlight, and 19 mm wide analog cameras. A 2-axis mechanical stabilization structure and high‑torque motors deliver strong resistance to vibration and high-speed airflow, while Headtracker support enables immersive first-person control.

For sales or technical support, contact support@rcdrone.top or visit https://rcdrone.top/.

Key Features

  • Digital system compatibility: DJI O4 Pro / O4 / O3, Walksnail Avatar / Moonlight; also supports 19 mm analog cameras.
  • Lightweight, high-performance polymer body; compact form factor for tight installations.
  • 2-axis mechanical stabilization with high‑torque motors for stable footage under vibration and high-speed airflow.
  • Multiple stabilization modes for varied platforms such as RC cars and scale/realistic RC planes; image evidence shows Horizon mode (keeps image level stable) and FPV mode (3D follow).
  • Headtracker control for intuitive view aiming.
  • Control interfaces: UART (private protocol & MAVLink), S.BUS, CRSF, PWM.
  • Flexible mounting: downward or upward; wide 7.4–26.4 VDC input.

Specifications

General
Product Name C-20D
Dimensions (with damper) 42 x 50.9 x 55.7 mm
Weight (with damper) 36 g
Operating Voltage 7.4 - 26.4 VDC
Power 0.25 W (Static) / 8 W (Stall)
Mounting Downward / Upward
Control Port Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM
Gimbal
Type 2-axis Mechanical Stabilization
Angular Accuracy +/−0.05°
Controllable Range Pitch: −35° to +175°, Yaw: +/−145°
Max Rotation Speed +/−1500°/s
Camera Suitability
Maximum Weight 20 g
Maximum Width 19 mm

Applications

  • Fixed‑wing FPV and scale model aircraft
  • Realistic RC planes
  • RC cars and ground rovers
