Overview

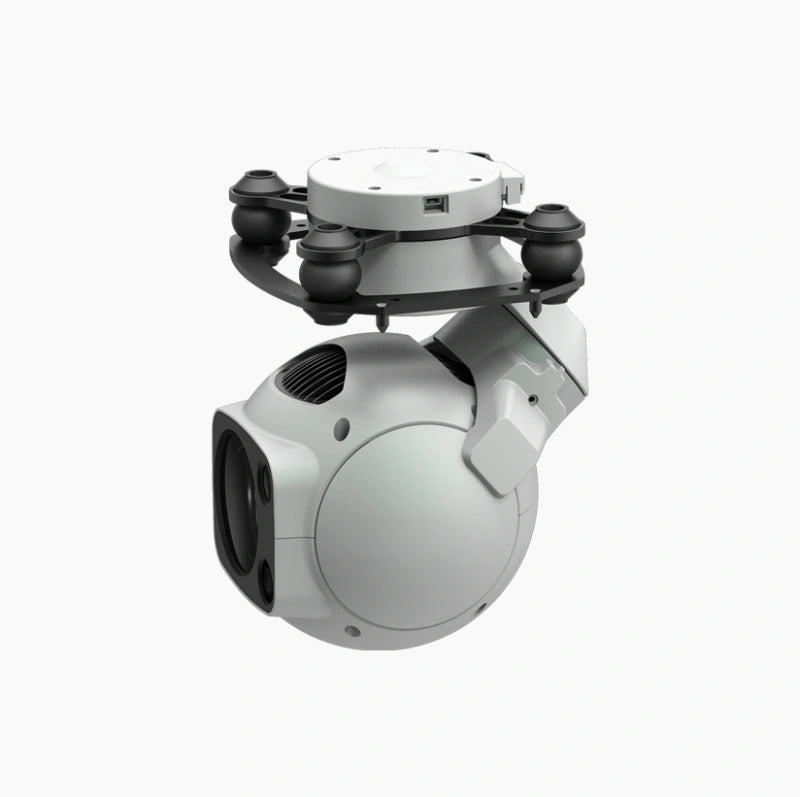

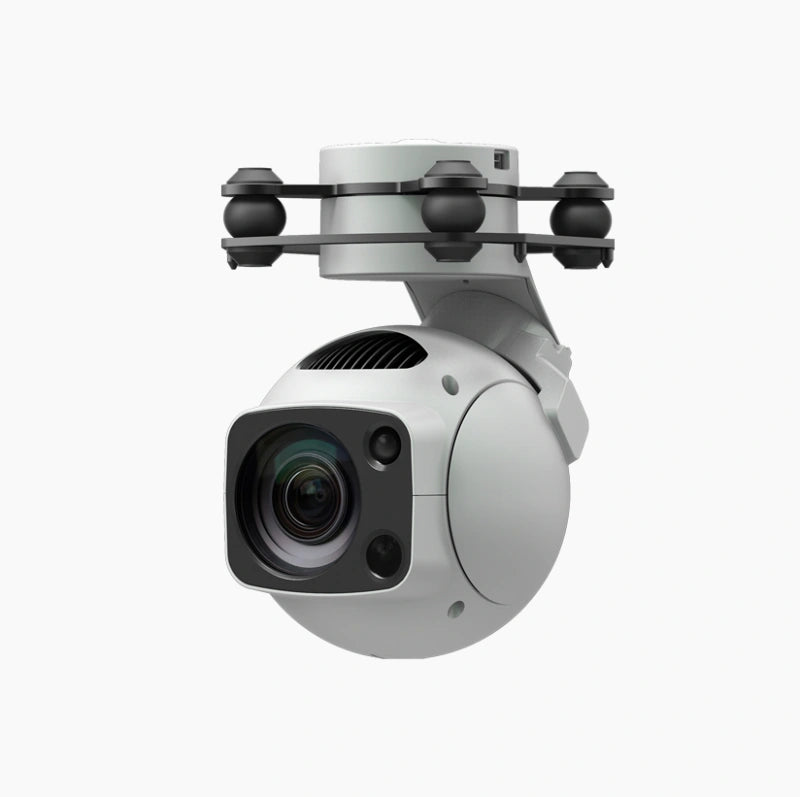

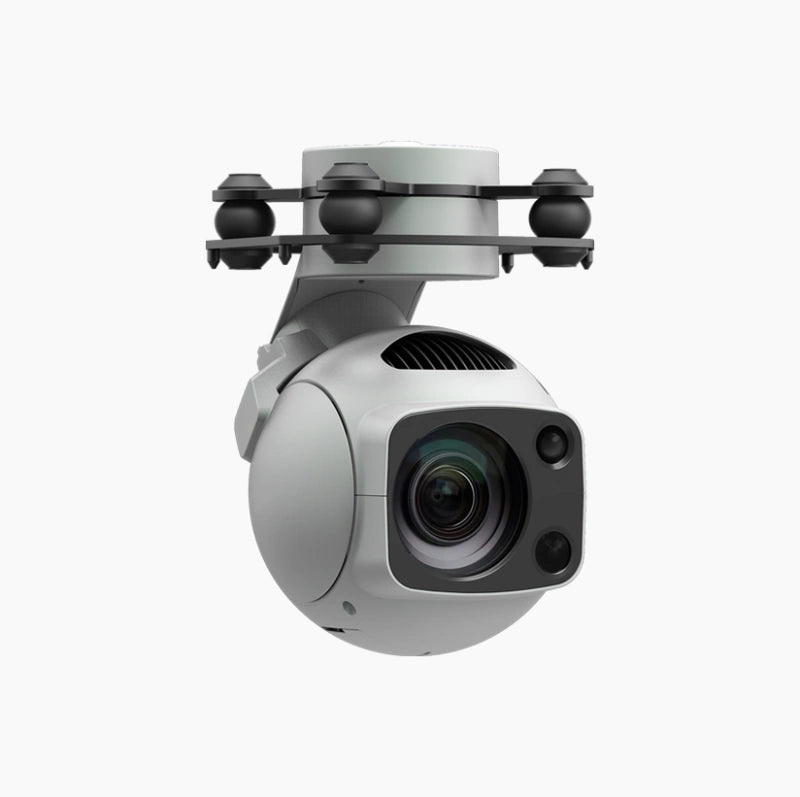

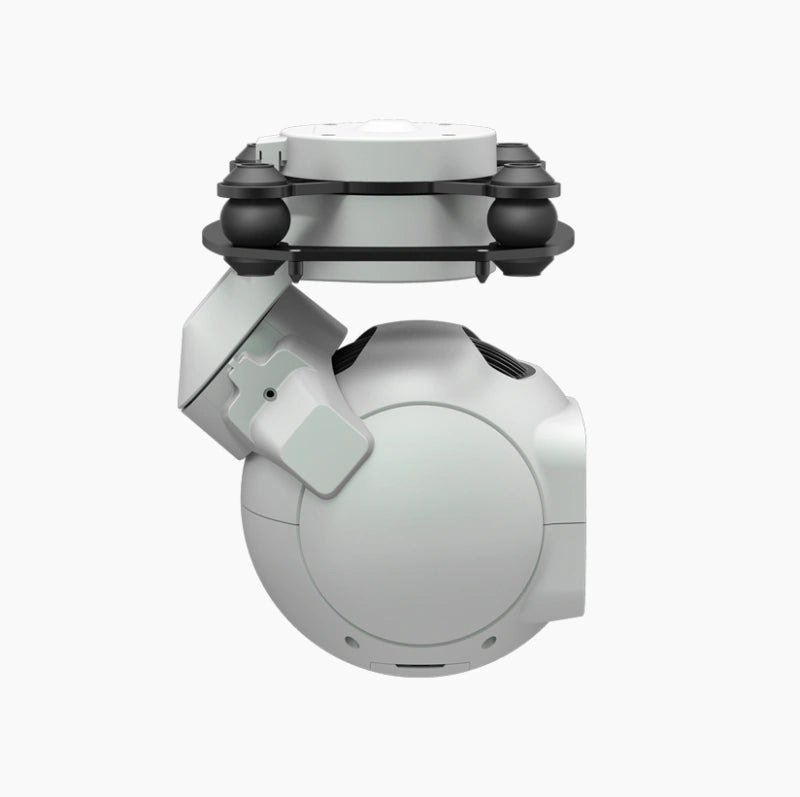

The XF D-80AI Dual-View Drone Pod is an industry-leading gimbal system designed for professional UAV applications. It integrates a 30x zoom camera with a wide-angle camera, enabling seamless transitions between global surveillance and detailed close-ups. Featuring AI-powered multi-target detection and tracking, the D-80AI intelligently identifies and follows pedestrians or vehicles in real-time. Its laser illumination module ensures clear imaging even in complete darkness, while the high-precision 3-axis nonorthogonal gimbal provides ±0.01° stabilization accuracy. The compact, lightweight design supports upright and inverted installation, making it ideal for a wide range of UAV platforms.
Features
- Dual-View Imaging: Combines a wide-angle camera for broad perspectives and a 10x optical, 3x digital zoom camera for detailed close-ups.
- AI Multi-Target Tracking: Real-time detection and tracking of multiple objects, including pedestrians and vehicles.
- Laser-Assisted Night Vision: Laser illumination module provides clear imaging in complete darkness, with an effective illumination distance of ≤200m.
- Precision Stabilization: 3-axis nonorthogonal mechanical stabilization gimbal with ±0.01° angular accuracy and continuous 360° yaw rotation.
- Broad Compatibility: Supports network, serial port, and S.BUS control with proprietary and MAVLink protocols, allowing for easy secondary development.
- Versatile Mounting: Upright and inverted installation options for compatibility with various UAV platforms.
- Enhanced Control: Seamlessly integrates with GCU and Dragonfly software for real-time video display, gimbal control, and photography or videography.
Specifications
General
| Parameter | Value |
|---|---|
| Product Name | D-80AI |
| Dimensions (Gimbal) | 85.8 x 86 x 129.3 mm |
| Dimensions (GCU) | 45.4 x 40 x 13.5 mm |
| Weight (Gimbal) | 429g |
| Weight (GCU) | 18.6g |
| Operating Voltage | 14 ~ 53 VDC |
| Power (Gimbal) | 6.7W (avg, light off) / 55W (stall, light on) |
| Power (GCU) | 1.8W |
| Mounting Options | Downward / Upward |
Gimbal
| Parameter | Value |
|---|---|
| Type | 3-axis Nonorthogonal Mechanical Stabilization |
| Angular Accuracy | ±0.01° |
| Controllable Range | Pitch: -157° ~ +80°, Yaw: ±360° continuously |
| Maximum Speed | Pitch: ±200°/s, Yaw: ±200°/s |
Zoom Camera
| Parameter | Value |
|---|---|
| Image Sensor | 1/2.8” CMOS; Effective Pixels: 2.07M |
| Lens | Focal Length: 4.7 ~ 47mm |
| Field of View (FOV) | HFOV: 61.3° ~ 6.8°, VFOV: 36.9° ~ 3.9°, DFOV: 68.4° ~ 7.8° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
| Optical Zoom Rate | 10x |
| Digital Zoom Rate | 3x |
| Minimum Illumination | Night Vision off: 0.01Lux / F1.6 |
| Night Vision on: 0.0015Lux / F1.6 | |
| Object Detection Distance | Person: 709m; Light Vehicle: 932m; Large Vehicle: 1986m |
| Object Identification Distance | Person: 142m; Light Vehicle: 187m; Large Vehicle: 397m |
| Object Verification Distance | Person: 71m; Light Vehicle: 93m; Large Vehicle: 199m |
Wide Camera
| Parameter | Value |
|---|---|
| Image Sensor | 1/2.8” CMOS; Effective Pixels: 2.07M |
| Lens | Focal Length: 2.4mm |
| Field of View (FOV) | HFOV: 98.5°, VFOV: 44.3°, DFOV: 101.7° |
| Resolution | 1920 x 1080 |
| Pixel Pitch | 2.9μm |
Laser Lighting Module
| Parameter | Value |
|---|---|
| Wavelength | 850 ± 10nm |
| Laser Power | 0.8W |
| Beam Angle | 8° |
| Beam Diameter | 14m @ 100m |
| Effective Illumination Distance | ≤200m |
| Laser Safety Class | Class 3B (IEC 60825-1:2014) |
AI Multi-object Detection & Tracking
| Parameter | Value |
|---|---|
| Object Size | 16x16 ~ 128x128 px |
| Identification Delay | <40ms |
| Tracking Speed | ±32 px/field |
| Refresh Rate | 30Hz |
Image & Video
| Parameter | Value |
|---|---|
| Image Format | JPEG |
| Maximum Image Resolution | 1920 x 1080 |
| EXIF | Shooting point coordinates |
| Video Format | MP4 |
| Maximum Video Resolution | 1080P @ 25fps |
| Stream Encode Format | H.264, H.265 |
| Stream Protocol | RTSP |
Storage
| Parameter | Value |
|---|---|
| Supported SD Cards | Speed Class 10 MicroSD, up to 256GB |
| Supported File System | HDD-FAT32 |
Environment
| Parameter | Value |
|---|---|
| Operating Temperature | -20°C ~ 50°C |
| Storage Temperature | -40°C ~ 60°C |
| Operating Humidity | ≤85%RH (non-condensing) |
Package
- XF D-80AI Dual-View Drone Pod
- GCU (Ground Control Unit)
- Mounting hardware
- Connection cables
- User manual
Applications
- Surveillance: AI-powered tracking for urban monitoring and security operations.
- Search & Rescue: Laser-assisted night vision for effective operations in complete darkness.
- Industrial Inspection: Precision imaging for pipelines, solar panels, and infrastructure assessments.
- Aerial Photography: High-quality dual-view imaging for professional video and photo capturing.
XF D-80AI Drone Pod Details
NANJING XIANFEI ROBOT TECHNOLOGY CO., LTD presents XF D-80AI Dual-View Drone Pod, featuring a dual-view spherical gimbal with multi-object detection and tracking capabilities, along with wide-angle dual-view laser lighting.
XF D-80AI Dual-View Drone Pod features multi-object detection and tracking, with 0.12m2 resolution, 21 frames per second, V1.7 protocol, 12-bit depth, and 3 Kpcen intelligent tracking for precise monitoring.
Get a big picture and detailed view with our dual-view drone pod. Enjoy a 180-degree wide-angle view and zoom in for a clear look.
Penetrate Darkness: Provides a clear image in complete darkness with 180x180 view, equivalent to human eye sight. Utilizes high-sensitivity camera and laser lighting for enhanced image quality.
The XF D-80AI Dual-View Drone Pod features a unique spherical shape with a 3-axis mechanical stabilized structure that reduces gyroscopic effects by 25%, outperforming traditional structures with similar non-orthogonal designs.
The XF D-80AI Dual-View Drone Pod features Perfectly Compatible Open Source Autopilot Support for Mavlink protocol, supporting MAVLINK MICRO AIR VEHICLE COMMUNICATION PROTOCOL. Equipped with E+ DurODIOL ARDUPLOT Disconnected to AFC13,9 at 0.0 Lock, displaying readings of *175.7 degrees, 0.0 Coooooo, and 0.0m *00.00.00 meters with a distance of 0.0m +0.0 ms.
The XF D-80AI Dual-View Drone Pod features abundant interfaces supporting networking, with VART 5BUS control providing SOK network power via UART2 and S.BUS. Dimensions: 100mm x 40mm.
One light, seven stable booms sphere diameter total weight 0.4 kg. Stabilization accuracy tiny, 429 g.
The XF D-80AI Dual-View Drone Pod features a 360-degree continuous yaw axis spin for versatile aerial capture.
XF D-80AI Dual-View Drone Pod allows for real-time keyboard control, multi-device monitoring, and joystick control. The matrix and split features enhance management capabilities. This pod is designed for drone operations and provides a 74-inch touchscreen display with 920 x 7881 F11n9ra resolution. It also supports Xion RnGI: 12-inch monitor and Aki:N Ain Moocfoto Eeett Mn A Snnnitte nrni Oichee onac cnte 05 JEnetonncoedu ntoee itg tda Laccota Odea eEEoIeuctd with 76001 and 7o0n AenLdor uOl.
