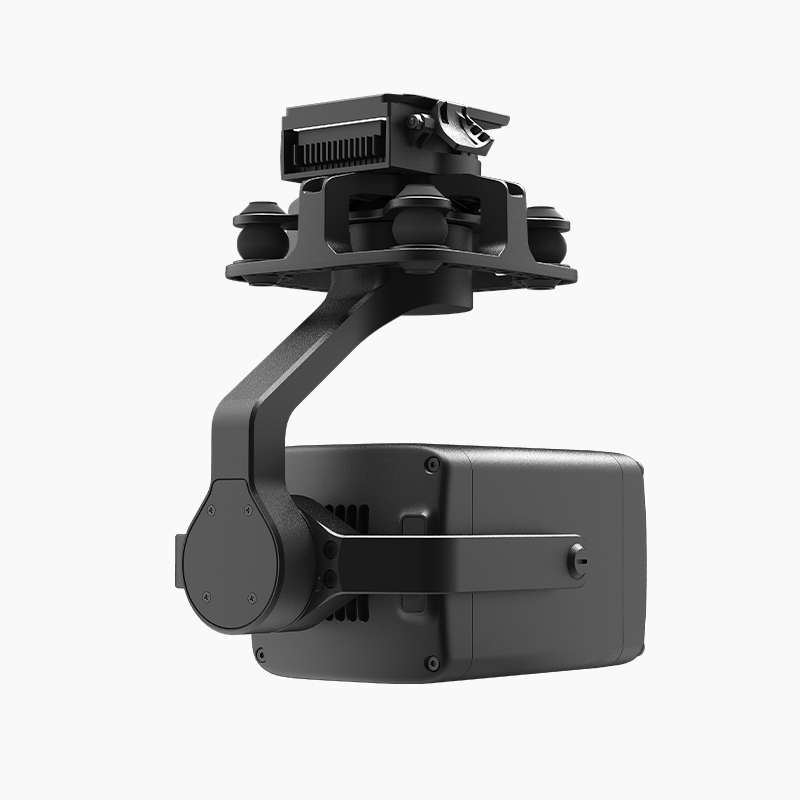

XF Z-6N Intelligent Black Light Full-Color Night Vision Pod

The XF Z-6N carries a 2K resolution 120x hybride zoom camera, combined with the AI-ISP full-color night vision imaging engine and the AI-HDR imaging engine, can present clear full-color images wether in extremely low-light environments or in complex lighting environments. Featuring AI multi-object detection and tracking, the Z-6N can constantly track one of the persons and vehicles intelligently identified in the image.
The Z-6N can be mounted tool-lessly onto multiple carriers, whether downward or upward. With the GCU and the Dragonfly software, user can watch the image from the camera and control the pod real-timely on a computer.

Characteristics

· 120x hybrid zoom camera, combined with the 1/1.8-inch ultra-starlight image sensor and AI-ISP full-color night vision imaging engine, can present clear full-color images in extremely low-light environments, delivering night vision-level low-light imaging experience. The Z-6N also features superior HDR capability, ensuring both highlights and shadow details remain clearly visible even in complex lighting environments with strong contrast between bright and dark areas.

· Features AI multi-object detection and tracking, which can constantly track one of the persons and vehicles intelligently identified in the image.

· 3-axis orthogonal mechanical stabilized structure. The gimbal is able to spin continually around its yaw axis.

· Supports network, UART and S.BUS control and compatible with both private protocol and MAVLink protocol.

· Thanks to the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the gimbal provides a stabilization accuracy at ±0.01°.

· Can be mounted onto multiple carriers, whether downward or upward.

· With the Dragonfly software, user can watch the image and control the pod without protocol ducking, and download photos and videos online as well.

· With the XF-QGC software, all the functions of the pod can be achieved in conjunction with an open source autopilot.

· Screen supports overlaying OSD information. Image supports EXIF saving. Live video stream and recording supports SEI saving.The.(SEI functionality will be supported via subsequent firmware updates)

· 20~53 VDC wide voltage input.

[1] Reference dimension of person: 1.8x0.5m. Critical dimension under Johnson criteria is 0.75m.

[2] Reference dimension of light vehicle: 4.2x1.8m. Critical dimension under Johnson criteria is 2.3m.

[3] Reference dimension of large vehicle: 6.0x4.0m. Critical dimension under Johnson criteria is 4.9m.
