XXD HW A2212 930KV 1000KV 1400KV 2200KV 2700KV Brushless Motor with HW 30A ESC Speed Controller for RC Drone

XXD HW A2212 930KV 1000KV 1400KV 2200KV 2700KV Brushless Motor with HW 30A ESC Speed Controller for RC Drone

XXD

Regular price $21.68 USD
Regular price $36.86 USD Sale price $21.68 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

171 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Cutting

Technical parameters: Value 7

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: Motor+ESC 30A

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist


Safety arming feature: regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration: throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
Programmable items:
Brake setting: brake enabled / brake disabled.
Battery type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low voltage protection mode (cutoff mode): gradually reduce the output power / cutoff the output power.
Low voltage cutoff protection threshold (cutoff threshold): low / medium / high.
Start mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
Full protection features: low voltage cutoff protection / over-heat protection / throttle signal lost protection.

Specifications:
XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

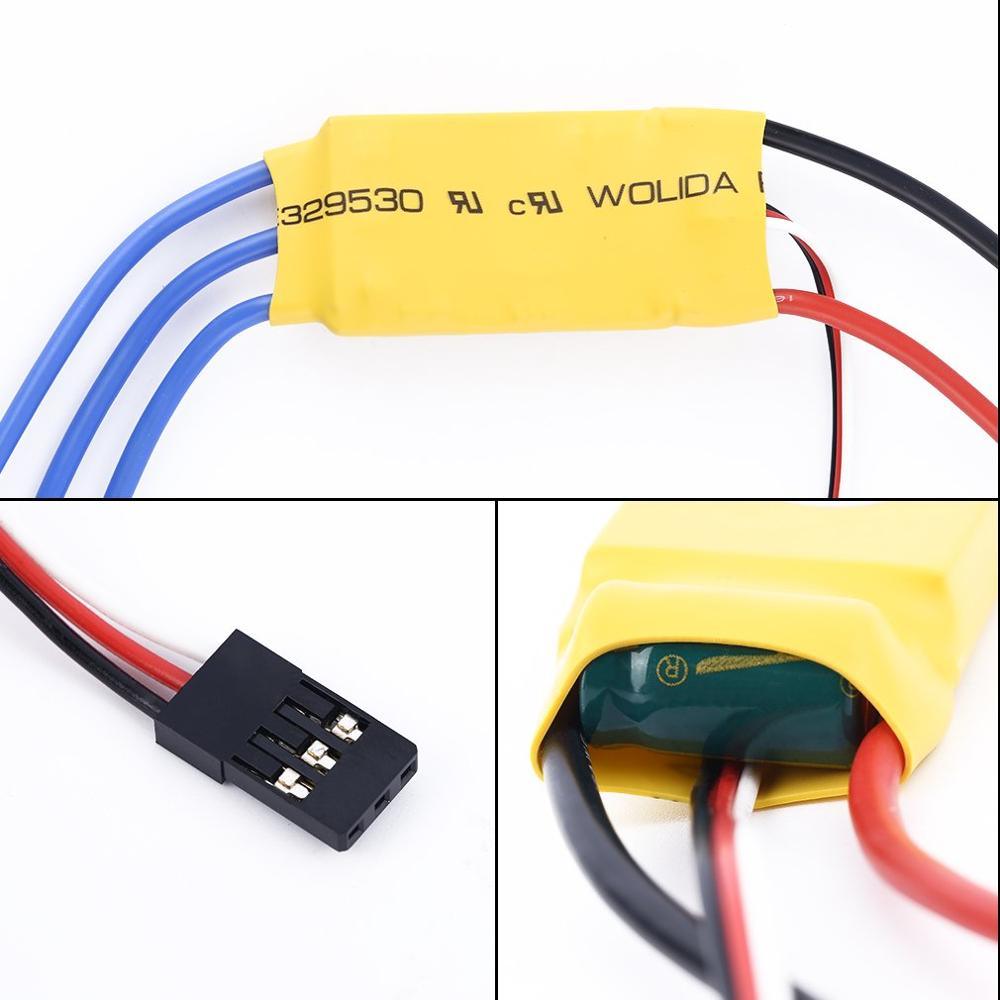

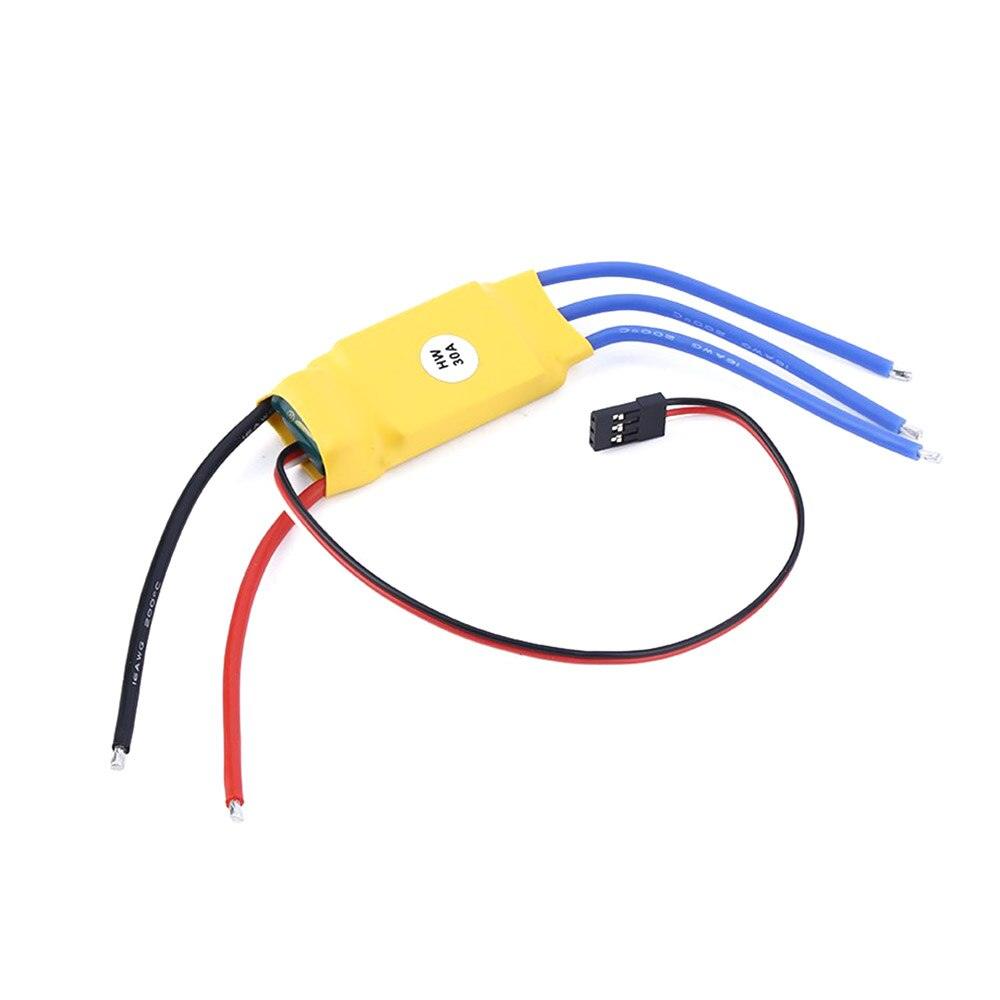

30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC: 2A / 5V (Linear mode).
Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz

Packet content:
100% Brand New

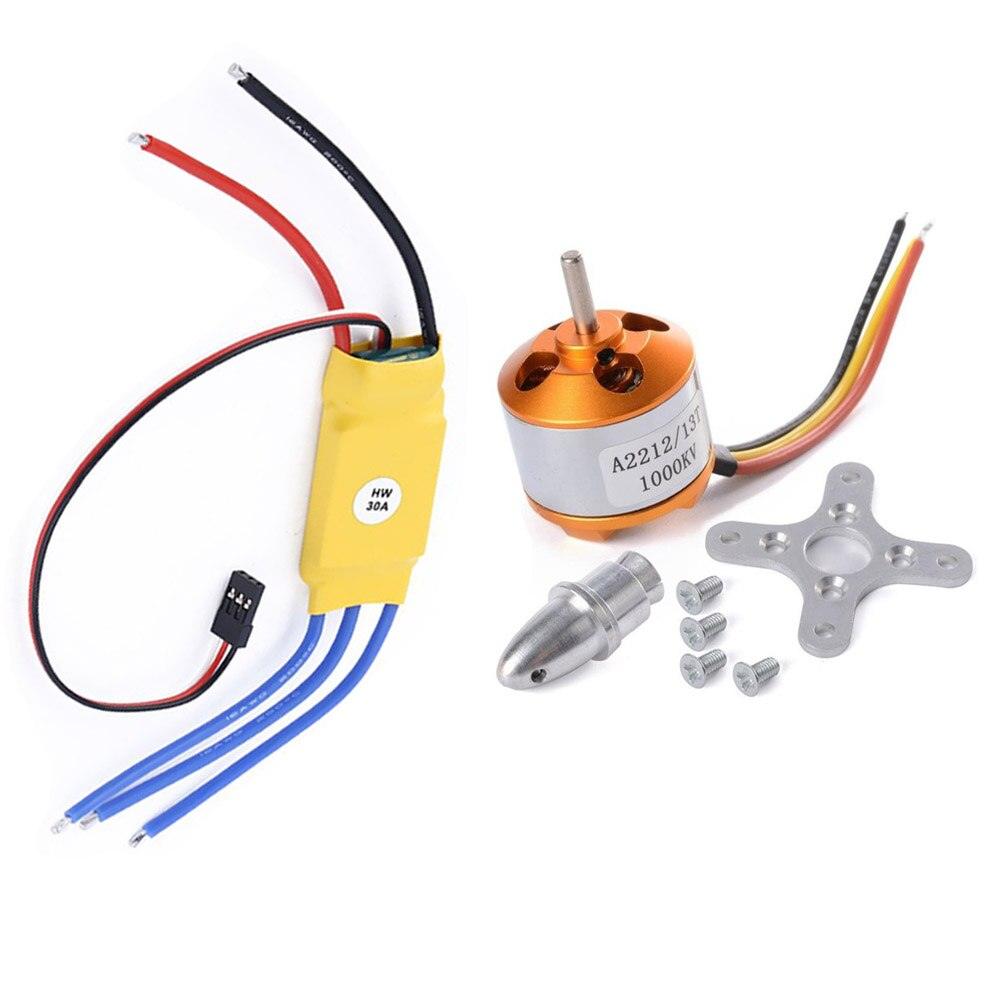

1 * A2212 Brushless Outrunner Motor with Mounts
1 * 30A Build-in BEC 2A Brushless ESC

Skyquist safety arming feature: regardless the throttle stick position, the motor will notLow voltage protection mode (cutoff mode): gradually reduce the output power / cutoffthrottle range can be configured to provide best throttle linearity, fully compatible with all market available transmitterLow voltage protection mode (cutoff mode): gradually reduce the output power / cutoffthrottle range can be configured to provide best throttle linearity, fully compatible with all market available transmitterXXD Brushless Motor with HW 30A ESC Speed Controller for RC
