Yahboom YB-HMV14 PIR Human Body Infrared Sensor Module with Alligator Clip/DuPont/PH2.0 Interfaces

Overview

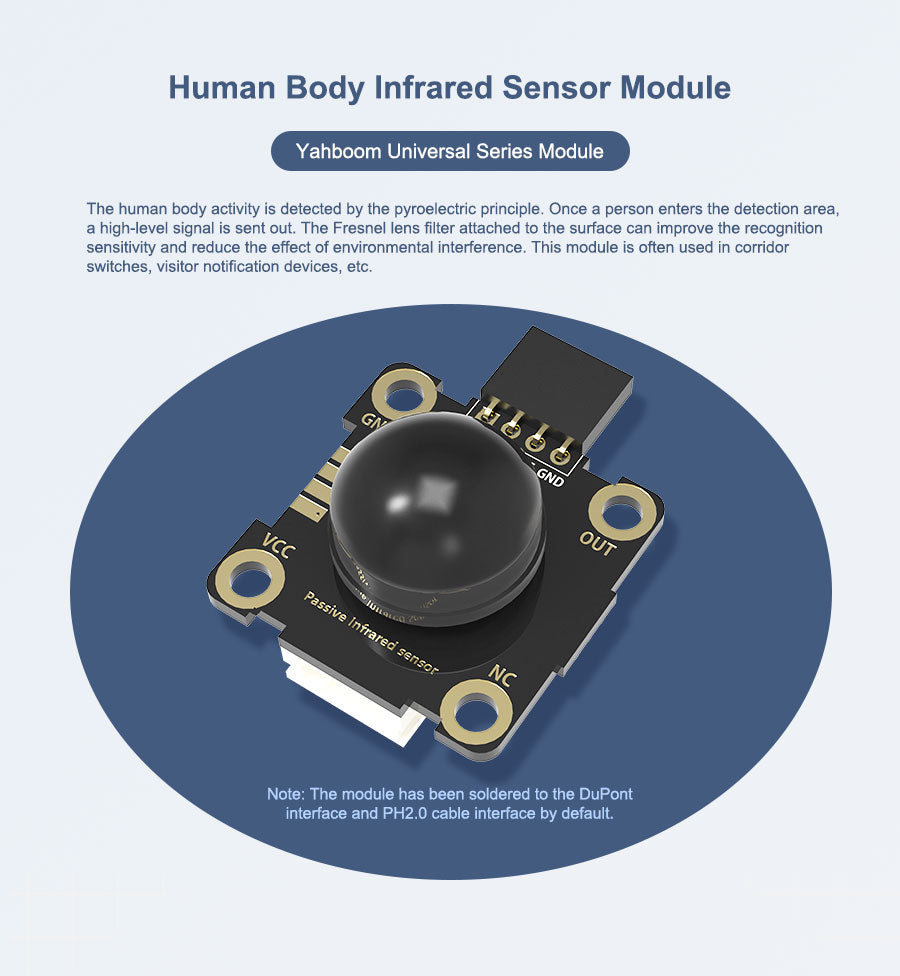

The Yahboom Human Body Infrared Sensor Module (Yahboom Universal Series Module) is a passive infrared (PIR) sensor module that detects human body activity using the pyroelectric principle. When a person enters the detection area, the module outputs a high-level signal. A Fresnel lens filter on the surface helps improve recognition sensitivity and reduce the effect of environmental interference. The module design supports three connection methods: alligator clip, DuPont line, and PH2.0 cable.

For product selection and after-sales support, contact https://rcdrone.top/ or email [email protected].

Key Features

• Human body activity detection based on the pyroelectric principle; outputs a high-level signal when a person enters the detection area.
• Fresnel lens filter helps reduce environmental interference and improve recognition sensitivity.
• Low power consumption, wide angle, long distance reception (as stated).
• Three interface methods for flexible wiring: alligator clip connection, DuPont line connection, and PH2.0 cable connection.

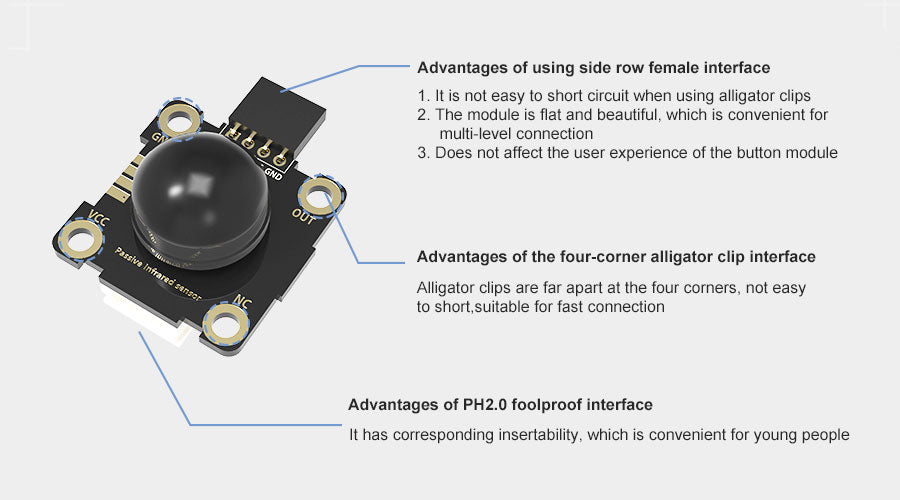

• Side row female interface advantages: not easy to short circuit when using alligator clips; convenient for multi-level connection; does not affect the user experience of the button module.
• Four-corner alligator clip interface: clips are far apart at the four corners, not easy to short, suitable for fast connection.
• PH2.0 “foolproof” interface: corresponding insertability for convenient connection.

Specifications

Applications

• Corridor switches
• Visitor notification devices
• Human body induction lamp
• Somatosensory welcome device

Recommended connection scenarios

• Alligator clip connection: Micro:bit board or Micro:bit expansion board

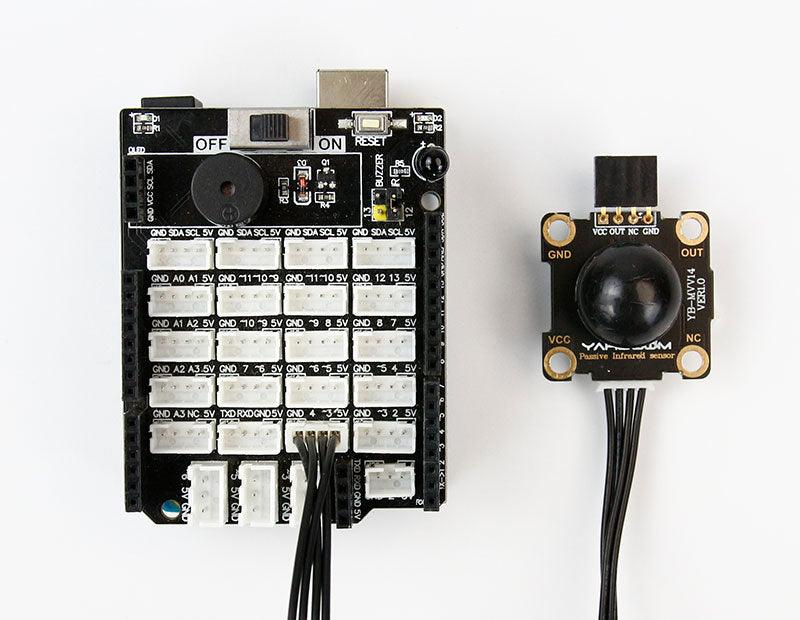

• DuPont line connection: Raspberry Pi, STM32 and other common connection methods
• PH2.0 cable connection: robot kits and sensor expansion boards

What's Included

• Human body infrared sensor module × 1

Manuals / Resources

• Official tutorial: https://www.yahboom.net/study/Passive-Infrared
• Learning materials (as provided by the manufacturer): Arduino code, microbit code, STM32 code, Introduction of module.doc, Introduction of module.pdf, microbit-Welcome-device.he, Welcome device.docx, Welcome device.pdf

Details

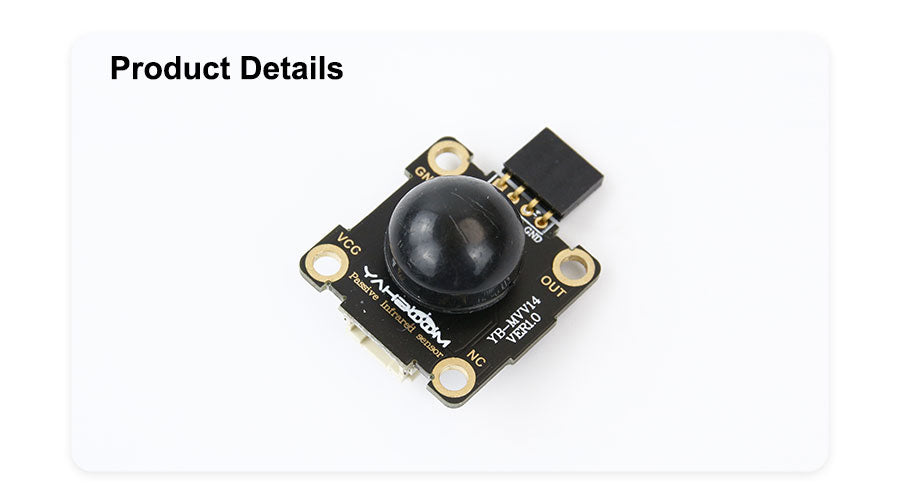

The YB-HMV14 PIR module detects human motion and outputs a digital high level when activity is sensed.

Three wiring styles are supported for quick prototyping: alligator clips, DuPont jumper wires, or a PH2.0 cable.

Alligator-clip pads at the four corners make fast, low-risk connections on Micro:bit setups.

DuPont header pins are ideal for Raspberry Pi, STM32, and breadboard-style builds.

The keyed PH2.0 interface keeps polarity consistent for robot kits and sensor hubs.

The module integrates easily with common microcontroller boards across Arduino- and Micro:bit-style ecosystems.

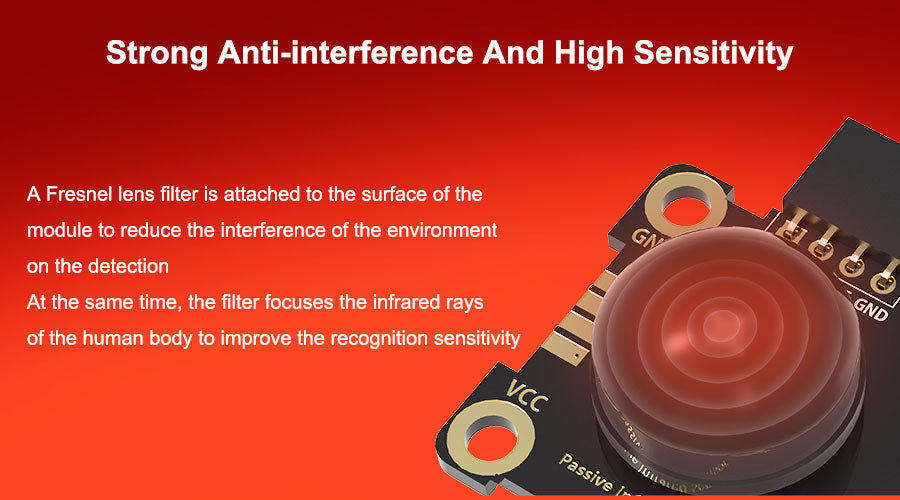

A Fresnel lens concentrates infrared changes from a moving person to improve sensitivity and reduce interference.

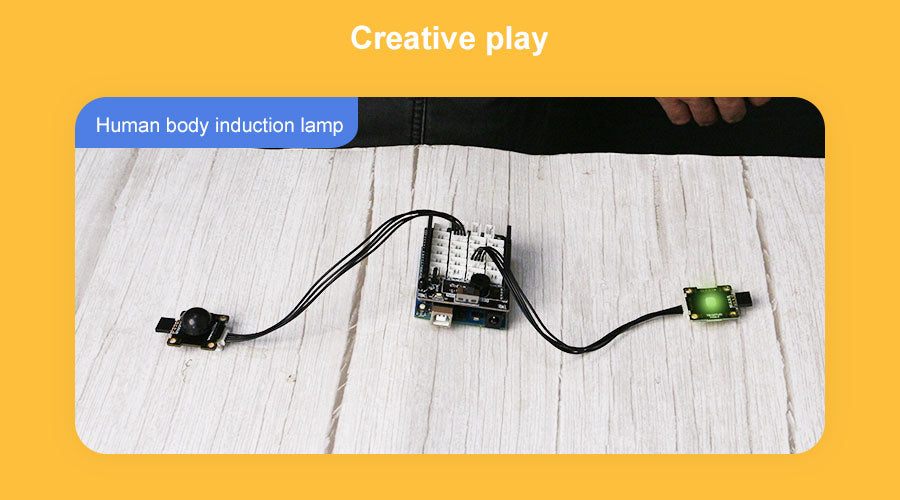

Use it to trigger an induction lamp that turns on lighting only when motion is detected.

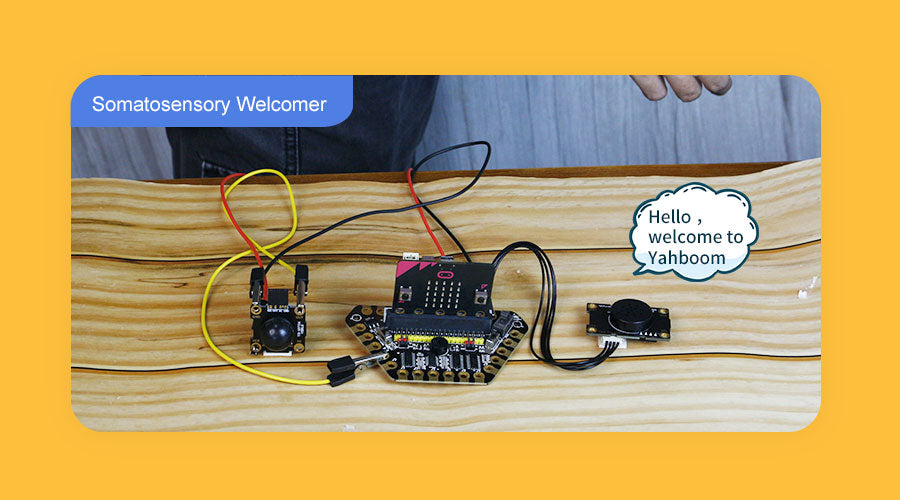

A simple welcome/visitor alert project can be built by linking the sensor output to a buzzer or display.

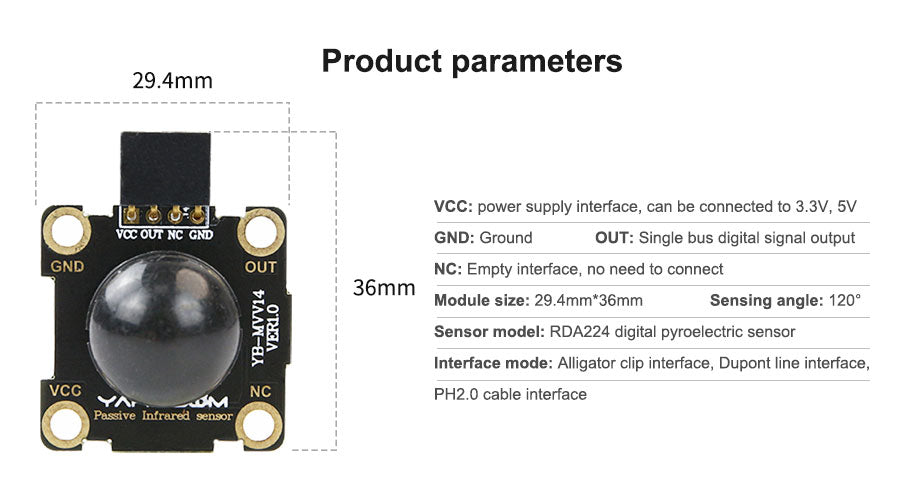

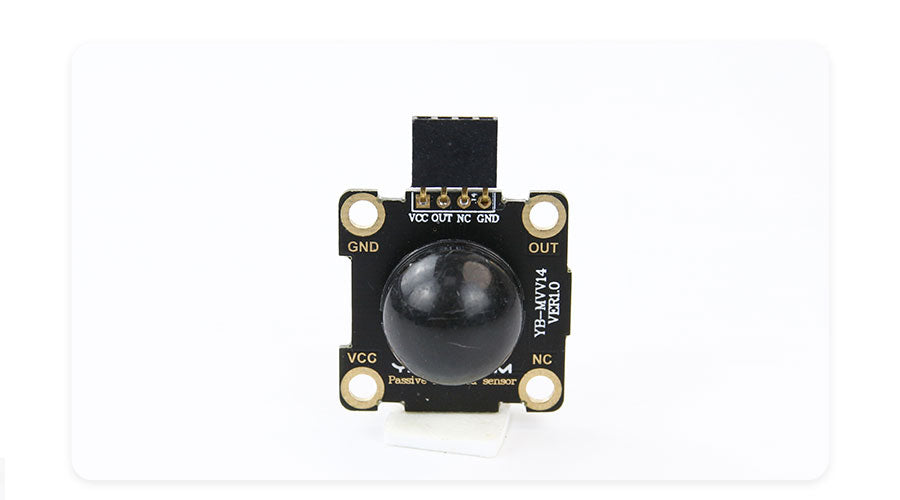

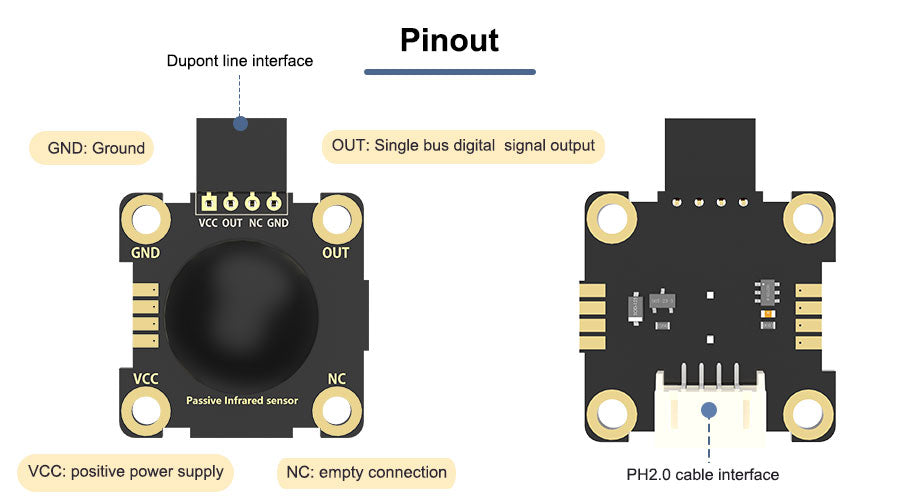

Clearly labeled VCC/OUT/NC/GND pins simplify wiring and reduce connection mistakes.

OUT provides a single digital signal, while VCC and GND supply power for the module.
