YSIDO 1625 Brushless Motor 2.0mm Shaft + 20A ESC, 3500/6000/7500/11000KV for Wltoys Traxxas 1/24 1/28 RC Cars

YSIDO 1625 Brushless Motor 2.0mm Shaft + 20A ESC, 3500/6000/7500/11000KV for Wltoys Traxxas 1/24 1/28 RC Cars

YSIDO

$23.08 USD
$0.00 USD $23.08 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

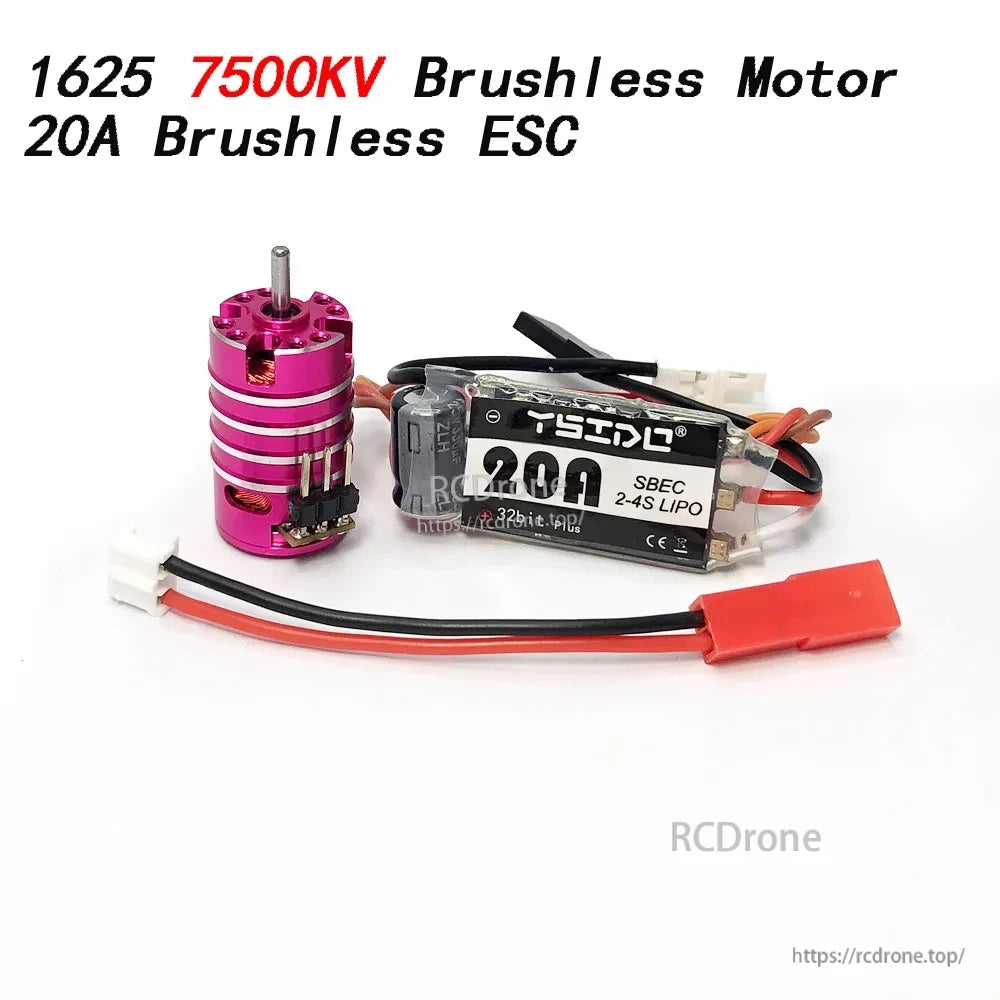

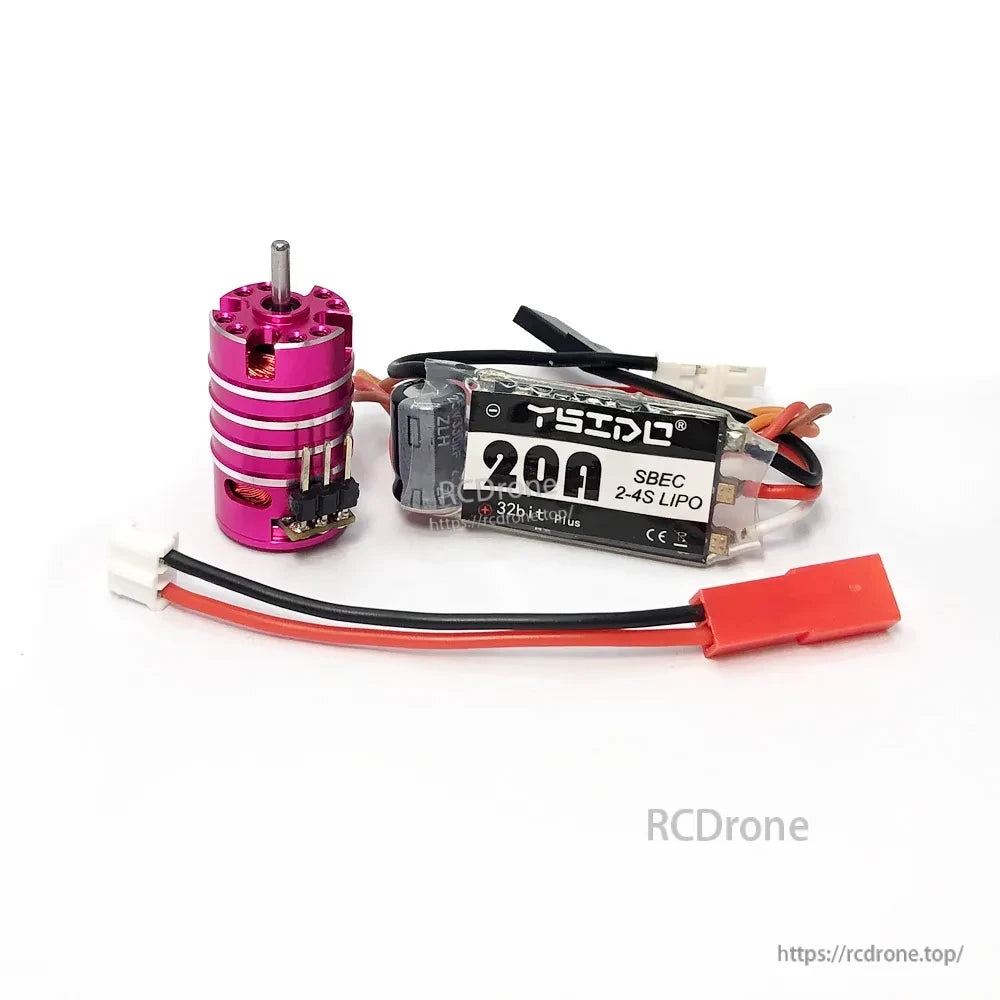

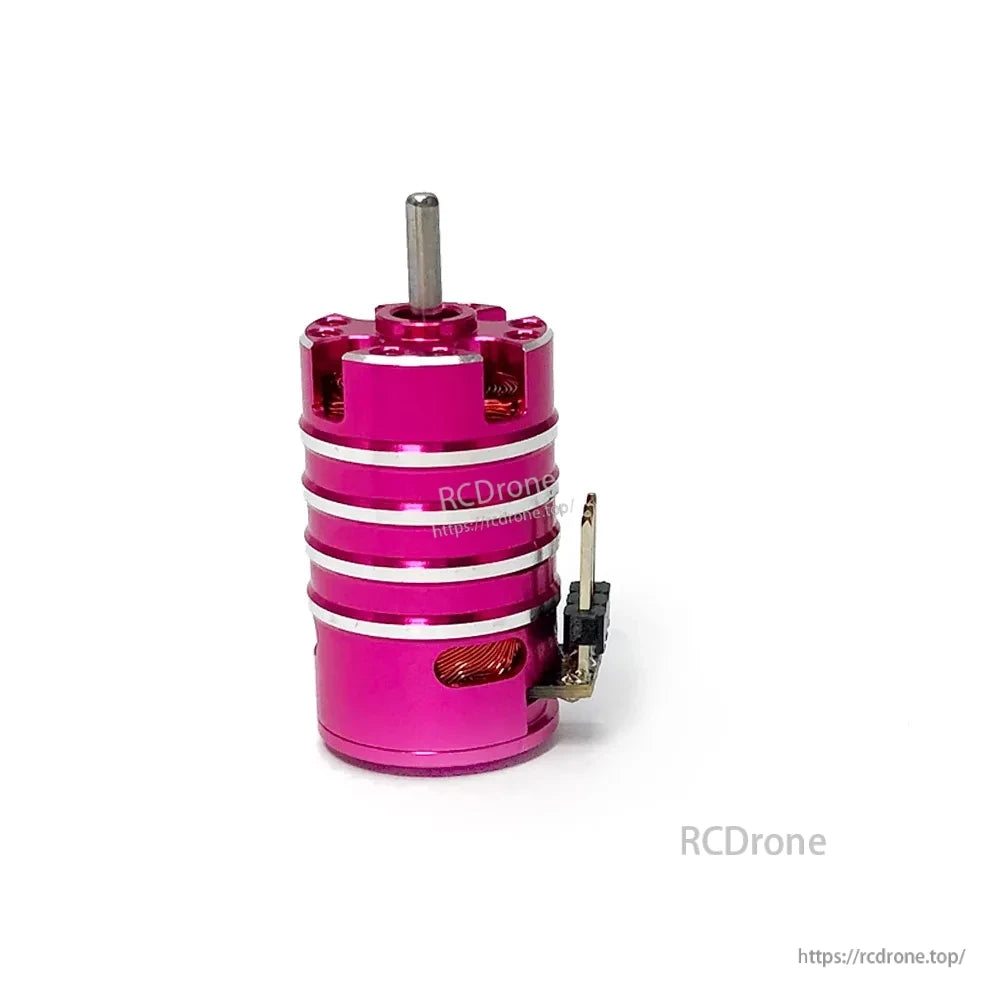

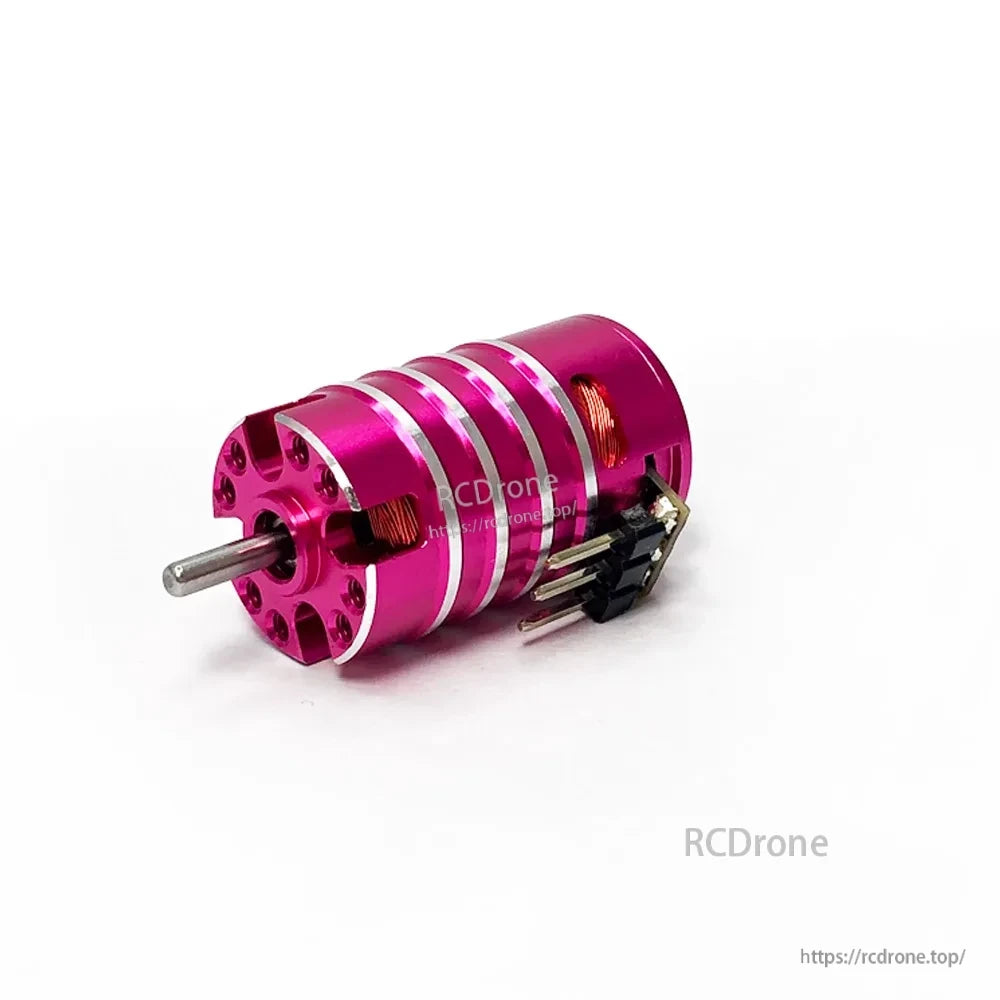

The YSIDO 1625 Brushless Motor combo pairs a compact 16×25 mm motor with a 2.0 mm shaft and a 20A Brushless ESC. Designed for mini RC car platforms (1/24 and 1/28), this setup suits Wltoys and Traxxas style vehicles. Available KV options include 3500KV, 6000KV, 7500KV, and 11000KV. The included 20A ESC is labeled SBEC, supports 2–4S LiPo input, and uses a 32bit controller.

Key Features

  • High quality materials
  • High temperature resistance
  • Durable construction
  • Portable design for easy handling and installation
  • Fine workmanship and clean appearance

Specifications

Motor (YSIDO 1625)

Size φ16×25 mm
Shaft Diameter φ2 mm
Weight 25 g
Poles 2P
Max Power 85 W
Max RPM 50K
KV Options 3500KV / 6000KV / 7500KV / 11000KV

Motor ratings by turn (per manufacturer chart)

Turn KV Max Current (A) Max Voltage (V)
36D 3500 9 9
28D 4500 8 10
21D 6000 11 7
17D 7500 10 7

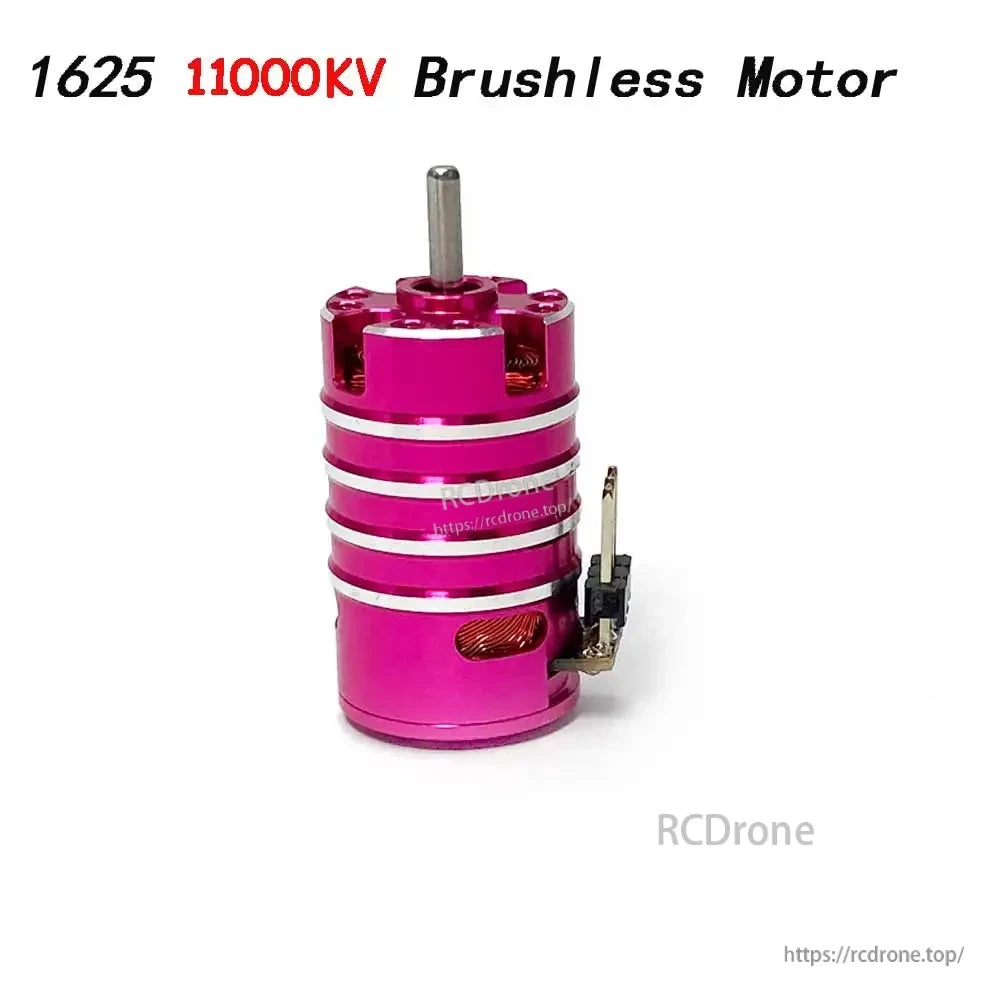

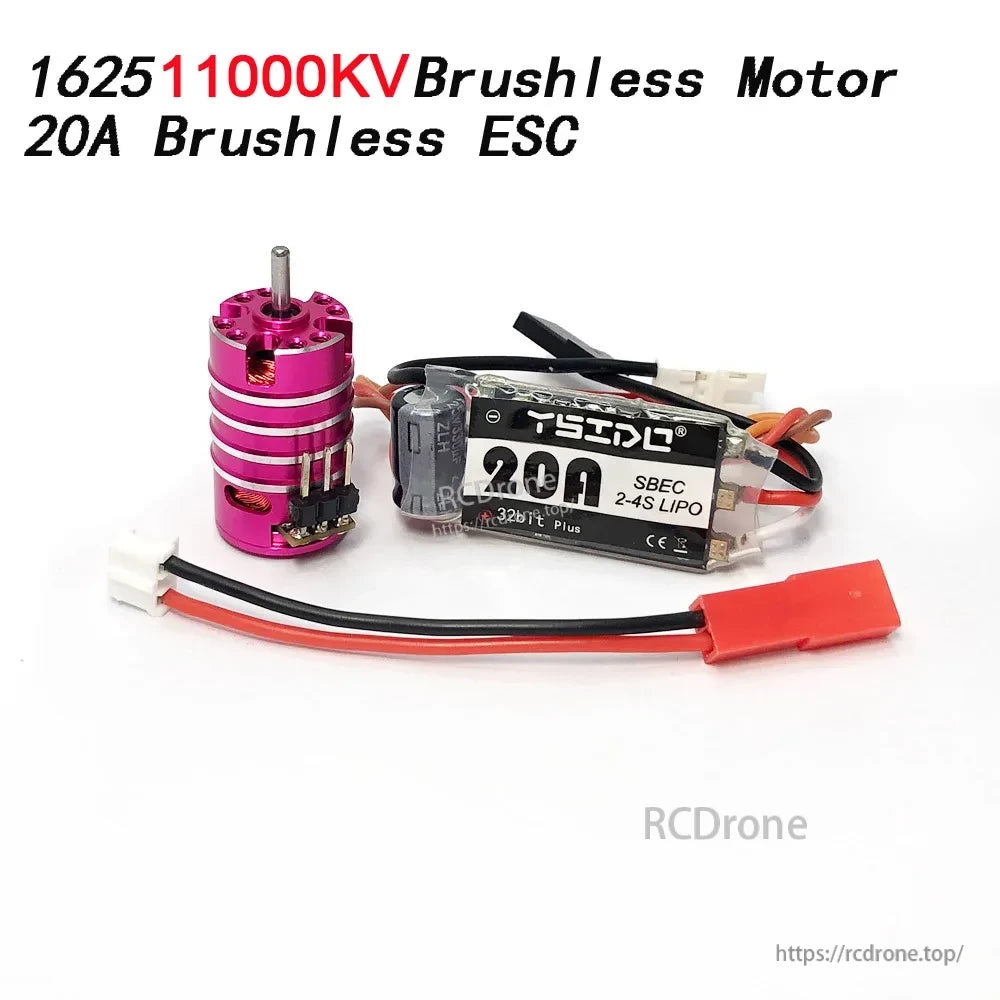

Note: Images also show an 11000KV option.

ESC (Brushless)

Continuous Current 20A
Input 2–4S LiPo
BEC SBEC
Controller 32bit (Plus)

What’s Included

  • 1× YSIDO 1625 Brushless Motor (KV as ordered, 2.0 mm shaft)
  • 1× 20A Brushless ESC (SBEC, 2–4S LiPo, 32bit)

Applications

  • 1/24 and 1/28 scale RC mini car models
  • Compatible with Wltoys and Traxxas style setups

Details

YSIDO 1625 brushless motor and 20A ESC combo, 3500KV–11000KV, 32-bit processor, SBEC, compatible with 2-4S LiPo batteries.

YSIDO 1625 Brushless Motor 20A ESC Combo, 3500KV to 11000KV, 32bit Plus, SBEC 2-4S LIPO

YSIDO 1625 brushless motor: 7-10V, 85W, 11A max, 50K RPM, 2 poles, φ16×25mm, 25g, φ2mm shaft, multiple KV options.

YSIDO 1625 brushless motor specifications: multiple KV options, max current 11A, voltage 7-10V, power 85W, RPM 50K, shaft φ2mm, size φ16*25mm, weight 25g, 2 poles.
