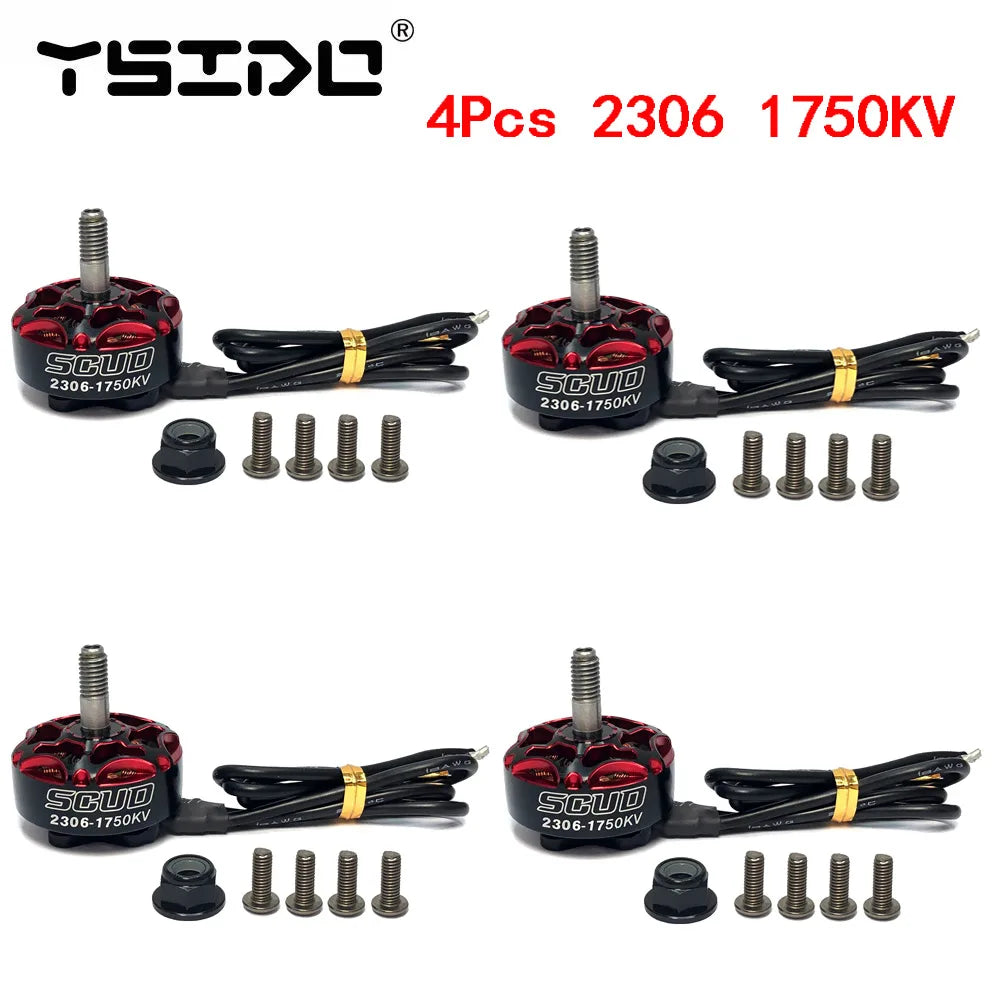

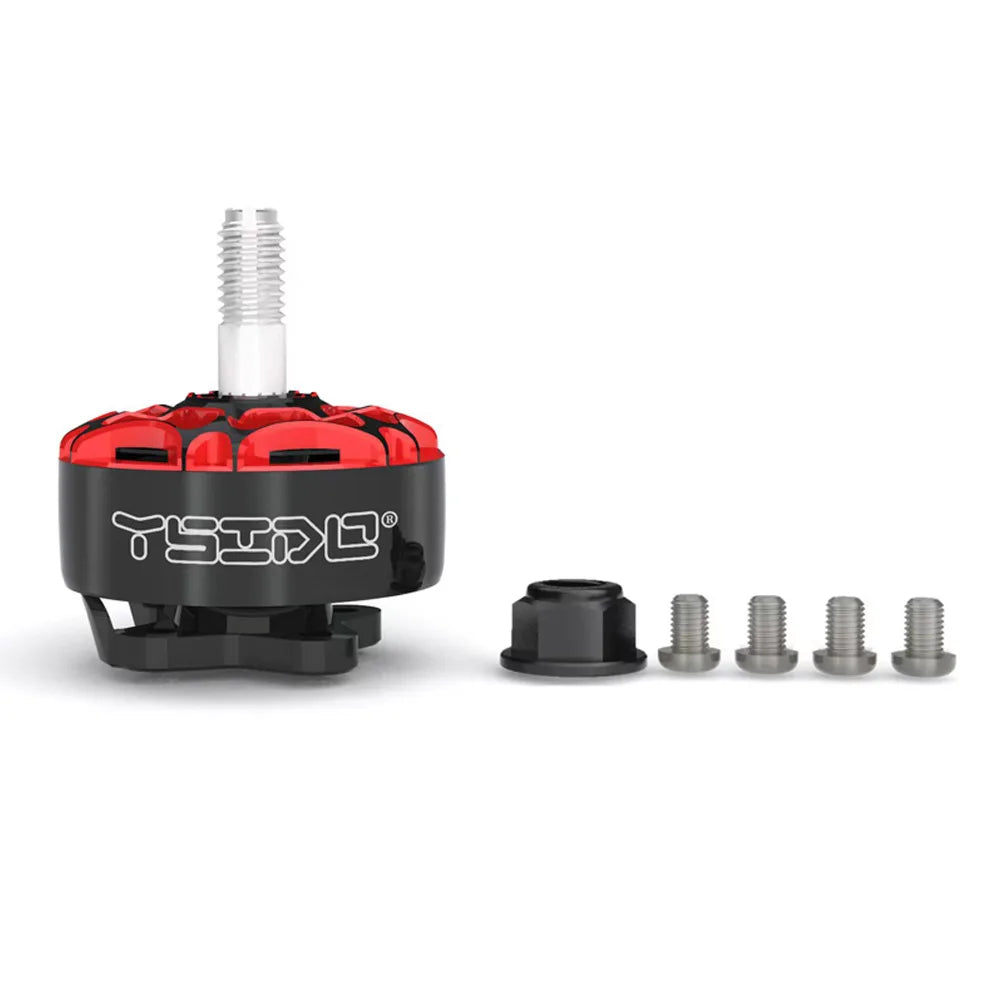

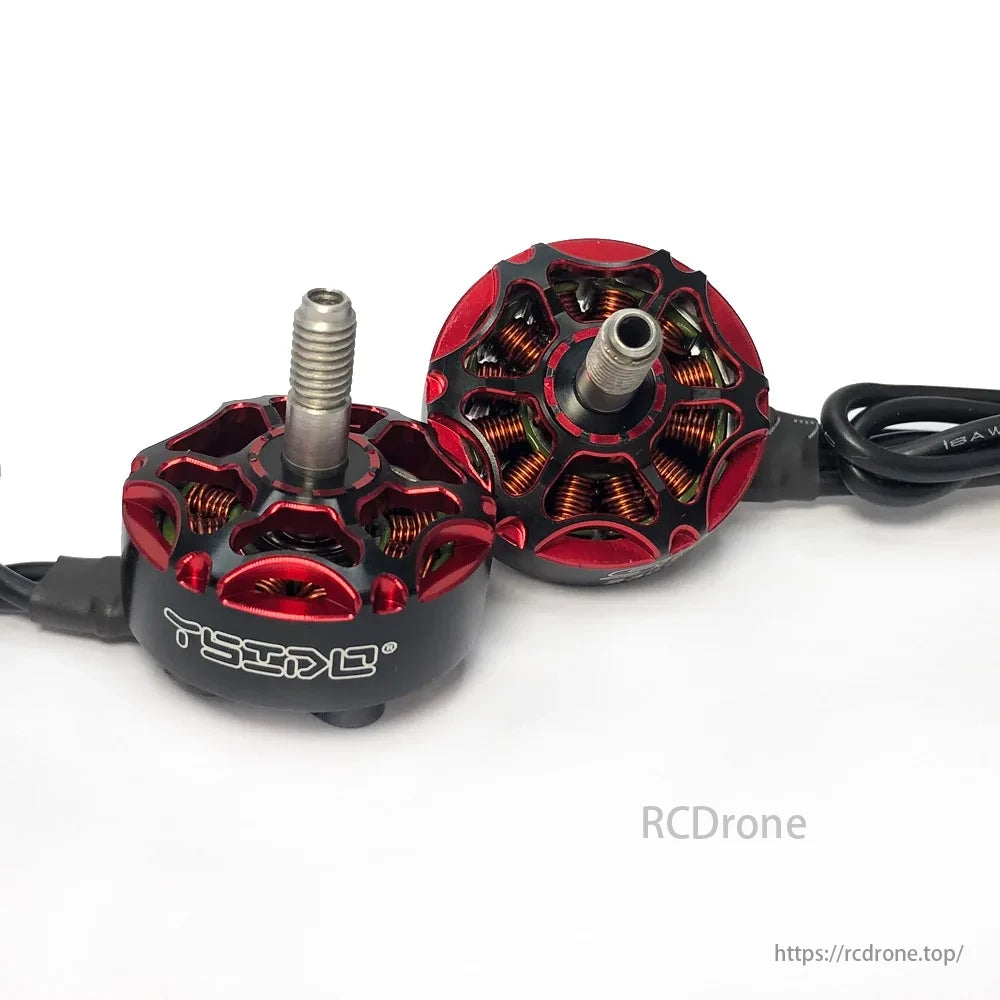

• YSIDO SCUD 2306 1750KV motors for FPV drones, include screws/connectors, Mark 4 compatible.
  • YSIDO SCUD 2207/2306 1750KV 1850KV 2500KV 2550KV 3–6S FPV Brushless Motor for 5"/6" Freestyle Racing Drones (Mark 4 Compatible)
  • YSIDO SCUD 2207/2306 1750KV 1850KV 2500KV 2550KV 3–6S FPV Brushless Motor for 5"/6" Freestyle Racing Drones (Mark 4 Compatible)
  • YSIDO SCUD 2207/2306 brushless motors for FPV drones, with 1750-2550KV options, compatible with 3-6S Lipo batteries.
  • YSIDO SCUD 2207/2306 1750KV 1850KV 2500KV 2550KV 3–6S FPV Brushless Motor for 5"/6" Freestyle Racing Drones (Mark 4 Compatible)
  • YSIDO SCUD 2207/2306 brushless motors for 5"/6" freestyle racing drones, compatible with Mark 4.
  • YSIDO SCUD 2207/2306 brushless motors for 5"/6" FPV drones, with 1750KV-2550KV speed options.

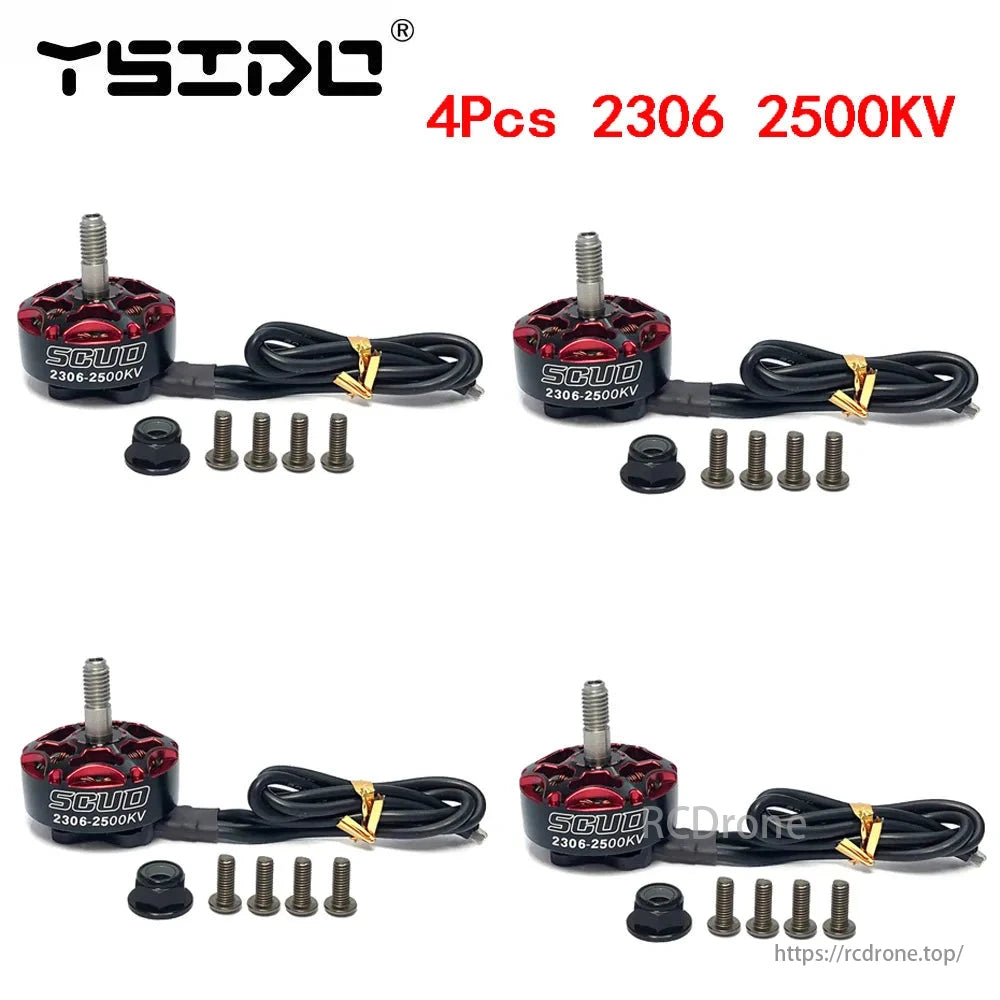

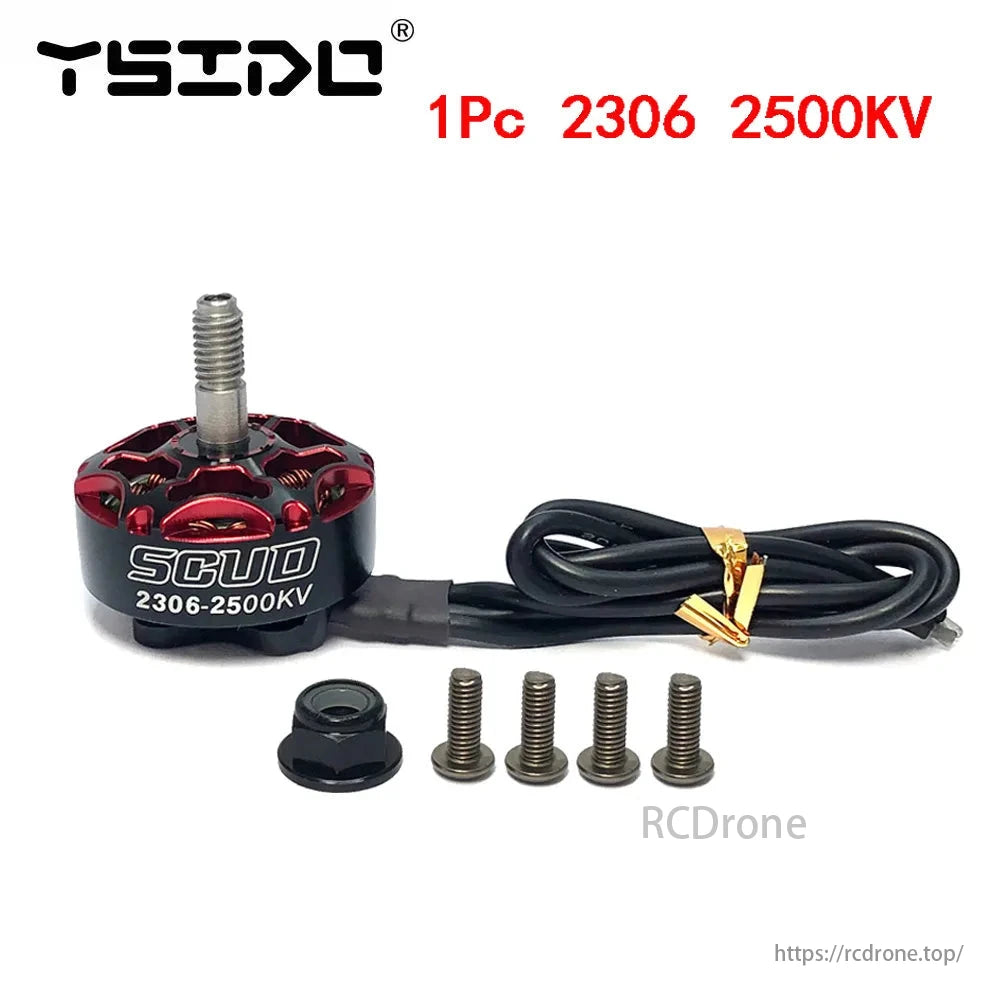

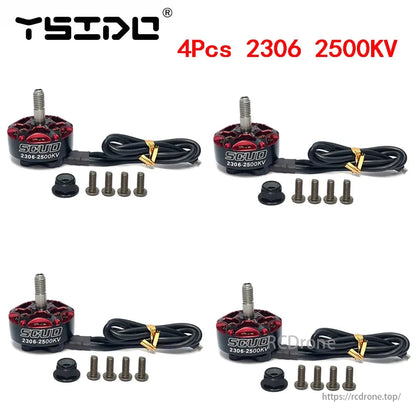

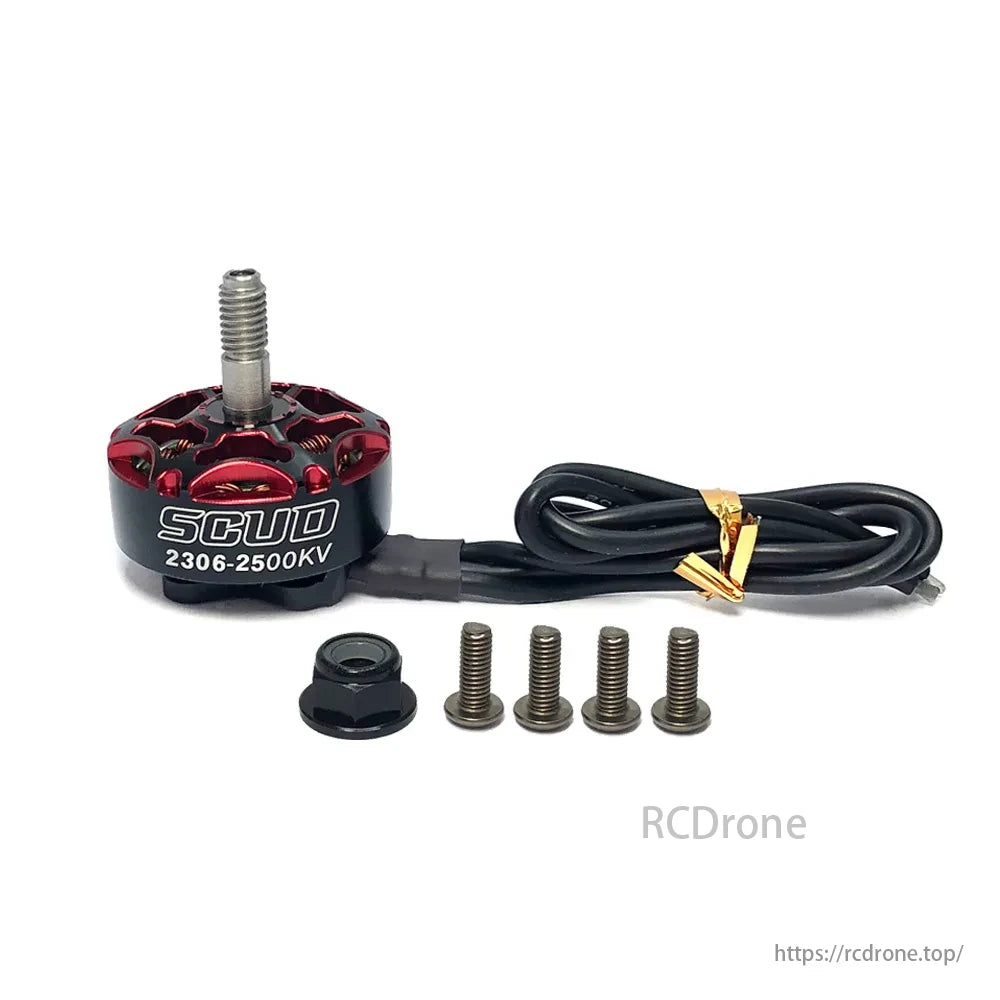

  • YSIDO SCUD 2306 2500KV brushless motors kit for FPV drones, includes four motors, cables, mounting hardware, suited for 5"/6" freestyle drones, Mark 4 compatible.

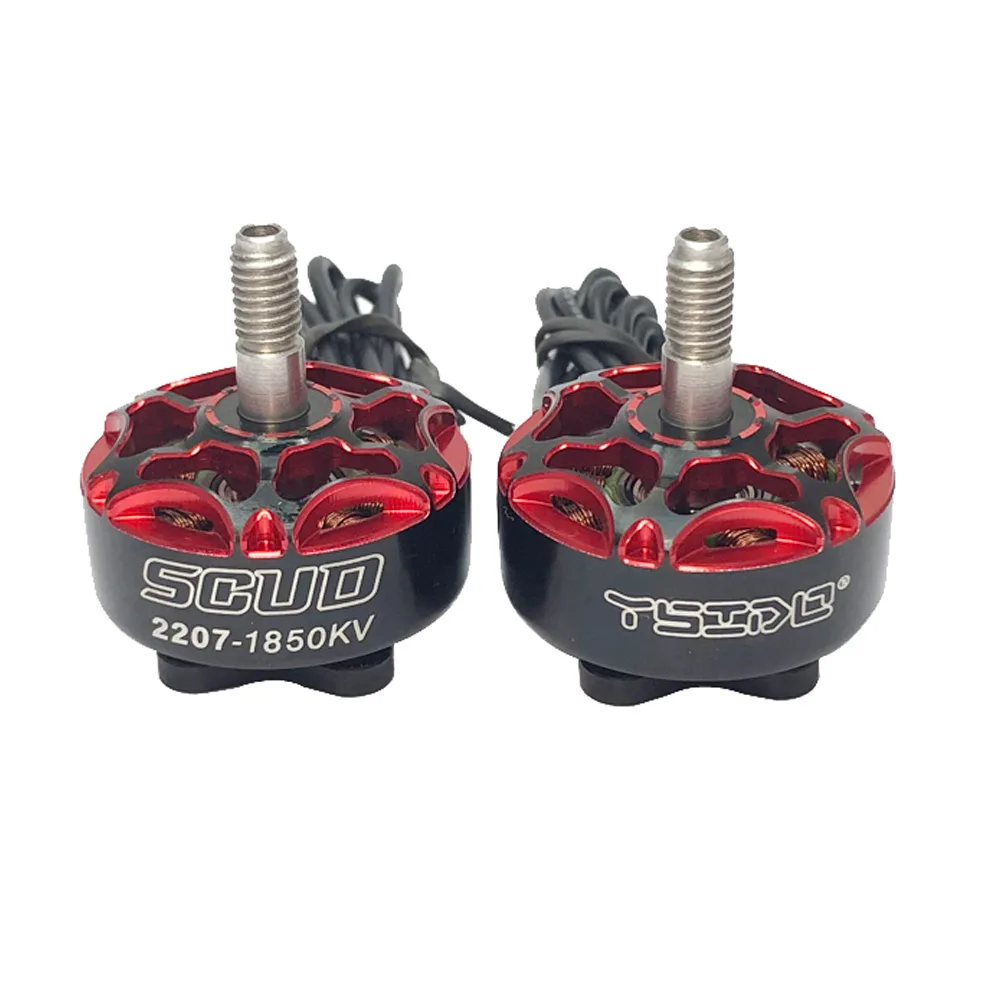

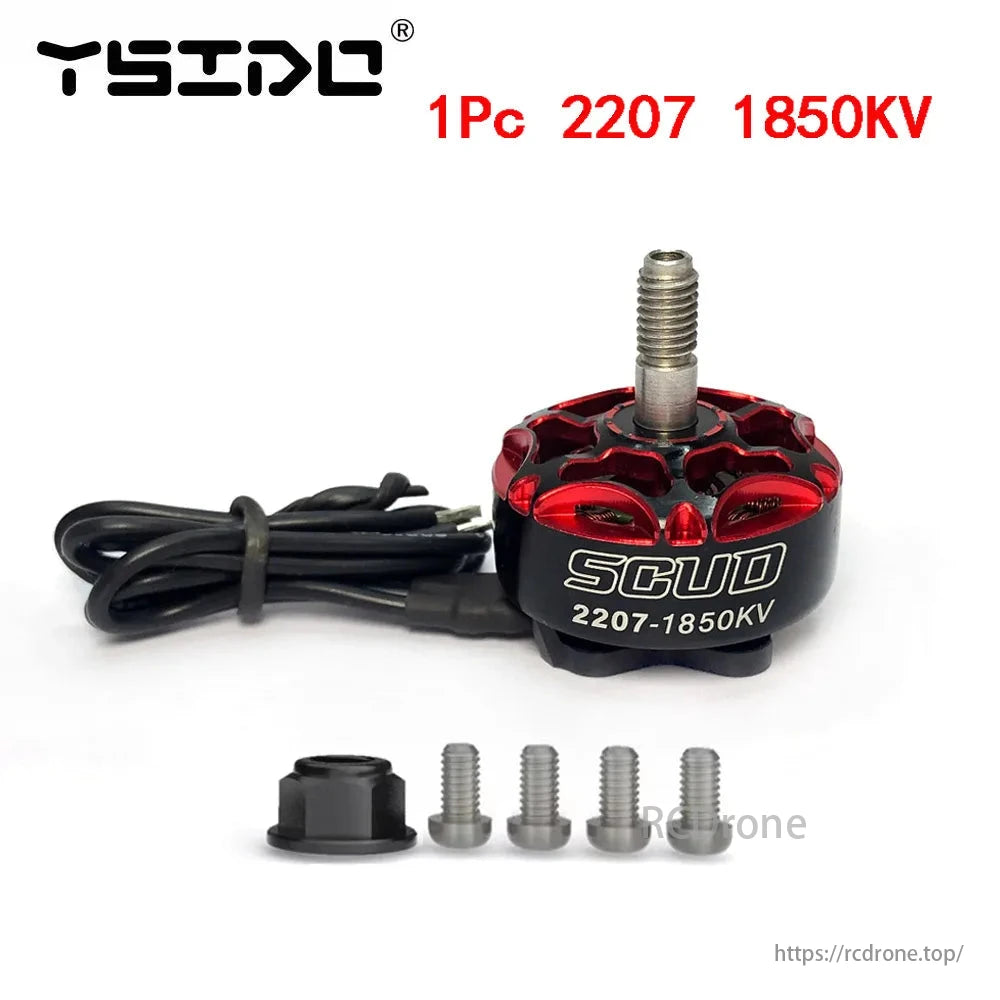

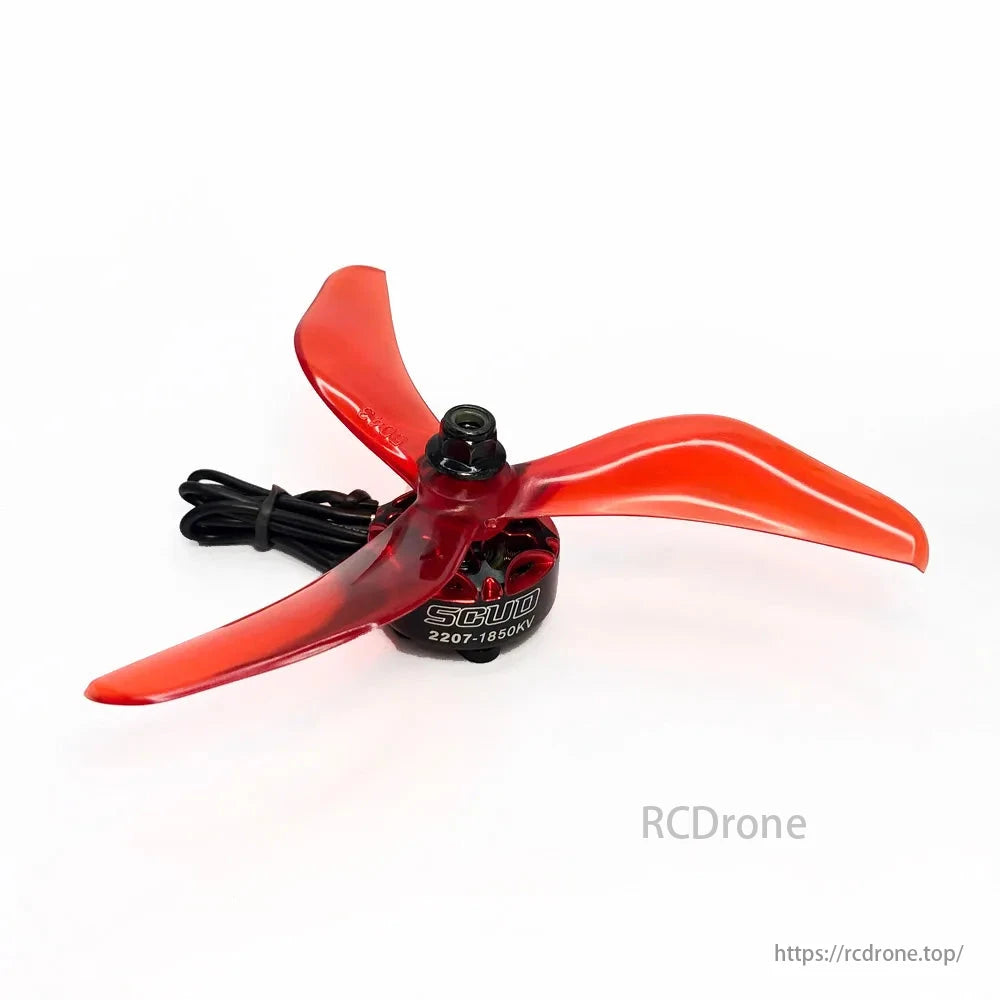

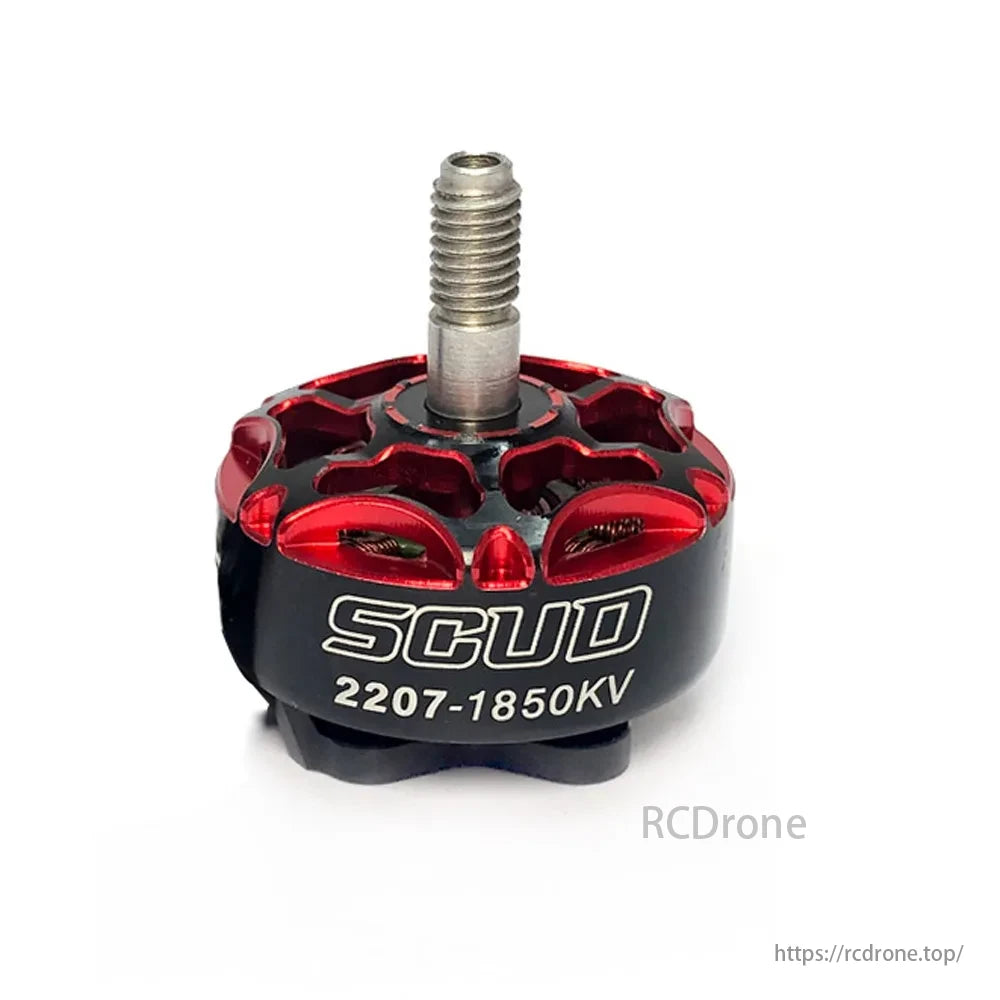

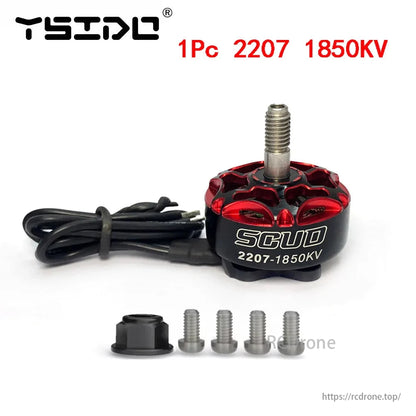

  • YSIDO SCUD 2207 1850KV FPV brushless motor, ideal for racing drones with high performance and efficiency.

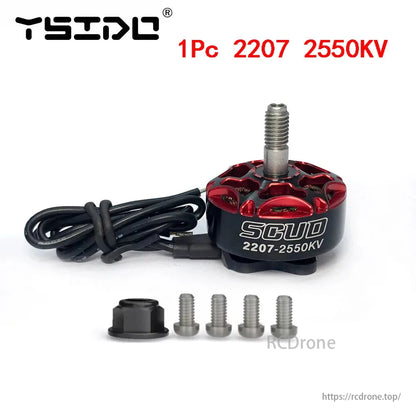

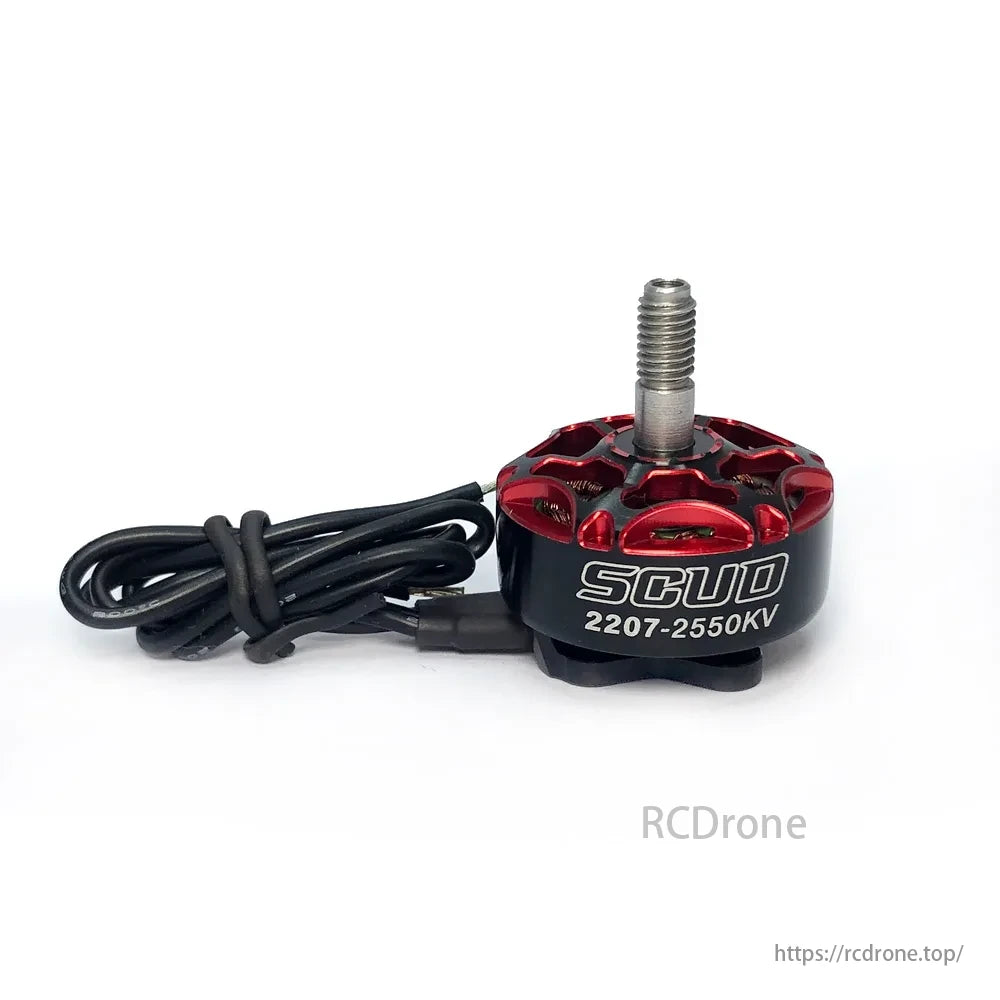

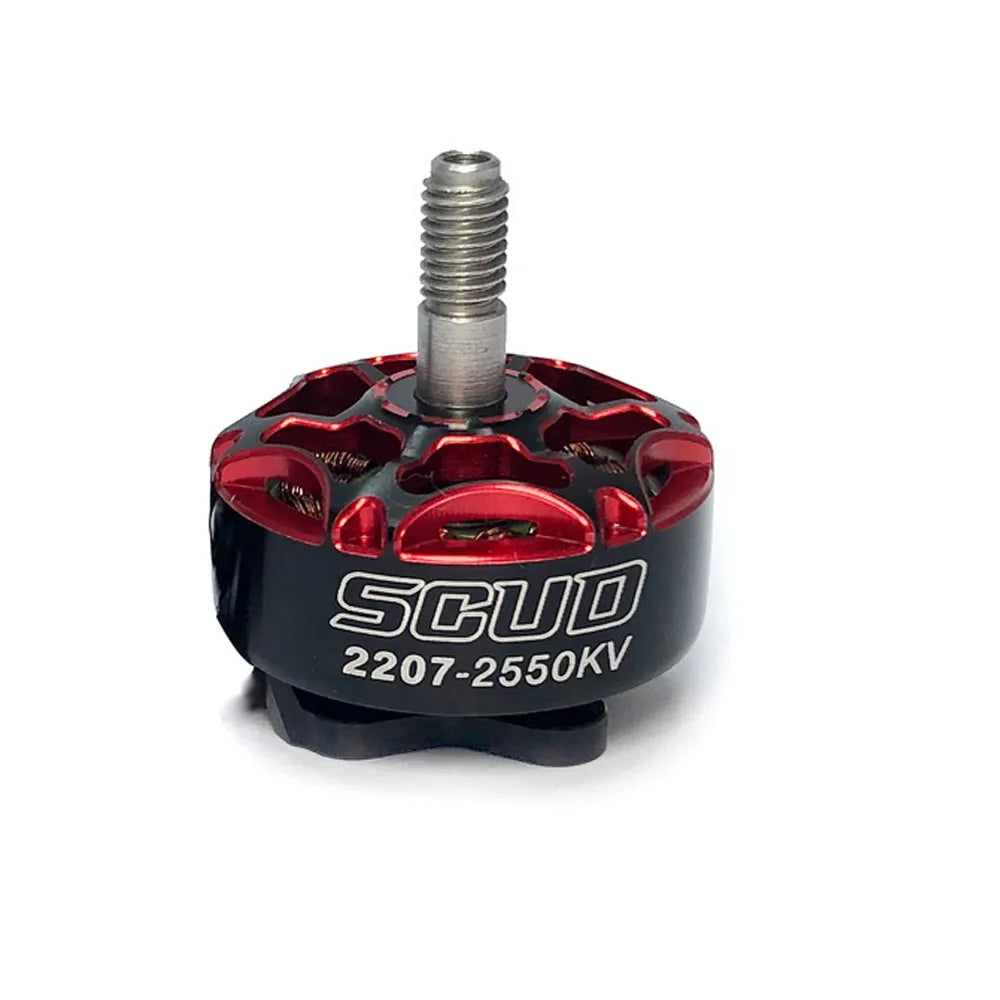

  • YSIDO SCUD 2207 2550KV FPV brushless motor, ideal for racing drones with high power and efficiency.

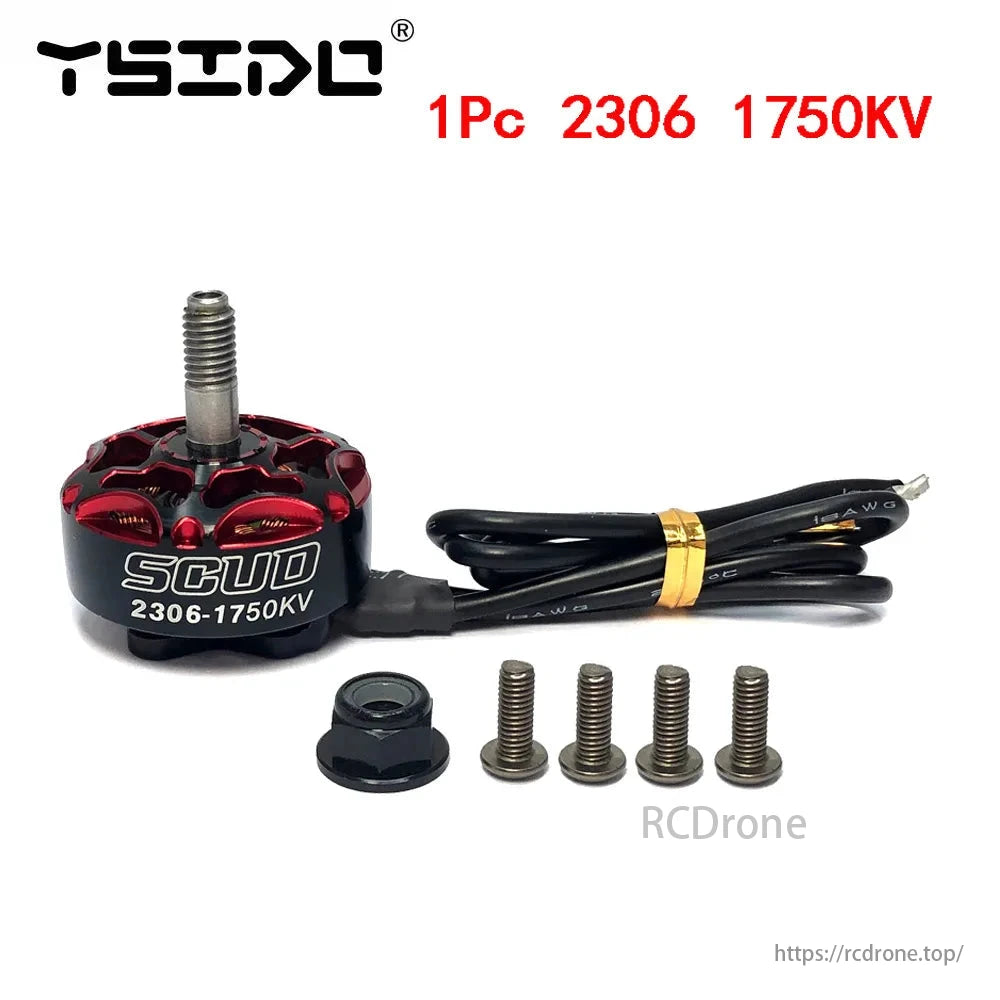

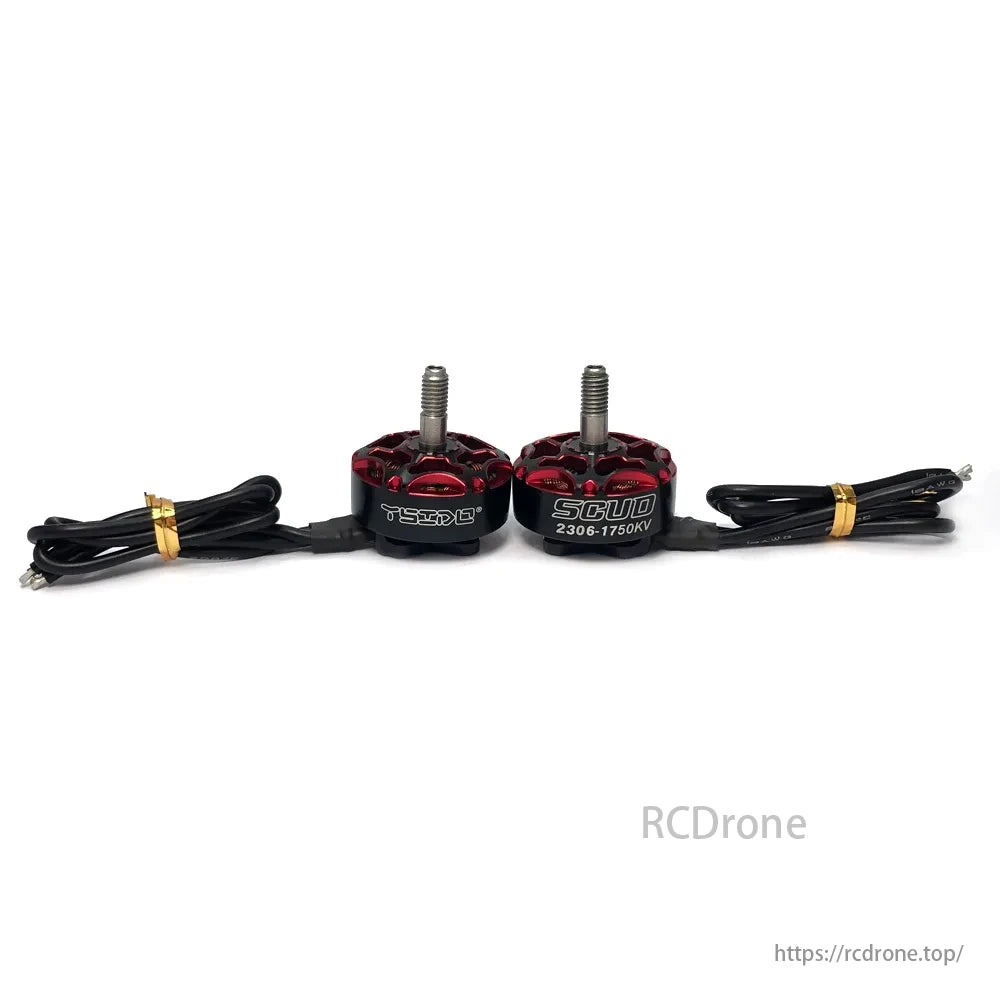

  • YSIDO SCUD 2306 1750KV brushless motor, ideal for FPV racing drones with high power and performance.
  • YSIDO SCUD 2306 2500KV brushless motor, ideal for FPV racing drones with high performance and efficiency.

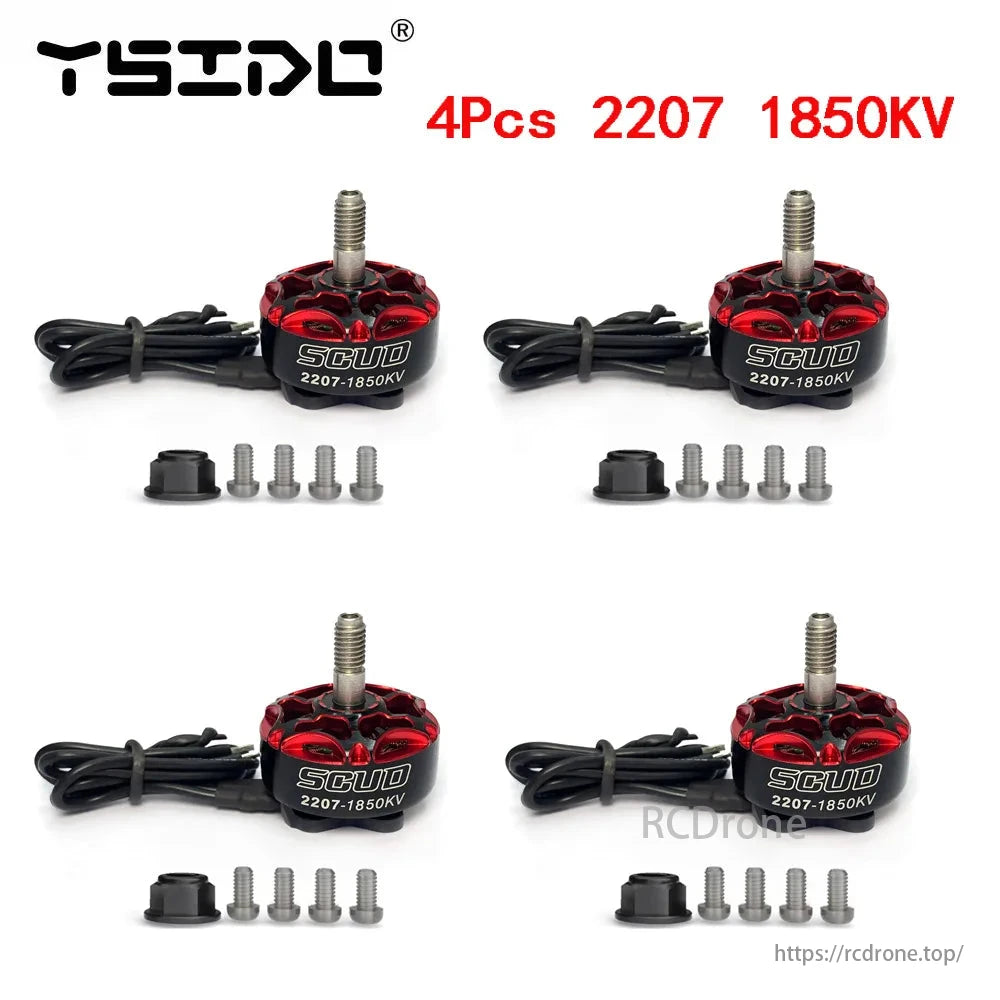

  • YSIDO SCUD 2207 1850KV brushless motor for 5"/6" drones, includes four motors with hardware.

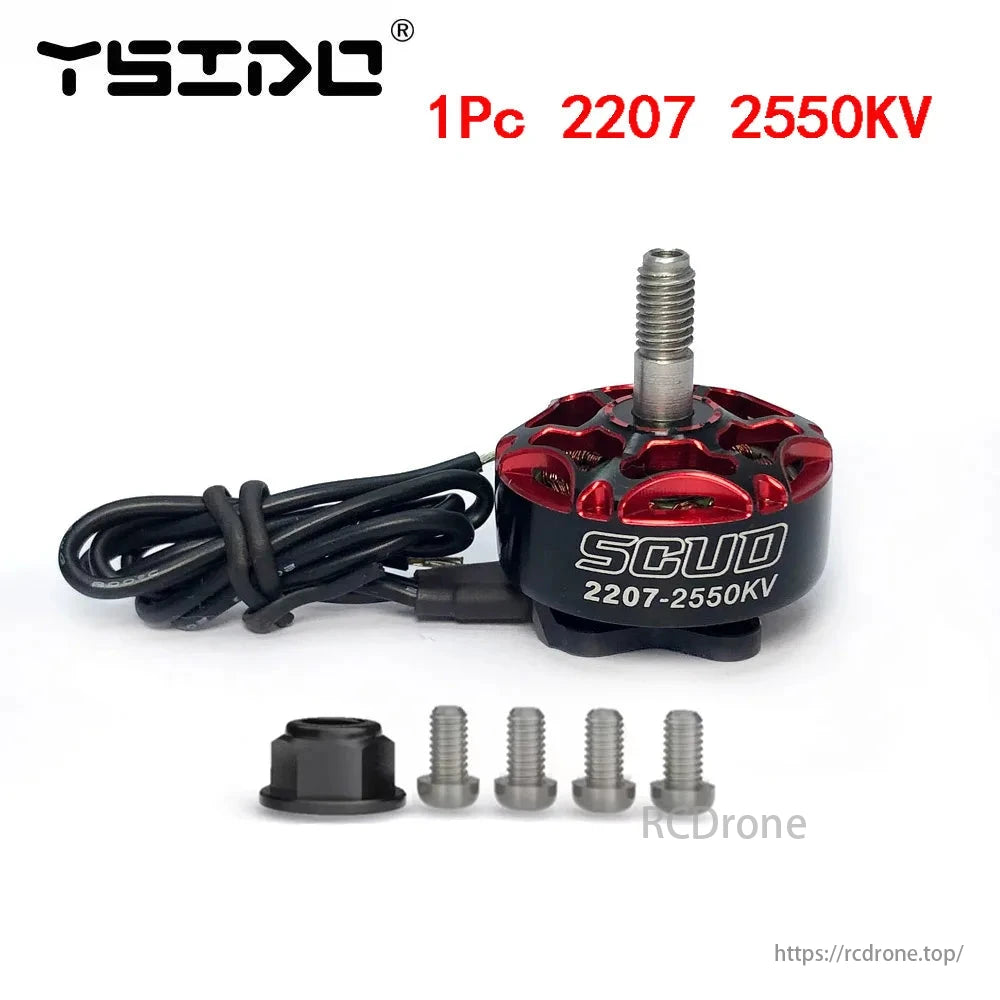

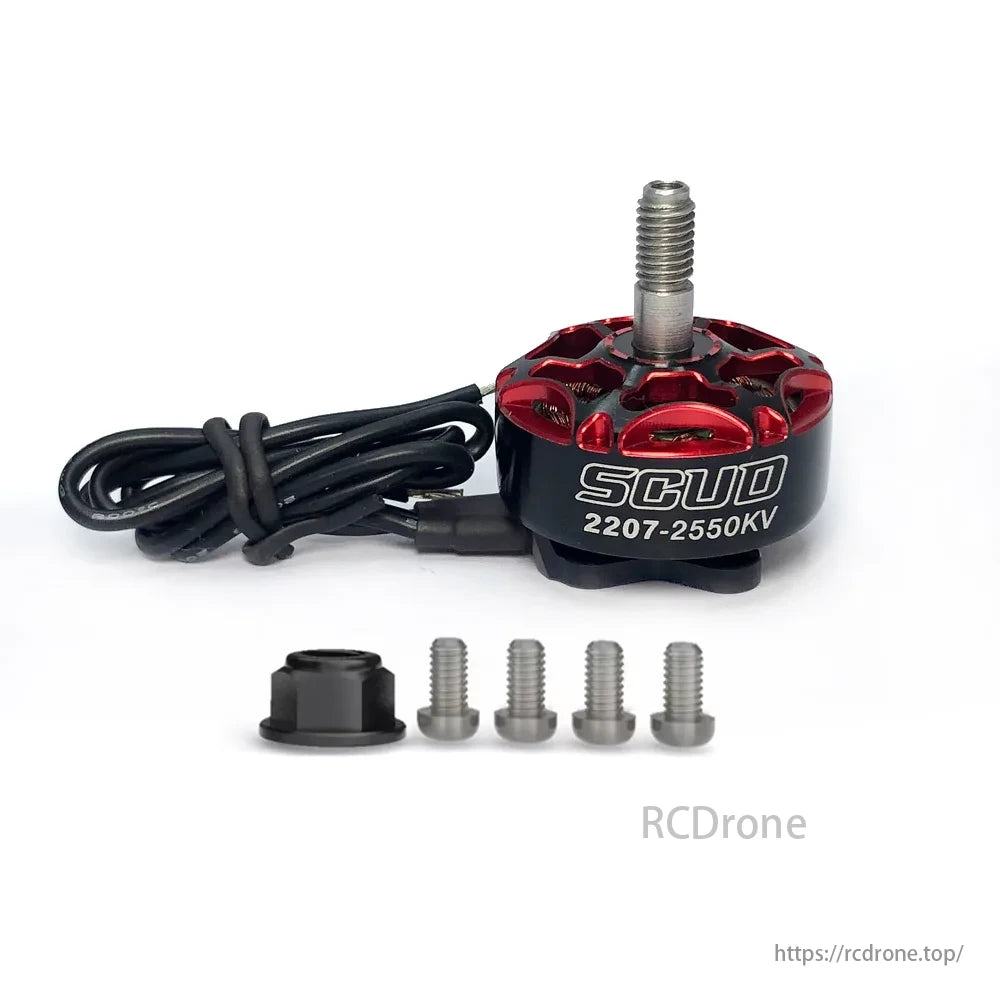

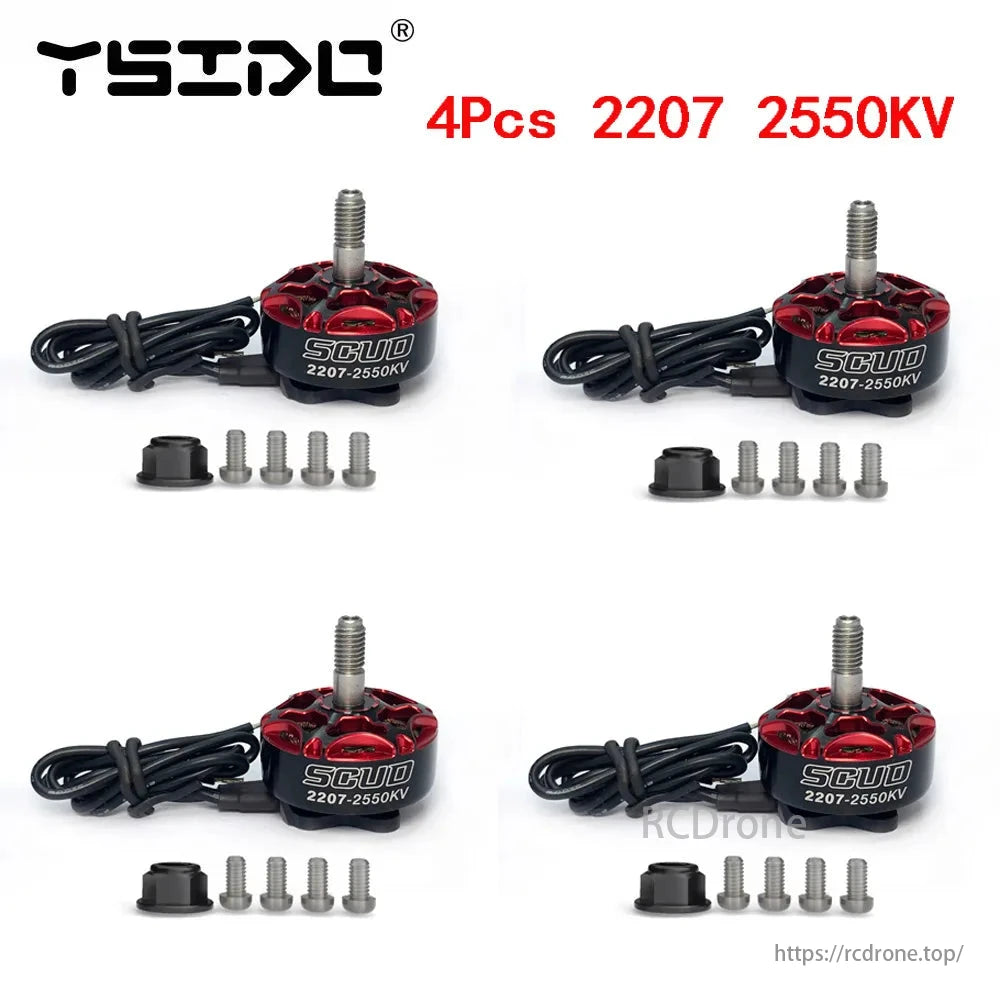

  • YSIDO SCUD 2207 2550KV brushless motor set for 5"/6" racing drones, includes four motors with hardware.
1 14

YSIDO SCUD 2207/2306 1750KV 1850KV 2500KV 2550KV 3–6S FPV Brushless Motor for 5"/6" Freestyle Racing Drones (Mark 4 Compatible)

YSIDO SCUD 2207/2306 1750KV 1850KV 2500KV 2550KV 3–6S FPV Brushless Motor for 5"/6" Freestyle Racing Drones (Mark 4 Compatible)

YSIDO

$49.67 USD
$49.67 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Description：

SCUD series are very strong and powerful FPV motors for FPV racing, great value choice with well known SCUD performance.focuses on quality, the SCUD series affordable motors that are strong and durable.

This 2207 2306 sized motor features a High-strength 5mm steel hollow shaft, Single strand windings for performance, M3 shaft screw.


Features:

High-strength 5mm Steel shaft

N52H High-temperature magnets, NSK bearings

16x16mm hole pattern

Single strand copper winding

Hex bolt shaft set screw


2207 Specifications:

Model: SCUD 2207 Motor

KV: 1850KV / 2550KV

Weight(included wire): 33g

Dimension: φ28.5*19.4mm

Interphase Resistance: 78.23mΩ / 44.31mΩ

Peak Current: 42A / 50A

Max Watt: 1000W / 800W

Configuration: 12N14P


2306 Specifications:

Model: SCUD 2306 Motor

KV: 1750KV / 2500KV

Weight(included wire): 34g

Dimension: φ29.5*18.8mm

Interphase Resistance: 87.65mΩ / 55.88mΩ

Peak Current: 45A / 50A

Max Watt: 1000W / 800W

Configuration: 12N14P

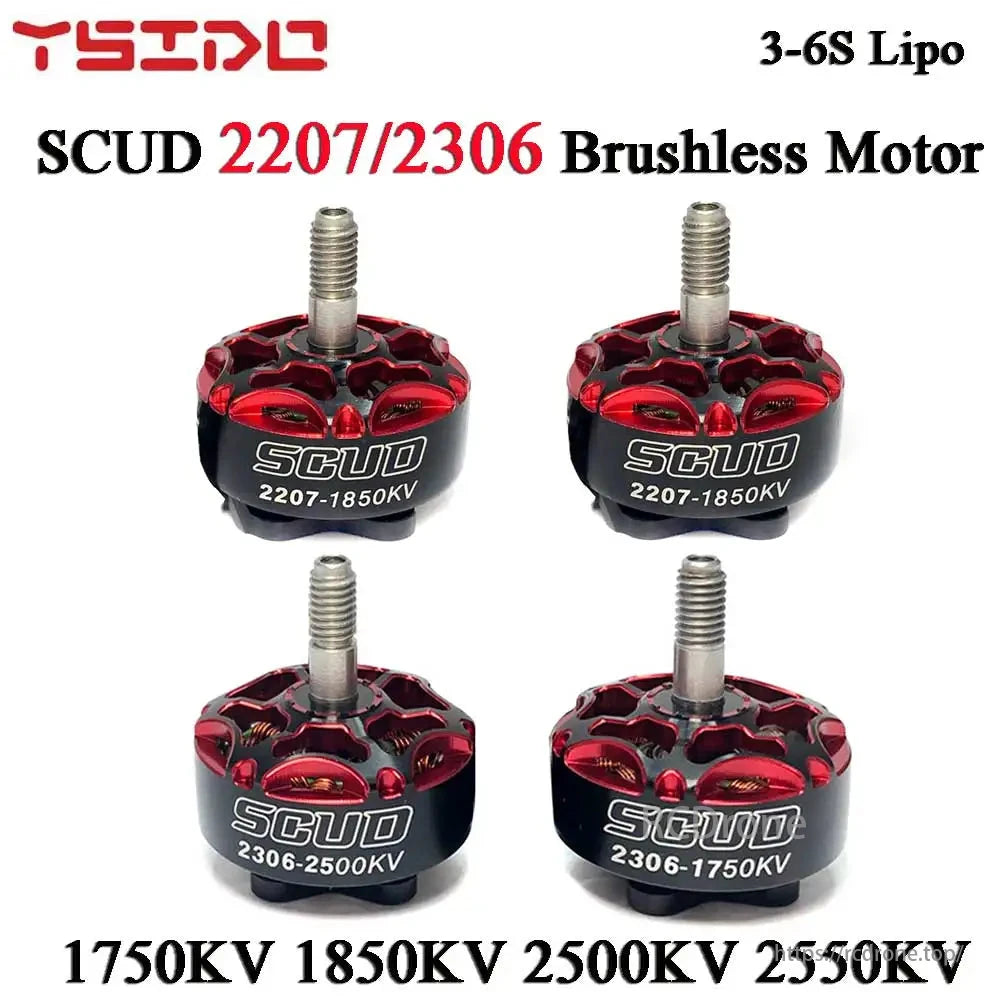

YSIDO Scud 3-6S Brushless Motor, YSIDO Scud 2207/2306 brushless motors, 3-6S Lipo, various KV ratings, compact high-performance design.

YSIDO Scud 2207/2306 Brushless Motor, 3-6S Lipo. Models: 2207-1850KV, 2306-2500KV, 2306-1750KV. KV ratings: 1750KV, 1850KV, 2500KV, 2550KV. Compact design for high performance.

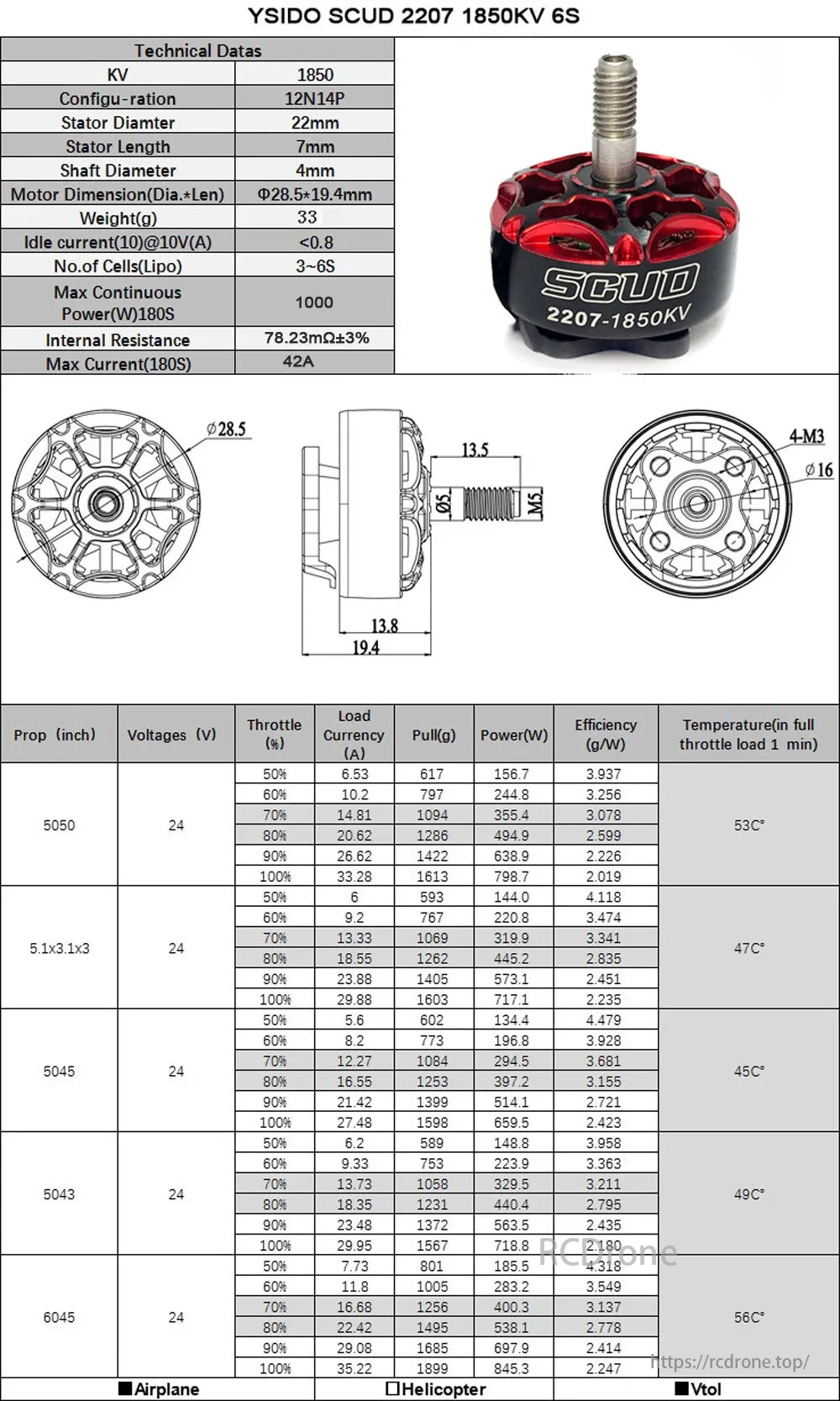

YSIDO Scud 3-6S Brushless Motor, YSIDO SCUD 2207 1850KV motor specs: 22mm stator, 33g, 1000W max power. Tested at 24V for load, pull, efficiency, and temp data with props.

YSIDO SCUD 2207 1850KV 6S motor specs: KV 1850, 12N14P, 22mm stator, 33g. Max power 1000W, 42A. Tested with props at 24V for load, pull, efficiency, and temp data.

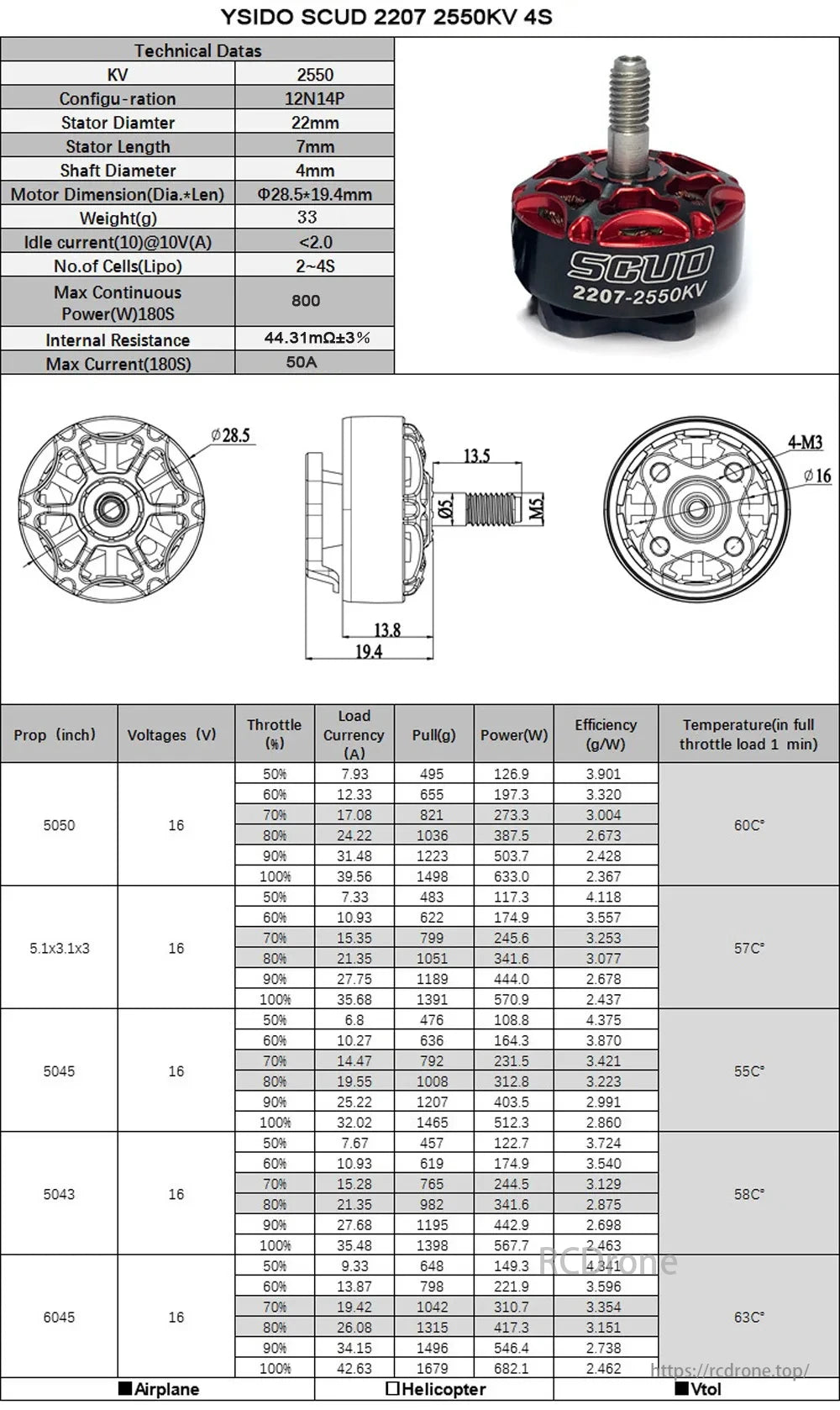

YSIDO Scud 3-6S Brushless Motor, YSIDO SCUD 2207 motor specs include KV 2550, 22mm diameter, 7mm length, 33g weight, max 800W power, tested with props at 16V for performance.

YSIDO SCUD 2207 motor specs: KV 2550, 12N14P, 22mm diameter, 7mm length, 33g weight. Max 800W power, 50A current. Tested with props at 16V for performance metrics like pull and efficiency.

YSIDO Scud 3-6S Brushless Motor, SCUD series offer strong and powerful FPV motors for racing, focusing on quality and affordability.YSIDO Scud 3-6S Brushless Motor, SCUD series are strong and powerful FPV motors for racing, offering great value and a focus on quality.YSIDO Scud 3-6S Brushless Motor, The motor has a high-strength steel shaft, single-strand windings for performance, and an M3 shaft screw.YSIDO Scud 3-6S Brushless Motor, SCUD series offers strong and powerful FPV motors for racing, focusing on quality and affordability.YSIDO Scud 3-6S Brushless Motor, This motor has a high-strength steel shaft, single strand windings, and an M3 shaft screw.YSIDO Scud 3-6S Brushless Motor, SCUD series are strong and powerful FPV motors for racing, focusing on quality and affordability.YSIDO Scud 3-6S Brushless Motor, High-performance motor features and specifications for SCUD models 2207 and 2306.YSIDO Scud 3-6S Brushless Motor, SCUD series are strong and powerful FPV motors for racing, offering good quality at an affordable price.YSIDO Scud 3-6S Brushless Motor, SCUD motors feature high-strength steel shafts, N52H magnets, and NSK bearings, available in different models and specifications.YSIDO Scud 3-6S Brushless Motor, SCUD motors feature high-strength steel shafts, N52H magnets, and NSK bearings with varying specifications for models 2207 and 2306.YSIDO Scud 3-6S Brushless Motor, This motor has a high-strength steel shaft, single strand windings for performance, and an M3 shaft screw.YSIDO Scud 3-6S Brushless Motor, High-strength steel shaft motor features single strand windings and M3 shaft screw.YSIDO Scud 3-6S Brushless Motor, This motor features high-strength 5mm steel shaft, single strand windings, and M3 shaft screw.
