Specifications
Parameter | Specification |
---|---|
Control angle range | 360°×N (Yaw); -120°~30° (Pitch); ±40° (Roll) |
Control mode | Speed control; Angle control; Point to move |
Control signal | S.BUS, TTL UART, TCP, UDP |
Video output format | 1920×1080@30fps |
Video storage format | MP4 |
Photo format | JPG |
Material | Aviation aluminum alloy, nylon |
Optical zoom | 33x optical zoom |
Pod size | 178(L) × 144(W) × 217.2(H) mm |
Pod weight | 1280±10g |
Visible light resolution | 1920×1080 |
Thermal imaging resolution | 640×512 |

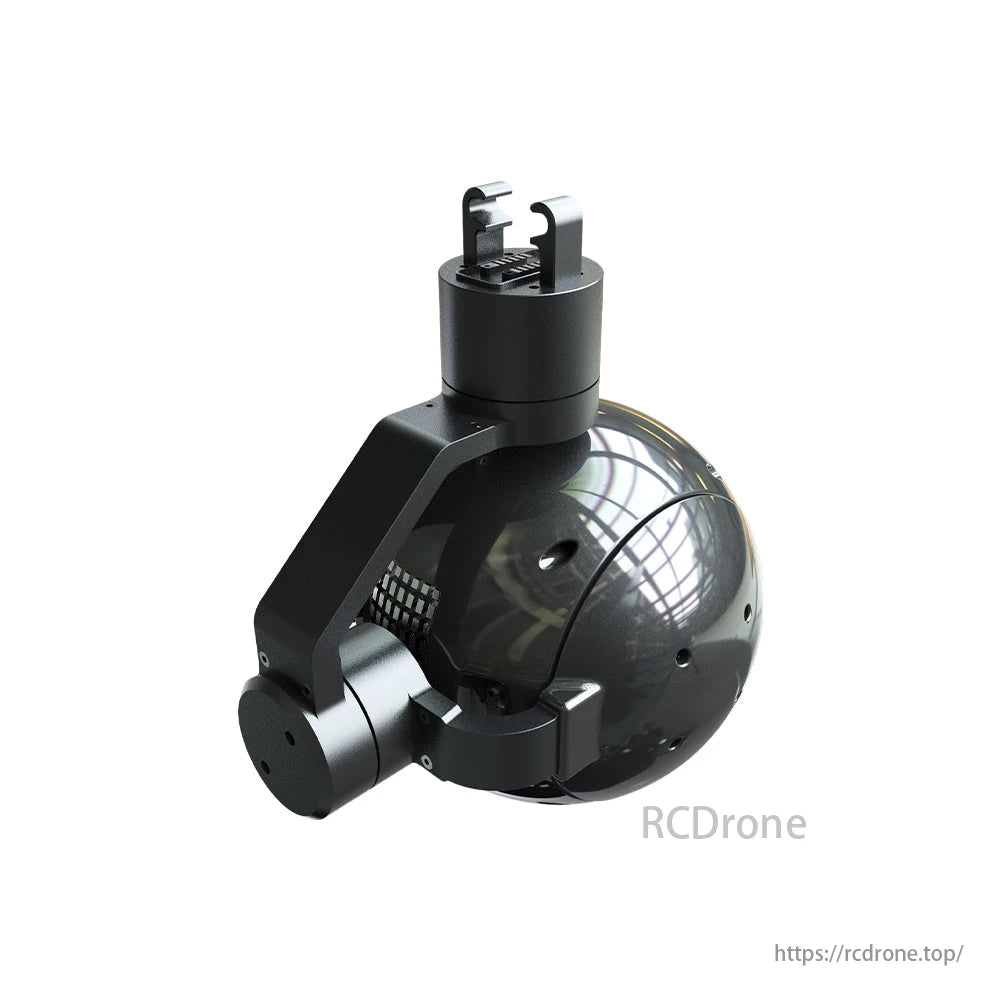

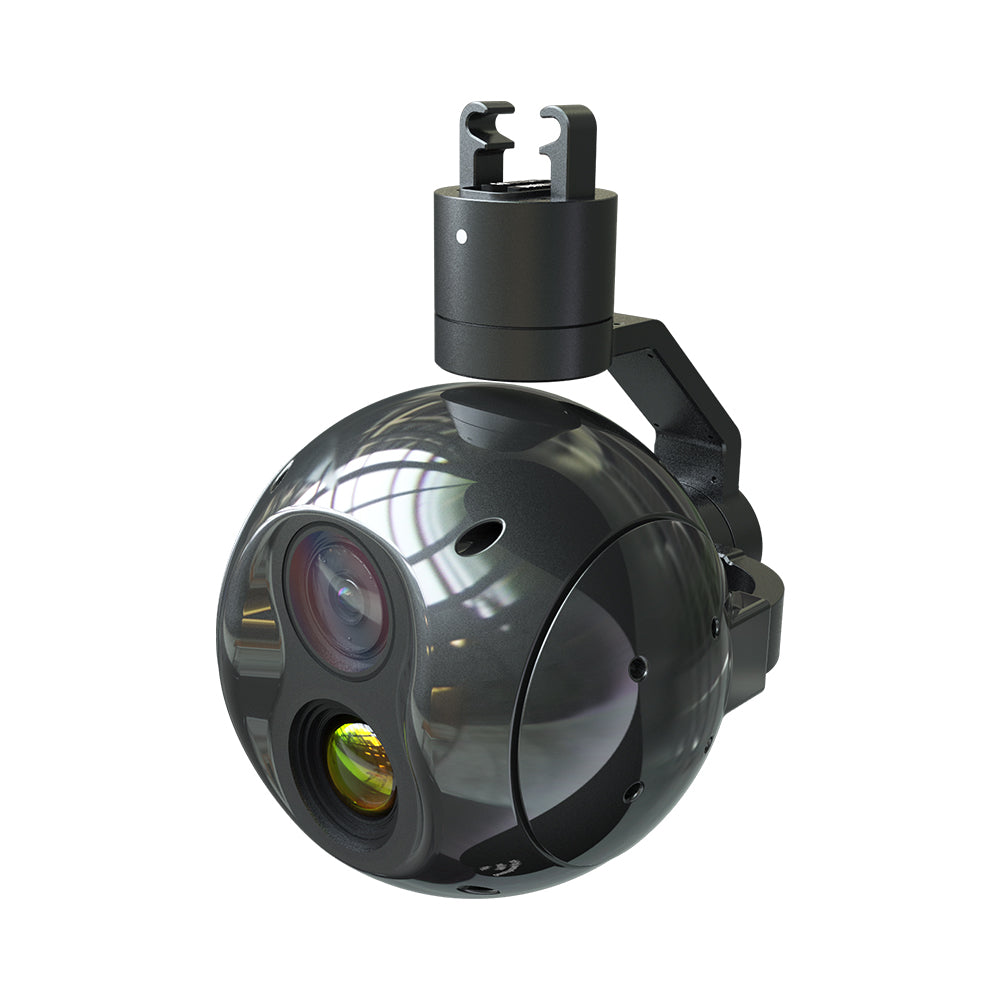

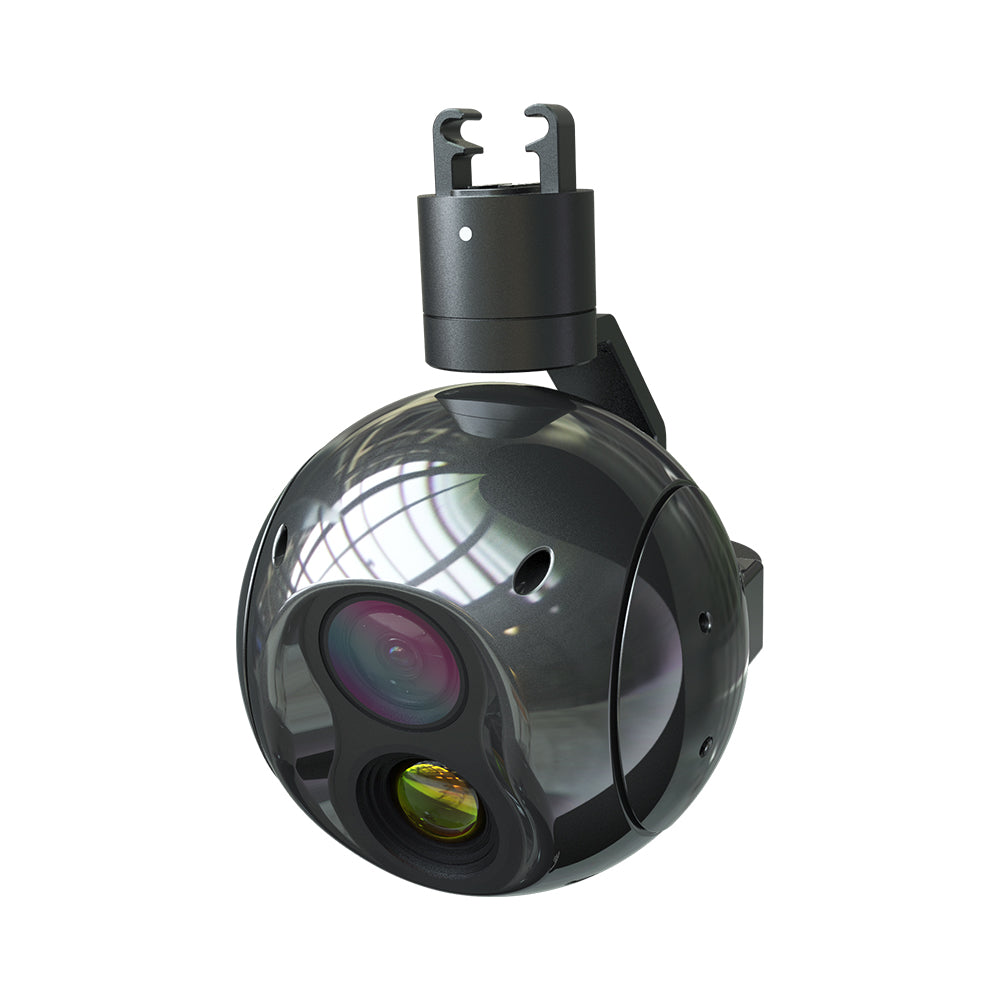

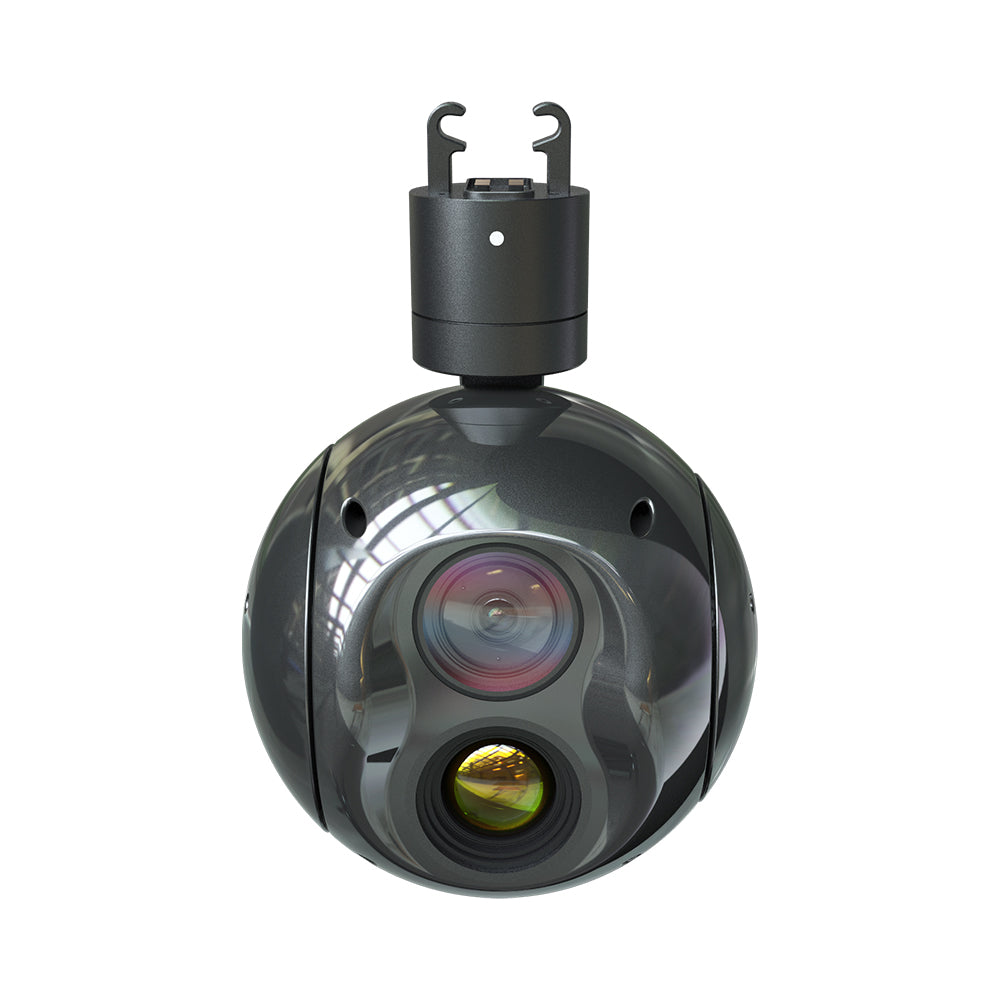

Zingto INYYO 503 Details
The Zingto INYYO 503 Gimbal features a dual sensor series and photoelectric pod, perfect for traveling and capturing all dimensions of your adventure.
Everywhere is the center of vision radiant and dazzling. Product Parameters: Control Angle Range: 360 degrees in yaw, -1200 to 300 degrees in pitch, and #409 in roll. Control Modes: Speed Control, Angle Control, Point-to-Point Control. Control Signals: S.BUS, TTL UART, TCP, UDP. Video Output Format: 1920x1080 at 30fps. Material: Aviation Aluminum Alloy and Nylon. Optical Zoom: 33x.
Excellent Stability: The advanced triaxial stabilization PTZ has tight integration with a mechanical platform. A high-speed processor controls the motors' precise movements, achieving a high steady-state frequency that compensates for every subtle movement and maintains a stable shooting angle. Three-axis stabilization with no mechanical enhancements provides 360-degree rotation. Intelligent Focusing: The original intelligent camera features a 33x optical zoom telephoto lens with up to 158mm focal length. It supports ICR infrared filters, eliminating blind spots during rotation, allowing for free automatic switching between day and night modes. This camera can capture distant details clearly and presents a receptive vision. It also offers a 360-degree yaw, a pitch range of -120° to 308°, and ultra-low light performance.
The ZINGTO INYYO 503 Gimbal features a ceramic package for its highly sensitive infrared detector. This uncooled thermal imaging detector uses military-grade high density ceramic packaging, which provides stable chemical properties and mechanical strength. The packaging has a high thermal conductivity and insulation impedance, ensuring excellent compatibility with the chip. This greatly increases the service life and reliability of the device. Unlike other wafer-packaged detectors, our ceramic packaging uses special processes and materials, resulting in superior thermal conductivity and sealing.
The Zingto INYYO 503 Gimbal features a Multi-rotor/Helicopter robot with fixed and compound wing designs, offering more features to explore. It includes Pelcol-D double layer shock absorption, open control protocol, PC and Android software client for screen parameter adjustment and work data output, with remote download of photos and videos. Application scenarios include energy inspection and law enforcement.
The Zingto INYYO 503 Gimbal provides a comprehensive solution for environmental monitoring, traffic inspection, search and rescue operations.
