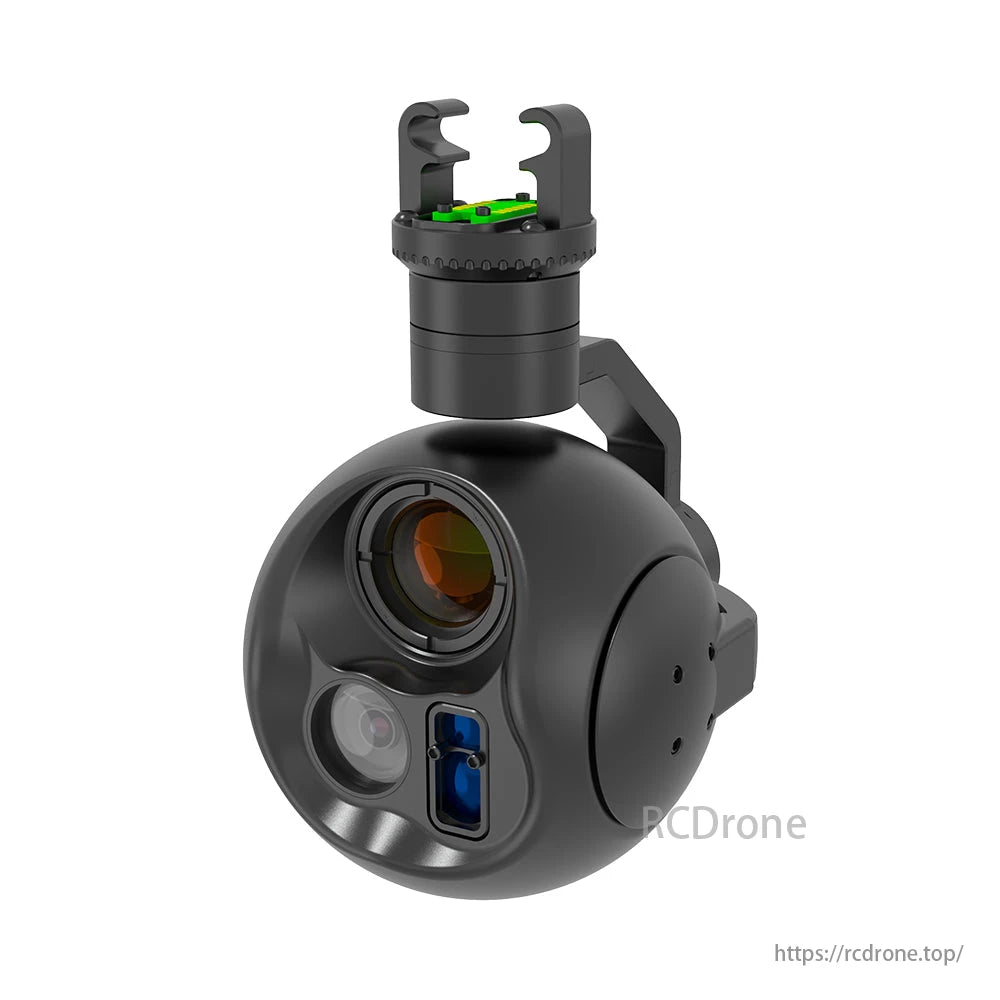

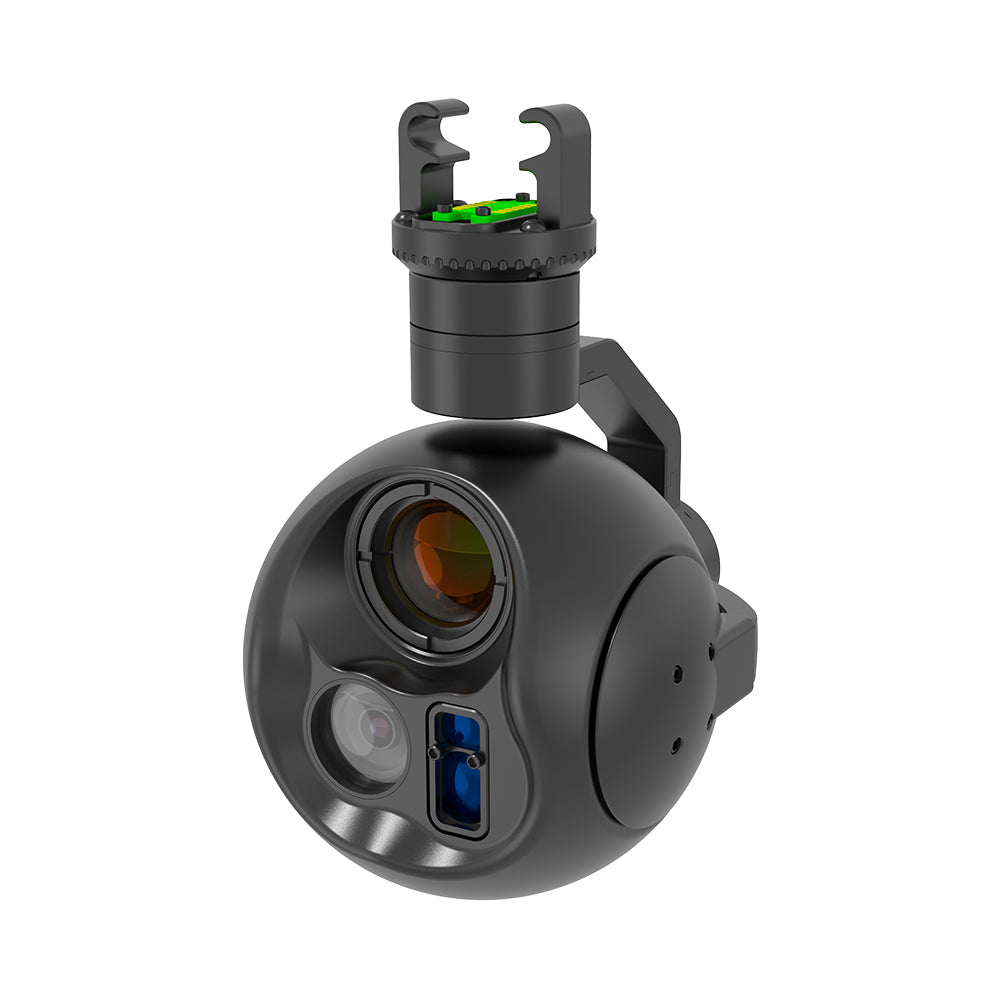

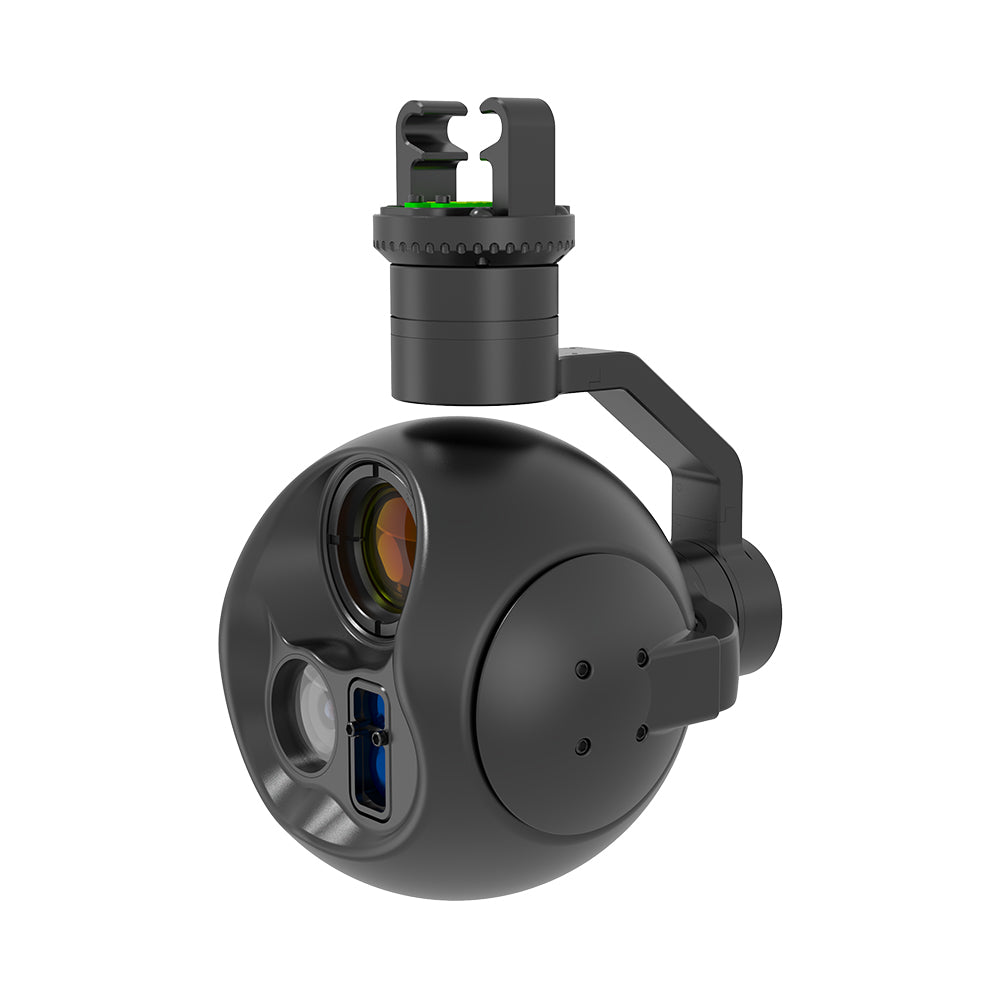

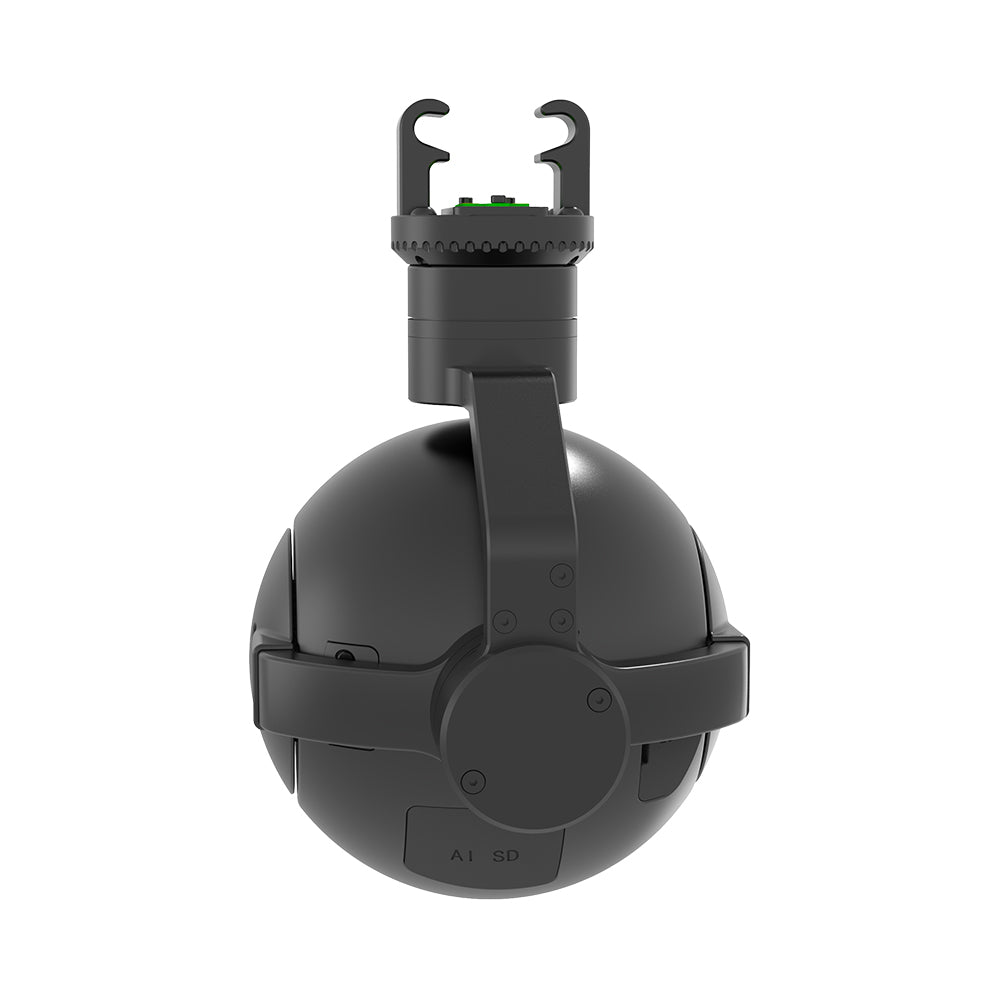

Zingto INYYO Q103L Drone Camera Gimbal - 4K EO 640 IR 2KM LRF Three Sensor Pod

Zingto INYYO Q103L Drone Camera Gimbal - 4K EO 640 IR 2KM LRF Three Sensor Pod

Zingto

$8,299.00 USD
$8,299.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

1 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Zingto INYYO Q103L Specifications

Parameter Value
Material Aircraft aluminum
Dimensions (L × W × H) 119.6 mm × 100 mm × 164 mm
Weight 708 ± 10 g
Visible Light Resolution 4K
Thermal Imaging Resolution 640 × 512
Thermal Sensitivity ≤ 50 mK @ 25 °C
Thermal Pixel Pitch 12 µm
Thermal Frame Rate Up to 50 Hz
Zoom Factor 10× Optical Zoom / 40× Max Hybrid Zoom
Representative Focal Lengths 12× Zoom → 58.8 mm; 40× Zoom → 196 mm
Target Tracking Mode Recognition Tracking, Feature Tracking
Gimbal Rotation Range 360° × N (Yaw), –120° to +30° (Pitch), ±55° (Roll)
Laser Ranging Module Range: 5–2000 m; Accuracy: ≤1 m; Wavelength: 905 nm
Control Mode Speed Control; Angle Control
Control Signals S.BUS, TTL UART, TCP, UDP
Video Output 1920 × 1080 @ 30 fps
Video Recording Up to 2.5K (1440p)
Photo Storage / Video Storage JPG / MP4
AI Chip 22 nm Quad-core 2.0 GHz, built-in NPU (~1.0 Tops)
Detection & Recognition Multiple targets; detection >85%, recognition >80%, false alarm <15%
Focus Speed <1 s (fast visual focus)
Operating Temperature –20 °C to +60 °C
Storage Temperature –30 °C to +70 °C
Ingress Protection IP43



Zingto INYYO Q103L Details

Zingto INYYO Q103L Drone Camera Gimbal, Explore the world with enhanced vision and limitless possibilities, capturing life moments in unparalleled clarity.

Explore the world with enhanced vision and limitless possibilities, capturing life moments in unparalleled clarity.

Zingto INYYO Q103L Drone Camera Gimbal, Zingto INYYO drone camera gimbal features sensors for thermal imaging and LRF, with zoom, tracking modes, and adjustable angles.

Zingto INYYO Q103L Drone Camera Gimbal features a 4K EO sensor, 640x512 thermal imaging sensor, and 2KM LRF three-sensor pod. It offers 10x optical zoom and 40x max hybrid zoom, target tracking modes, and control angle range of 360 degrees (yaw) -120~30 degrees (pitch) -1552 degrees (roll).

Zingto INYYO Q103L Drone Camera Gimbal, Advanced PTZ has tight integration with mechanical platform and high-speed processor for precise movements and stable shooting angles.

The advanced triaxial stabilization PTZ has tight integration with a mechanical platform and high-speed processor controls precise movements, achieving a steady-state frequency of up to 1250Hz for stable shooting angles. Three-axis stabilization enhances intelligent focusing and 360-degree rotation. A Sony action camera specifically designed for Q103L offers 4K visible light resolution, 10x optical zoom, and hybrid zoom capabilities.

The Zingto INYYO Q103L Drone Camera Gimbal features a high-sensitive infrared detector providing stable performance, thermal imaging, and real-time temperature measurement.

The Zingto INYYO Q103L Drone Camera Gimbal features a high-sensitive infrared detector with a ceramic package, providing stable performance and reliability. It integrates thermal imaging, visible light image fusion, and real-time temperature measurement. The gimbal ensures precise coaxiality for laser ranging and has automatic detection and recognition functions for typical targets.

The Zingto INYYO Q103L drone camera gimbal features a 4K EO sensor, 640 IR, and 2km LRF three-sensor pod.

The Zingto INYYO Q103L drone camera gimbal features a 4K EO sensor, 640 IR, and 2km LRF three-sensor pod. It has a quick-detachable design with aircraft aluminum alloy CNC precision machining for high strength and rapid heat dissipation.

Zingto INYYO Q103L Drone Camera Gimbal, Capture stunning 4K video and photos with enhanced optical zoom and thermal imaging capabilities for various applications.

Capture stunning 4K video and photos with enhanced optical zoom and thermal imaging capabilities for various applications.
