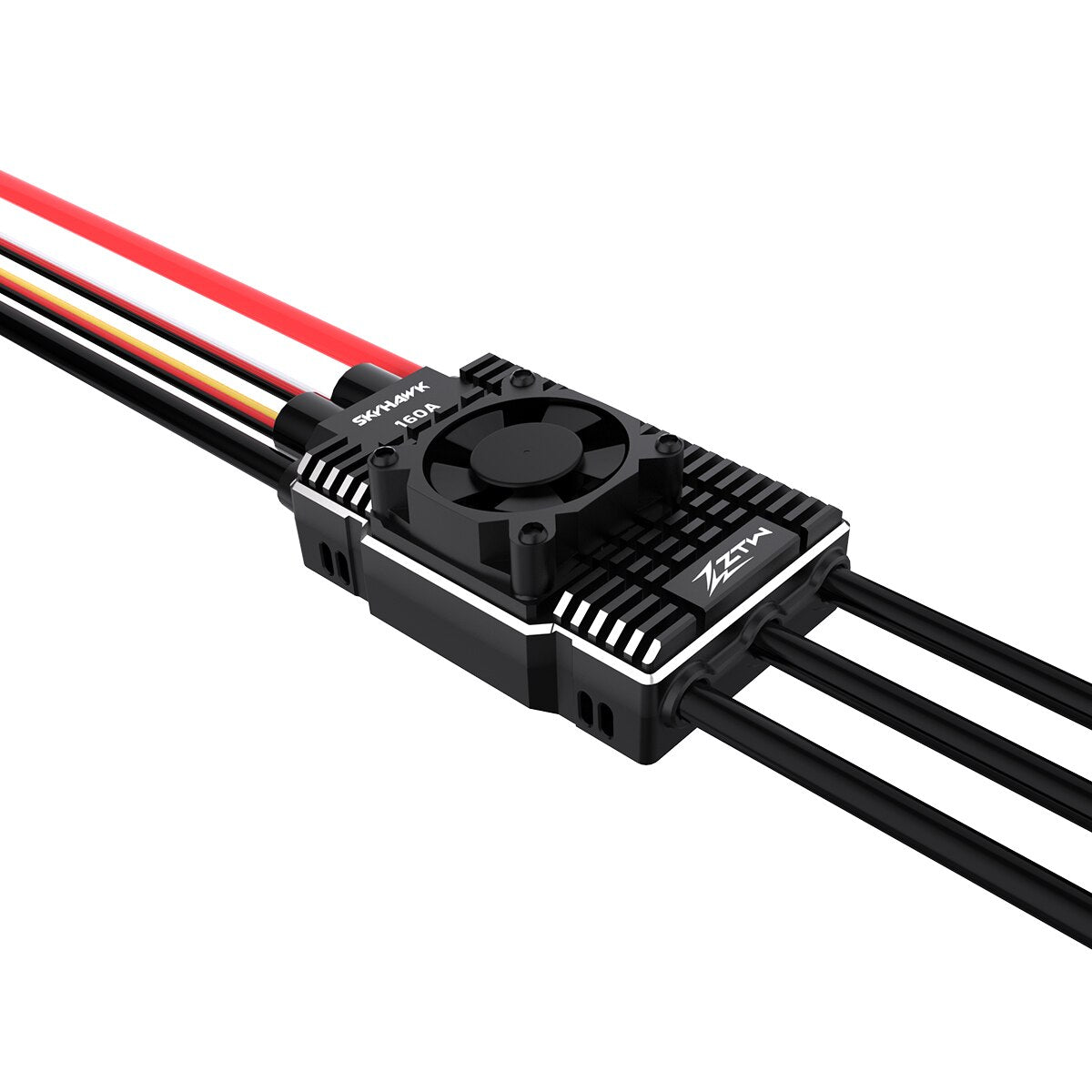

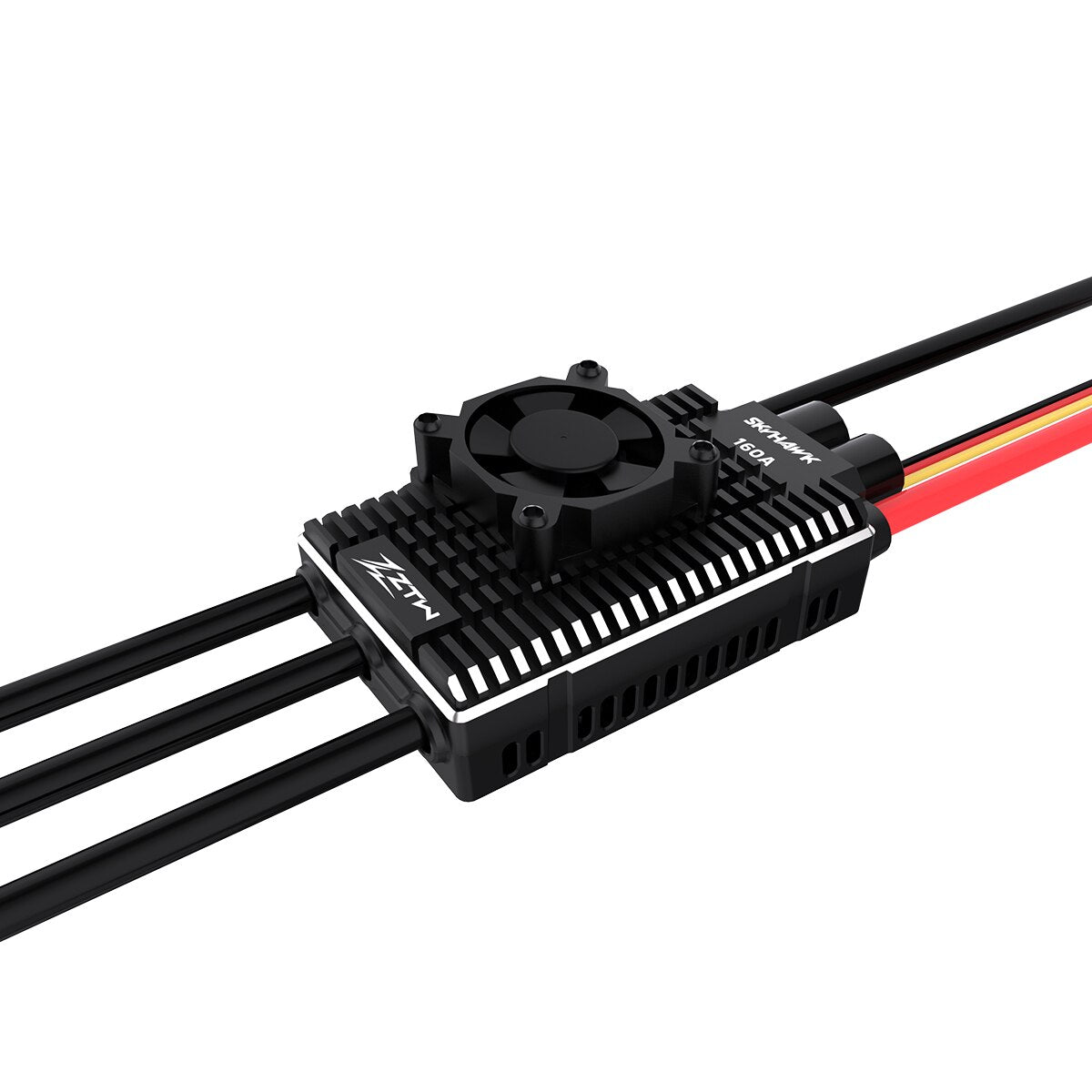

ZTW 32-Bit Skyhawk 130A/160A Telemetry ESC SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 95x50x36cm

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Model Number: Skyhawk 130A/160A HV SBEC

Material: Composite Material

For Vehicle Type: Airplanes

ZTW 32-Bit Skyhawk 130A/160A Telemetry ESC HV 6-14S 6/7.4/8.4V 10A SBEC Speed Control For RC Airplane F3A F3C 550-700 Helicopter

Key Features:

1. Adopting high performance 32-bit M4 microprocessor with a running frequency of 170MHz, supported much stronger computing ability and faster running speed.

2. Adopting new generation craft on the MOSFET, low heat generation, large instantly withstand current, and high reliability.

3. Self-check function: after the ESC powered on, it will automatically check if have the power short circuit ,motor lose phase, throttle is not at zero position problem, and voltage range.

4. The special ESC case design and the unique fan guard structure greatly enhance the ESC heat dissipation performance.

5. There are two flight modes: fixed-wing mode and helicopter mode.

6. Equipped with the helicopter speed-control function, the speed sensitivity is adjustable and easy to operate.

7. Equipped with the time selection function for stall landing, it can be manually adjustable within the time set to avoid a crash due to handling errors.

8. The ESC has a separate programming interface to connect with LCD programming card or Bluetooth module for programming.

9. Supporting data returning function: current, voltage, temperature, RPM, throttle and ESC status code.

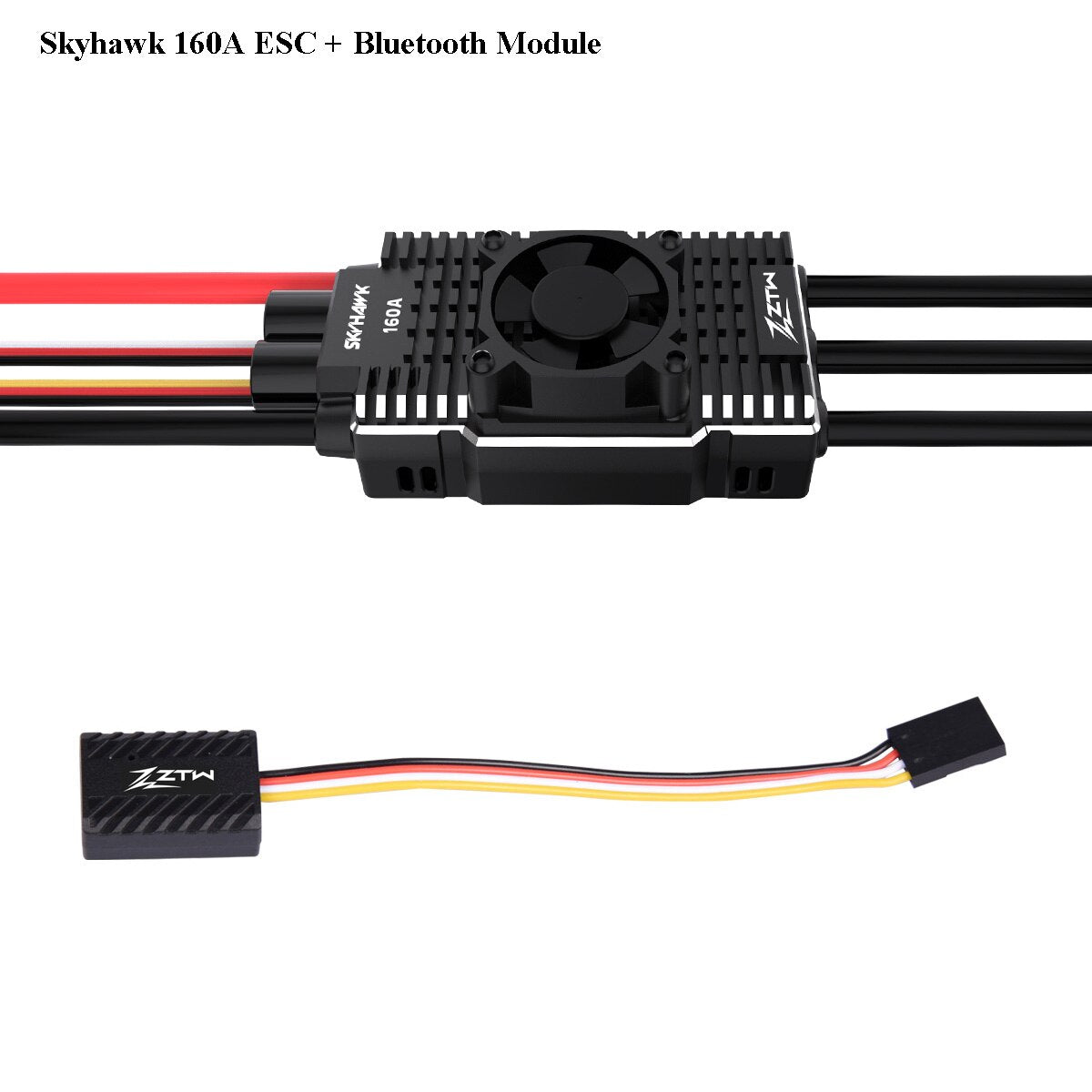

10. Bluetooth module supported, change the parameter settings, software upgrading, data recording and the operation can be completed via the mobile phone (Apple and Android)APP.

11. Multiple protections: abnormal power-on voltage protection, start up protection, temperature protection,throttle signal loss protection, over load protection,low voltage protection, over current protection.

Specification:

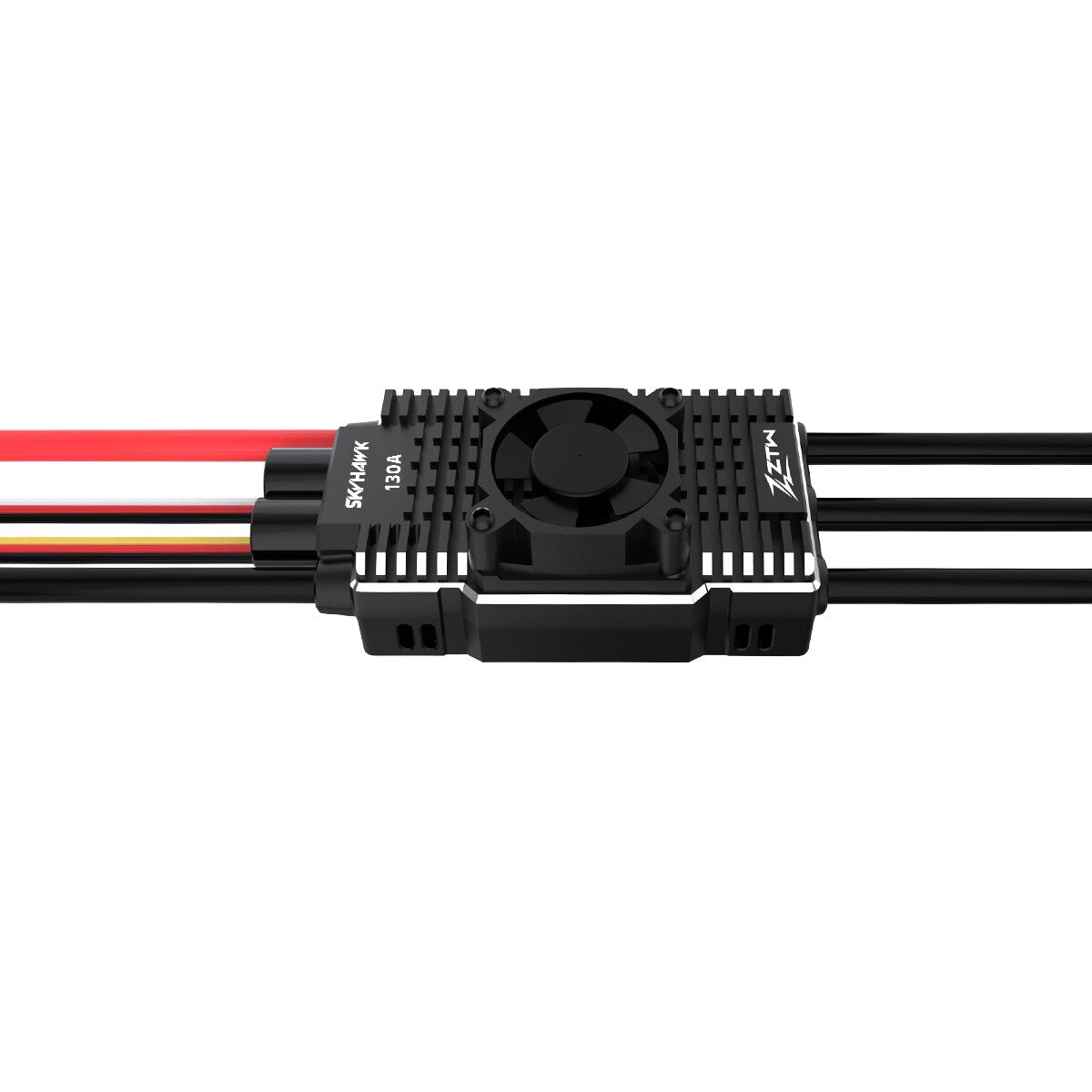

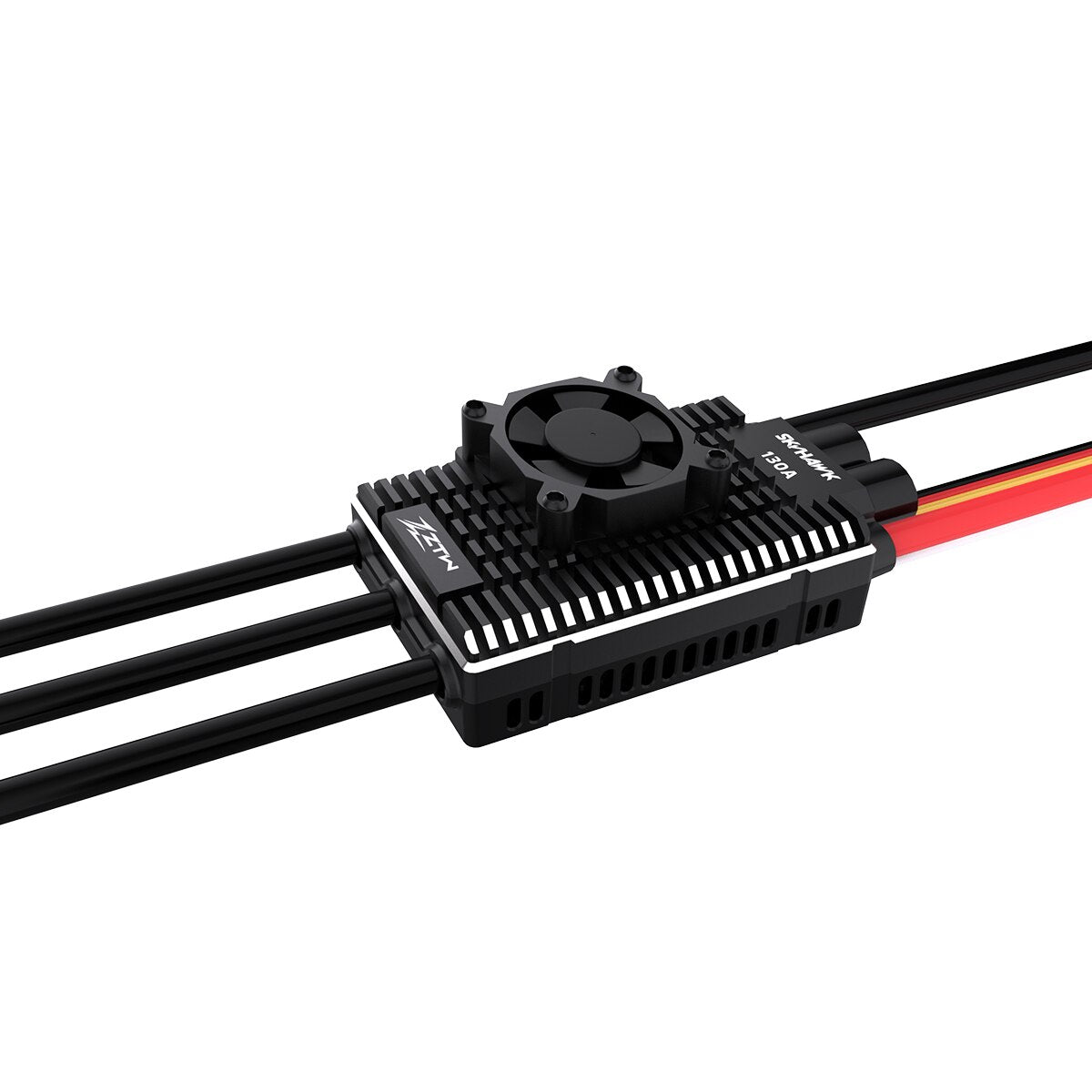

Model: Skyhawk 130A HV SBEC

Cont. Current: 130A

Burst Current: 150A

Input Voltage: 6-14S Lipo

Weight: 236g

BEC Output: 6V,7.4V,8.4V adjustable /10A

Size: 95*50*36mm

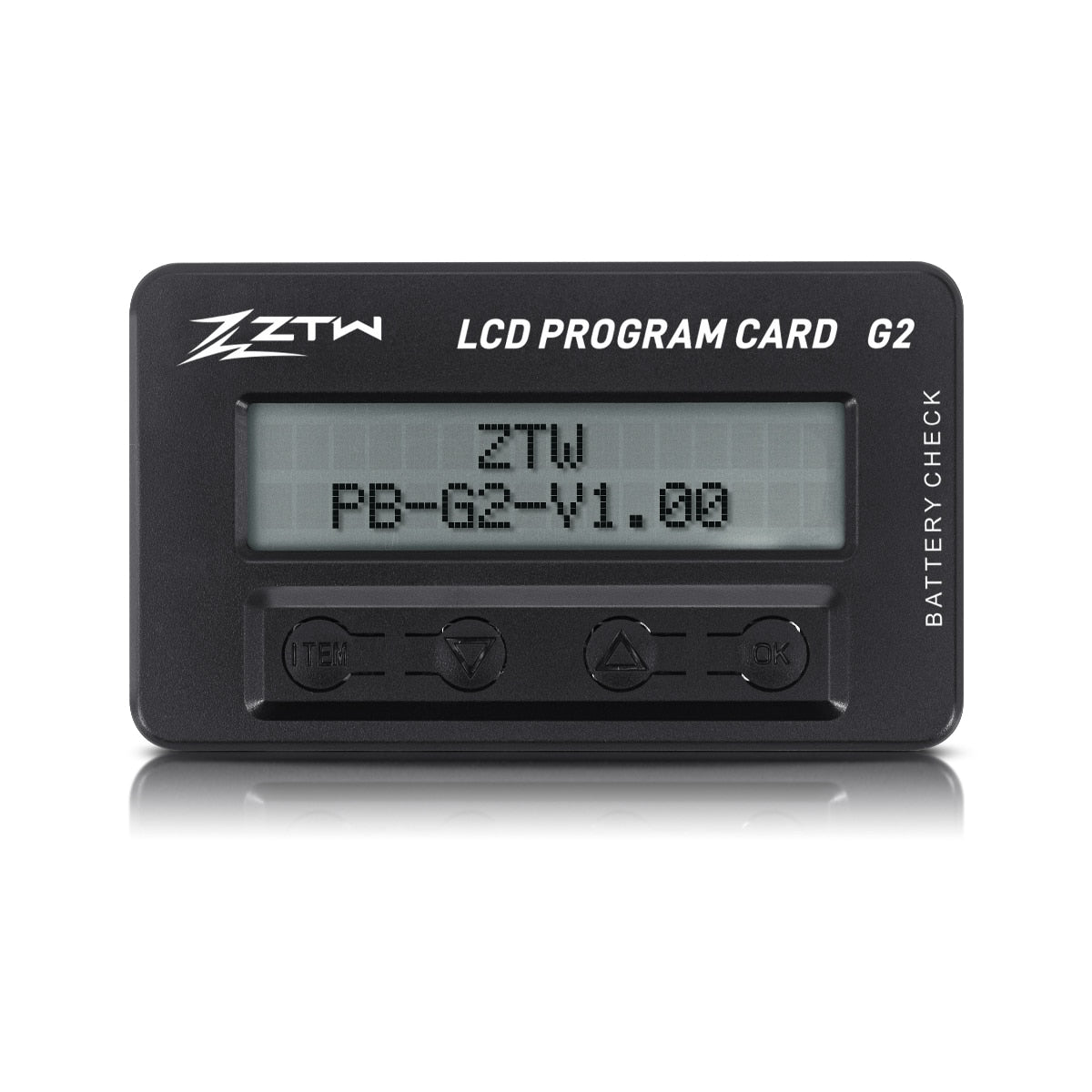

Programming Way: LCD Program Card G2/Android&IOS APP

Model: Skyhawk 160A HV SBEC

Cont. Current: 160A

Burst Current: 180A

Input Voltage: 6-14S Lipo

Weight: 236g

BEC Output: 6V,7.4V,8.4V adjustable /10A

Size: 95*50*36mm

Programming Way: LCD Program Card G2/Android&IOS APP

Note: For helicopter, please kindly note it is necessary to buy a bluetooth module or LCD program card, so you can set the governor mode for the ESC.

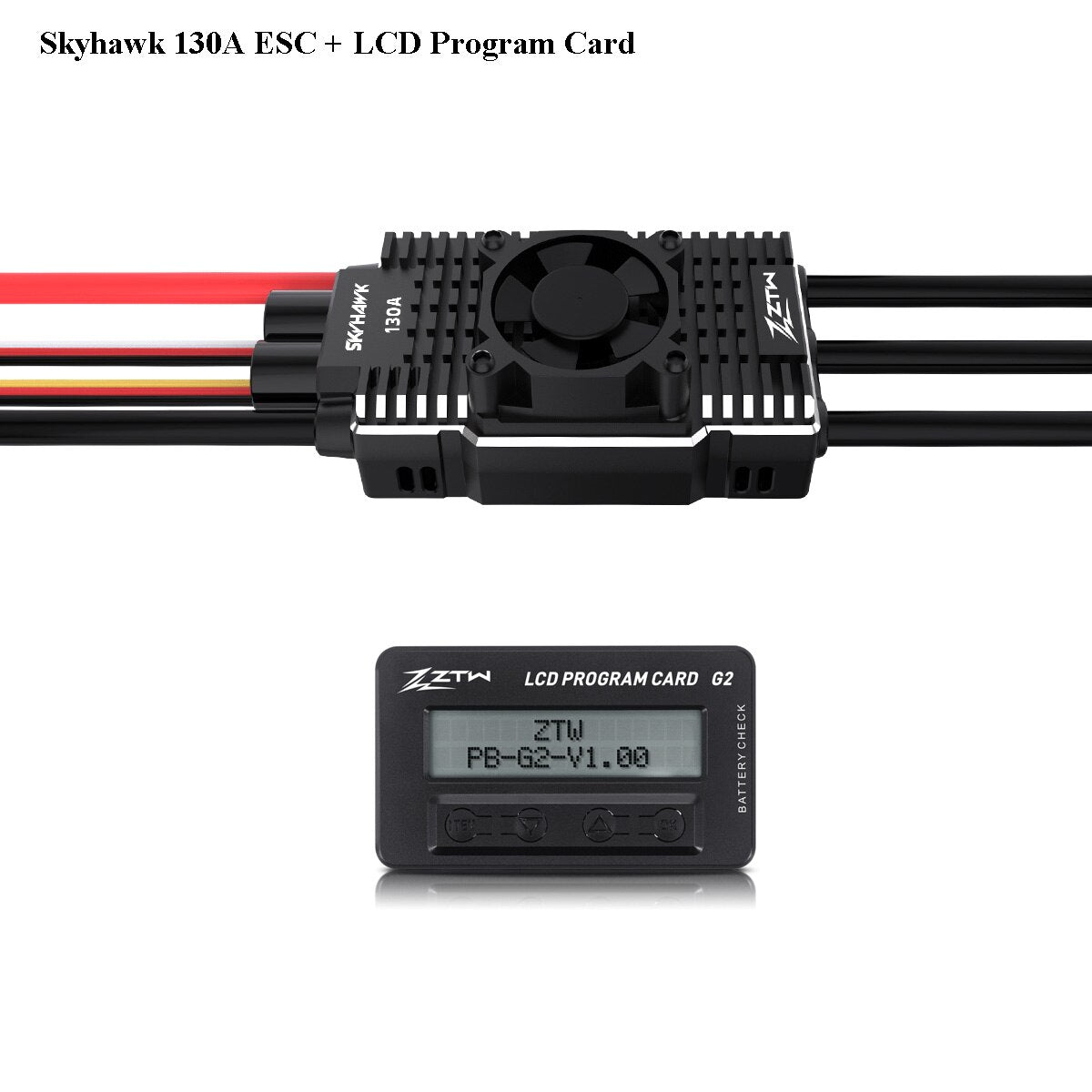

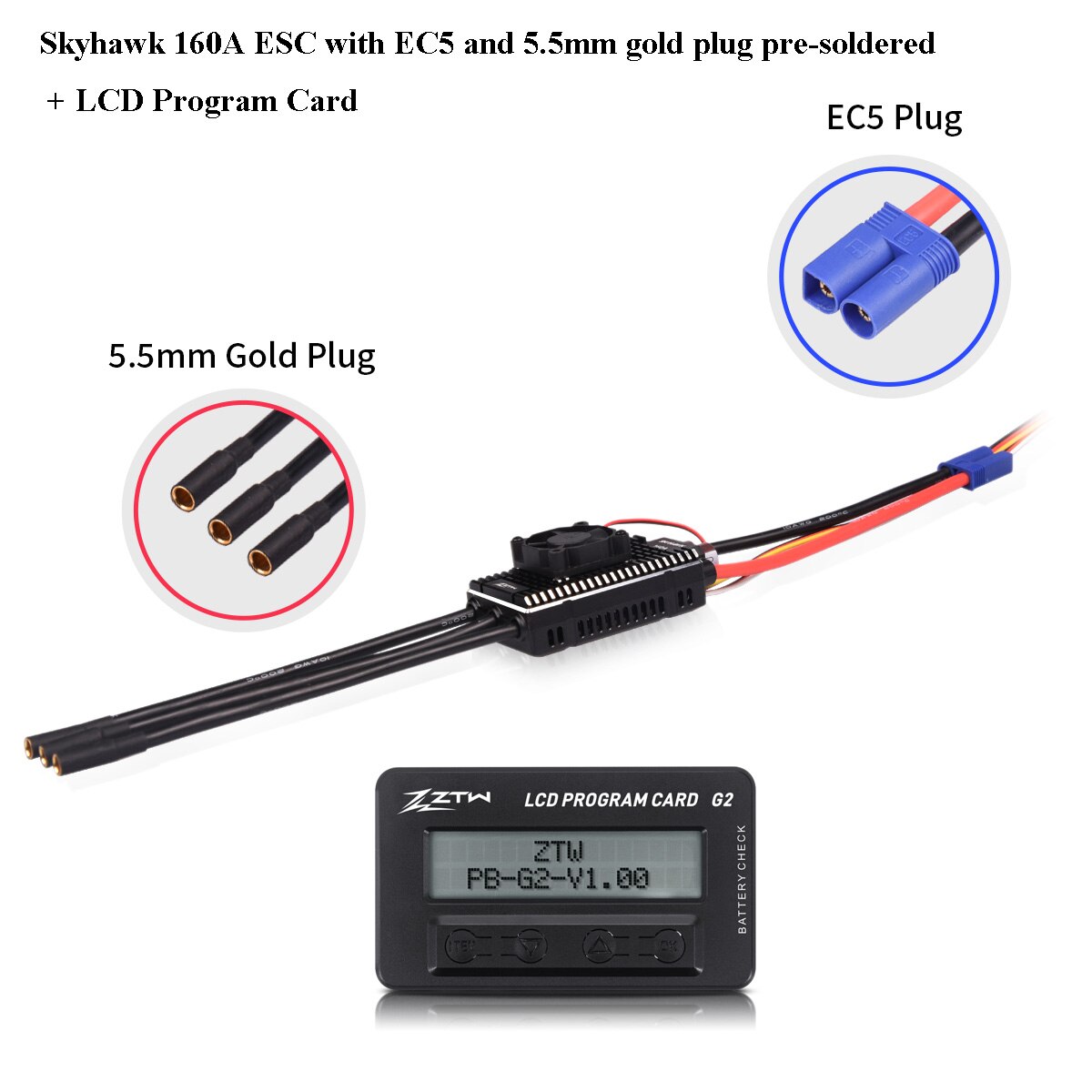

The ZTW New Upgraded 32-Bit Skyhawk 130A/160A ESC can be programmed via cell phone APP or LCD program card.

For iPhone users, please search "ZTW" in iPhone APP store. For Android users, please contact us and send message to our customer service, so we can send you a QR code to scan, thank you very much.

plug into the receiver throttle channel; the white wire is transmitter the throttle signal . the red wire and black wire is the BEC voltage output wire and wire: BEC output wire .

The factory default settings for this ESC include options marked 'Fixed Wing', with acceleration requiring a selection of 4. When calibrating the speed using a gyroscope, it's necessary to choose 'Fixed Wing' as the flight mode.

The default setting is for real-time data transmission. However, when you set the mode to 'SBUS2', this allows you to receive real-time data directly on your transmitter.

The manufacturer's default setting is Fixed-Wing mode. If you switch to Helicopter mode, you'll need to perform an initial speed calibration. Additionally, when flying your main rotor in 3D maneuvers, it's recommended to maintain a constant RPM of 2500; to achieve this, set the fixed speed throttle to approximately 0.8.

The ZTW 130A/160A Telemetry ESC features a high-performance 32-bit microprocessor that operates at speeds of up to 170 MHz, providing enhanced computational power and rapid processing capabilities.

The distinctive air duct design, paired with a detachable cooling fan, significantly improves the ESC's heat dissipation.

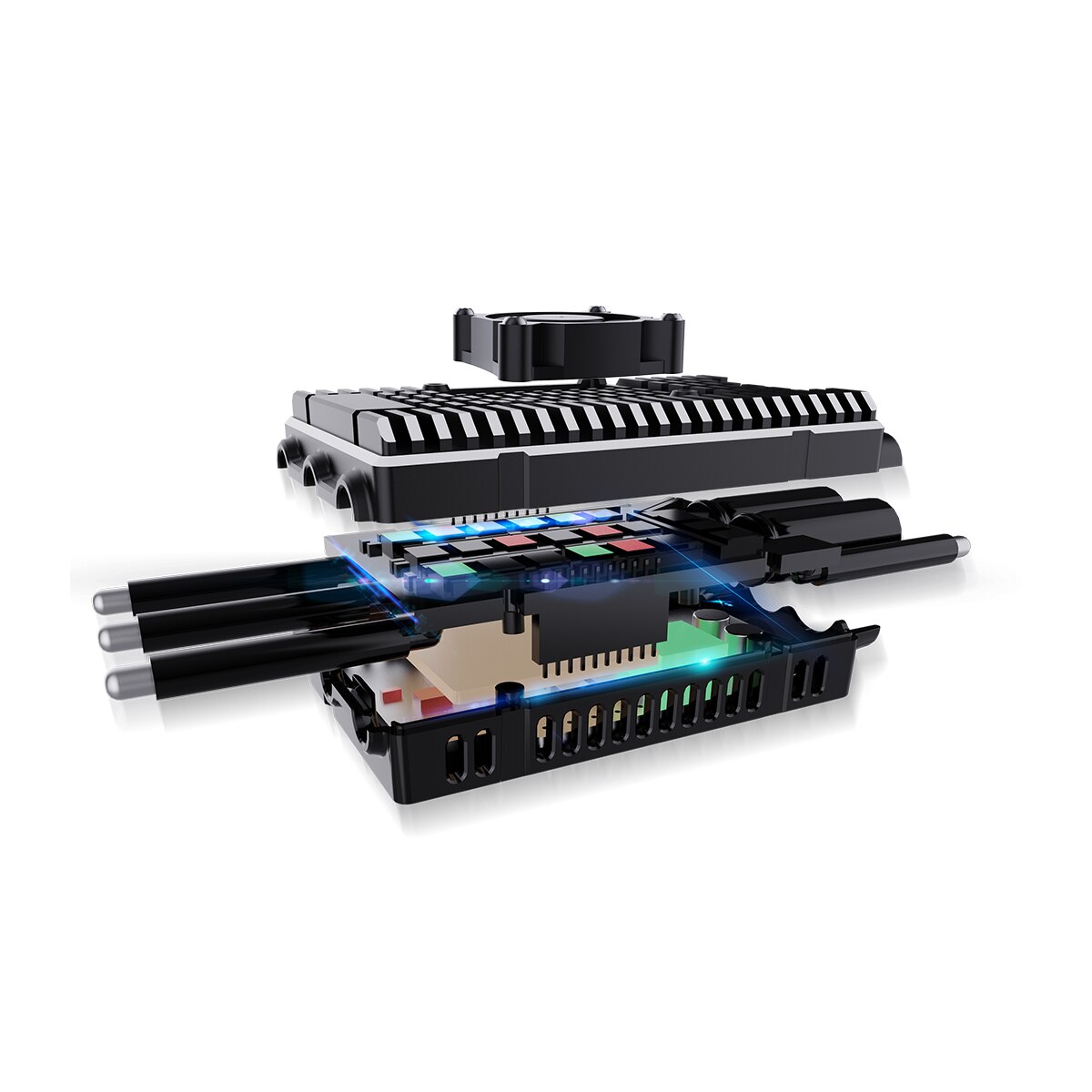

The aluminum casing design effectively protects the internal components, making the ESC more reliable and durable.

The self-test function performs a comprehensive check of the ESC's internal circuits, motor, throttle response, and battery voltage when it is powered on.

The Time Selection Function allows you to manually adjust the stall landing time setting, helping to prevent crashes caused by pilot error.

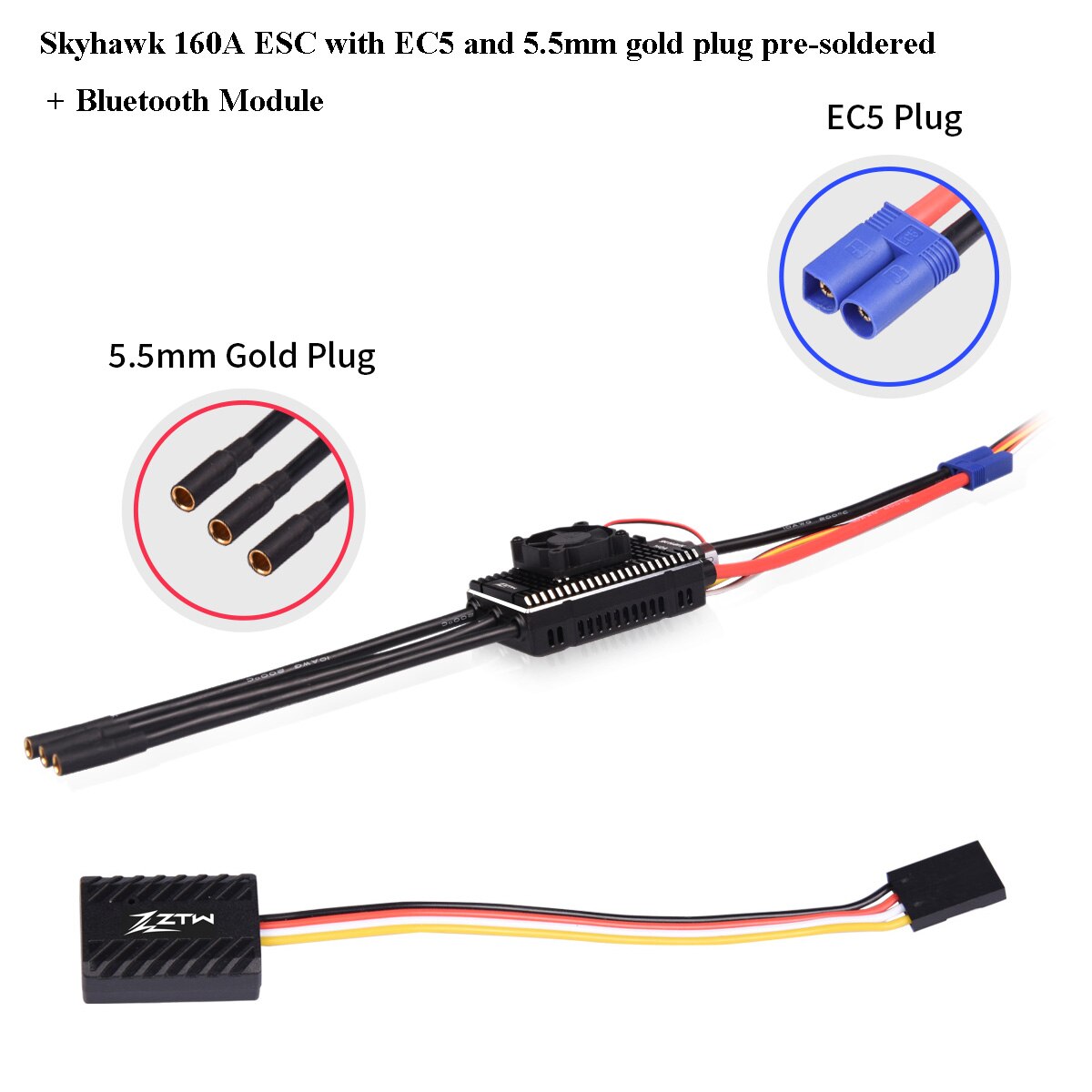

The separate programming port allows for easy setup and customization, enabling users to set parameters, update the ESC's software, and monitor relevant data using either an LCD program card or a wireless Bluetooth module.

This telemetry ESC features real-time data transmission back to an LCD program card or mobile phone. It enables live monitoring of vital flight parameters such as current, voltage, temperature, RPM, throttle, and more.

This telemetry ESC features multiple protections, including input voltage abnormal protection, startup protection, throttle signal loss protection, thermal protection, low voltage protection, overload protection, and overcurrent protection.
