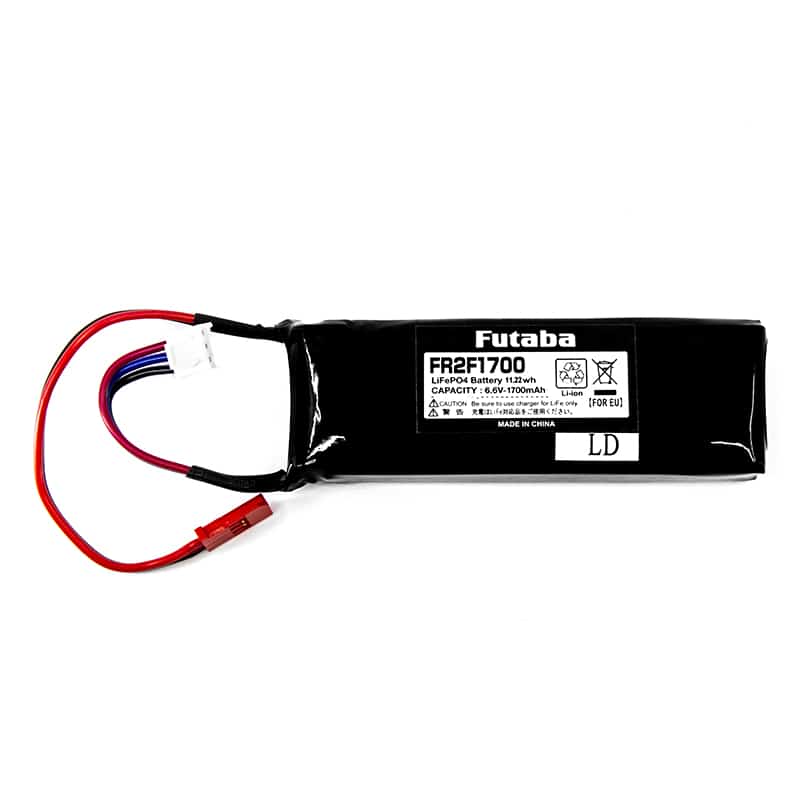

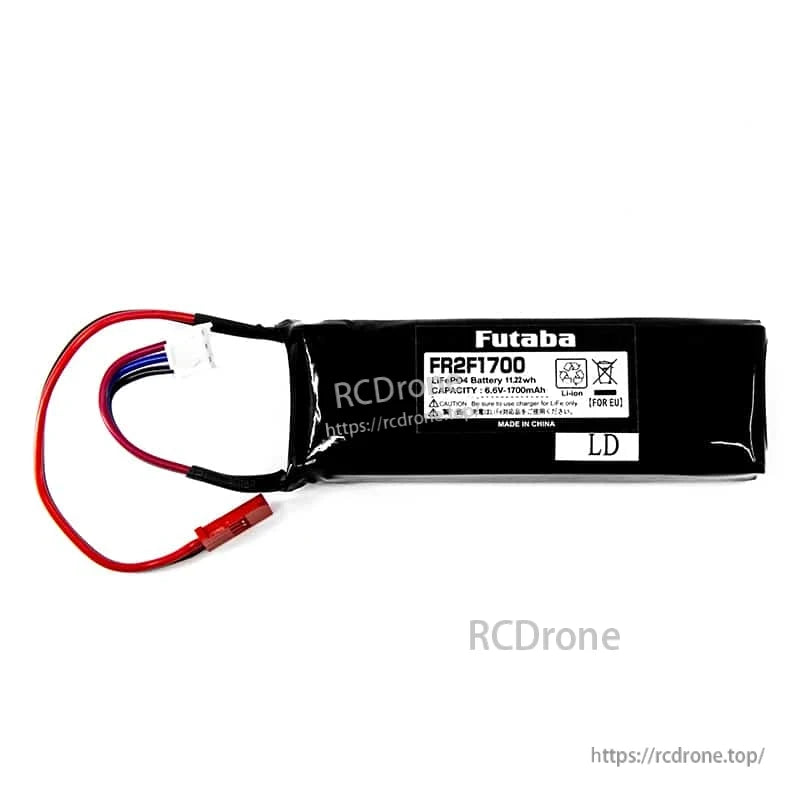

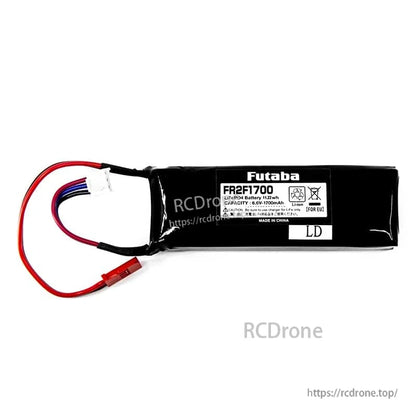

Futaba FR2F1700 1700mAh 6.6V LiFeP04 Receiver Battery Pack for Receivers Rated for 7.4V Supply
Futaba FR2F1700 1700mAh 6.6V LiFeP04 Receiver Battery Pack for Receivers Rated for 7.4V Supply
Futaba
Ordinarie pris
$70.99 USD
Ordinarie pris
Försäljningspris
$70.99 USD
Enhetspris
per
Skatter ingår.
Frakt beräknas i kassan.
Det gick inte att ladda hämtningstillgänglighet
Overview
The Futaba FR2F1700 is a receiver battery designed as a rechargeable Lithium Ferrite (LiFe) pack for receivers that correspond to 7.4V as the power-supply voltage. Receiver use only; do not use with other devices.
Key Features
- Model: FR2F1700 (EBA0145)
- Rechargeable LiFeP04 polymer battery type
- Nominal output voltage: DC 6.6 V
- Nominal capacity: 1700 mAh
- Charging/discharging count: approximately 500 cycles (variable depending on operating/usage conditions)
Specifications
| Type | Rechargeable LiFeP04 polymer battery |
| Nominal output voltage | DC 6.6 V |
| Nominal capacity | 1700 mAh |
| Cycle life | Approximately 500 cycles (variable depending on operating/usage conditions) |
| Dimensions (approx.) | ~30 mm x ~90 mm x ~20 mm |
| Weight (approx.) | ~83 g |
| Charging temperature | 0 to 45 ° C |
| Discharging temperature | -20 to 60 ° C |
| Storage temperature | -20 to 25 ° C |
| Charger (not included) | LBC-4E5 |
| Additional information: weight | 3 oz |
| Additional information: dimensions | 6 x 3 x 2 in |
Usage Notes
- Receiver use only.
- For receivers that correspond to 7.4V as the power-supply voltage; do not use with other devices.
- When using five or more high torque servos of 20 kg/cm or greater, distribute servo power using an S/Bus hub with cable for remote battery pack use (not included).
What’s Included
- Futaba FR2F1700 1700 mAh receiver LiFe battery
Charger LBC-4E5 is not included. S/Bus hub and cable for remote battery pack use are not included.
For product selection and after-sales support, contact https://rcdrone.top/ or email support@rcdrone.top.
