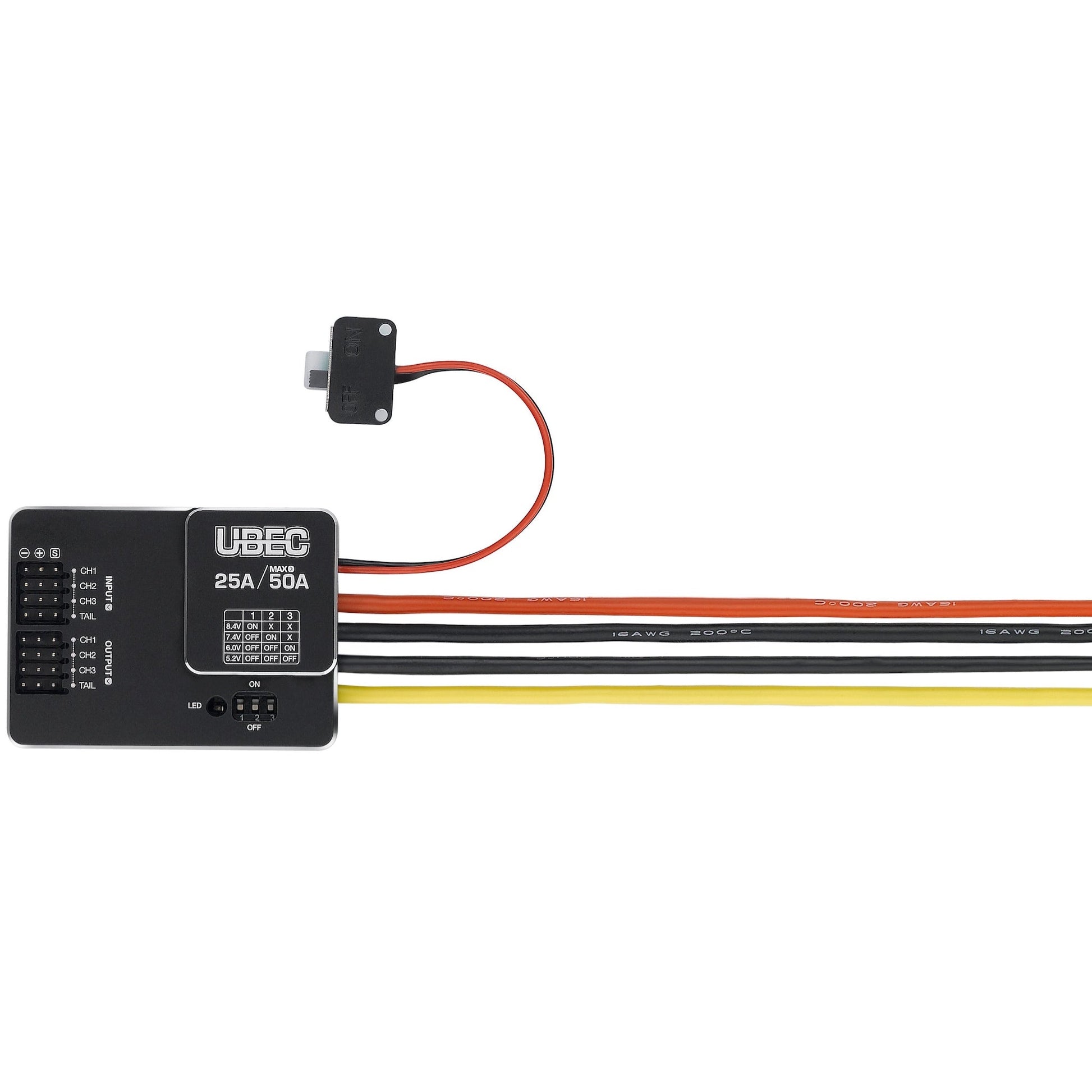

• Hobbywing UBEC 25A switch-mode voltage regulator with on/off switch, DIP output settings, and 16AWG leads

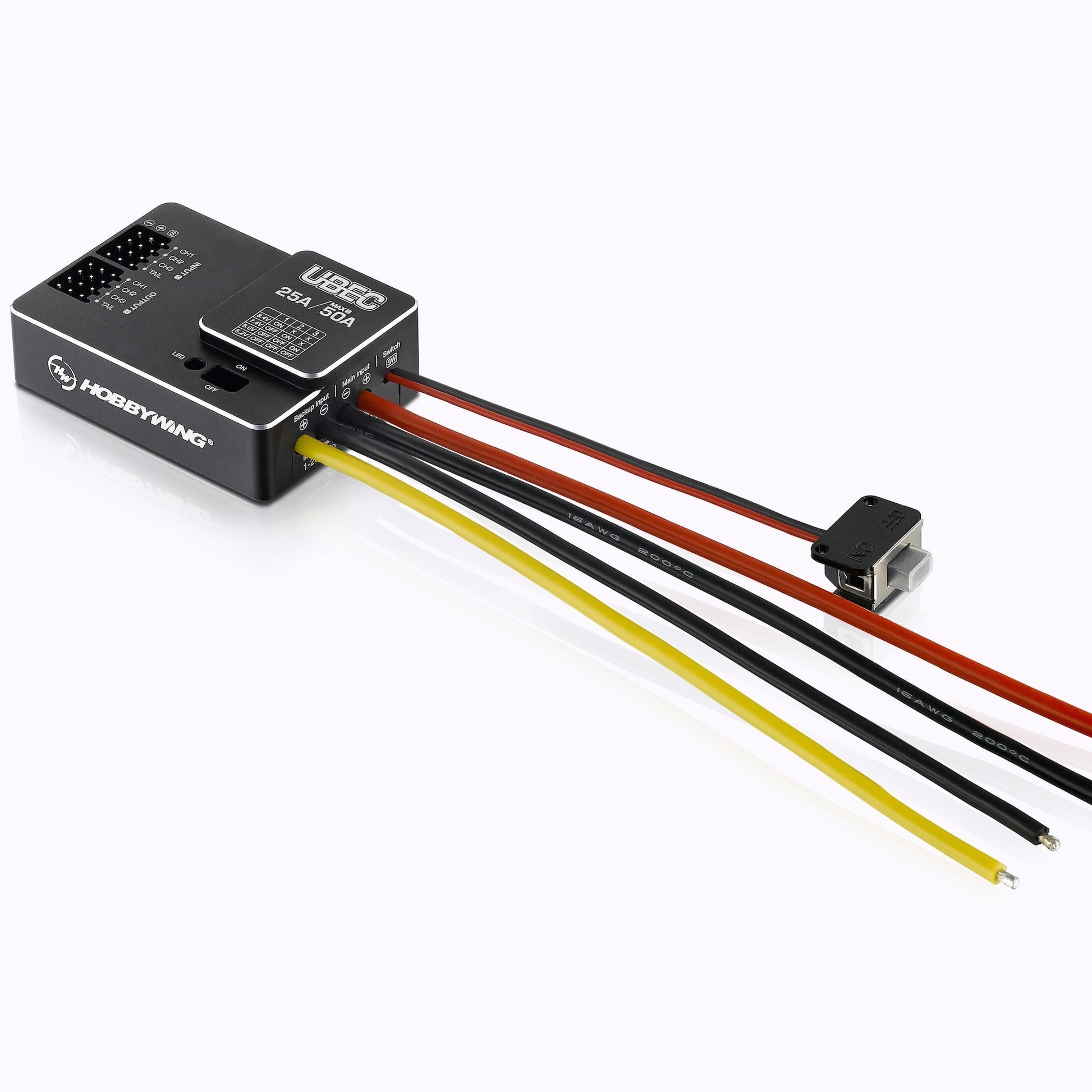

  • Hobbywing UBEC 25A/50A switch-mode voltage regulator module with on/off switch and input/output wires

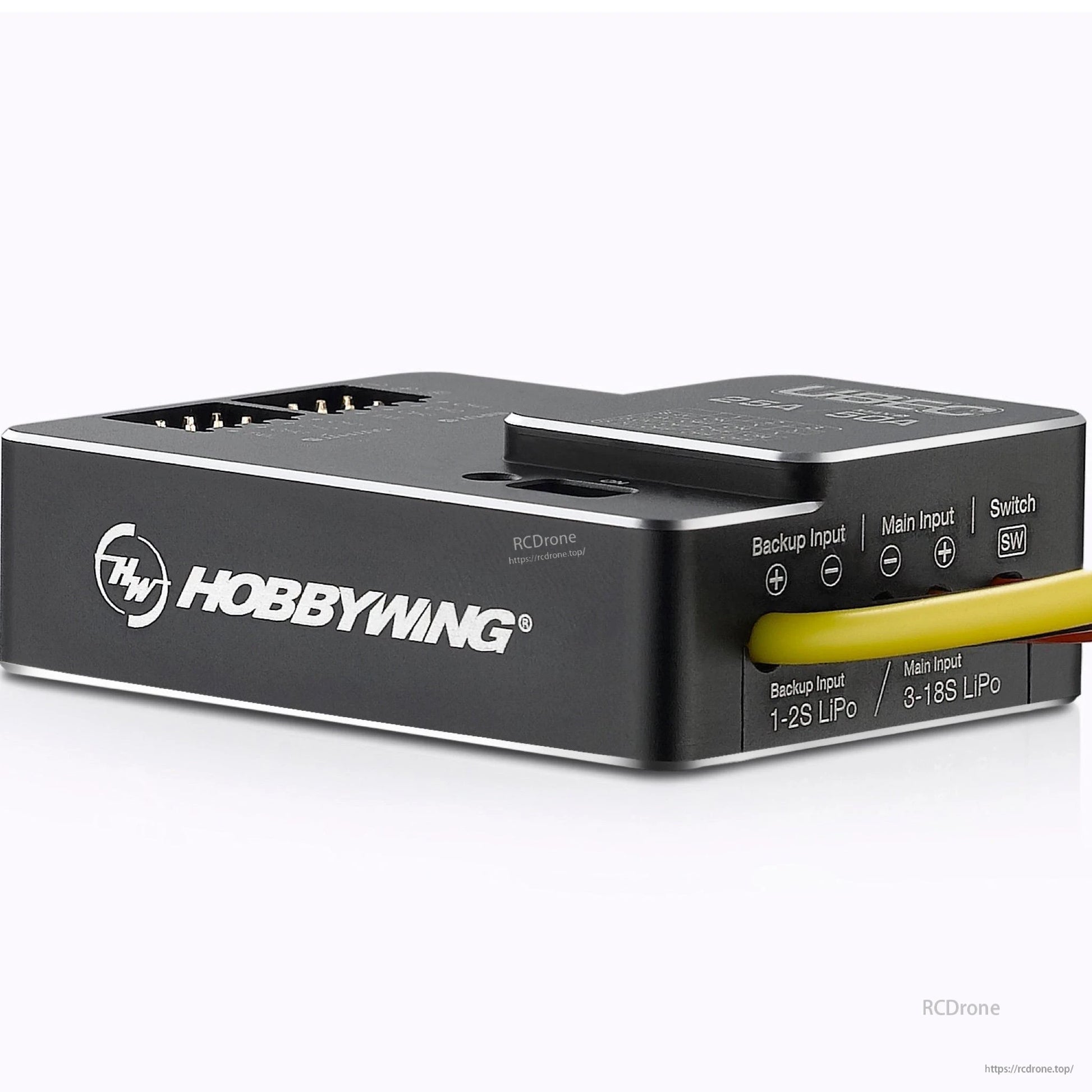

  • Hobbywing UBEC module with main input 3–18S LiPo, backup input 1–2S LiPo, and SW switch port

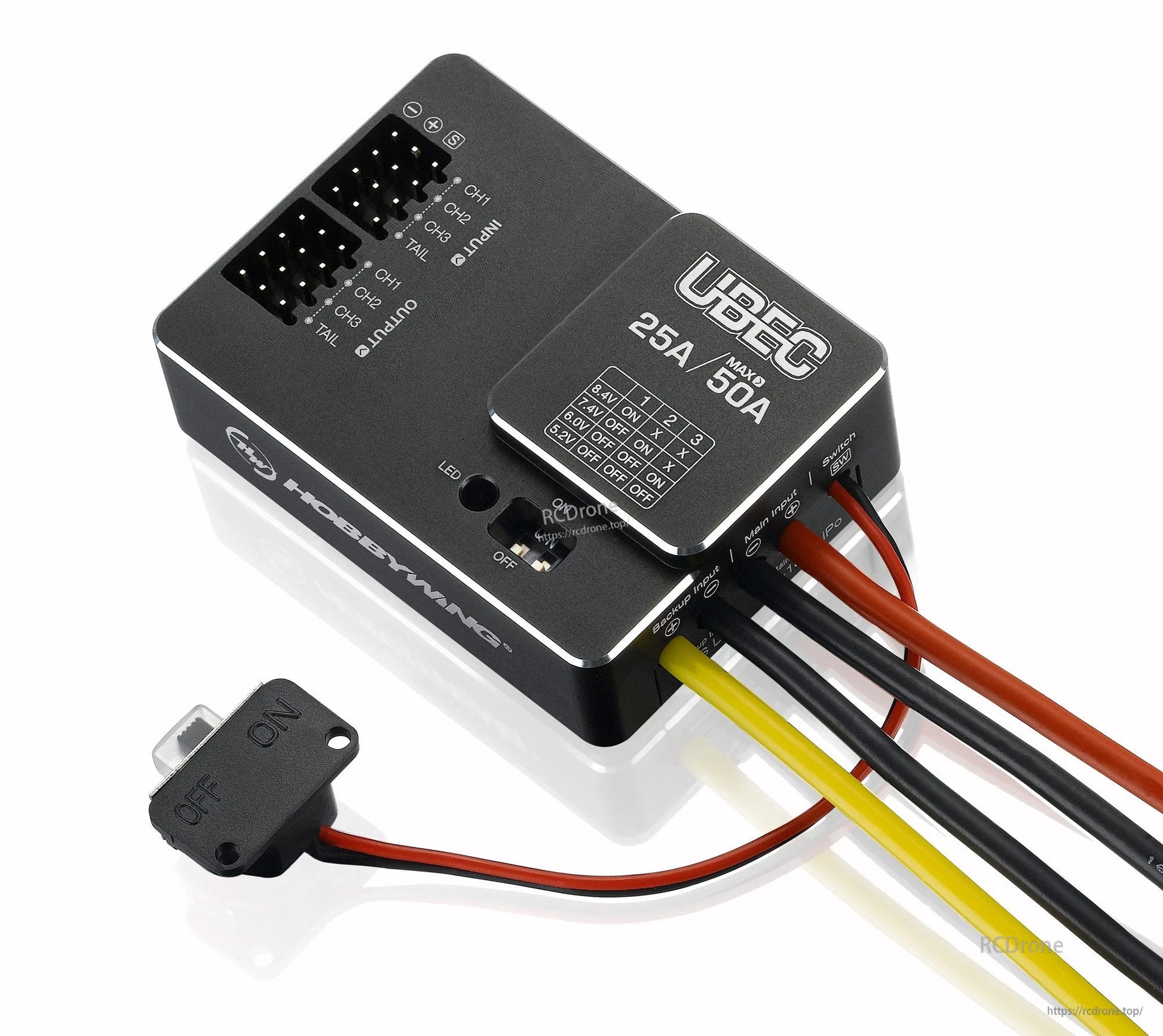

  • Hobbywing UBEC 25A switch-mode BEC module with on/off switch, input leads, and adjustable voltage DIP switch chart
1 4

Hobbywing UBEC 25A HV Switch-Mode UBEC, 3S-18S LiPo, 5.2V-8.4V Adjustable Output (30606000)

Hobbywing UBEC 25A HV Switch-Mode UBEC, 3S-18S LiPo, 5.2V-8.4V Adjustable Output (30606000)

Hobbywing

$99.00 USD
$99.00 USD
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visa alla uppgifter

Overview

Hobbywing UBEC 25A HV is a switch-mode HV UBEC designed to convert a wide LiPo input voltage to an adjustable regulated output for compatible electronics.

Key Features

  • Switch mode, HV
  • Continuous/peak current: 25A/50A
  • Main power input supports 3S-18S LiPo (9V-80V)
  • Backup power input supports 1S-2S LiPo (3-9V)
  • Adjustable output voltage: 5.2V / 6.0V / 7.4V / 8.4V
  • 3P vertical pin header output interface

For product selection or technical support, contact https://rcdrone.top/ or support@rcdrone.top.

Specifications

PN 30606000
Mode Switch mode, HV
Continuous/Peak Current 25A/50A
Input Voltage (Main Power Supply) 3S~18S LiPo (9V~80V)
Input Voltage (Backup Power Supply) 1S~2S LiPo (3-9V)
Output Voltage 5.2V/6.0V/7.4V/8.4V Adjustable
Input Wires Main Power Supply: Red-16AWG-270mm*1 / Black-16AWG-270mm*1
Output Wires 3P Vertical Pin Header (60-strand PVC wire with Two 3P-JR male connectors-100mm*4 included)
Input Connectors No
Output Connectors No
Size/Weight 55*40.2*17.6mm/74g

What’s Included

  • 60-strand PVC wire with Two 3P-JR male connectors, 100mm*4
