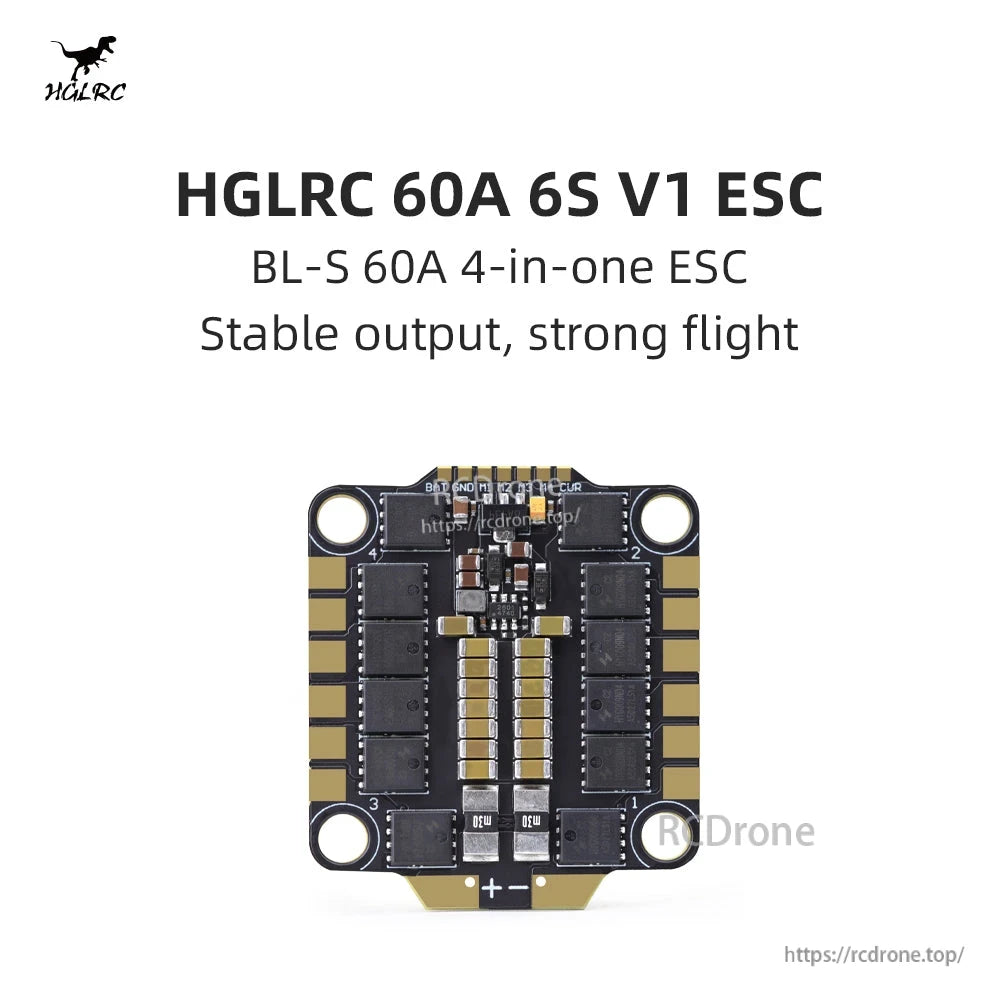

HGLRC 60A 6S V1 BL_S 4-in-1 ESC (Q-H-40) DShot600/300/150 for Racing & Freestyle FPV Drone

Overview

The HGLRC 60A 6S V1 is a BL_S 60A 4-in-1 ESC for racing and freestyle FPV drone builds. It features an immersion-gold pad design for improved heat/current resistance, large solder pads, and a direct plug-in connection to the flight controller to reduce wiring effort.

Key Features

• BL_S 60A 4-in-1 ESC for stable output and responsive flight performance
• Immersion-gold pads designed to help withstand high temperature and high current

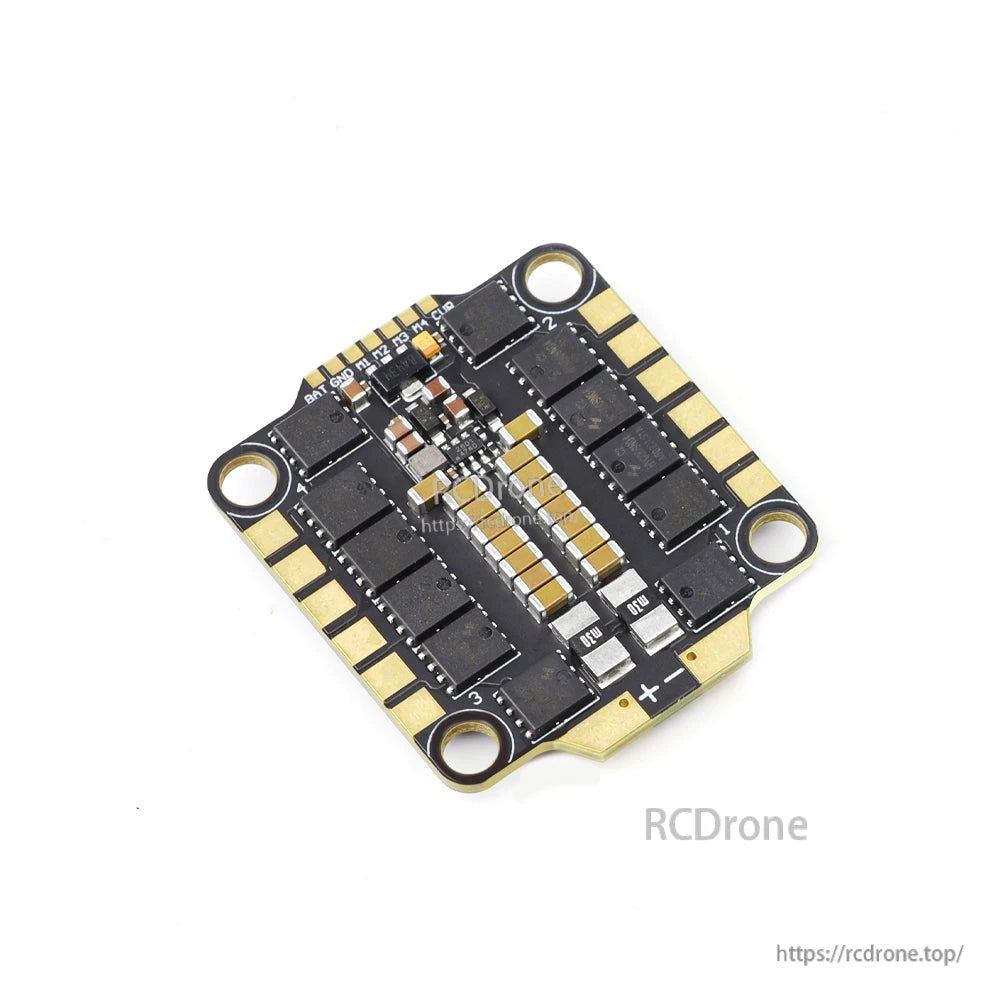

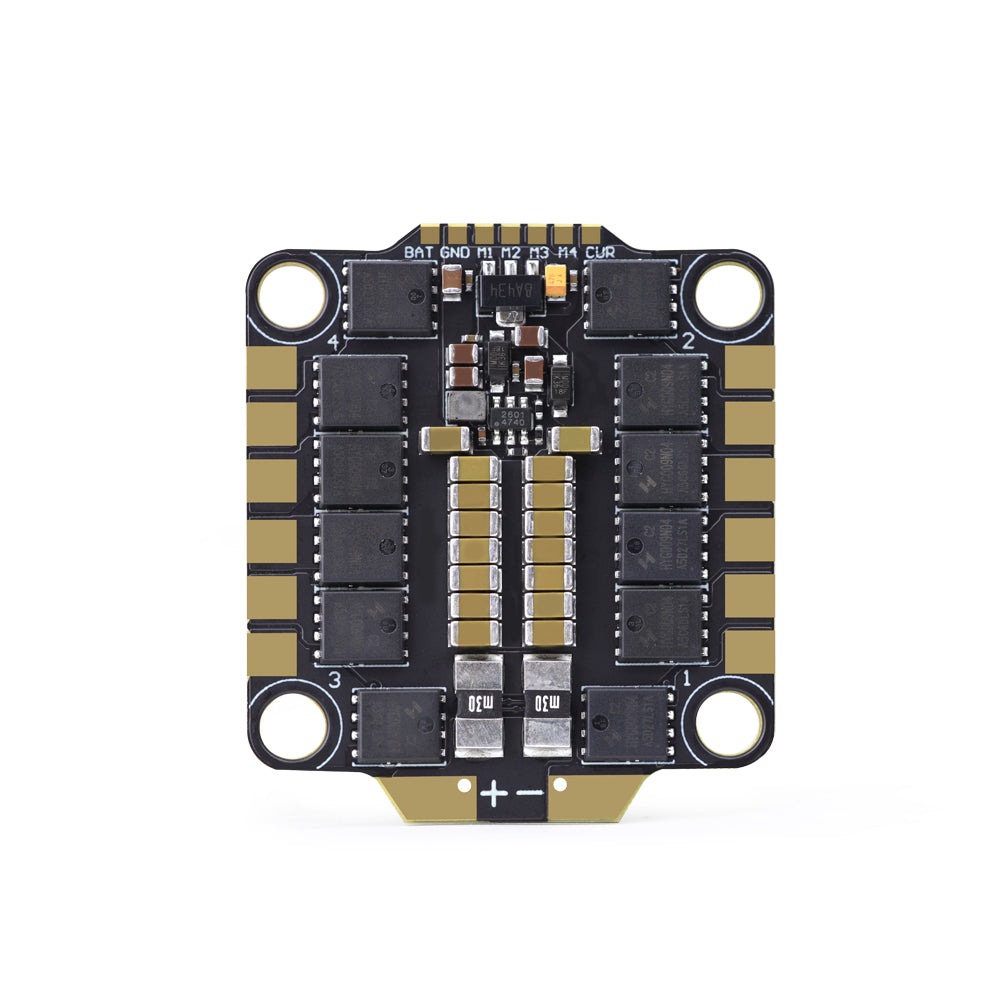

• Large ESC pads; direct plug-in to the flight controller (SH1.0-8P ribbon cable)
• Supports digital protocols: DShot600 / DShot300 / DShot150

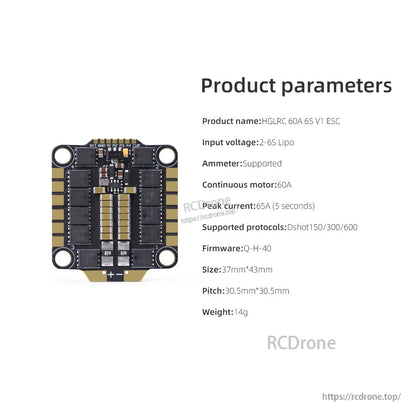

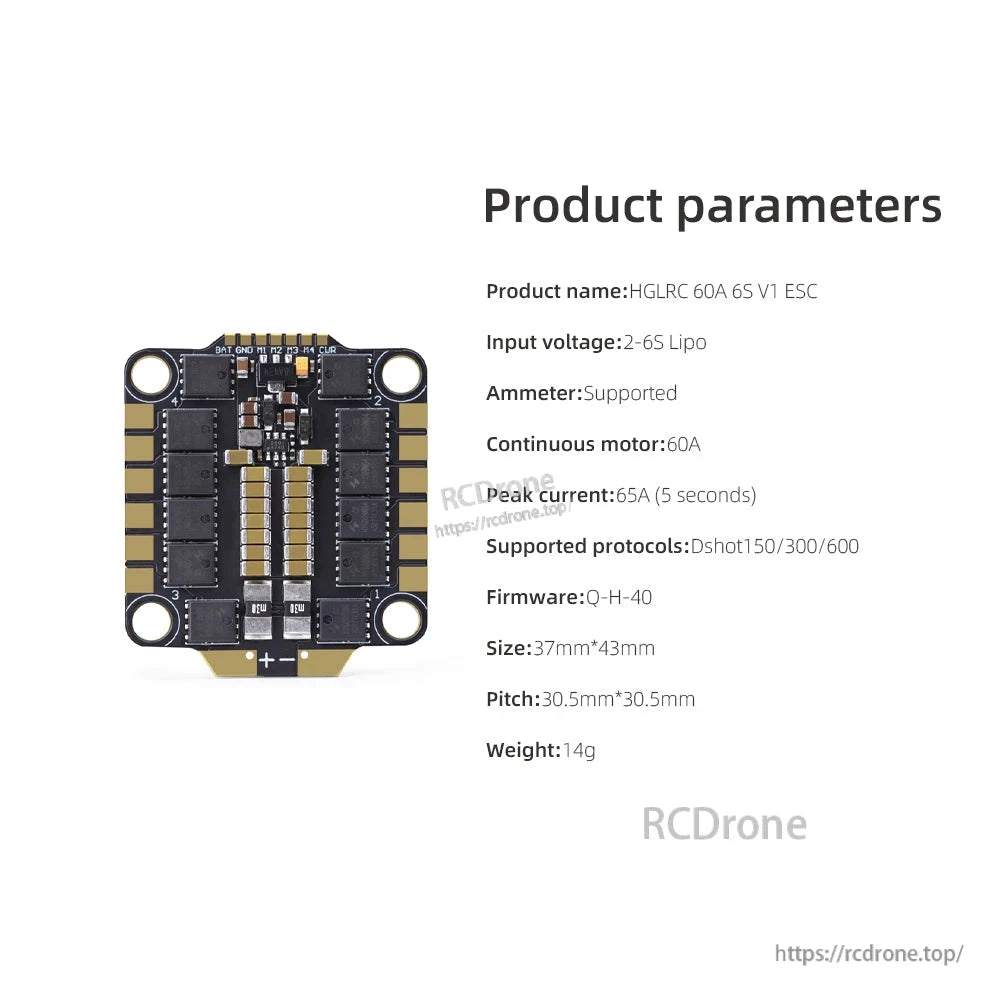

Specifications

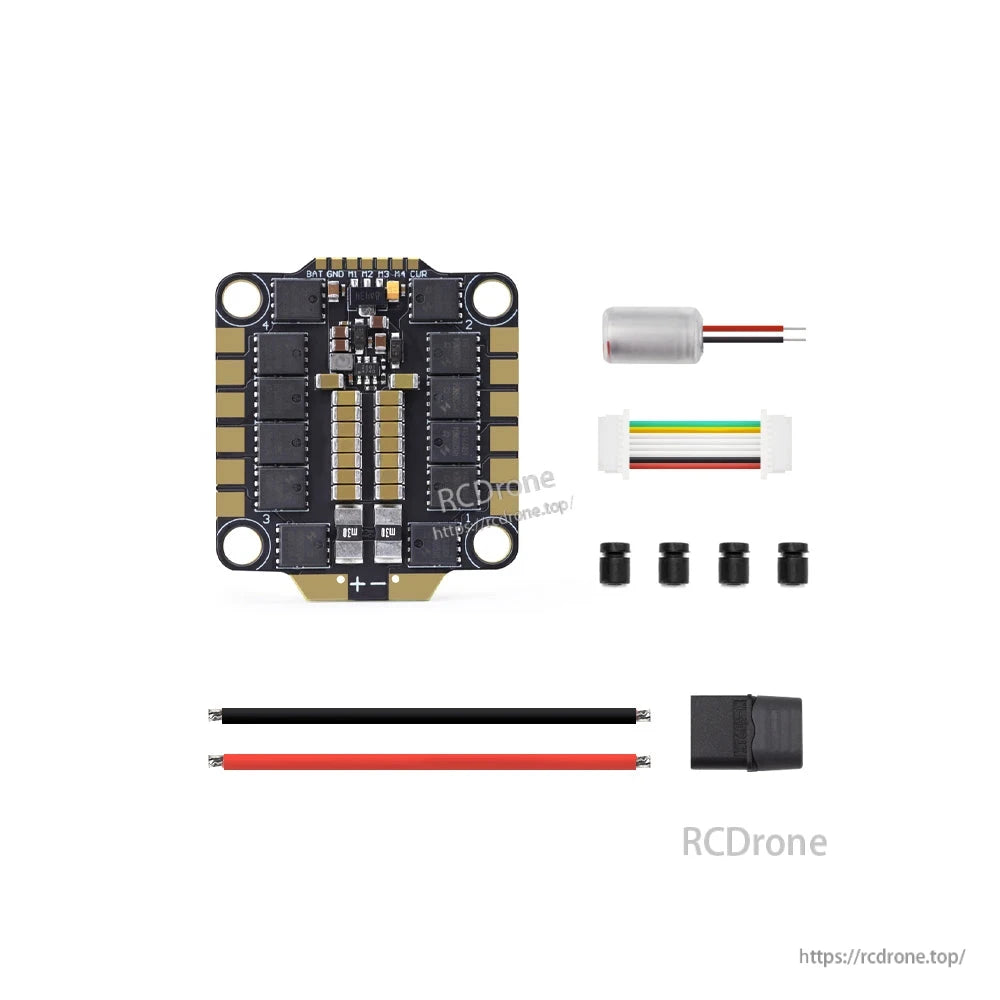

What’s Included

• 1x HGLRC 60A 6S V1 ESC
• 1x 30AWG 25mm double-ended SH1.0-8P ribbon cable
• 1x 12AWG 100mm power cable (black/red)
• 1x XT60H-M black male connector
• 1x 50V 470UF solid-state capacitor
• 1x HGLRC 2023 sticker
• 4x 3*8 shock-absorbing columns
• 1x QR code card

Applications

• Racing FPV drones
• Freestyle FPV drones

Manuals

A QR code card for the manual is included. For wiring or setup questions, contact support@rcdrone.top or visit https://rcdrone.top/.

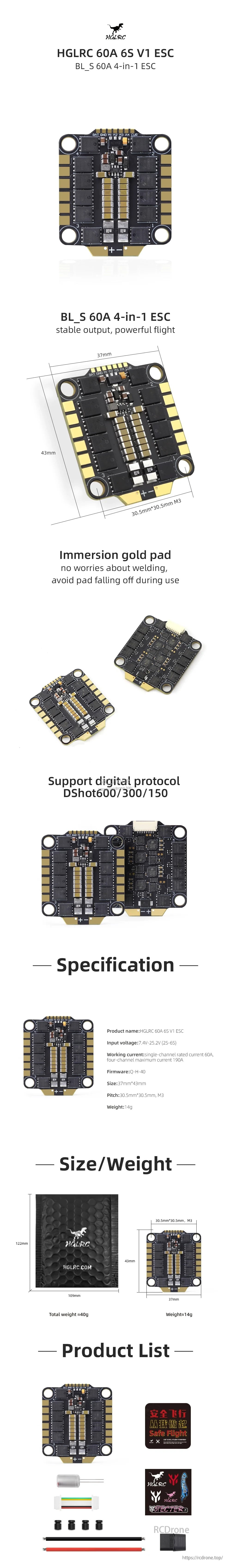

Details

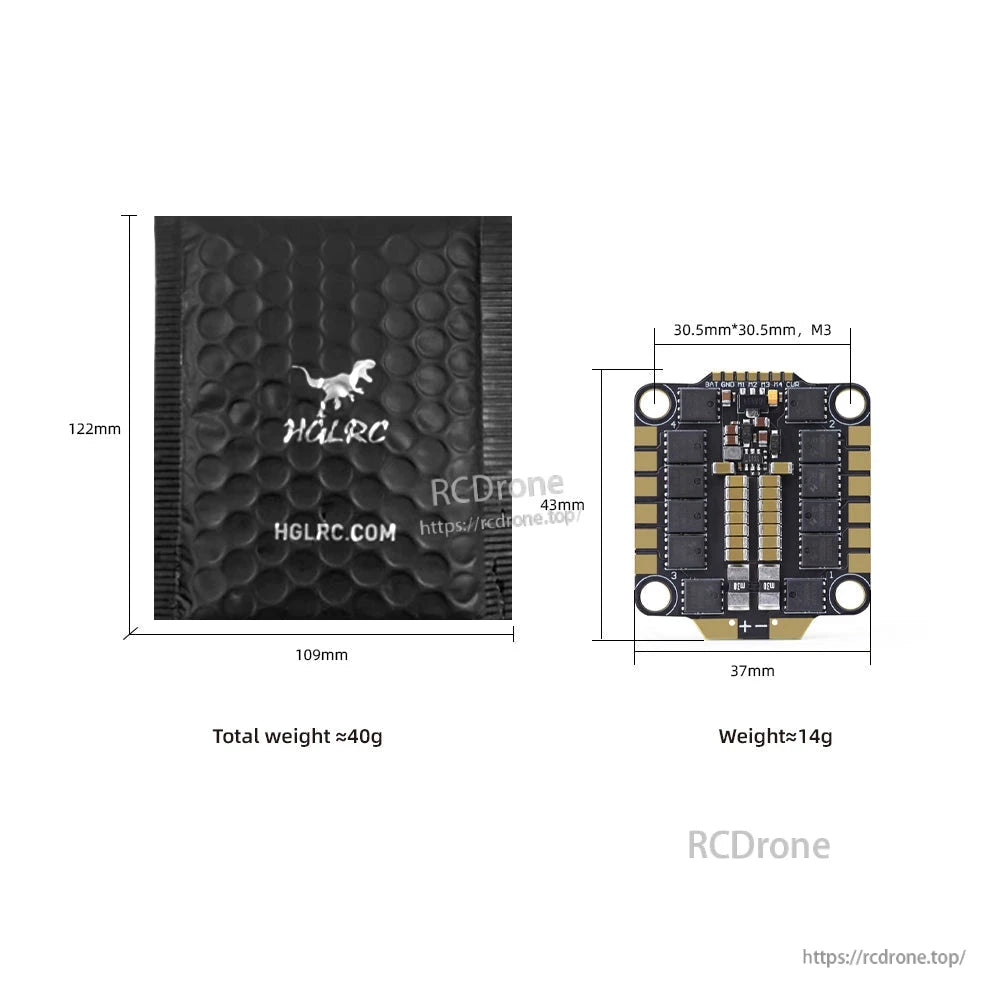

Quick-reference layout covers key specs, board size, and what comes in the box for wiring and installation.
