• IMX219-160 8MP Camera Module, 160° FOV, Sony IMX219 – Compatible with NVIDIA Jetson Nano & Xavier NX
  • IMX219-160 8MP Camera Module, 160° FOV, Sony IMX219 – Compatible with NVIDIA Jetson Nano & Xavier NX
  • IMX219-160 8MP Camera Module, 160° FOV, Sony IMX219 – Compatible with NVIDIA Jetson Nano & Xavier NX
  • IMX219-160 8MP Camera, 8MP Sony IMX219-160 camera with 160° FOV, compatible with Jetson Nano and Xavier NX for high-quality wide-angle imaging.
  • IMX219-160 8MP Camera, 8MP Sony IMX219 camera with 160° FOV, compatible with NVIDIA Jetson Nano and Xavier NX.
1 5

Moduli ya Kamera ya IMX219-160 8MP, FOV 160°, Sony IMX219 – Inayolingana na NVIDIA Jetson Nano & Xavier NX

Moduli ya Kamera ya IMX219-160 8MP, FOV 160°, Sony IMX219 – Inayolingana na NVIDIA Jetson Nano & Xavier NX

Seeed Studio

$38.00 USD
$38.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Chaguo
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Muhtasari

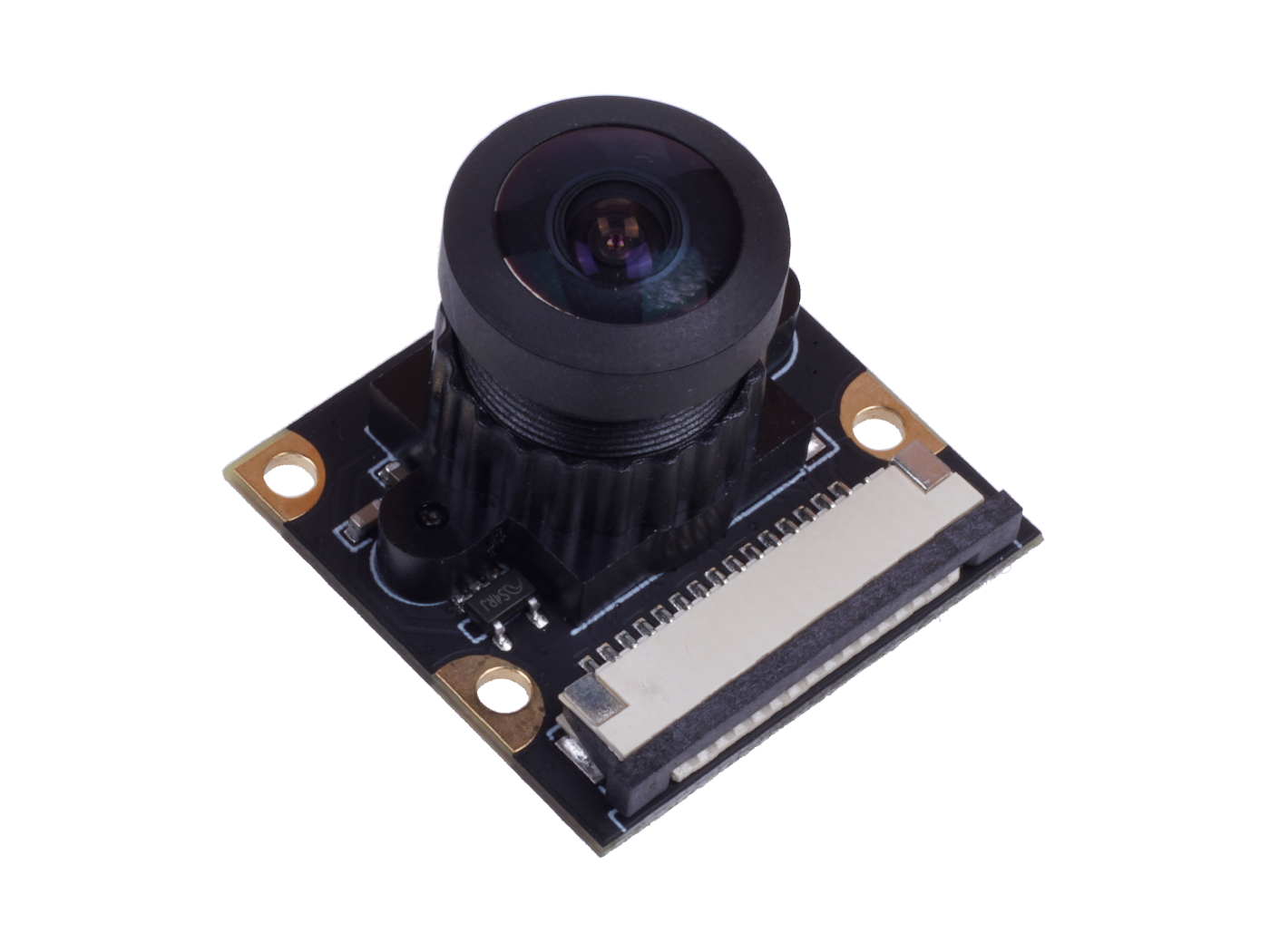

Moduli ya kamera ya IMX219-160 8MP ni moduli ya kamera ya pembe pana iliyoundwa kwa ajili ya vifaa vya maendeleo vya NVIDIA Jetson Nano na NVIDIA Jetson Xavier NX. Inatumia sensor ya picha ya Sony IMX219, inatoa azimio la juu la 3280 × 2464, na inatoa uwanja wa mtazamo wa digrii 160° kwa ajili ya kufunika mandhari pana zaidi. Moduli hii ina optics za umakini wa kudumu, ujenzi wa lenzi ya 6G+IR, na pato la MIPI kwa ajili ya kuunganishwa kwa urahisi katika miradi ya maono ya mashine na upigaji picha wa video.

Vipengele Muhimu

  • Sensor wa picha wa Sony IMX219 wa megapixel 8
  • Picha zenye azimio la juu kwa 3280 × 2464
  • FOV ya digrii 160° ili kunasa eneo kubwa zaidi

Maelezo ya Kiufundi

Maelezo Maelezo
Megapixels 8 Megapixels
Chip ya picha inayojibu mwanga Sony IMX219
Mbinu ya Mkusanyiko SMT (ROSH)
Azimio 3280 × 2464
Ukubwa wa Pikseli 1.12µm x1.12µm
Ukubwa wa CMOS 1/4 inch
Ufunguzi (F) 2.35
Mtazamo uliowekwa
Urefu wa Mtazamo 3.15mm
Ujenzi wa Lens 6G+IR
Uwanja wa mtazamo wa diagonal (FOV) 160 digrii
Upotoshaji <14.3%
EFL 3.15mm
BFL (Kioo) 3.15mm
Kiwango cha juu cha uhamishaji picha 30 fps kwa QSXGA
Format za pato 8/10bit RGB RAW pato
Uwiano wa S/N 39db
Kiwango cha Dynamic 69db
Hassira 600mV/Lux-sec
Mwanga wa Uhusiano (Sensor) 70%
Filita ya IR 650±10nm
Umbali wa Kitu 30CM-∞
Kiunganishi 15p-1.0 mipi
Ugavi wa nguvu 3.3V (pin15)
Joto la Uendeshaji -20°C hadi 70°C
Joto (Picha Imara) 0°C hadi 50°C
Ukubwa wa Lens 6.5mm × 6.5mm

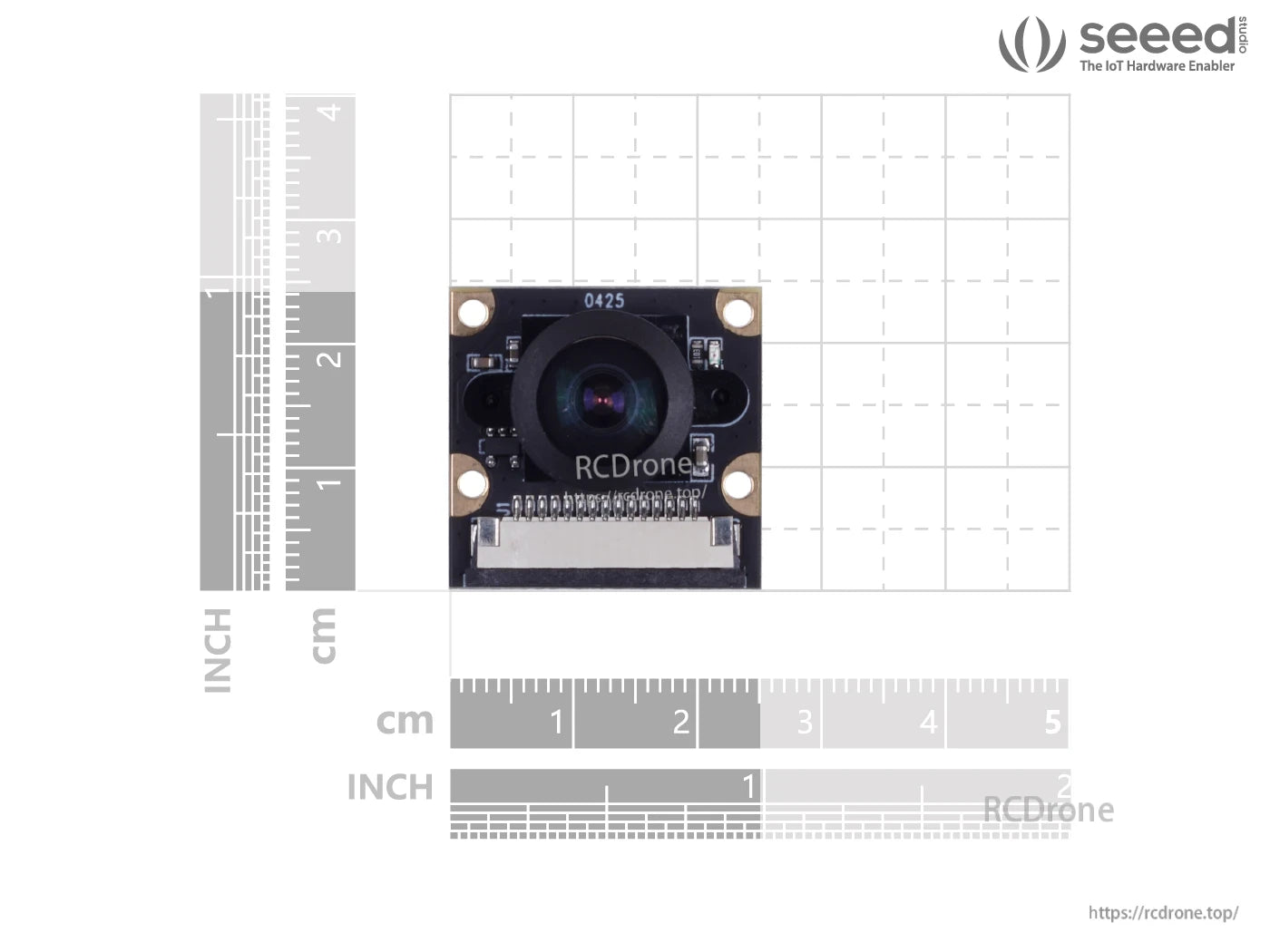

Ukubwa wa Moduli 25mm × 24mm ×17.7±0.5mm

Zaidi ya kamera zinazofaa na NVIDIA Jetson Nano/ Xavier NX Development Kits

114992260 114992261 114992262 114992263 114992264 114992265 114992270
Uwanja wa Kuona wa Diagonal (FOV) 77° 77° 130° 160° 160° 200° 83°
Moduli za IR LED Hakuna 2 Hakuna Hakuna 2 Hakuna Hakuna
Shimo 2.0 2.0 1.8 2.35 2.35 2.0 /
Urefu wa Focal 2.96mm 2.96mm 1.88mm 3.15mm 3.15mm 0.87mm 2.6mm
Ujenzi wa Lens 4P 4P 4E+IR 6G+IR 6G+IR 1G4P+IR /
Upotoshaji <1% <1% <7.6% <14.3% <14.3% <18.6% <1%
EFL 2.93mm 2.93mm 1.85mm 3.15mm 3.15mm 0.9mm /
BFL (Optical) 1.16mm 1.16mm 1.95mm 3.15mm 3.15mm 1.41mm /

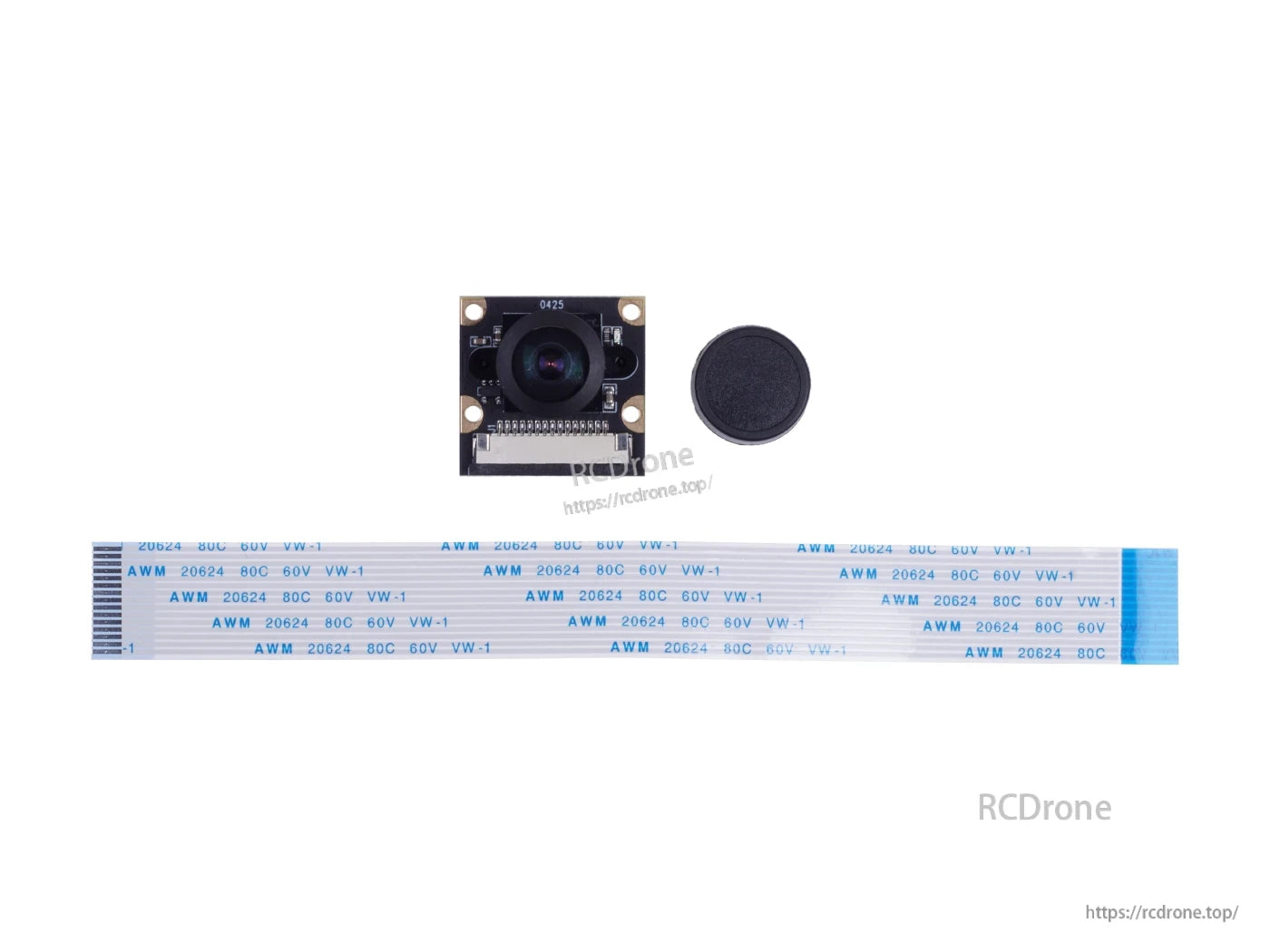

Kilichojumuishwa

  • 1 × IMX219-160 Kamera ya 8MP yenye 160° FOV - Inafaa na NVIDIA Jetson Nano/ Xavier NX
  • 1 × Kebuli ya FPC ya 150mm

Cheti

The IMX219-160 8MP camera module is a wide-angle camera designed for NVIDIA Jetson Nano and Jetson Xavier NX development kits.

HSCODE 8525801390
USHSCODE 8525895050
UPC
EUHSCODE 8517600000
COO CHINA

Maelezo

The IMX219-160 8MP camera module is a wide-angle camera module designed for NVIDIA Jetson development kits.
