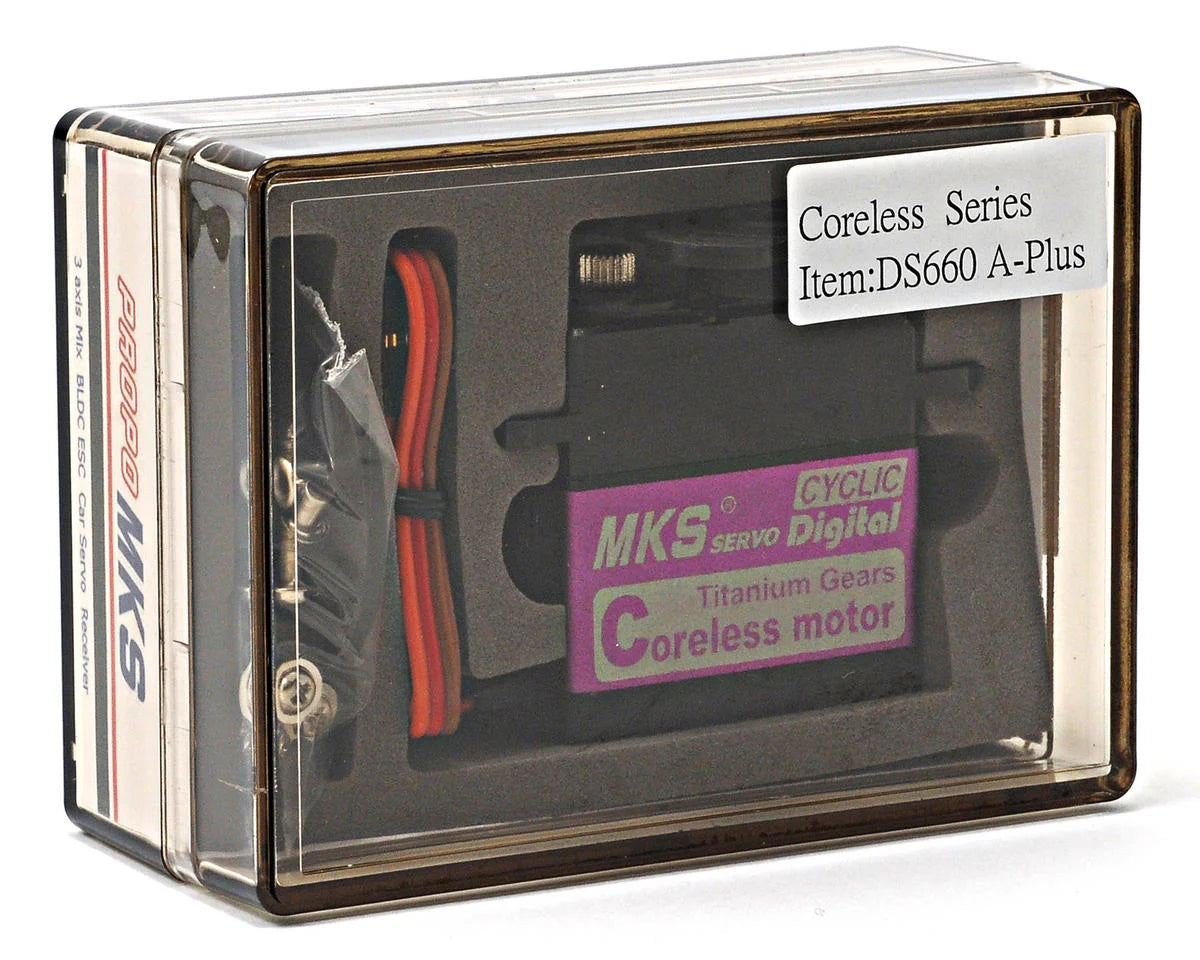

MKS DS660A+ High Torque Digital Servo Motor, Titanium Gear, Aluminum Case

Overview

The MKS DS660A+ Titanium Gear High Torque Standard Digital Servo Motor is a high resolution servo designed for demanding RC aircraft and surface applications. It combines a coreless motor, aluminum case and precision metal gear train to deliver strong torque, fast response and long-term durability in a standard-size form factor.

MKS DS digital servos feature an aluminum case and titanium gears to provide precise control, strength and durability in both aircraft and surface installations.

Key Features

• High torque output up to 26.3 kg-cm / 365.3 oz-in (6.0V) for demanding control surfaces and steering applications.
• Fast operating speed of 0.186 s/60° (4.8V) and 0.149 s/60° (6.0V) at no load.
• Standard-size 40 x 20 x 40 mm aluminum case for efficient heat dissipation and mechanical strength.
• Titanium and metal alloy gear train with dual ball bearings for smooth, precise operation and wear resistance.
• Coreless motor and FET driver for high resolution, accurate positioning and consistent performance.
• Compatible with pulse width control systems using a 1520 μs / 333 Hz working frequency.
• Designed for radio control aircraft and surface models where a robust digital servo motor is required.

Specifications

Torque, speed, weight and size:

• Torque (4.8V): 21.05 kg-cm / 292.3 oz-in
• Torque (6.0V): 26.3 kg-cm / 365.2 oz-in
• Operating Speed (4.8V): 0.186 sec/60° at no load
• Operating Speed (6.0V): 0.149 sec/60° at no load
• Weight: 75 g (2.64 oz)
• Dimensions: 40 x 20 x 40 mm

Applications

The MKS DS660A+ digital servo motor is suitable for RC aircraft control surfaces and a wide range of surface models where high torque, precise positioning and a robust aluminum case are required. For product or technical support, please contact customer service at support@rcdrone.top.
