Muhtasari

SKYZONE M5F ni monitor ya FPV ya inchi 5 ya LCD yenye mpokeaji wa 5.8GHz uliojumuishwa na DVR iliyojengwa ndani. Inachanganya onyesho la 800x480 na mpokeaji wa SteadyView ulioandaliwa kuboresha utulivu wa picha kwa kuchakata ishara za antena mbili ili kupunguza kupasuka na kuzunguka.

Kwa msaada wa kuchagua bidhaa au msaada wa usanidi, wasiliana na https://rcdrone.top/ au tuma barua pepe kwa support@rcdrone.top .

Vipengele Muhimu

Onyesho la LCD la inchi 5
Azimio: 800x480
Mpokeaji uliojumuishwa: SteadyView
Njia za mpokeaji: Njia ya MIX / Njia ya Diversity
Utafutaji wa moja kwa moja / utafutaji wa masafa kwa kubofya moja
Udhibiti wa gurudumu la shuttle (haraka, sahihi)
Ingizo la AV
DVR iliyo jumuishwa: 60FPS MJPEG

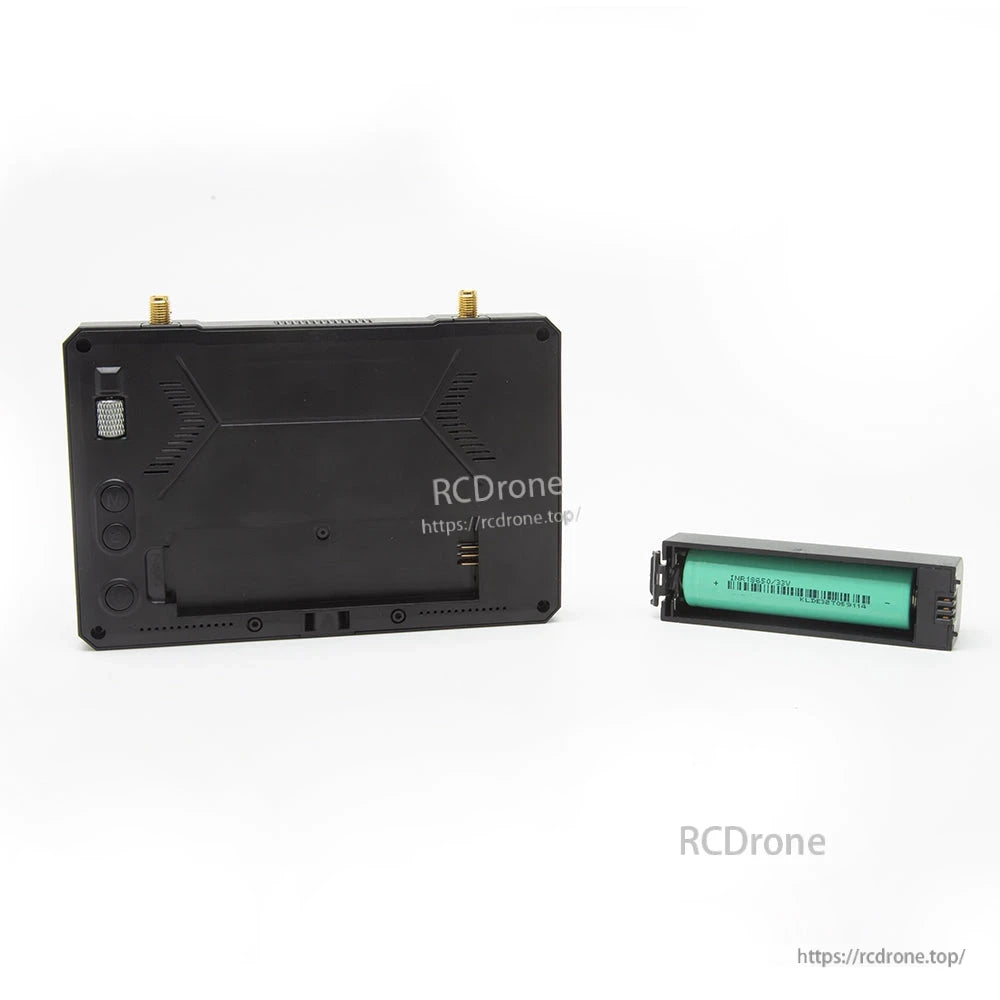

Chanzo cha nguvu nyingi: Ubadilishaji wa betri ya 18650 Li-ion, 2-6S DC IN, chanzo cha nguvu cha Type-C USB

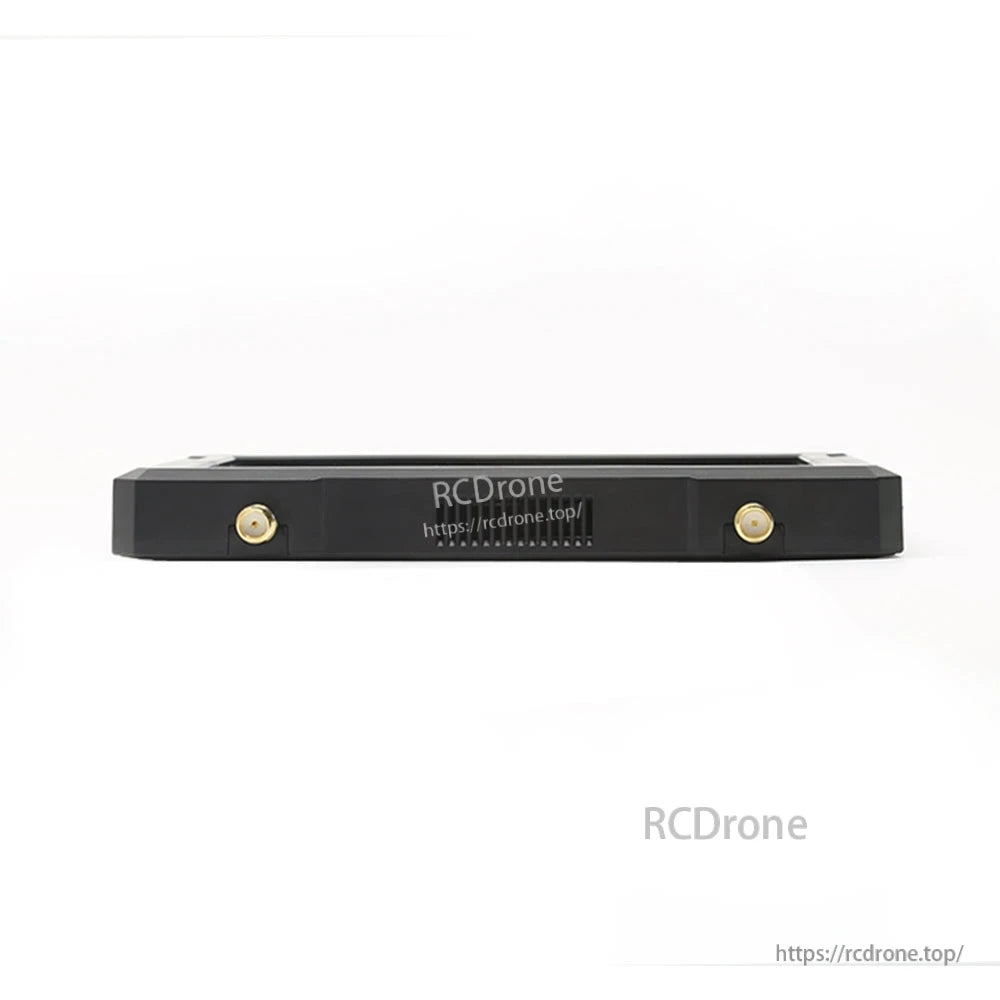

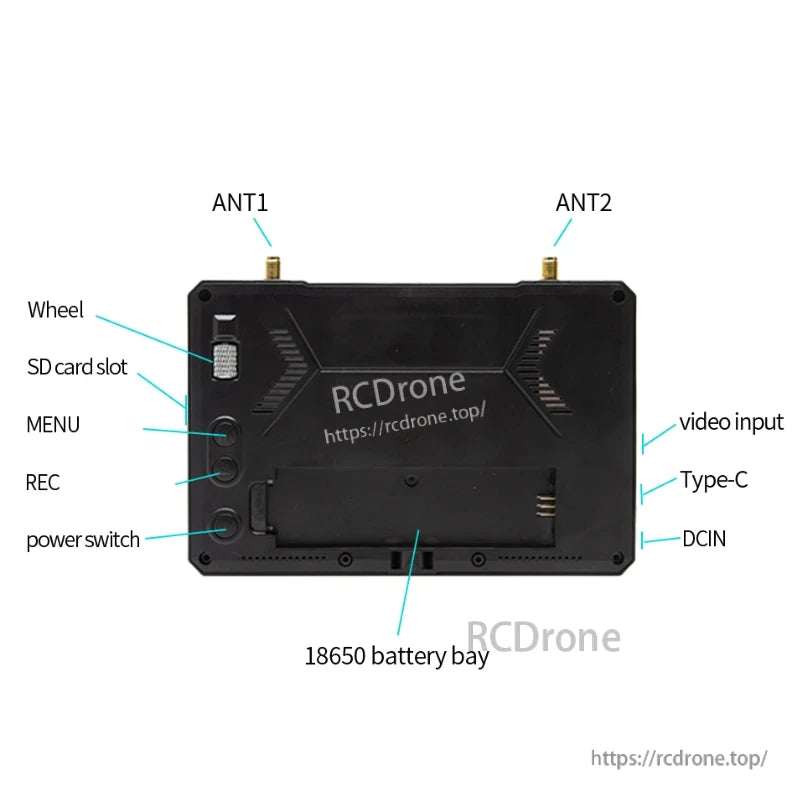

Bandari/udhibiti umeandikwa: ANT1, ANT2, Gurudumu, slot ya kadi ya SD, MENYU, REC, swichi ya nguvu, ingizo la video, Type-C, DCIN, bay ya betri ya 18650

Mpokeaji wa SteadyView uliojumuishwa

Njia ya Diversity: Mpokeaji unalinganisha thamani 2 za RSSI na kuchagua pato la ishara yenye nguvu zaidi. Ikiwa ishara inabadilika haraka, picha inaweza kupasuka na kuzunguka.
Njia ya MIX: Ishara mbili zinashughulikiwa kupitia mizunguko na algorithimu na kuunganishwa kuwa moja kwa picha thabiti na wazi zaidi.

Maelezo

Jina	Vifaa vya SKYZONE 26 M5F
Ukubwa wa onyesho	inchi 5
Azimio	800*480
Ucheleweshaji	<=20ms
Mpokeaji	SteadyView (5.8GHz 48 CH iliyoelezwa)
Chanzo cha nguvu	2-6s DC IN; 18650 Li-ion; Type-C USB
Kudumu kwa betri	1.5h na 3000mah
DVR	60FPS MJPEG
Antenna	Antenna ya Kijani 180°; Antenna ya Paneli Laini
Dimension	1358816mm
Uzito	165±2g

Jedwali la VRX

FR	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
A	5865 MHz	5845 MHz	5825 MHz	5805 MHz	5785 MHz	5765 MHz	5745 MHz	5725 MHz
B	5733 MHz	5752 MHz	5711 MHz	5790 MHz	5809 MHz	5828 MHz	5847 MHz	5866 MHz
E	5705 MHz	5685 MHz	5665 MHz	5645 MHz	5885 MHz	5905 MHz	5925 MHz	5945 MHz
F	5740 MHz	5760 MHz	5780 MHz	5800 MHz	5820 MHz	5840 MHz	5860 MHz	5880 MHz
R	5658 MHz	5695 MHz	5732 MHz	5769 MHz	5806 MHz	5843 MHz	5880 MHz	5917 MHz
L	5362 MHz	5399 MHz	5436 MHz	5473 MHz	5510 MHz	5547 MHz	5584 MHz	5621 MHz
X	4990 MHz	5020 MHz	5050 MHz	5080 MHz	5110 MHz	5140 MHz	5170 MHz	5200 MHz

Nini Kimejumuishwa

M5F Monitor *1
5.8GHz antenna za uyoga *1
5.8GHz 8dbi RX antenna *1
Video/Audio Cable *1
USB-C Cable *1
XT60-DC5.5*2.1 Kebuli ya Nguvu *1
Kitabu cha Mtumiaji *1

Maombi

5.8GHz analog FPV ufuatiliaji kwa drones za RC na mifumo mingine ya FPV inayohitaji ingizo la AV na uoni/rekodi inayotegemea mpokeaji
Kuandaa na kupima uwanja na rekodi ya DVR na upigaji wa nyuma

Maelezo

SKYZONE M5F 5-inch 800x480 5.8GHz FPV monitor with MIX/Diversity receiver and built-in 60FPS DVR

Mapokezi ya SteadyView yanasaidia hali za MIX na Diversity kwa ajili ya picha ya FPV ya analog iliyo wazi na thabiti.

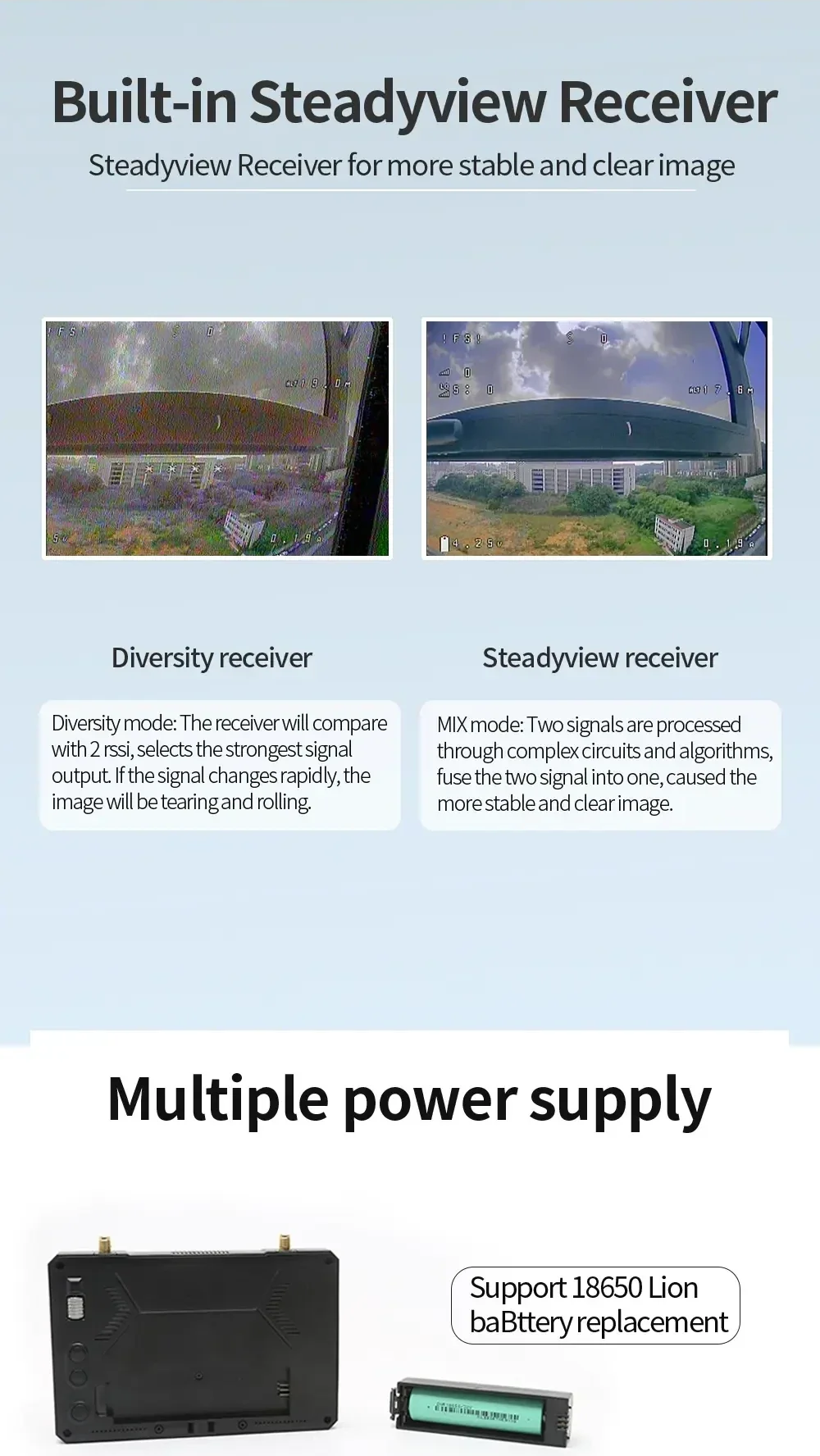

SteadyView receiver comparison: standard diversity vs MIX processing for reduced tearing and rolling in FPV video

MIX mode inachanganya ishara mbili za antenna kusaidia kupunguza mabadiliko ya haraka ya ishara wakati wa kuruka.

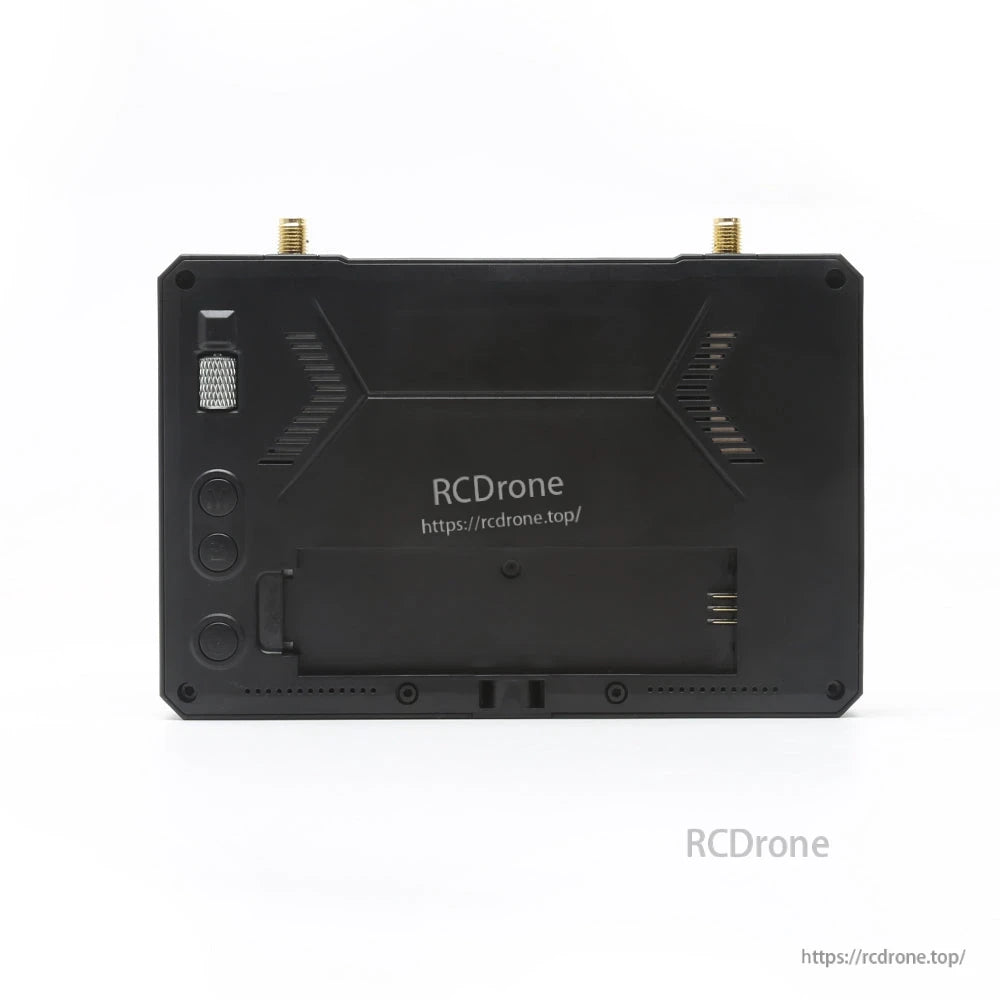

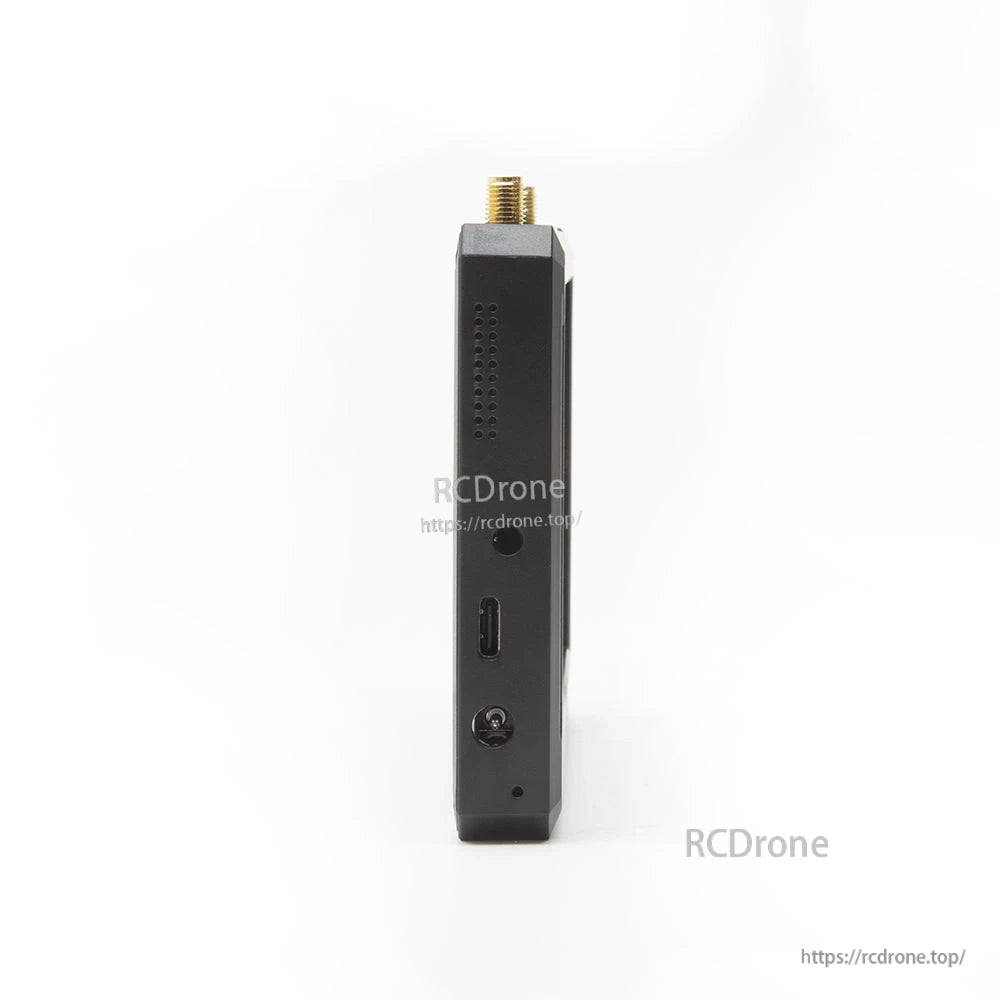

Rear view highlighting power options: 2–6S DC input and Type‑C USB power, plus SD card support for DVR playback

Washa monitor kutoka kwa ingizo la 2–6S DC au Type‑C USB, na rekodi kwenye microSD kwa ajili ya upigaji wa nyuma wa DVR.

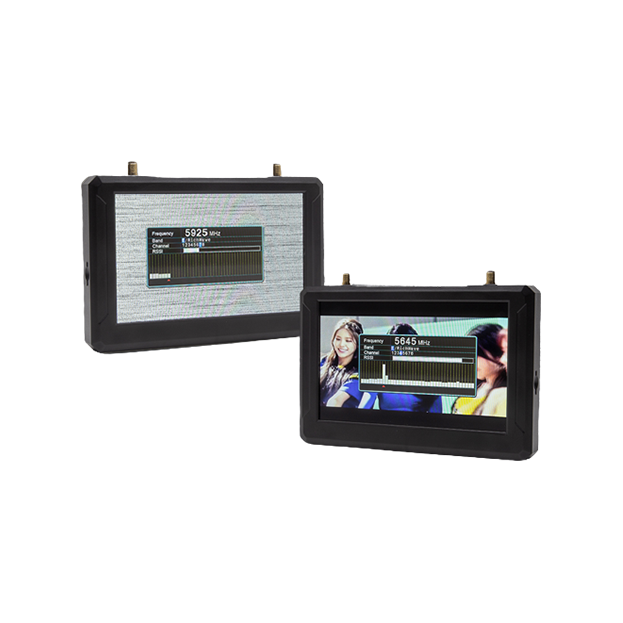

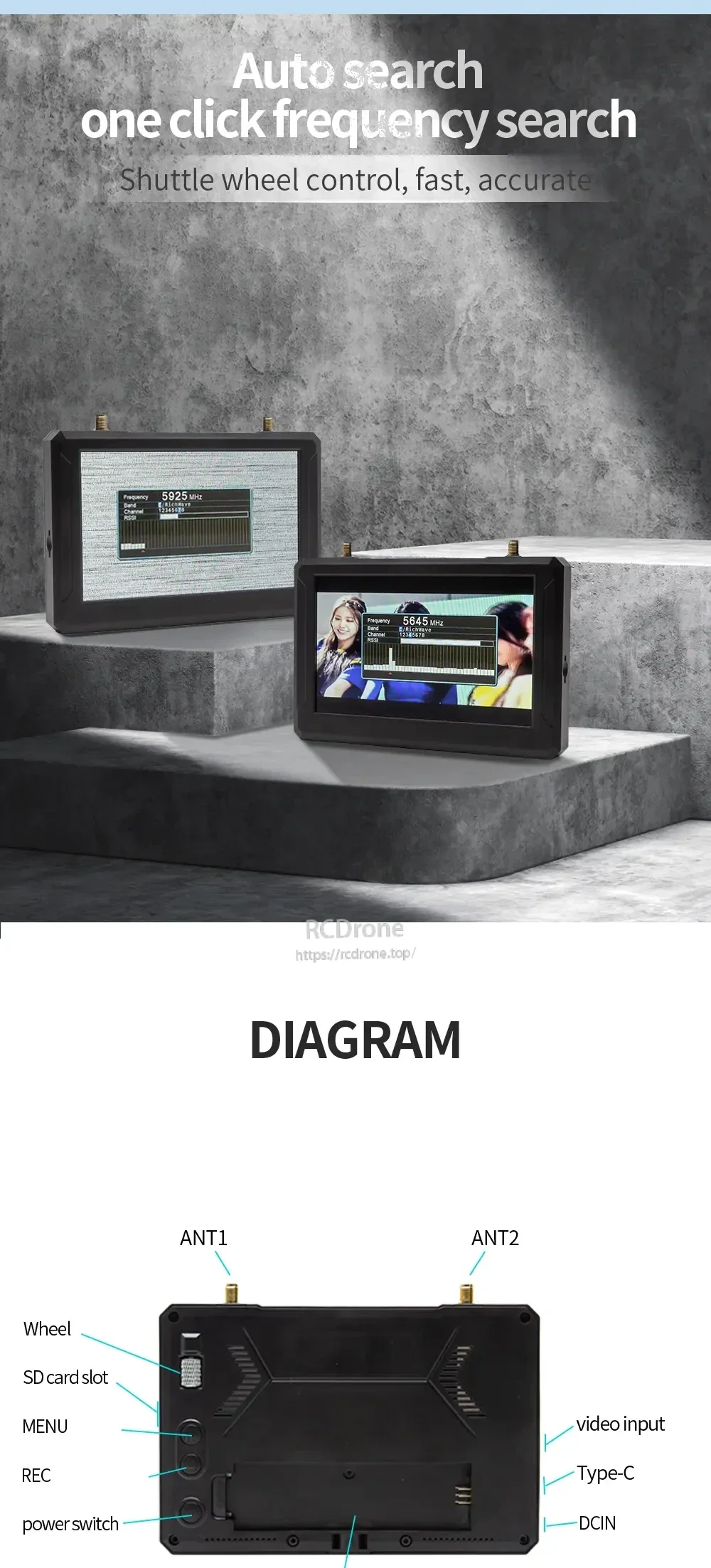

Auto search and one-click 5.8GHz frequency scan screen with shuttle wheel control on SKYZONE M5F monitor

Skana haraka ya channel na gurudumu la shuttle hufanya iwe rahisi kufunga kwenye frequency sahihi ya 5.8GHz.

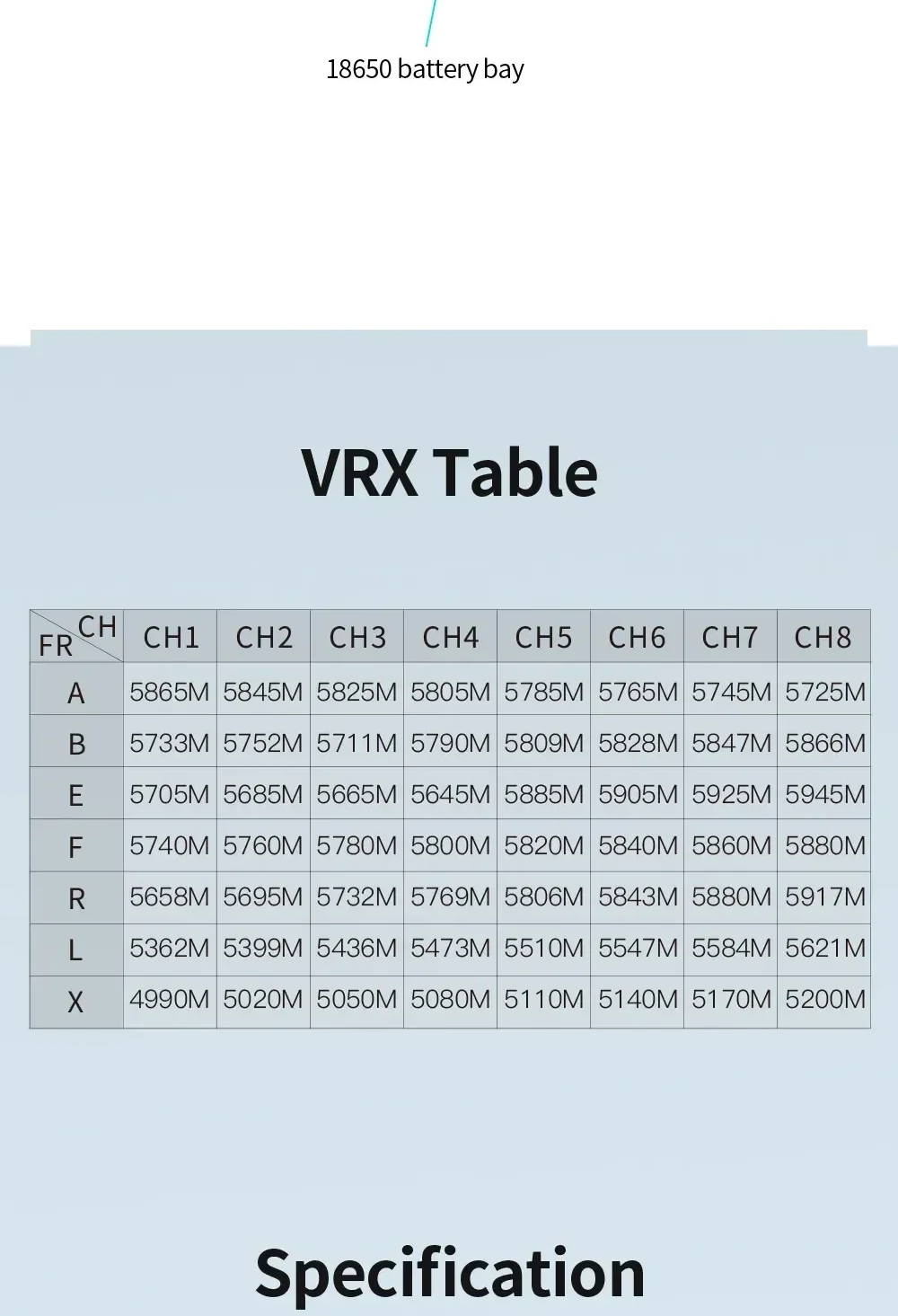

5.8GHz VRX frequency table showing channel bands A, B, E, F, R, L, and X for receiver tuning reference

Jedwali kamili la VRX limejumuishwa ili kurahisisha tuning ya mkono katika bendi maarufu za 5.8GHz.

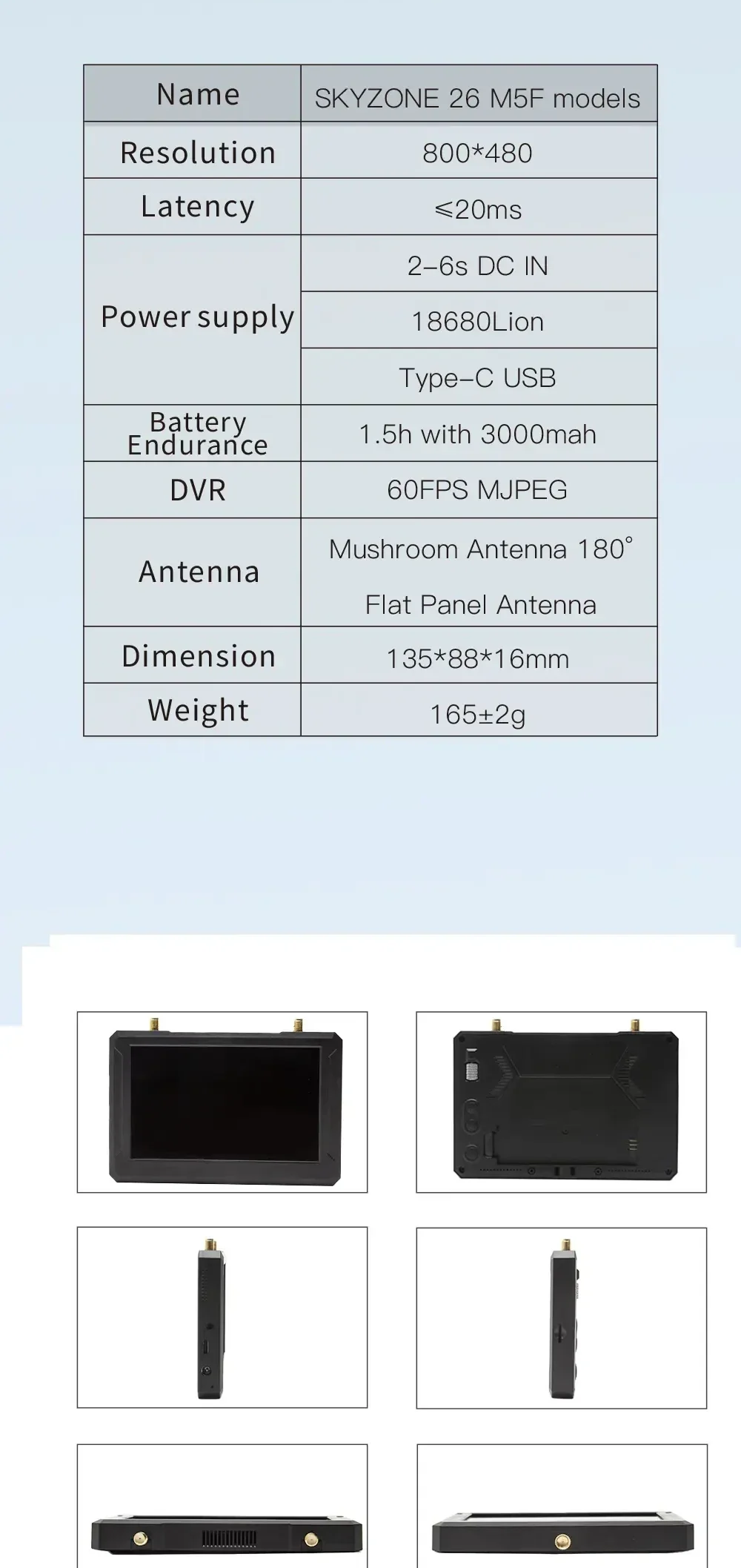

Specification chart for SKYZONE 26 M5F: 800x480 resolution, ≤20ms latency, 60FPS MJPEG DVR, 135×88×16mm

Vipimo muhimu kwa muonekano: onyesho la 800×480, ≤20ms latency, na 60FPS MJPEG DVR kurekodi.

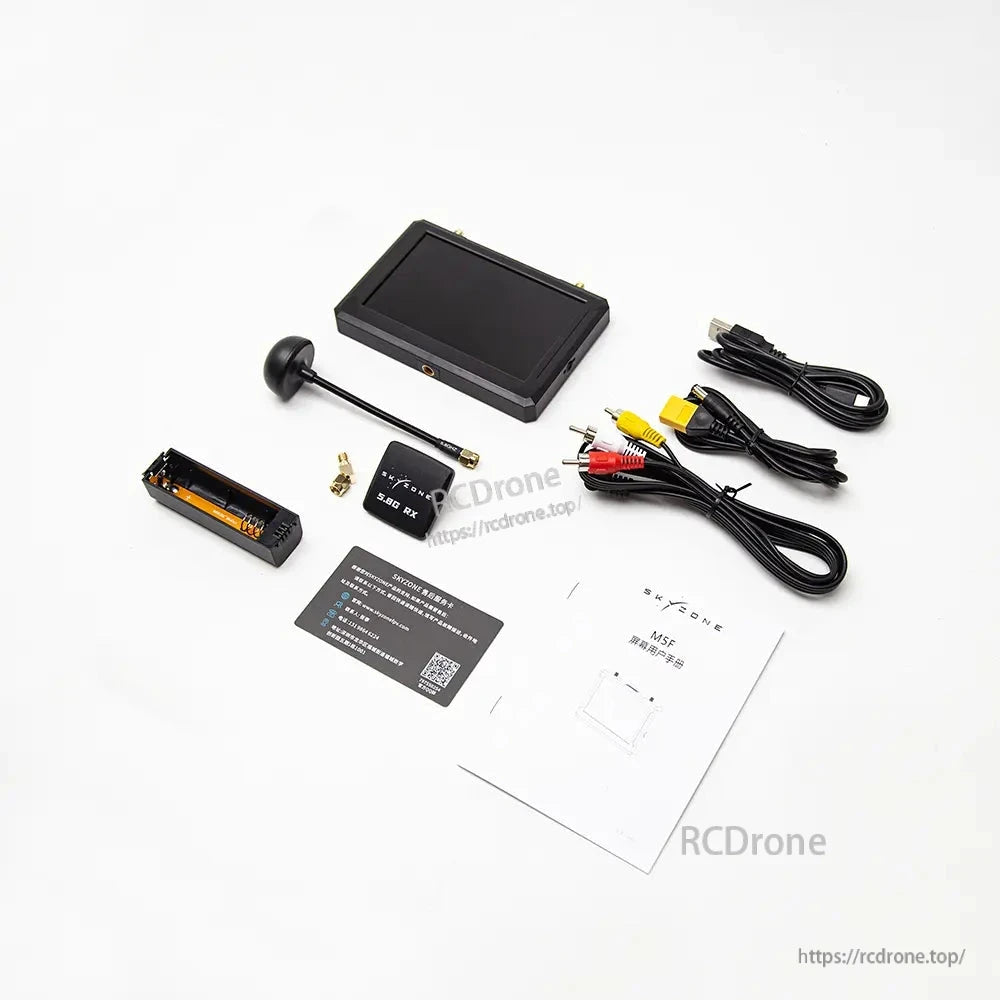

Packing list for SKYZONE M5F FPV monitor kit with antennas, battery tray, USB‑C cable, AV cable, power lead, and manual

Kila kitu kinachohitajika kuanza kimejumuishwa, pamoja na antena, nyaya, na kifaa cha betri.

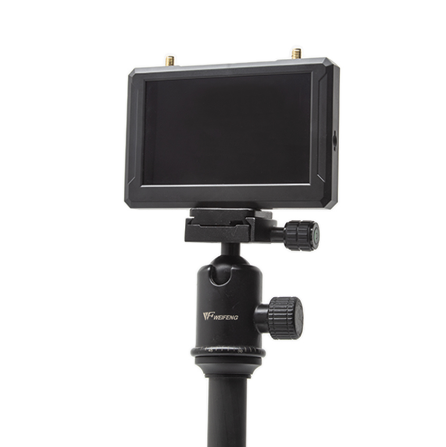

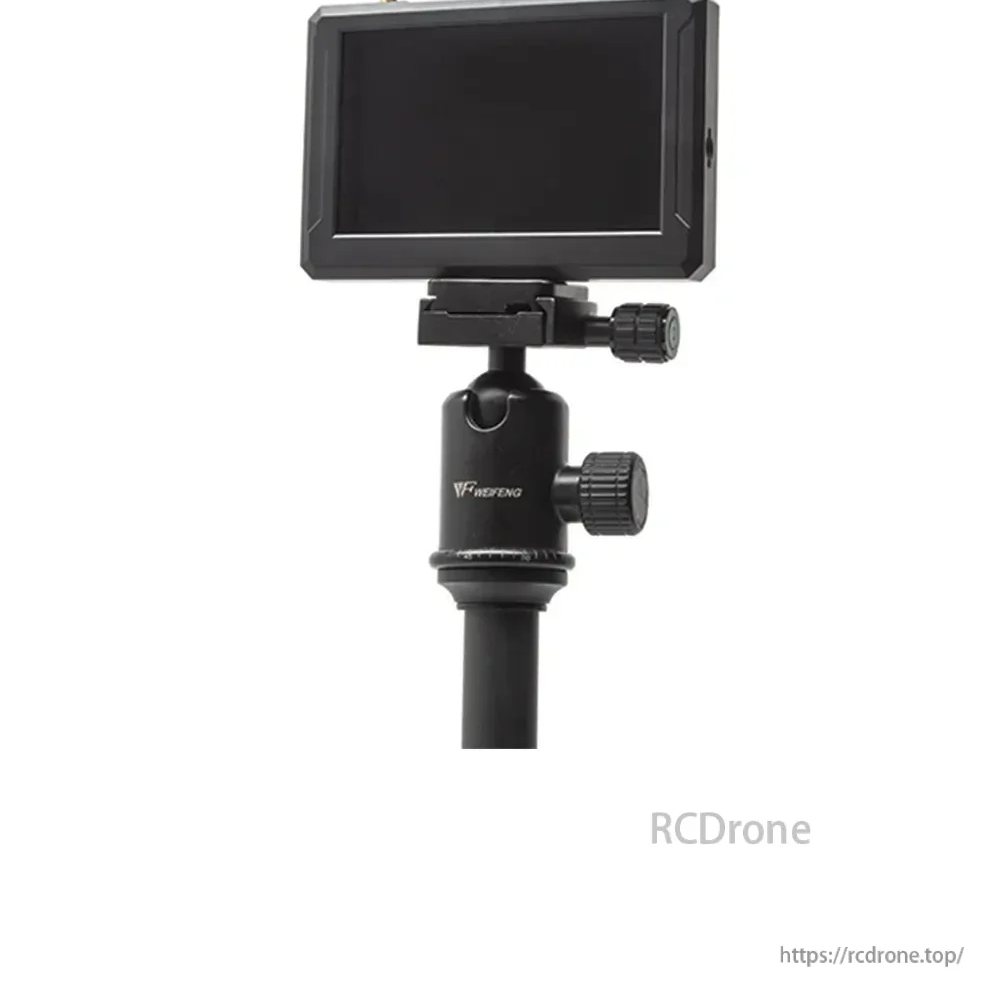

5-inch FPV monitor mounted on a tripod head, showing compact screen housing and top antenna connectors
