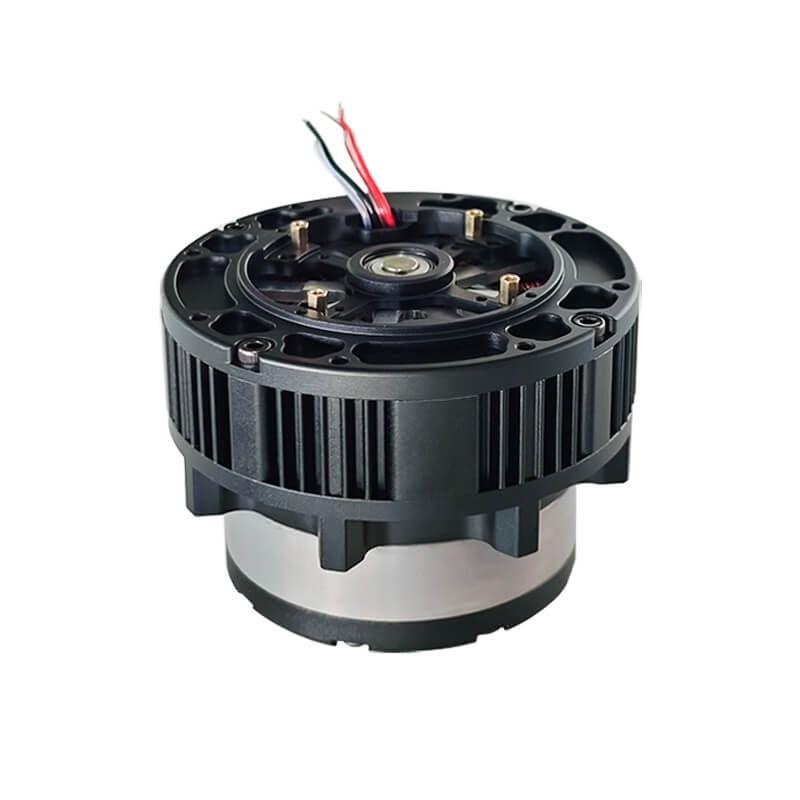

• SteadyWin GIM6010-48 Planetary Reducer Robot Motor — 48:1 Planetary Gear, IP54, CAN & Type-C, 30 N.M Nominal

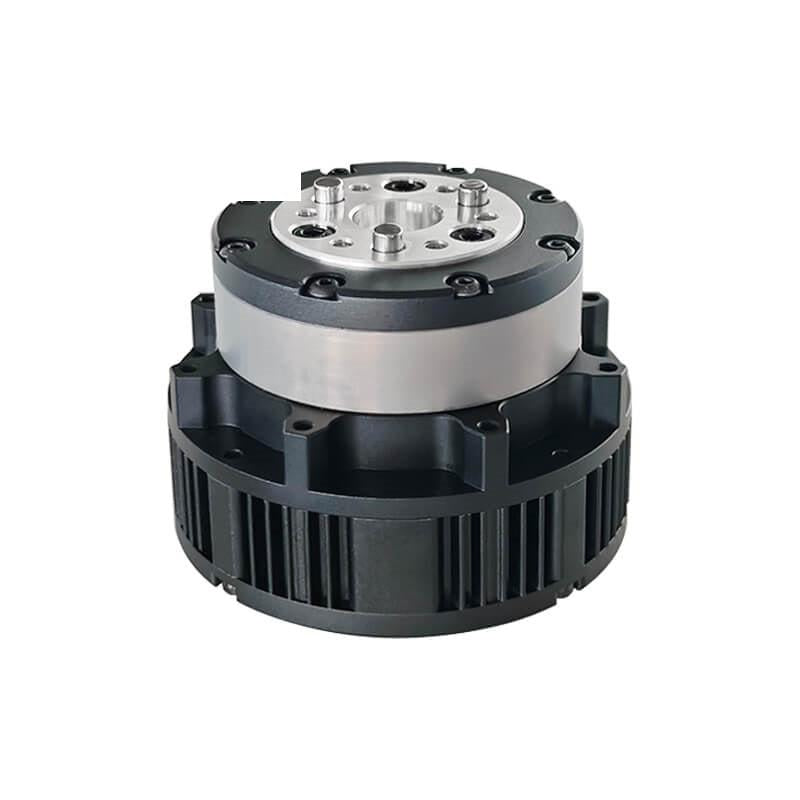

  • SteadyWin GIM6010-48 Planetary Reducer Robot Motor — 48:1 Planetary Gear, IP54, CAN & Type-C, 30 N.M Nominal

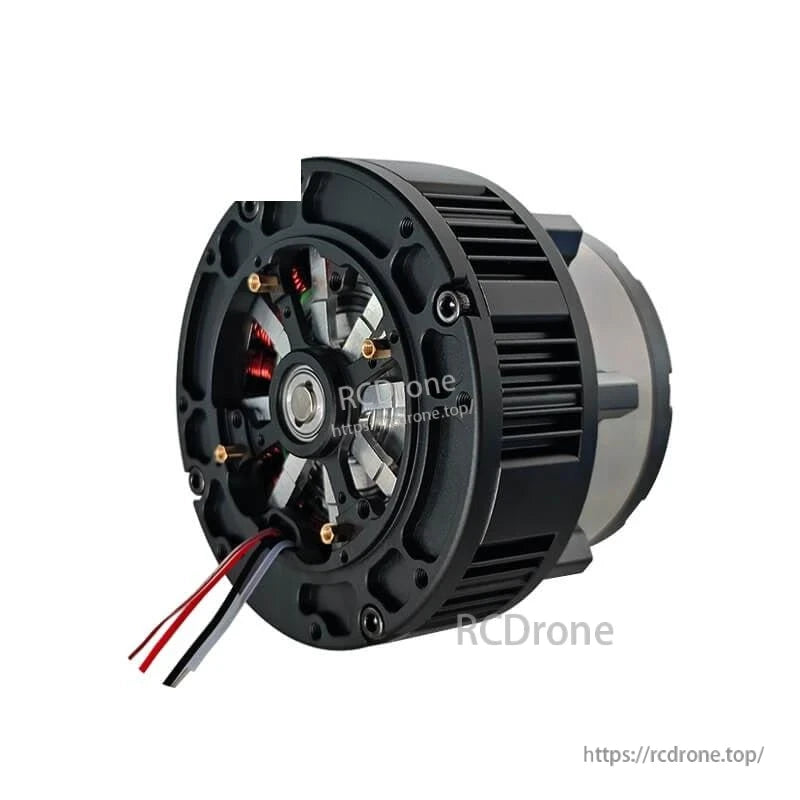

  • SteadyWin GIM6010-48 Planetary Reducer Robot Motor, SteadyWin GIM6010-48 motor: 48:1 ratio, IP54, CAN/Type-C compatible, 30 N·m torque.

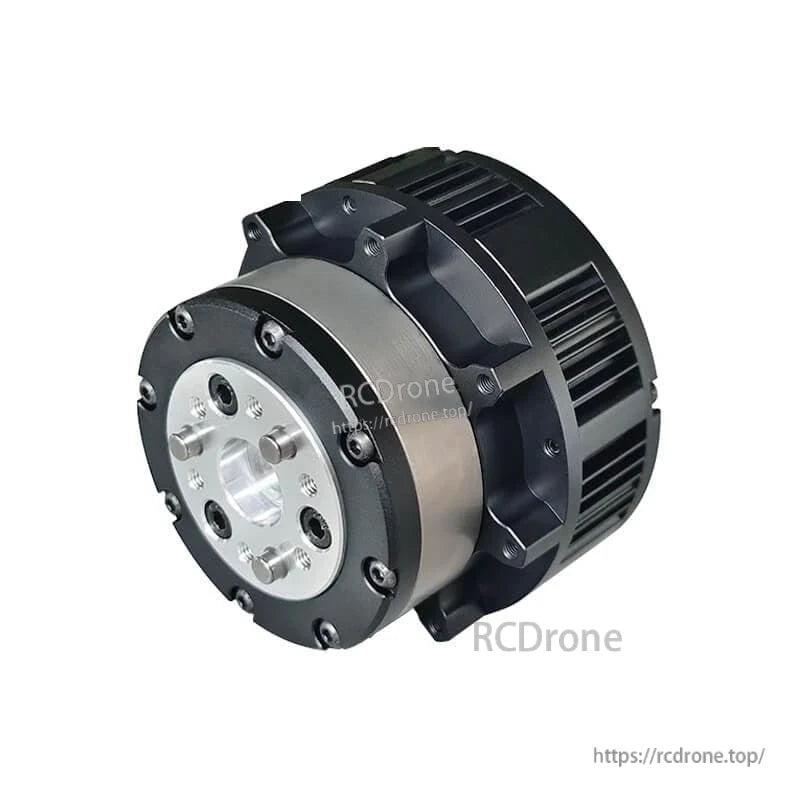

  • SteadyWin GIM6010-48 Planetary Reducer Robot Motor, SteadyWin GIM6010-48 motor: 48:1 ratio, IP54, CAN/Type-C compatible, 30 N·m torque.
1 4

SteadyWin GIM6010-48 Kipunguza Kasi cha Roboti — Gia ya Sayari 48:1, IP54, CAN & Type-C, 30 N.M Kawaida

SteadyWin GIM6010-48 Kipunguza Kasi cha Roboti — Gia ya Sayari 48:1, IP54, CAN & Type-C, 30 N.M Kawaida

SteadyWin

$156.00 USD
$156.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Toleo
Chaguo la Kuendesha
Encoder
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Muhtasari

SteadyWin GIM6010-48 Motor ya Reducer ya Planetary ni Motor ya Roboti iliyoundwa kwa ajili ya usahihi wa kuhamasisha viungo na kudhibiti mwendo katika mifumo ya roboti. GIM6010-48 inachanganya reducer ya planetary ya hatua mbili 48:1 na jukwaa la motor isiyo na brashi pamoja na chaguzi za encoder zilizojumuishwa ili kutoa pato dogo, lenye nguvu kubwa kwa mikono ya roboti, roboti za kibinadamu na majukwaa ya rununu.

Vipengele Muhimu

  • Reducer ya gia ya planetary ya hatua mbili 48:1 yenye gia za chuma na backlash ya 15 arcmin.
  • Toleo mbili za dereva zinasaidiwa: SDC104 na SDC215 (kadiria tofauti za nguvu na kasi/mtiririko).
  • Voltage ya kawaida pana: 24 V (inafanya kazi katika anuwai ya 12–56 V).
  • Mawasiliano yaliyounganishwa: CAN na interfaces za Aina-C.
  • Encoder ya pili ipo; chaguzi za azimio la encoder zimeorodheshwa katika spesifikesheni.
  • Daraja la ulinzi IP54 na anuwai ya joto la kufanya kazi -20°C hadi +80°C.
  • Usaidizi wa breki wa kawaida upo.

Kwa mauzo na msaada wa kiufundi wasiliana na: support@rcdrone.top au tembelea https://rcdrone.top/ kwa kuagiza na msaada.

Maelezo ya kiufundi

Voltage 24 VIP65 IP65 Weight 1.5 kg 1.5 kg Warranty Period 12 months 12 months Certification CE, RoHS CE, RoHS Application Robotics, Automation Robotics, Automation Notes Ensure proper installation and maintenance. Ensure proper installation and maintenance.5 mm &14Bit
Parameta SDC104 SDC215
Mfano GIM6010-48 GIM6010-48
Mfano wa Dereva SDC104 SDC215
Voltage ya Kawaida 24 V (12-56V anuwai) 24 V (12-56V anuwai)
Nguvu 252W 156W
Torque ya Kawaida 30 N.M 27 N.M
Torque ya Kusimama 66 N.M 55.9 N.M
Speed ya Kawaida baada ya Kupunguza 20 RPM 38 RPM
Speed ya Juu baada ya Kupunguza 70 RPM 49 RPM
Current ya Kawaida 10.5 A 6.5 A
Current ya Kusimama 23.4 A 13.5 A
Upinzani wa Awamu 0.42 ohm 0.42 ohm
Inductance ya Awamu 0.34 mH 0.34 mH
Constant ya Speed 2.92 rpm/v 2.04 rpm/v
Constant ya Torque 2.82 N.M/A 4.5 mm
24 V Current 3 A 3 A Power 72 W 72 W Efficiency 85% 85% Operating Temperature -20 to 60 °C -20 to 60 °C Protection Level
Max Mizigo ya Axial 225 N 225 N
Max Mizigo ya Radial 900 N 900 N
Kelele <60 dB <60 dB
Mawasiliano CAN & Aina-C CAN & Aina-C
Encoder ya Pili NDIYO NDIYO
Daraja la Ulinzi IP54 IP54
Joto la Kufanya Kazi -20°C hadi +80°C -20°C hadi +80°C
Azimio la Encoder 16Bit
Support ya Encoder ya Kijalala HAPANA HAPANA
Support ya Breki ya Kijalala NDIYO NDIYO

Matumizi

  • Roboti wa kibinadamu
  • Vikono vya roboti na moduli za viungo
  • Exoskeletons
  • Roboti wa mguu nne
  • Moduli za kuendesha na kuongoza AGV (magari yanayoongozwa kiotomatiki)
  • Roboti za ARU na mifumo mingine ya mwendo sahihi
