Overview
The Flysky ProArt PA01 radio controller is a 2.4GHz ISM mini transmitter designed for FPV drones and a wide range of RC models, featuring 18-channel built-in transmission (and up to 32 channels with external transmission), AFHDS 3 / ELRS protocols, EdgeTX support, a 2.4-inch full-view color IPS display, Hall joysticks, and built-in 500mW power.
Key Features
- 2.4-inch full-view, high-resolution IPS color display (non-touch), designed for clear visibility even in sunlight
- AFHDS 3 / ELRS interchangeable firmware
- Built-in real 500mW power (as stated)
- 18 channels (built-in transmission); up to 32 channels (external transmission)
- Quick-release, high-precision Hall joysticks (Flysky’s first mini Hall assembly, as stated)
- STM32 H7 + ESP32-S3 chipset (as stated)
- Retractable, rotatable external single antenna
- Customizable RGB lighting across the body and 4 customizable RGB buttons
- 3D-mesh anti-slip grips
- Multi-function ports: USB Type-C + 3.5mm audio + 3.5mm trainer (DSC)
- Metal menu scroll wheel with knurled metal finish (as stated)
- Intelligent temperature-controlled cooling system for consistent power output at high temperatures (as stated)
- Direct connection to simulators (as stated)
Specifications
| Brand | FLYSKY |
| Model | ProArt PA01 |
| Wireless Frequency | 2.4GHz ISM |
| Wireless Protocols | AFHDS 3 / ELRS |
| Number of Channels | Built-in transmission: 18; External transmission: 32 |
| Transmission Power | 20 dBm (factory default) |
| Antenna | Single antenna (retractable, rotatable, external) |
| Input Voltage | 7.4V (2 x 18650 LiPo batteries) |
| Low Voltage Alarm | < 7.2V |
| Display | 2.4-inch, 240 x 320 full-dot matrix color IPS display, non-touch, full viewing angle |
| Charging Port | USB Type-C |
| Data Ports | USB Type-C, 3.5mm audio, 3.5mm trainer (DSC) |
| Channel Resolution | 4096 level |
| Firmware Update | Supported |
| Operating Temperature | -10°C to +60°C |
| Operating Humidity | 20%–95% |
| Dimensions | 174.9 x 131.4 x 67.5 mm |
| Body Color | Black translucent |
| Body Weight | 343 g (without batteries) |
| Charging Dock Weight | 67 g (without batteries) |
| Certifications | SRRC, CE, FCC; FCC ID: 2A2UNPA0100 |
Compatibility
- FPV drone compatibility: FTr16S / TMR
- High-performance air model compatibility: INr6-HS / Tr8B / FTr8B / FTr12B ...
- Marine models: FBr8 / FBr12 (AFHDS3 receiver ecosystem)
- Car models: FGr4B / FGr4D / FGr8B / FGr12B ...
- Robot compatibility: GMR-C3 / Tr8B
What’s Included
- 1 x FLYSKY PA01 Radio Controller
Applications
- FPV drones
- RC cars
- RC boats
- RC airplanes
- Simulator practice (direct connection, as stated)
For setup help, firmware questions, or receiver selection guidance, contact support@rcdrone.top or visit https://rcdrone.top/.
Details

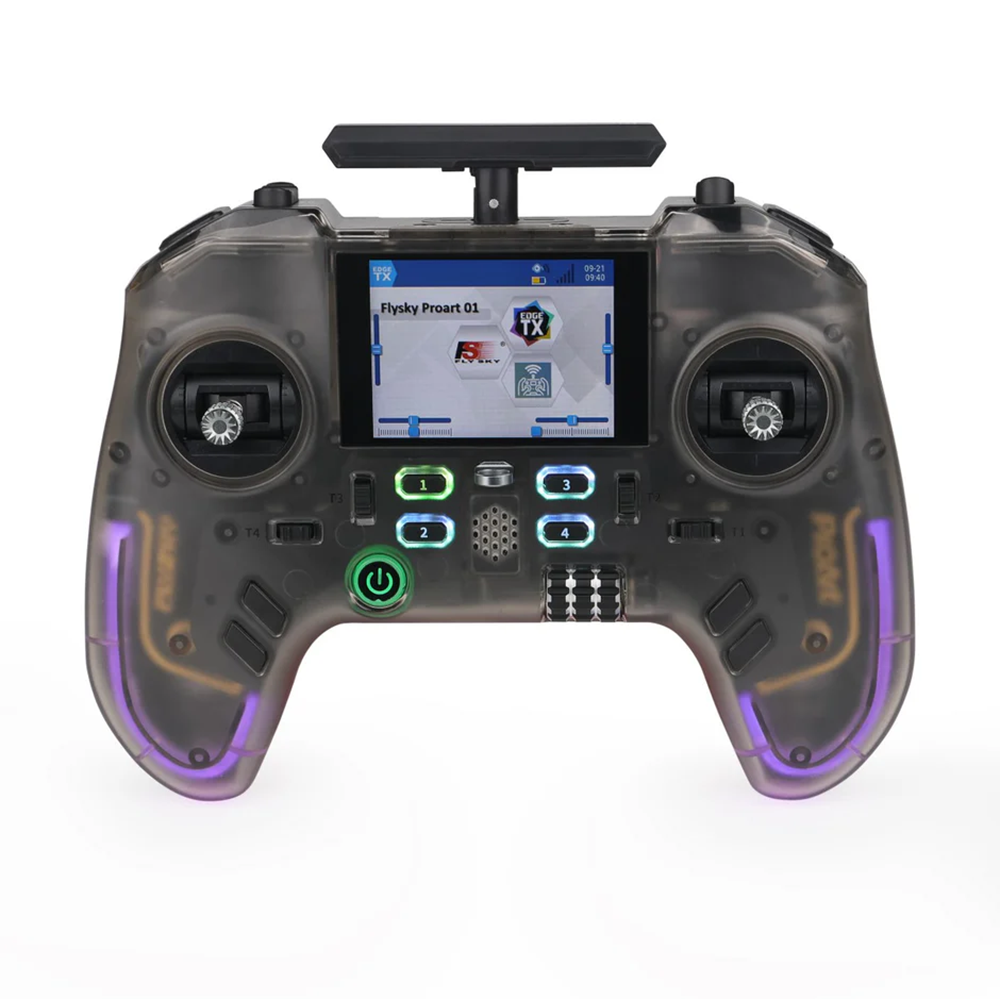

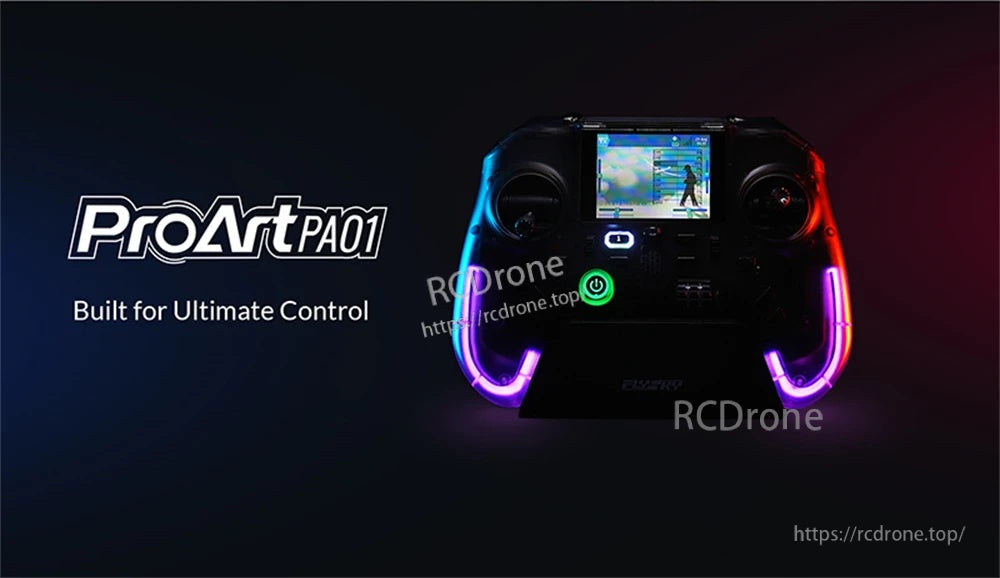

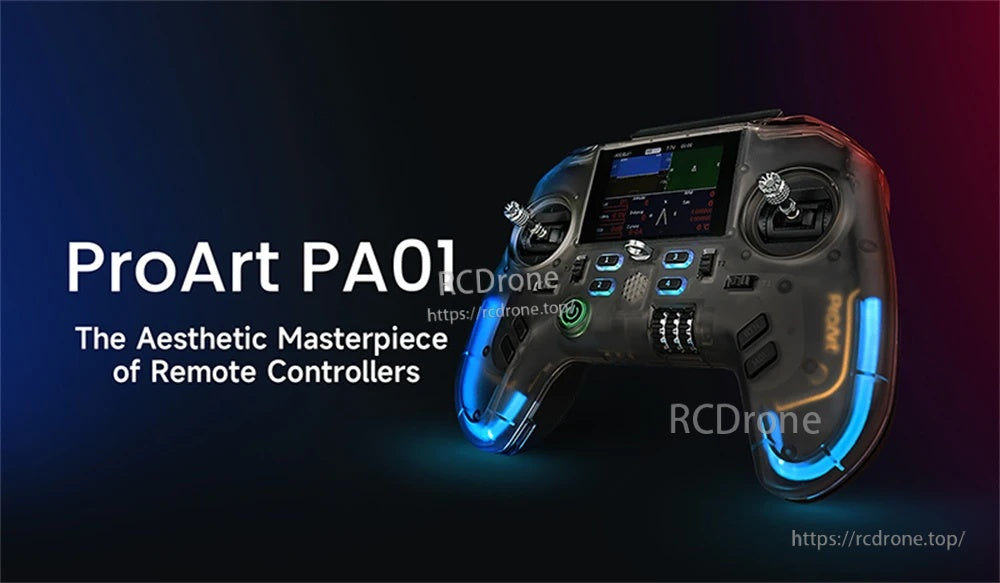

Meet the Flysky ProArt PA01 mini transmitter for FPV and multi-model RC control, built around an 18-channel internal radio and EdgeTX support.

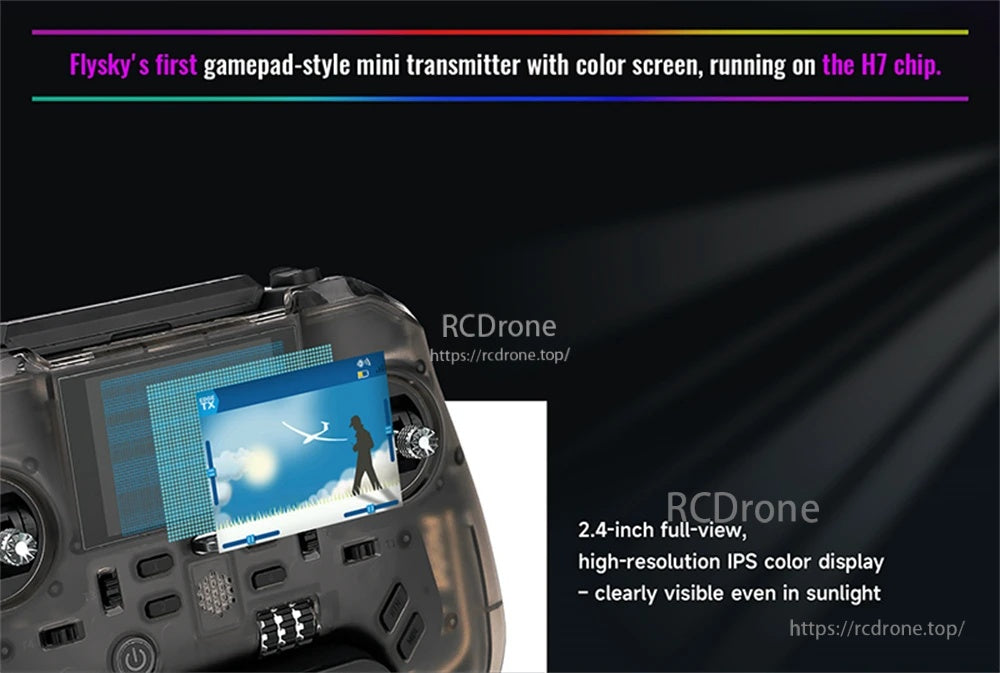

A bright 2.4-inch IPS color screen keeps key telemetry and settings easy to read while flying outdoors.

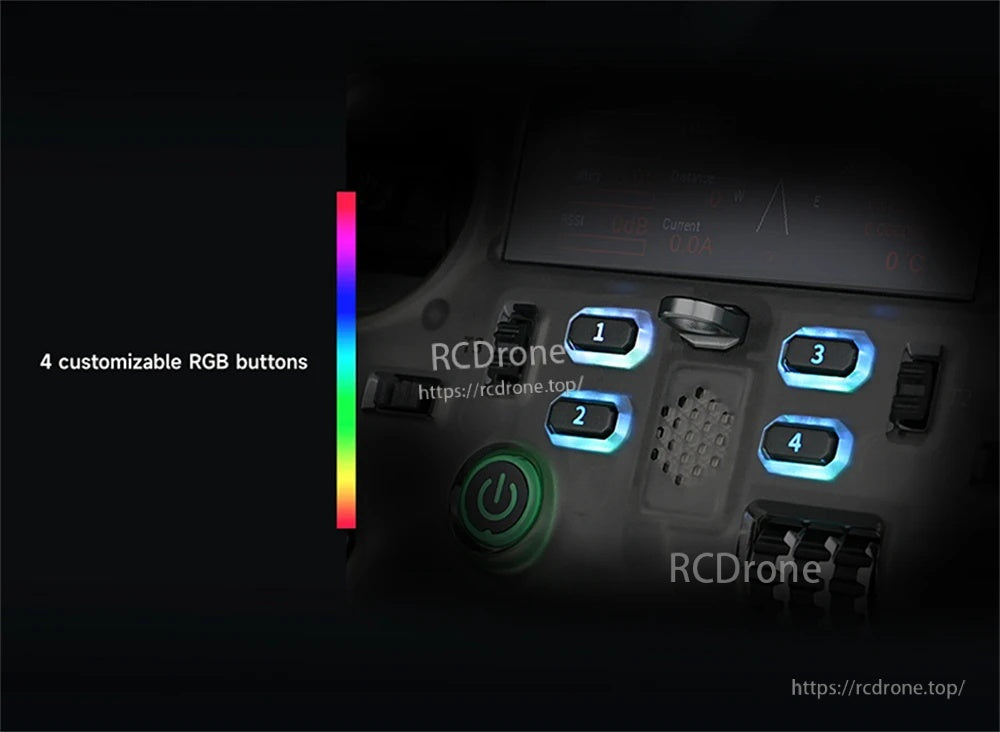

Four customizable RGB buttons add quick-access control and a personalized look.

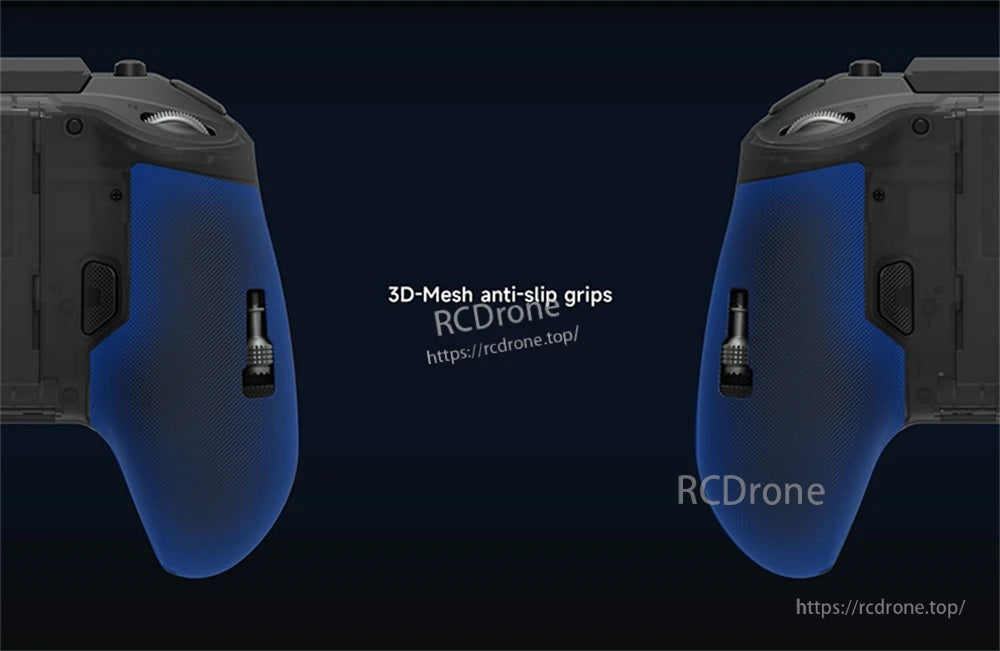

3D-mesh anti-slip grips help maintain steady control during long sessions.

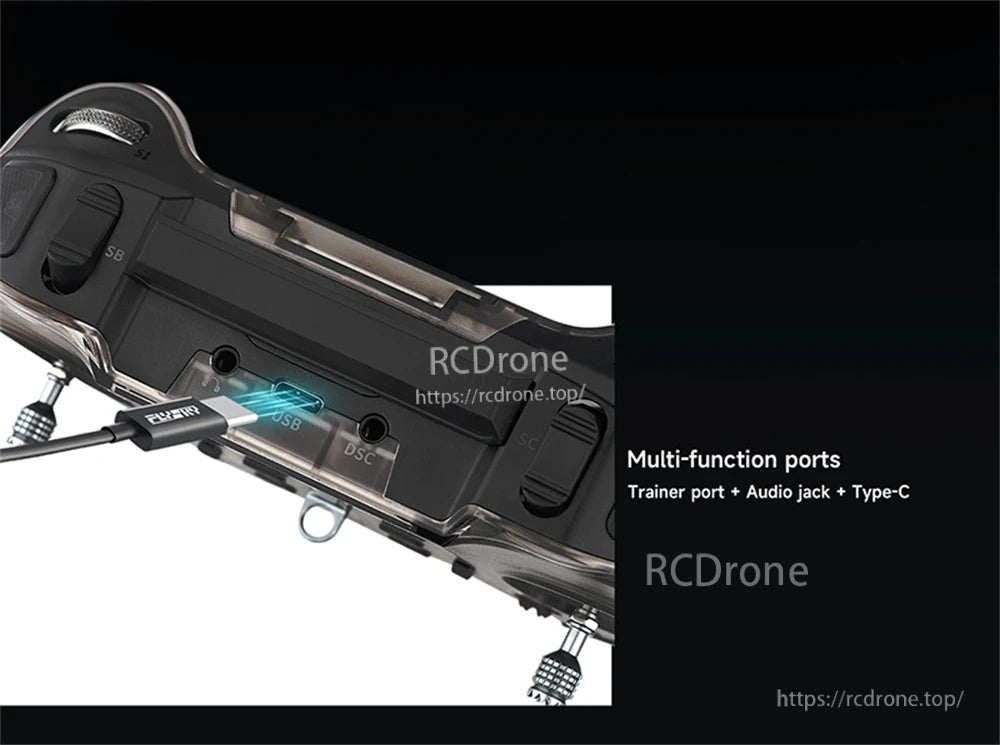

USB-C plus trainer (DSC) and audio ports make it easy to connect accessories and training setups.

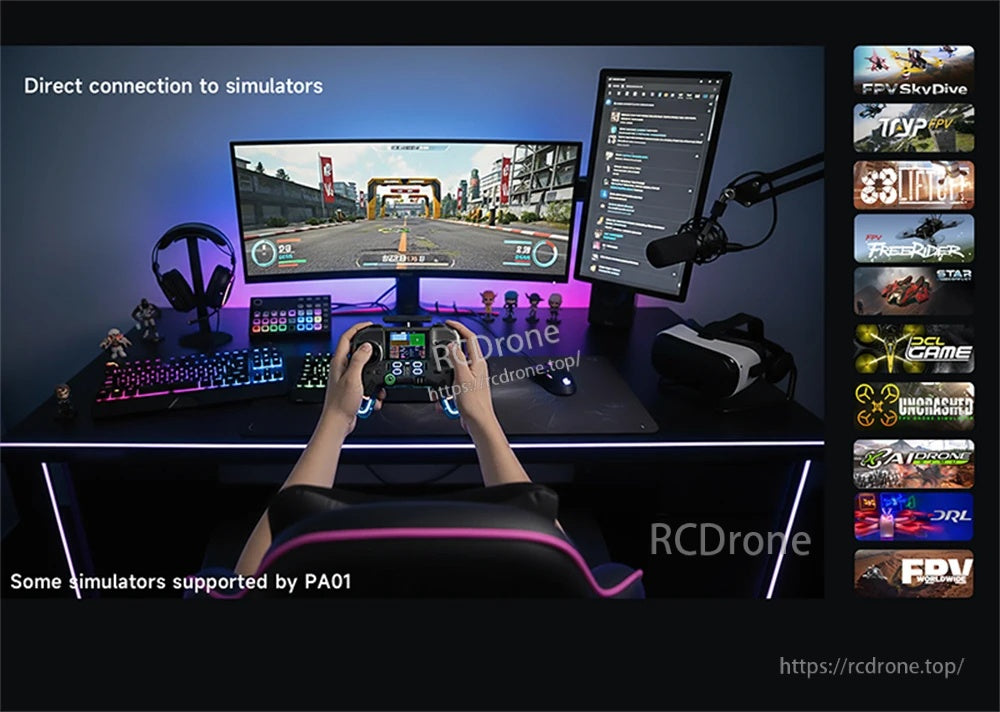

Direct simulator connectivity supports practice time on common FPV simulator platforms.

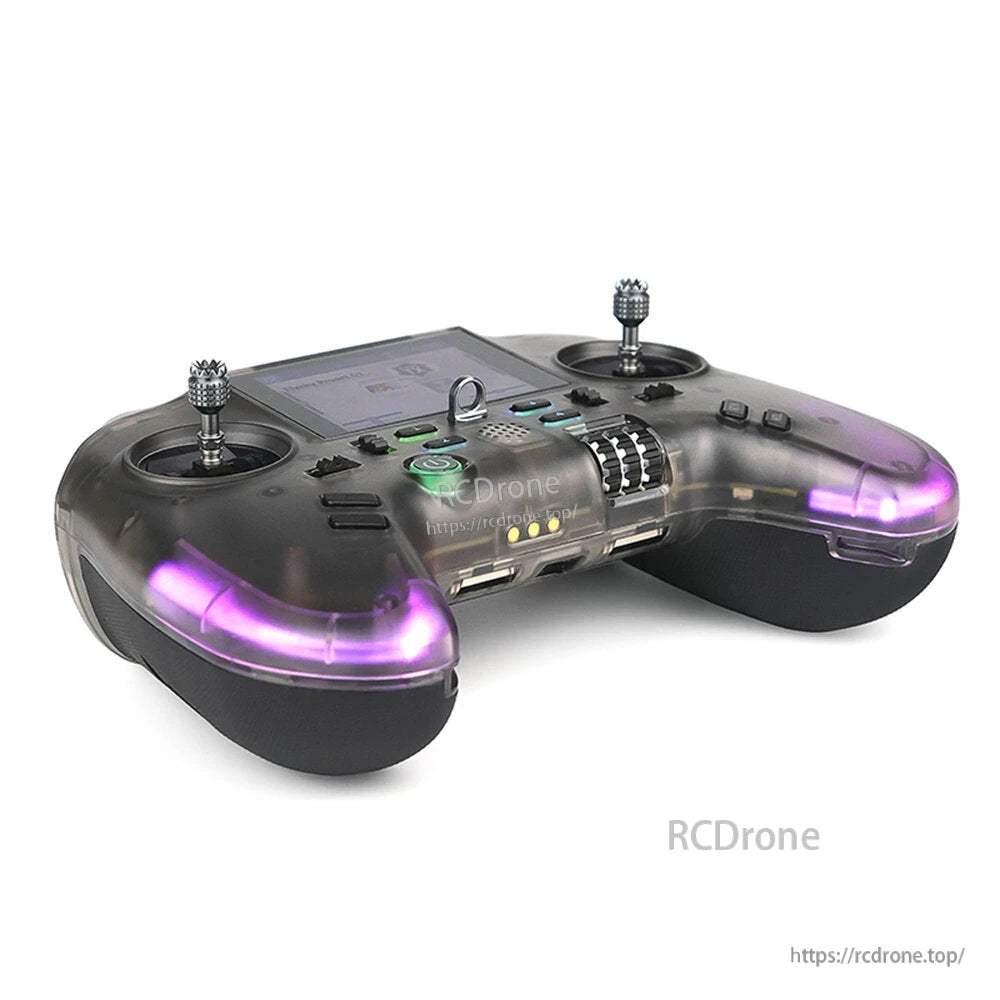

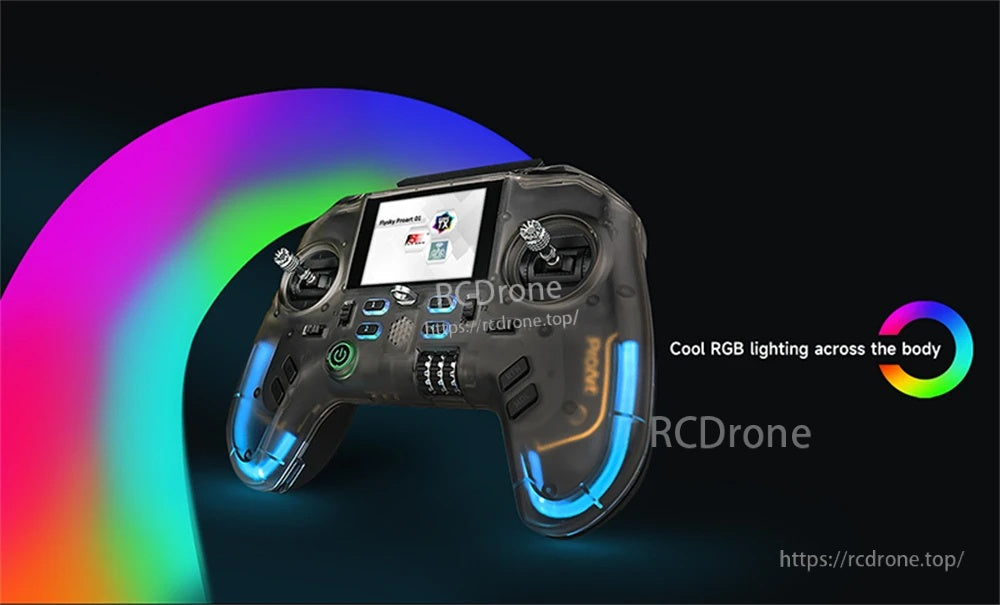

Full-body RGB lighting provides clear status cues and a standout translucent style.

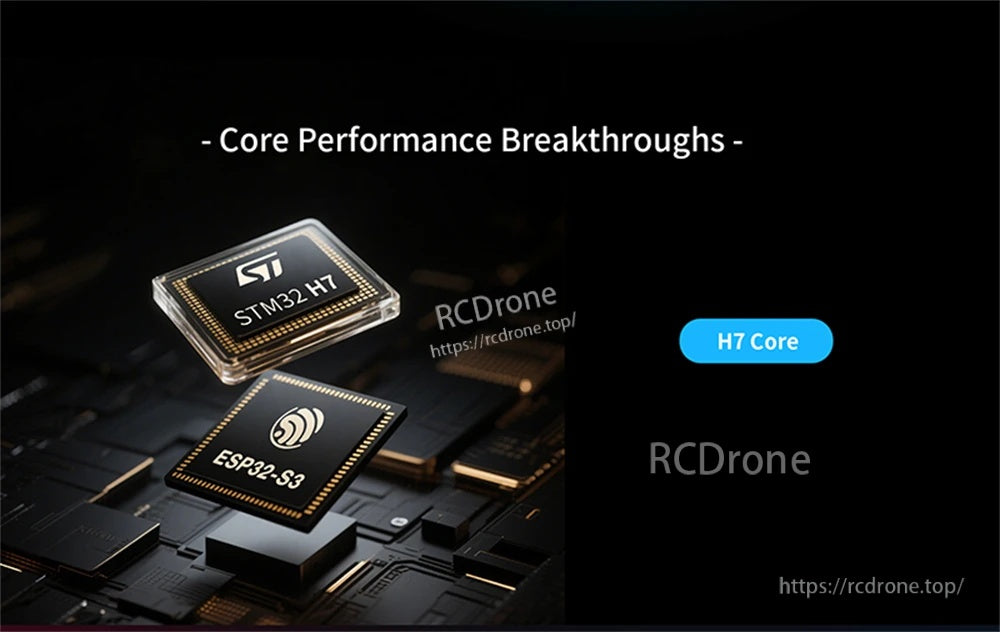

An STM32 H7 + ESP32-S3 platform powers fast response and modern wireless features.

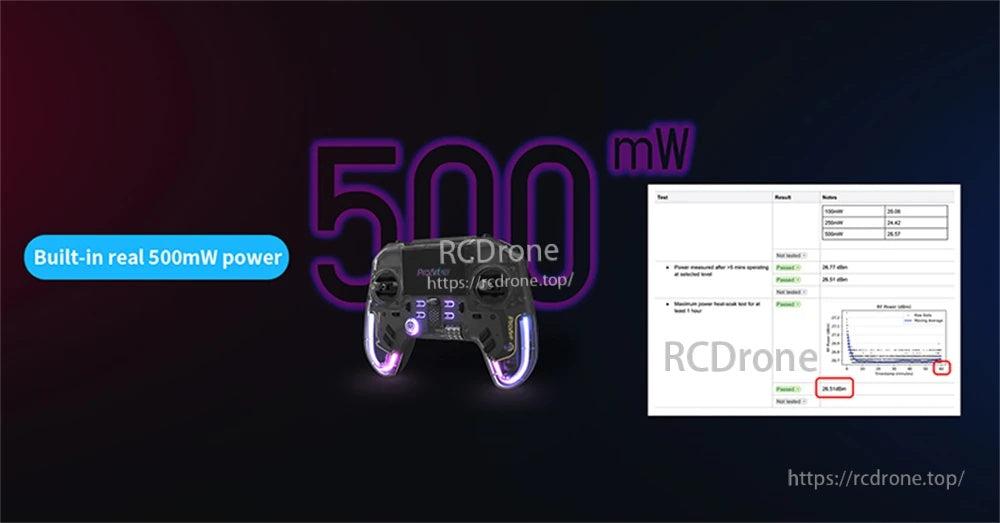

The internal RF module is rated for up to 500mW output power for demanding flying environments.

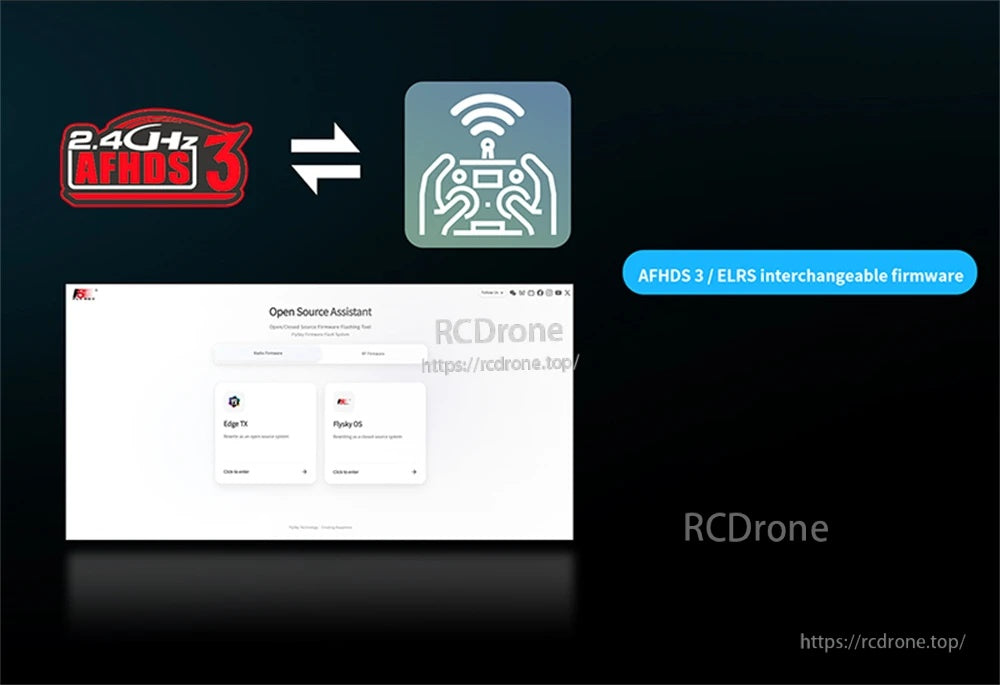

Swap between AFHDS 3 and ELRS firmware to match the receiver ecosystem you run.

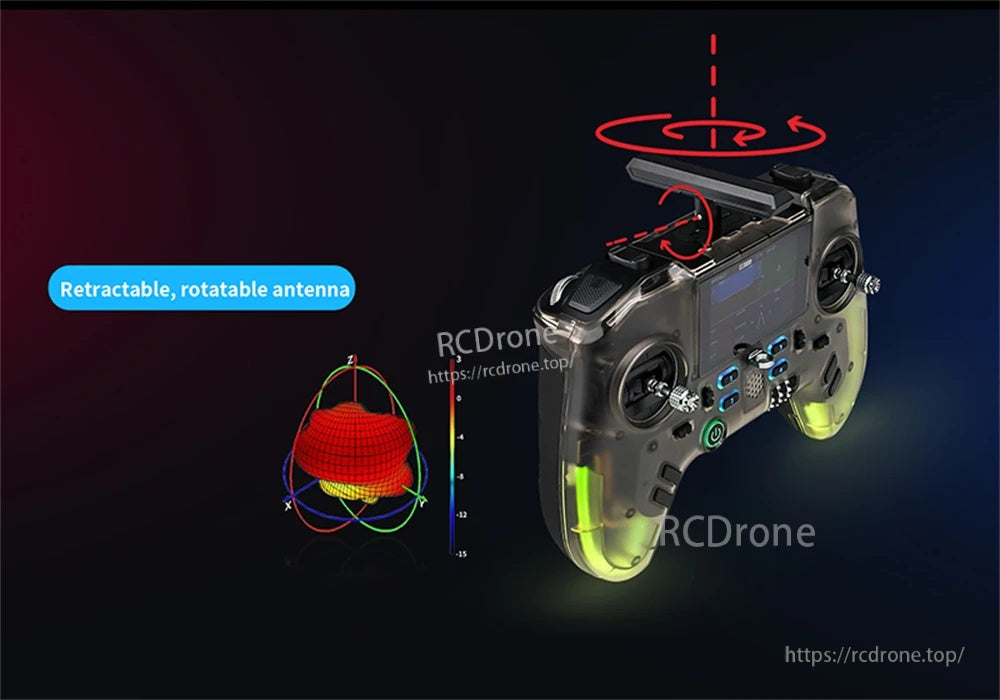

A retractable, rotatable antenna helps optimize orientation for more consistent link quality.

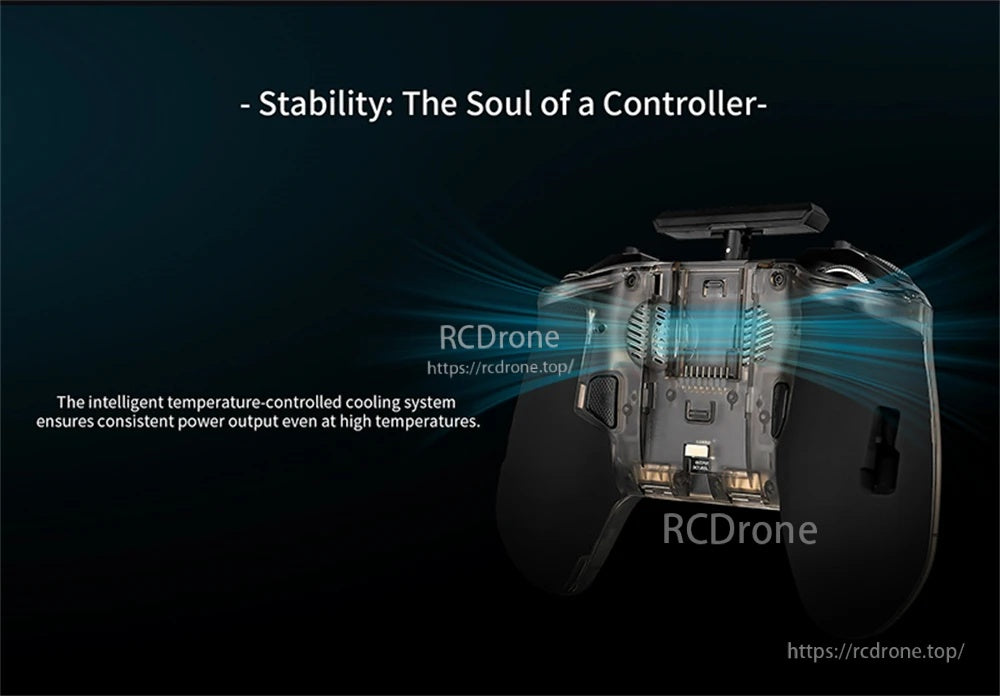

Temperature-controlled cooling is designed to keep output stable when the transmitter warms up.

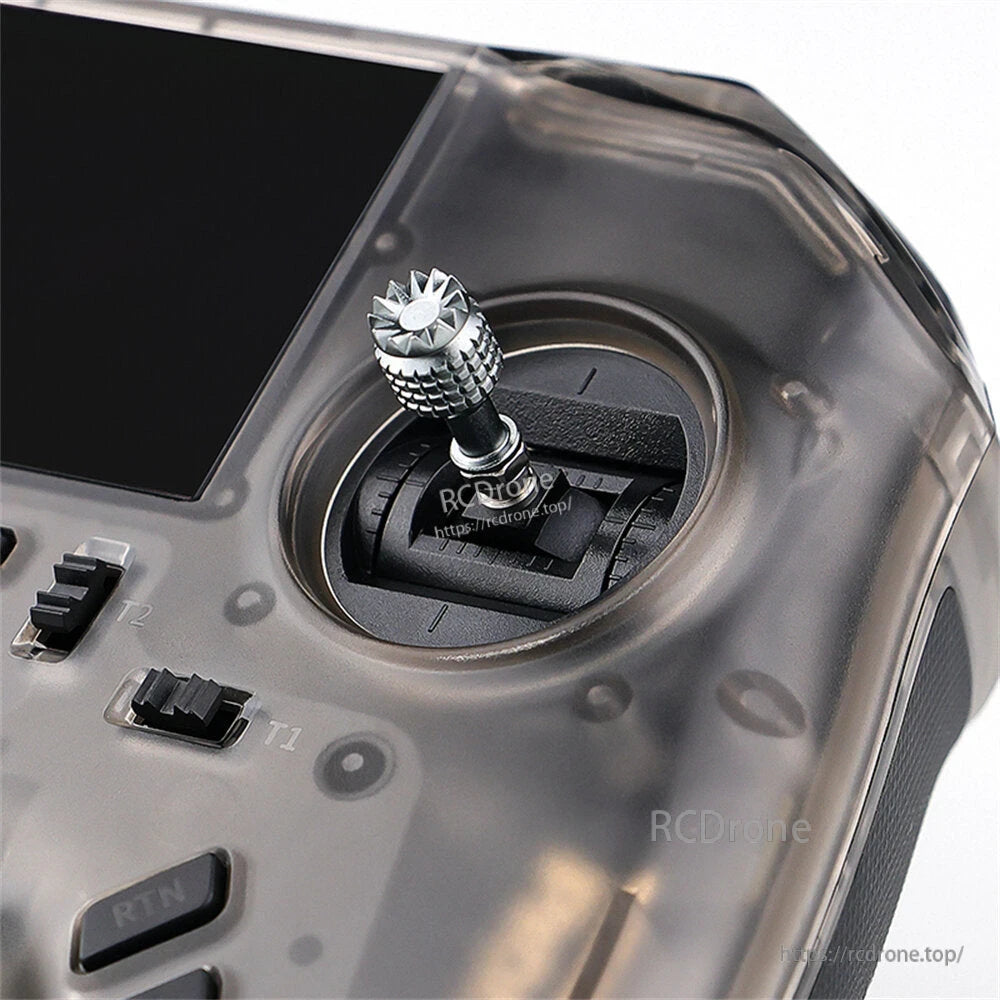

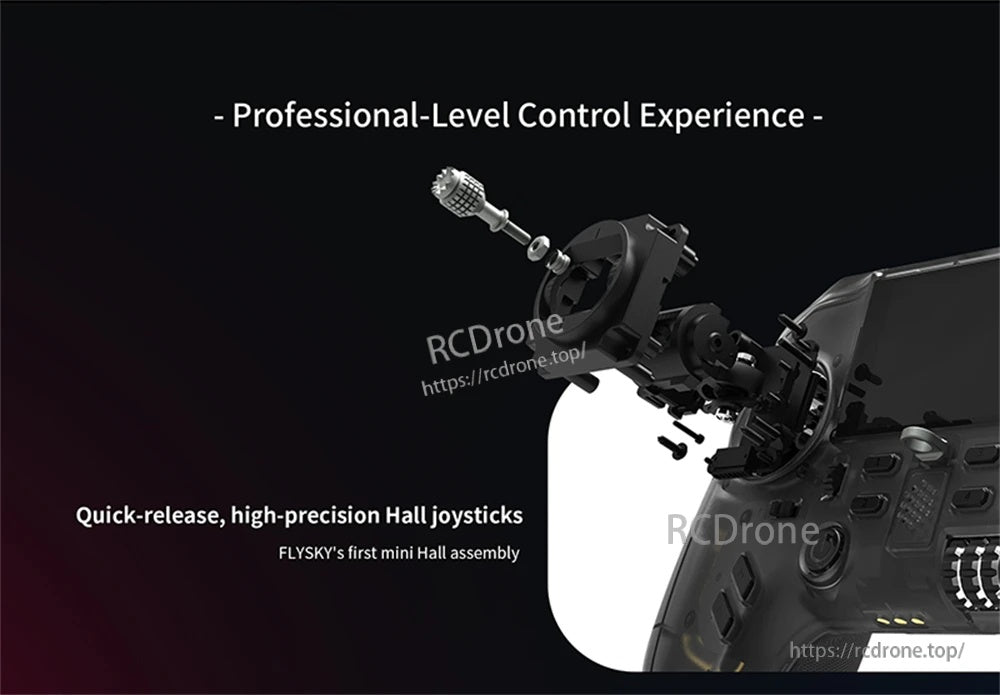

Quick-release Hall gimbals are built for precise stick feel and easy maintenance.

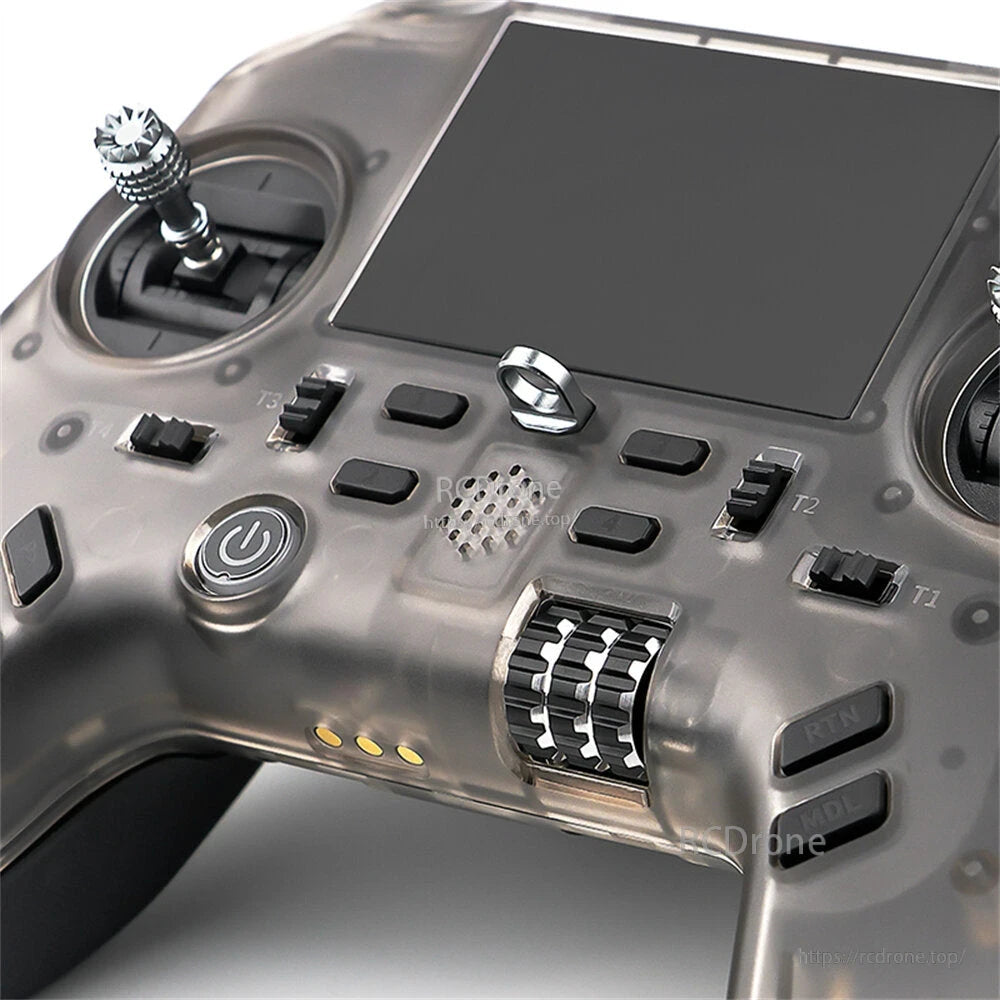

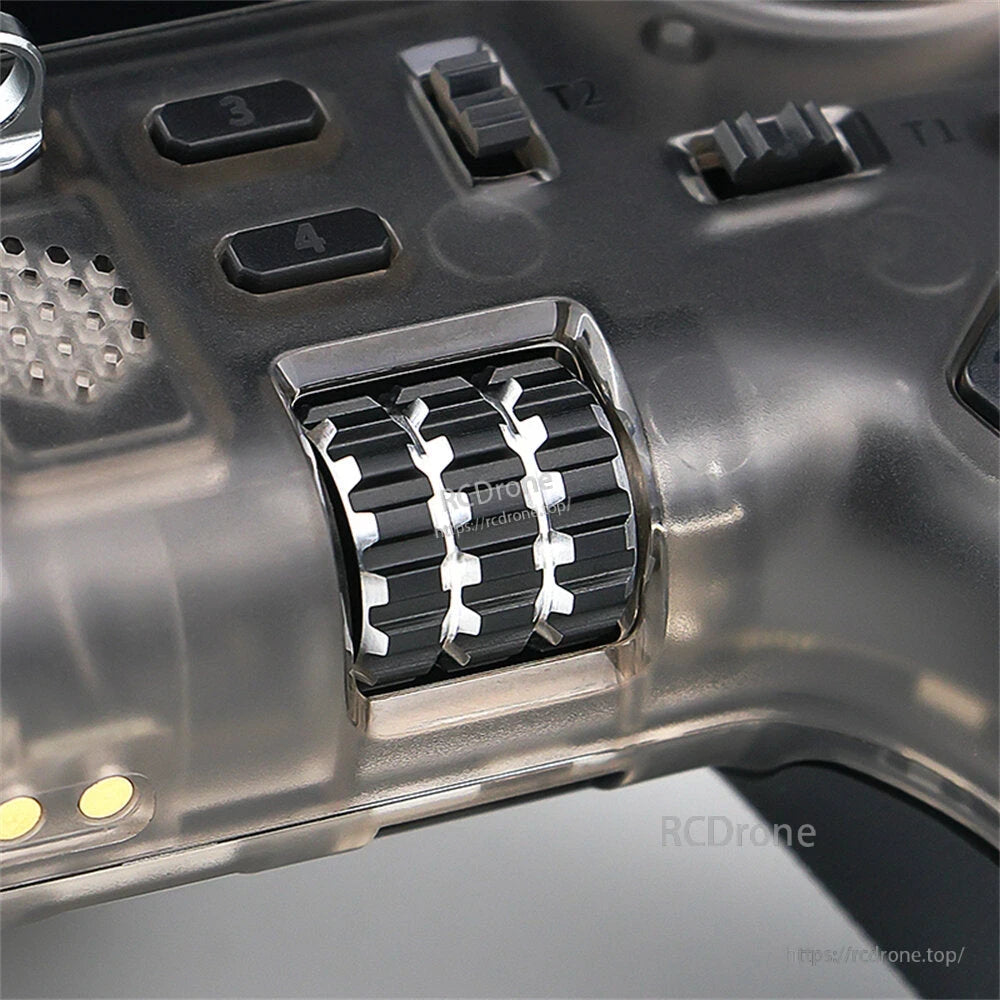

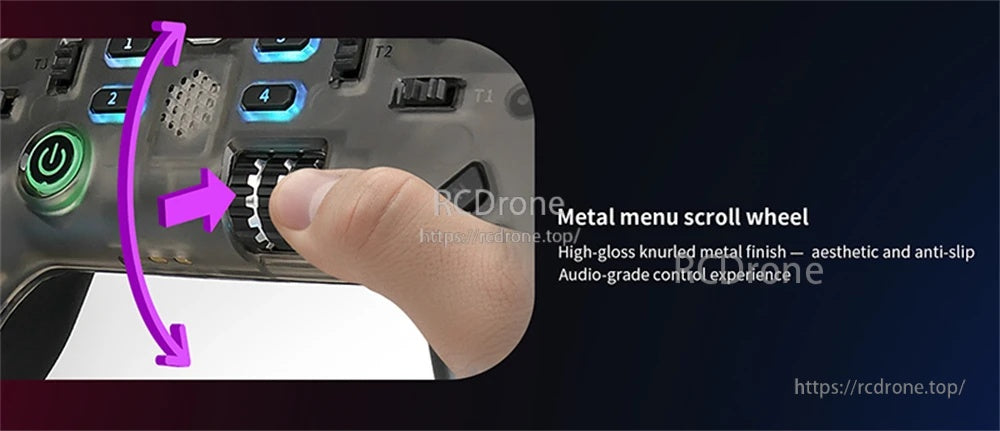

A knurled metal scroll wheel gives tactile, one-handed menu navigation.

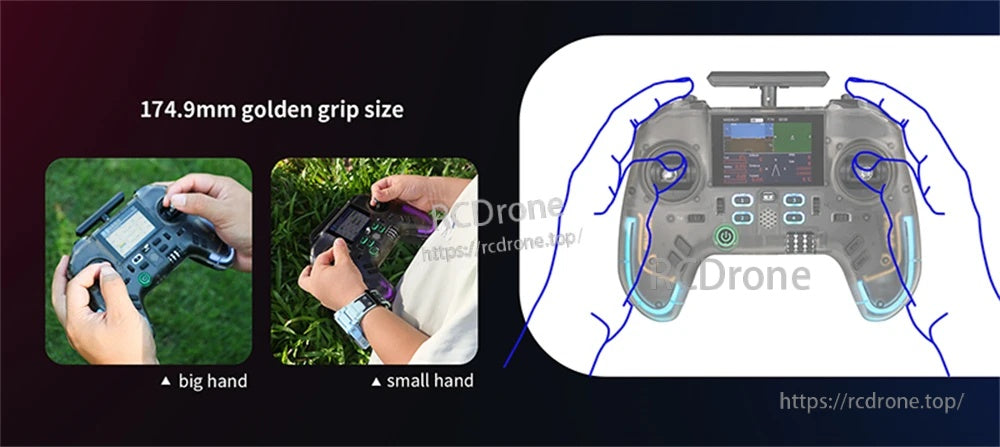

A compact body shape is designed to fit both larger and smaller hands comfortably.

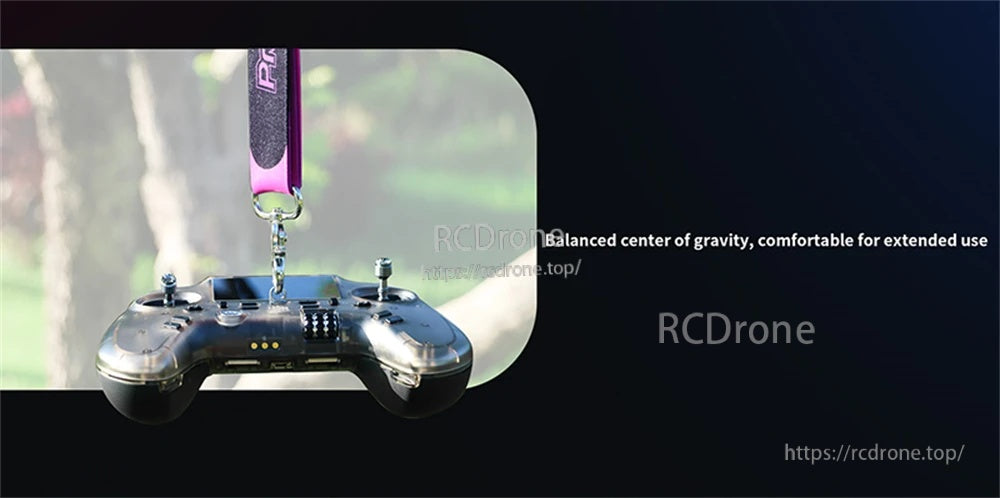

Balanced weight distribution helps reduce fatigue when using a neck strap or lanyard.
A built-in gyroscope enables motion-based control options that can be mapped in EdgeTX.

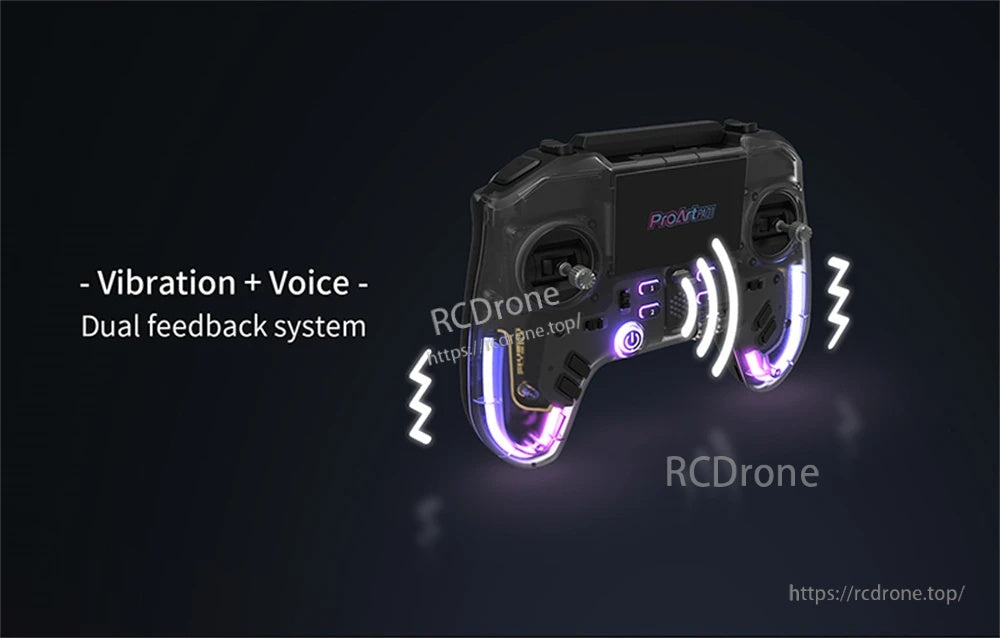

Vibration plus voice feedback adds clear alerts for key events without taking eyes off the model.

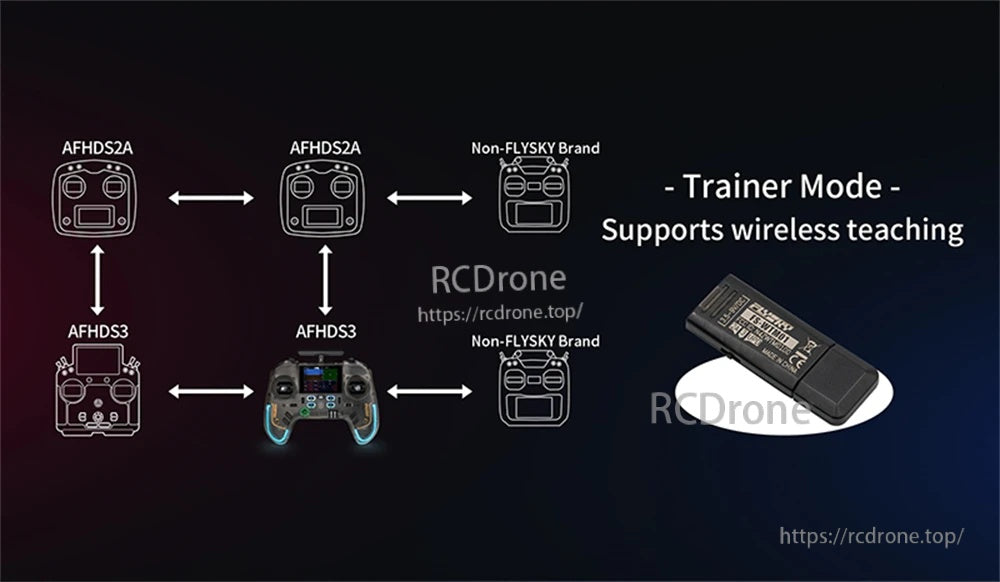

Trainer mode supports wireless teaching between AFHDS2A, AFHDS3, and compatible non-Flysky radios for easier learning and setup.

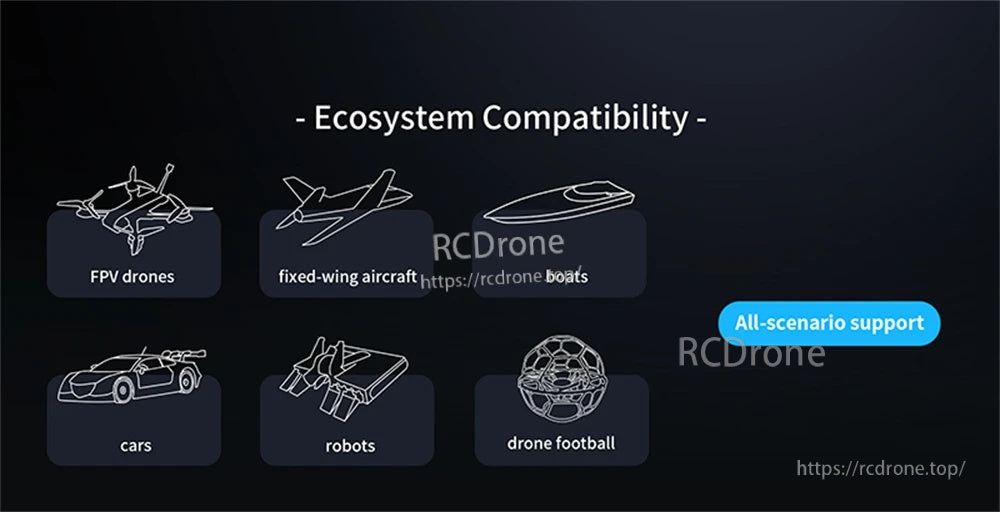

Flysky ProArt PA01 is designed to work across a wide range of RC models, including FPV drones, fixed-wing aircraft, boats, cars, robots, and drone football.

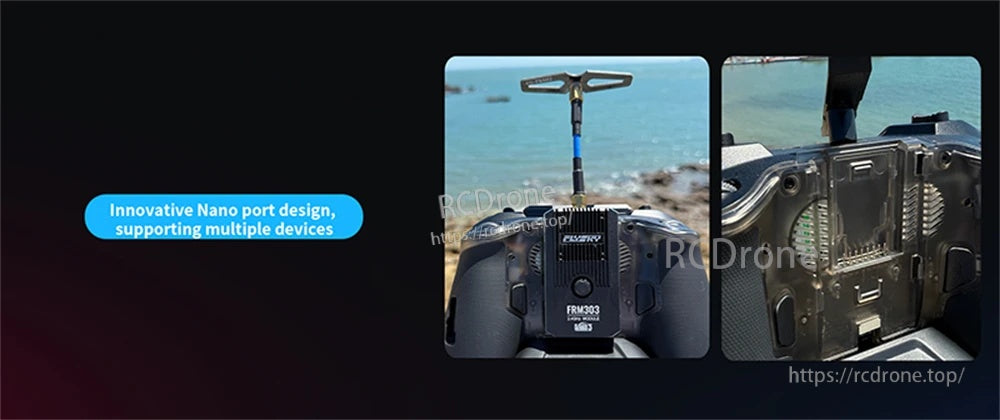

The ProArt PA01 radio controller features an innovative Nano port design to support connecting multiple devices.

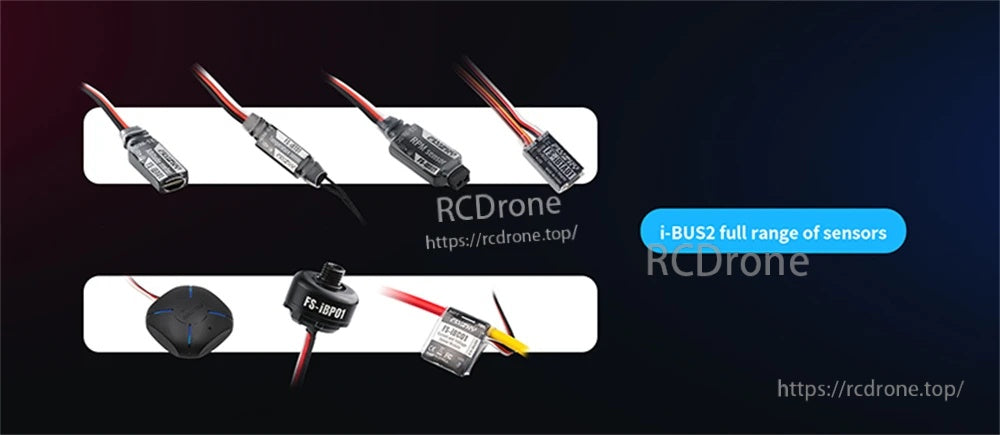

RCDone i-BUS2 full range of sensors provide multiple plug-in modules for expanding RC telemetry setups.

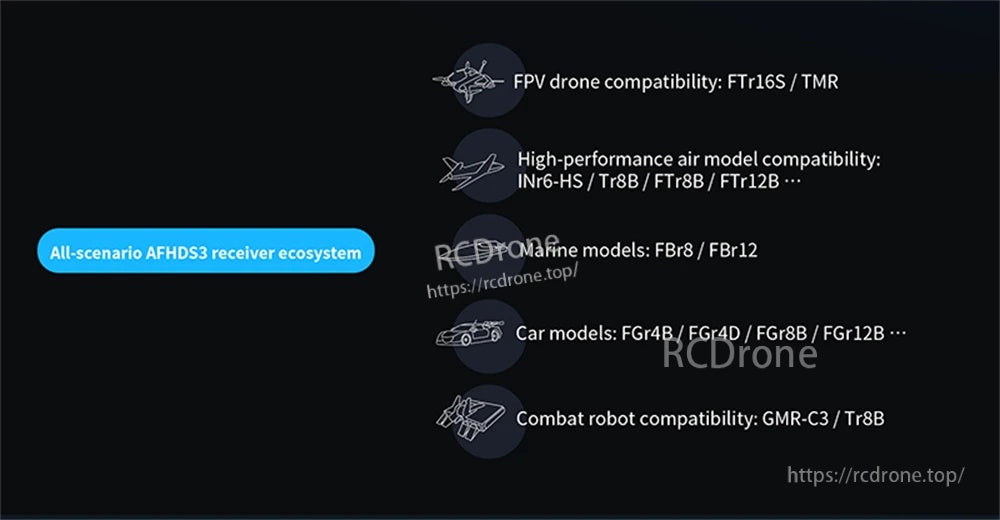

The AFHDS3 receiver ecosystem supports a wide range of models, including FPV drones, aircraft, cars, and combat robots.

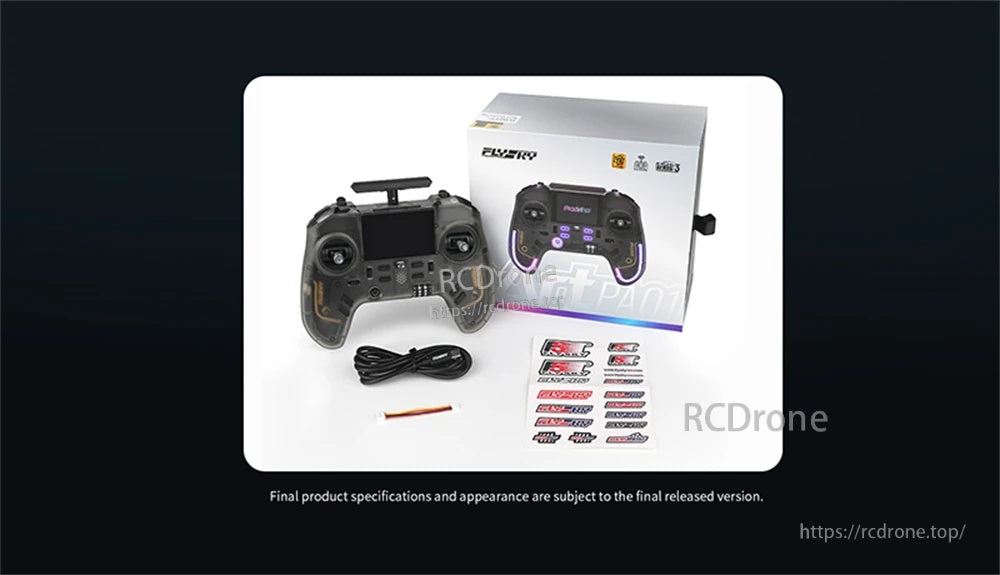

The Flysky ProArt PA01 radio controller comes with the retail box, USB cable, and small accessories for setup and customization.

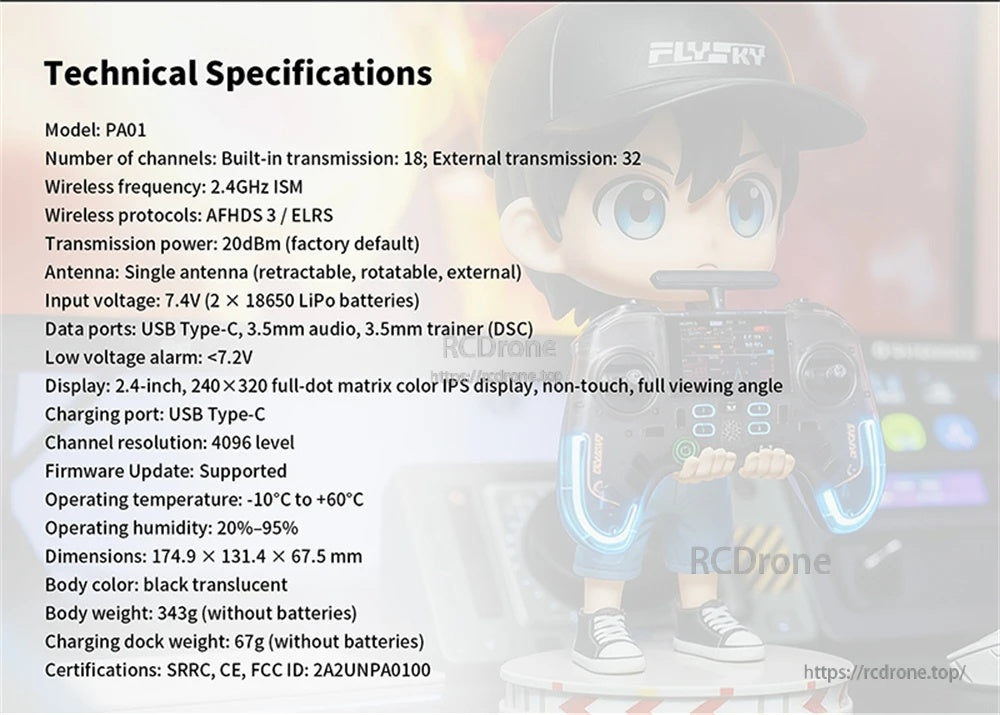

Flysky PA01 transmitter supports 2.4GHz with 18 built-in channels, AFHDS3/ELRS protocols, up to 500mW power, and a 2.4-inch 240×320 IPS display.

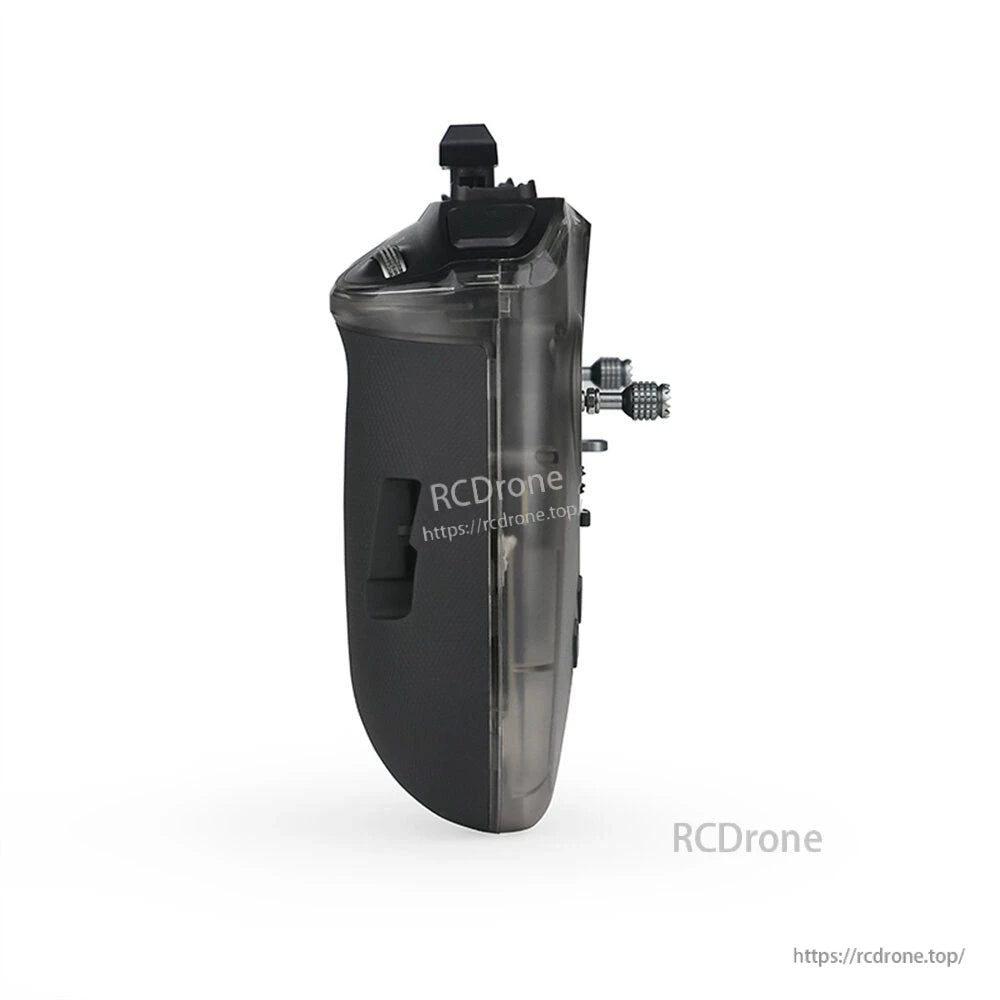

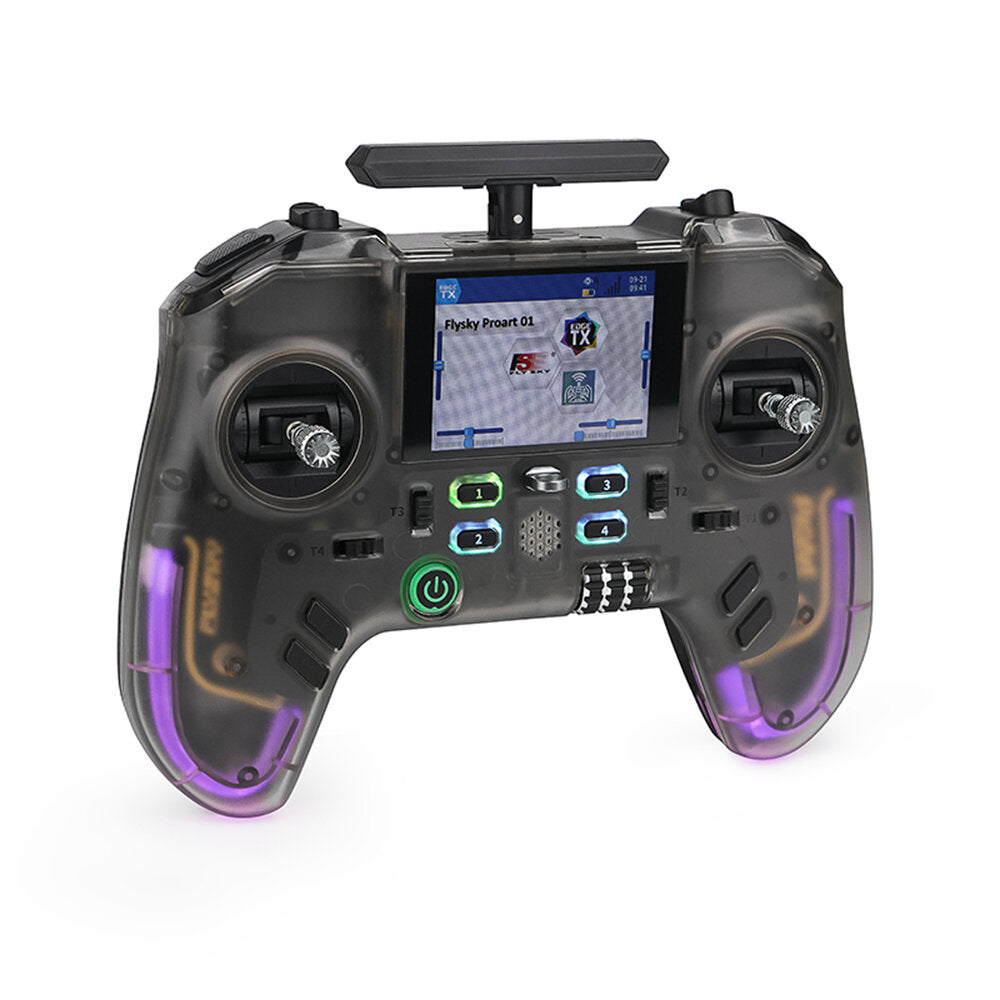

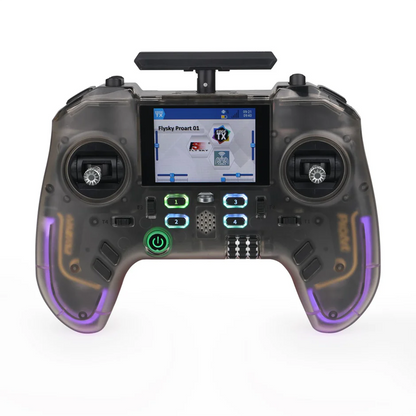

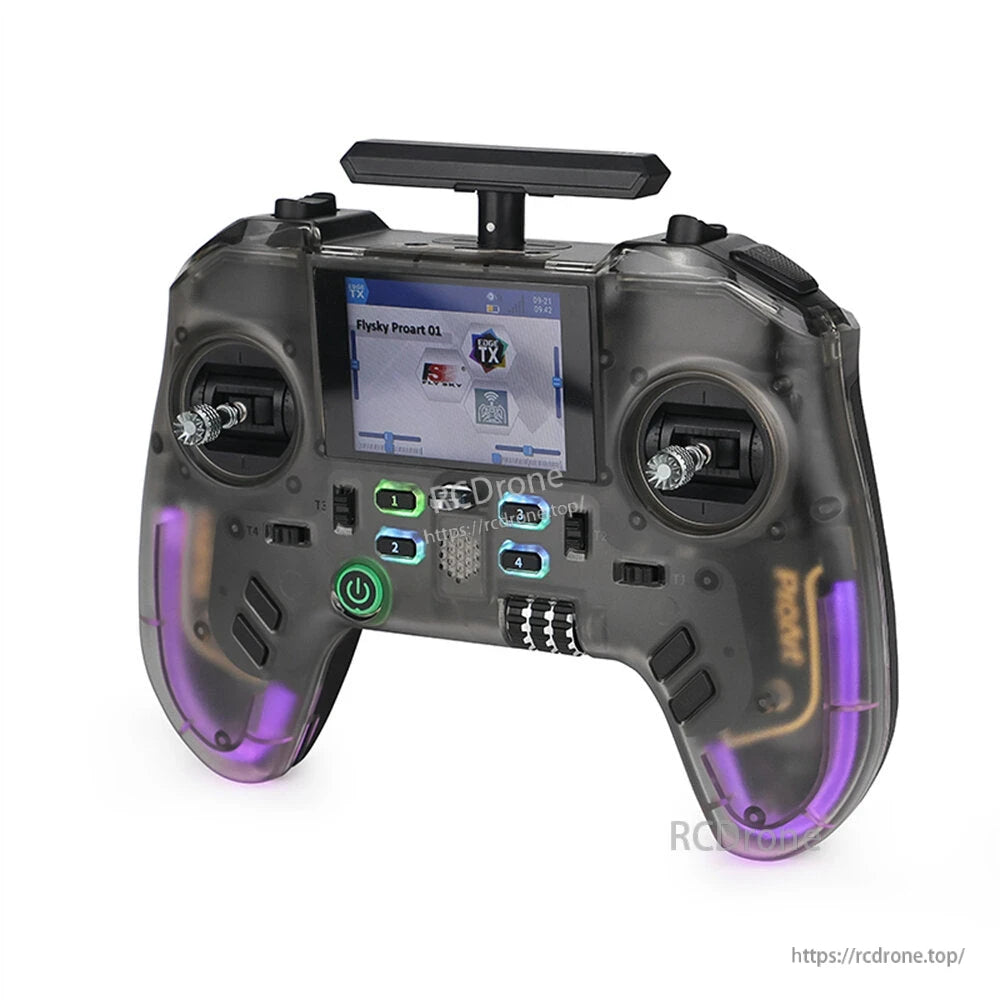

The Flysky ProArt PA01 transmitter pairs a full-color screen with a familiar stick-and-switch layout for precise RC control.
