DSpower DS-S002M Metal-Gear Coreless Micro Servo, 4.8–6.0 V for Robotics & RC Aircraft

DSpower

$35.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Version DS-S002M

Anzahl

Vollständige Details anzeigen

Overview

The DSpower DS-S002M is a metal-gear, coreless micro servo for robotic motion tasks and RC electric 3D airplane applications. It operates from 4.8–6.0 V DC, with no-load speed of ≤0.12 sec/60° and stall torque of ≥0.65 kgf·cm at 6.0 V. Its 500–2500 μs pulse-width range and 90° ± 10° operating travel support controlled servo movement.

Features

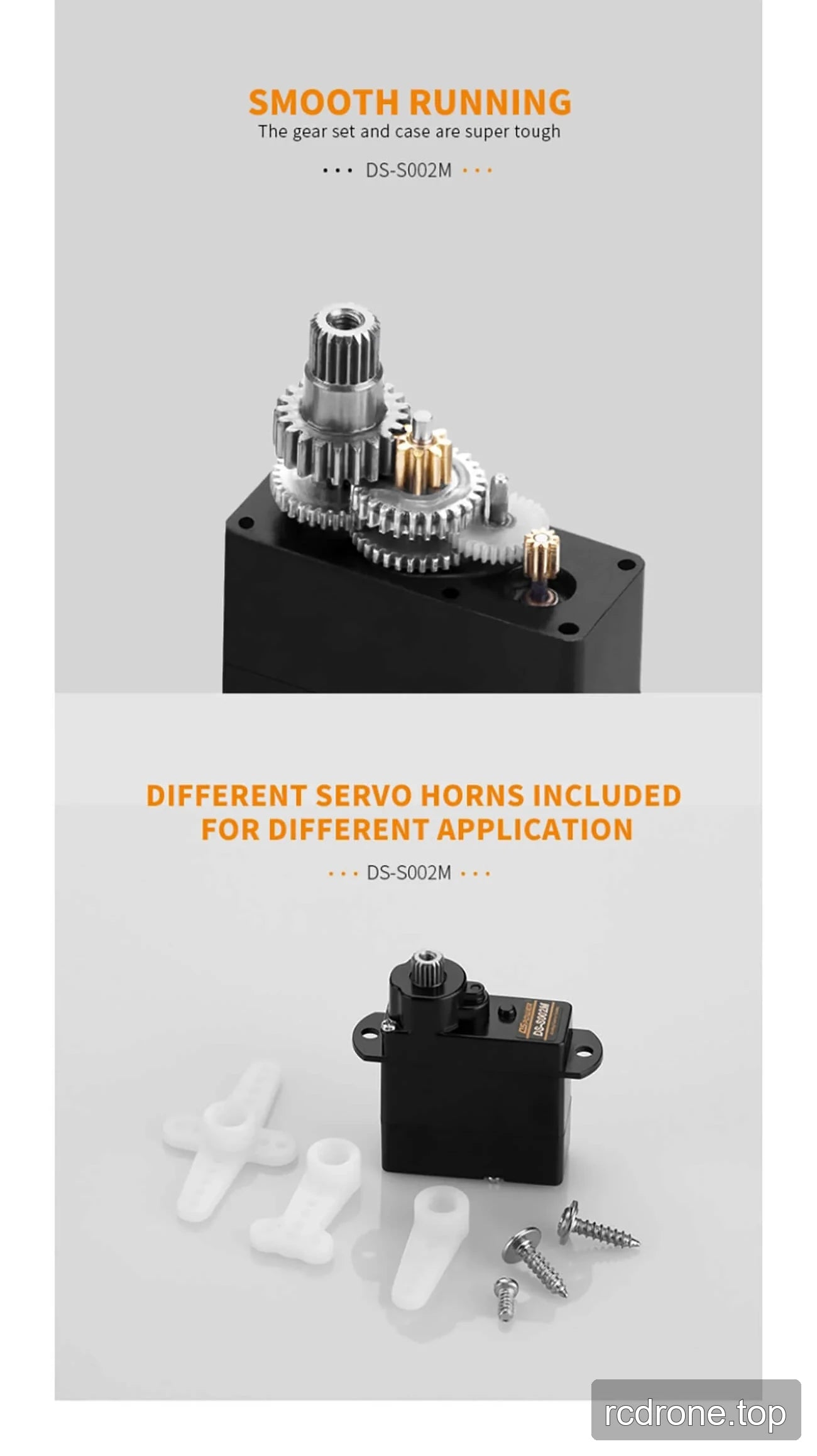

Metal gear set with an ABS case.
Coreless motor.
500–2500 μs pulse-width range.
Different servo horns for different applications.

Specifications

Parameter	Value
Operating Voltage	4.8–6.0 V DC
No Load Speed	≤0.15 sec/60° at 4.8 V (REF.) ≤0.12 sec/60° at 6.0 V (STD.)
Stall Current	≤500 mA at 4.8 V (REF.) ≤550 mA at 6.0 V (STD.)
Stall Torque	≥0.58 kgf·cm at 4.8 V (REF.) ≥0.65 kgf·cm at 6.0 V (STD.)
Pulse Width Range	500–2500 μs
Operating Travel Angle	90° ± 10°
Mechanical Limit Angle	360°
Weight	5.8 ± 0.2 g; 4.3 g is also stated in supplied product material.
Case Material	ABS
Gear Set Material	Metal gear
Motor Type	Coreless motor

Applications

Humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots requiring servo-controlled movement.
F3P, EPP, and KT epo applications, as well as RC electric 3D airplanes.
Smart-home mechanisms requiring controlled rotary servo movement.
