DSpower DS-W009A 10 mm CANopen Bus Servo Motor for UAV and Drone Ailerons

DSpower

$917.00 USD

Sale Ausverkauft

Inkl. Steuern. Versand wird beim Checkout berechnet

Version DS-W009A

Anzahl

Vollständige Details anzeigen

Overview

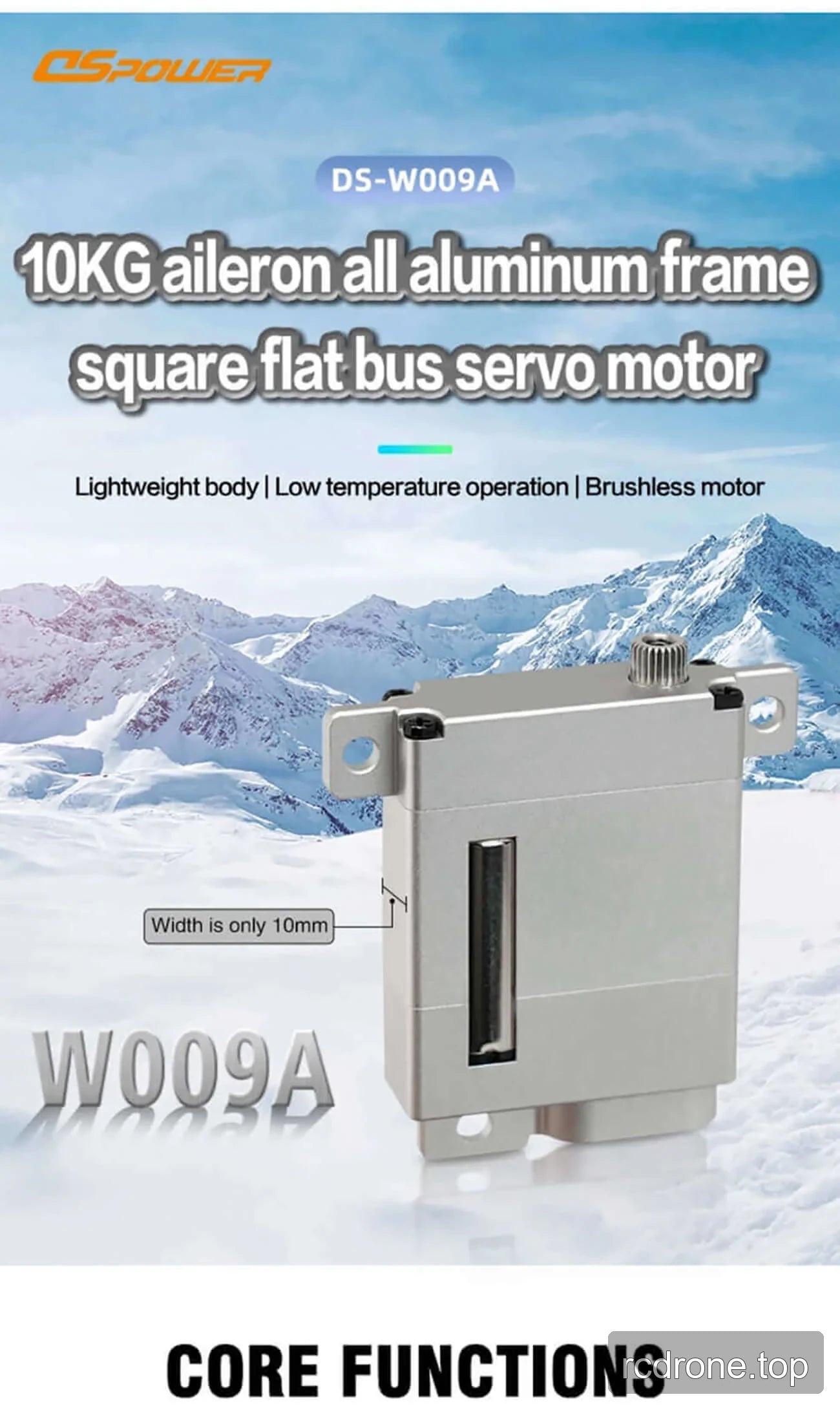

The DSpower DS-W009A is a 10 mm-wide, 32 ±5 g flat bus servo motor for UAV wings and drone-aileron applications. It uses CANopen communication, operates from 9–12.6 V DC, and provides a 120° ±10° operating angle. Its stated construction and control features include an all-aluminum frame, brushless motor, metal gears, integrated CANopen control, and locked-rotor, voltage, current, and temperature protection.

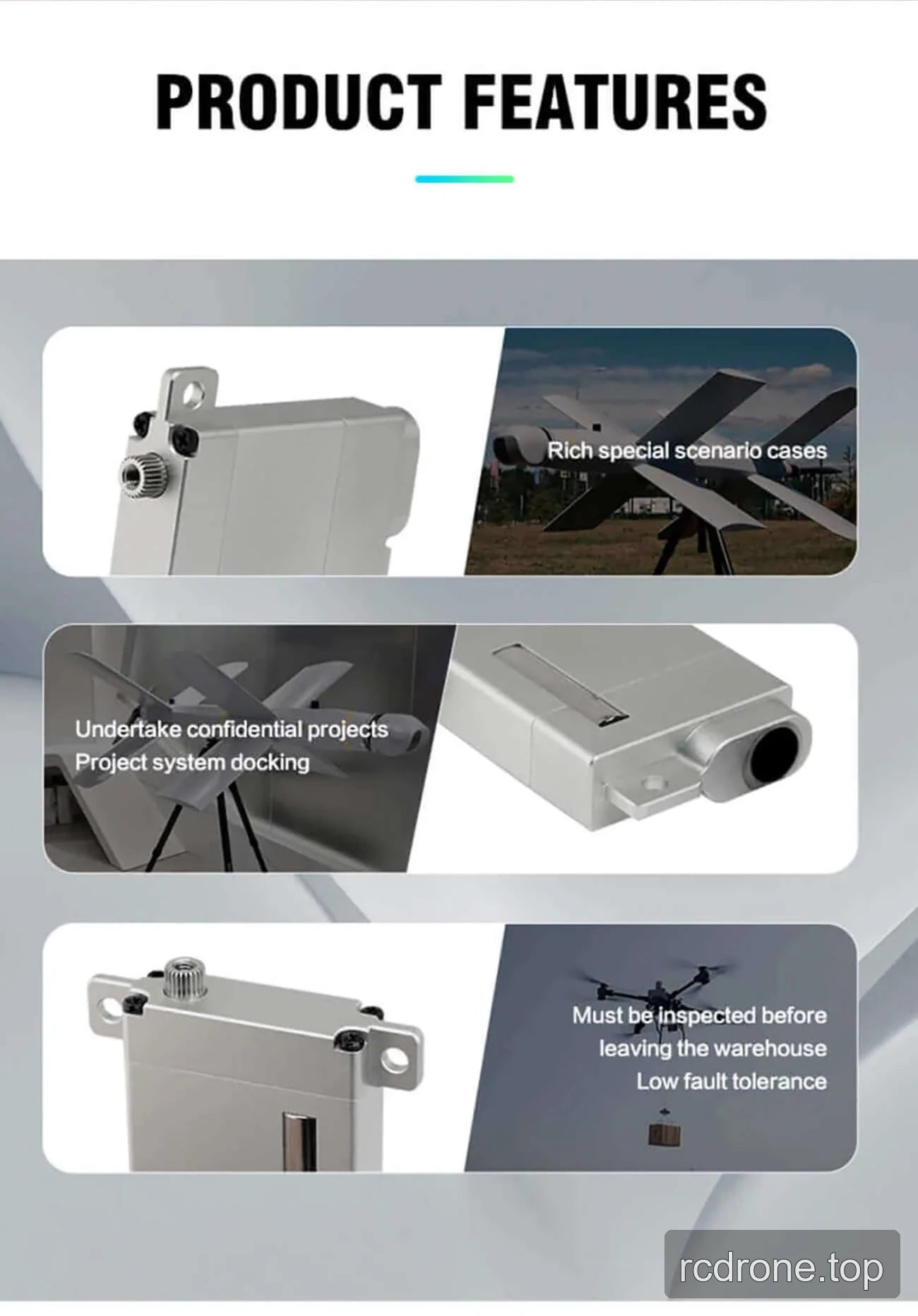

Features

10 mm thin-body design with an all-aluminum frame.
Brushless motor and metal gear construction.
CANopen communication method with integrated control.

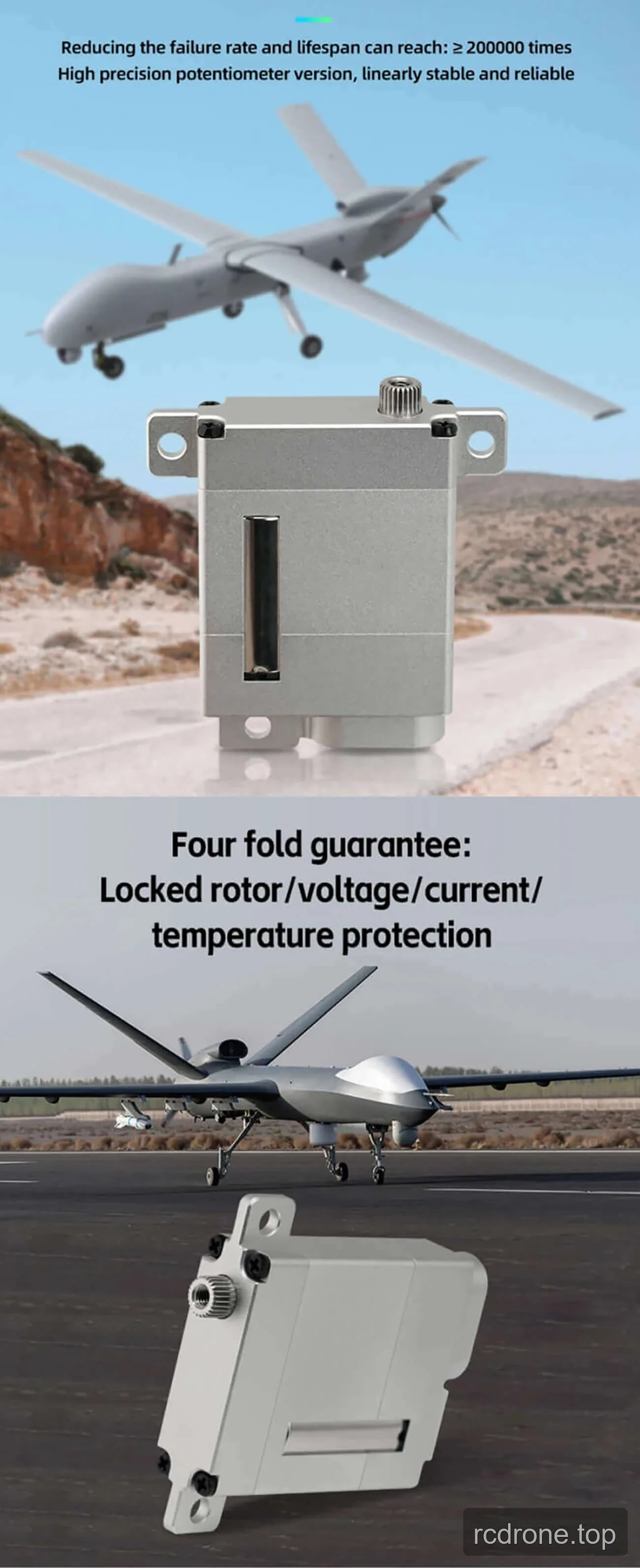

Locked-rotor, voltage, current, and temperature protection.
High-precision potentiometer described as linearly stable and reliable.
Labelled for −40 °C high- and low-temperature cycle use.
Stated lifespan of at least 200,000 times.

Specifications

Parameter	Value
Body width	10 mm
Working voltage	9–12.6 V DC
Rated voltage	12 V
Rated torque	2.0 kgf·cm at 12.0 V
Quiescent current	≤30 mA
No-load current	≤150 mA
No-load speed	≤0.09 sec./60°
Locked-rotor current	≤2.5 A
Locking torque	≥8.0 kg
Operating angle	120° ±10°
Mechanical virtual position	≤1°
Communication method	CANopen
Gear material	Metal gear
Weight	32 ±5 g
Stated lifespan	≥200,000 times

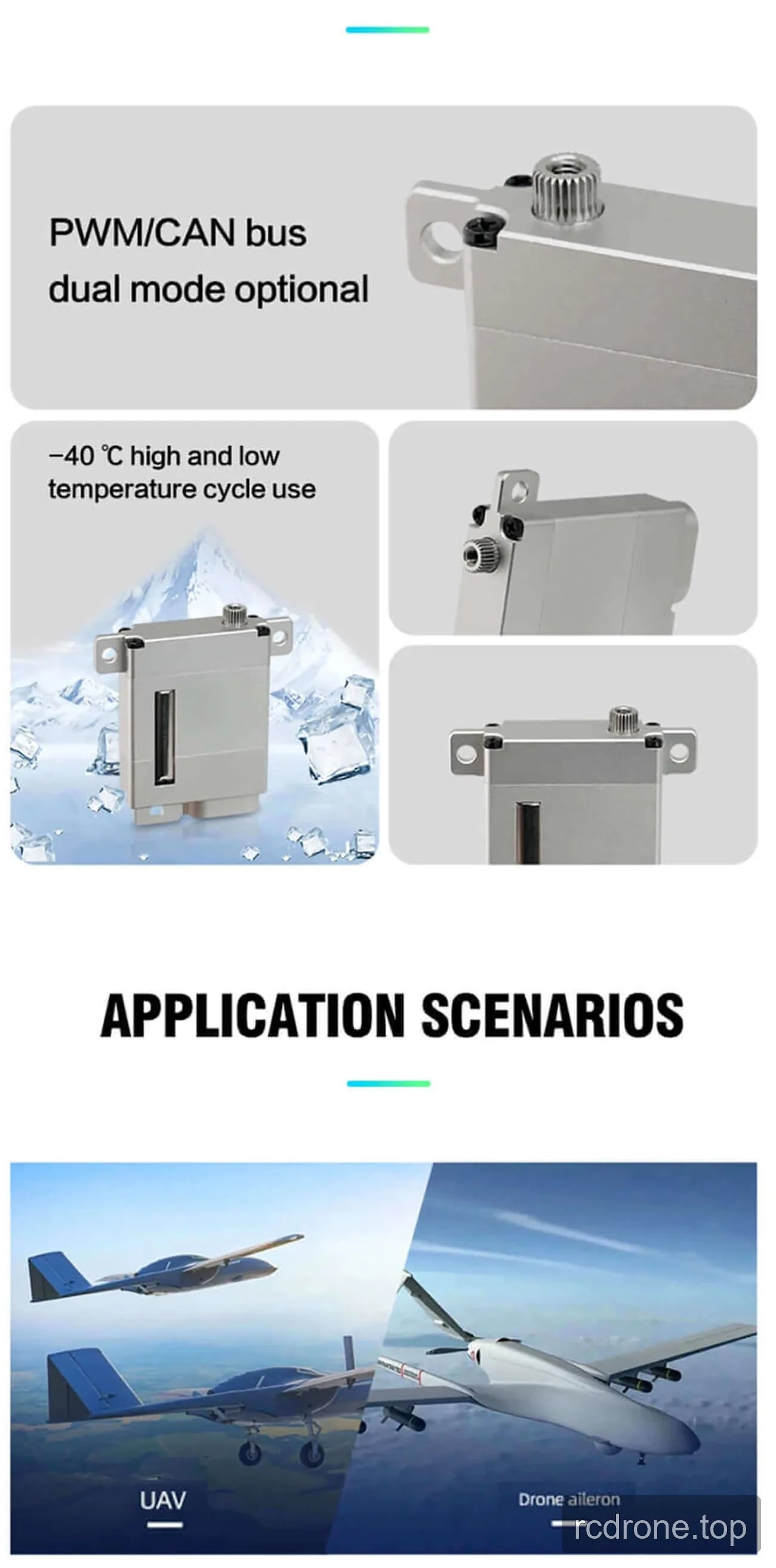

Applications

For UAV wings and drone ailerons, the 10 mm body width and 32 ±5 g weight support compact, weight-conscious control installations. The DS-W009A is also listed for humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots where its CANopen communication method, operating angle, and electrical requirements suit the system design.
