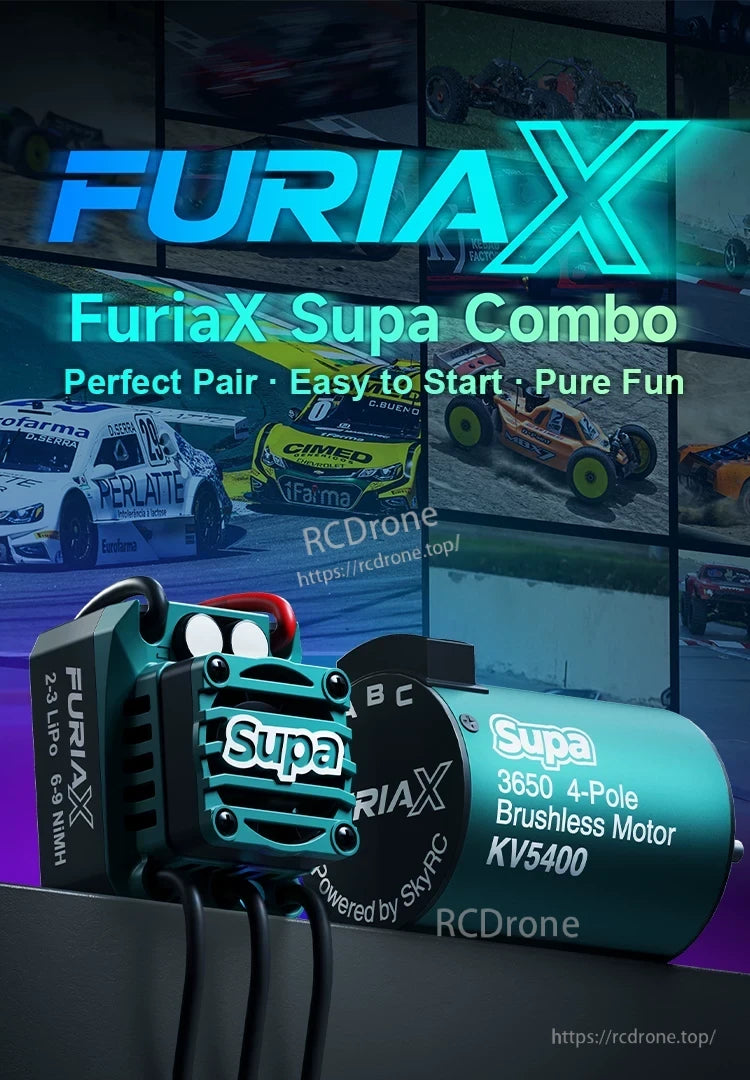

SKYRC FuriaX Supa Combo 60A Brushless ESC + 3650 4-Pole 5400KV Motor for 1/10 RC Car
SKYRC FuriaX Supa Combo 60A Brushless ESC + 3650 4-Pole 5400KV Motor for 1/10 RC Car
SkyRC
Verfügbarkeit für Abholungen konnte nicht geladen werden
Overview
The SKYRC FuriaX Supa Combo is a 1/10 RC car brushless combo that pairs a FuriaX Supa 60A ESC with a FuriaX Supa 3650 sensorless brushless motor for a straightforward upgrade from brushed or basic RTR electronics. It is designed for common 1/10 touring car, buggy, short course truck, and drift chassis running 2–3S LiPo or 6–9 cell NiMH packs.
Key Features
- Matched ESC + motor system for 1/10 RC cars and trucks

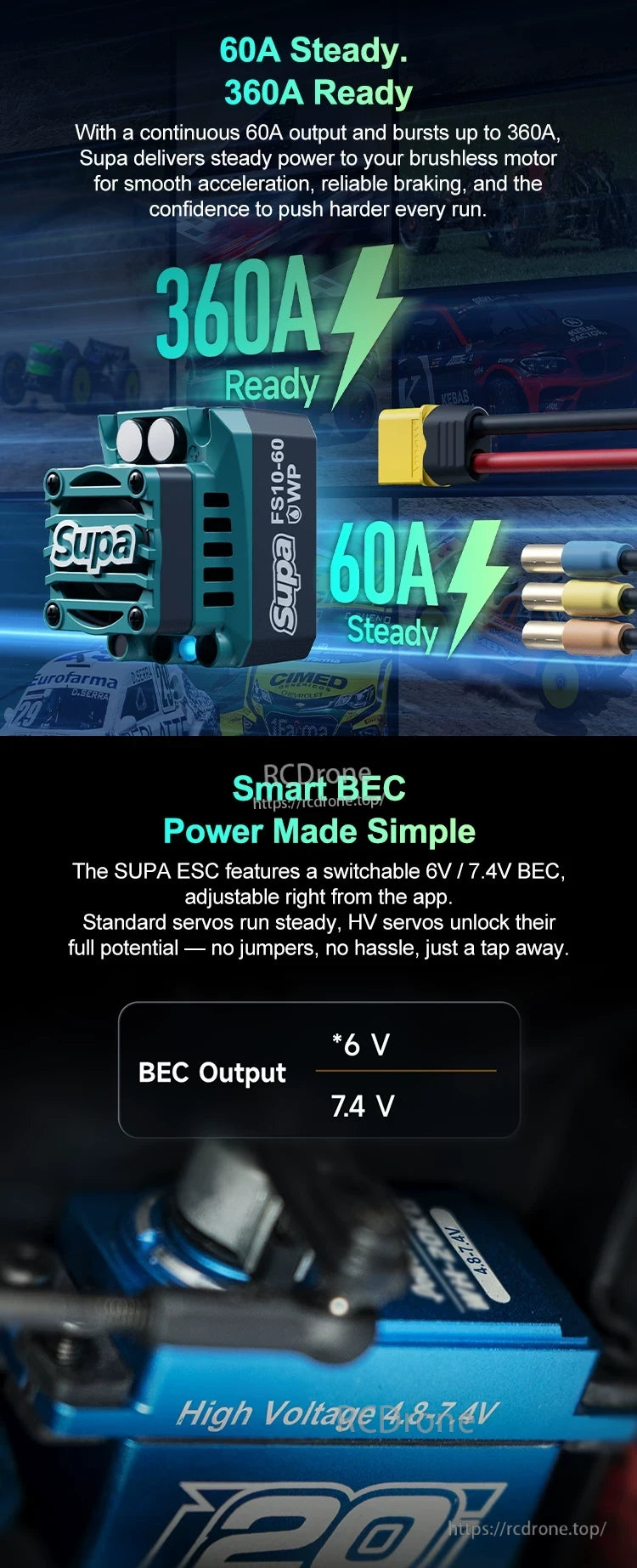

- 60A continuous / 360A burst ESC output
- Smartphone app programming via SKYRC RC Gears (no separate program box required)
- Switchable BEC output: 6V / 7.4V

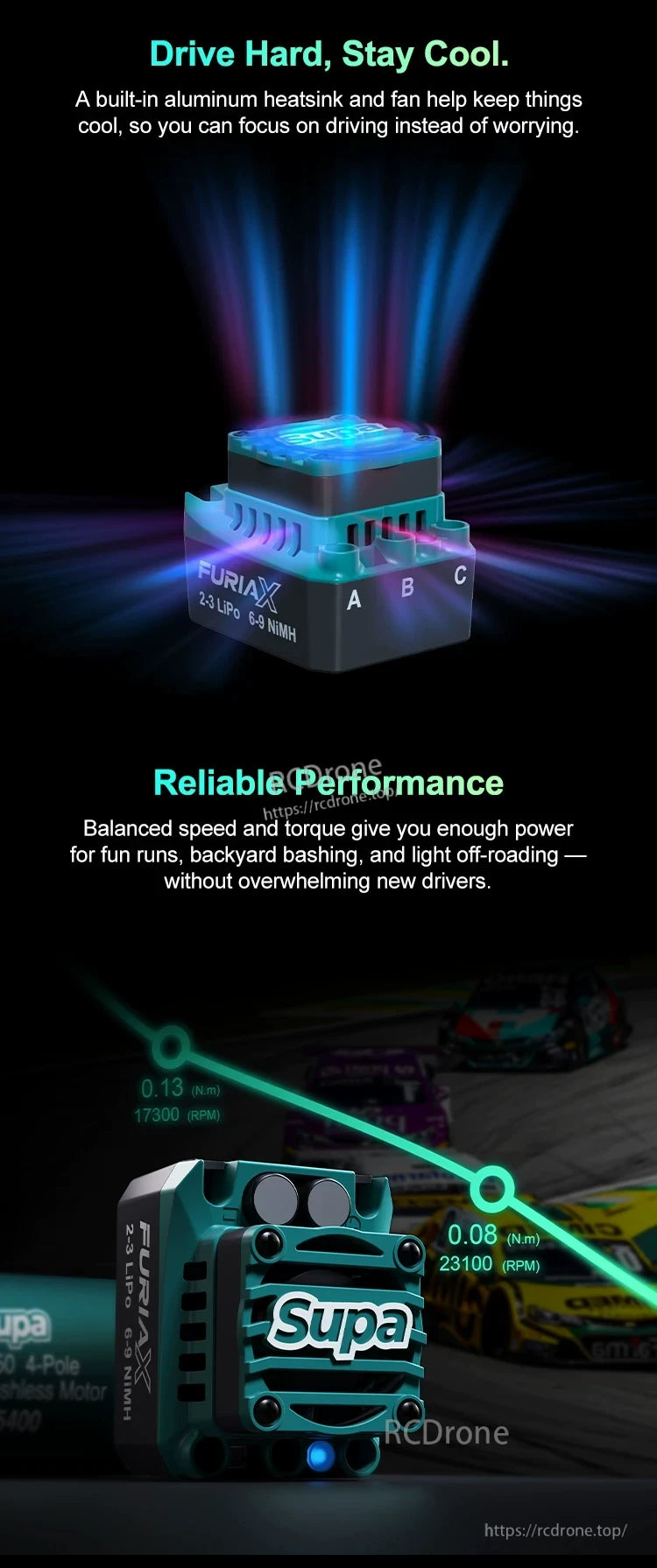

- Fan cooling with aluminum heatsink for consistent running temperatures
- Low-voltage protection modes: Auto / Off / 3.0V / 3.2V (default: Auto)
- Over-temperature protection options: 85°C / 105°C / 125°C / None (default: 105°C)

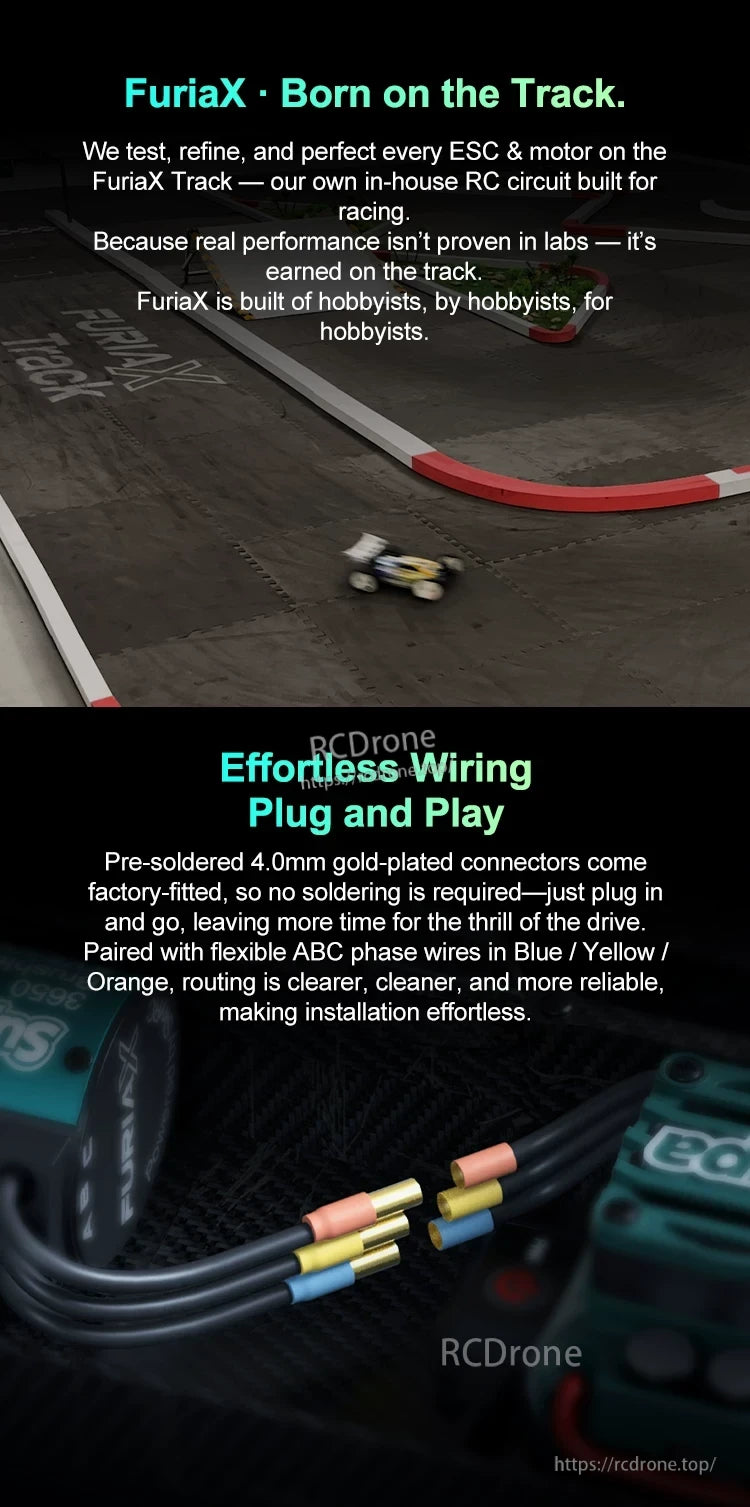

- Pre-soldered 4.0mm gold-plated bullet connectors and color-coded ABC motor phase wires (Blue/Yellow/Orange)
Specifications
| Brand | SKYRC |
| Series | FuriaX Supa |
| ESC model marking | FS10-60 |
| ESC continuous/burst current | 60A / 360A |
| Battery support | 2–3S LiPo; 6–9 cell NiMH |
| Motor compatibility (ESC) | Brushless sensored & sensorless motor |
| BEC output | 6V / 7.4V |
| Cooling | Fan |

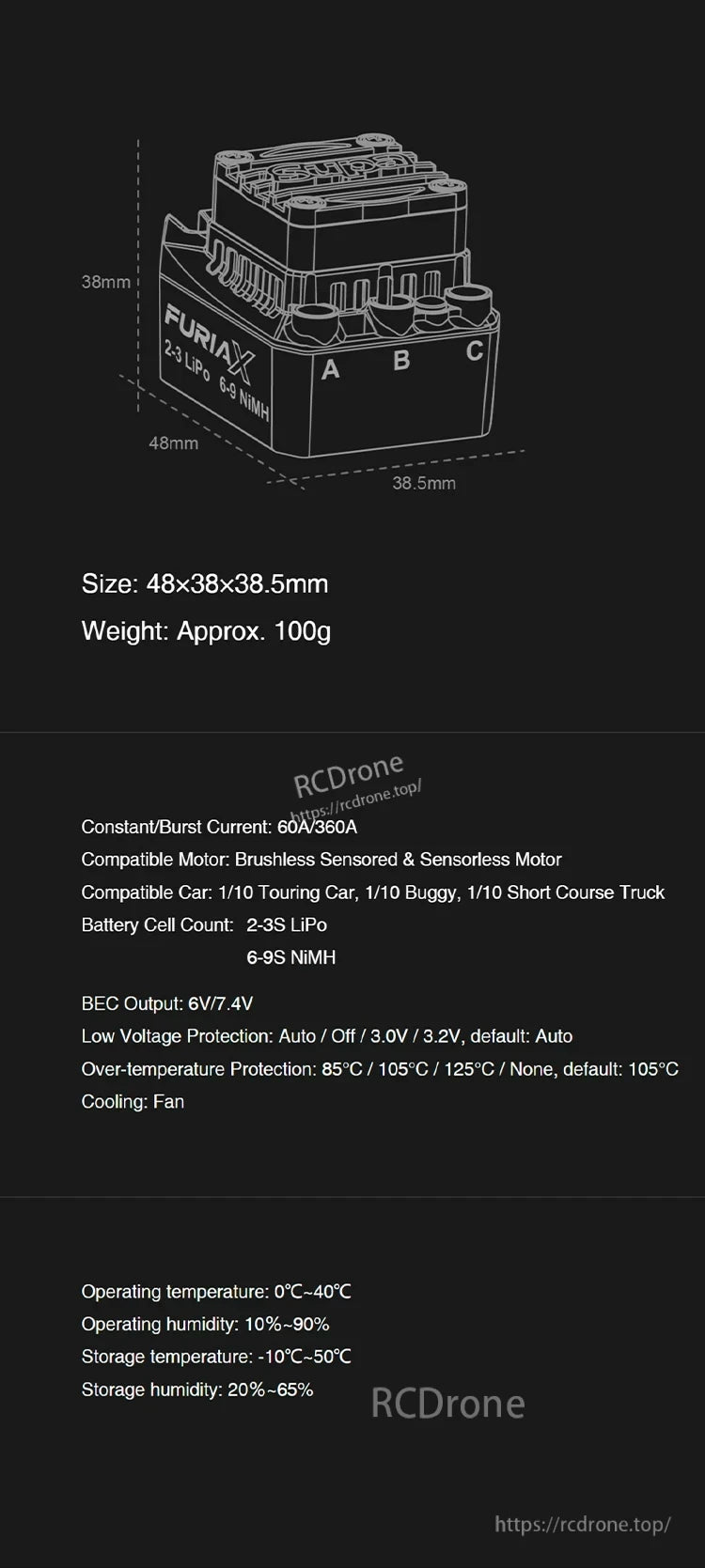

| ESC size | 48 x 38 x 38.5 mm |
| ESC weight | Approx. 100 g |
| Low-voltage protection | Auto / Off / 3.0V / 3.2V (default: Auto) |
| Over-temperature protection | 85°C / 105°C / 125°C / None (default: 105°C) |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 10% to 90% |
| Storage temperature | -10°C to 50°C |
| Storage humidity | 20% to 65% |
| Motor type | 3650 sensorless brushless |
| Motor design | 4-pole, 12-slot |
| Motor KV | 5400KV |
| Motor size | 36 mm diameter x 50 mm length |
| Motor connectors | 4.0mm gold-plated bullets |
What's Included
- FuriaX Supa 60A brushless ESC
- FuriaX Supa 3650 4-pole sensorless brushless motor (5400KV)
Applications
- 1/10 touring car brushless conversions
- 1/10 buggies and short course trucks (2WD/4WD) needing a reliable ESC + motor upgrade
- 1/10 drift chassis setups that benefit from adjustable ESC tuning
For installation and setup assistance (gearing, app programming, and protection settings), contact [email protected].
Details
A matched 60A ESC and 3650 5400KV motor combo for an easy 1/10-scale brushless upgrade.
Pre-soldered 4.0mm bullets and clear ABC wire colors make installation fast and tidy.
Smartphone app programming lets you tune throttle and braking behavior without a separate program box.
High burst current for hard acceleration, plus a switchable 6V/7.4V BEC for modern servos.
Fan cooling and an aluminum heatsink help maintain consistent running temperatures.
Compact footprint (48 × 38 × 38.5 mm) helps fit common 1/10 touring, buggy, and drift chassis layouts.
