Overview

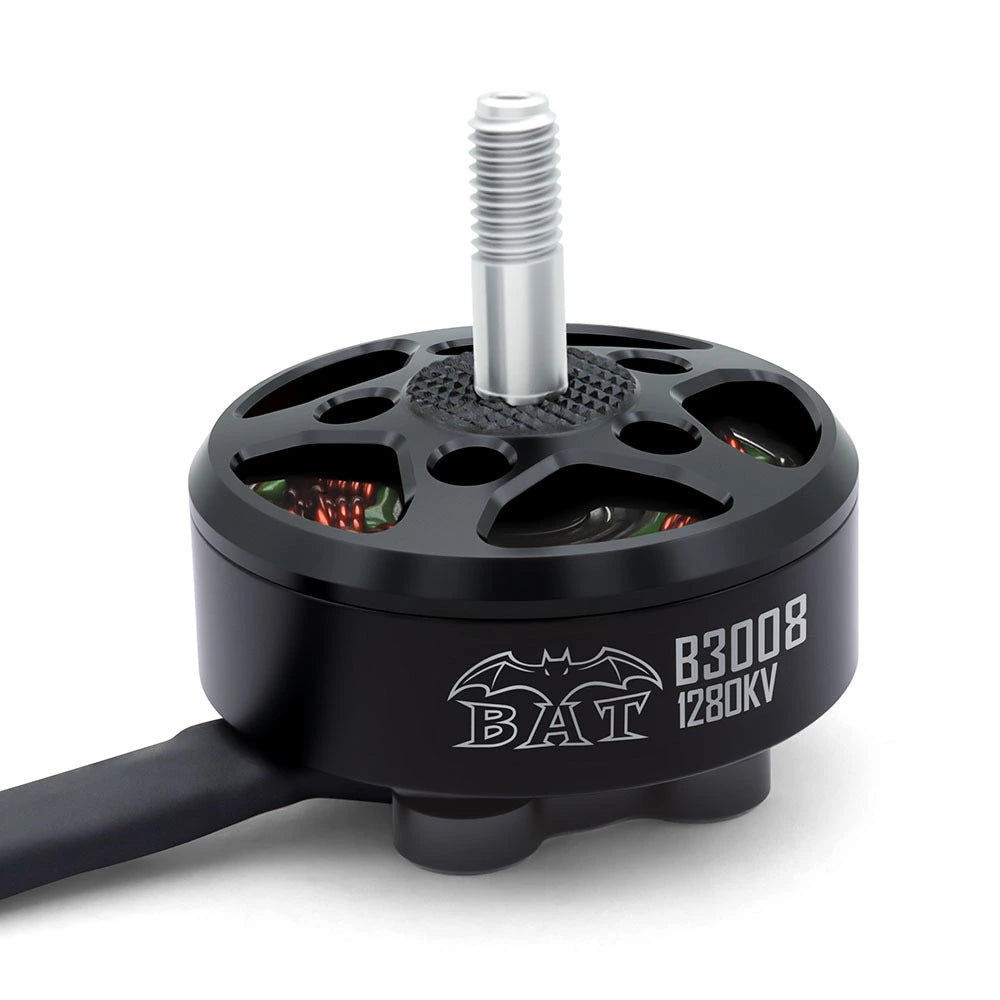

The Surpass Hobby BAT B3008 brushless motor is designed for 7-inch FPV drone builds. It is offered in 1280KV and 1500KV versions, with a 12N14P stator configuration, M5 threaded shaft, and detachable construction for access during cleaning.
Key Features
- Designed for 7-inch FPV drone models.
- 1280KV and 1500KV versions.
- Detachable motor design for convenient cleaning.
- Vented front-cover structure for heat dissipation.
- High-precision bearing.

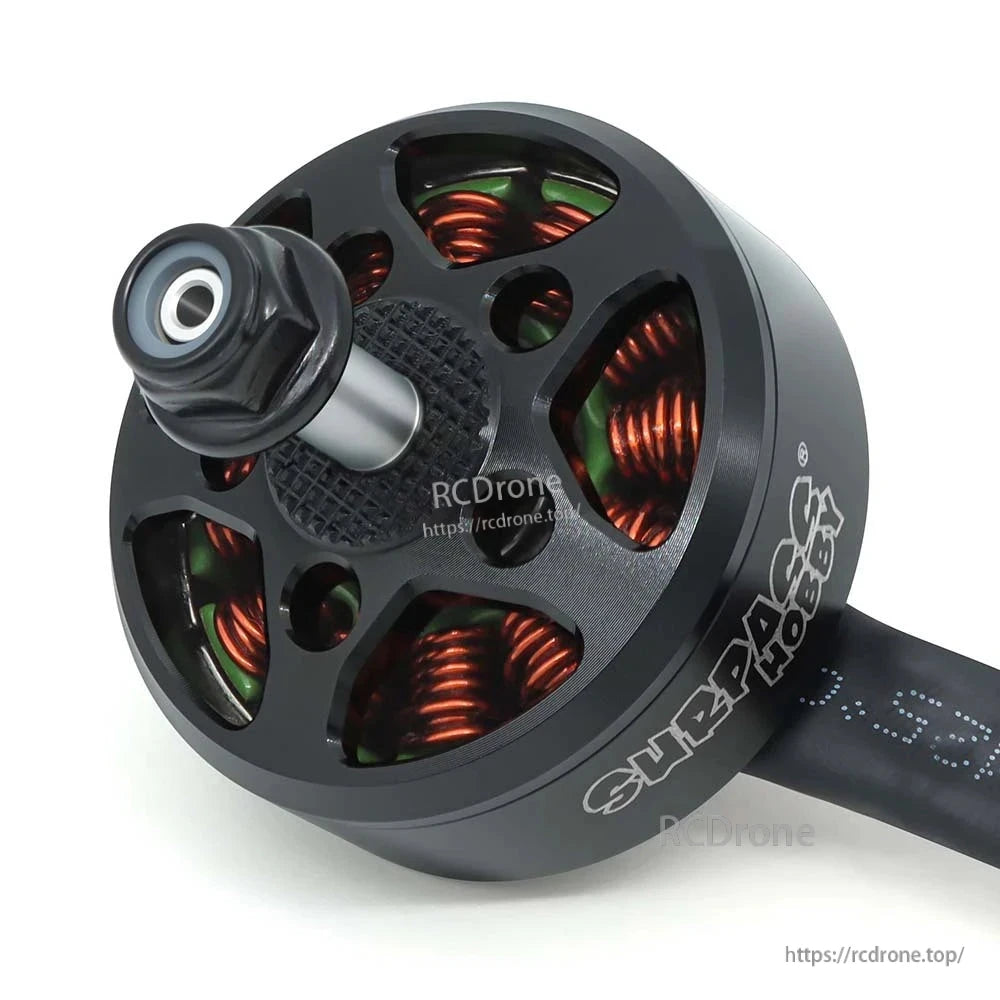

- 220°C single-strand copper windings and 0.2 mm silicon steel laminations.

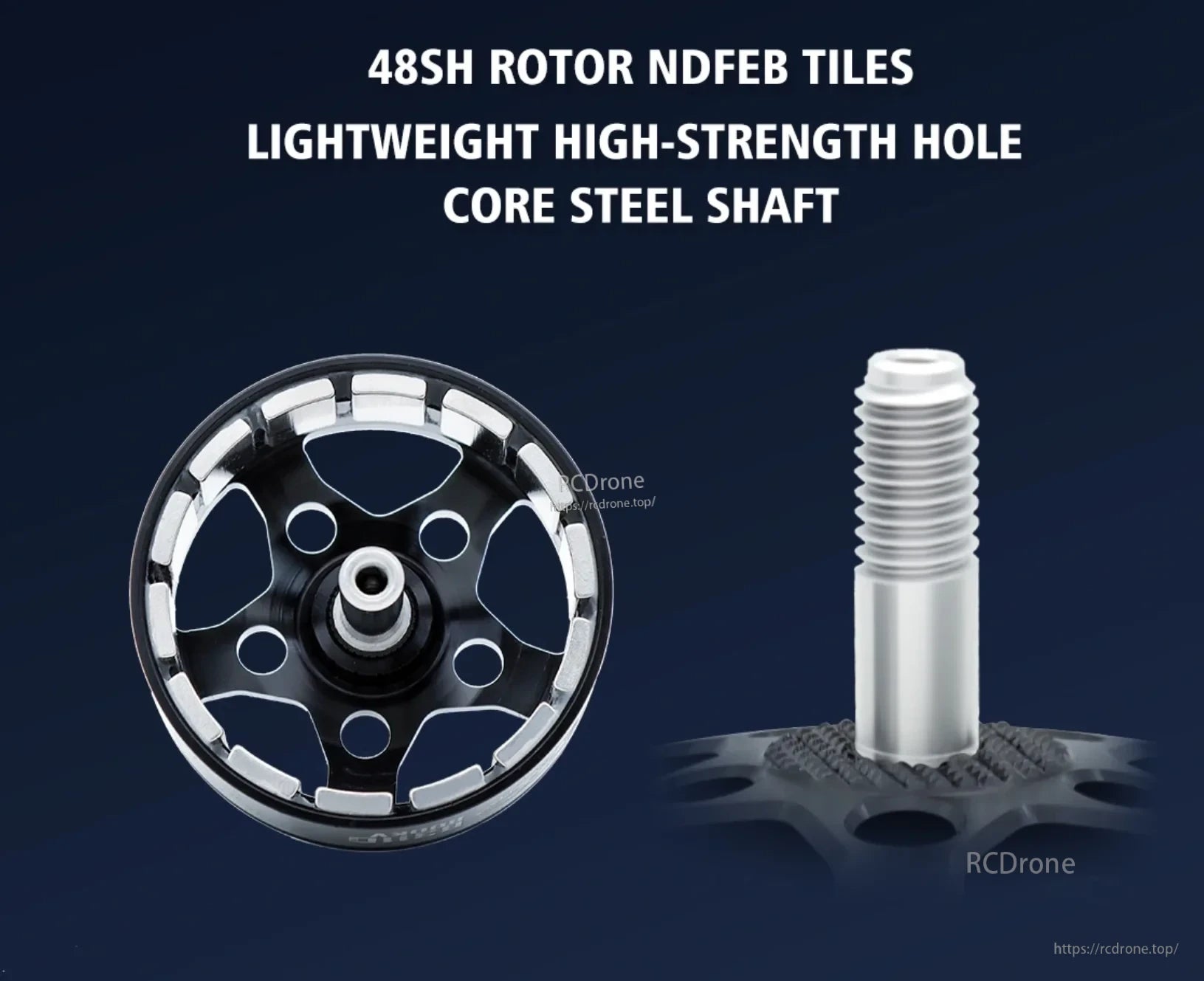

- 48SH NdFeB rotor magnets.

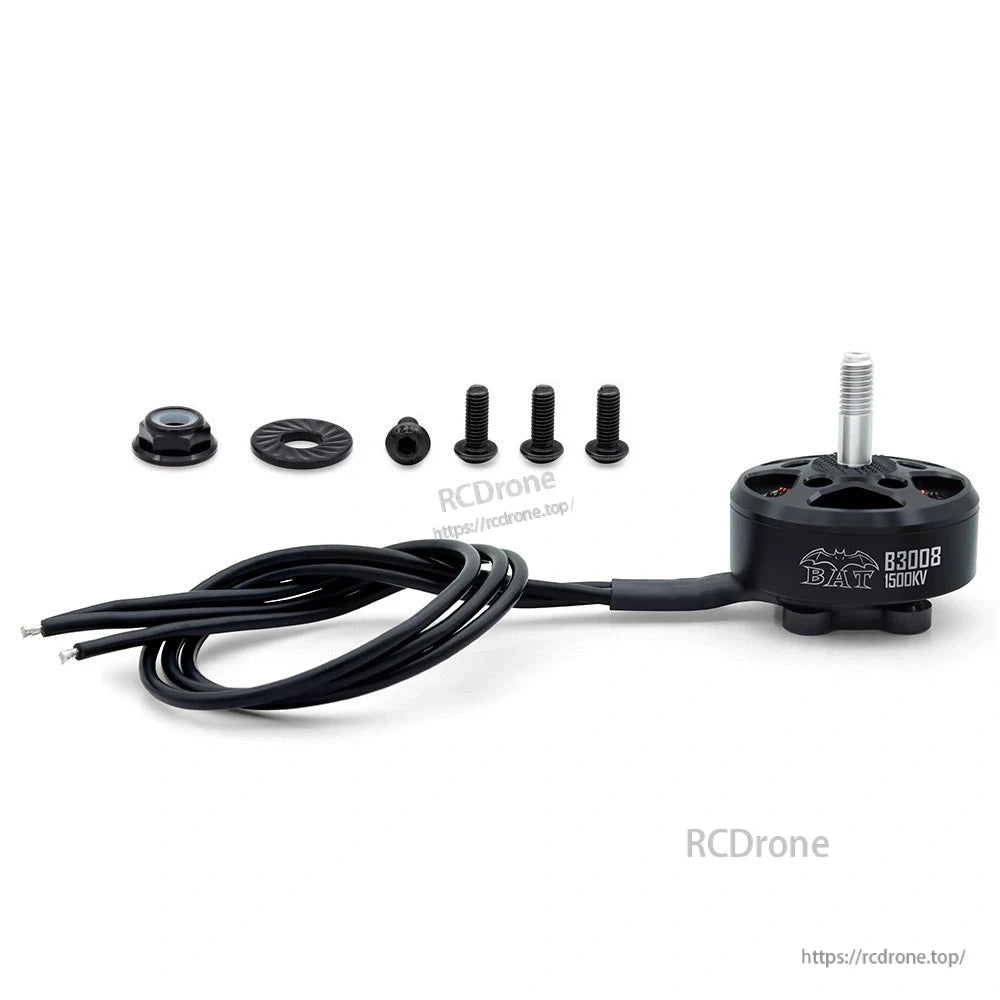

- M5 steel shaft with a custom nut to protect the shaft thread.
For product assistance, contact [email protected].
Specifications
| Model | BAT B3008 |
| KV options | 1280KV, 1500KV |
| Stator configuration | 12N14P |
| Motor size | 35.7 x 38.4 mm |
| Stator size | 30 x 8 mm |
| Shaft | 5 mm (M5) |
| Motor wire | 18 AWG, 250 mm |
| Mounting pattern | 4 x M3 |
Applications
Suitable for 7-inch FPV drone models.
Details
Designed for 7-inch FPV builds, the BAT B3008 is available in 1280KV and 1500KV options.

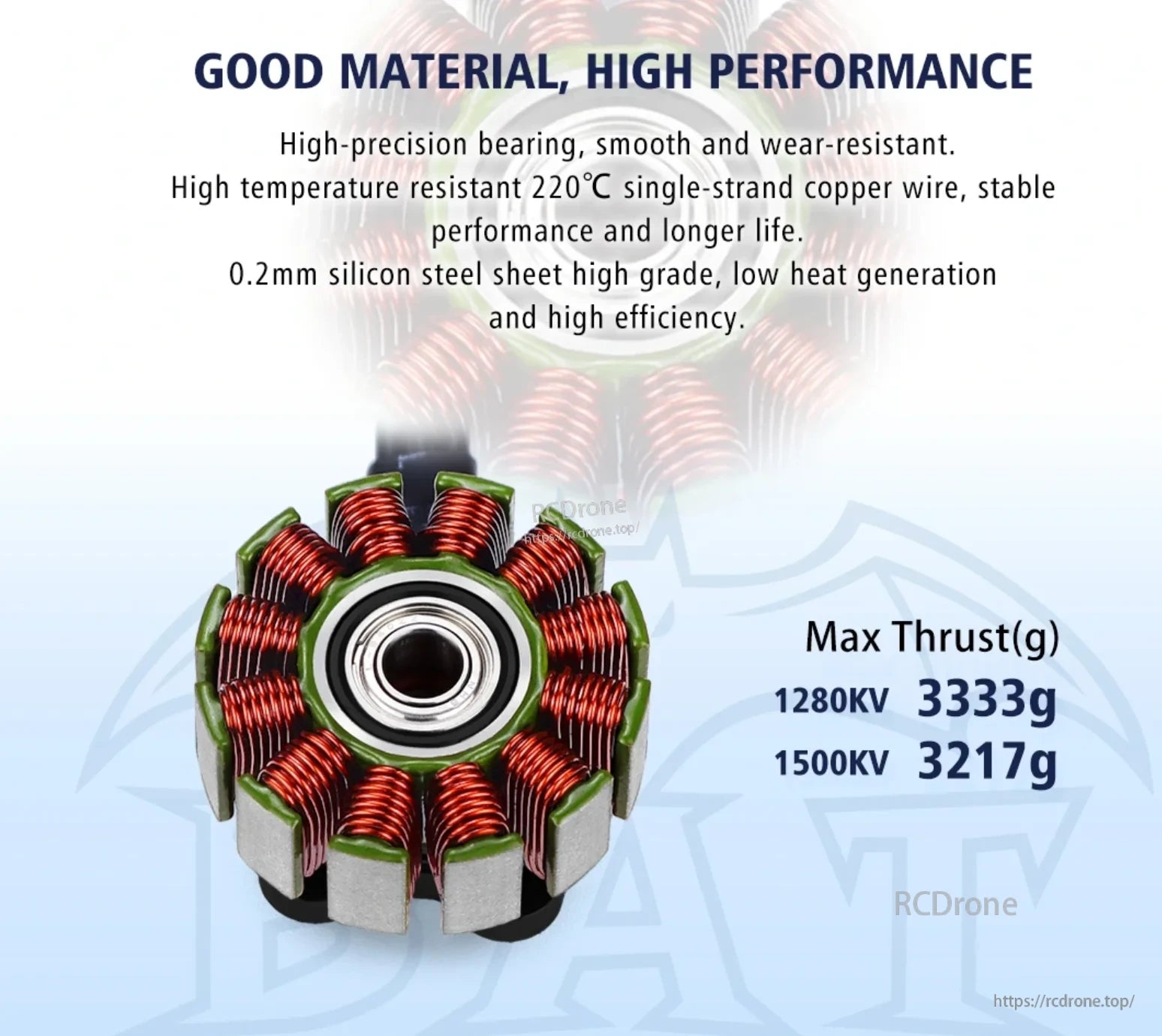

High-precision bearings, 220°C copper windings, and 0.2 mm silicon steel laminations support efficient operation.

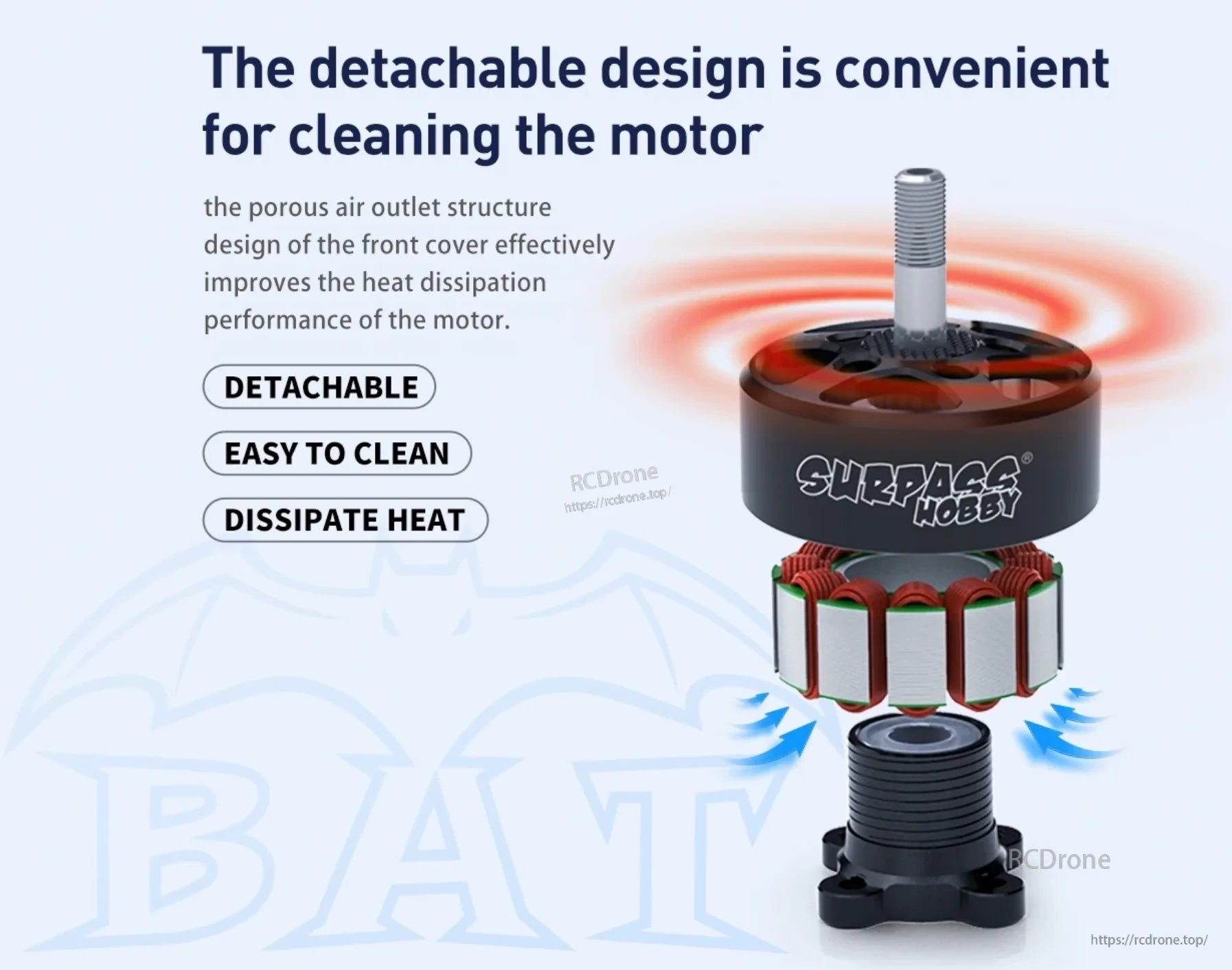

The detachable construction provides convenient access for cleaning, while the vented front cover helps dissipate heat.

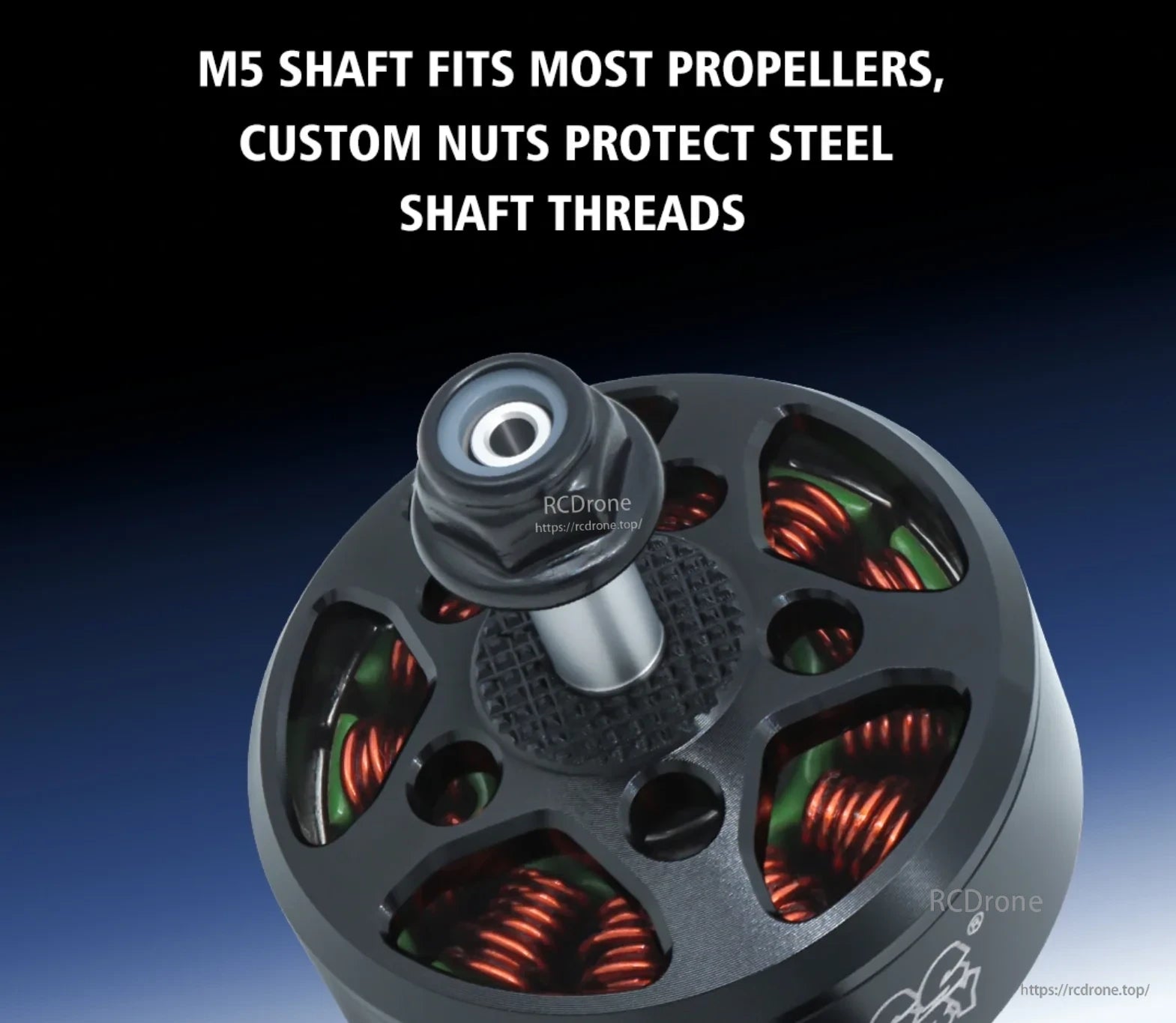

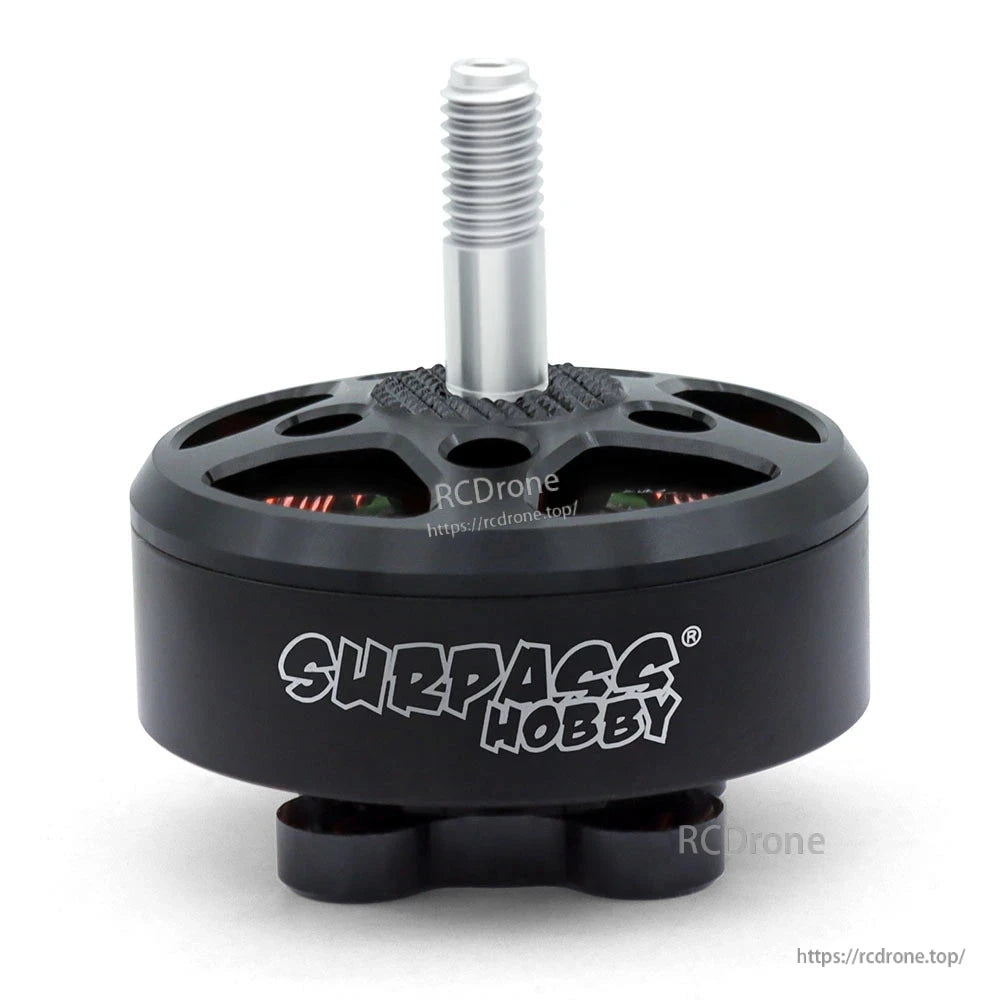

An M5 steel shaft fits compatible propellers, and the custom nut helps protect the shaft threads.

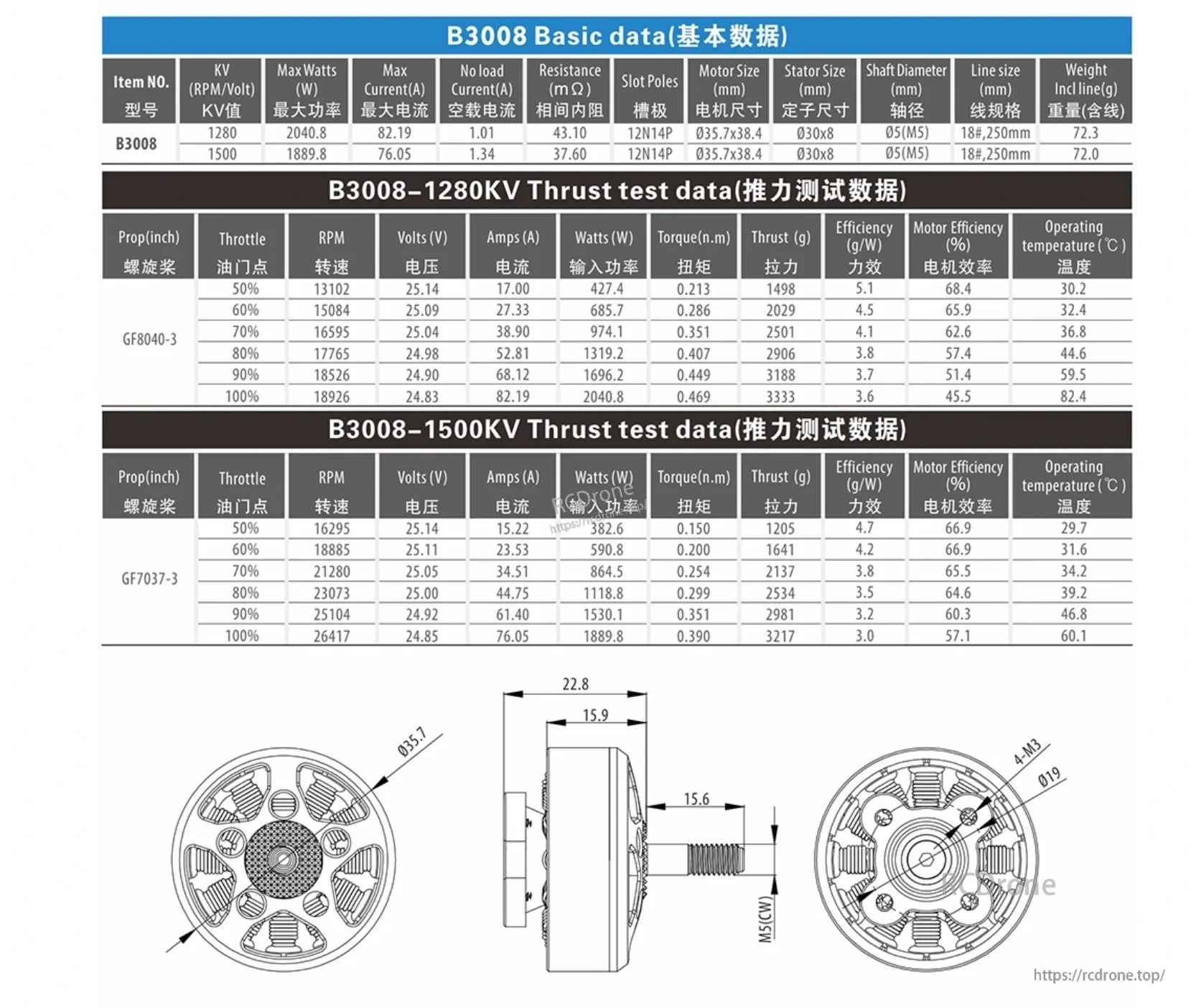

Review the technical table for dimensions and test data for both KV versions.
