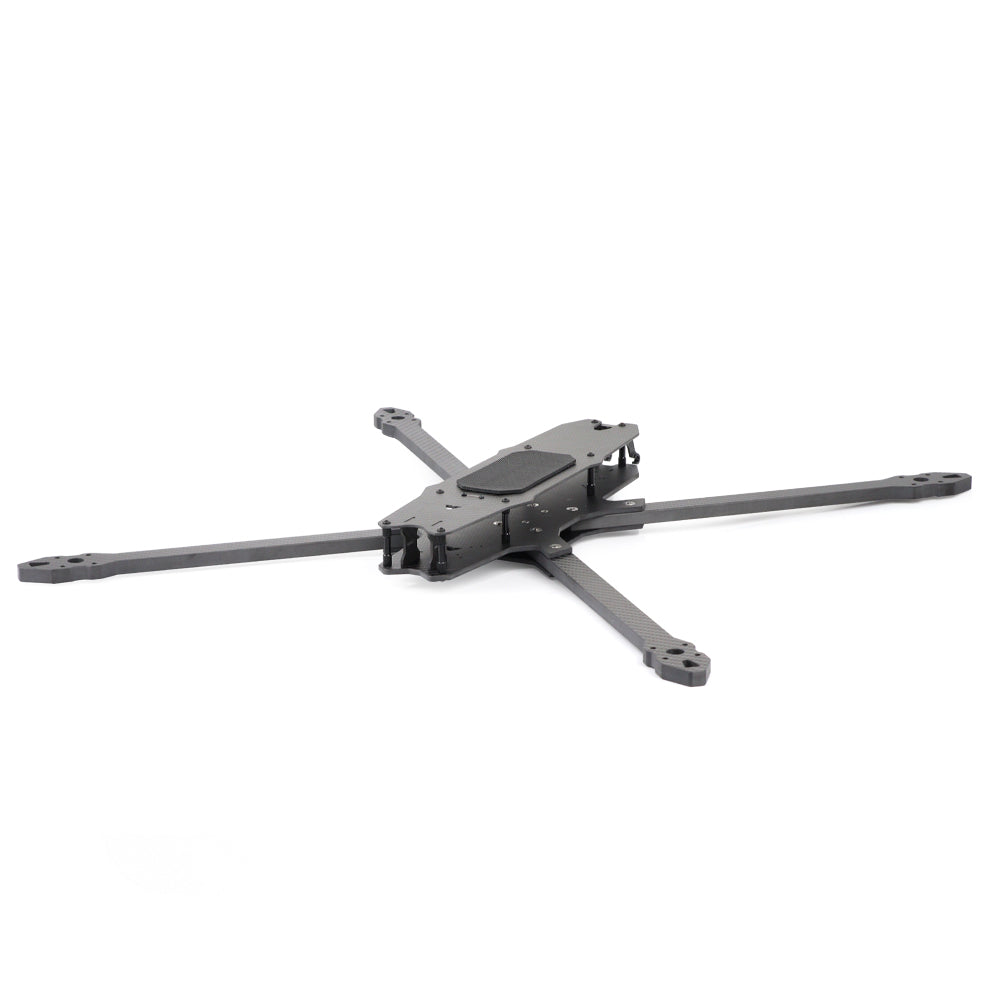

• HGLRC MY15 15-Inch FPV Frame assembled carbon fiber quad frame, angled front view

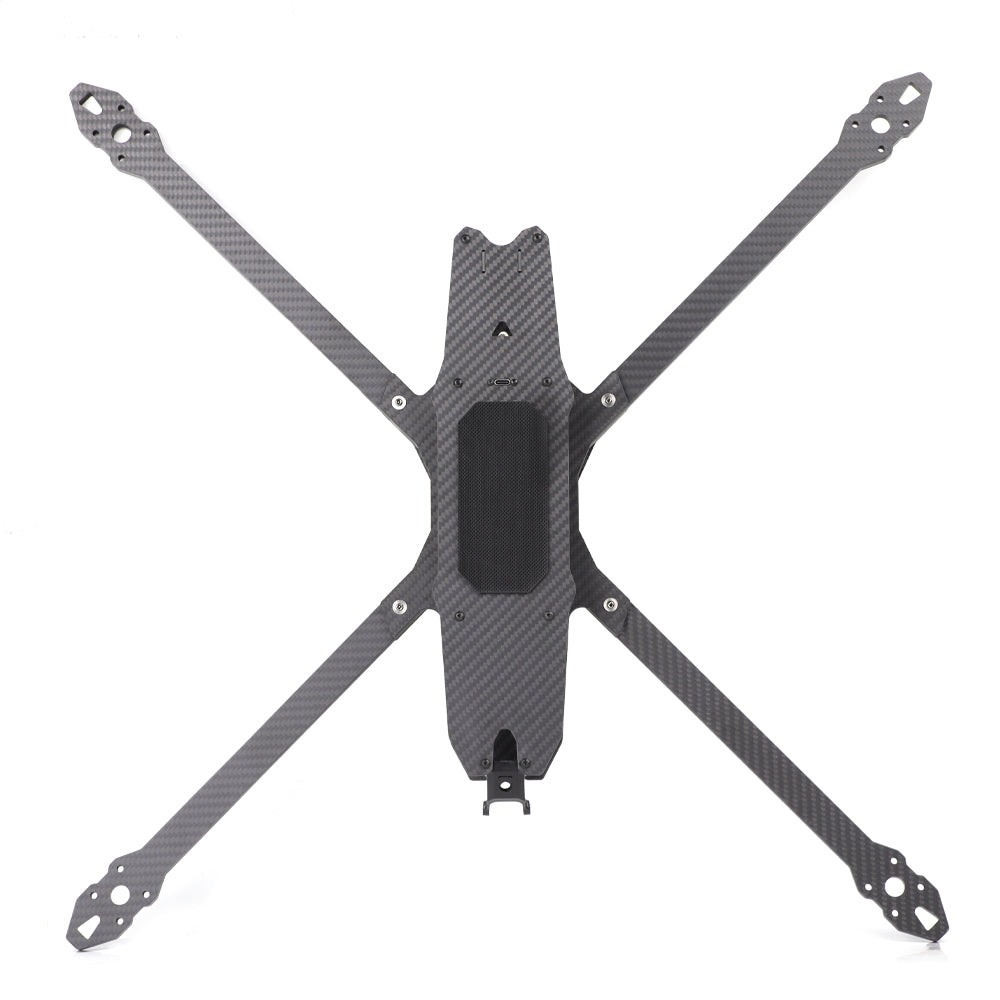

  • Top-down view of HGLRC MY15 15-inch FPV frame showing X-style carbon fiber arms and body plate

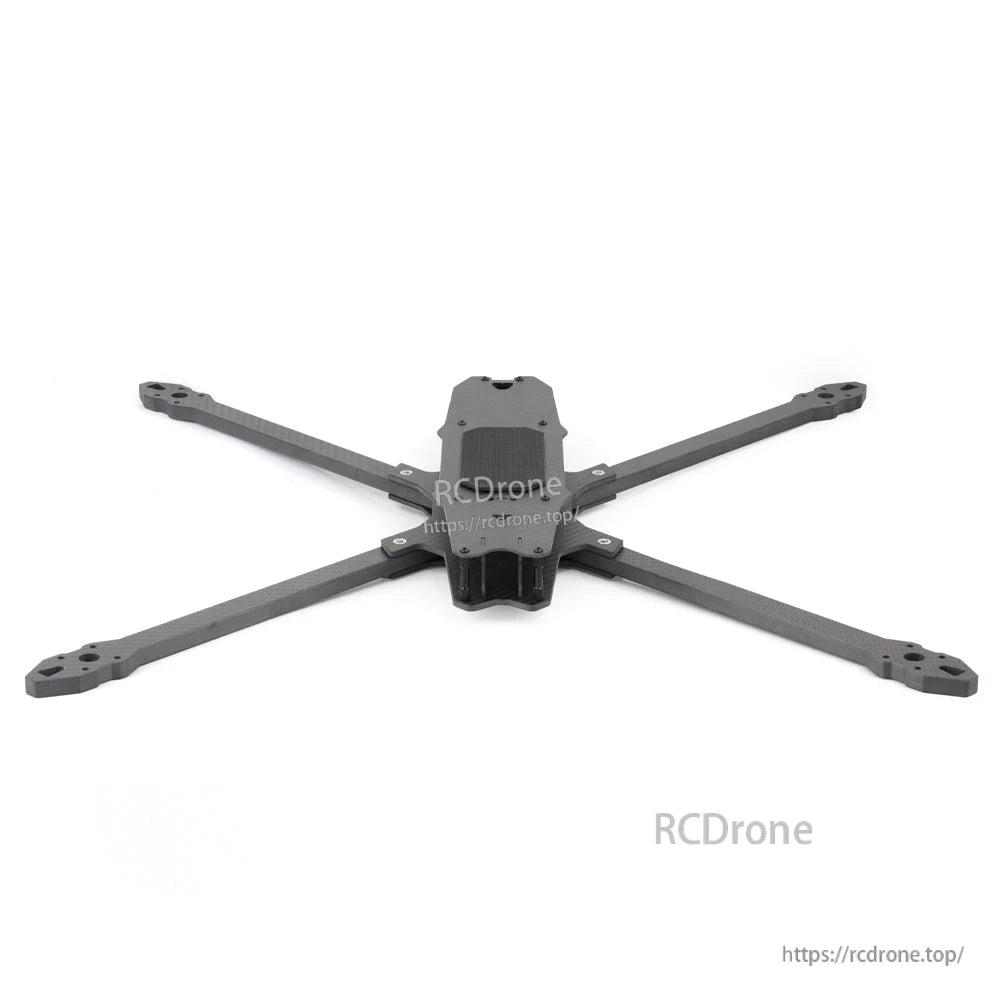

  • Low front view of carbon fiber FPV drone frame with extended arms and center plate

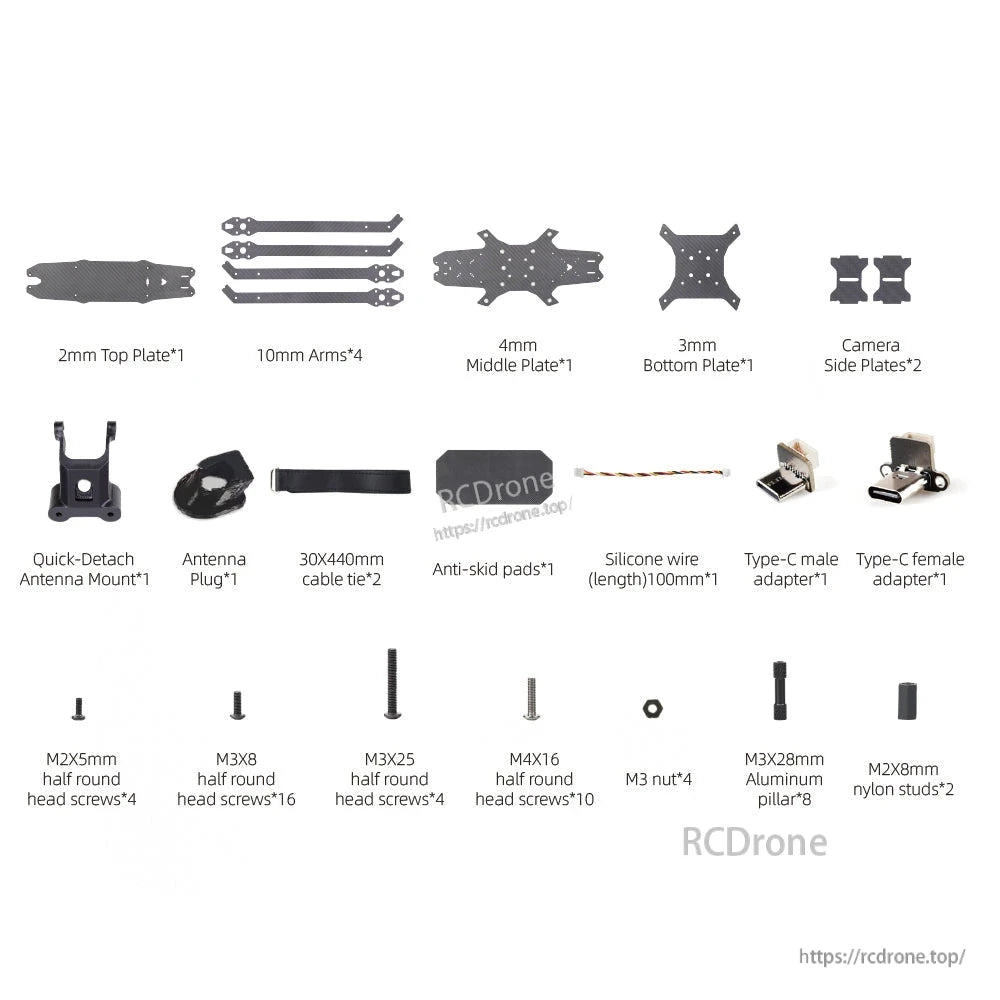

  • HGLRC MY15 frame kit parts layout with plates, arms, camera side plates, adapters, wires and screws

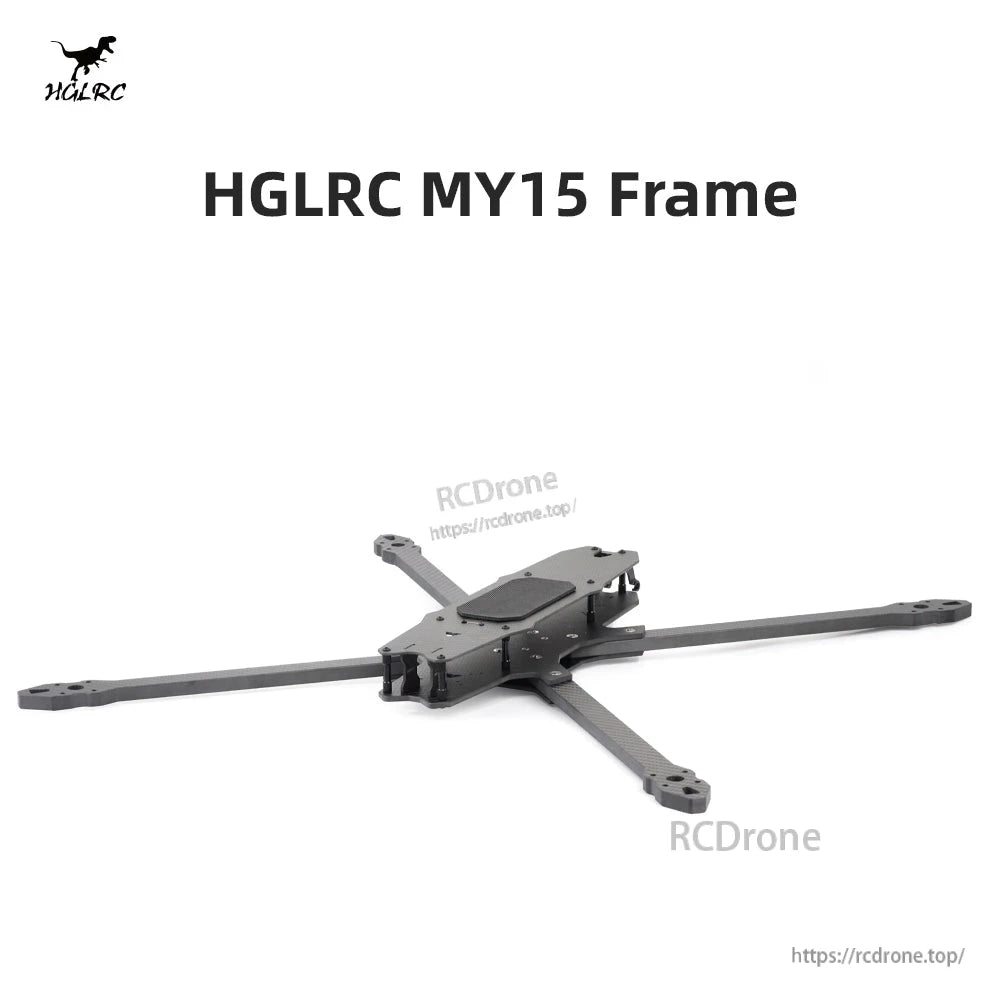

  • HGLRC MY15 15-Inch FPV Frame product graphic with model name text and assembled frame

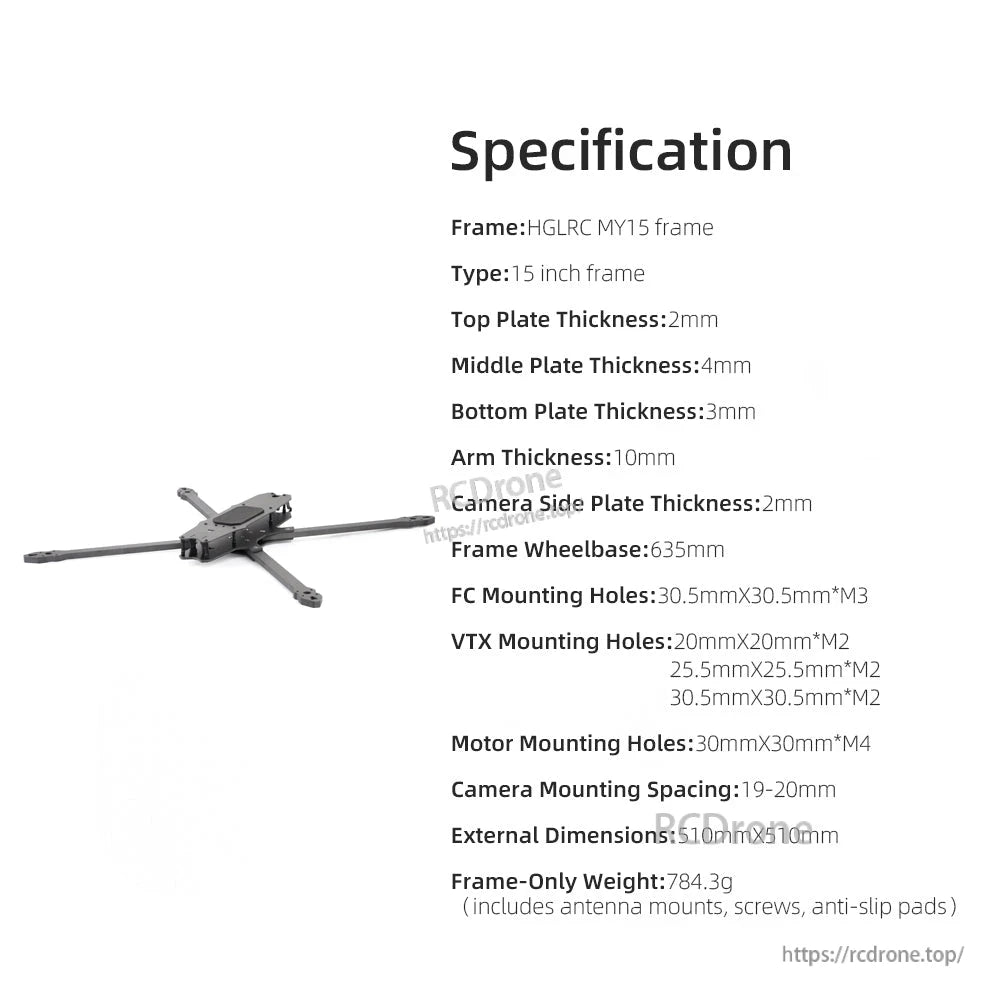

  • HGLRC MY15 frame specification sheet listing plate thickness, 635mm wheelbase and mounting hole sizes

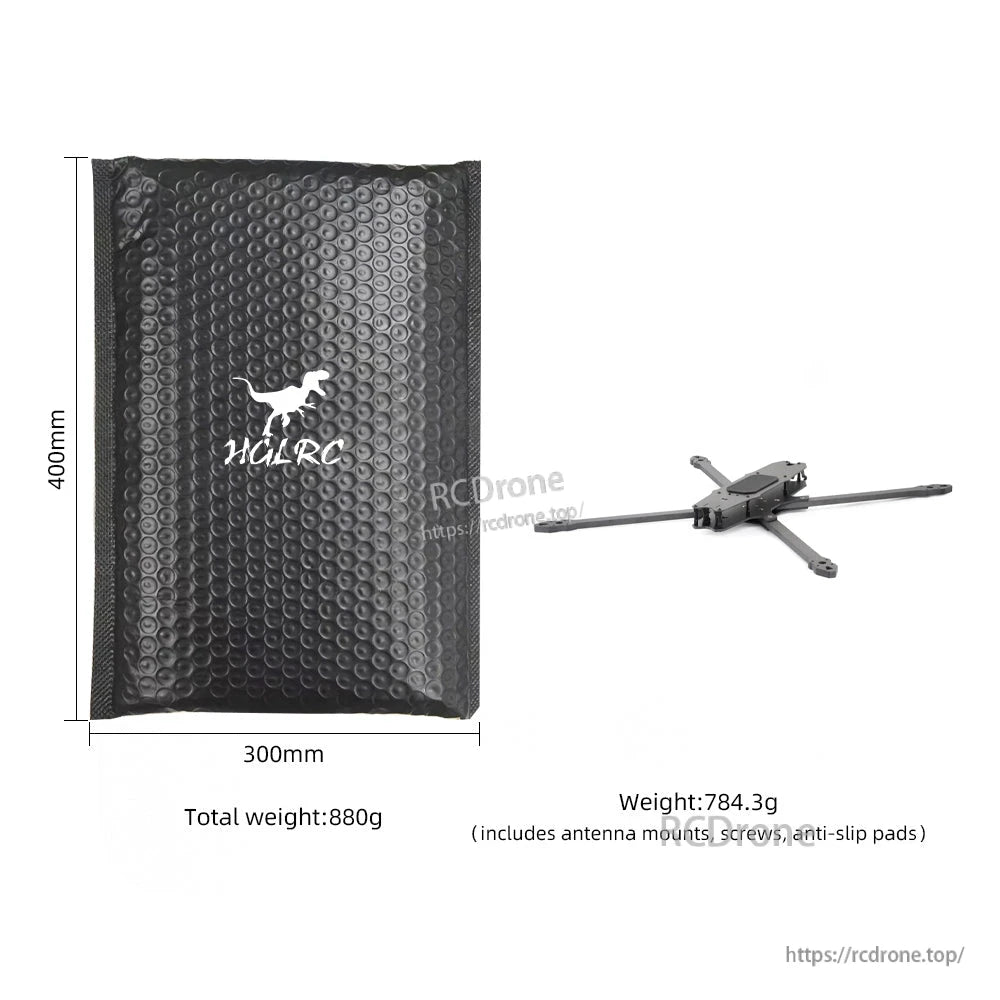

  • HGLRC bubble mailer packaging size 300×400mm with frame weight and total weight callouts

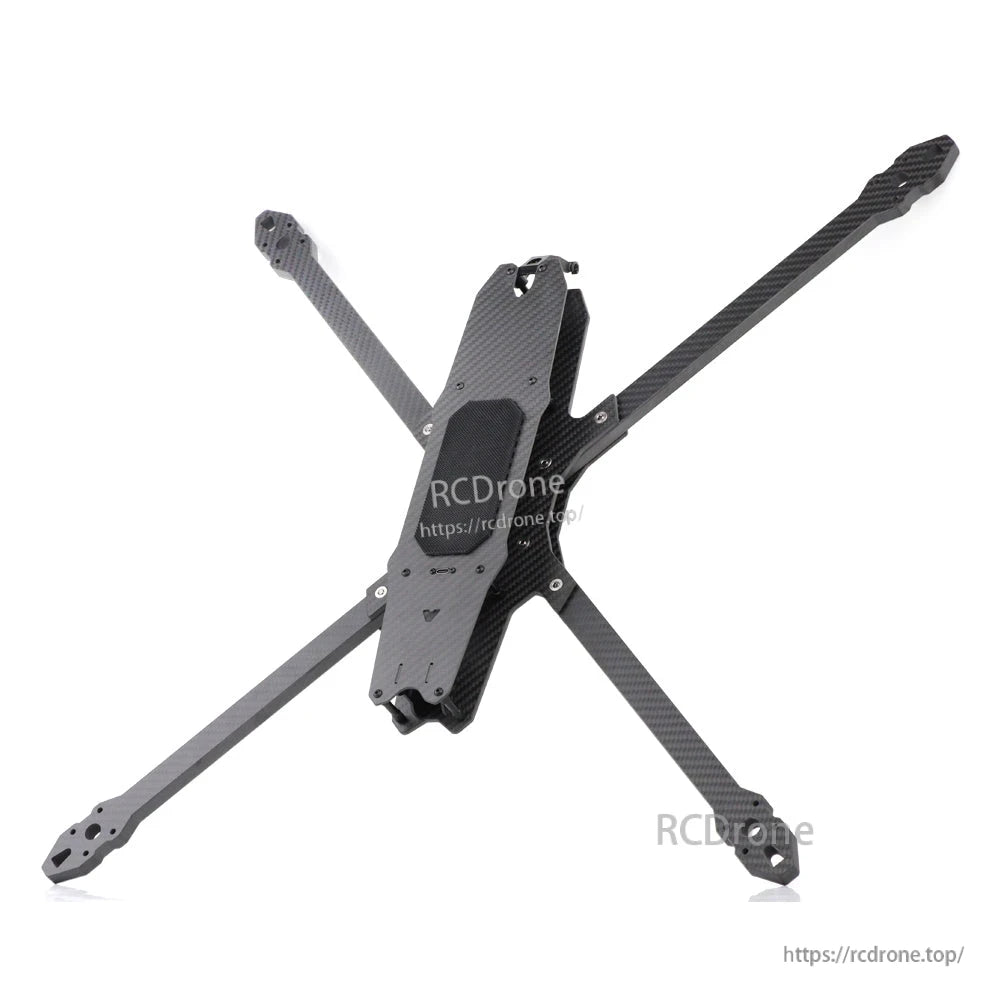

  • Angled top view of carbon fiber FPV frame showing stacked center plates and arm mounting points

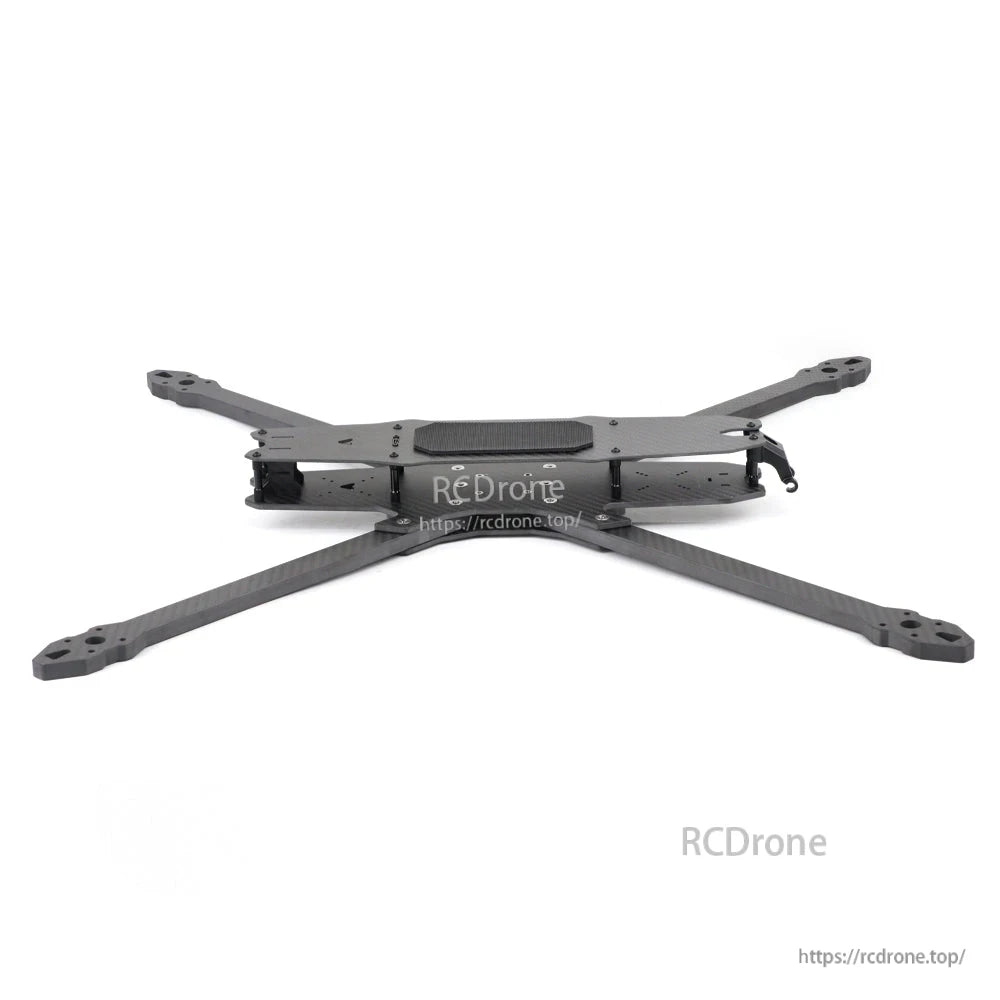

  • Side profile of assembled FPV frame showing low-slung center stack and carbon fiber arms
1 9

HGLRC MY15 15-Inch FPV Frame 635mm Wheelbase, 10mm Arms, 30.5x30.5 Mounting, 784.3g

HGLRC MY15 15-Inch FPV Frame 635mm Wheelbase, 10mm Arms, 30.5x30.5 Mounting, 784.3g

HGLRC

$116.99 USD
$116.99 USD
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
Size
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Ver todos los detalles

Overview

HGLRC MY15 is a 15-inch FPV frame designed around a 635mm wheelbase and a thick-arm structure (10mm arms). It provides multiple standard mounting patterns for flight controllers and VTX hardware, plus a 19–20mm camera mounting spacing.

Key Features

  • 15-inch frame layout with 635mm wheelbase
  • Plate thicknesses: 2mm top plate, 4mm middle plate, 3mm bottom plate
  • 10mm arm thickness
  • Mounting support: FC 30.5mm x 30.5mm (M3); VTX 20mm x 20mm (M2), 25.5mm x 25.5mm (M2), 30.5mm x 30.5mm (M2)
  • Motor mounting holes: 30mm x 30mm (M4)
  • Camera side plate thickness: 2mm; camera mounting spacing: 19–20mm

Specifications

Frame HGLRC MY15 frame
Type 15-inch frame
Top plate thickness 2mm
Middle plate thickness 4mm
Bottom plate thickness 3mm
Arm thickness 10mm
Camera side plate thickness 2mm
Wheelbase 635mm
Flight controller mounting holes 30.5mm x 30.5mm x M3
VTX mounting holes 30.5mm x 30.5mm x M2; 25.5mm x 25.5mm x M2; 20mm x 20mm x M2
Motor mounting holes 30mm x 30mm x M4
Lens/camera mounting holes (spacing) 19–20mm
External dimensions 510mm x 510mm
Single frame weight 784.3g ± 5g (including antenna mount, screws, and anti-slip pads)
Total weight 880g

What’s Included

  • HGLRC MY15 frame x1
  • 2mm top plate x1
  • 4mm middle plate x1
  • 3mm bottom plate x1
  • 10mm arms x4
  • Camera side plates x2
  • Quick-detach antenna mount x1
  • Antenna plug x1
  • Cable ties (30 x 440mm) x2
  • Anti-slip / anti-skid pad x1
  • Silicone wire (length 100mm) x1
  • Type-C male adapter x1
  • Type-C female adapter x1
  • Type-C 4-pin ribbon cable x1
  • M2 x 5 half-round head screws x4
  • M3 x 8 half-round head screws x16
  • M3 x 25 half-round head screws x4
  • M4 x 16 half-round head screws x10
  • M3 nylon nuts x4
  • M3 x 28 aluminum posts/pillars x8
  • M2 x 8 double-through nylon posts / nylon studs x2

Installation

  1. Attach arms to the bottom plate.
  2. Install the middle plate and tighten the screws.
  3. Secure M3 x 28mm aluminum standoffs using M3 x 8mm screws, then install camera side plates and antenna mounts.
  4. Fasten the top plate with M3 x 8mm screws and apply anti-slip pads.

For build support and parts questions, contact https://rcdrone.top/ or support@rcdrone.top.

Details

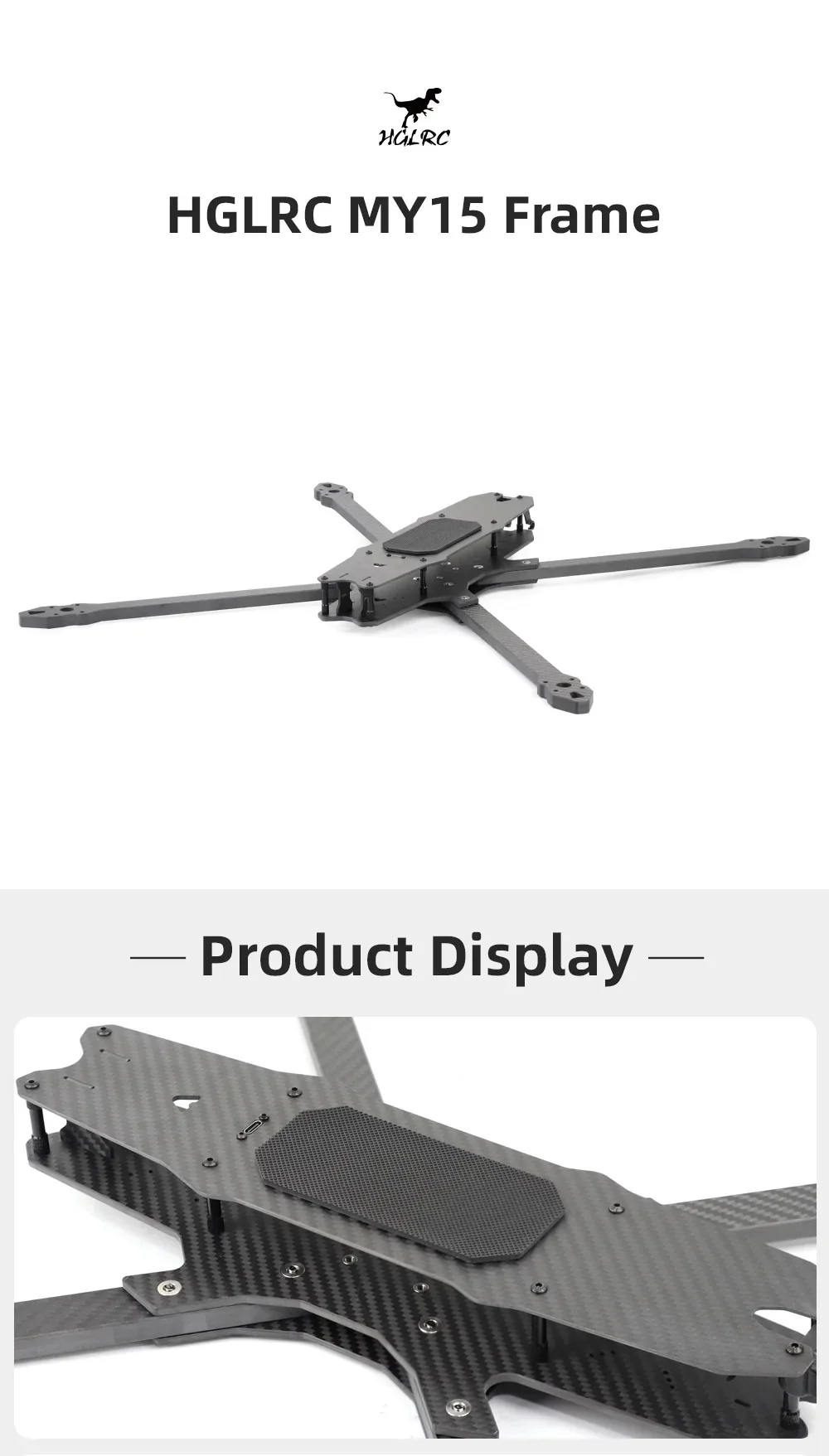

HGLRC MY15 15-inch FPV frame overview with X-style 4-arm layout and carbon fiber plates

Built on a 635mm wheelbase with thick 10mm arms, the MY15 is designed for stable long-range 15-inch builds.

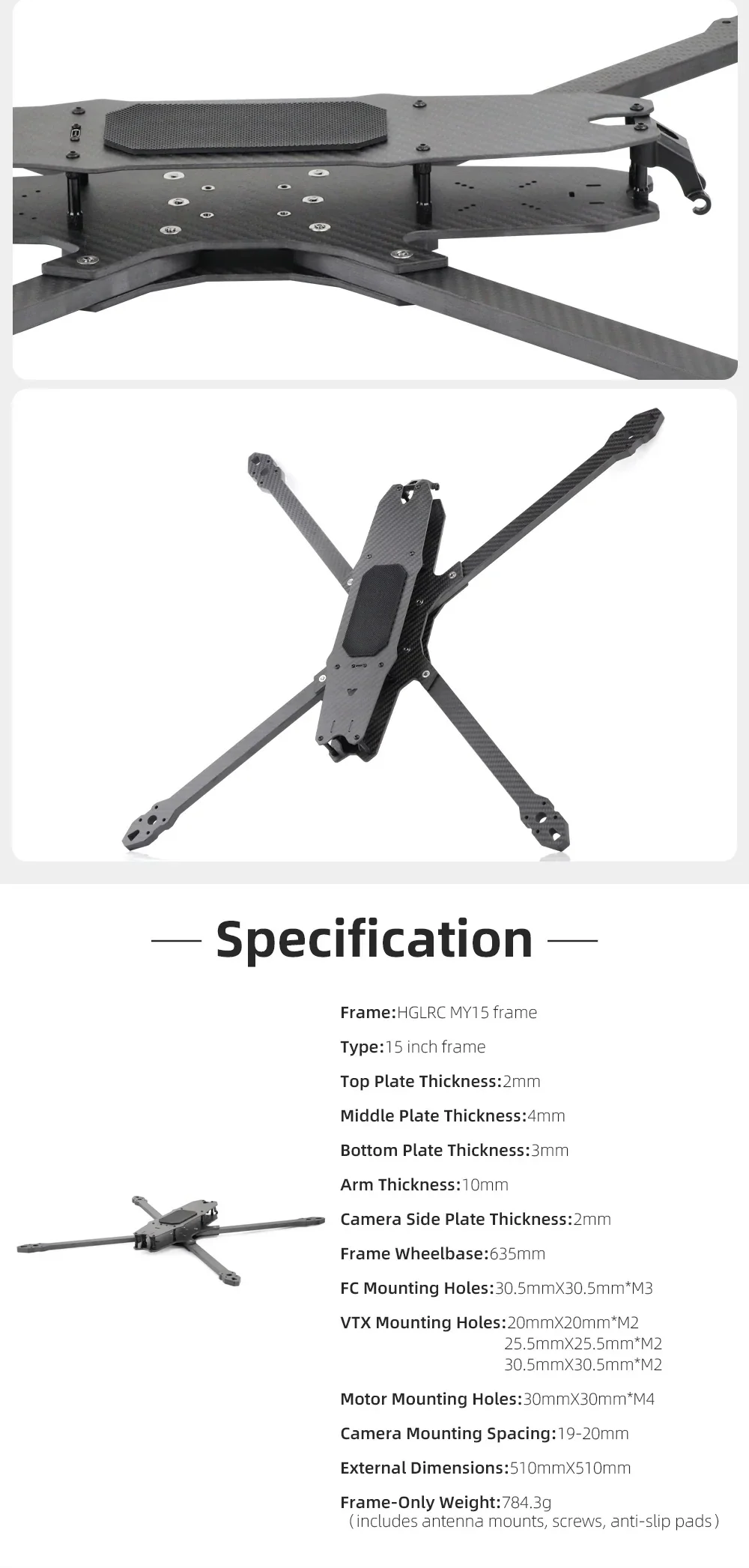

Top and bottom views of the MY15 carbon frame with multiple FC/VTX mounting hole patterns

Multiple standard mounting patterns make it easy to fit common flight controllers and VTX stacks without drilling.

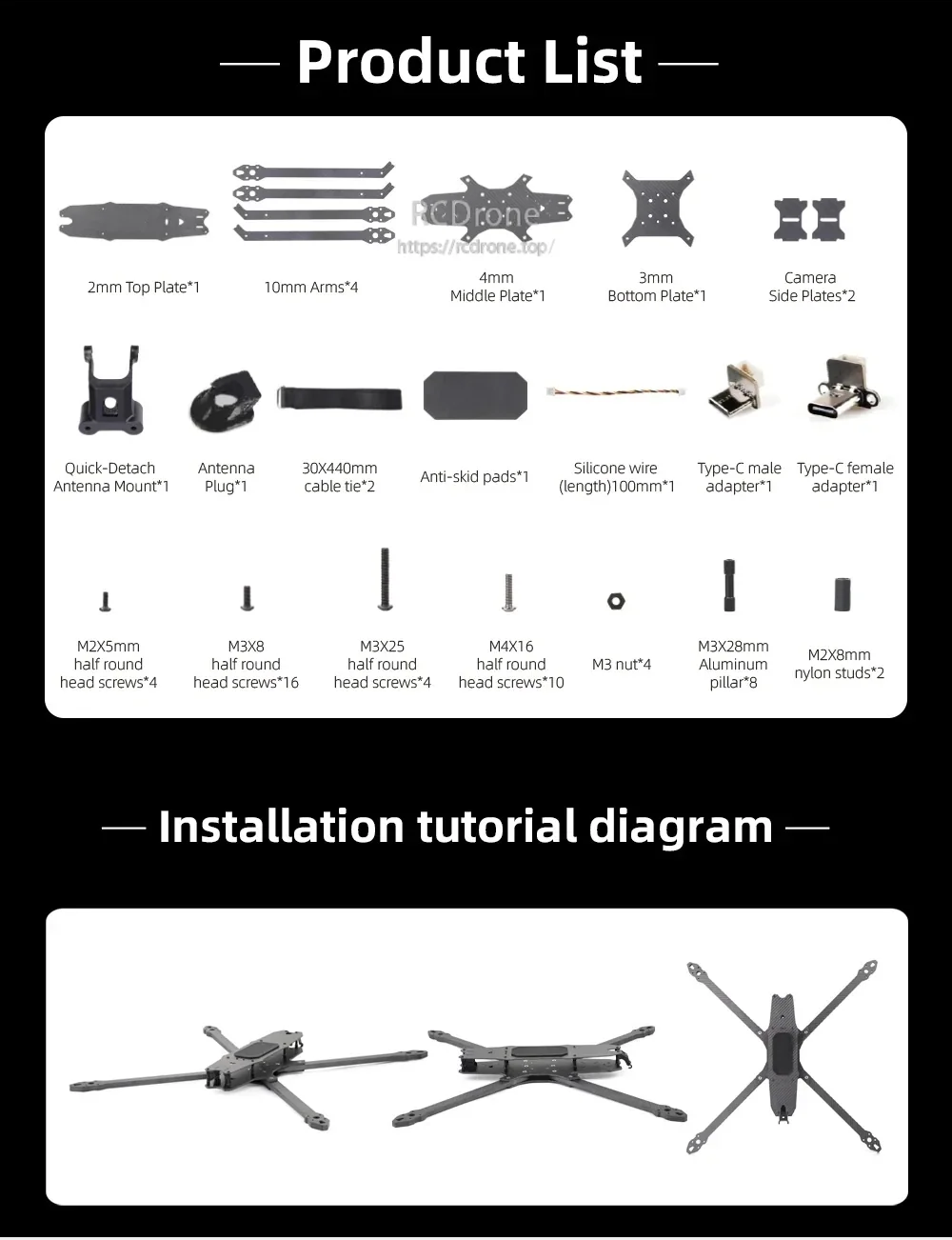

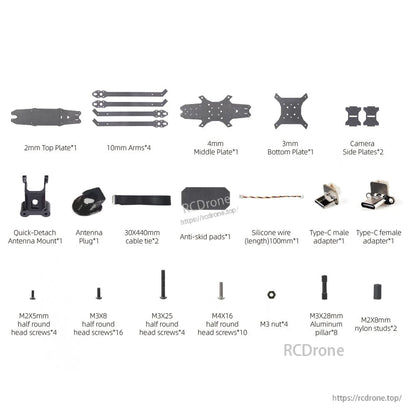

HGLRC MY15 frame parts kit layout with plates, arms, camera side plates, antenna mount, hardware and cables

A complete frame kit includes plates, camera side plates, quick-detach antenna mount, and the required screw set.

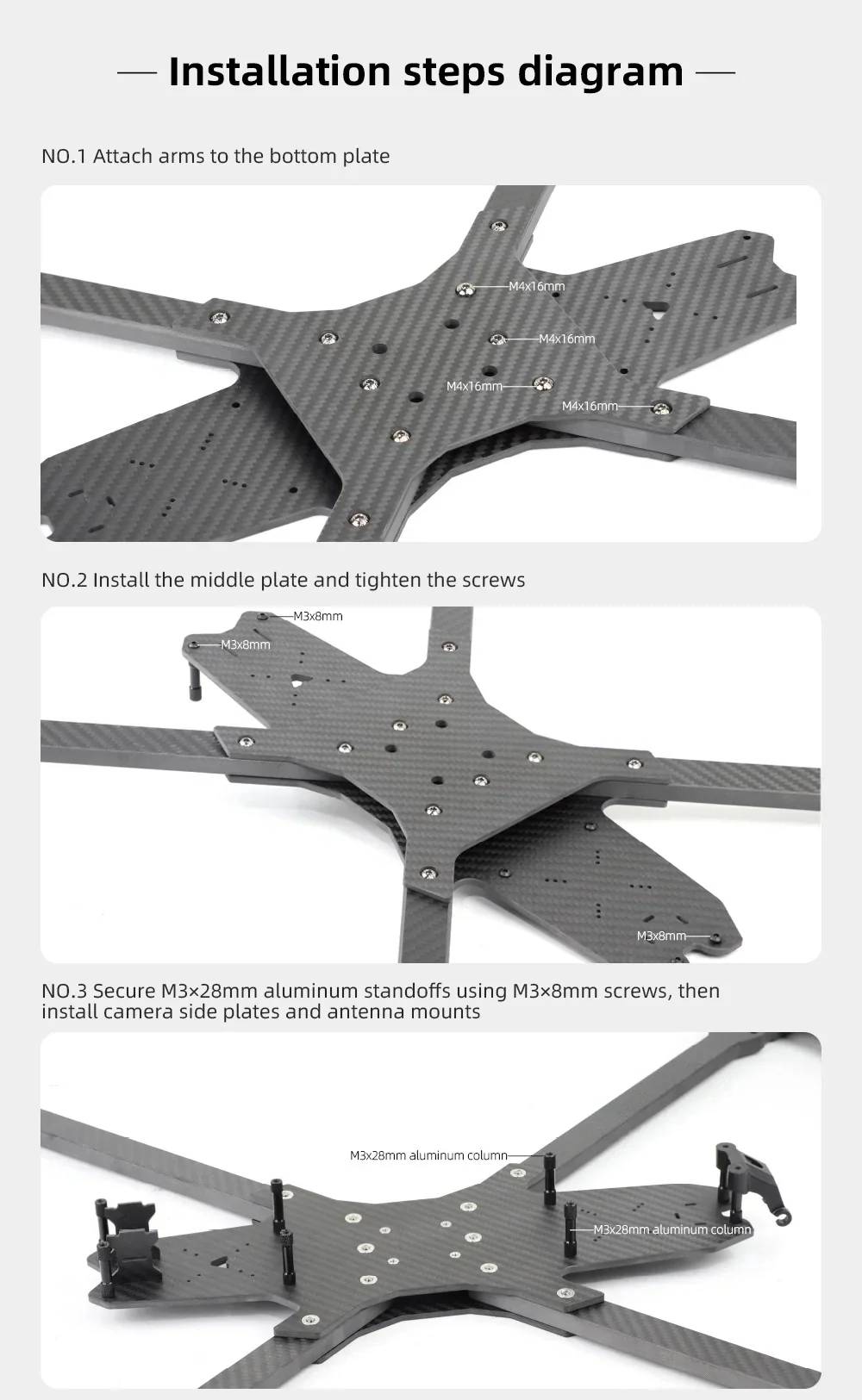

Step-by-step assembly diagram for attaching arms, installing the middle plate, and adding standoffs

Assembly starts by fixing the arms to the bottom plate, then securing the middle plate and standoffs for the stack.

Top plate fastening step plus size and weight panel listing 510×510mm dimensions and 784.3g frame weight
