2x Ovonic ARK 6S 4500mAh 50C 22.2V LiPo w/ Deans Plug for RC Plane EDF Jet, Multicopter
2x Ovonic ARK 6S 4500mAh 50C 22.2V LiPo w/ Deans Plug for RC Plane EDF Jet, Multicopter
Ovonic
No se pudo cargar la disponibilidad de retiro
Overview

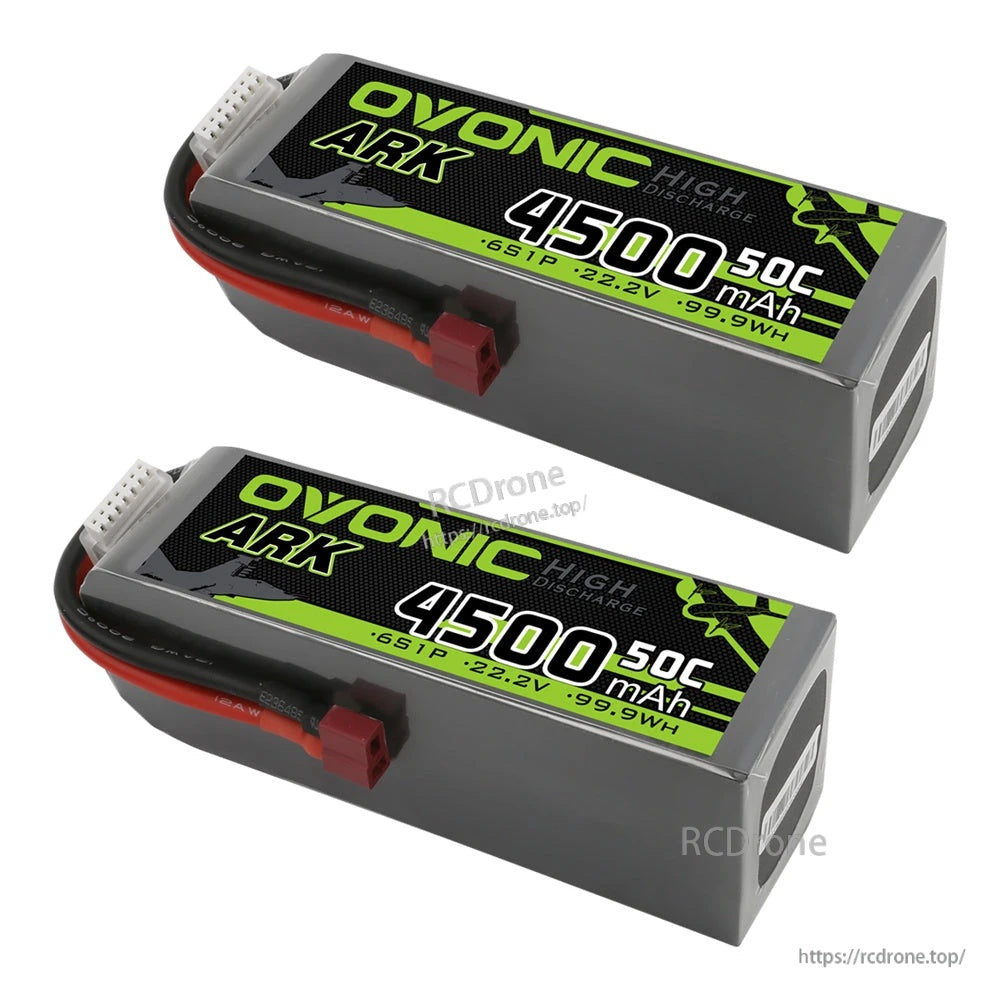

The Ovonic ARK series LiPo battery pack is designed for RC aircraft and multi-rotor use, featuring a thin fiber case and a compact rectangular form factor. This listing includes 2× ARK 6S 4500mAh 50C 22.2V LiPo batteries with a Deans (T) discharge plug and JST-XH balance connector.
Key Features
- ARK series design with thin fiber case; labeled structure elements include PVC, cells, and fiberboard.
- 6S1P LiPo (22.2V) with 4500mAh capacity and 50C discharge rate.
- Connector types: Deans plug (discharge) + JST-XH (balance/charge).
- Labeled energy rating: 99.9Wh per pack.
Specifications
| Brand | Ovonic |
| Series | ARK |
| Chemistry | Li-polymer |
| Cell configuration | 6S1P |
| Voltage | 22.2V |
| Capacity | 4500mAh |
| Discharge rate | 50C |
| Energy | 99.9Wh (per pack) |
| Balance/charge plug | JST-XH |
| Discharge plug | Deans plug |
| Dimensions (L×W×H) | 142×42×49 mm |
| Net weight | 615g (one pack); 1230g (2 packs) (dev.20g) |
Applications
Suitable for RC setups where the voltage, dimensions, and connector match, including foam planes, multicopter drones, and 70mm–90mm EDF jets. Compatibility examples mentioned include T-REX 550X/600L/700/760/800E, SG507 - GOBIN 500 SPORT, Freewing F-16, and Arrma 6S cars.
What's Included

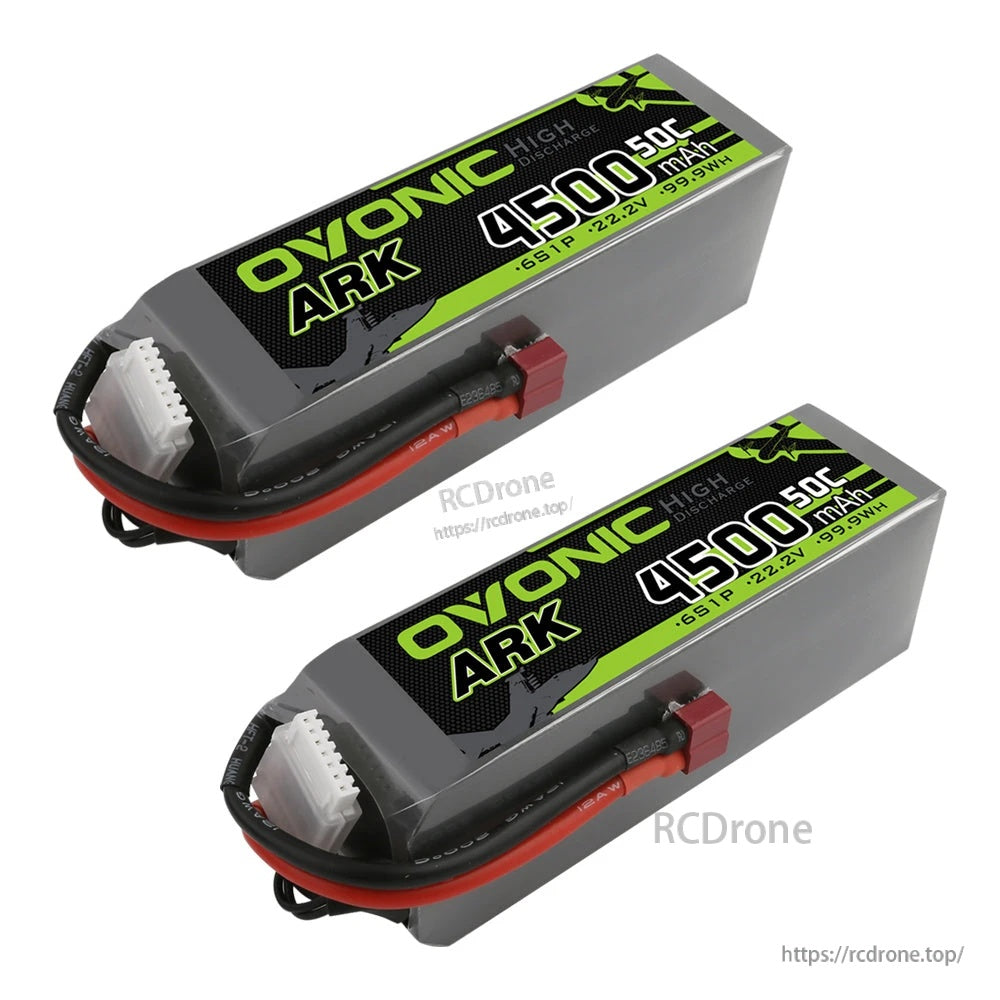

- 2× Ovonic ARK 6S LiPo Battery 4500mAh 50C 22.2V with Deans Plug
- User manual (as shown in package contents)
Safety & Charging Notes
- Fitment depends on matching voltage and plug type; also compare the battery dimensions with the original battery tray space.
- Stop charging immediately when a cell reaches 4.2V (normal cell voltage is between 3.7V and 4.2V).
- Inspect the battery surface and check voltage before first use.
- If a new battery does not hold a full charge or loses charge quickly, use a balance charger and cycle several times.
For connector selection or application fit questions, contact [email protected] or visit https://rcdrone.top/.
Details

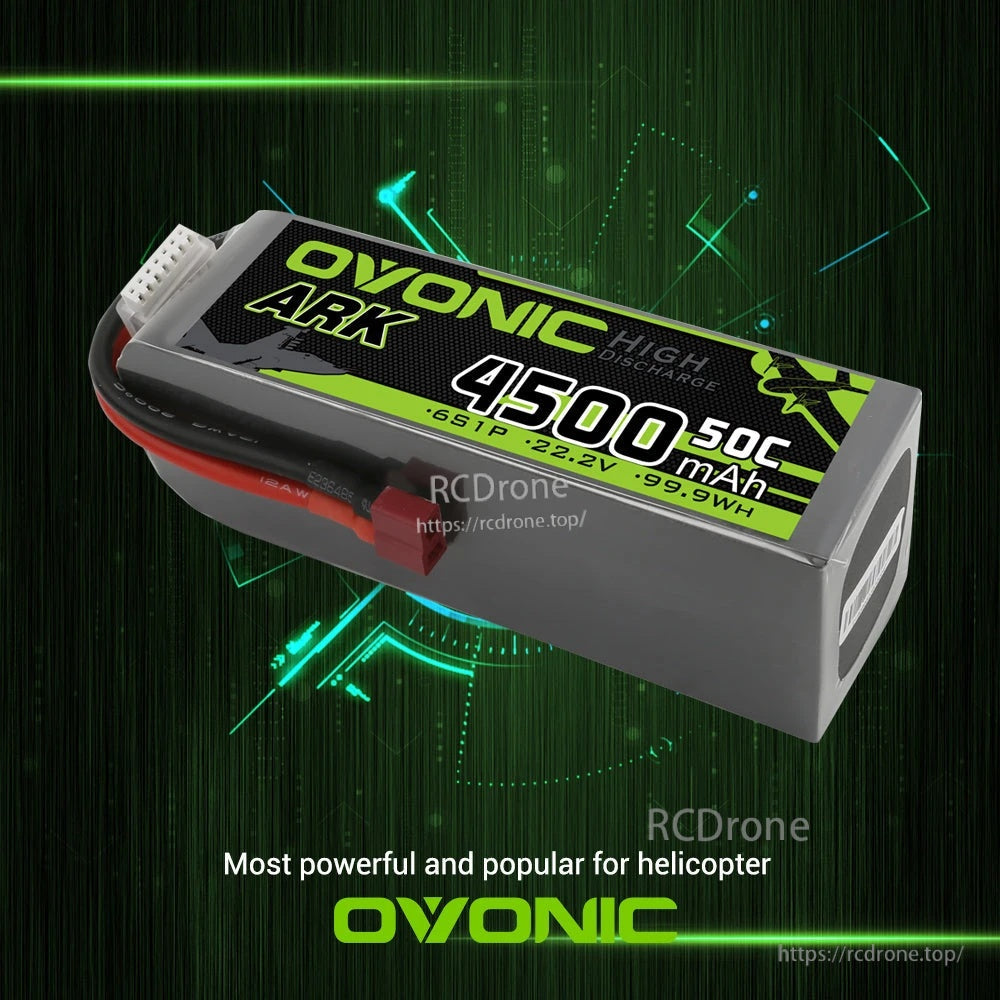

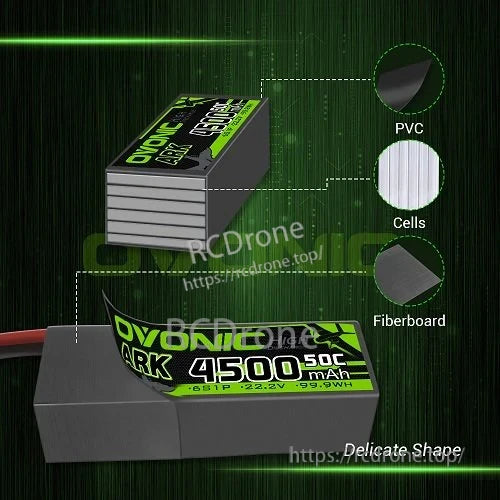

The ARK series uses a thin fiber case in a compact rectangular shape for easier fitment in many RC battery trays.

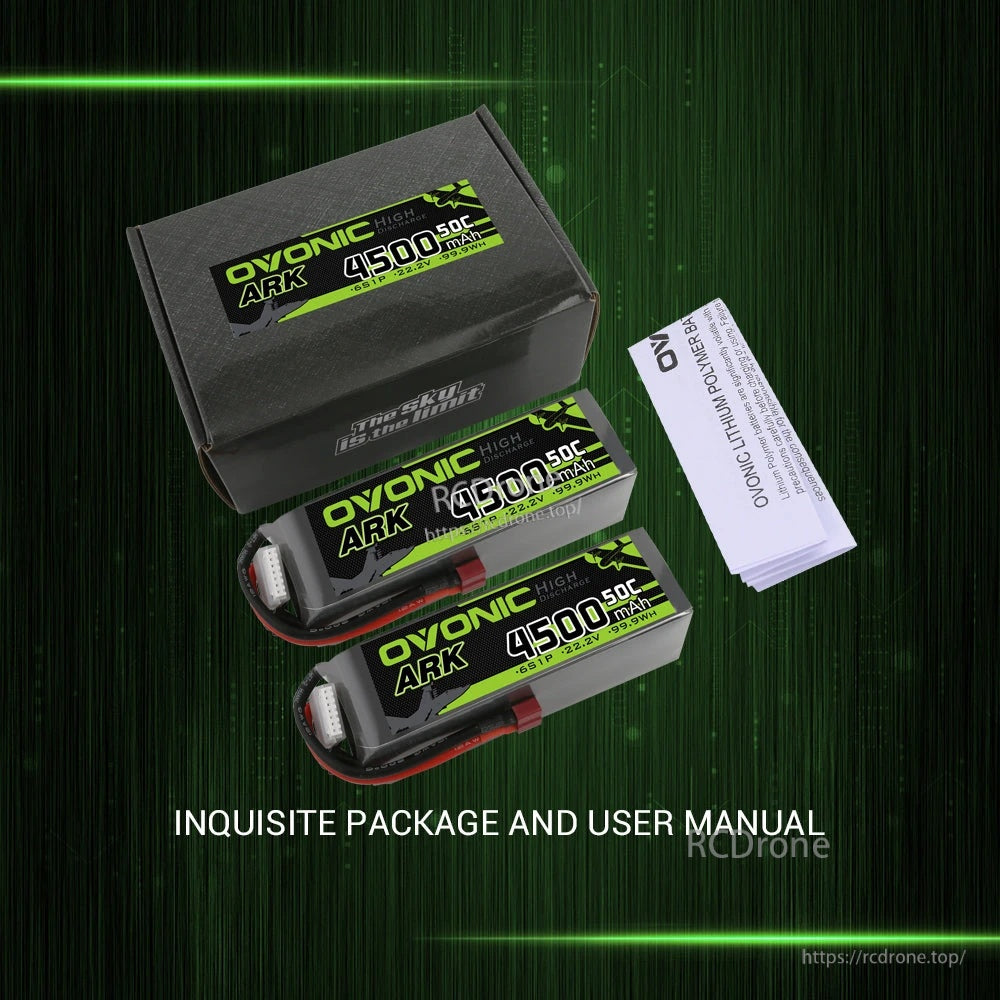

Each set includes two 6S 4500mAh packs and a printed user manual for handling and charging guidance.

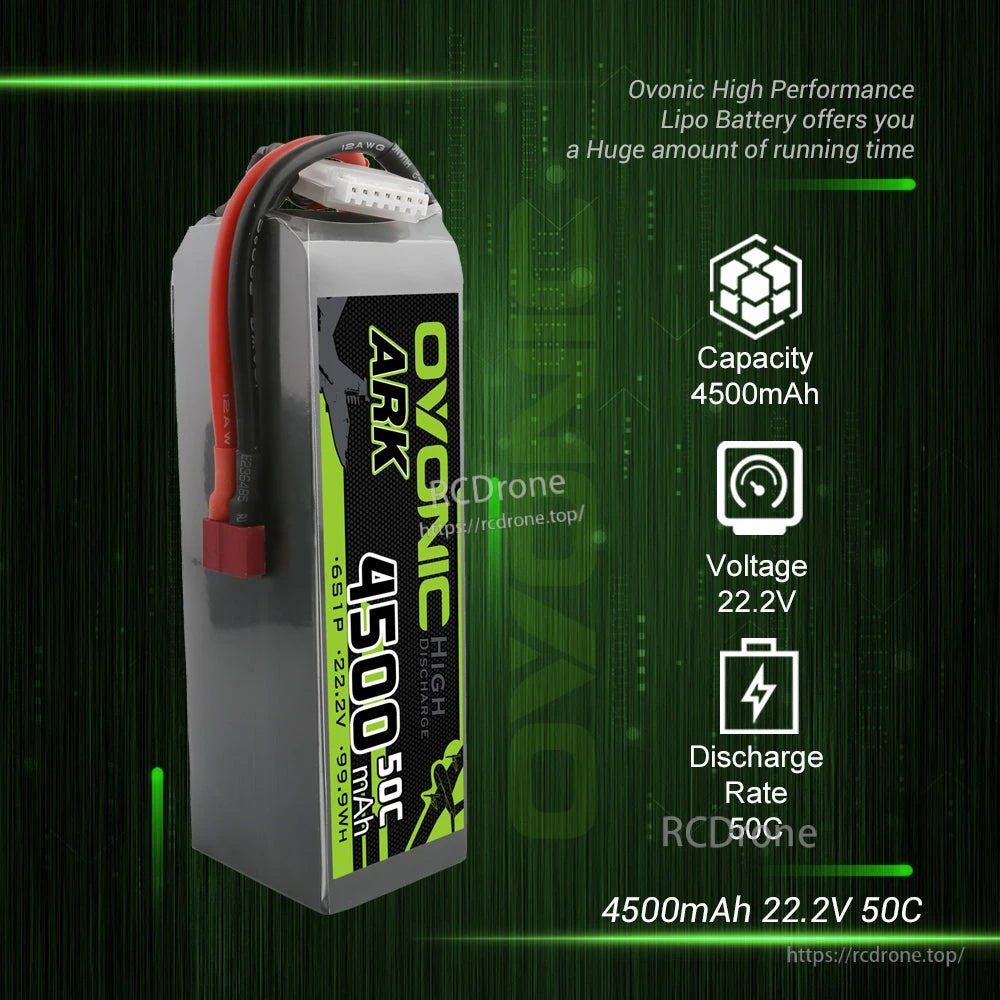

A 6S1P 22.2V pack rated at 4500mAh with a 50C discharge for high-demand RC aircraft and multirotor setups.

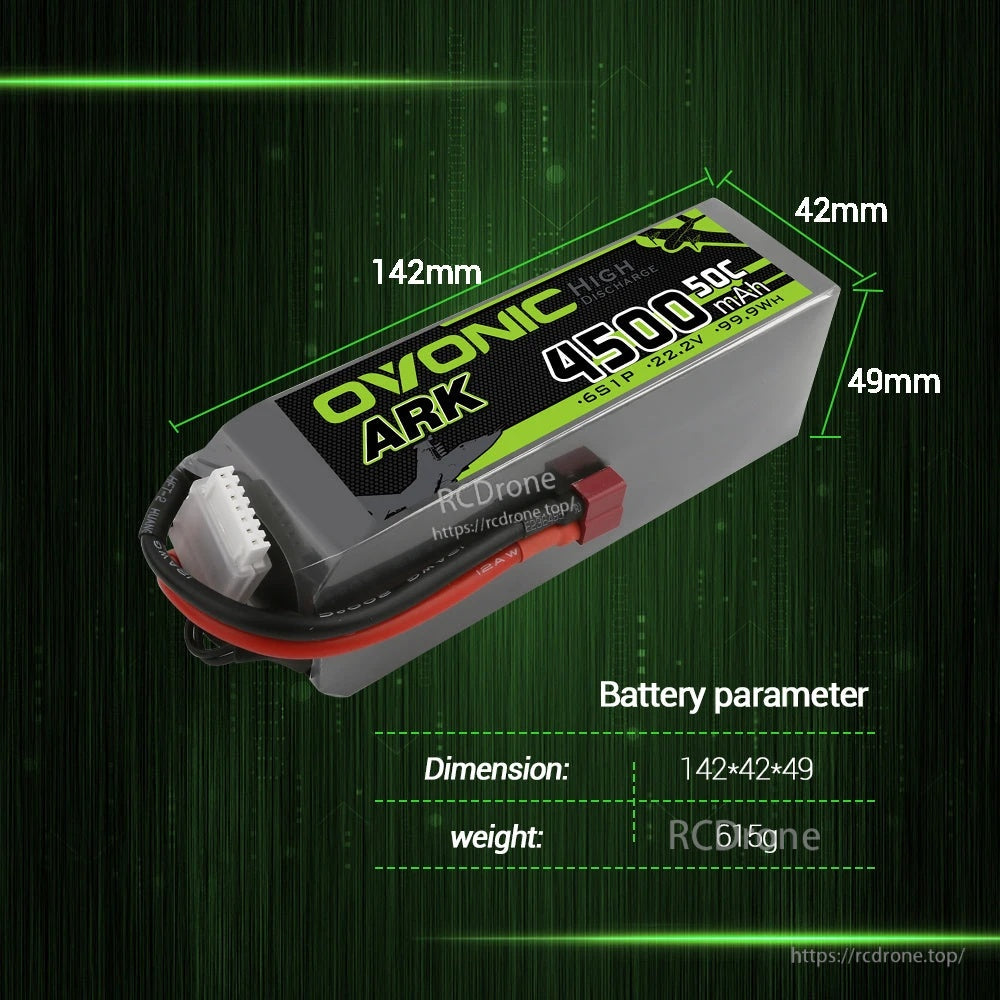

Compare the 142×42×49 mm size and 615 g weight to your model’s battery bay before ordering.

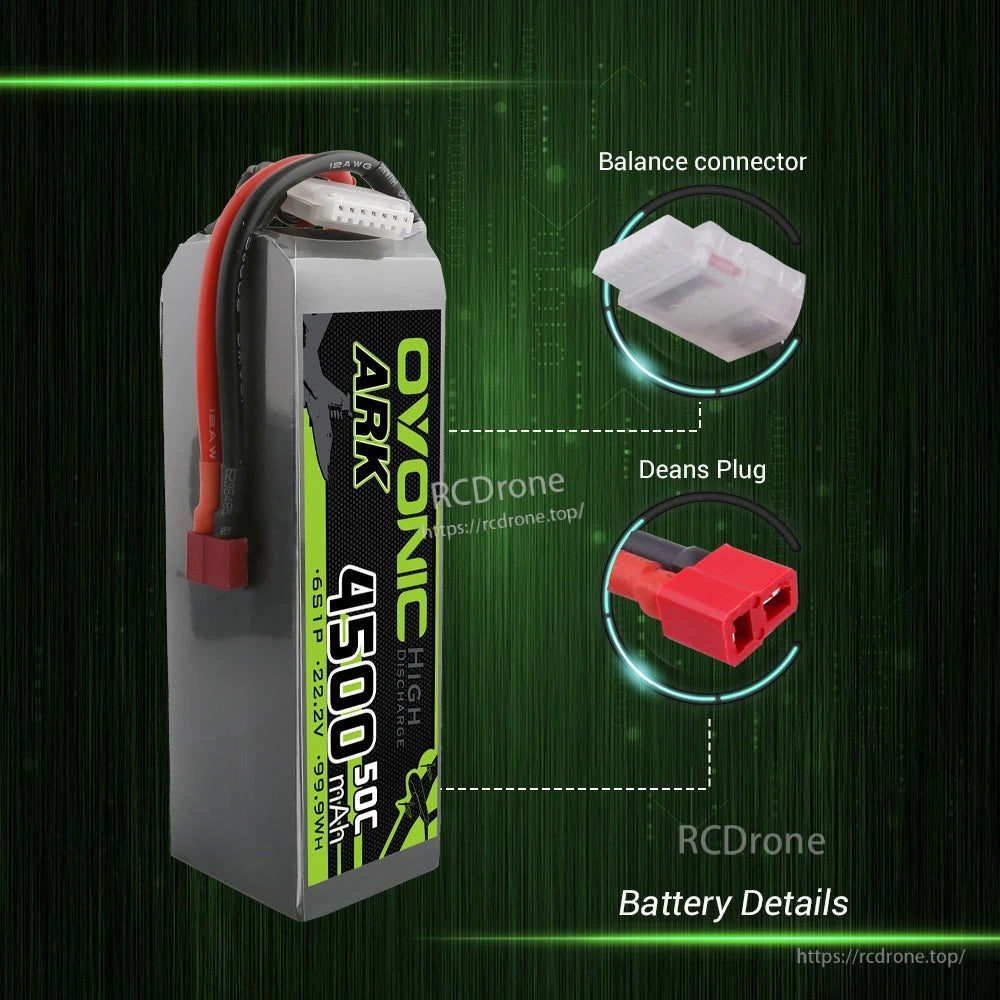

Deans (T) discharge connector and JST‑XH balance lead match many common RC chargers and power setups.
