CHIHAI 6–30V PWM Speed Controller for Brushless Motors with Built-In Driver

CHIHAI 6–30V PWM Speed Controller for Brushless Motors with Built-In Driver

CHIHAI MOTOR

नियमित रूप से मूल्य $17.15 USD
नियमित रूप से मूल्य विक्रय कीमत $17.15 USD
बिक्री बिक गया
कर शामिल हैं. शिपिंग भुगतान के समय गणना की जाएगी।
Enclosure
पूरी जानकारी देखें

Overview

The CHIHAI MOTOR6–30V PWM motor controller adjusts the speed and direction of compatible brushless DC motors that already contain their own commutation driver. A rotary knob provides stepless adjustment, with2kHz and20kHz PWM frequency settings. Choose the bare green board or the version with enclosure.

This board sends control signals and routes the motor supply. It is not a three-phase commutation ESC for an undriven brushless motor. Brake/stop control works only with a motor that supports the corresponding function.

Specifications

Parameter Value
Supply 6–30V DC; match the motor voltage
Bare board size 47×32mm; mounting-hole spacing reference40mm
Bare board net mass Approximately17g
Speed adjustment Stepless rotary-knob PWM control
PWM frequency 2kHz or20kHz; default20kHz
Frequency jumper Two pins near terminals:20kHz; two pins near speed knob:2kHz
Controls Speed knob, stop button and direction-change button

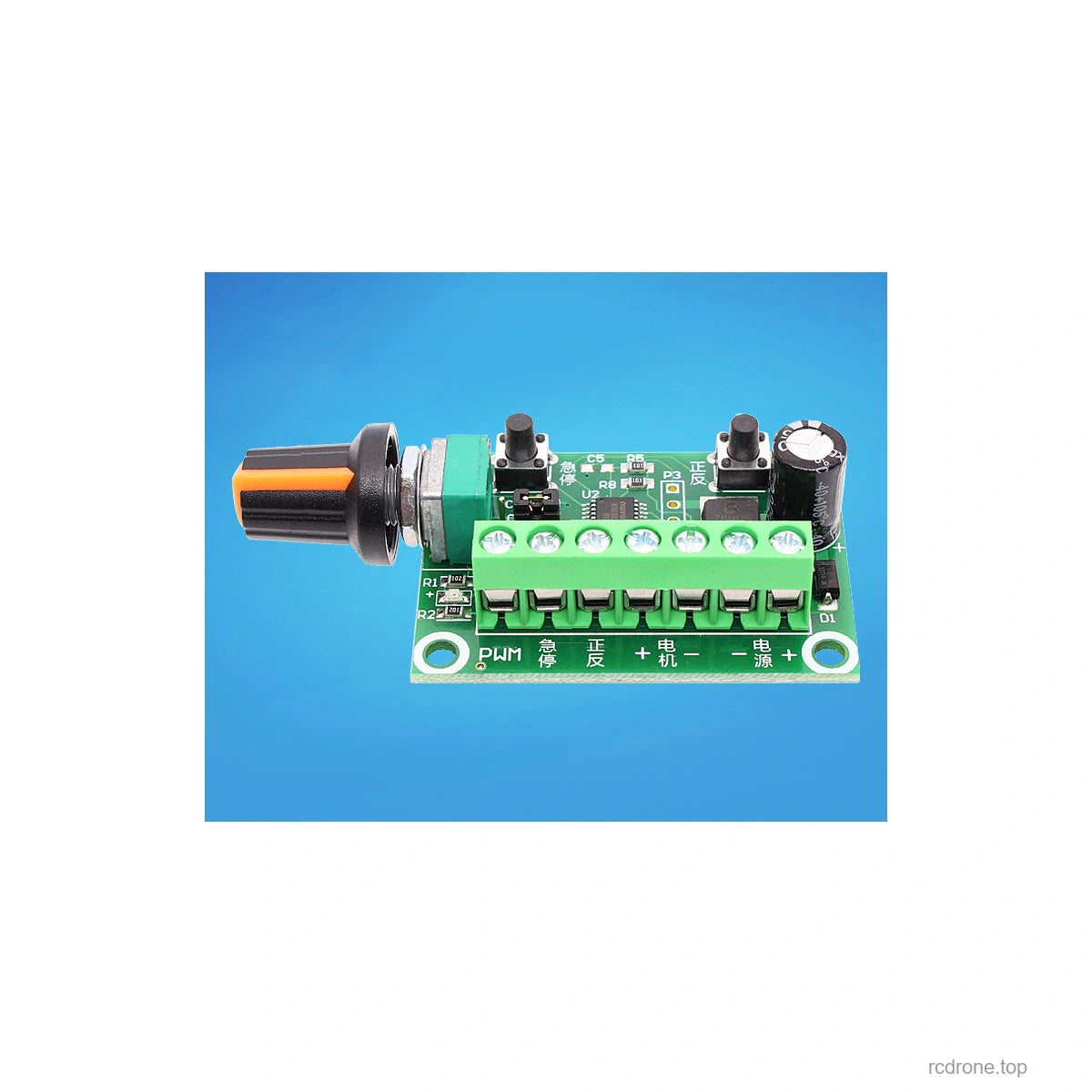

Controls and Connection

Connect a suitable DC supply to Power+ and Power−, and the motor supply leads to Motor+ and Motor−. Connect the compatible motor's control leads to PWM and CW/CCW as shown below. The button nearer the knob is the stop control; the button nearer the capacitor changes direction. Stop the motor before reversing direction or changing connections.

Never reverse the board supply polarity. Incorrect supply connection can damage the controller. Do not connect AC mains. The board does not measure FG speed-feedback signals: isolate the unused FG lead and keep it disconnected from controller terminals. Verify voltage, motor current demand and wiring compatibility before installation; a controller current or power rating is not specified here.

Motor-Family Wiring References

The speed-control and brake arrangements below are alternatives. In the illustrated brake arrangement, speed regulation is unavailable. Motor support for braking and direction is required; the board does not add these capabilities to every brushless motor.

BLDC2418 / BLDC2430 / BLDC838 silver-housing references

Controller terminal Speed-control mode Brake-mode alternative
Power V+ / V− DC supply positive / negative,6–30V within motor limits
Motor VCC+ / GND− Motor red supply lead / black supply lead
CW/CCW Yellow motor direction lead
BRAKE Leave unconnected Blue motor control lead
PWM Blue motor speed-control lead Leave unconnected

Green FG feedback lead: leave unconnected to this controller. Motor lead colors apply only to the stated motor reference; verify the actual motor diagram.

BLDC2418 black-housing6V reference

Controller terminal Speed-control mode Brake-mode alternative
Power V+ / V− DC supply positive / negative,6–30V within motor limits
Motor VCC+ / GND− Motor red supply lead / black supply lead
CW/CCW Orange motor direction lead
BRAKE Leave unconnected White motor control lead
PWM White motor speed-control lead Leave unconnected

Yellow FG feedback lead: leave unconnected to this controller. Motor lead colors apply only to the stated motor reference; verify the actual motor diagram.

BLDC3525 / BLDC2838 / BLDC3650 / BLDC4260 black-housing references

Controller terminal Speed-control mode Brake-mode alternative
Power V+ / V− DC supply positive / negative,6–30V within motor limits
Motor VCC+ / GND− Motor red supply lead / black supply lead
CW/CCW White motor direction lead
BRAKE Leave unconnected Blue motor control lead
PWM Blue motor speed-control lead Leave unconnected

Yellow FG feedback lead: leave unconnected to this controller. Motor lead colors apply only to the stated motor reference; verify the actual motor diagram.

Applications

Use this controller with compatible internally driven brushless motors or suitable brushless fans for manual speed adjustment in small mechanisms. Confirm the actual motor pinout and supported PWM/brake behavior; model-family examples do not guarantee compatibility with all versions.

What's Included

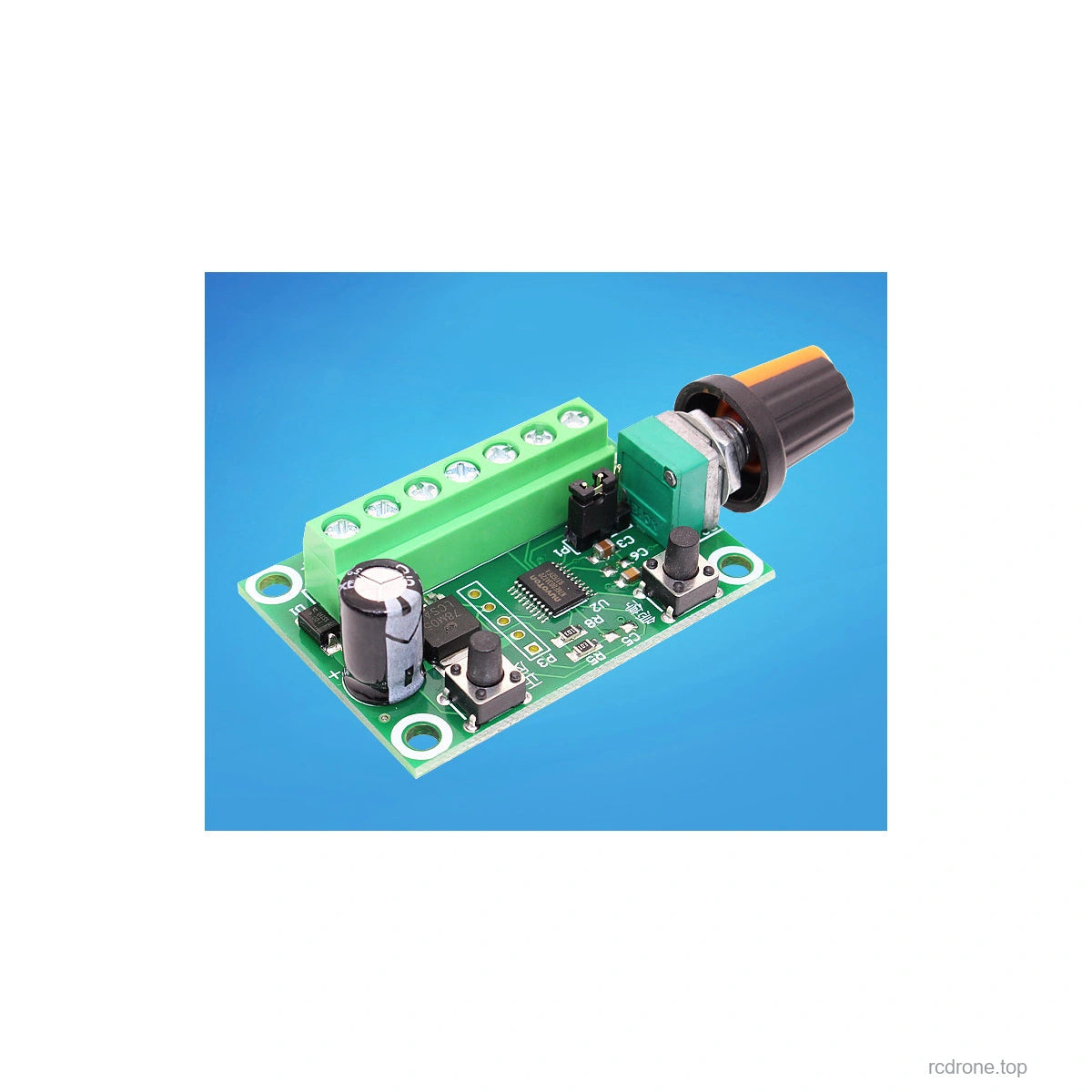

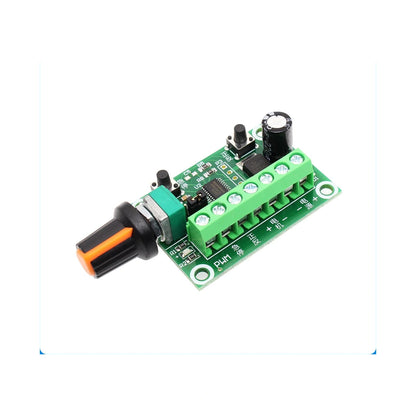

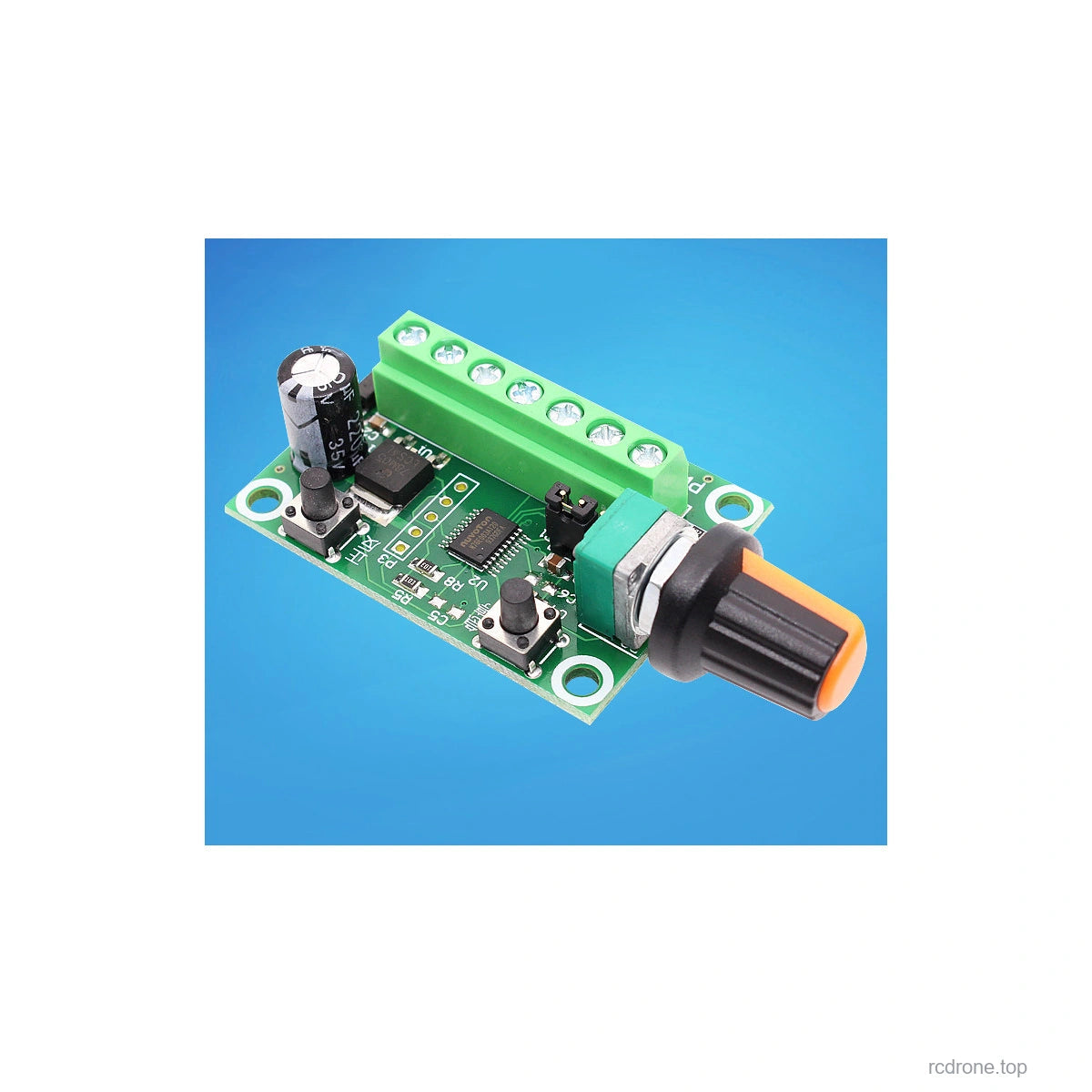

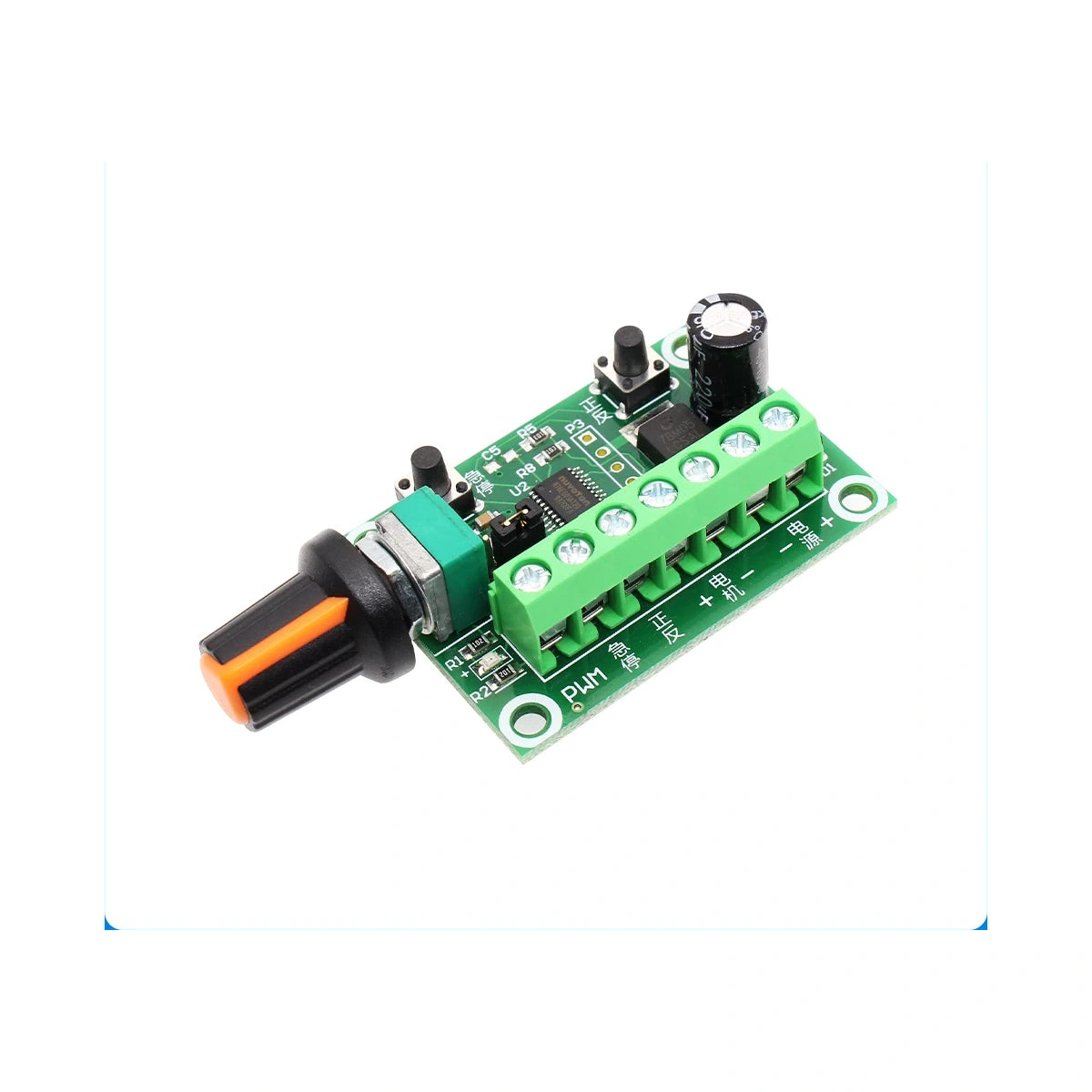

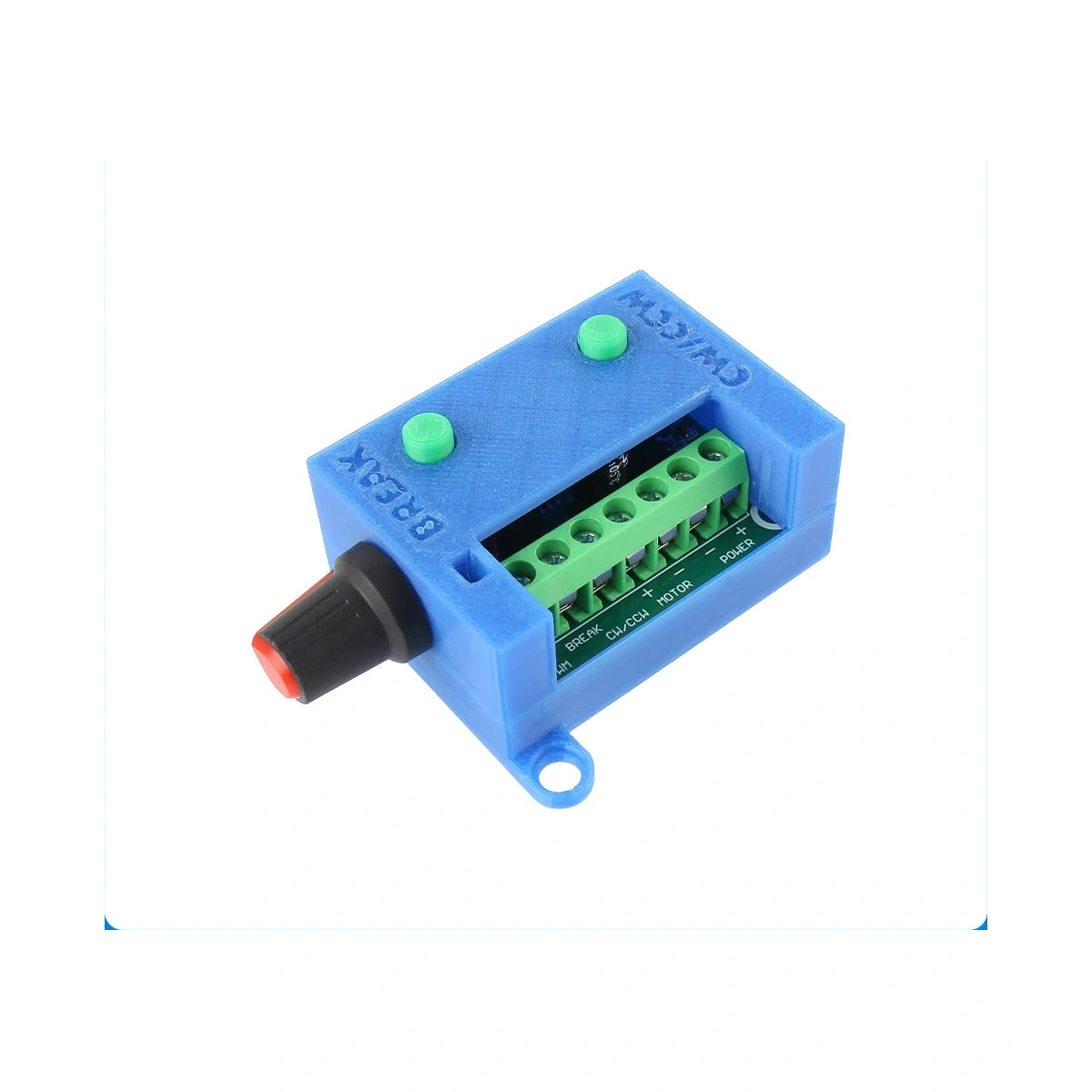

One PWM controller in the selected Bare Board or With Enclosure version. The enclosure version includes its enclosure. Motor, power supply and external connection wiring are not included.

Visual Details

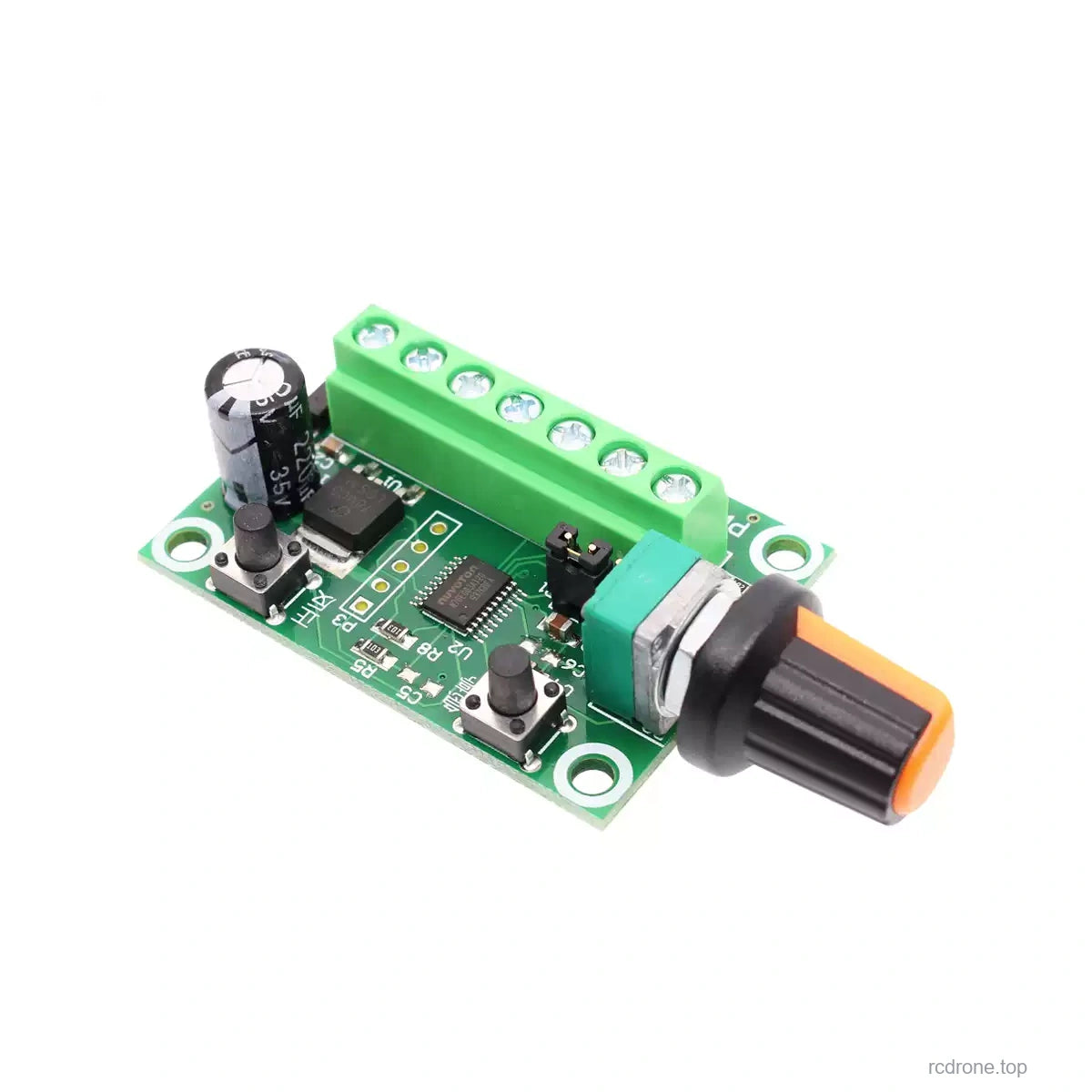

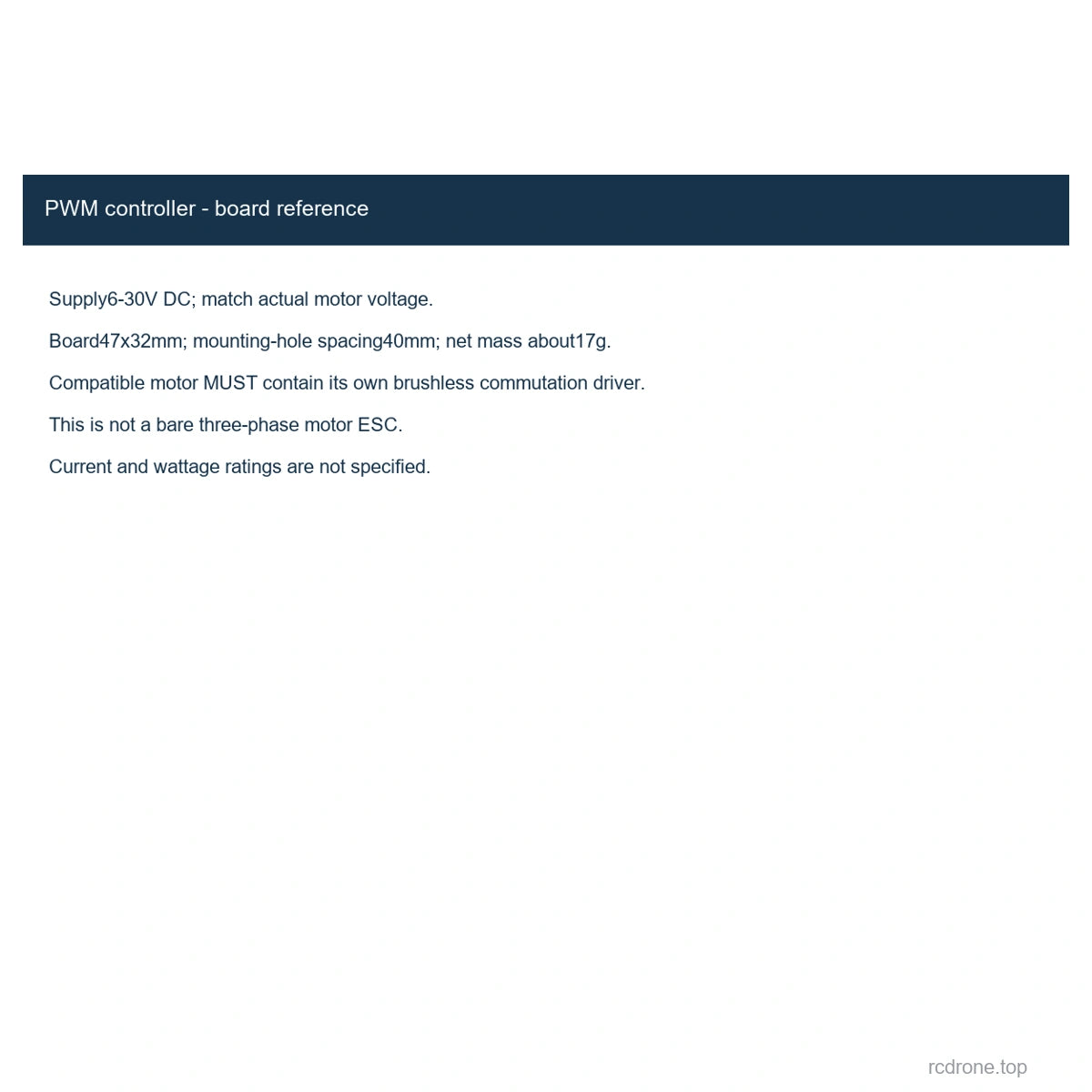

PWM controller - board reference
PWM controller - board reference

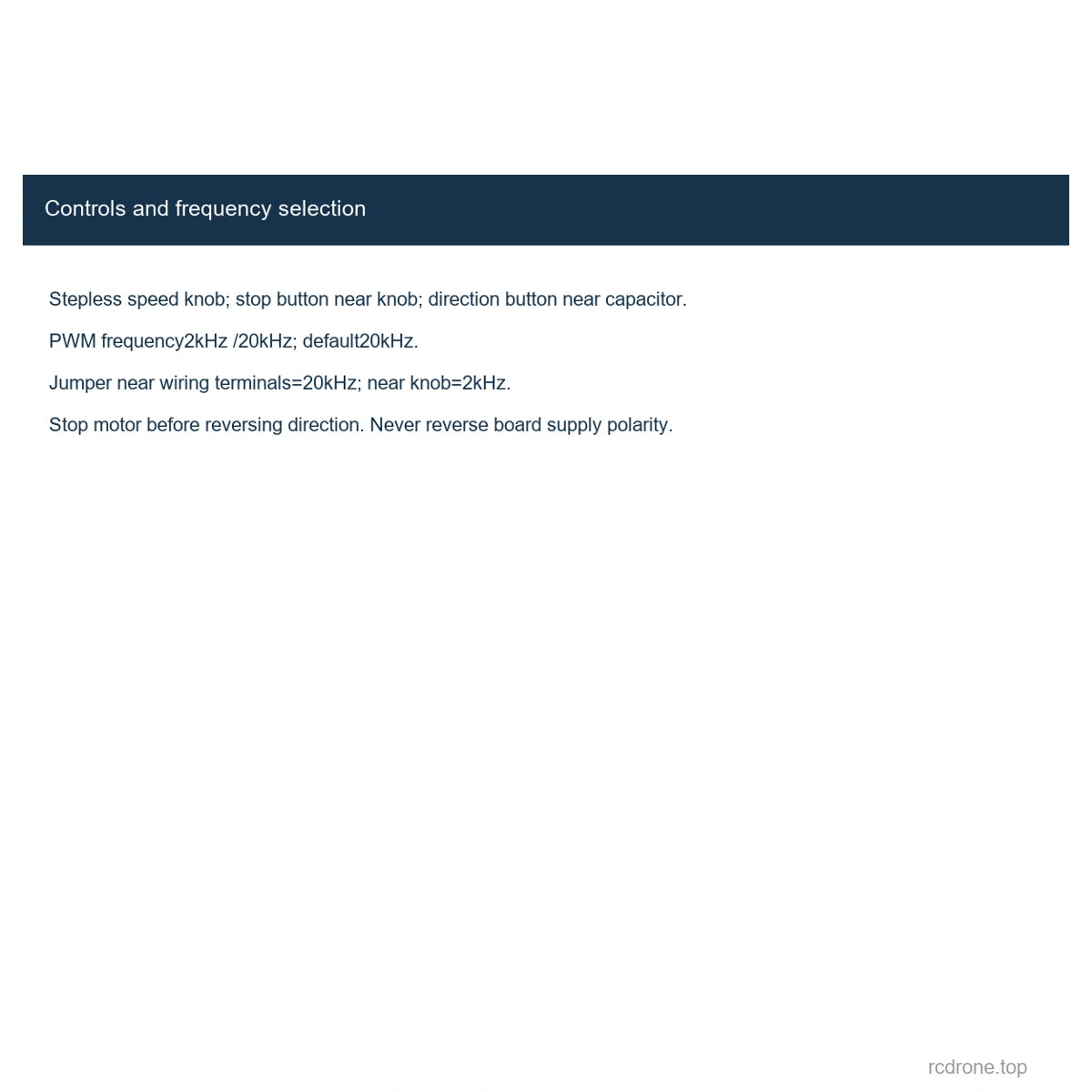

Controls and frequency selection
Controls and frequency selection

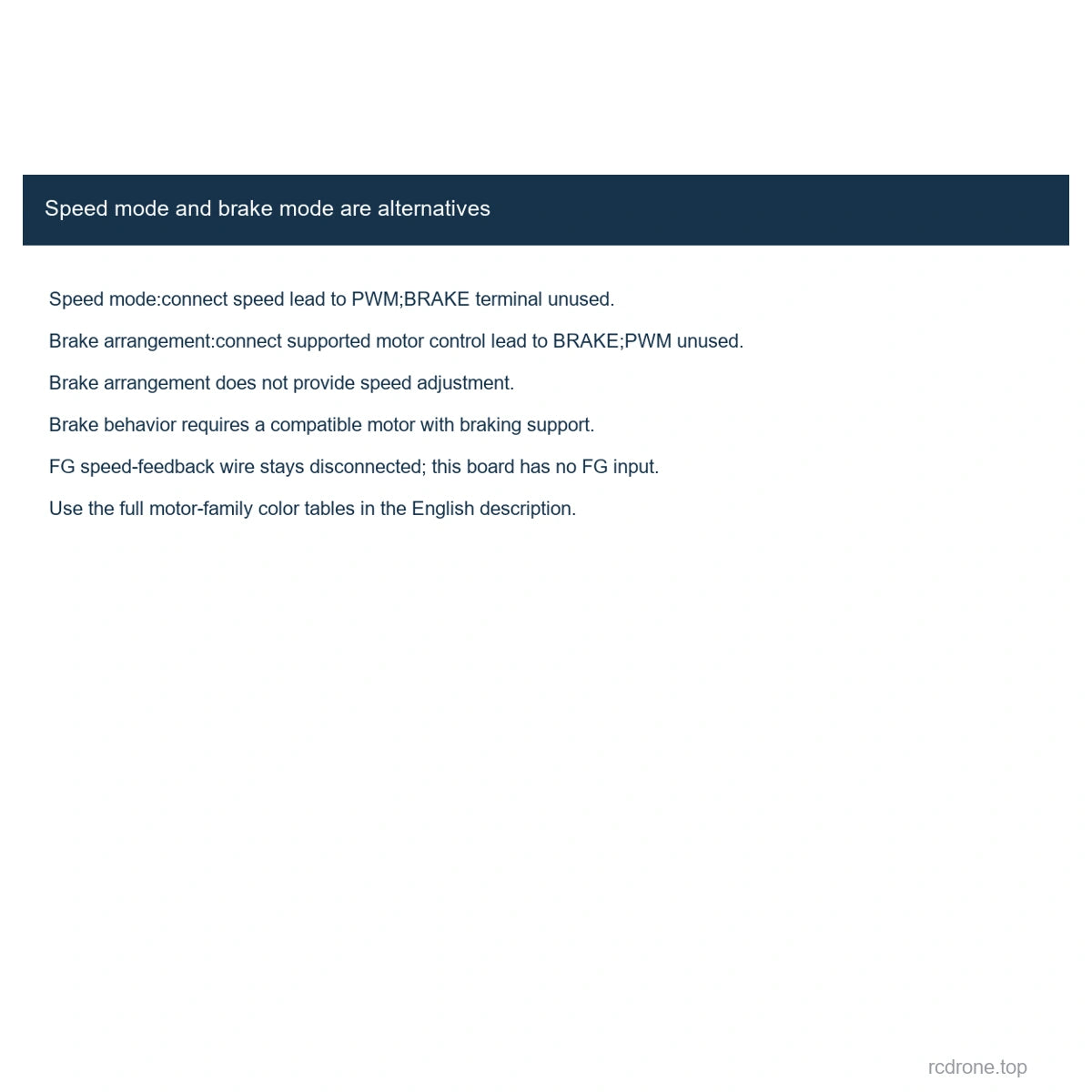

Speed mode and brake mode are alternatives
Speed mode and brake mode are alternatives
