Overview

The Kpower HB300T is a brushless servo motor for large-drone mechanisms, robotic actuation and industrial automation. It delivers 300 kg·cm stall torque and a no-load speed of 0.18 s/60° at 24 V. Steel gears and magnetic-encoder position sensing support controlled movement, while the 64 × 33 × 92.3 mm housing helps define installation space. Its operating voltage range is 24–32 V.

Features

Brushless motor with steel gears and magnetic-encoder position feedback.
Aluminum-alloy case with six ball bearings (6BB).

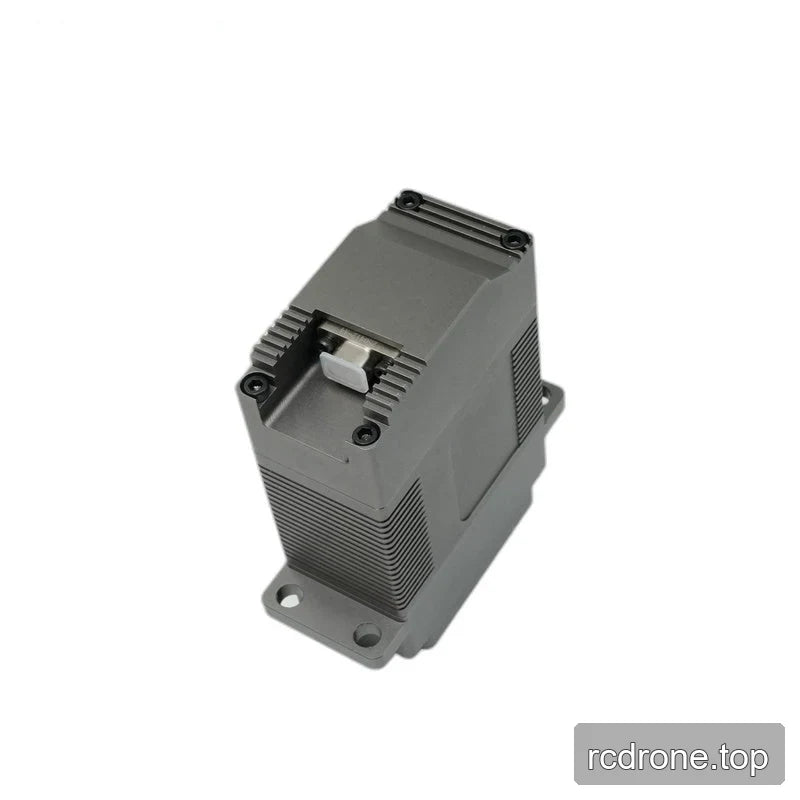

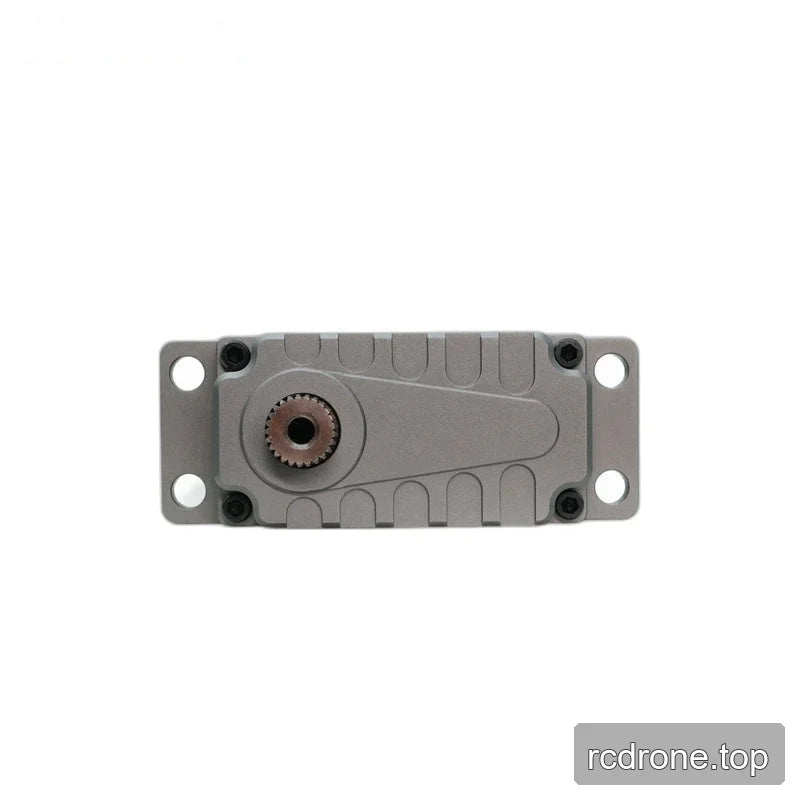

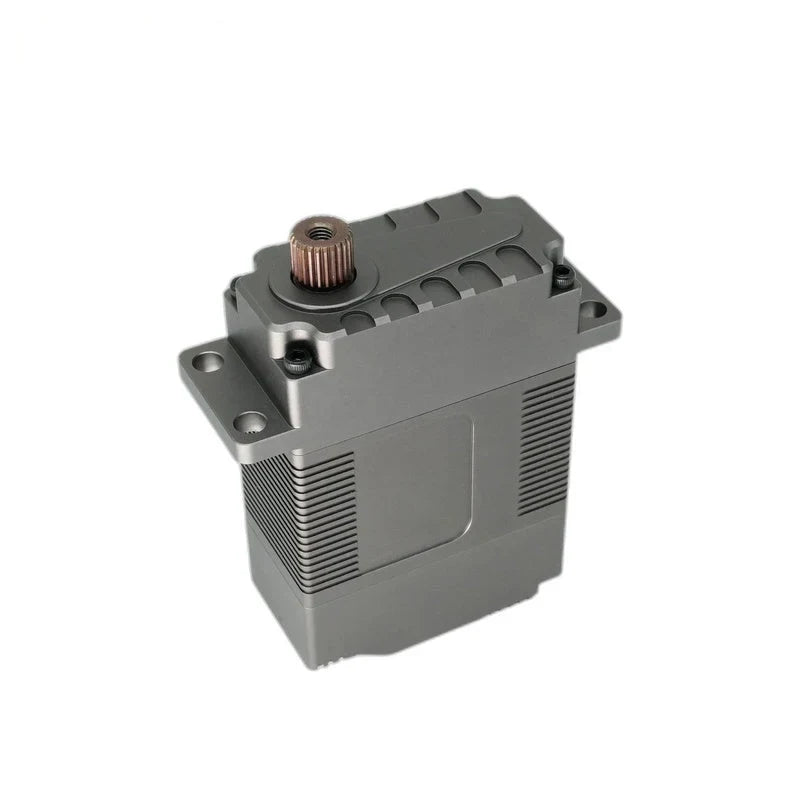

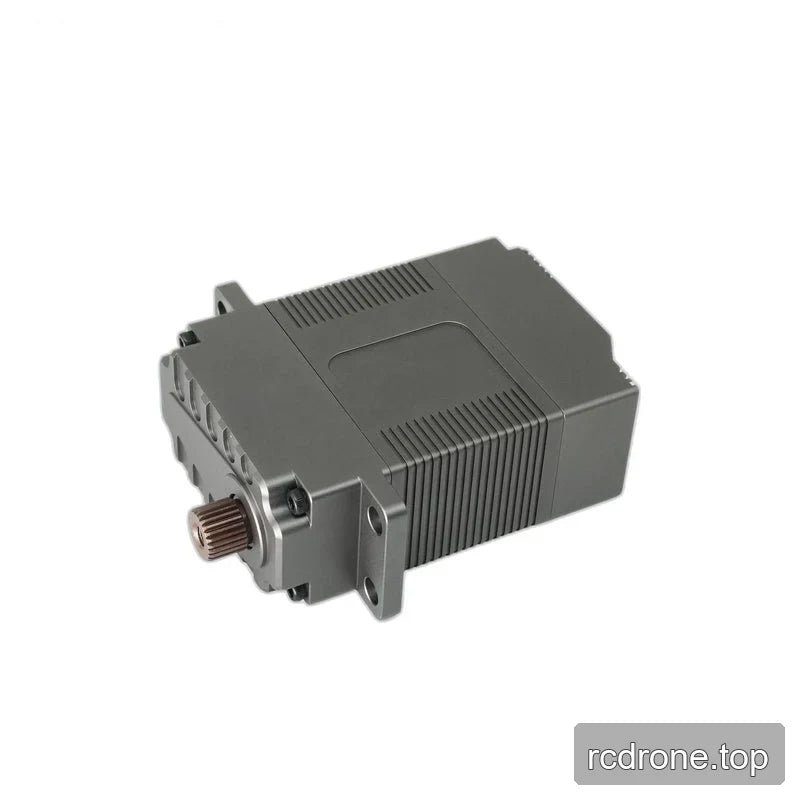

Splined output shaft with a central threaded opening and mounting flanges with fastening holes.
25T output spline with an 11.8 mm diameter.
PWM, TTL and RS-485 interfaces.
120° travel angle, with customization indicated for the travel range.

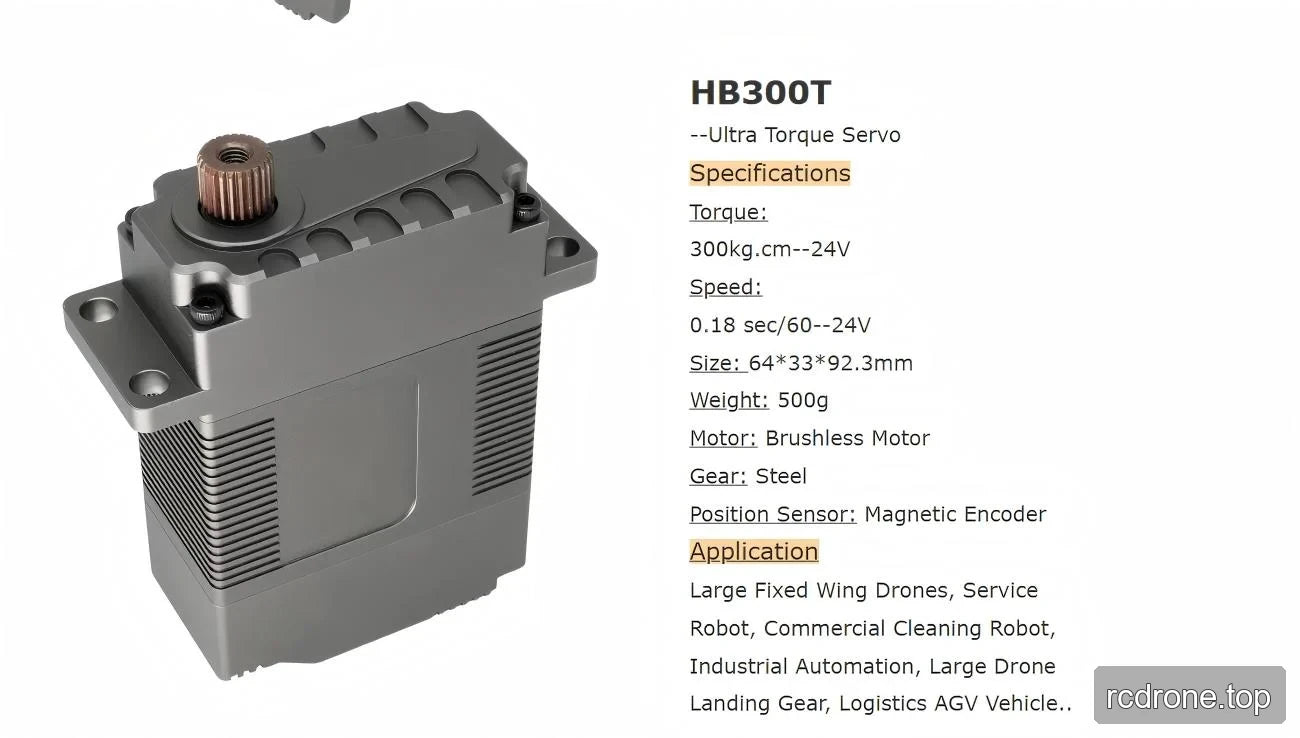

Specifications

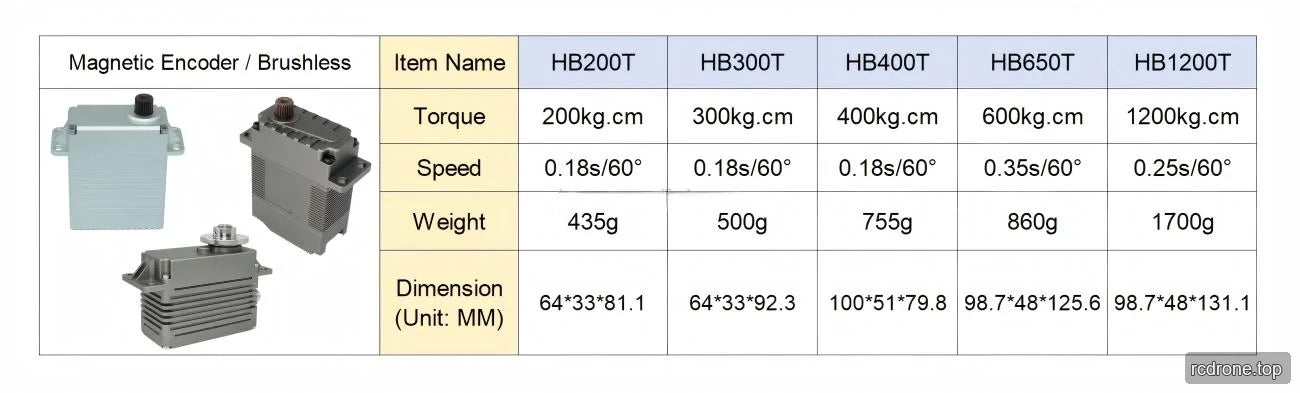

Parameter	HB300T
Brand	Kpower
Model / selected version	HB300T
Stall torque	300 kg·cm at 24 V
Rated torque	75 kg; torque-unit notation is incomplete
No-load speed	0.18 s/60° at 24 V
Weight	500 g

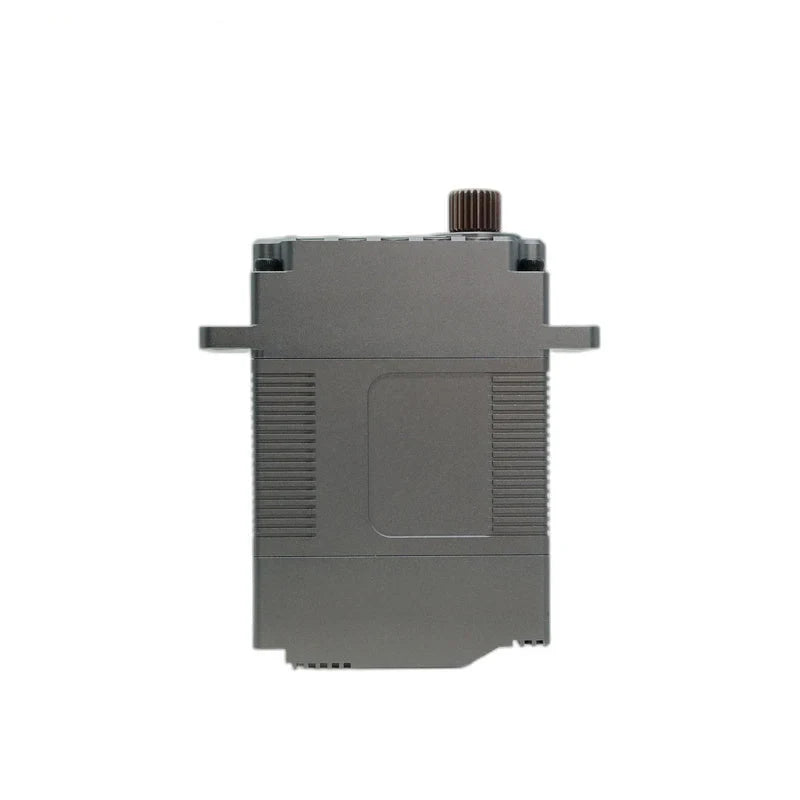

Dimensions	64 × 33 × 92.3 mm
Travel angle range	120°; customizable
Operating voltage	24–32 V
Horn gear spline	25T, Ø11.8 mm
Gear material	Steel
Motor	Brushless
Protocol / interface	PWM / TTL / RS-485
No-load current	6000 mA
Position sensor	Magnetic encoder
Case material	Aluminum alloy
Ball bearings	6BB

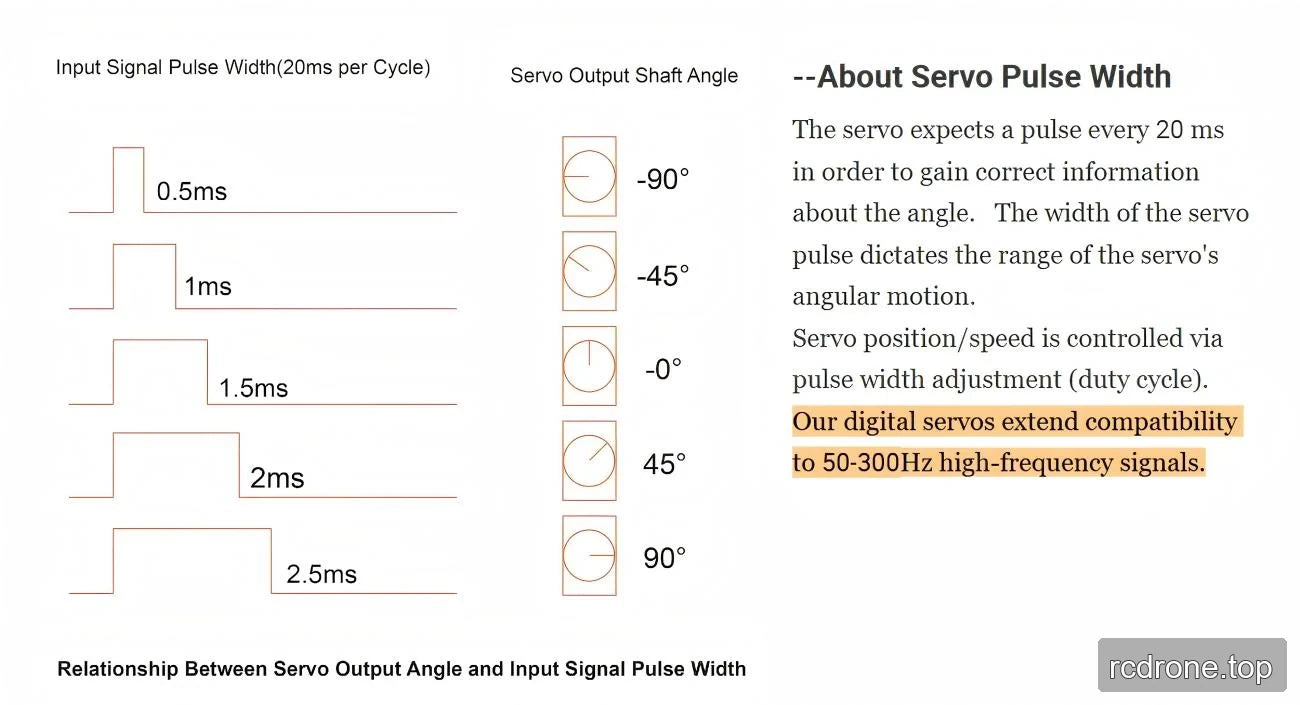

Working frequency	50–333 Hz
Operating temperature	−40 to 85 °C
IP rating	IP42

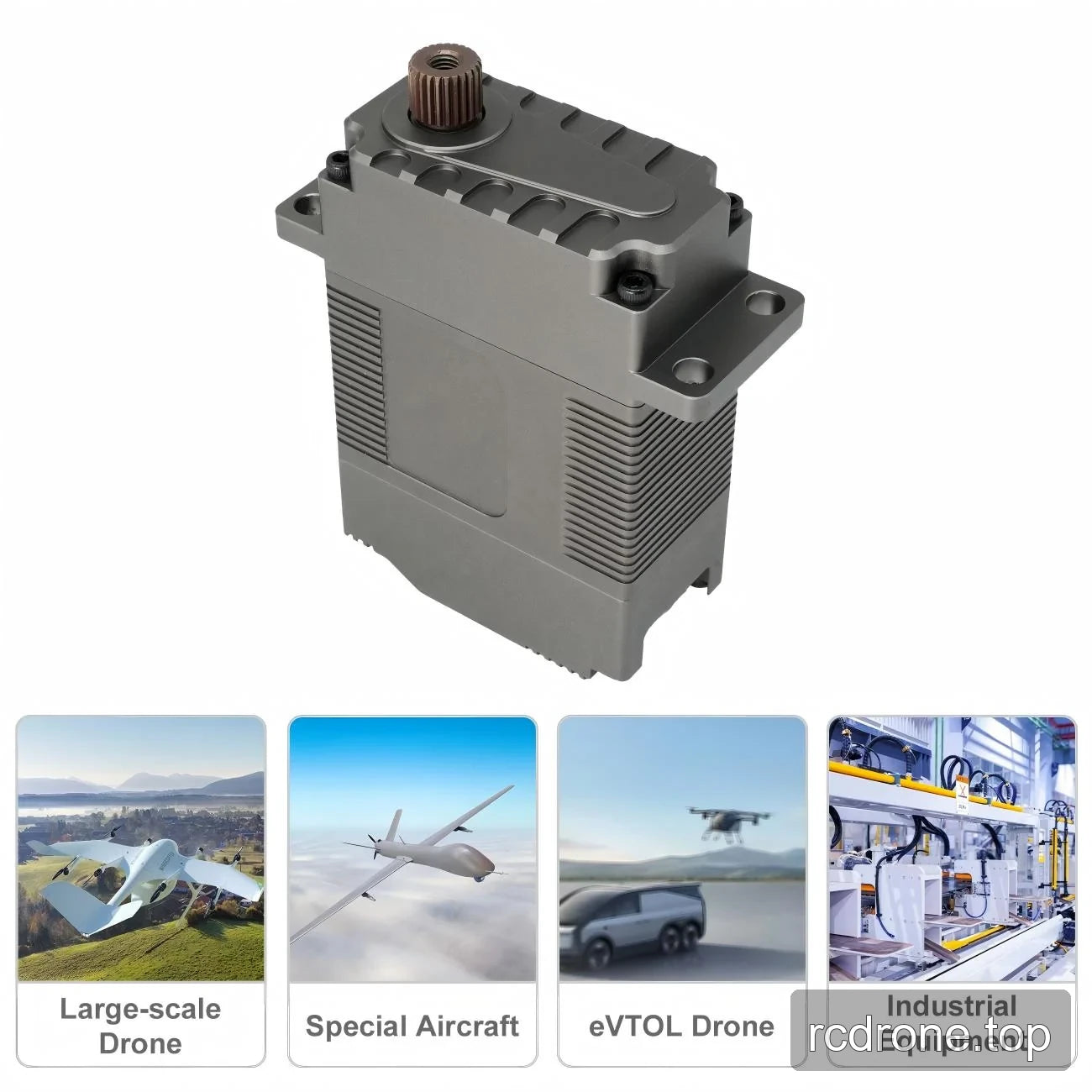

Applications

Large fixed-wing drone mechanisms: actuate control linkages using the HB300T's 300 kg·cm stall torque and 0.18 s/60° no-load speed at 24 V.
Large-drone landing gear: drive deployment and retraction linkages with a steel-geared servo and splined output connection.
Service and commercial cleaning robots: position articulated mechanisms using magnetic-encoder feedback.
Industrial automation: actuate positioning linkages using PWM, TTL or RS-485 control interfaces.
Logistics AGV vehicles: integrate servo-driven positioning mechanisms within the specified 24–32 V operating range.
