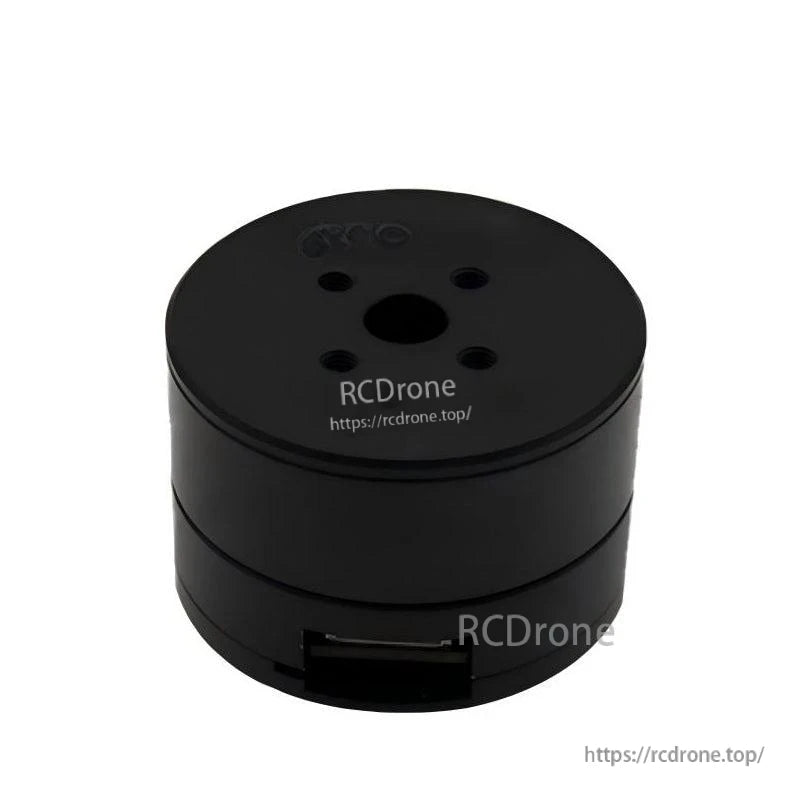

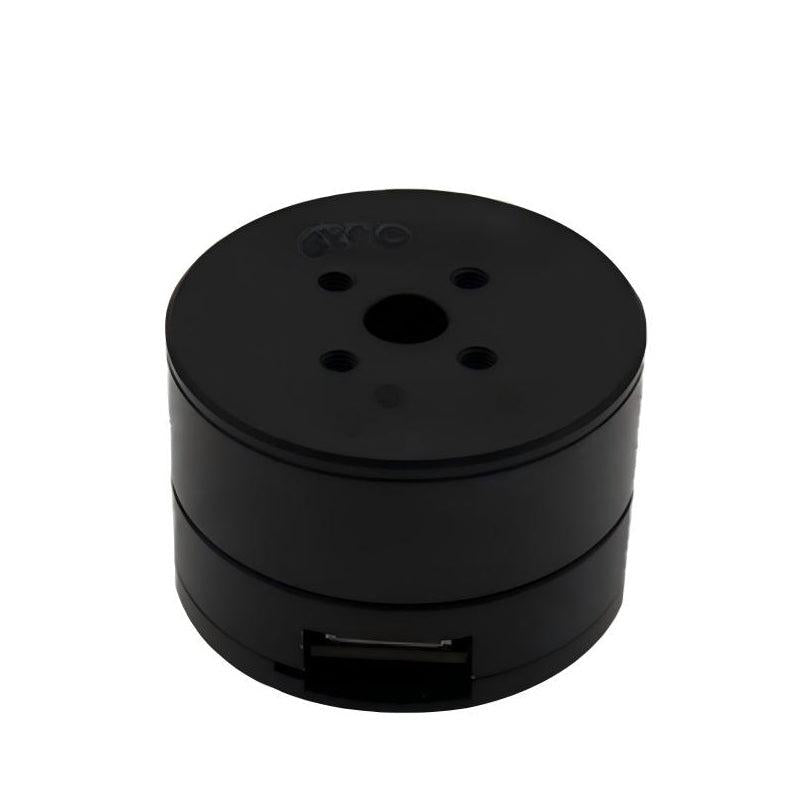

MUWEIDU L3025 Motor Mini Servo Motor 12V RS485 15-bit Encoder, Speed/Position Control, Φ30×25mm
MUWEIDU L3025 Motor Mini Servo Motor 12V RS485 15-bit Encoder, Speed/Position Control, Φ30×25mm
MUWEIDU
पिकअप उपलब्धता लोड नहीं की जा सकी
Overview
MUWEIDU L3025 Motor is a mini servo motor from the L Series of low-speed & high-precision brushless DC motors, designed for integrated electric drive applications that require stable and smooth operation. It supports speed/position control and RS485 communication, with a 15-bit encoder and built-in motor temperature monitoring.
Key Features
- Mini servo motors (L Series) for low-speed, high-precision position control
- Hollow-shaft design
- Stable & smooth operation
- CE certified (as stated on product material)
- Integrated high precision; lightweight construction; high torque performance (as stated on product material)
- Meets the requirements of low-speed and high-precision position control (as stated on product material)

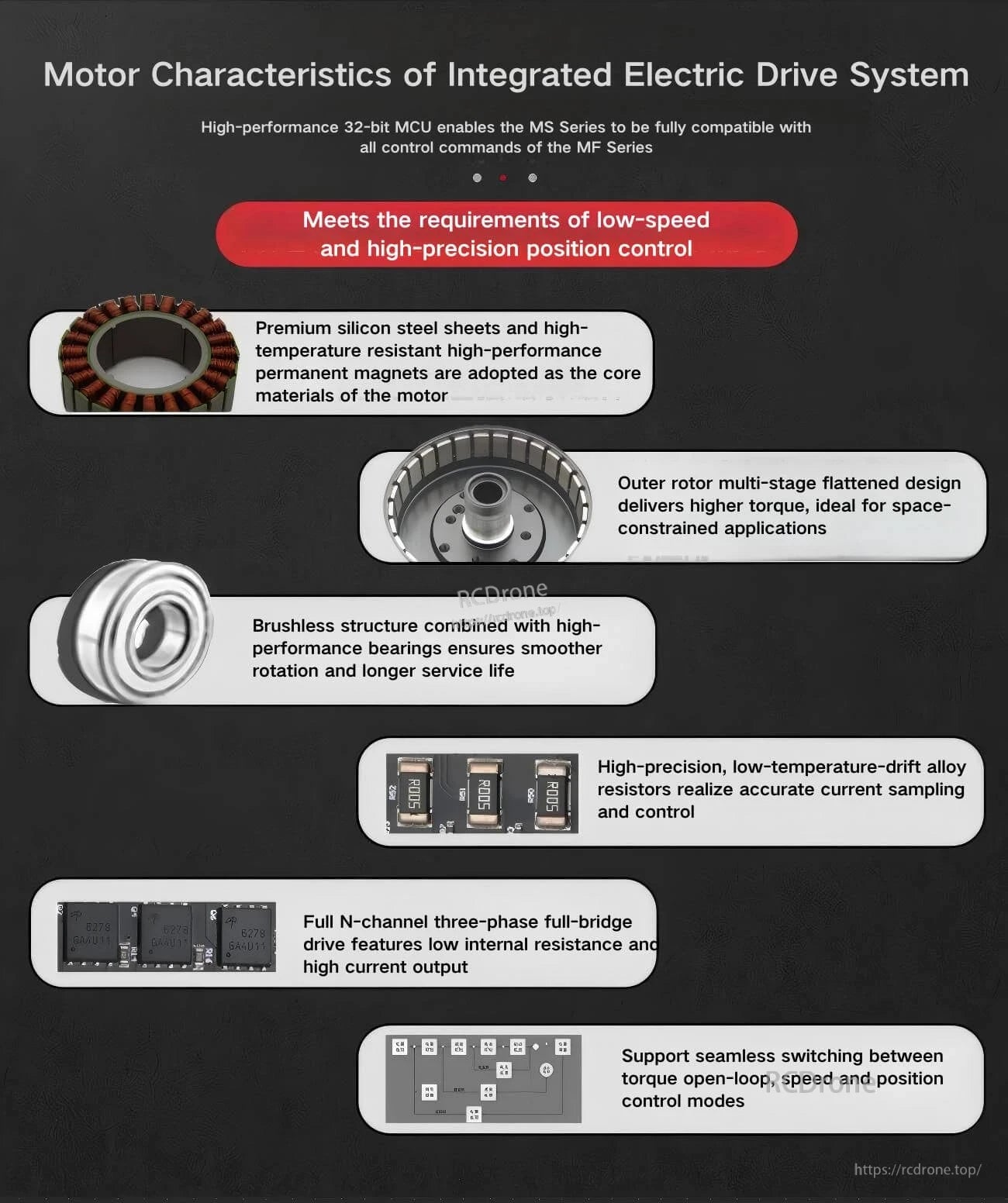

- Core motor materials (as stated on product material): premium silicon steel sheets and high-temperature resistant, high-performance permanent magnets
- Outer rotor multi-stage flattened design for higher torque in space-constrained applications (as stated on product material)
- Brushless structure with high-performance bearings for smoother rotation and longer service life (as stated on product material)
- High-precision, low-temperature-drift alloy resistors for accurate current sampling and control (as stated on product material)
- Full N-channel three-phase full-bridge drive with low internal resistance and high current output (as stated on product material)
- Supports seamless switching between torque open-loop, speed, and position control modes (as stated on product material)
Specifications
| Model | L3025 |
| Rated Voltage | 12V |
| Rated Current | 0.64A |
| Peak Power | 4.6W |
| Rated Torque | 0.04 N.m |
| Peak Torque | 0.09 N.m |
| Rated Speed | 1160 rpm |
| Encoder | 15-bit |
| Rotor Inertia | 35 gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 |
| Overall Dimensions | Φ30mm × 25mm |
| Weight | 49 g |
Interface (Pin Definition)
Interface definition notes (as stated on product material):
| B/L | RS485-B or CAN-L |
| A/H | RS485-A or CAN-H |
| V- | Negative power supply |
| V- | Negative power supply |
| V+ | Positive power supply |
| V+ | Positive power supply |
| T | UART transmitter |
| R | UART receiver |
| G | Signal GND |
Also shown: ID switch and CAN/RS485 connector.
Application Scenarios
- Humanoid robots
- Robotic arms
- Exoskeletons
- Quadruped robots
- AGV vehicles
- ARU robots
Documents
For technical support and pre-purchase questions, contact support@rcdrone.top or visit https://rcdrone.top/.
Details
The L3025 belongs to MUWEIDU’s low-speed, high-precision mini servo motor lineup with a hollow-shaft form factor for compact integration.
Core design elements focus on torque in tight spaces, smooth rotation, and accurate current sampling for stable speed/position control.
Wiring is simplified with clearly labeled power, RS485 A/B, UART TX/RX, signal ground, plus an onboard ID switch for multi-device setups.

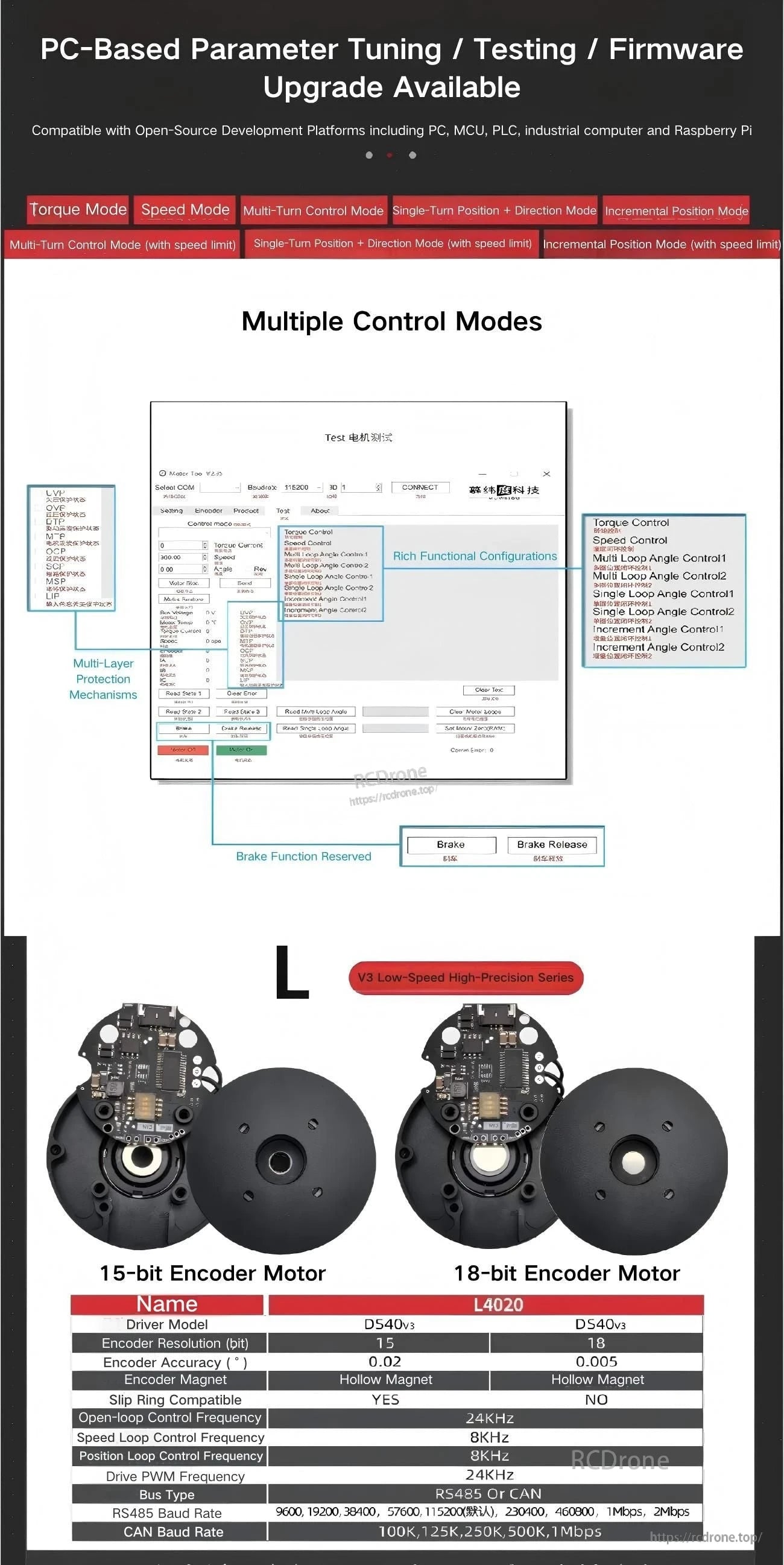

PC-side tools support parameter tuning, testing, and firmware updates, with multiple control modes available depending on configuration.
A compact servo form factor suits precision motion tasks such as gimbals, camera modules, and LiDAR/robot sensing platforms.
