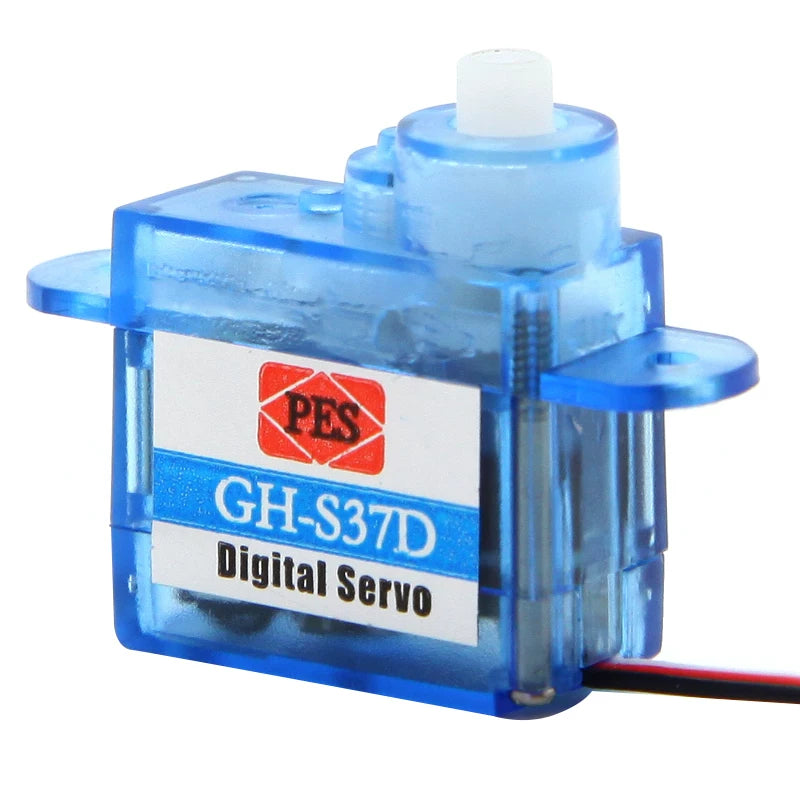

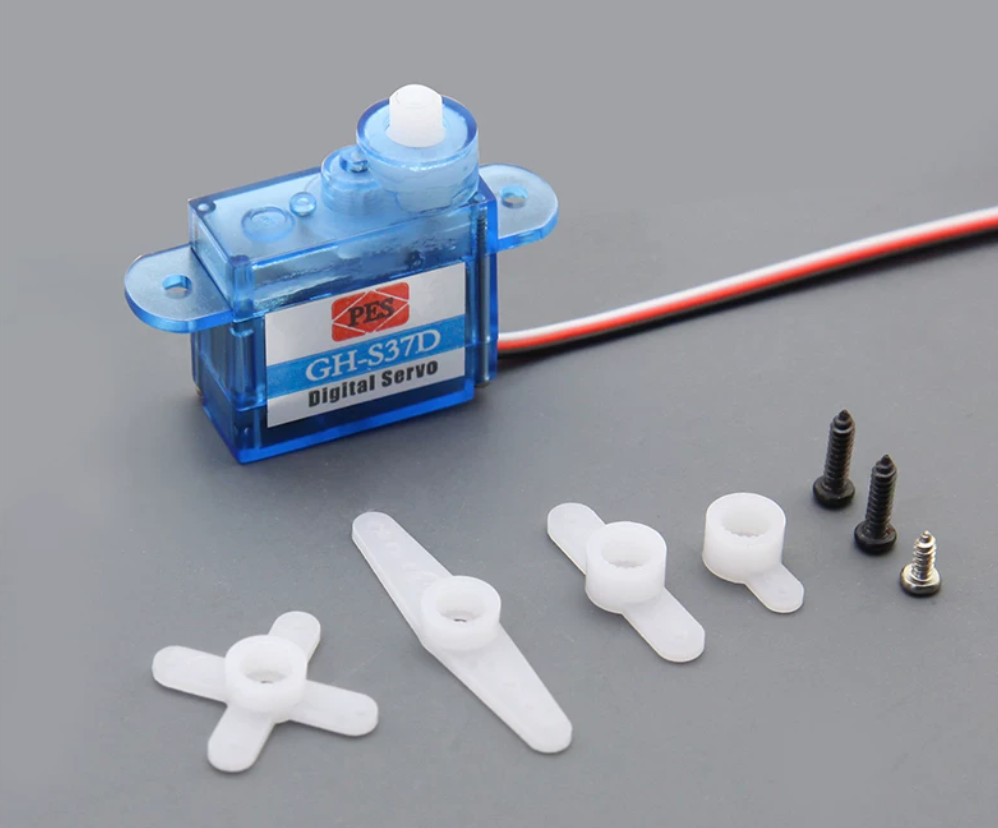

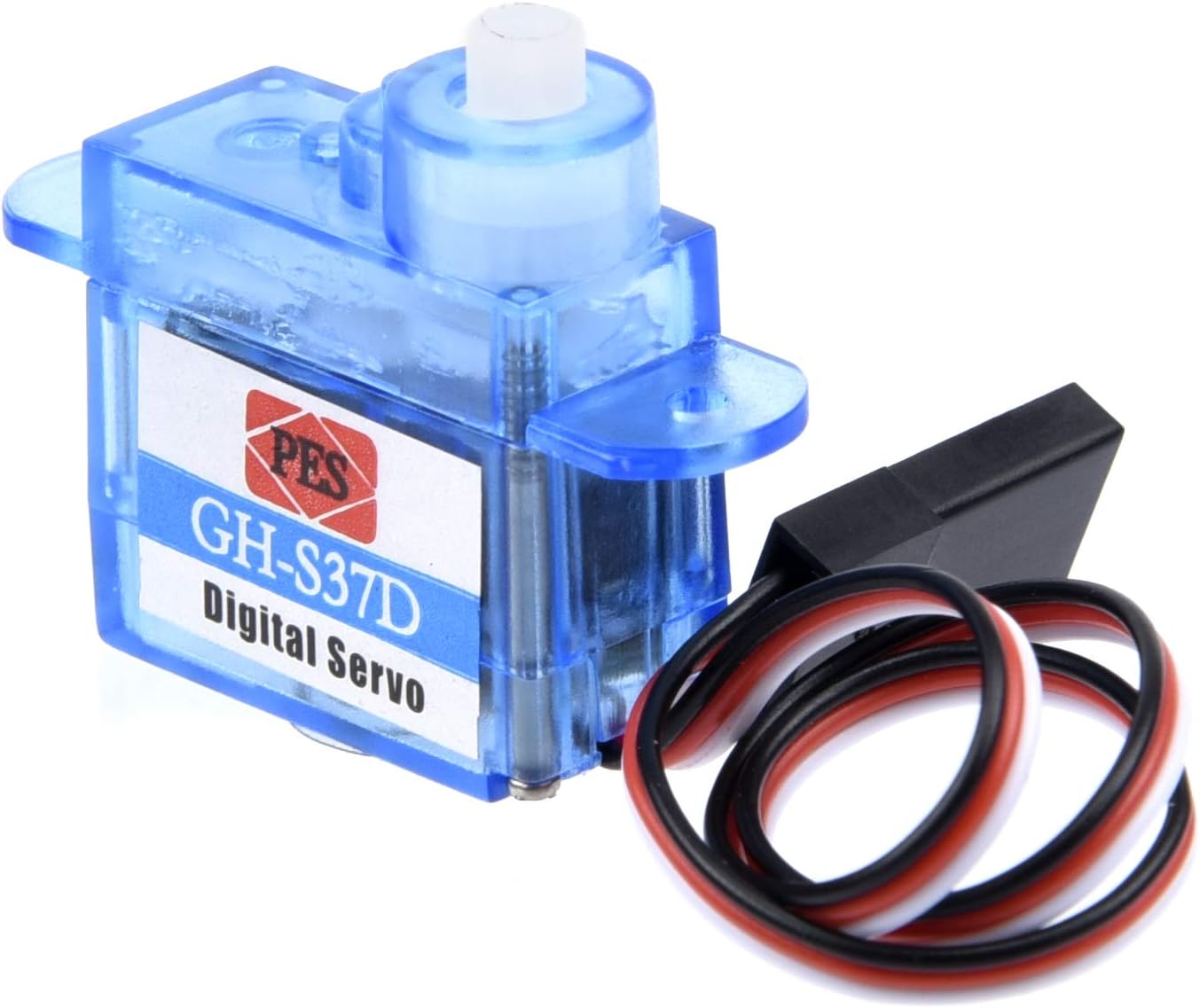

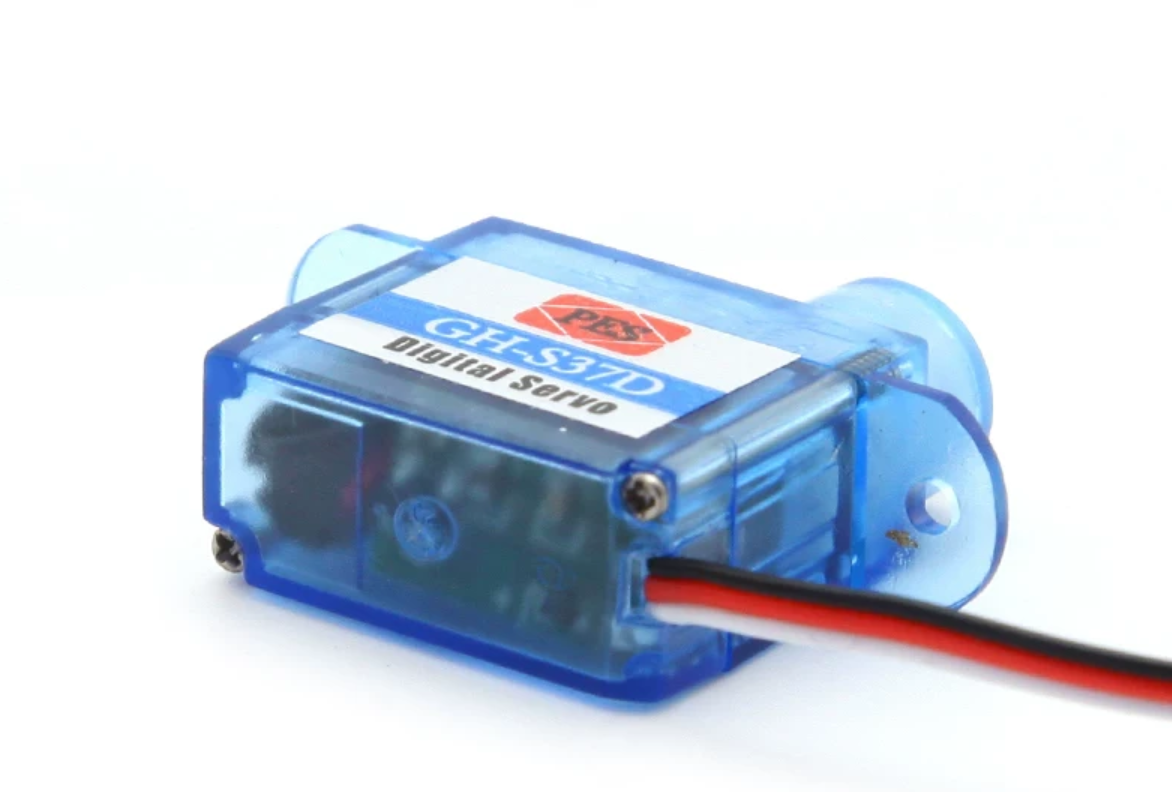

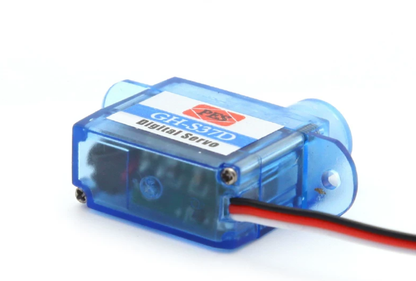

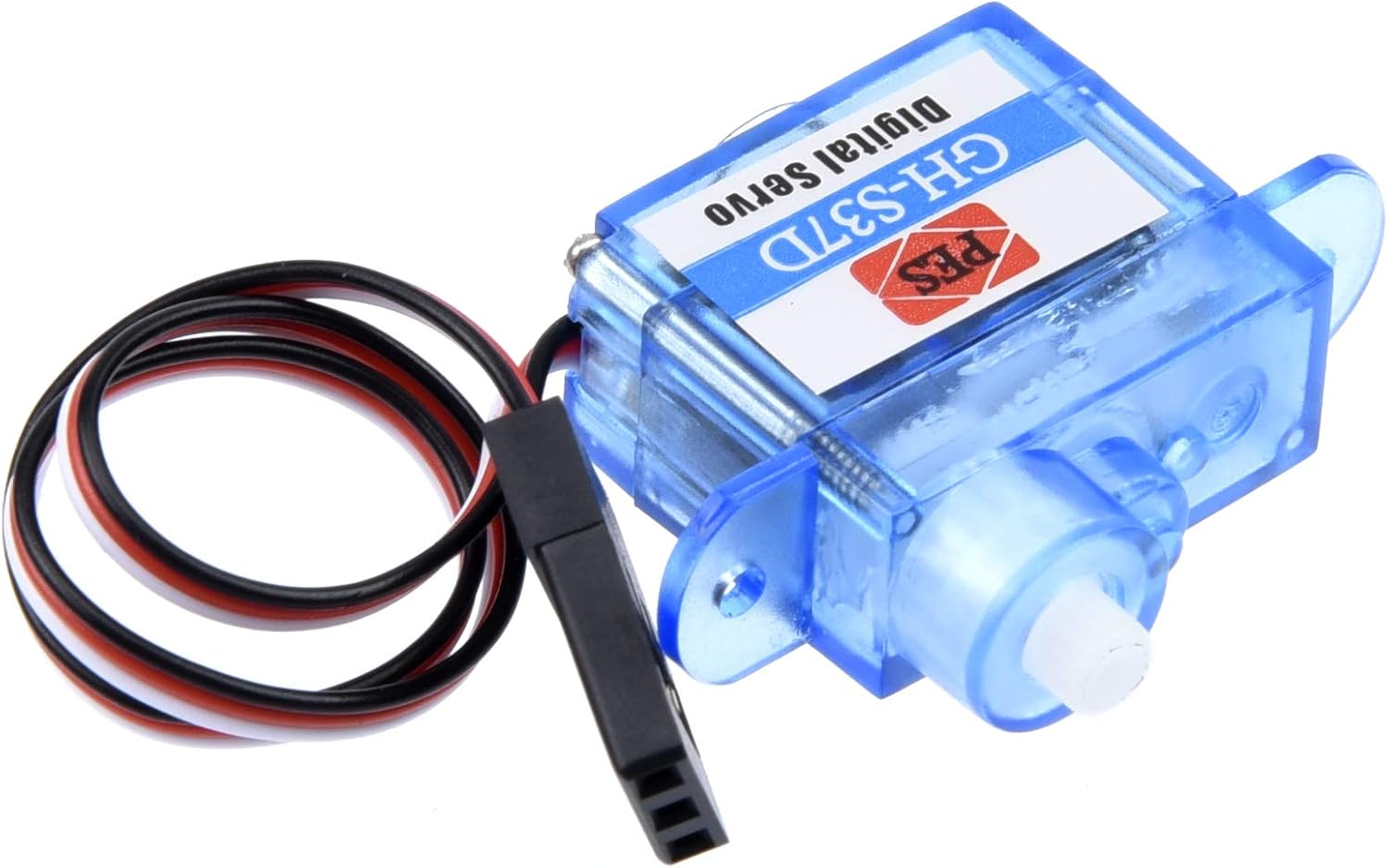

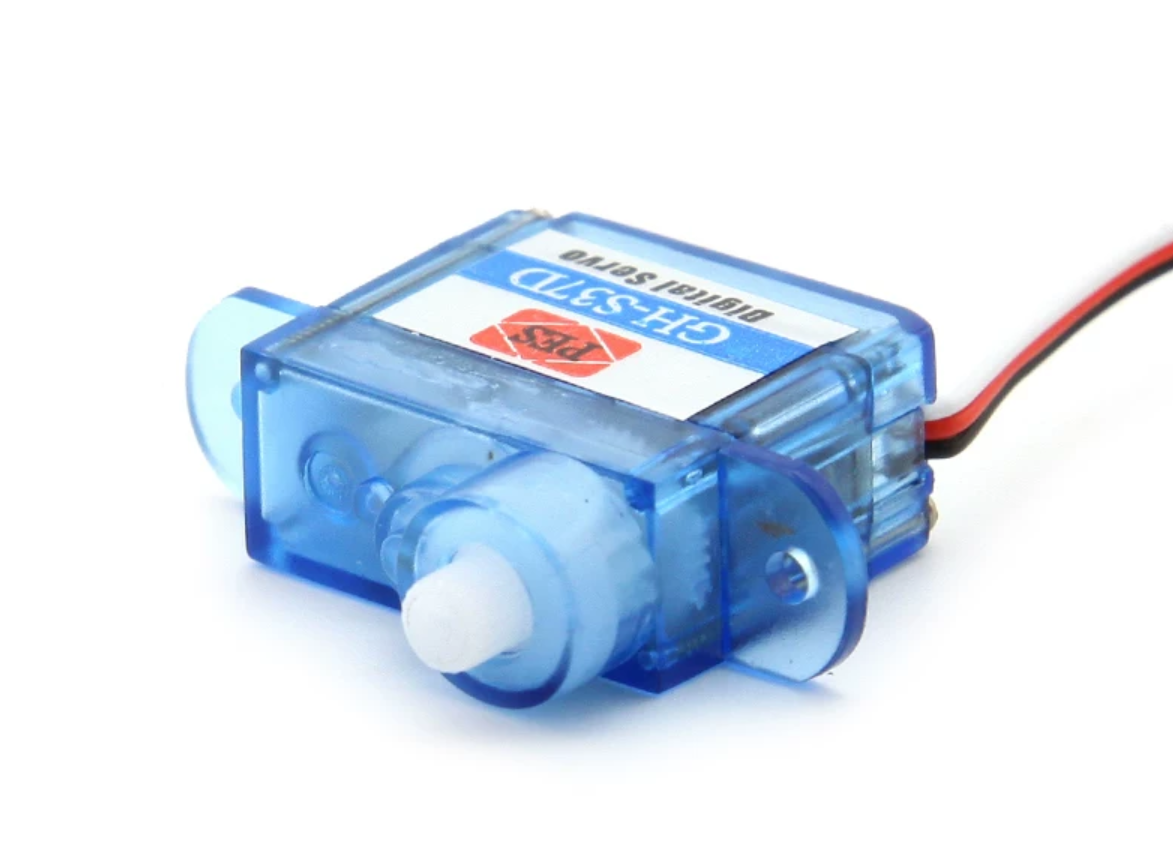

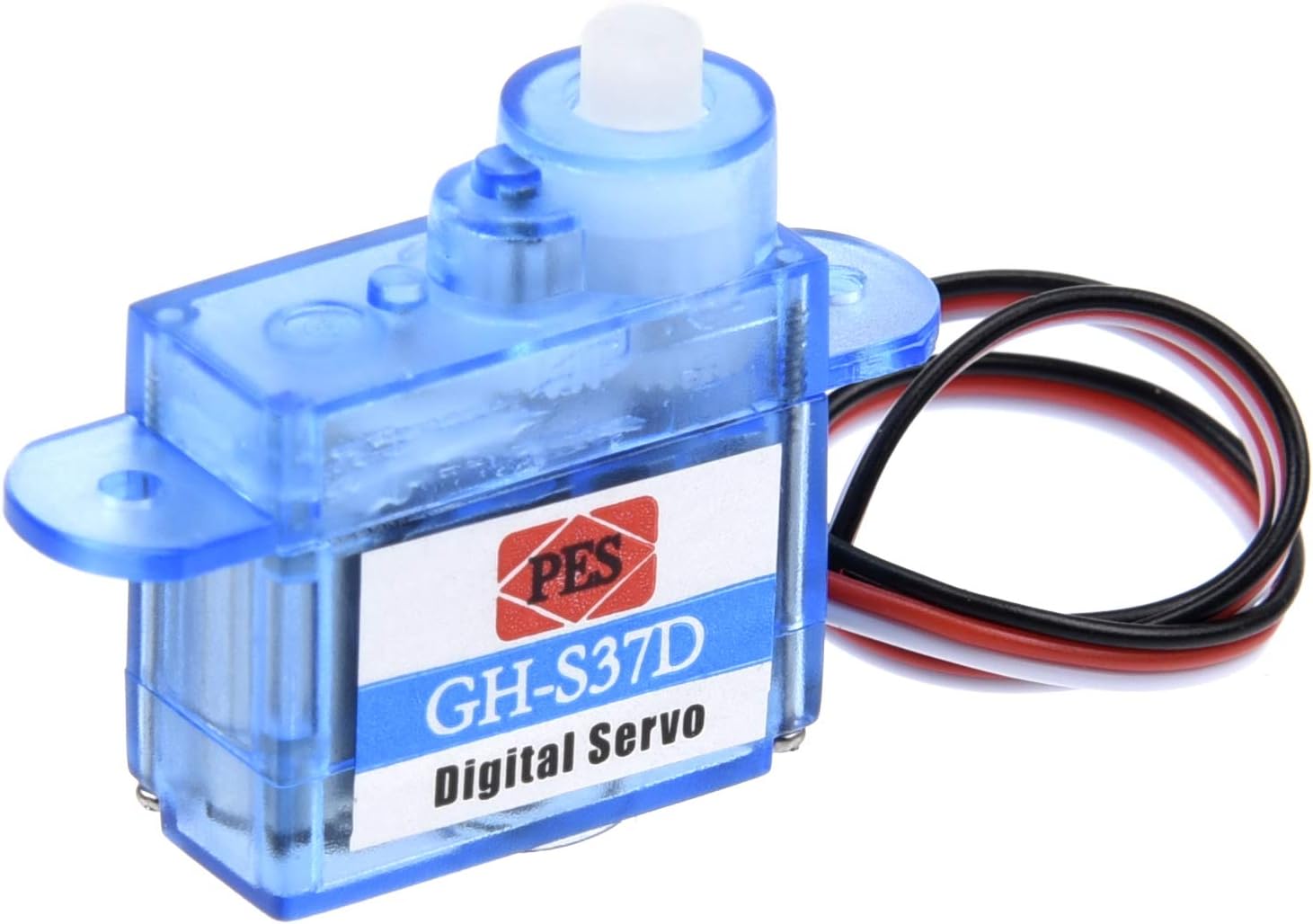

PES GH-S37D 3.7g Digital Micro Servo Plastic Gear Coreless Motor 3.6-4.8V for RC Airplane Glider Car

PES

$12.00 USD

बिक्री बिक गया

Taxes included. शिपिंग की गणना चेकआउट के समय की जाती है।

Options 1PCS 2PCS 3PCS 4PCS 10PCS

मात्रा

पूरी जानकारी देखें

Overview

The PES GH-S37D 3.7g Digital Micro Servo is a compact and lightweight servo designed for small RC models where low weight and precise control are important. Featuring a coreless motor, plastic gear train, and digital control, it delivers up to 0.8 kg·cm torque with a fast operating speed of 0.09 sec/60° at 4.8V.

With its slim 8.75 mm body and 3.7 g weight, the GH-S37D is suitable for mini RC airplanes, hand-launch gliders, lightweight fixed-wing aircraft, small RC cars, crawlers, and other compact radio-controlled models.

Key Features

Lightweight 3.7g digital micro servo
Coreless motor for responsive operation
Lightweight plastic gear construction
Operating voltage from 3.6V to 4.8V
Maximum torque up to 0.8 kg·cm at 4.8V
Fast speed up to 0.09 sec/60° at 4.8V
Compact 20 × 8.75 × 22 mm body size
Standard 1000–2000 μs control signal
Approximately 90° operating angle
150 mm servo cable
Suitable for lightweight RC aircraft and RC vehicles

Specifications

Specification	Details
Brand	PES
Model	GH-S37D
Type	Digital Micro Servo
Weight	3.7 g
Gear Material	Plastic
Motor Type	Coreless Motor
Operating Voltage	3.6–4.8V
Torque at 3.6V	0.6 kg·cm
Torque at 4.8V	0.8 kg·cm
Speed at 3.6V	0.13 sec/60°
Speed at 4.8V	0.09 sec/60°
Body Size	20.0 × 8.75 × 22.0 mm
Operating Temperature	0°C–60°C
Signal Range	1000–2000 μs
Operating Angle	90°
Current	<350 mA
Cable Length	150 mm
Dead Band	3 μs

Dimensions

The servo body measures approximately 20.0 × 8.75 × 22.0 mm. According to the dimension drawing, the overall mounting width is approximately 30.39 mm, making it suitable for compact installations with limited space.
