PES GH-S43D 4.3g Digital Micro Servo Plastic Gear Coreless Motor 3.6-4.8V for RC Airplane Glider Car

PES

$12.00 USD

बिक्री बिक गया

Taxes included. शिपिंग की गणना चेकआउट के समय की जाती है।

Options 1PCS 2PCS 3PCS 4PCS 10PCS

मात्रा

पूरी जानकारी देखें

Overview

The PES GH-S43D 4.3g Digital Micro Servo is a lightweight and compact servo designed for small RC aircraft, gliders, RC cars, and other miniature radio-controlled models. It features a coreless motor, plastic gears, and digital control, providing responsive movement while keeping overall weight low.

Operating from 3.6V to 4.8V, the GH-S43D delivers up to 0.8 kg·cm torque at 4.8V and offers a compact 20.5 × 8.6 × 22.65 mm size for installations where space and weight are limited.

Key Features

Lightweight 4.3g digital micro servo
Coreless motor for responsive operation
Lightweight plastic gear construction
Operating voltage range of 3.6–4.8V
Up to 0.8 kg·cm torque at 4.8V
Speed up to 0.10 sec/60° at 4.8V
Compact size for small RC models
Standard 1000–2000 μs control signal
Approximately 90° operating angle
150 mm servo cable

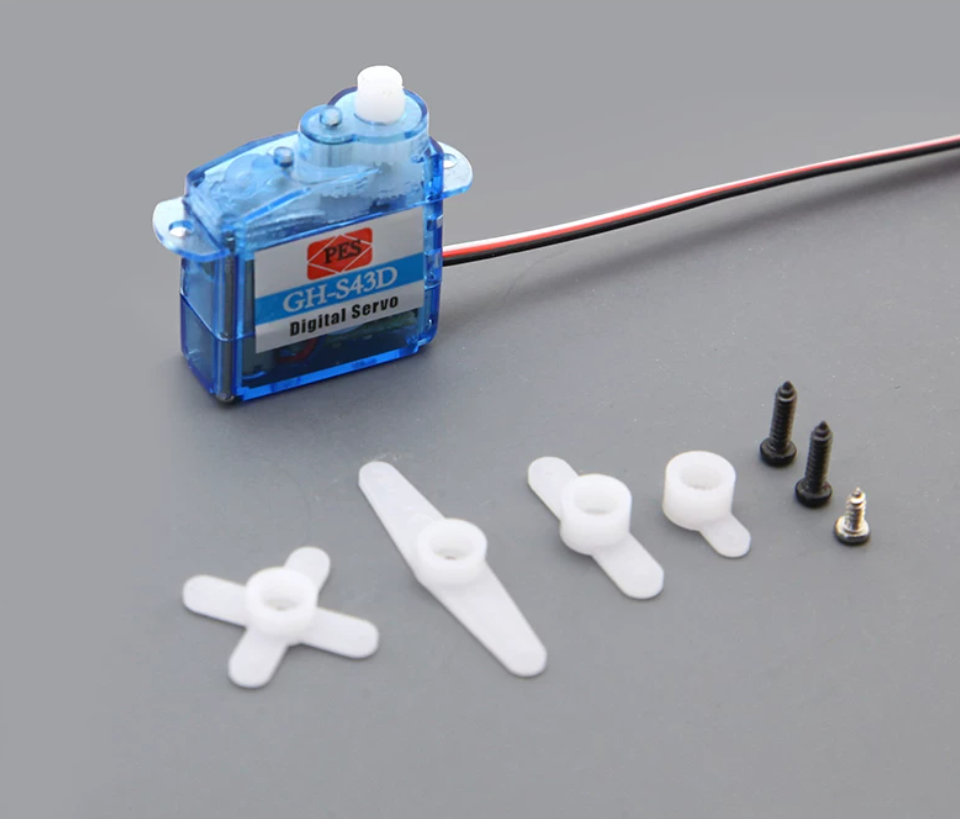

Includes multiple servo horns and mounting screws

Specifications

Specification	Details
Brand	PES
Model	GH-S43D
Type	Digital Micro Servo
Weight	4.3 g
Gear Material	Plastic
Motor Type	Coreless Motor
Operating Voltage	3.6–4.8V
Torque at 3.6V	0.6 kg·cm
Torque at 4.8V	0.8 kg·cm
Speed at 3.6V	0.12 sec/60°
Speed at 4.8V	0.10 sec/60°

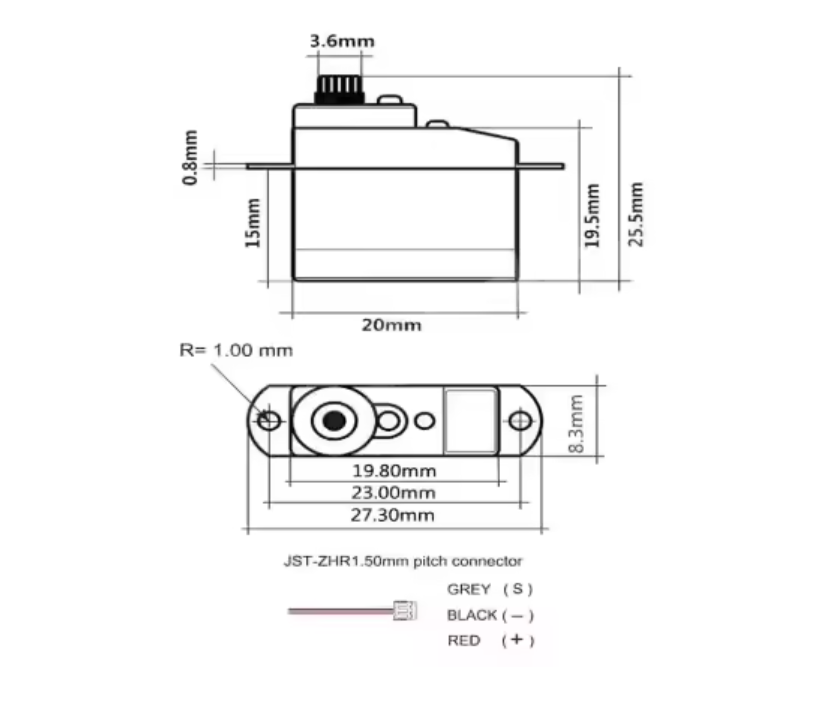

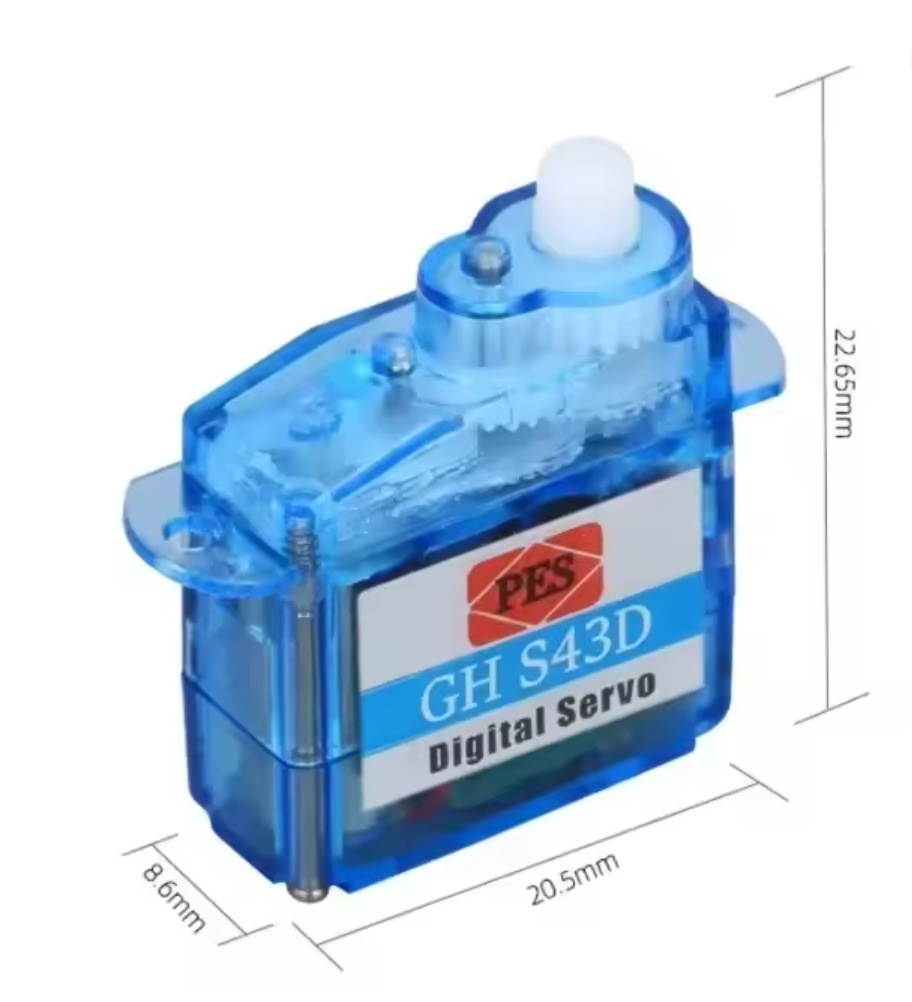

Dimensions	20.5 × 8.6 × 22.65 mm
Operating Temperature	0°C–60°C
Signal Range	1000–2000 μs
Operating Angle	90°
Current	<300 mA
Cable Length	150 mm
Dead Band	3 μs
