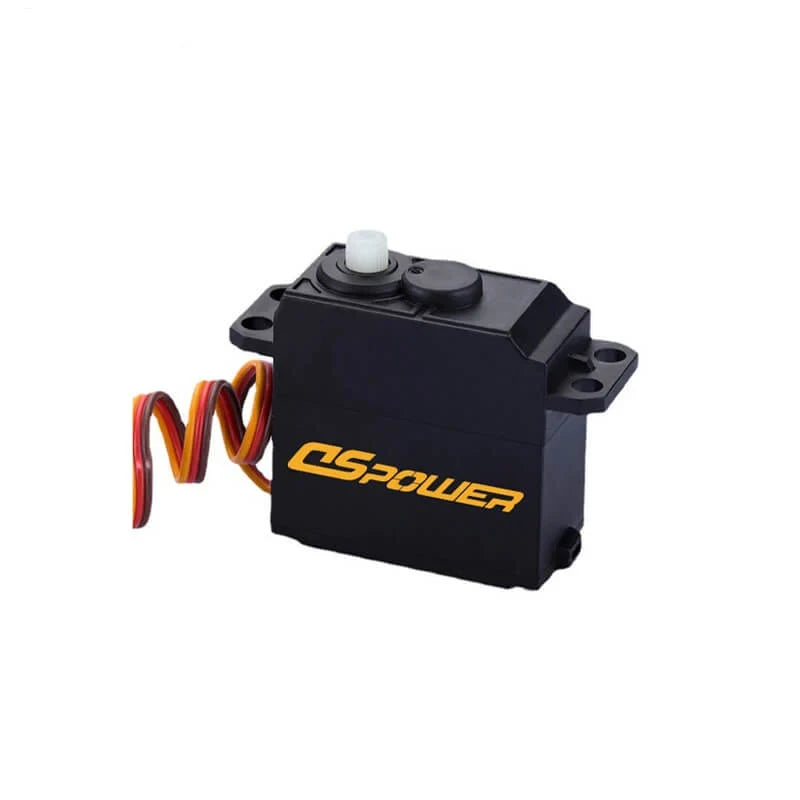

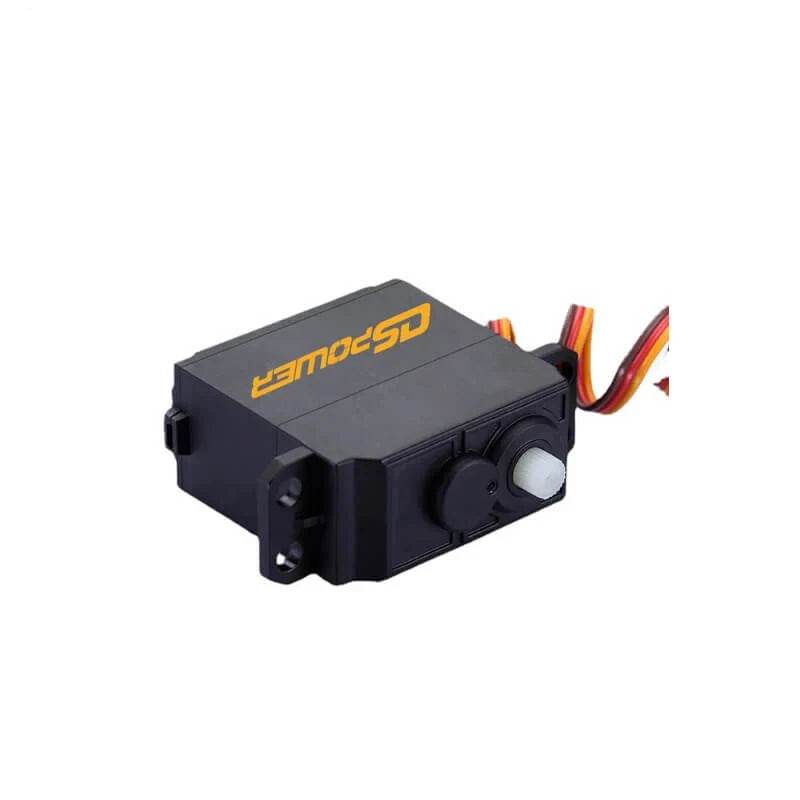

DSpower DS-R001 PWM Servo Motor, ≥8 kgf·cm, 180° Travel for Robotics

DSpower

$35.00 USD

In offerta Esaurito

Imposte incluse. Spese di spedizione calcolate al check-out.

Version DS-R001

Quantità

Visualizza dettagli completi

Overview

The DSpower DS-R001 is a PWM servo motor for robotics, toys, and STEAM education projects requiring controlled rotary movement. It operates from 4.8–6.0 V DC and provides at least 8 kgf·cm stall torque with 180° operating travel. Its 500–2500 μs pulse-width range, 25T output shaft, and JR2.54 plug help buyers assess integration with compatible control systems and mechanical assemblies.

Features

Extra-large torque, low-noise operation, and ultra-high precision are stated features.
Stated anti-burn, anti-shake, shock-resistant, and burnout-protection features, along with triple protection.
Stated long-life durability and tooth-sweeping prevention.
Internal gear assembly with stated high-precision plastic gears.

Specifications

Parameter	Value
Operating Voltage	4.8–6.0 V DC
Static Current	≤10 mA at 6.0 V
Stall Current	≤1.65 A at 6.0 V
Stall Torque	≥8 kgf·cm
Rotating Direction	CCW (500→2500 μs)
No-load Speed	≤0.21 sec/60°
Pulse Width Range	500–2500 μs
Operating Travel Angle	180°
Return Angle Deviation	≤1°
Weight	52 g
Communication Interface	PWM
Output Shaft Specification	25T/Ø5.90 mm
Plug	JR2.54

ds r001 1 DSpower Servo Motor DRAW — Draw (PDF)

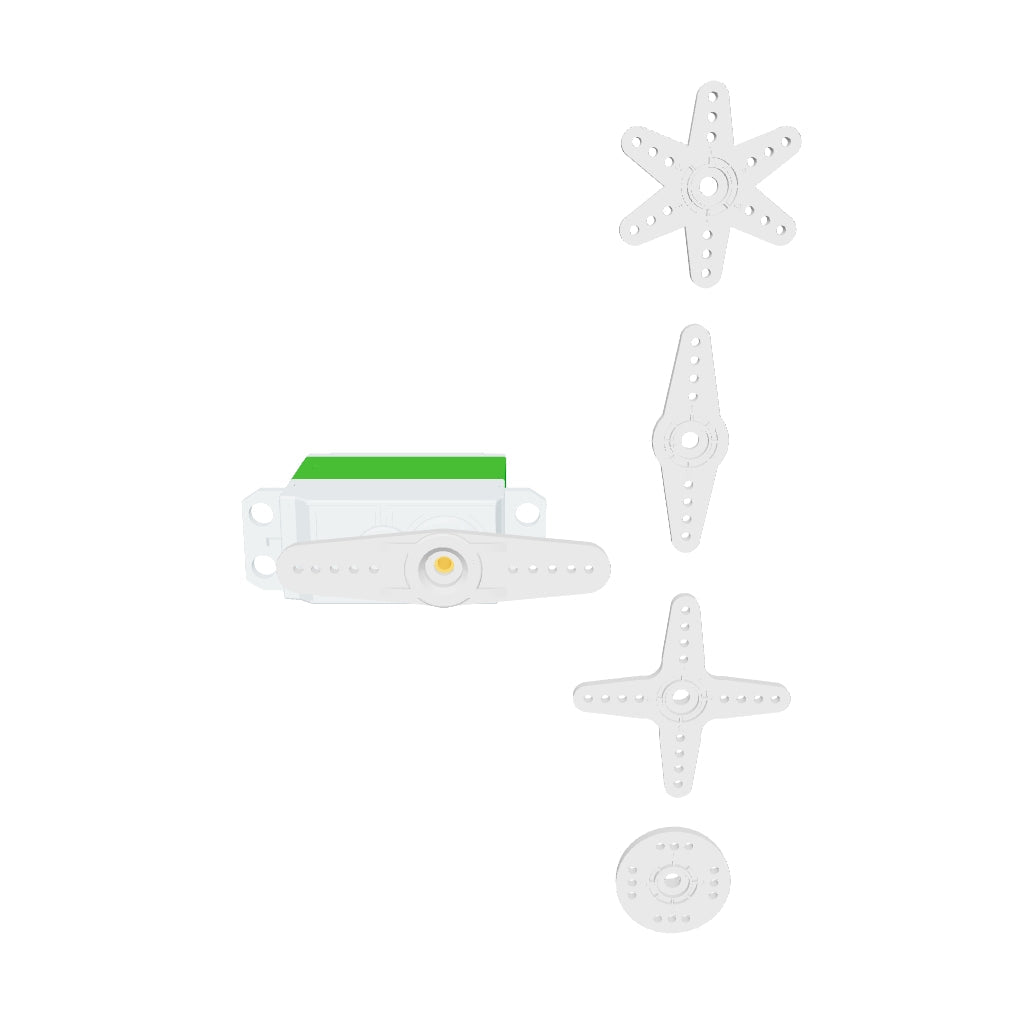

DS R001 6kg DSpower Servo Motor — 3D Model (STP)

Applications

The DS-R001 is presented for robot applications, including humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots. Its PWM interface and 180° travel support controlled rotary motion in these projects. It is also presented for toy and STEAM education applications.
