DSpower DS-R018 RS485 Brushless Servo Motor, 4.8–6.0 V for AGV and Robotics

DSpower

$247.00 USD

In offerta Esaurito

Imposte incluse. Spese di spedizione calcolate al check-out.

Version DS-R018

Quantità

Visualizza dettagli completi

Overview

The DSpower DS-R018 is an RS485 integrated-control servo motor for AGV, shuttle-vehicle and robotics applications. It operates from 4.8–6.0 V DC and uses an iron-core motor with metal gears. Closed-loop feedback, factory-preset stall protection, midpoint setting and an H25T output spline support control-system integration. Rated torque is 1.8 kgf·cm at 4.8 V or 2.0 kgf·cm at 6.0 V.

Features

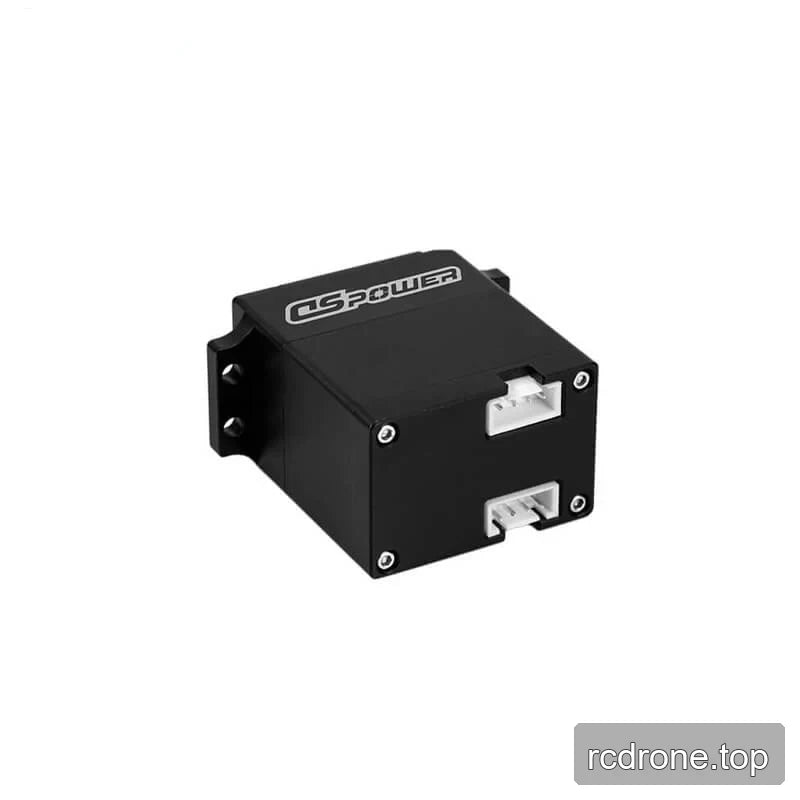

RS485 bus with integrated control.
Closed-loop design with multiple feedbacks.
Factory-preset stall protection and one-button midpoint setting.
H25T industry-standard output spline.
Stainless steel gear design; the technical specification identifies the gear set as metal gears.
Isolated conduction and reverse-connection protection.
Labeled features include anti-burn and anti-shake performance, tooth-sweeping prevention, lower noise, high precision, customization for different scenarios, and environmental adaptability.

Specifications

Parameter	Specification
Operating voltage	4.8–6.0 V DC
No-load speed at 4.8 V	≤0.29 sec./60°
No-load speed at 6.0 V	≤0.26 sec./60°
Rated torque at 4.8 V	1.8 kgf·cm
Rated torque at 6.0 V	2.0 kgf·cm
Stall current at 4.8 V	≤1.8 A
Stall current at 6.0 V	≤2.1 A
Stall torque at 4.8 V	≥9 kgf·cm
Stall torque at 6.0 V	≥11 kgf·cm
Pulse width range	500–2500 μs
Operating travel angle	90° ±10°
Mechanical limit angle	210°
Weight	52 ±1 g
Case material	PA
Gear set material	Metal gears
Motor type	Iron core
Continuous-load duration	Over 1200 hours
Lifespan	Over 2 million cycles

DS R018 1 DSpower Servo Motor DRAW — Draw (PDF)

Applications

The DS-R018 is listed for AGV vehicles, including shelf-type AGVs and vertical mobile AGV pulling-box rod systems, where RS485 integrated control and closed-loop feedback can support servo integration. Additional listed applications include logistics shuttles, multi-level shuttles, multi-layer shuttle cars, MINILAD shuttle cars, four-phase electric vehicles, humanoid robots, robotic arms, exoskeletons, quadruped robots, and ARU robots.
