Overview

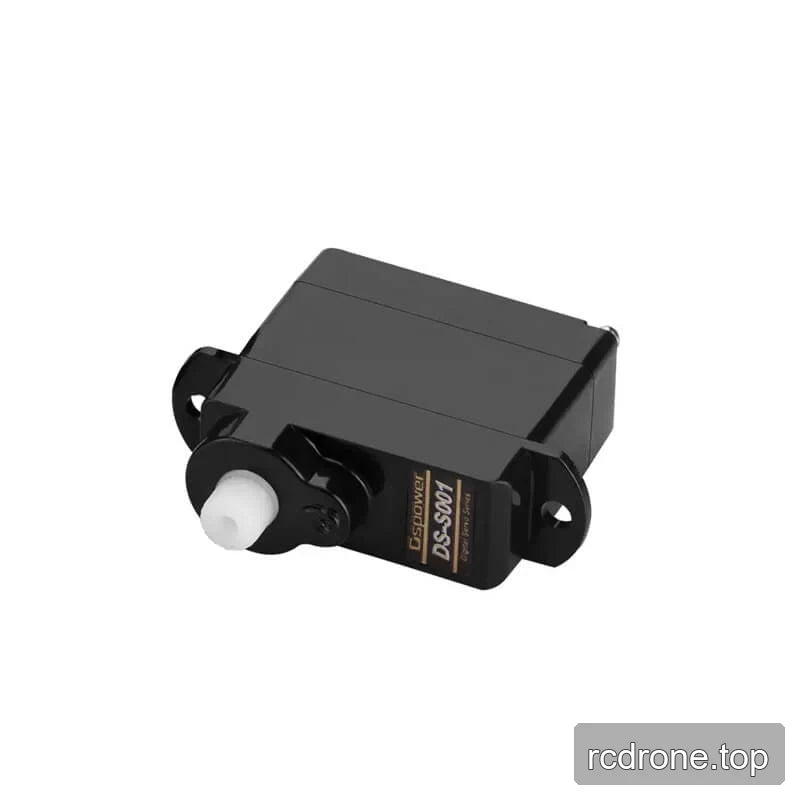

DSpower DS-S001 and DS-S001M are 3.7–4.2 V DC servo motor options for compact motion-control tasks. Select DS-S001 for a 3.7 ± 0.2 g sub-micro servo with PWM communication, plastic gears, and a coreless motor; select DS-S001M for its separate speed, torque, travel, and weight specifications. Supported uses include robotic mechanisms, RC models, and smart-switch actuation.
Features

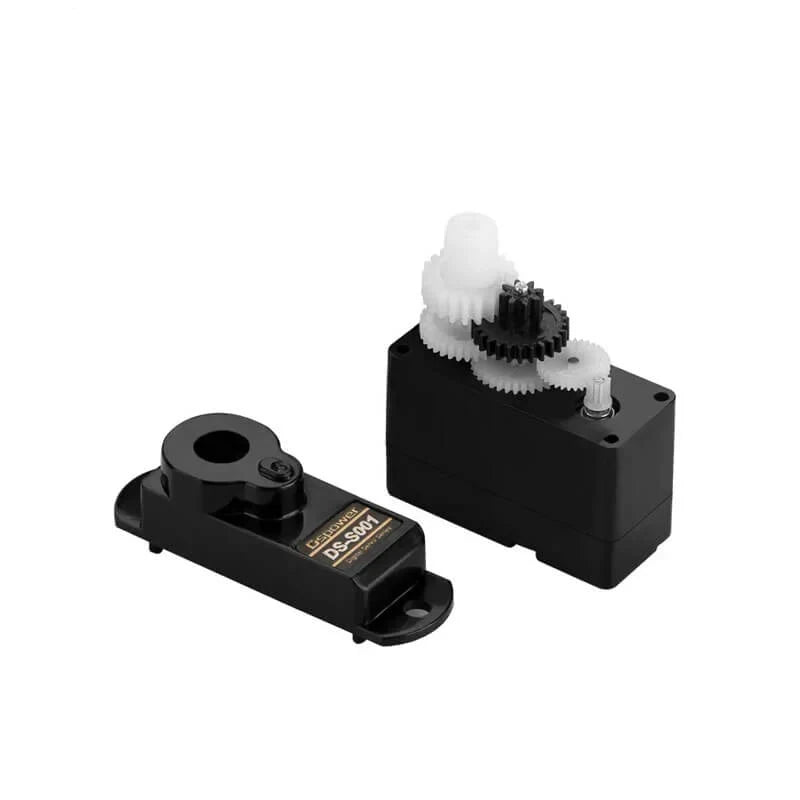

- DS-S001: 3.7 ± 0.2 g weight, excluding the lead; ABS case; plastic gear set; coreless motor; PWM communication interface; 28T / Φ3.90 mm output shaft; and ≤1° backlash.
- DS-S001: labeled as a sub-micro servo and described as smaller and lighter than a standard servo.

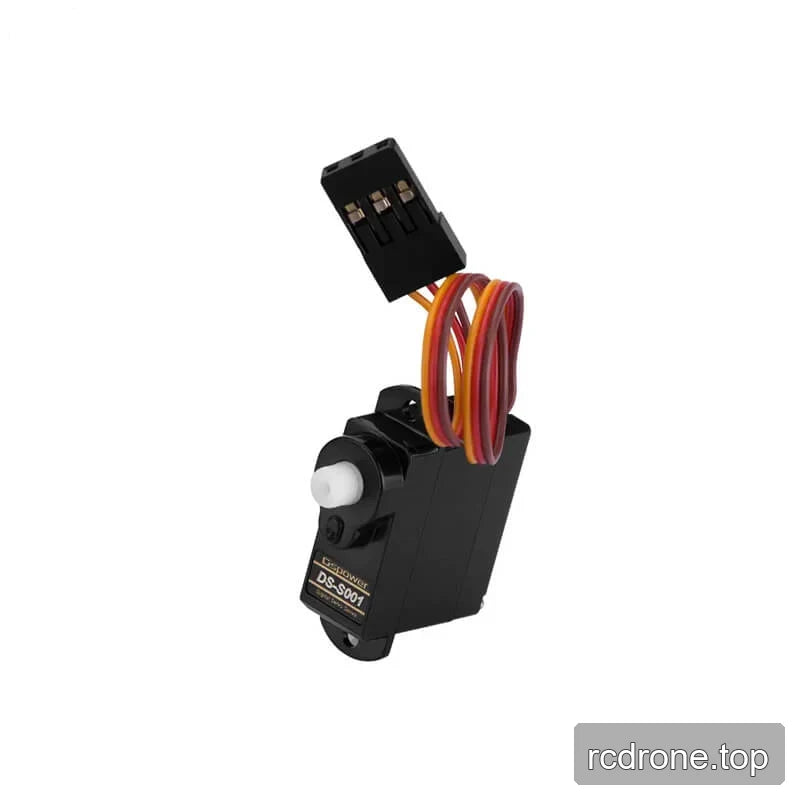

- DS-S001: three-wire lead with a three-pin connector.
- DS-S001M: L&R angle deviation of ≤6°.
Specifications
| Parameter | DS-S001 | DS-S001M |
|---|---|---|
| Operating voltage | 3.7–4.2 V DC | 3.7–4.2 V DC |
| No-load speed | ≤0.12 sec/60° at 3.7 V (REF.); ≤0.10 sec/60° at 4.2 V (STD.) | ≤0.09 sec/60° at 4.2 V |
| Static current | ≤10 mA | — |
| Stall current | ≤330 mA at 3.7 V (REF.); ≤380 mA at 4.2 V (STD.) | ≤550 mA at 4.2 V |
| Stall torque | ≥0.4 kgf·cm at 3.7 V (REF.); ≥0.45 kgf·cm at 4.2 V (STD.) | ≥0.5 kgf·cm at 4.2 V |
| Pulse width range | 700–2300 μs | 1000–2000 μs |
| Rotating direction | CCW (1000–2000 μs) | — |
| Operating travel angle | 145° ± 10° | 90° ± 10° (1000–2000 μs) |
| Mechanical limit angle | 360° | — |
| Weight | 3.7 ± 0.2 g | 6.0 ± 1 g |
| Case material | ABS | — |
| Gear set material | Plastic gear | — |
| Motor type | Coreless motor | — |
| Communication interface | PWM | — |
| Output shaft | 28T / Φ3.90 mm | — |
| Backlash | ≤1° | — |
| L&R angle deviation | — | ≤6° |
Applications
- Robotic mechanisms: humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.

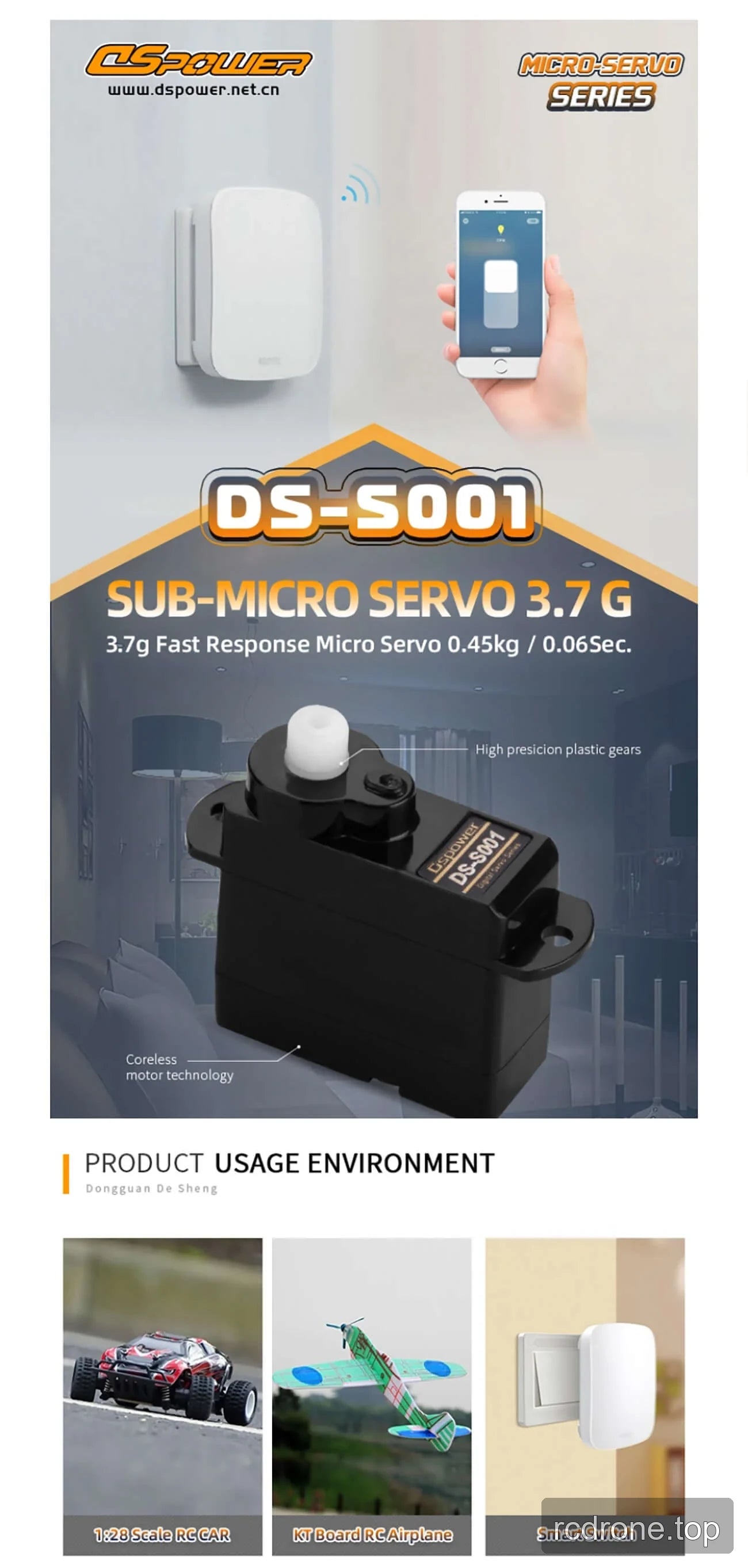

- DS-S001 RC applications: 1:28 scale RC cars and KT Board RC airplanes, where its 3.7 ± 0.2 g sub-micro form can help limit mechanism weight.
- DS-S001 switching mechanisms: smart light switch and smart-switch actuation.
What's Included

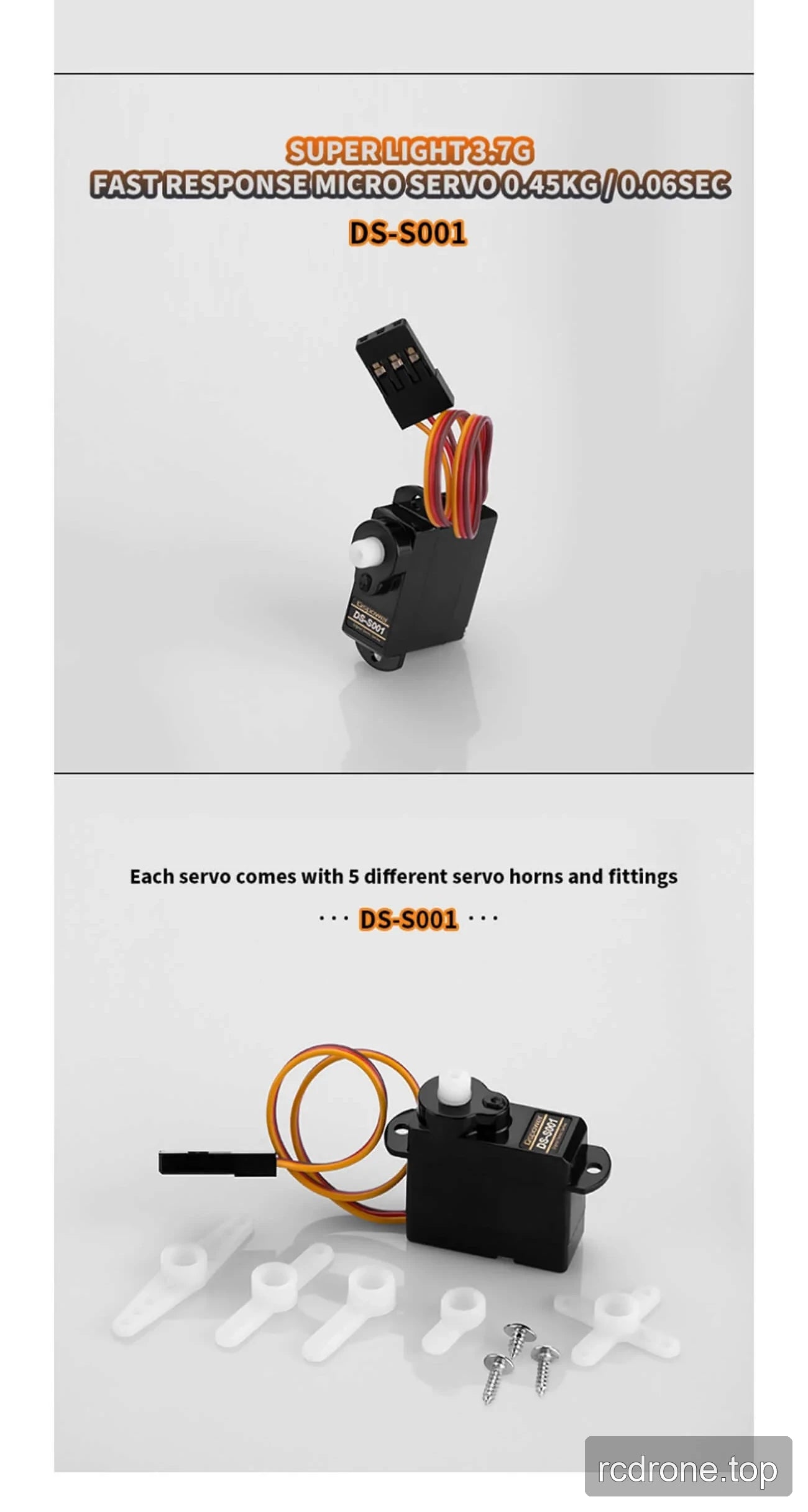

- DS-S001: five different servo horns and fittings.
- DS-S001: two mounting screws.
Documents and 3D Models
DS S001 1 DSpower Servo Motor — Product Document (PDF)
DS S001M 1 DSpower Servo Motor — M (PDF)

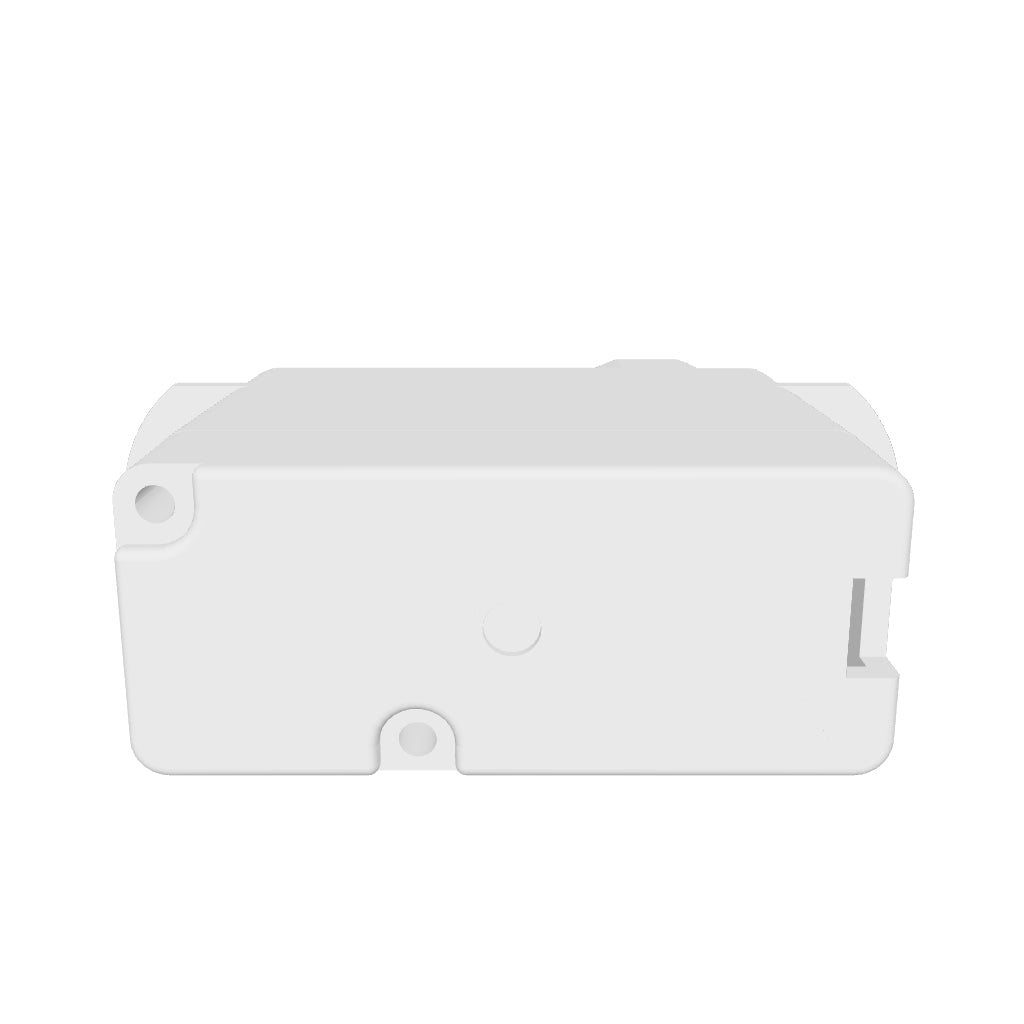

DS S001 3 7 20210929 DSpower Servo Motor — 3D Model (STP)

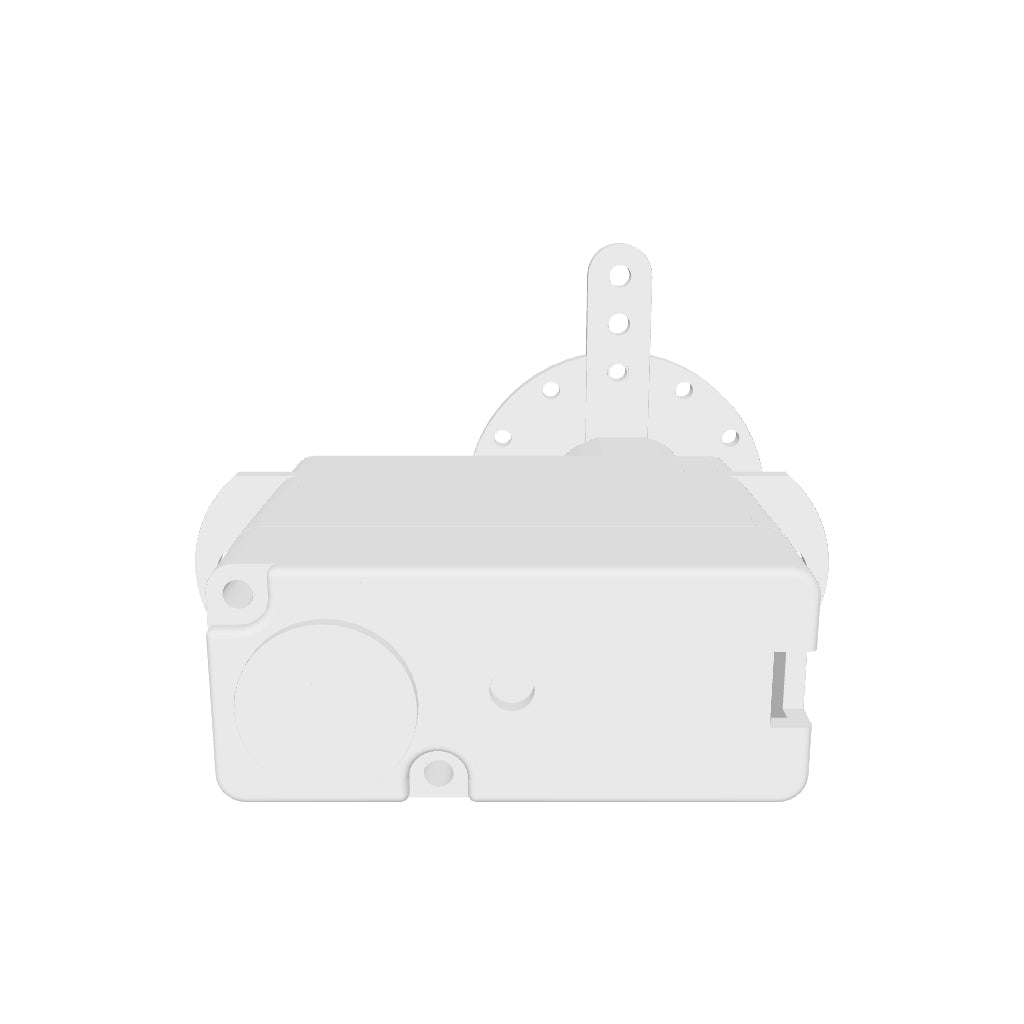

s001m DSpower DS Servo Motor — 3D Model (STP)
