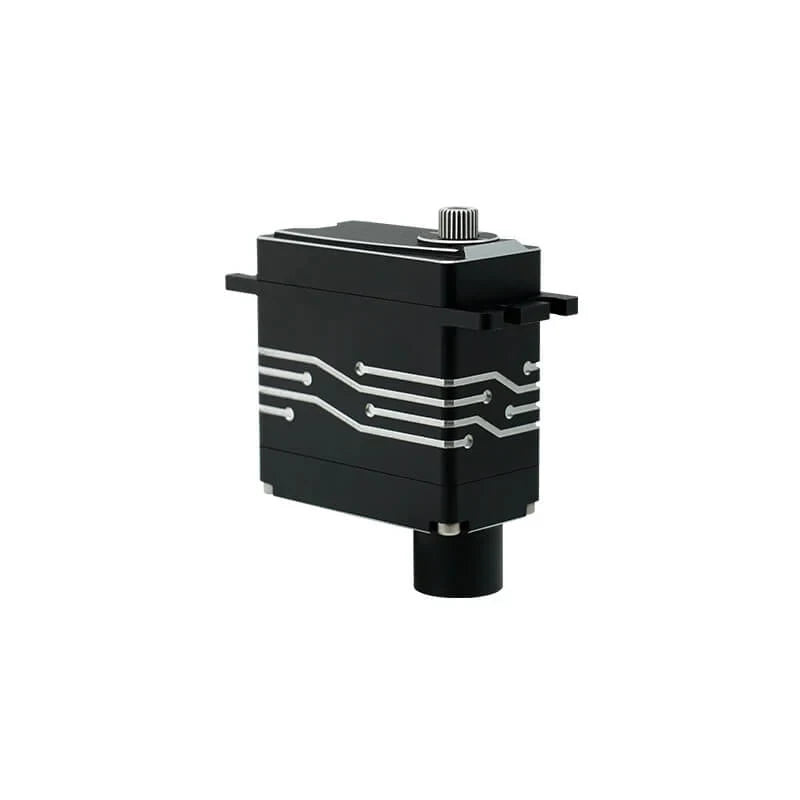

• Black DSpower DS-W003A servo motor shown upright with a splined output shaft, mounting tabs, and silver circuit-line housing accents.

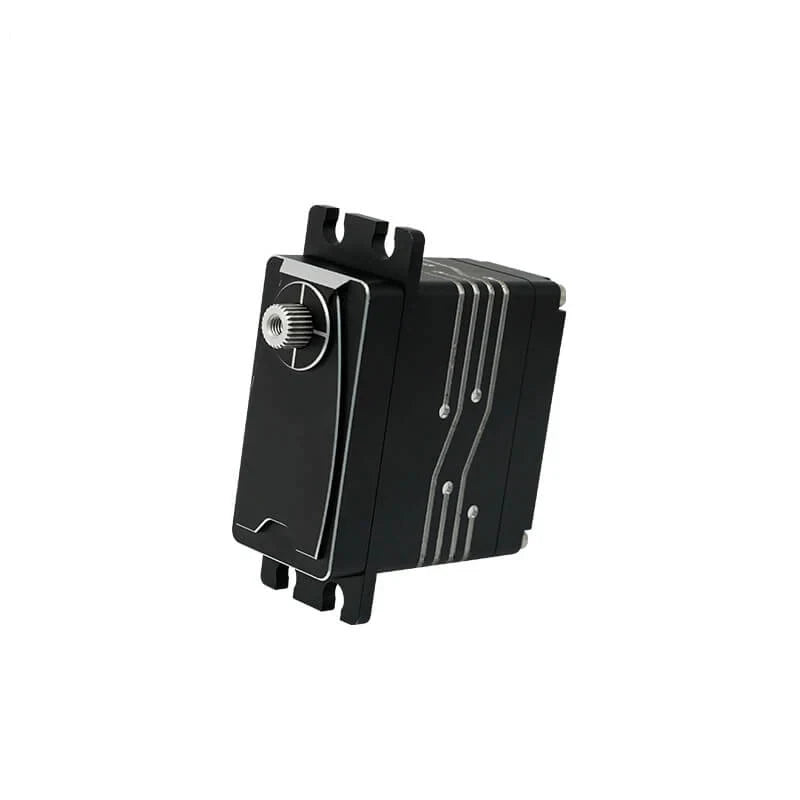

  • Black DSpower DS-W003A servo motor shown from the output end, with splined shaft, mounting tabs, and silver side accents.

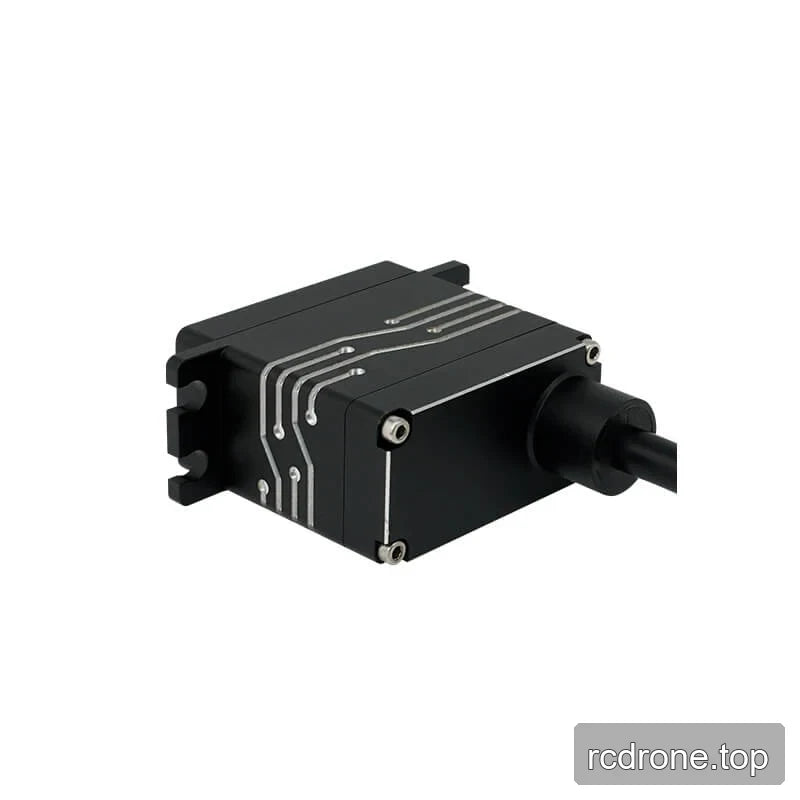

  • Black DSpower DS-W003A servo motor shown horizontally with its cable exiting the rear and four visible corner screws.

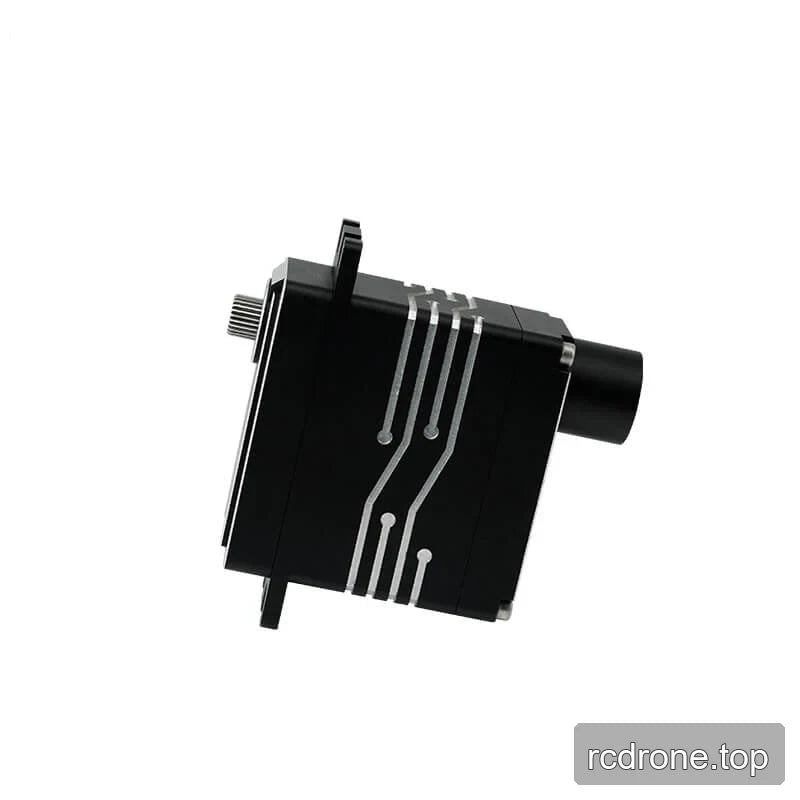

  • Side view of the black DSpower DS-W003A servo motor showing the splined output shaft, rear cable exit, and silver housing accents.
  • W003A
1 5

DSpower DS-W003A Servo Motor

DSpower DS-W003A Servo Motor

DSpower

$1,687.00 USD
$1,687.00 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Working voltage 9.0~12.6V
Rated voltage 12.0V
Rated torque 10kgf·cm
Static current ≤30mA
No load current ≤350mA
No load speed ≤0.10sec./60°
Blockage current ≤3.3A
Locking torque ≥40kgf·cm
Operating angle 360°
Mechanical virtual position ≤0.8°
Communication mode CANopen
Gear material Metal Gear / Metal gear set
Weight 91.5±2.0g

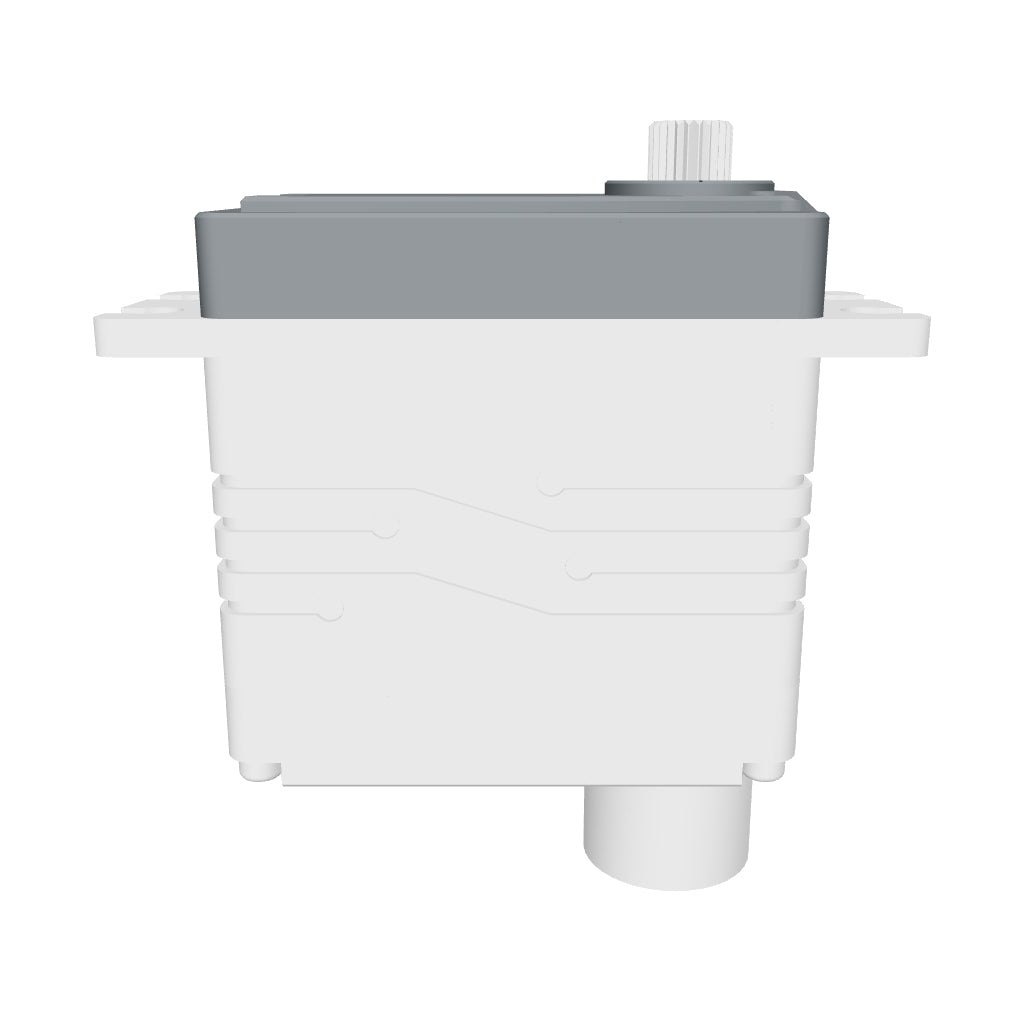

W003A DSpower DS Servo Motor — 3D Model (STP)
