DSpower DS-W004A CANopen Servo Motor, 12 V Metal Gear for Valve Actuation

DSpower

$1,807.00 USD

In offerta Esaurito

Imposte incluse. Spese di spedizione calcolate al check-out.

Version DS-W004A

Quantità

Visualizza dettagli completi

Overview

The DSpower DS-W004A is a CANopen servo motor for controlled rotary motion in robotic and valve-actuation applications. It operates from 9–16.0 V with a 12.0 V rated voltage, 360° operating angle, metal gears, and an aviation plug. Rated torque is 4.1 kgf·cm, while stall torque is ≥18 kgf·cm. The listed applications include robot mechanisms, engine intake and exhaust valves, and throttle valves.

Features

CANopen communication interface
Metal gears; steel gear label
Aviation plug
High-strength, space-saving, corrosion-resistant, and heat-resistant labels
360° operating angle

Specifications

Parameter	Value
Operating voltage	9–16.0 V
Rated voltage	12.0 V
Rated torque	4.1 kgf·cm
Static current	≤40 mA
No-load current	≤180 mA
No-load speed	≤0.10 sec/60°
Stall current	≤3.0 A
Stall torque	≥18 kgf·cm
Operating angle	360°
Backlash	≤0.5°
Communication interface	CANopen
Gear material	Metal gears; steel gear label
Weight	70.5 ± 2.0 g

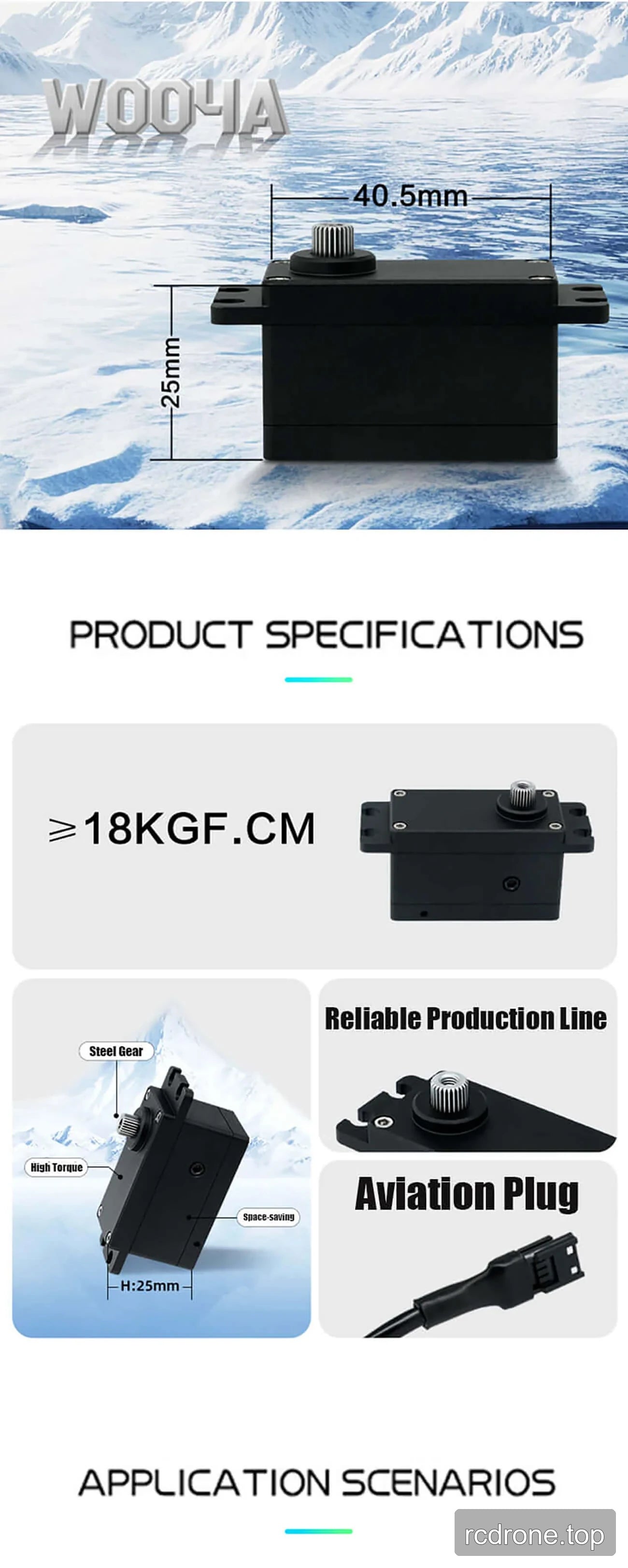

Width	40.5 mm
Height	25 mm

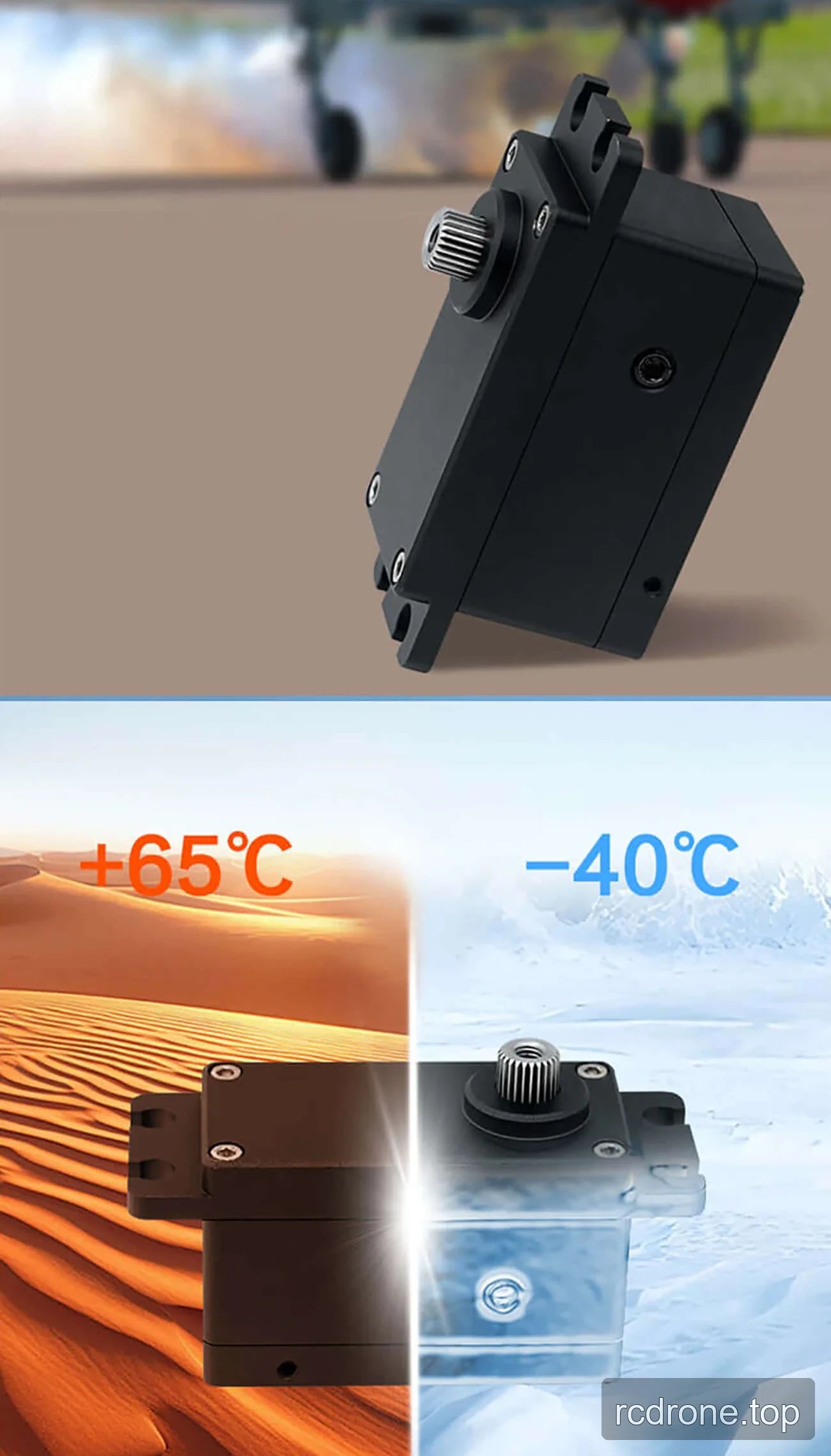

Temperature graphic markings	+65°C and −40°C

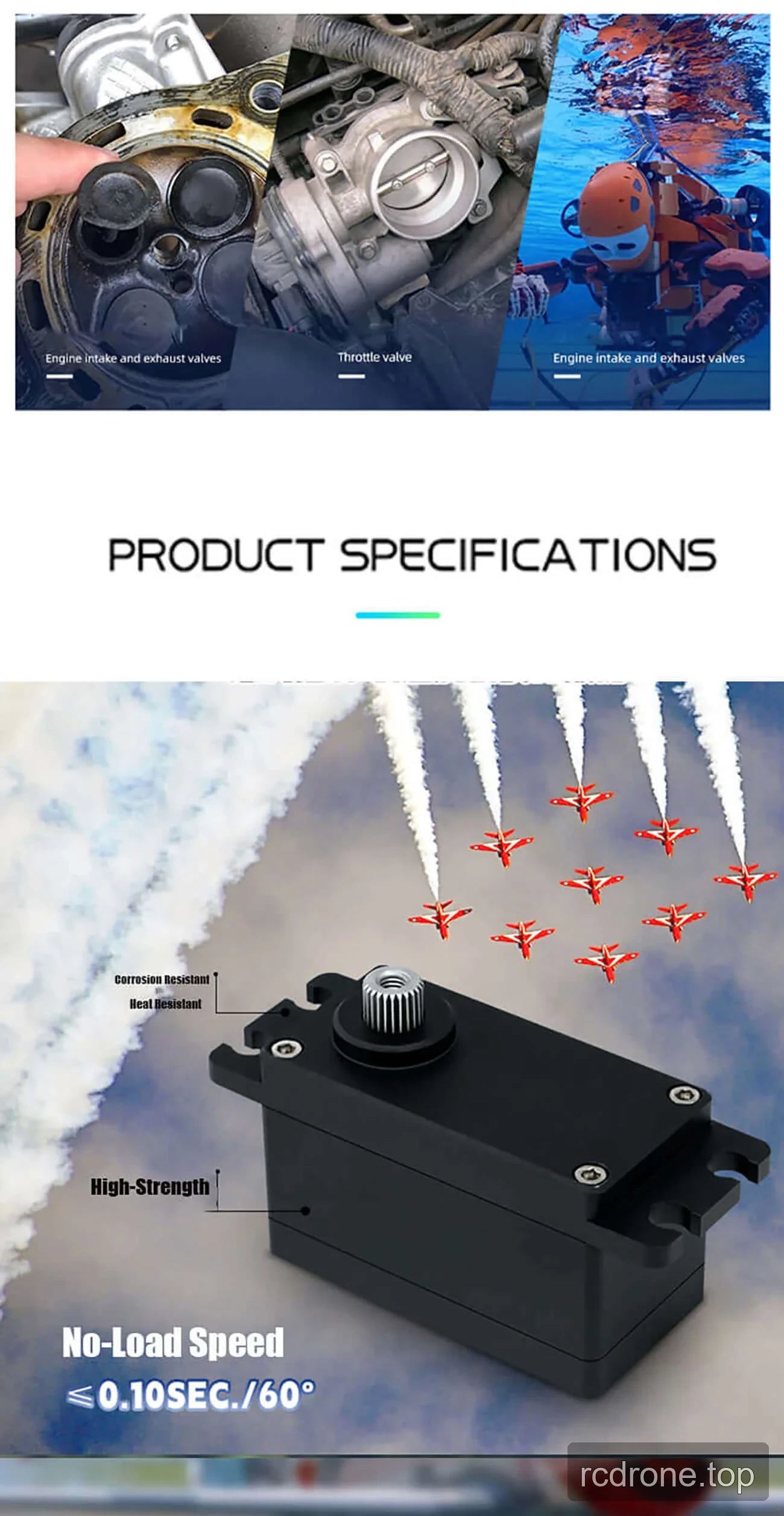

Applications

Humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots: provides CANopen-controlled rotary motion for listed robotic mechanisms.
Engine intake and exhaust valves: supports controlled valve movement where the listed torque, 360° operating angle, and CANopen interface suit the system design.
Throttle valves: provides rotary actuation for listed throttle-valve applications.
