DSpower DS-W004B Brushless RS-485 Servo Motor, 9–16 V for Throttle & Valve Control

Overview

The DSpower DS-W004B is a brushless short-body servo motor for engine throttle, air-door, throttle-valve, and valve opening/closing applications. It operates from 9–16 V with a 12.0 V rated voltage, RS-485 communication, 360° operating angle, and a metal gear set. The stated ≤0.10 sec/60° no-load speed and ≤0.5° mechanical virtual position support motion-control integration where these operating characteristics are required.

Features

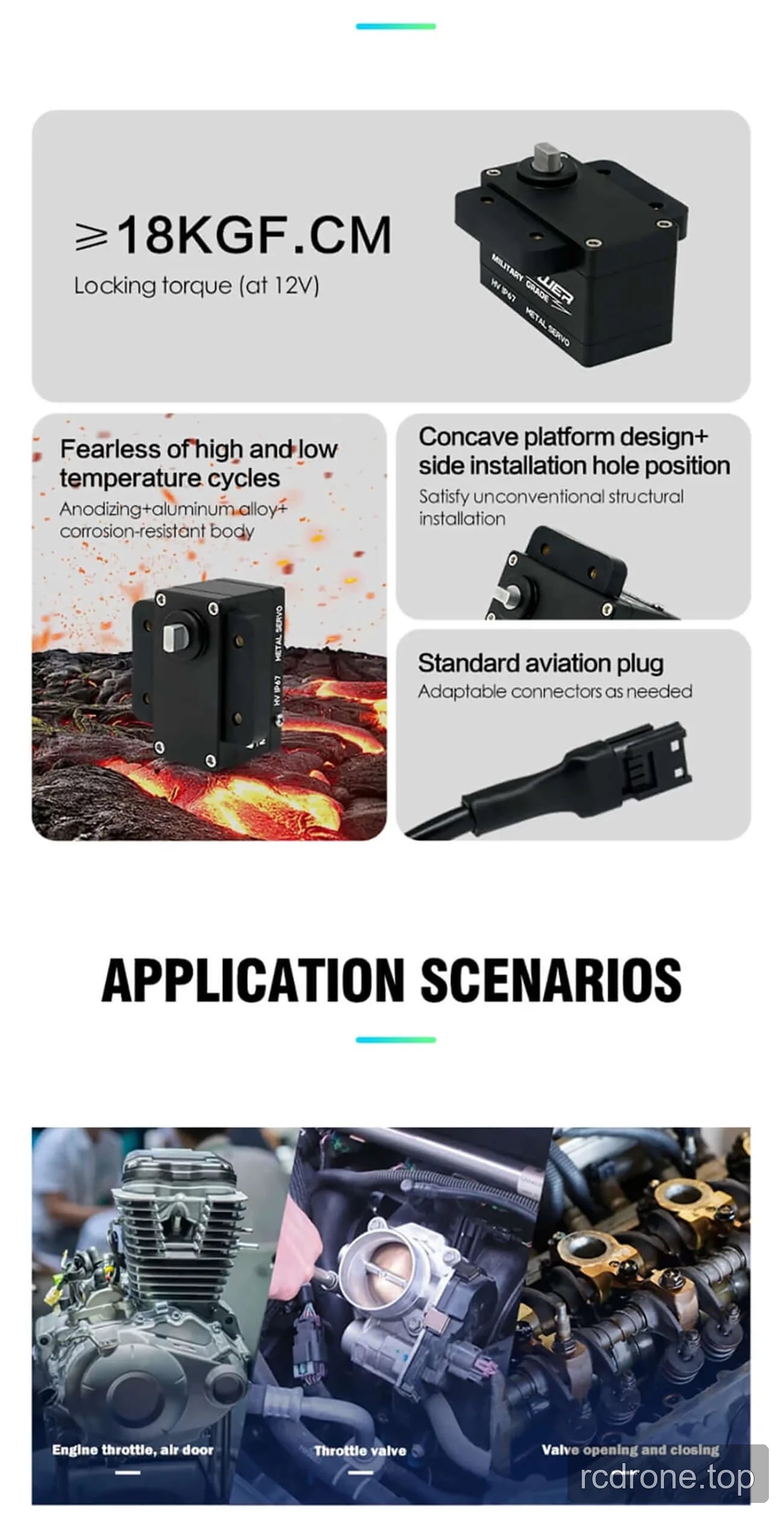

• Brushless motor with magnetic encoder.
• Short-body design with a strengthened body.
• Anodized aluminum-alloy, corrosion-resistant body.

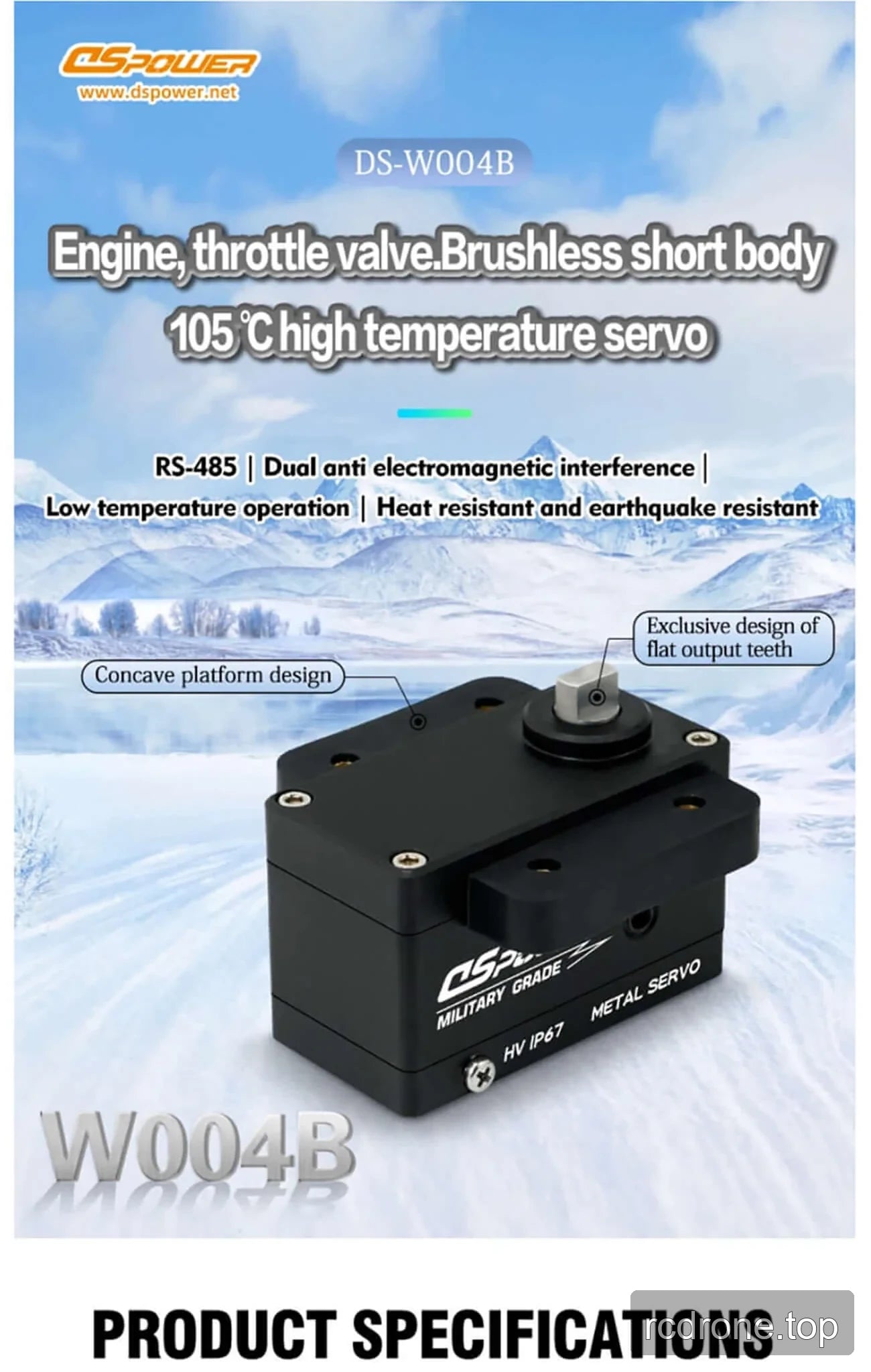

• Concave platform design, including a double-concave platform form, flat output tooth design, and side installation-hole position.
• Standard aviation plug; connectors can be adapted as needed.
• RS-485 communication with dual anti-electromagnetic-interference capability.

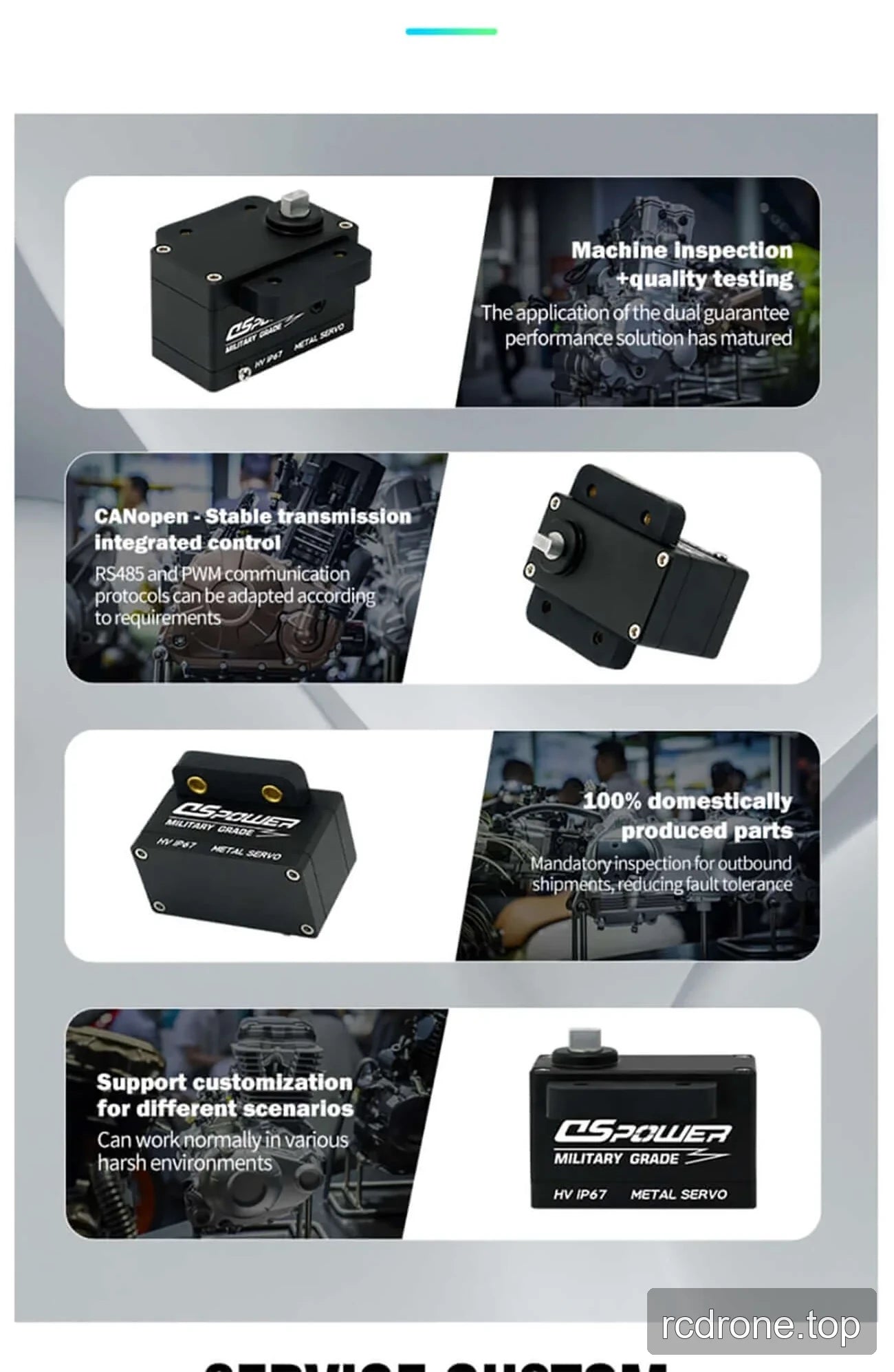

• CANopen communication is stated for stable transmission and integrated control; RS485 and PWM protocols can be adapted according to requirements.
• Labeled for 105°C high-temperature operation, low-temperature operation, heat resistance, earthquake resistance, and high-/low-temperature cycles.

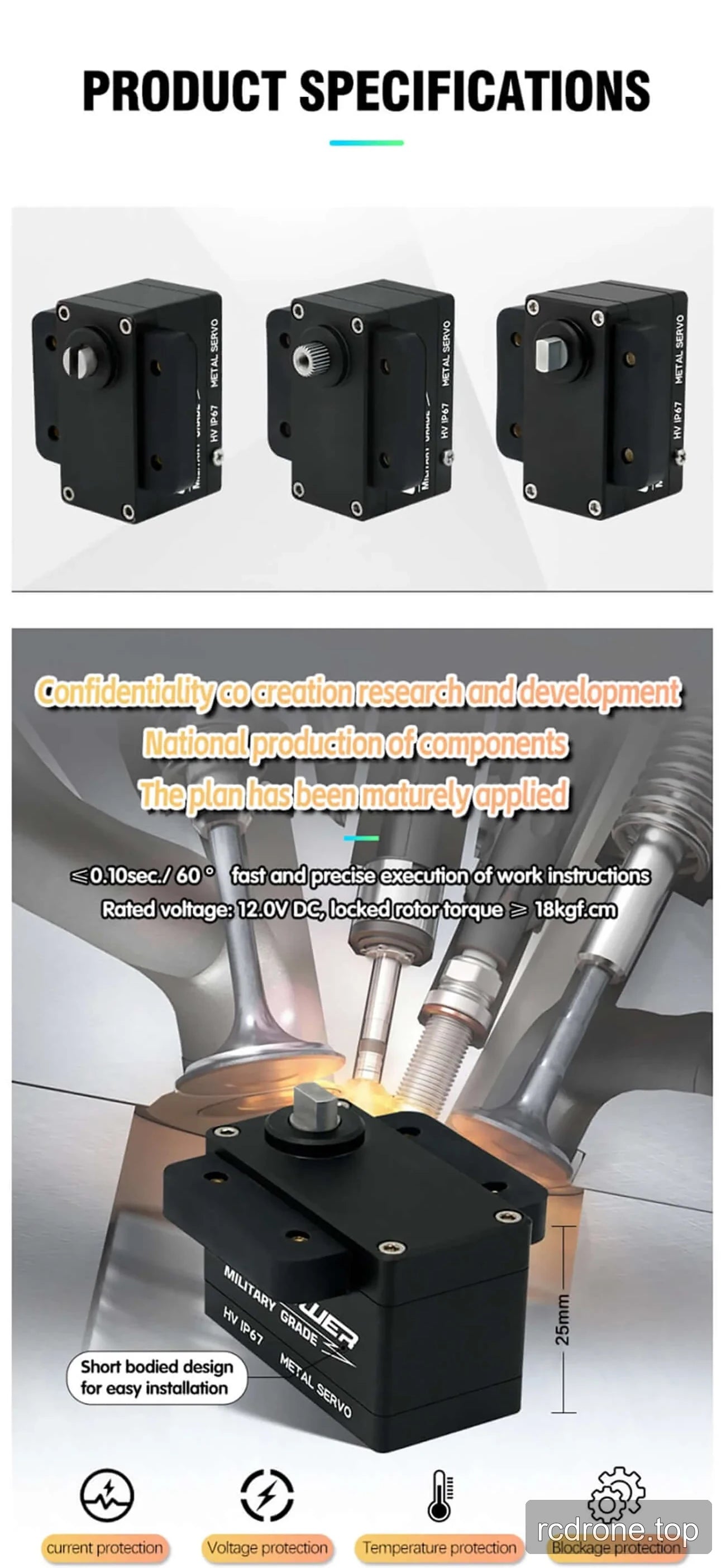

• Labeled current, voltage, temperature, and blockage protection.

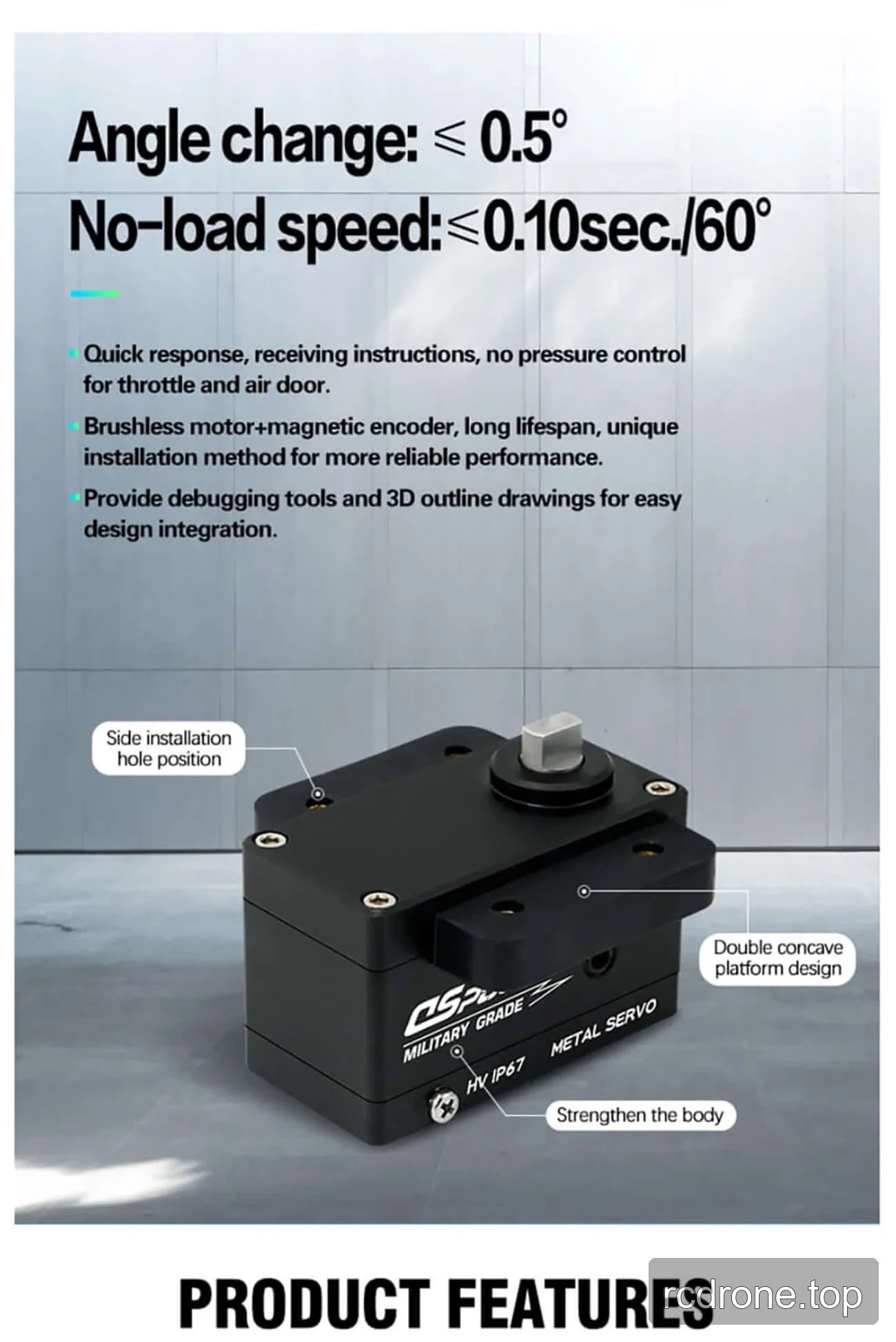

• Stated quick response and instruction reception, with no-pressure control for throttle and air-door use.
• Design-integration resources are stated to include debugging tools and 3D outline drawings.
• Scenario customization and normal operation in various harsh environments are stated.

Specifications

DS W004B 1 DSpower Servo Motor DRAW — Draw (PDF)

Applications

• Engine throttle, throttle-valve, and air-door control, including valve opening and closing.
• Humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.

Visual Details

Specifications and Performance
