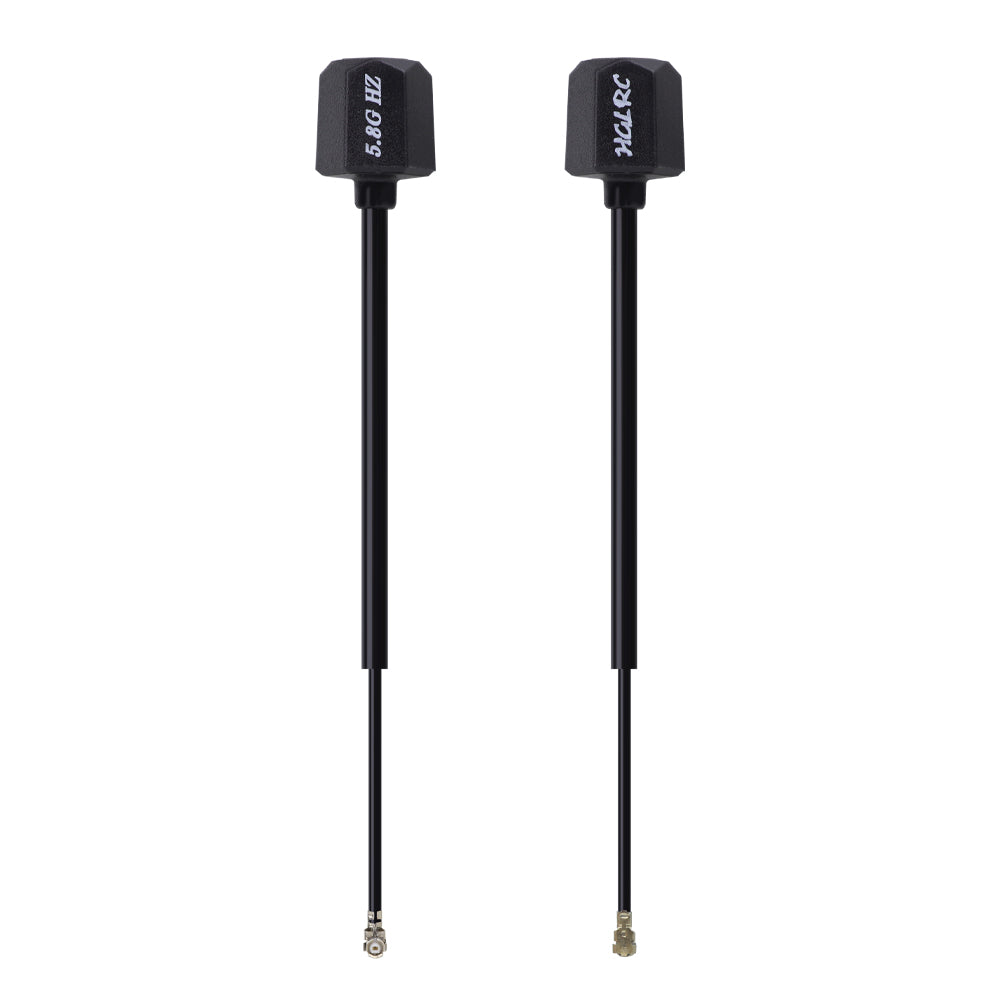

• HGLRC Mini Hammer Antenna pair, black FPV antennas with long coax leads and small connectors

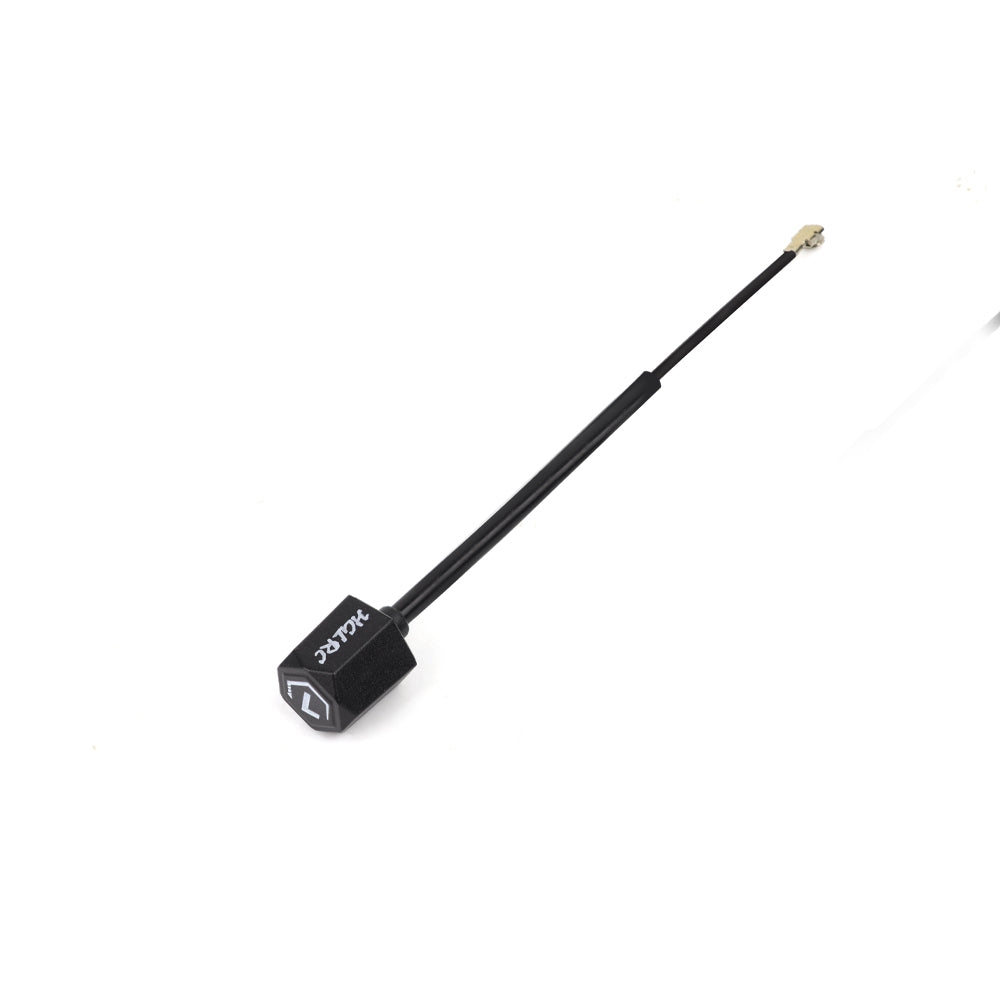

  • Single mini hammer-style FPV antenna angled view, black housing with long coax lead and connector

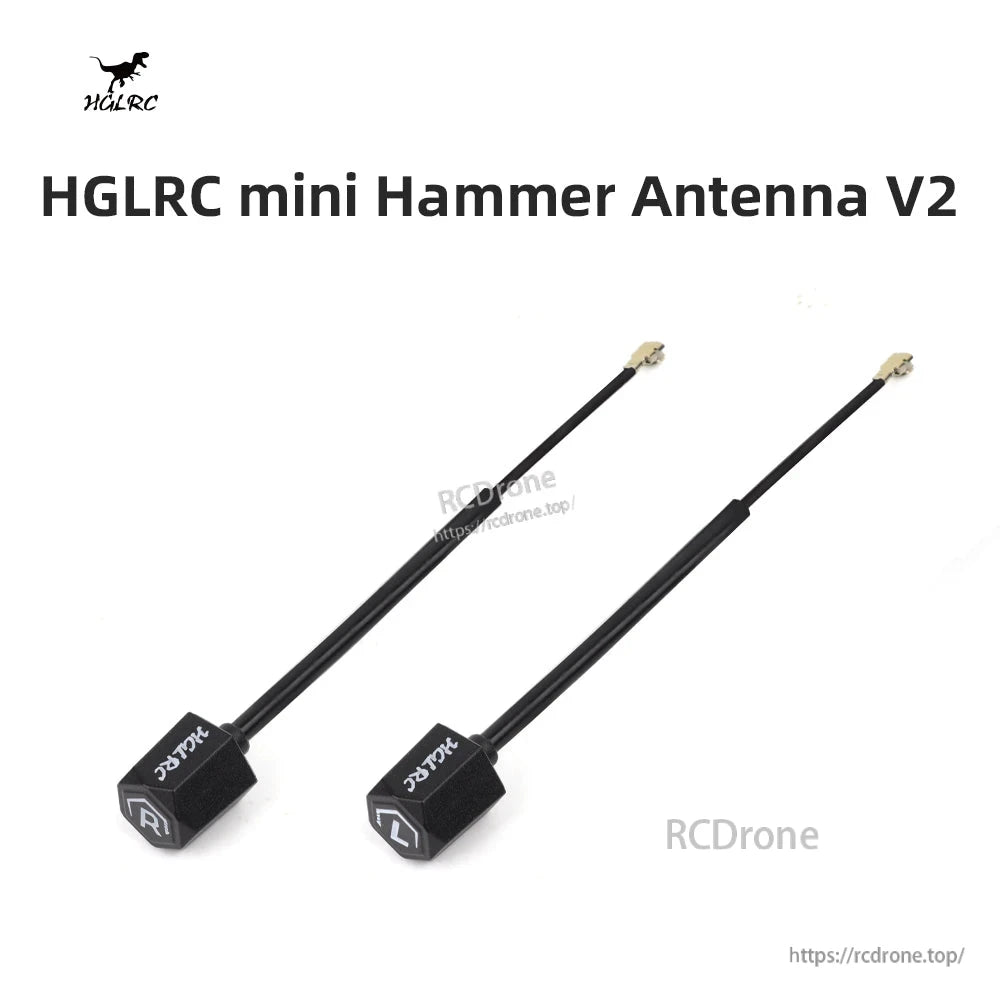

  • HGLRC Mini Hammer Antenna V2 graphic showing two antennas on white background
  • Product parameters chart for mini hammer antenna: 5000–6000MHz, RHCP/LHCP, IPEX connector, ABS
  • Packaging pouch and antenna size diagram showing 130mm total length and 10.5g total weight

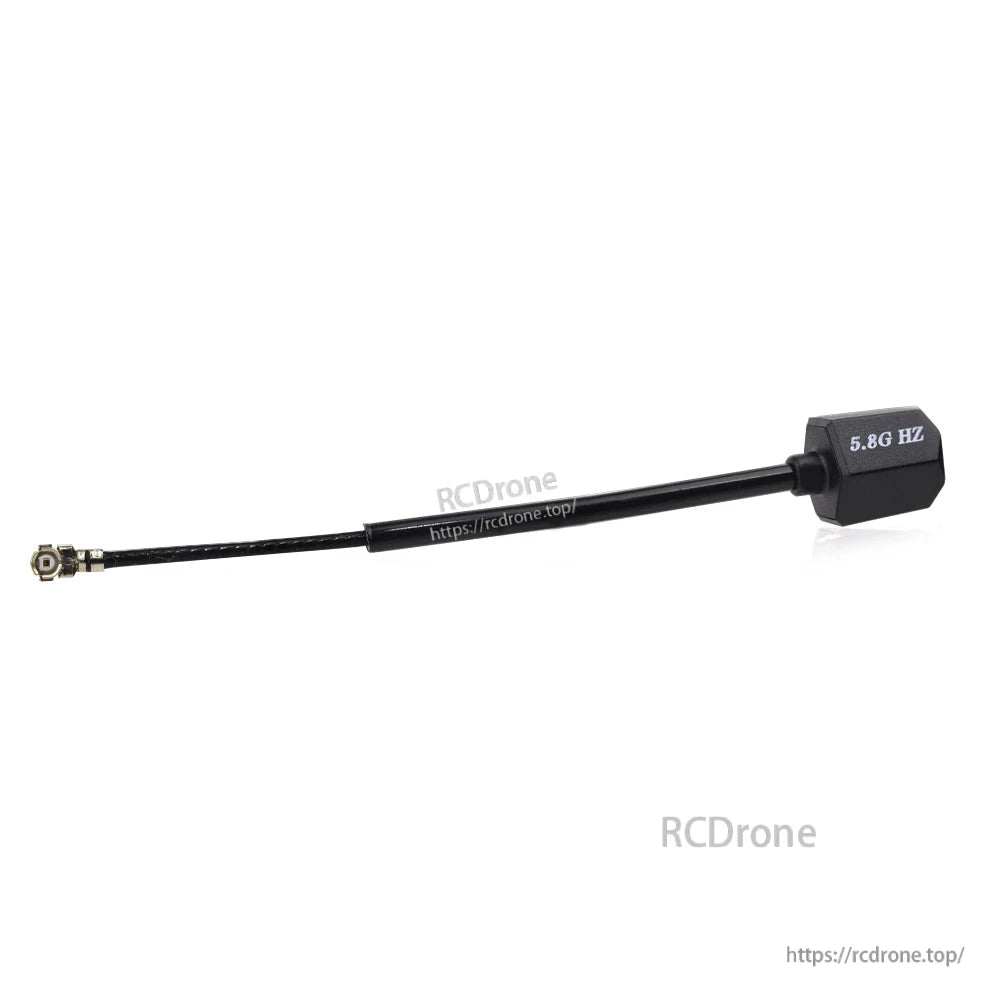

  • Side view of antenna cable and connector close-up, 5.8G Hz marking on hammer head

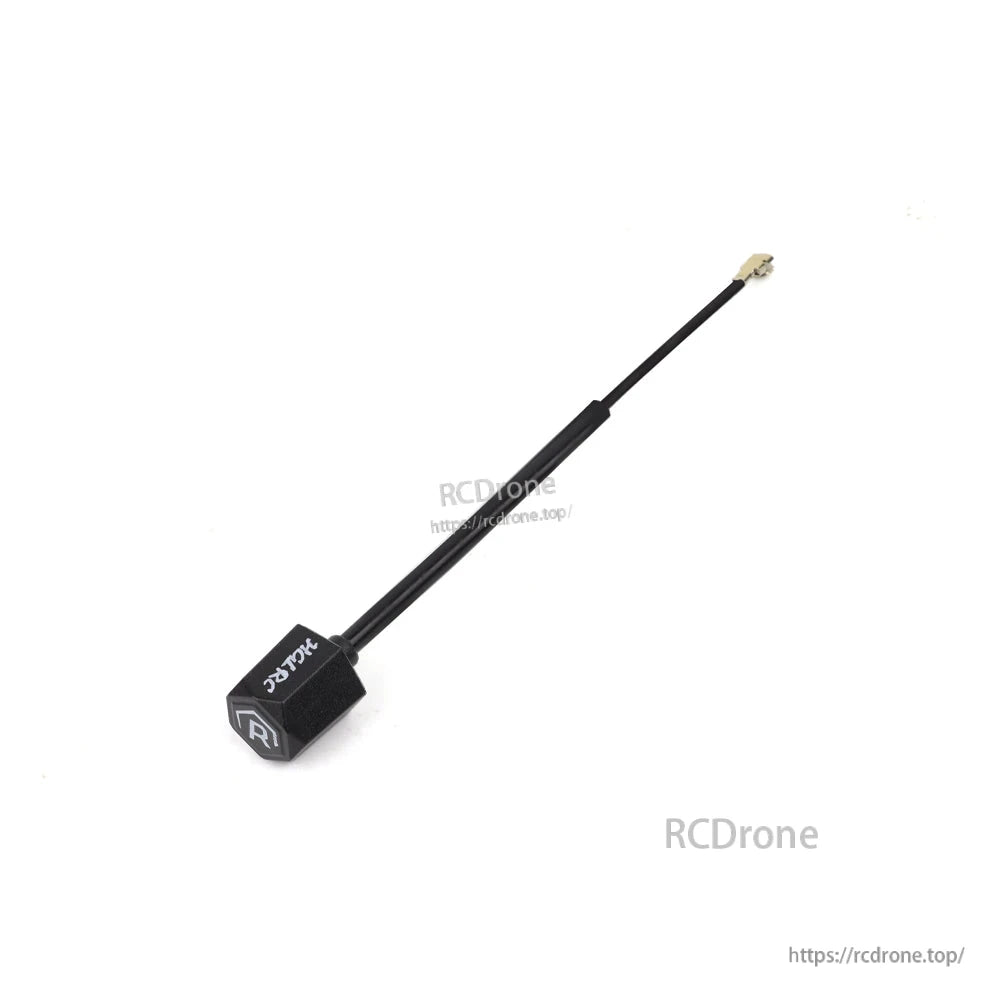

  • Mini hammer antenna top-down angled view showing HGLRC logo on housing and coax lead
1 7

HGLRC Mini Hammer Antenna V2 FPV Antenna 5000-6000MHz 2.5db IPEX RHCP/LHCP 130mm ABS

HGLRC Mini Hammer Antenna V2 FPV Antenna 5000-6000MHz 2.5db IPEX RHCP/LHCP 130mm ABS

HGLRC

$17.59 USD
$17.59 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Size
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

HGLRC mini Hammer Antenna V2 is a compact FPV antenna designed for 5.0–6.0 GHz video links, featuring an IPEX connector and ABS radome. It is specified for use with Rekon35 V2.

Key Features

  • Frequency range: 5000–6000 MHz
  • Polarization: RHCP / LHCP
  • Lightweight design: 1.5 g
  • ABS radome (Black)

Specifications

Frequency Range (MHz) 5000-6000
Polarization RHCP / LHCP
Gain (dBi) 2.5db
Input Impedance (Ohm) 50
VSWR (5850MHZ) <= 3.67
Maximum Input Power (W) 50
Connector Type IPEX
Radome Material ABS
Radome Color Black
Antenna Dimensions Total length 130mm (rigid tube length 60mm, including connector cable length 55mm)
Weight (g) 1.5
Applicable Models Rekon35 V2
Package Bag Size 109mm x 128mm
Total Weight ≈ 10.5g

Applications

  • 5.8GHz-class FPV video transmission setups requiring an IPEX connector
  • Replacement/upgrade antenna for Rekon35 V2

For compatibility or installation questions, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

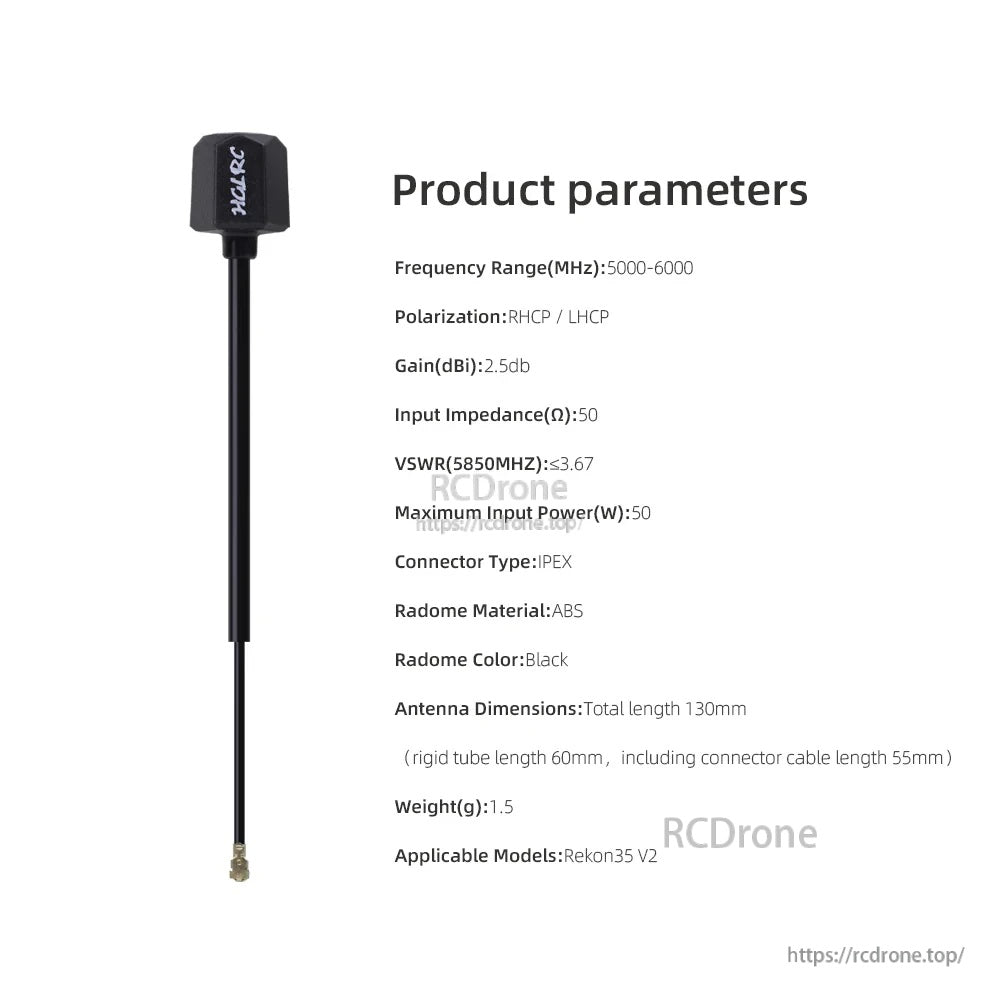

HGLRC Mini Hammer Antenna V2 with product parameters for 5.0–6.0 GHz FPV video, IPEX connector

Built for 5.0–6.0 GHz FPV video links, the Mini Hammer V2 uses an IPEX connector and an ABS radome for a compact setup.

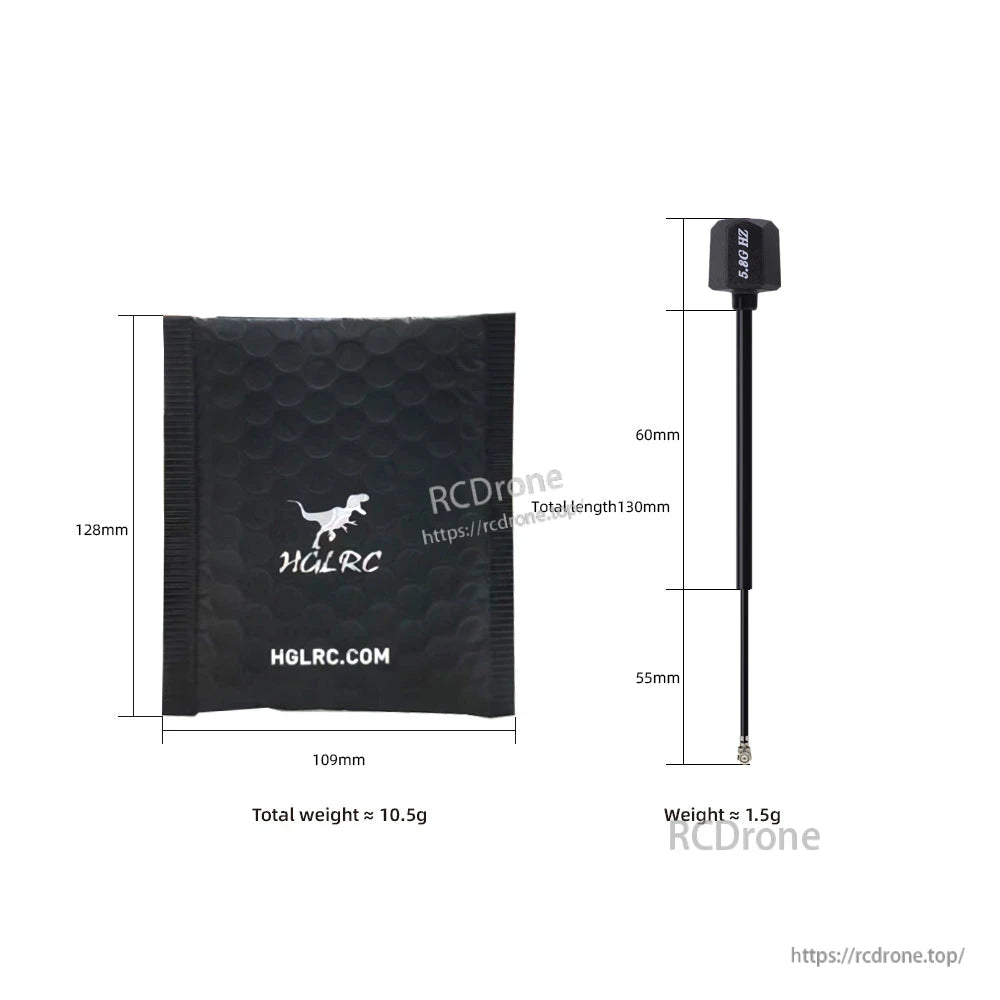

Package and size chart with 109×128 mm bag, 130 mm antenna length, 60 mm rigid tube, 55 mm cable, 1.5 g

A lightweight 1.5 g design with a 130 mm total length helps keep installs tidy on compact builds like the Rekon35 V2.

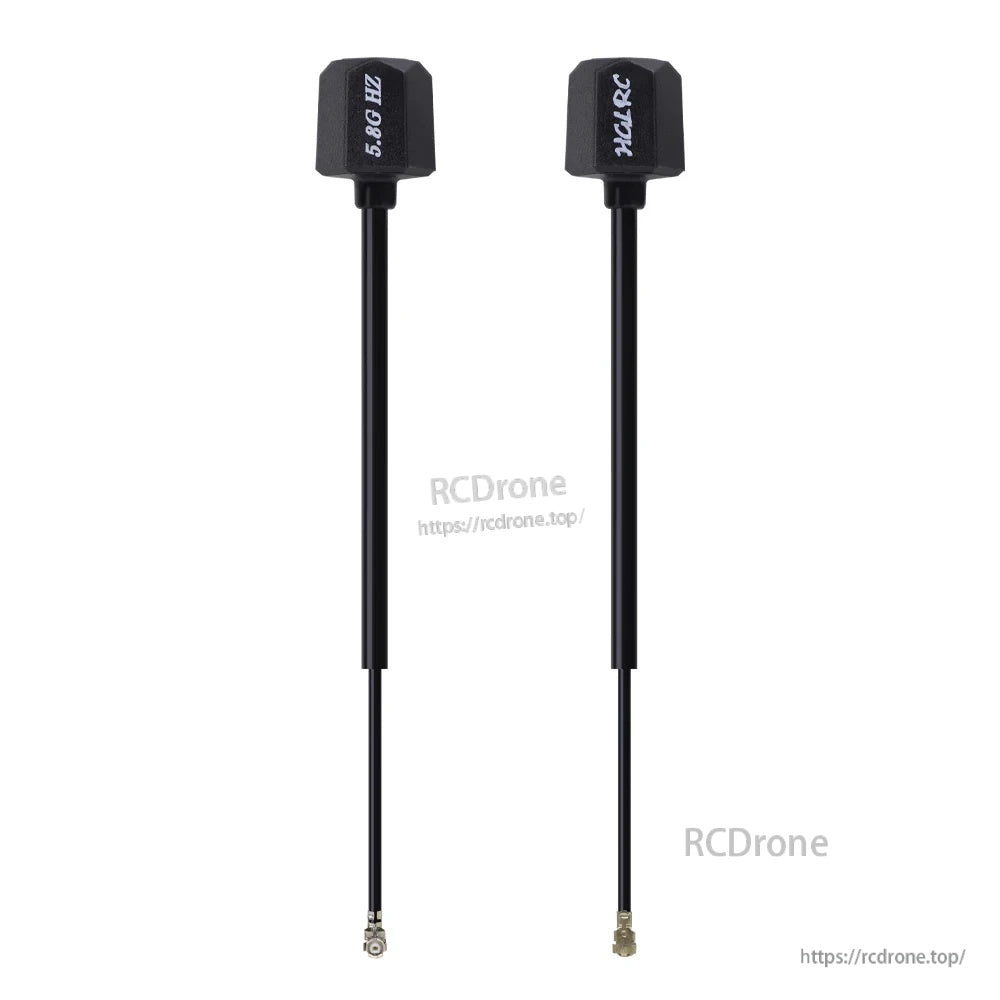

Pair of HGLRC Mini Hammer antennas labeled 5.8G and HGLRC, black radome with long cable and IPEX end
