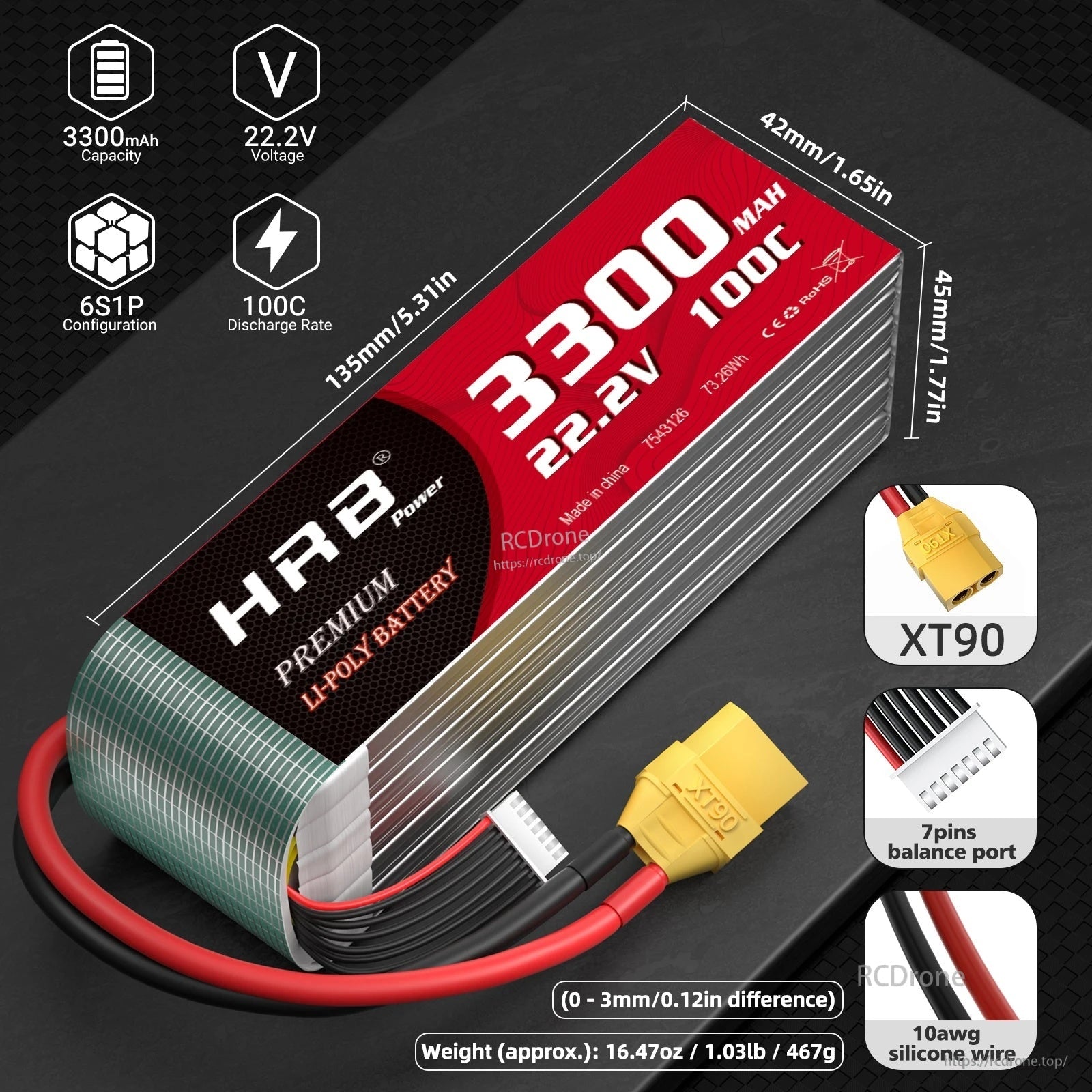

  • HRB 3300mAh 22.2V LiPo battery dimensions and connector details (XT90, 7-pin balance port)

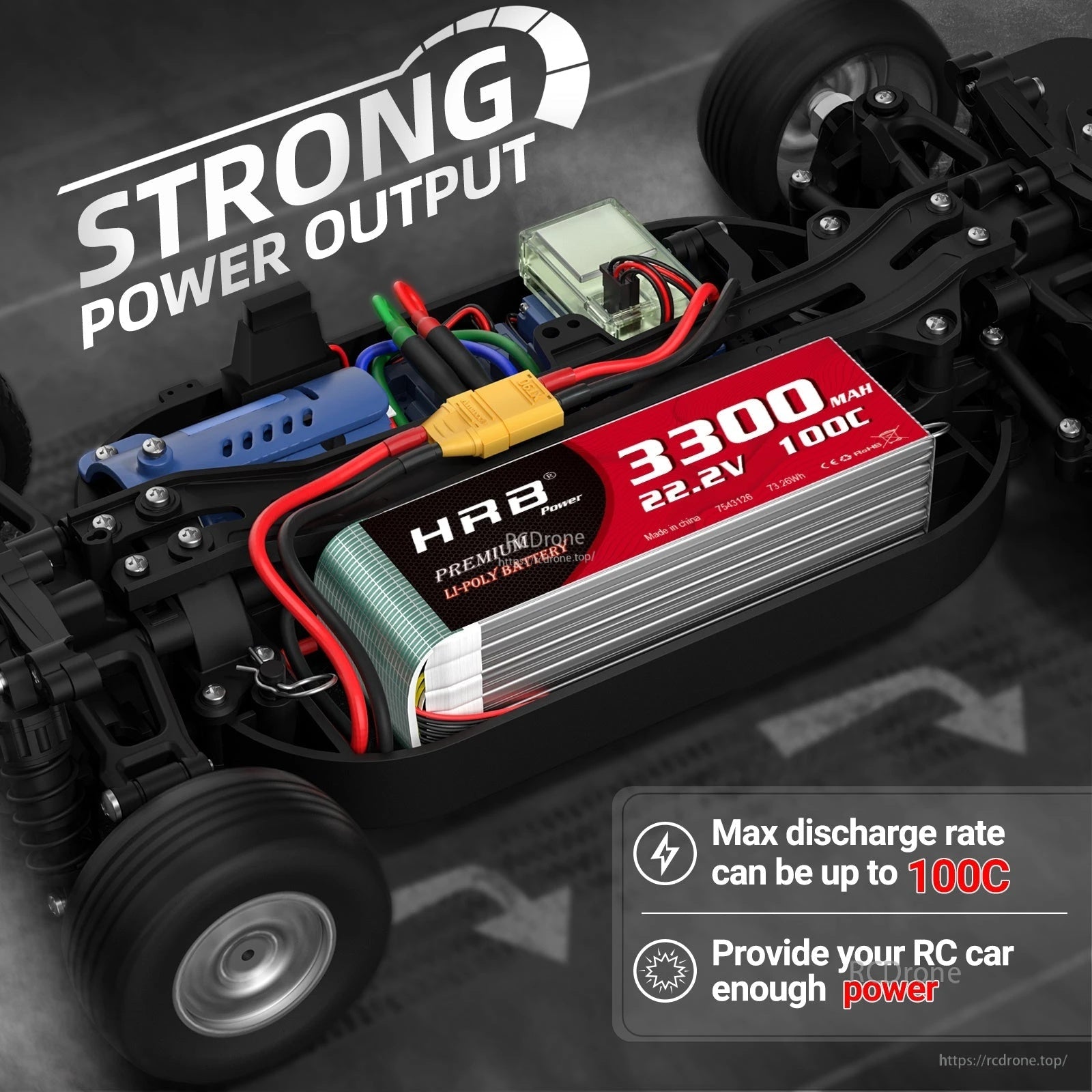

  • HRB 6S LiPo battery installed in RC car battery tray with XT90 connector

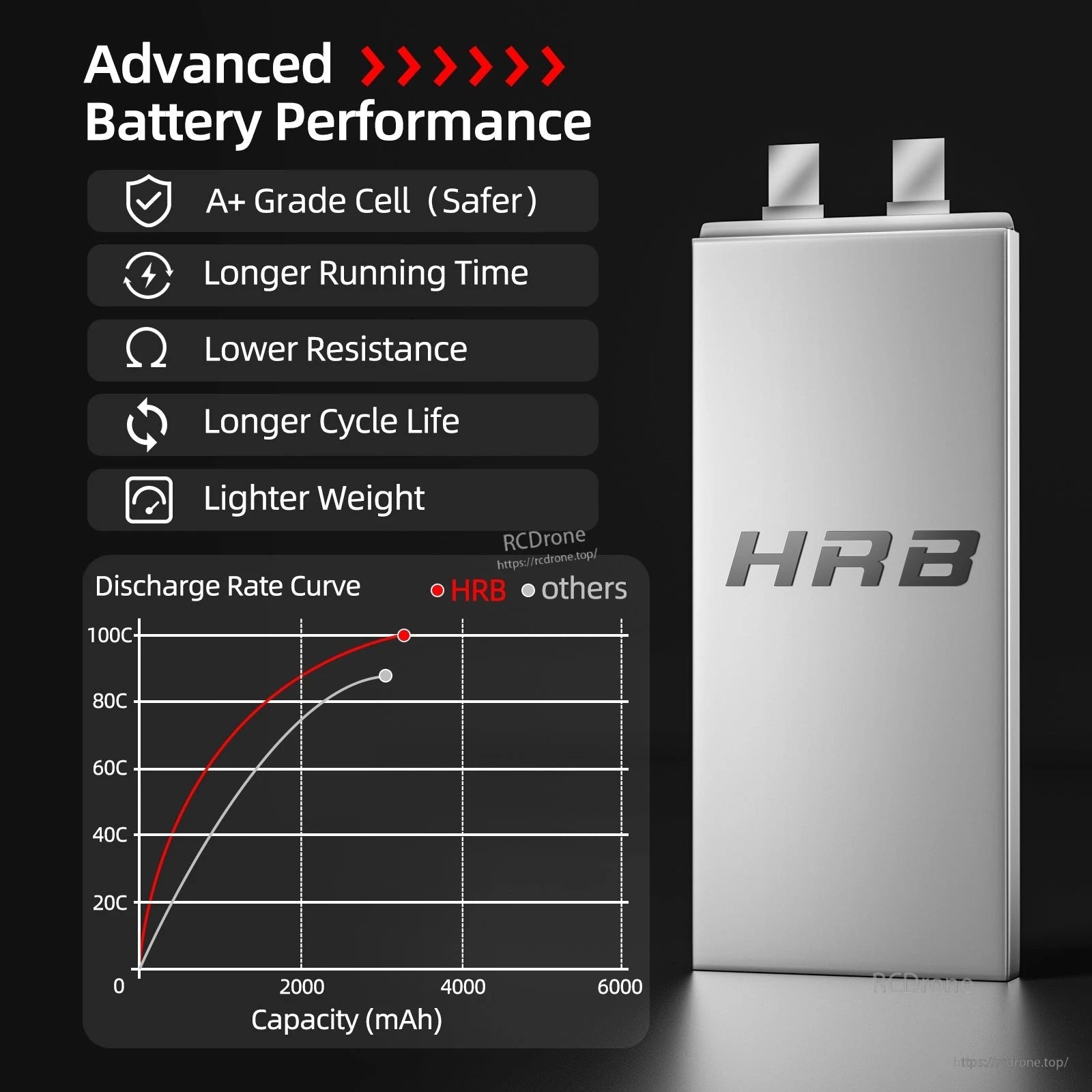

  • HRB battery performance graphic with discharge rate curve comparison chart

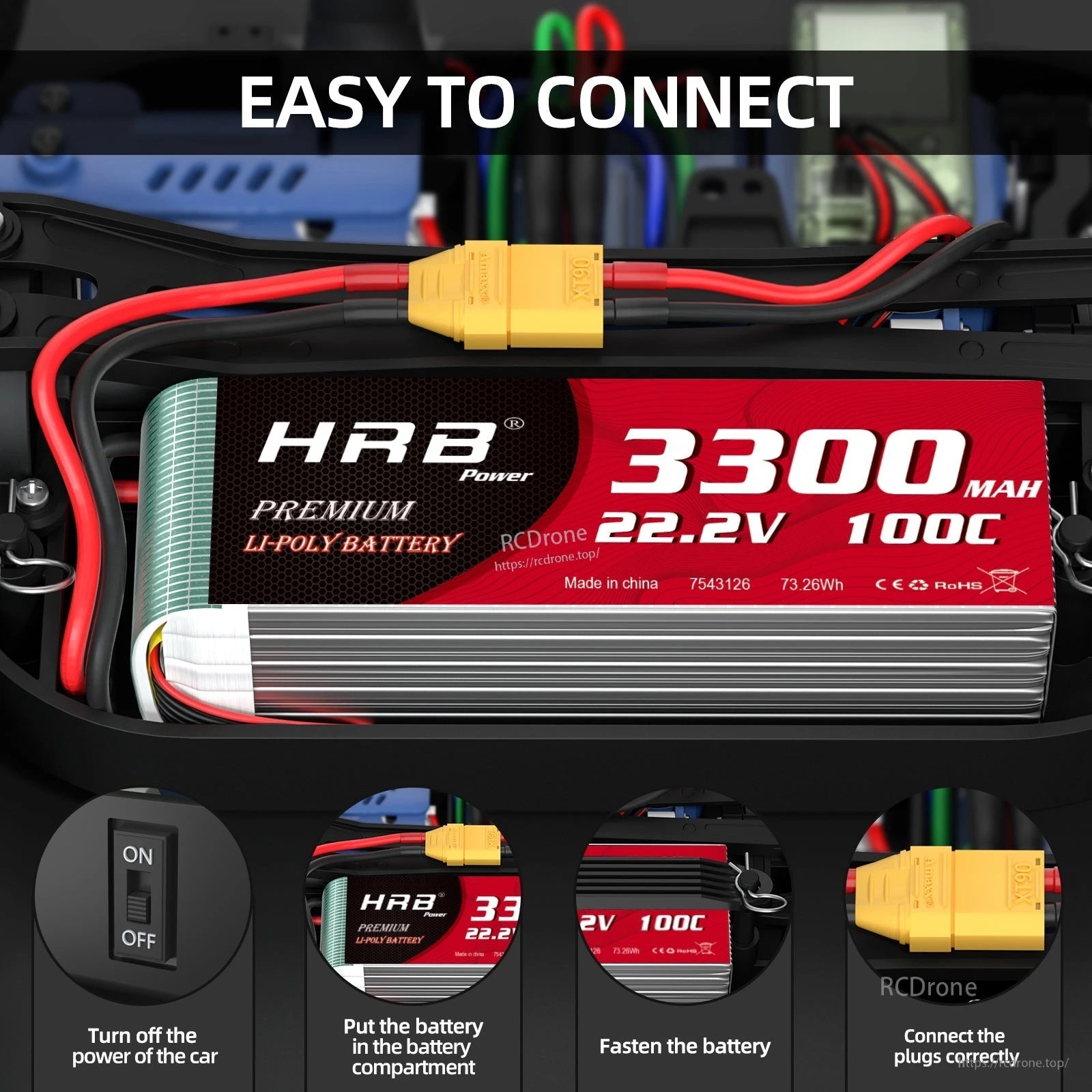

  • XT90 connector wiring example for HRB 3300mAh 22.2V LiPo in RC car compartment

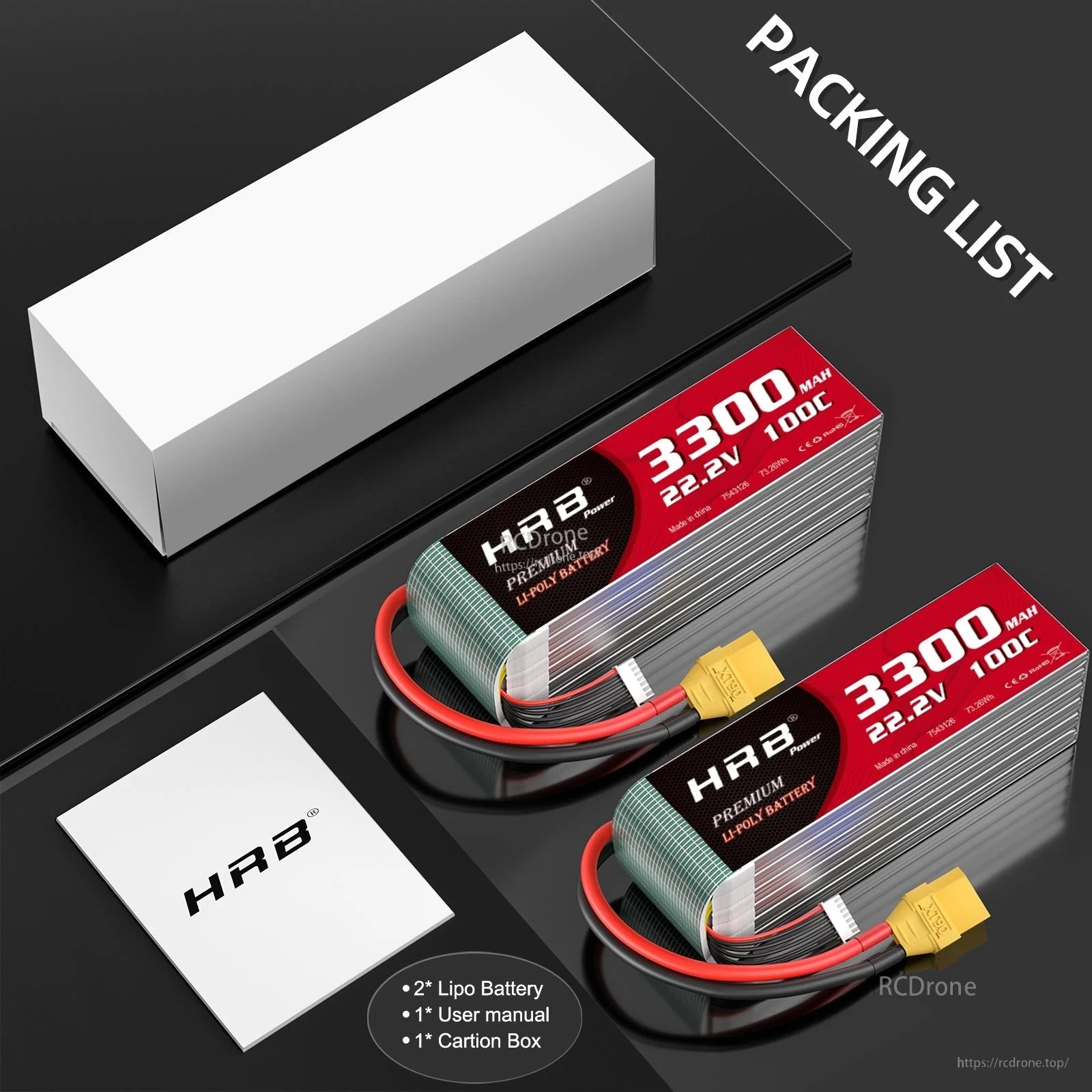

  • Packing list showing two HRB LiPo batteries, user manual, and carton box
1 6

HRB 6S 3300mAh 22.2V LiPo Battery 60C/100C, JST-XH 7-pin, XT90/EC5/Deans for RC Models

HRB 6S 3300mAh 22.2V LiPo Battery 60C/100C, JST-XH 7-pin, XT90/EC5/Deans for RC Models

HRB

$161.29 USD
$161.29 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
Connector
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

The HRB 6S 3300mAh 22.2V LiPo battery is a high-discharge pack designed for RC car, boat, truck, helicopter, and airplane applications that require a 6S (22.2V) power system. It uses a JST-XH balance lead and is offered with multiple discharge plug options to match common RC power connectors.

Key Features

  • 3300mAh capacity and 22.2V (6S) output
  • Discharge rating: 60C continuous, 100C burst (100C max shown)
  • 6S1P configuration
  • XT90 discharge connector shown; discharge plug options listed: XT90 / EC5 / Dean T plug
  • JST-XH balance plug with 7-pin balance port
  • 10AWG silicone wire (marked)
  • Label claims: “A+ Grade Cell (Safer)”, longer running time, lower resistance, longer cycle life, lighter weight

Specifications

Brand HRB
Battery type Li-Poly (LiPo)
Capacity 3300mAh
Voltage 22.2V
Cells 6S
Configuration 6S1P
Continuous discharge rate 60C
Burst rate 100C
Energy (marked) 73.26Wh
Balance plug JST-XH (7-pin)
Discharge plug XT90 / EC5 plug / Dean T plug (XT90 shown)
Main wire 10AWG silicone wire
Size (L x W x H) 135 x 42 x 45 mm (0 - 3mm difference); 135mm/5.31in, 42mm/1.65in, 45mm/1.77in
Weight 467g ± 2g (approx. 16.47oz / 1.03lb / 467g)
Label markings “Made in china”, “7543126”; CE and RoHS marks shown

What's Included

  • LiPo battery (HRB 6S 3300mAh 22.2V)
  • User manual (listed)
  • Carton box (listed)

For confirmation of the exact pack count and connector option in the box before ordering, contact [email protected] or visit https://rcdrone.top/.

Applications

  • RC car / truck power systems using 6S (22.2V) LiPo packs
  • RC boat power systems using 6S (22.2V) LiPo packs
  • RC helicopter and airplane setups that accept a 6S LiPo and the selected discharge connector

Details

HRB 6S 3300mAh 22.2V LiPo battery pack with XT90 connector, JST-XH balance lead, and size callouts

Built for 6S (22.2V) RC power systems, this 3300mAh pack uses an XT90 main plug and a JST‑XH balance lead.

HRB 3300mAh 6S LiPo installed in an RC car battery tray, highlighting compact fit and high outputHRB LiPo battery performance graphic with feature list and discharge curve comparison (HRB vs others)Close-up of HRB 6S 3300mAh 22.2V LiPo wired into an RC car with XT90 plug for quick connection

Connect the main power plug and balance lead securely, then fasten the pack in the battery compartment before running.

Packing list with HRB 6S 3300mAh 22.2V LiPo batteries, user manual, and carton box

Each package includes the battery and documentation; verify the connector option and pack quantity before ordering.
