Overview

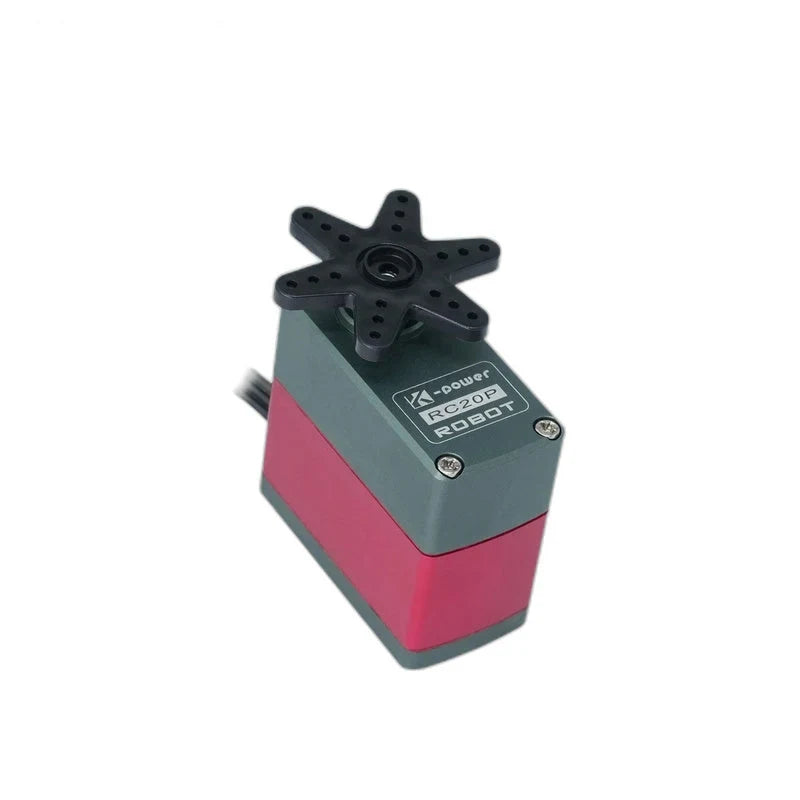

The Kpower RC20P is a coreless robotic servo motor with metal gears for desktop robot arms, educational robots and RC vehicle mechanisms. Its specified torque is 21 kg·cm at 7.4 V, with a no-load speed of 0.2 s/60° at the same voltage. The 40 × 20 × 37 mm body weighs 65 g, while a 25T, Ø6 mm output spline provides the mechanical connection for servo horns.

Features

Coreless motor and metal gear train.
Potentiometer position sensing and 180° travel, with customizable travel stated.
Aluminum-alloy case and two ball bearings (2BB).

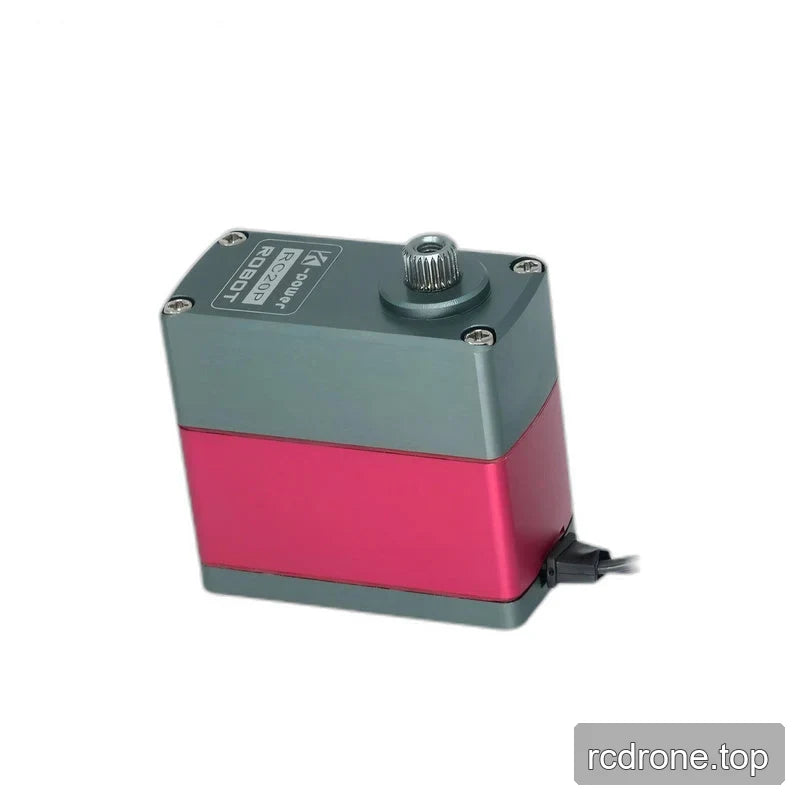

Splined output shaft with a central threaded opening; horn gear spline specified as 25T, Ø6 mm.
Operating voltage range of 4.8–8.4 V and working frequency of 50–333 Hz.

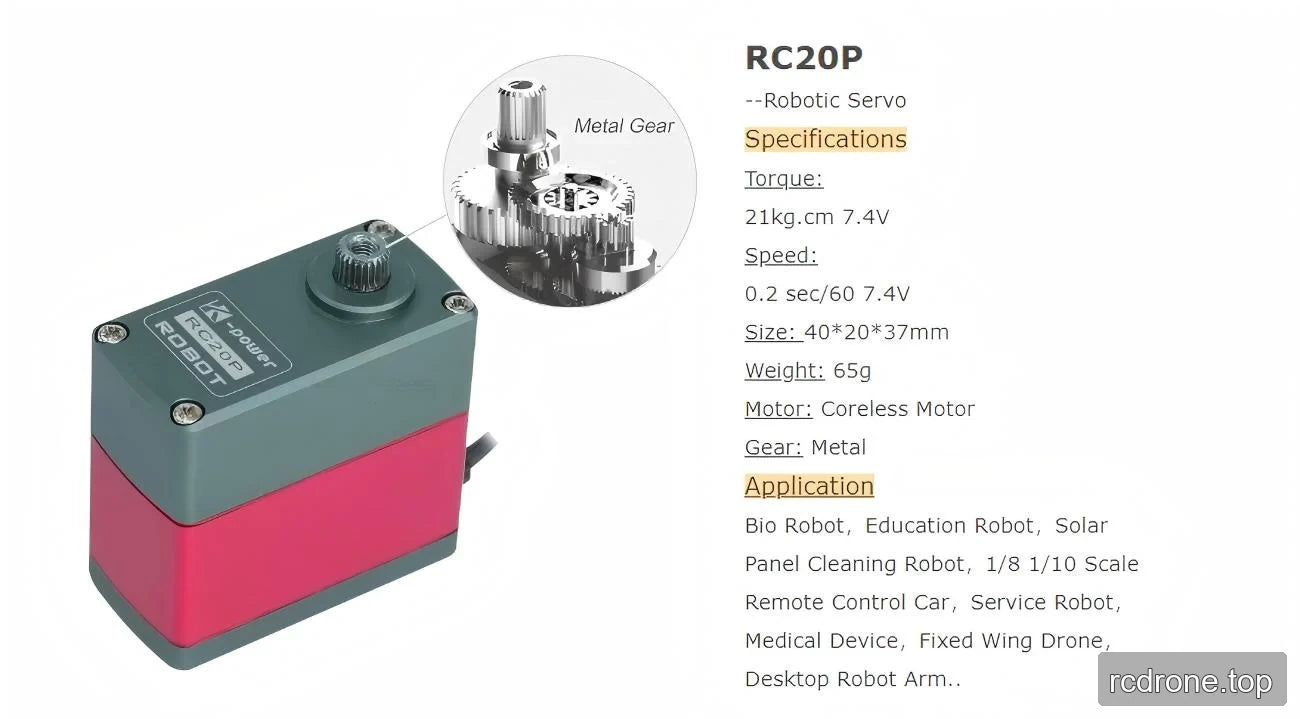

Specifications

Parameter	RC20P specification
Brand / model	Kpower RC20P
Product type	Robotic servo motor
Stall torque	21 kg·cm at 7.4 V
Rated torque	5.3 kg
No-load speed	0.2 s/60° at 7.4 V
Weight	65 g
Dimensions	40 × 20 × 37 mm
Travel angle range	180° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	25T, Ø6 mm
Output shaft detail	Splined shaft with central threaded opening
Gear material	Metal
Motor	Coreless motor
Protocols listed	PWM \| TTL \| RS-485
No-load current	7000 mA
Position sensor	Potentiometer
Case material	Aluminum alloy
Ball bearings	2BB
Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

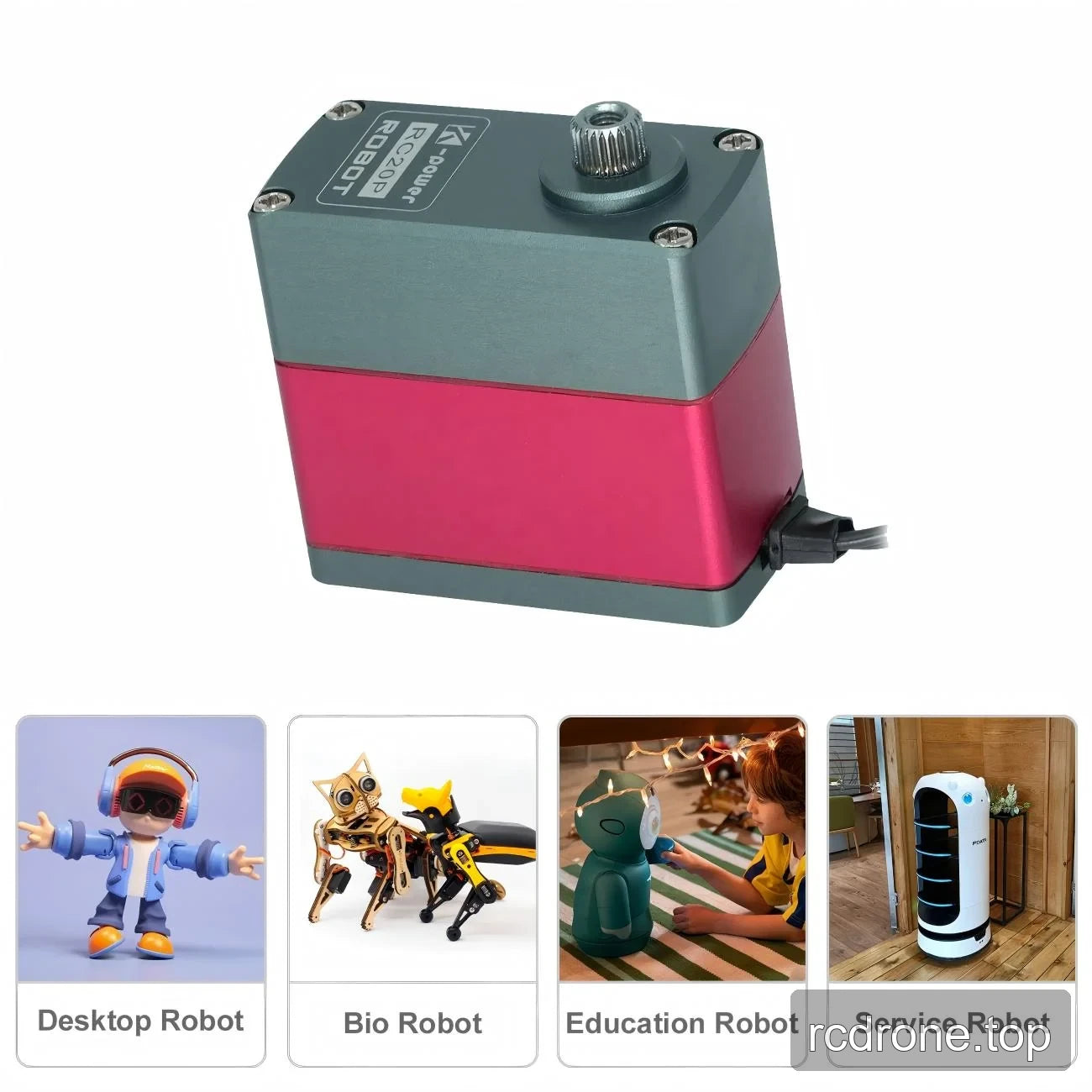

Applications

Desktop robots and desktop robot arms: actuate compact joints using the 40 × 20 × 37 mm servo body and splined mechanical output.
Educational and bio-inspired robots: build moving mechanisms with potentiometer position sensing and 180° travel.
Service robots and solar-panel cleaning robots: provide servo-driven mechanism movement using a coreless motor and metal gears.
1/8- and 1/10-scale RC cars: actuate steering or other servo-driven mechanisms with a specified no-load speed of 0.2 s/60° at 7.4 V.
Fixed-wing drones: actuate control linkages through the 25T, Ø6 mm output spline.
Medical-device mechanisms: provide servo actuation with potentiometer position sensing.
