Kpower RD13T Dual-Axis Robotic Servo Motor, 13 kg·cm at 7.4 V for Desktop and Education Robots

Kpower

$37.00 USD

Vendita Esaurito

Tasse incluse. Spedizione calcolato al momento del pagamento.

Version RD13T

Quantità

Visualizza i dettagli completi

Overview

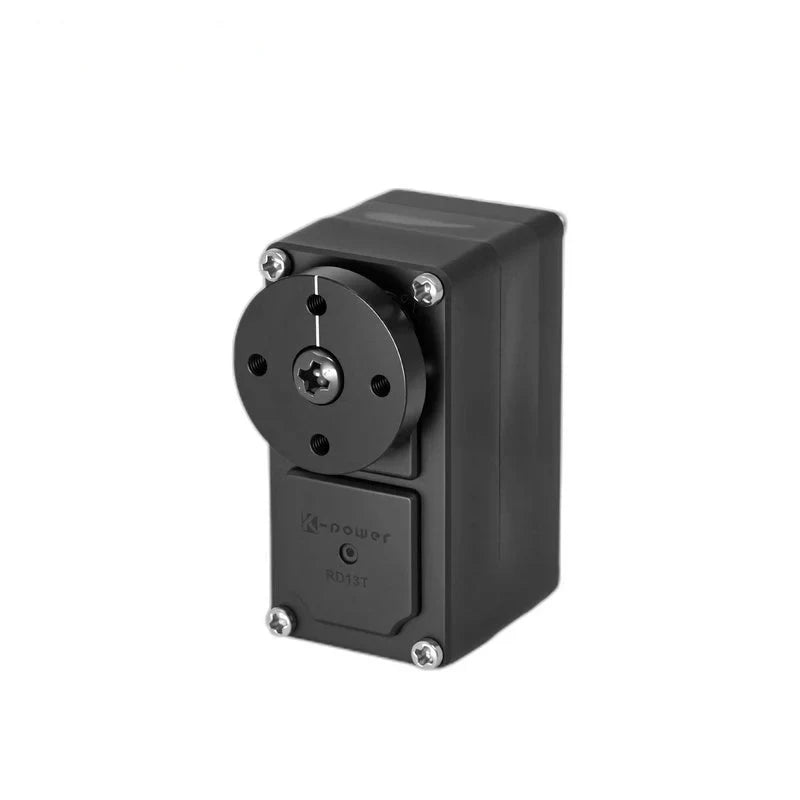

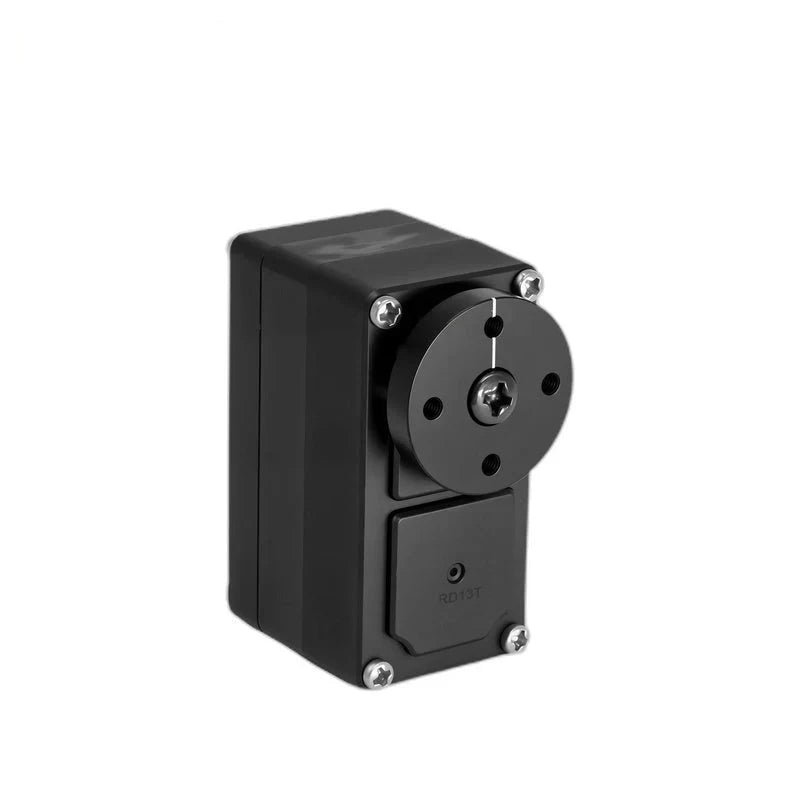

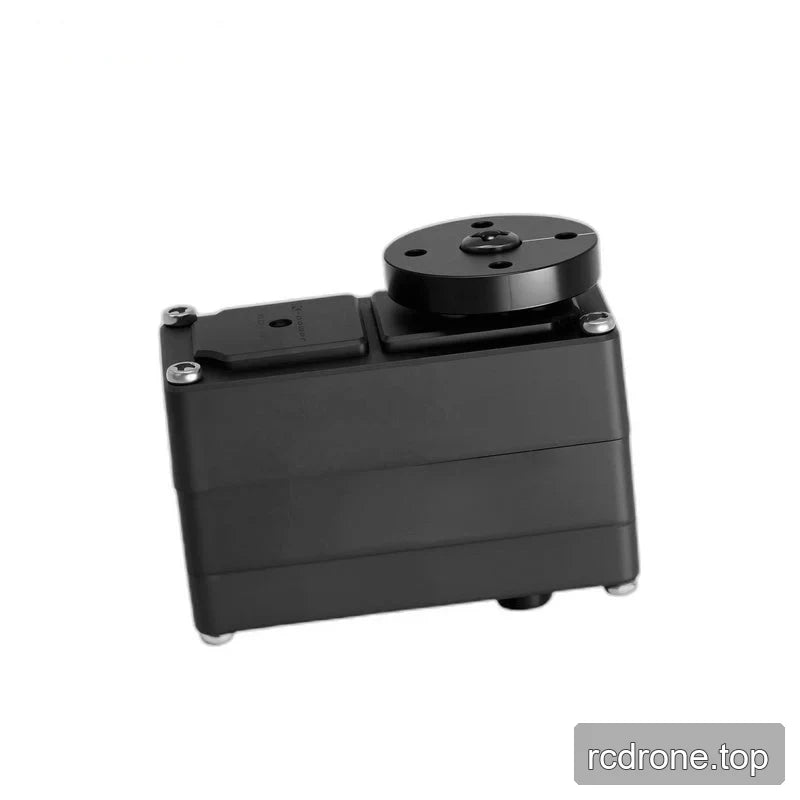

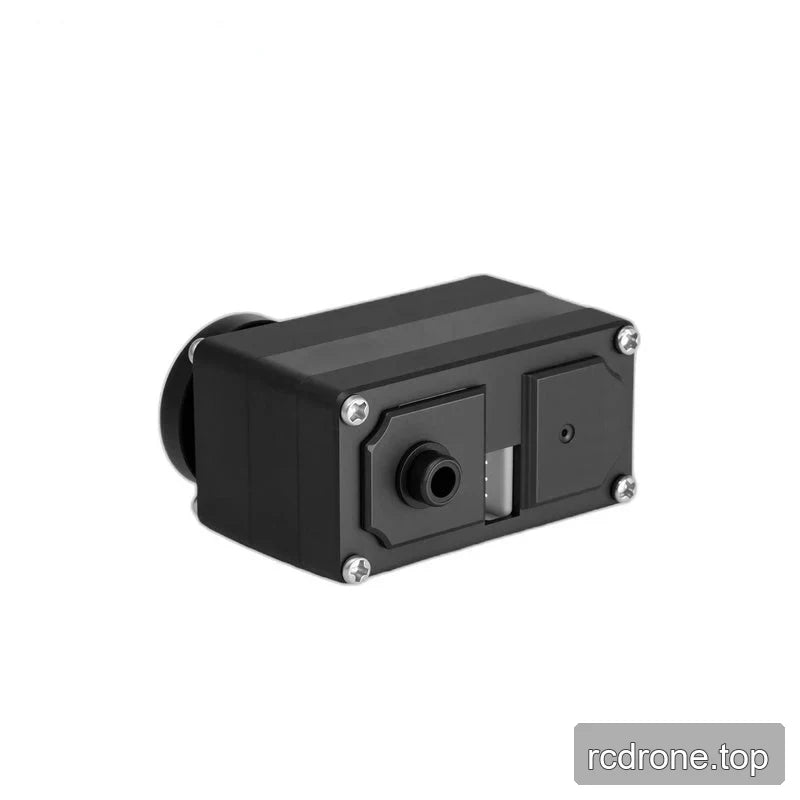

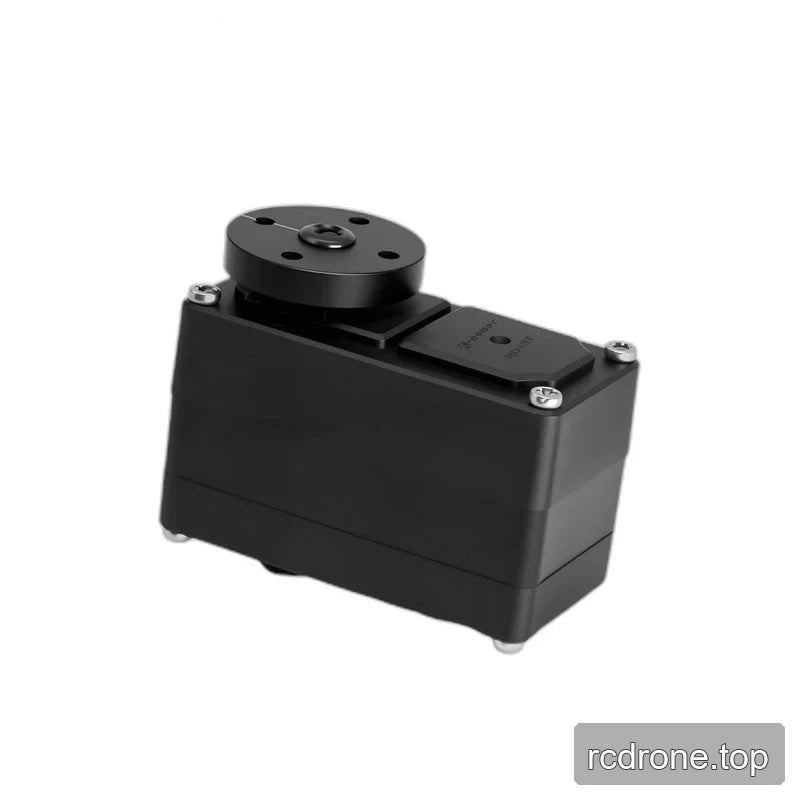

The Kpower RD13T is a dual-axis robotic servo motor for desktop, bio, education and service robots. Its coreless motor and magnetic encoder support controlled joint movement through a 180° travel range. At 7.4 V, it provides 13 kg·cm stall torque and a no-load speed of 0.24 s/60°. The 46 g unit measures 44.4 × 22.7 × 25.9 mm for integration into compact robot mechanisms.

Features

Dual-axis robotic servo design for articulated mechanisms.
Coreless motor with magnetic-encoder position sensing.
Metal gears, plastic case and two ball bearings (2BB).
180° travel angle, with customization stated for the travel range.
PWM, TTL and RS-485 listed as control protocols.

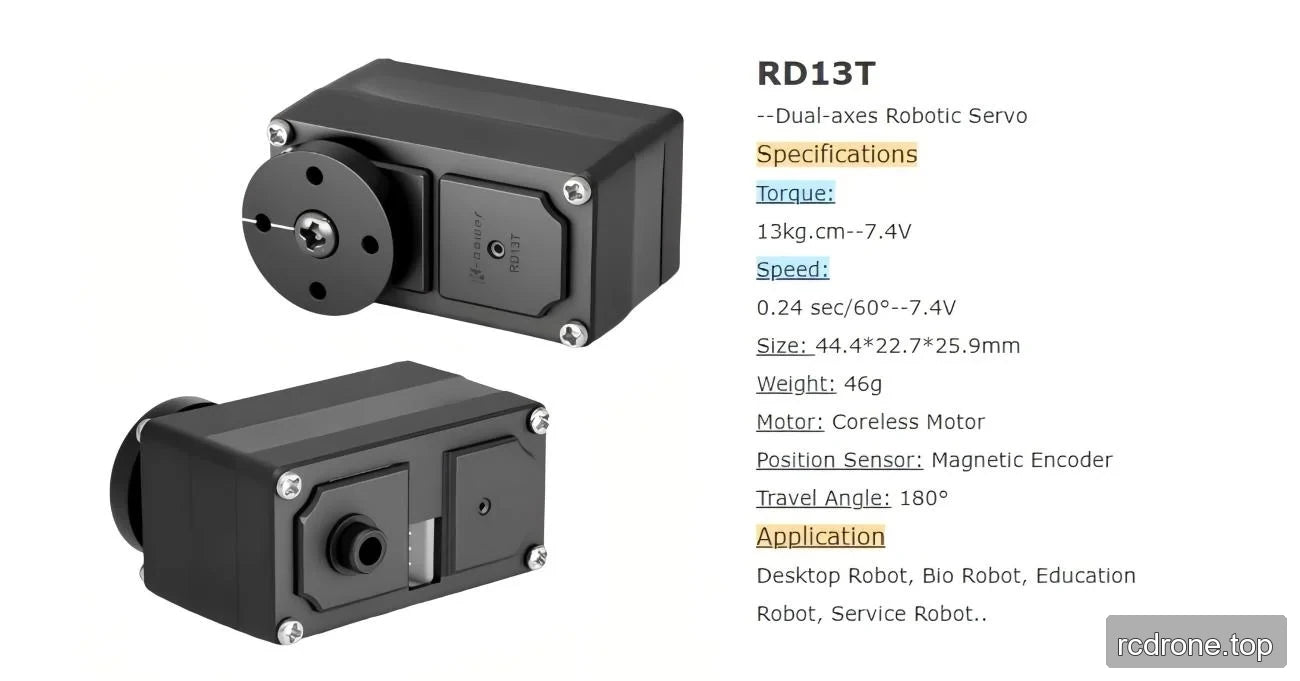

Specifications

Parameter	RD13T value
Servo type	Dual-axis robotic servo
Stall torque	13 kg·cm at 7.4 V
Rated torque	3.3 kg
No-load speed	0.24 s/60° at 7.4 V
Weight	46 g
Dimensions	44.4 × 22.7 × 25.9 mm
Travel angle range	180° (customizable)
Operating voltage	4.8–8.4 V
Horn gear spline	N/A
Gear material	Metal
Motor	Coreless motor
Protocol	PWM / TTL / RS-485
No-load current	2000 mA
Position sensor	Magnetic encoder
Case material	Plastic
Ball bearings	2BB

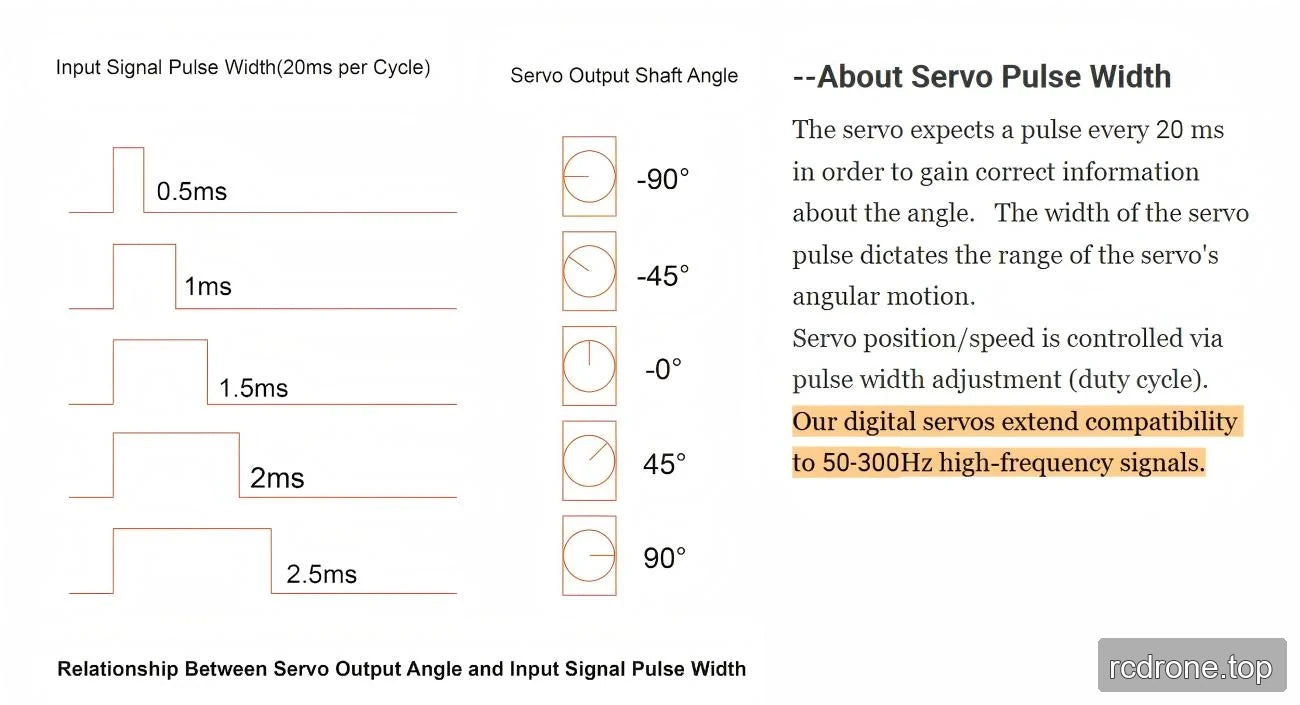

Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

Applications

Desktop robots: Actuate compact articulated mechanisms using the 46 g servo and its 44.4 × 22.7 × 25.9 mm body.
Education robots: Demonstrate controlled joint movement using the 180° travel range and magnetic-encoder position sensing.
Bio robots: Drive articulated, biologically inspired mechanisms with the dual-axis servo design.
Service robots: Provide joint actuation for mechanisms operating within the specified torque, travel and voltage limits.
