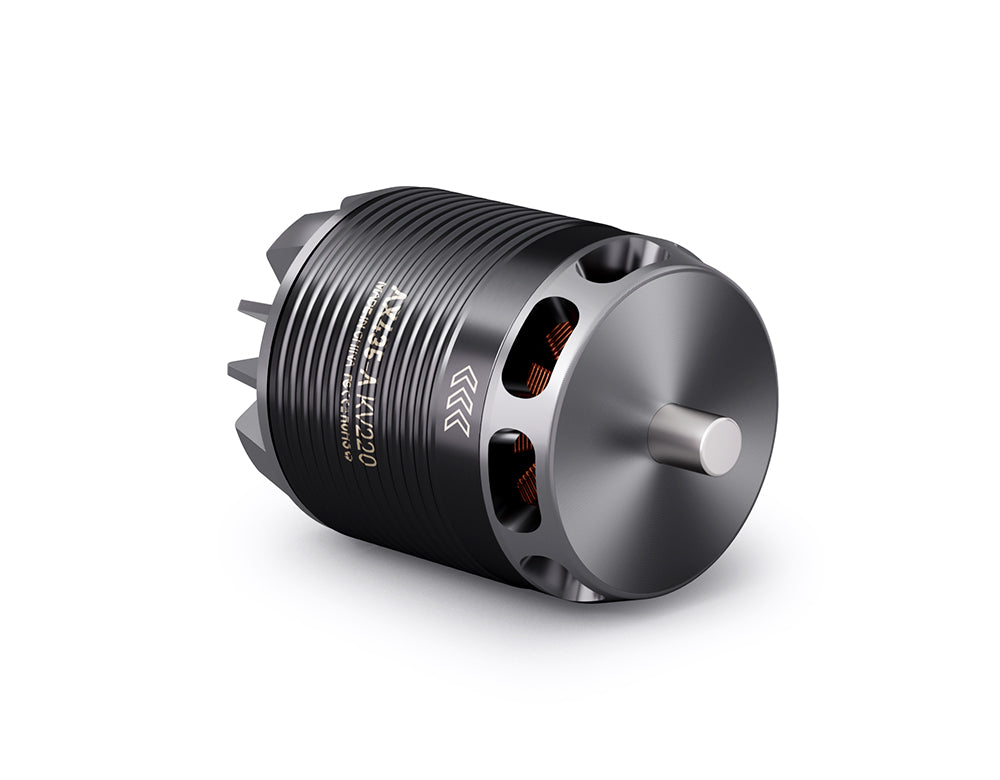

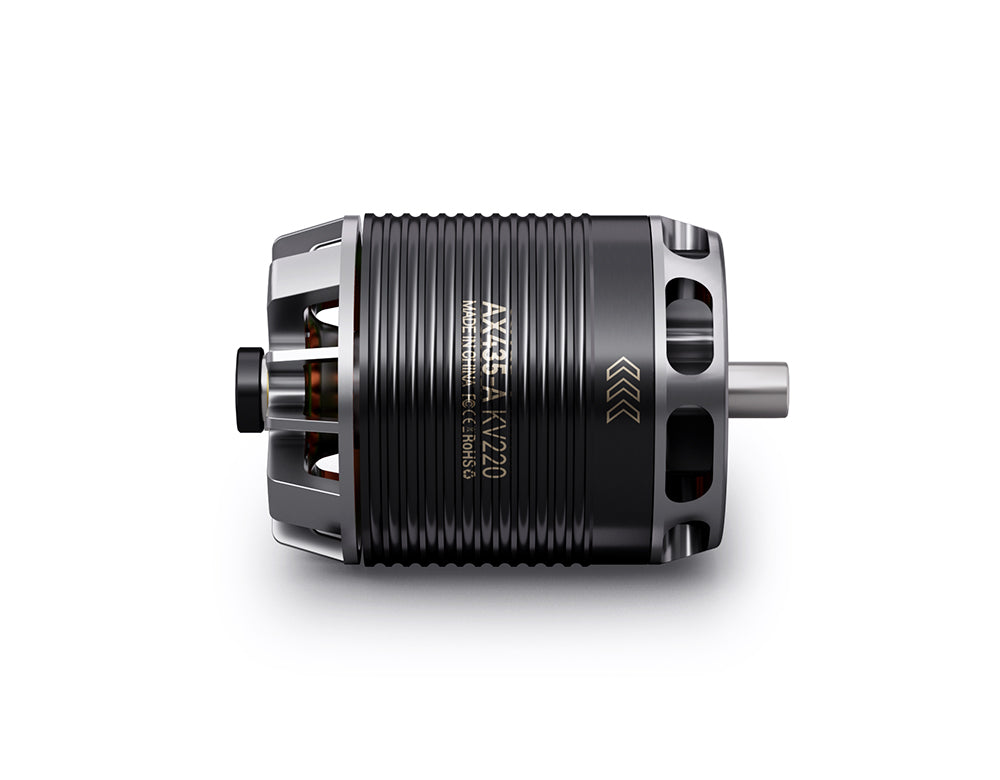

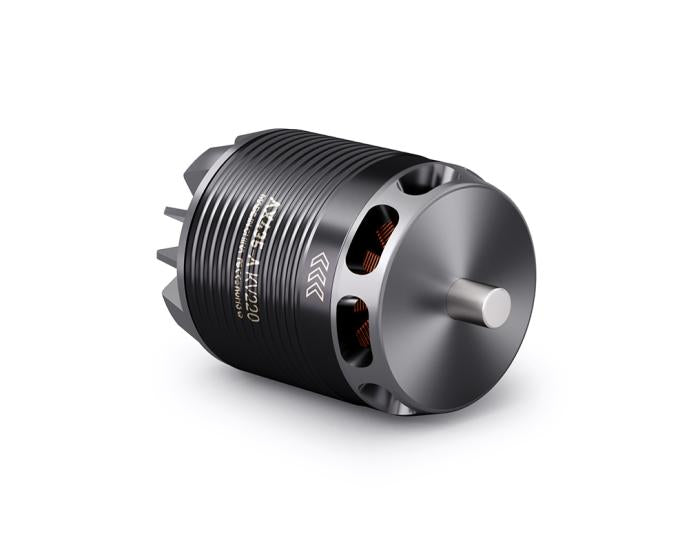

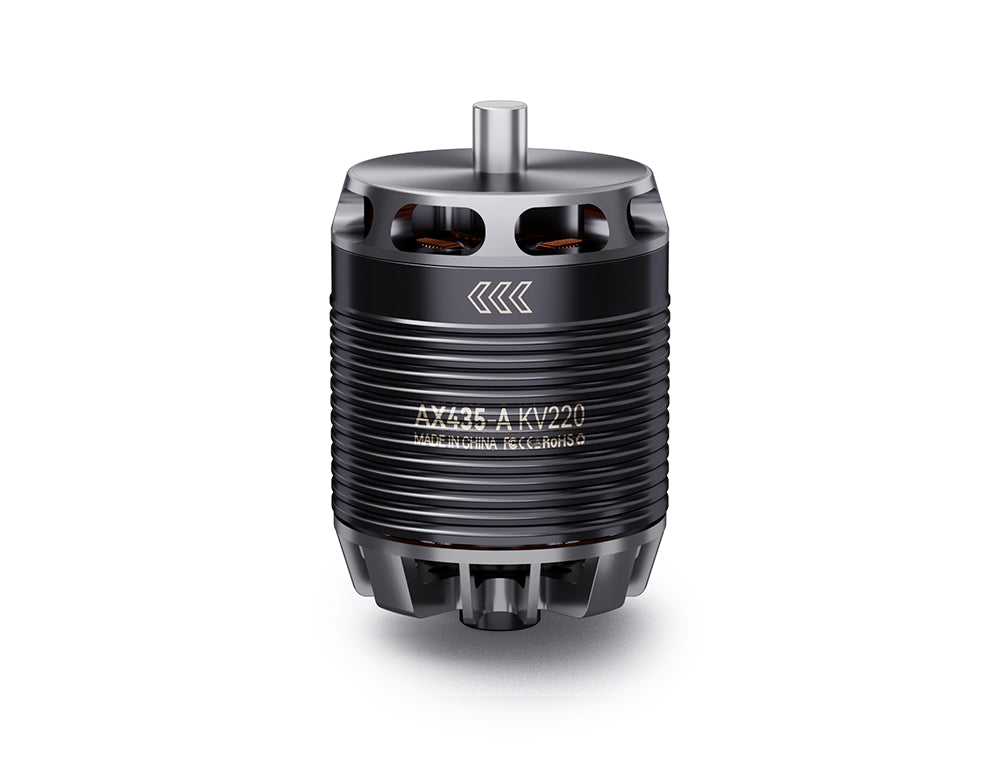

AX435-A Fixed-Wing Motor - Quick Installation & Efficient Cooling

AX435-A Fixed-Wing Motor - Quick Installation & Efficient Cooling

T-MOTOR

$180.60 USD
$180.60 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi
ax

AX SERIES BRUSHLESS MOTORS

A POWER SYSTEM SPECIFICALLY ENGINEERED FOR FIXED-WING CRUISE UAVS

AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

HIGH MOUNTING VERSATILITY

Designed for pusher configurations. Features rear shaft output for internally mounted installations and  front shaft output for externally mounted installations, adapting to diverse airframe layouts.

ax

AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

ENHANCED COOLING EFFICIENCY

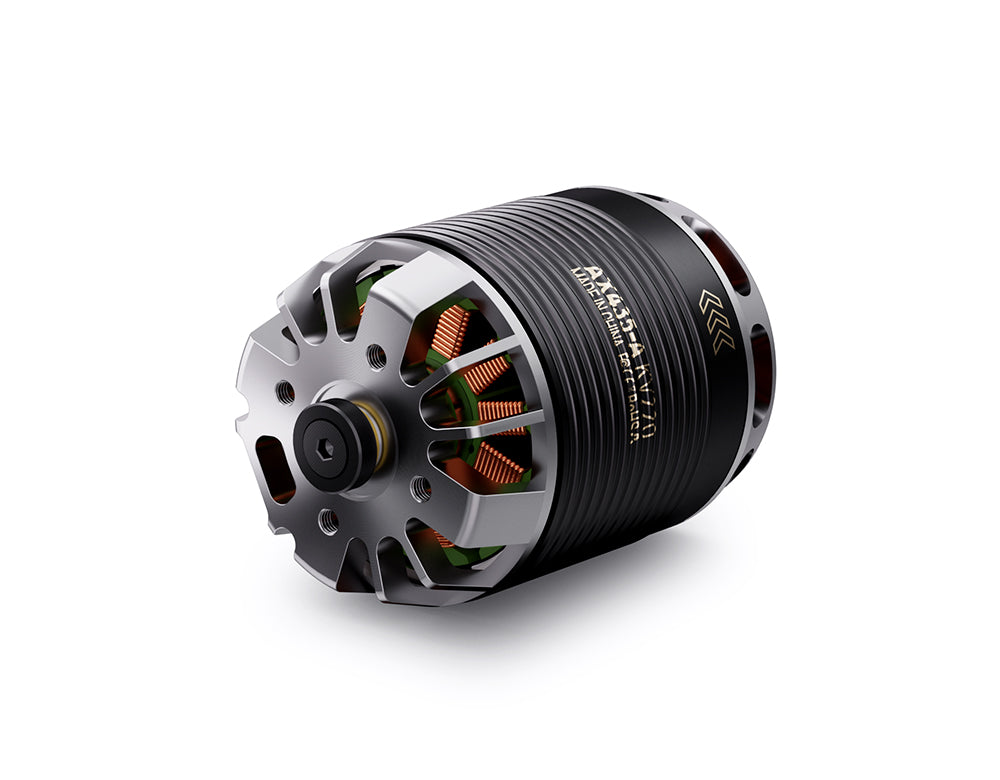

Optimized for pusher applications. End caps incorporate tilted centrifugal cooling fins aligned with rotation direction, improving heat dissipation efficiency by 5%.

AX435-A | AX435-B | AX525-A | AX525-B | AX530-A | AX530-B

QUICK INSTALLATION

Integrated collet-type prop hub enables rapid installation of folding propellers.

AX435-A Configuration

Recommended Takeoff Weight

10-12kg

Max Thrust

9.7kg

Motor weight

480g

Recommended Battery

12S(Lipo)

Recommended Setup

AX435-A Motor+AT115A ESC+ AUFZ16*13/AUFZ17*14/AUFZ17*11 Prop

Specifications

Technical Drawing


Specification
Model No. AX435-A Magnet Level 180℃
Motor Size Φ49.5*77.5mm Lead Cable Enameled Wire 150mm
Stator 150°C high temperature
-resisting coatings		 Copper Wire 220℃
Configuration 12N14P Coil Insulation Test 500V/5s
Shaft Diameter IN:8mm OUT:8mm Rotor Dynamic BalanceStandard ≤30mg
Bearing Imported MR148/688ZZ Package Size 197*104*75mm
Tech Specs
KV 220 Idle Current(15V) 1.4A
Max Power 1550W Peak Current 75A
Rated Voltage (Lipo) 12S Internal Resistance 46mΩ
Max Thrust 7.5kg Weight (incl.cable) 480g
KV 250 Idle Current(15V) 1.6A
Max Power 2000W Peak Current 82A
Rated Voltage (Lipo) 12S Internal Resistance 37mΩ
Max Thrust 9.7kg Weight (incl.cable) 480g
