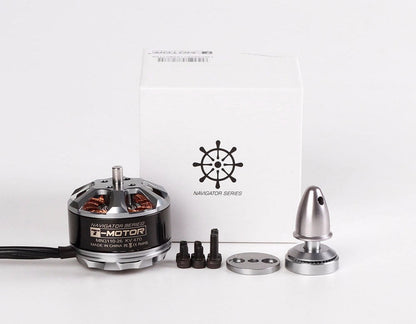

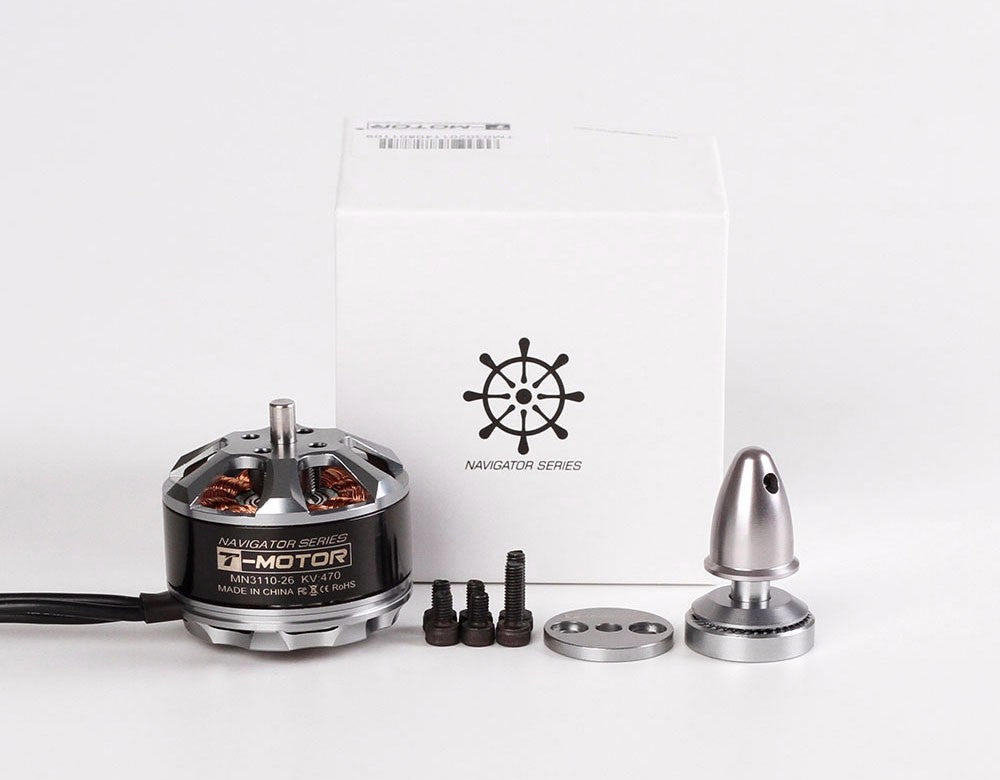

  • T-Motor Navigator Series MN3110-26 KV470 brushless motor kit with screws, adapter parts, and box
  • T-Motor Navigator Series MN3110-26 KV470 brushless motor kit with mounting screws, adapter and spinner
  • T-Motor Navigator Series 7110 KV110 brushless motor with machined aluminum housing, exposed windings, and three-wire lead

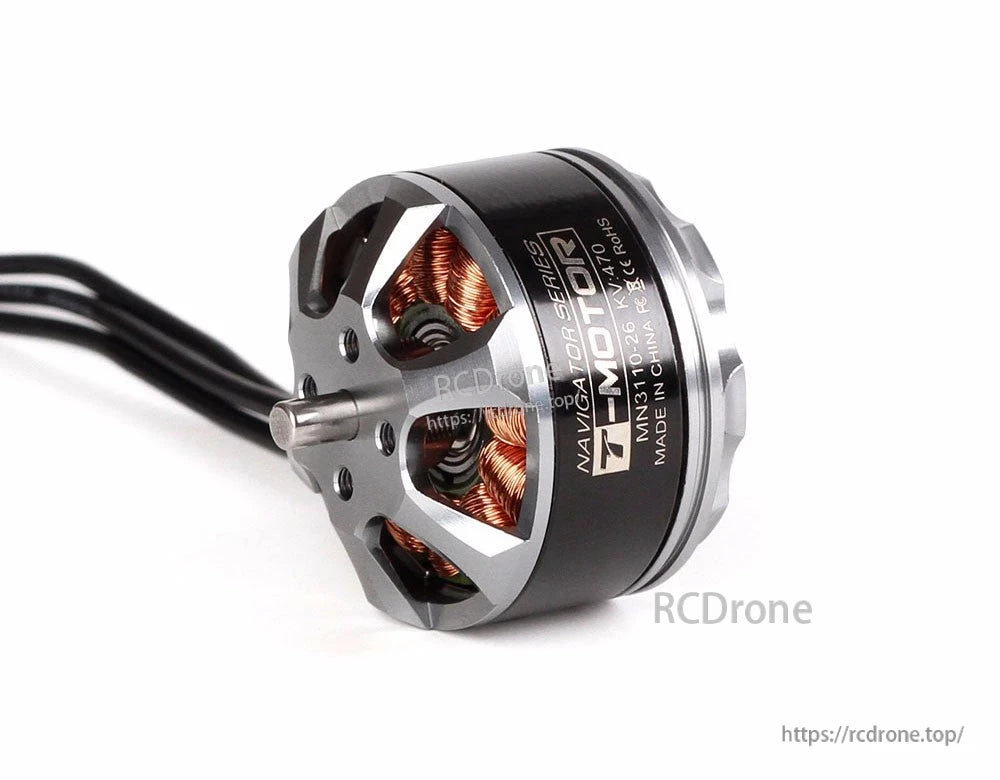

  • T-Motor Navigator Series MN3110-26 KV470 brushless outrunner motor with silver housing and exposed windings

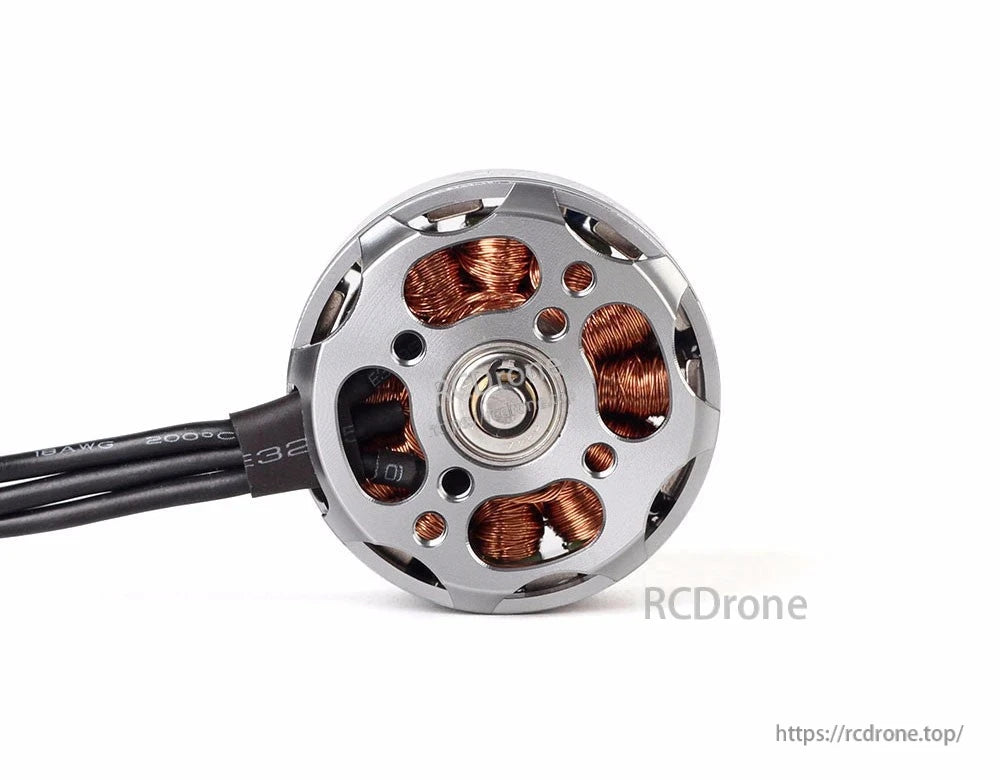

  • Top view of a T-Motor brushless outrunner drone motor with exposed copper windings and pre-soldered leads

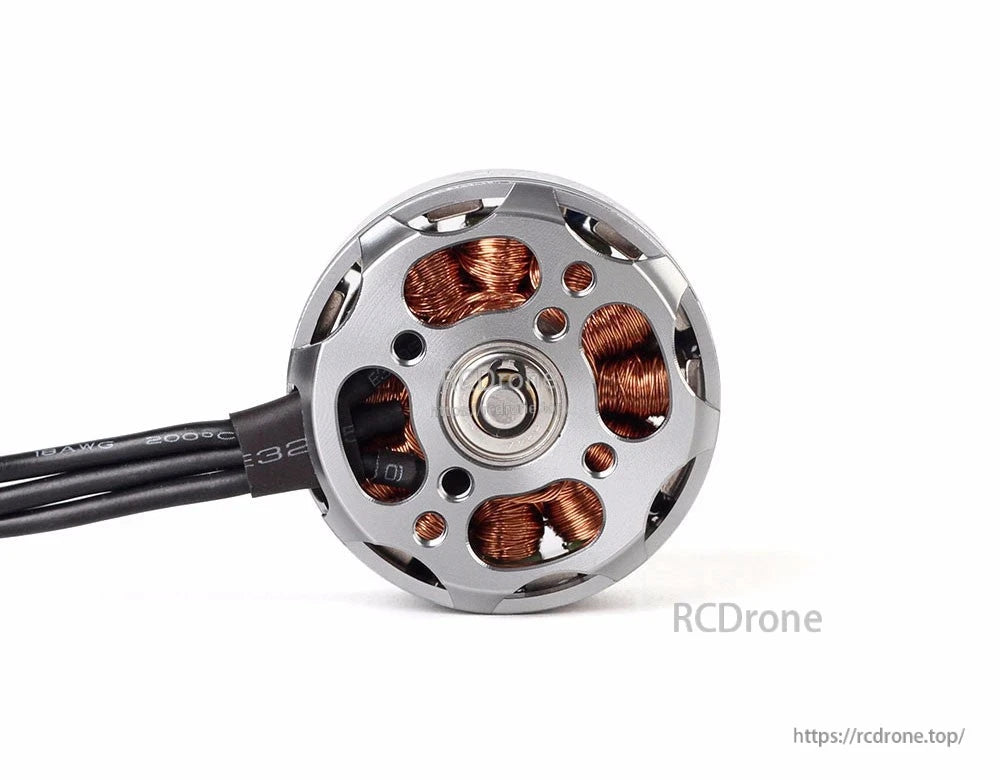

  • T-Motor brushless drone motor close-up with silver outrunner housing, visible copper windings, and attached wires

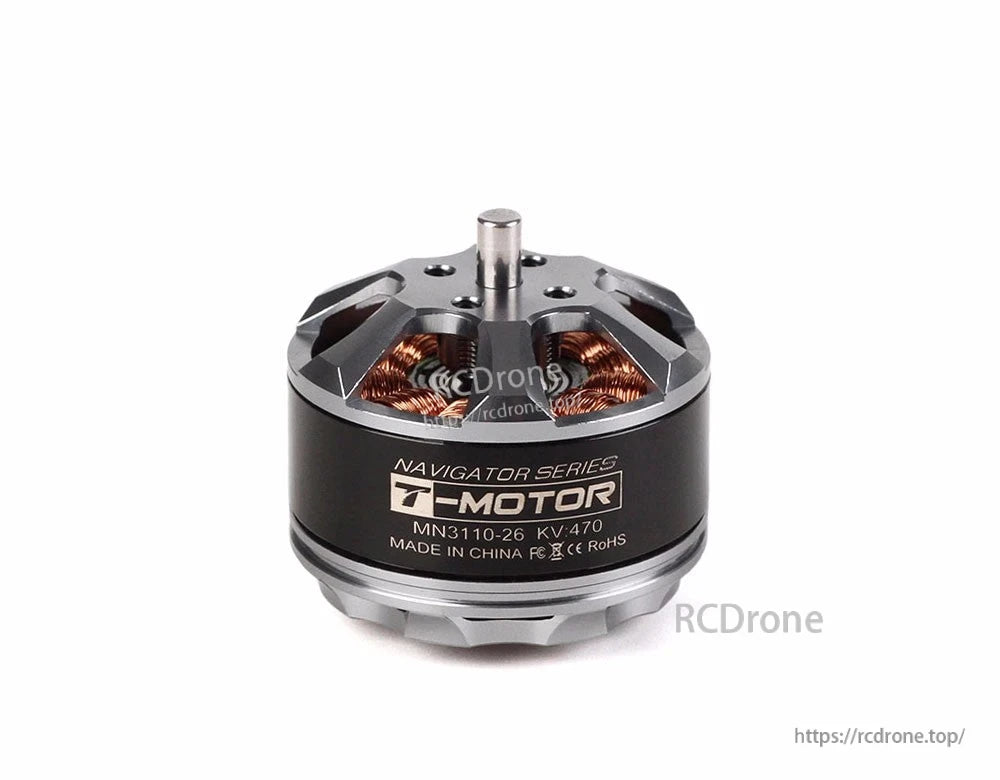

  • T-Motor Navigator Series MN3110-26 KV470 brushless outrunner motor with exposed copper windings and top shaft

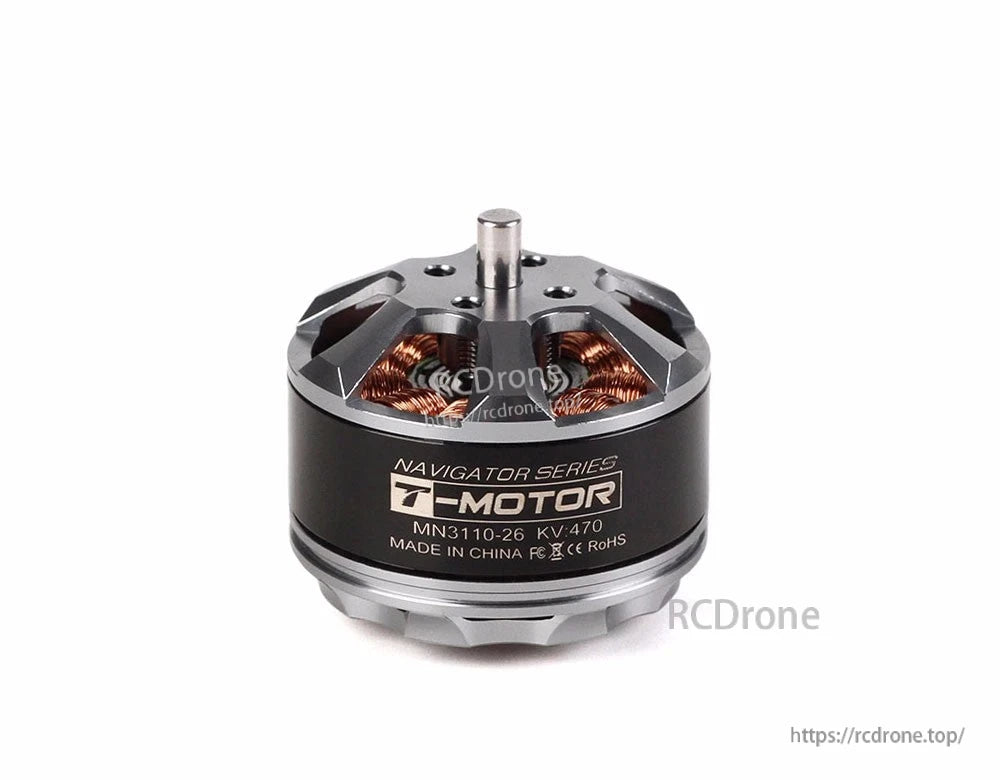

  • T-Motor Navigator Series MN3110-26 KV470 brushless outrunner motor with exposed copper windings and shaft
  • T-Motor brushless outrunner motor close-up with silver end bell, visible copper windings, and three black wires

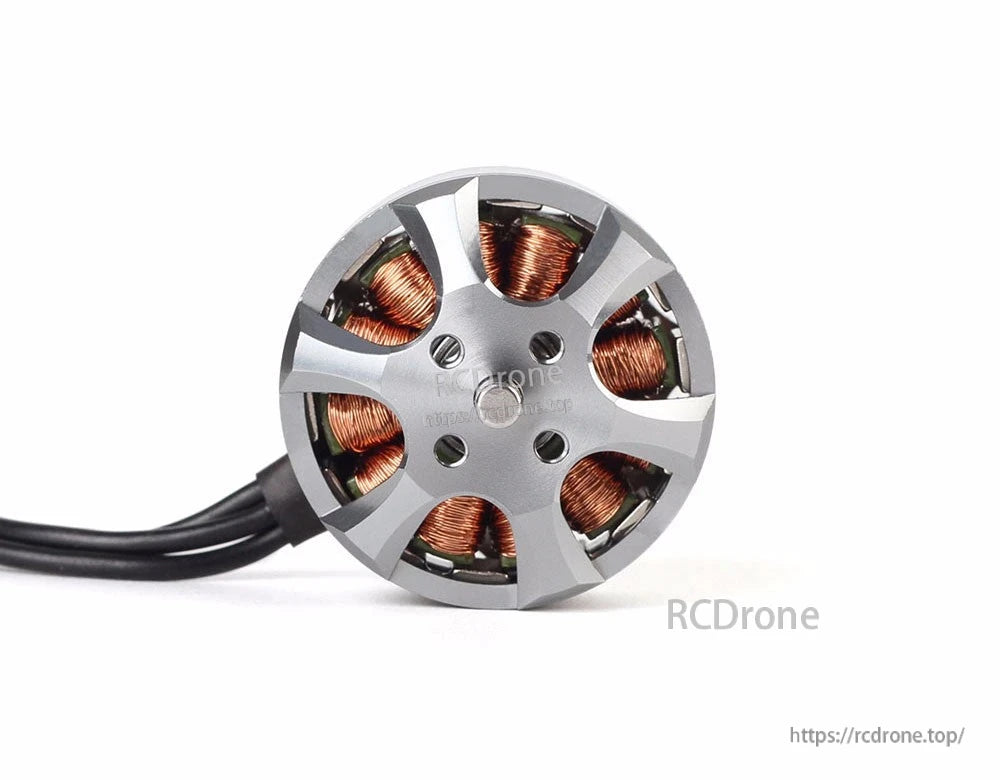

  • Top view of a T-Motor brushless drone motor with silver bell, exposed copper windings, and mounting holes
1 11

T-Motor MN3110 Navigator UAV Motor KV470/KV700/KV780 Brushless for Multirotor VTOL Fixed-Wing

T-Motor MN3110 Navigator UAV Motor KV470/KV700/KV780 Brushless for Multirotor VTOL Fixed-Wing

T-Motor

$86.66 USD
$86.66 USD
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
KV
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
Visualizza dettagli completi

Overview

T-Motor MN3110 KV470/KV700/KV780 is a brushless UAV motor from the Navigator (MN Series) range for multirotor power systems and compatible VTOL and fixed-wing UAV platforms. It is built with a focus on smooth operation and long service life, using high-standard EZO bearings and a robust construction concept for dependable aerial platforms.

Key Features

  • Navigator series design concept for reliable aerial platforms
  • High-standard EZO bearings (original imported), supporting steady running at low velocity
  • Flexible mounting holes to match different frames: standard 16*19mm and 19*25mm patterns
  • Super Balance
  • High Strength Construction

Specifications

Model MN3110 (Navigator / MN Series)
KV options KV470 / KV700 / KV780
Max thrust 1.2 kg
MTBF About 1000 hours
Bearing EZO (high standard, original imported)
Mounting hole patterns 16*19mm and 19*25mm (4-M3)
Mounting dimensions shown 25 mm, 19 mm, 16 mm; 4-M3; Φ12; Φ4
Included prop adapter M6 prop adapter (knurled surface)
Included screws note 2 pcs screw M3*12 (for installing T-motor CF prop with the plate cover; not for mounting the motor to the frame)
Recommended matching (guide) T-MOTOR P15*5 Prop / Air 20A 3-4S ESC

For order support, compatibility questions, or bulk inquiries, contact support@rcdrone.top or visit https://rcdrone.top/.

Applications

  • Multi-rotors
  • VTOL UAVs
  • Fixed-wing UAVs
  • Aerial photography power systems

What’s Included

  • 1x T-MOTOR MN3110 Motor (KV780 KV92 (kv which you choose))
  • 1x Hardware pack
  • 1 set of M6 prop adapter (knurled surface)
  • 2 pcs screw M3*12 (as noted for CF prop installation with plate cover)

Details

Introduction slide for T-Motor Navigator MN Series, describing brushless motors for multirotor UAV applications

The T-Motor Navigator MN Series is presented as a brushless motor line designed for multirotor UAV applications.

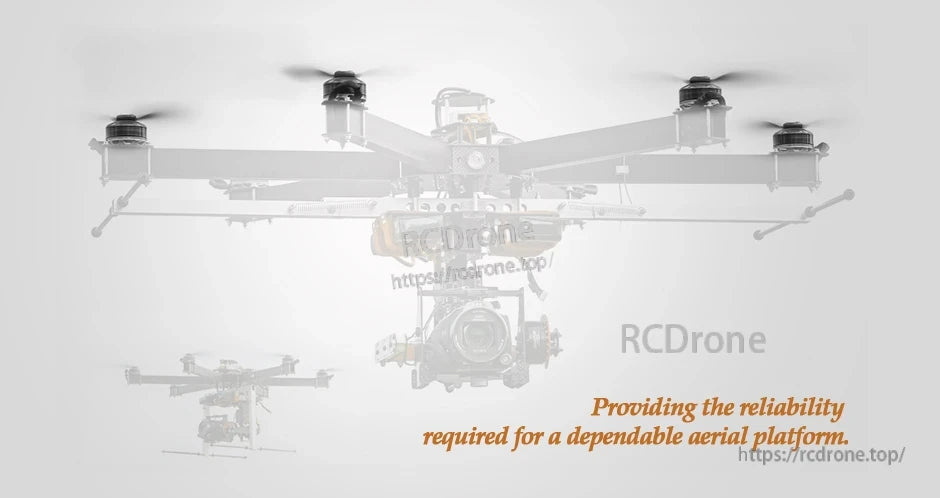

Large multirotor UAV aerial platform with camera gimbal payload, branded for T-Motor reliability

T-Motor multirotor platforms are built to carry stabilized camera payloads for dependable aerial work.

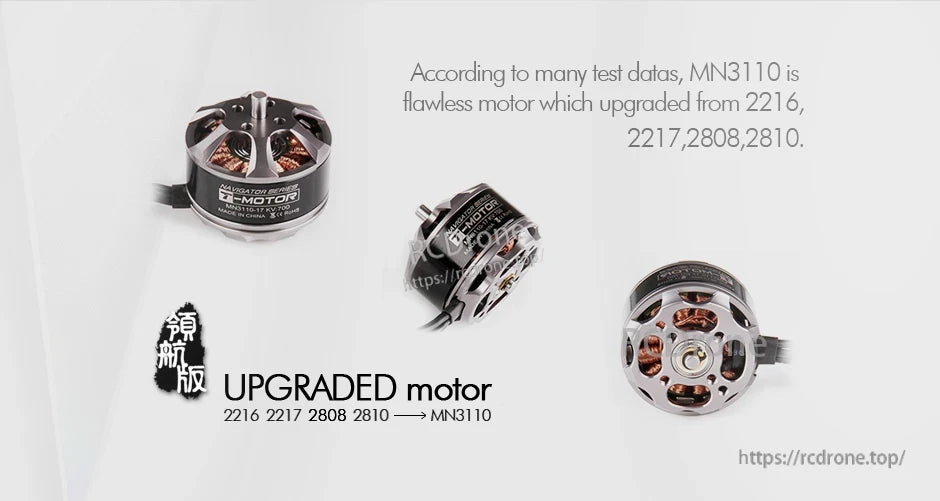

T-Motor, MN3110 brushless drone motor in multiple views, showing open-frame housing, copper windings, and lead wire

The MN3110 brushless motor features an open-frame design with visible copper windings and a compact mounting base for multirotor builds.

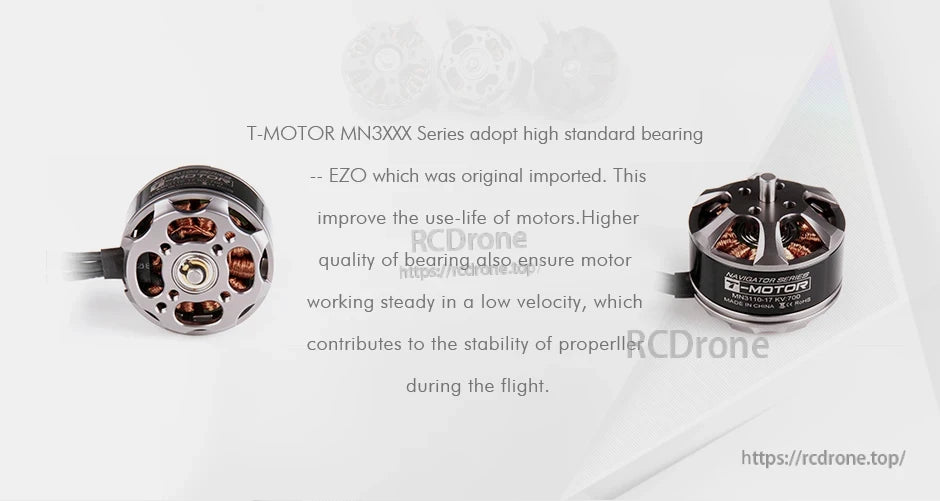

T-Motor MN3XXX series brushless drone motor, front and side views showing open stator and Navigator label

T-Motor MN3XXX series brushless motor uses EZO bearings to support smooth, steady operation at lower speeds.

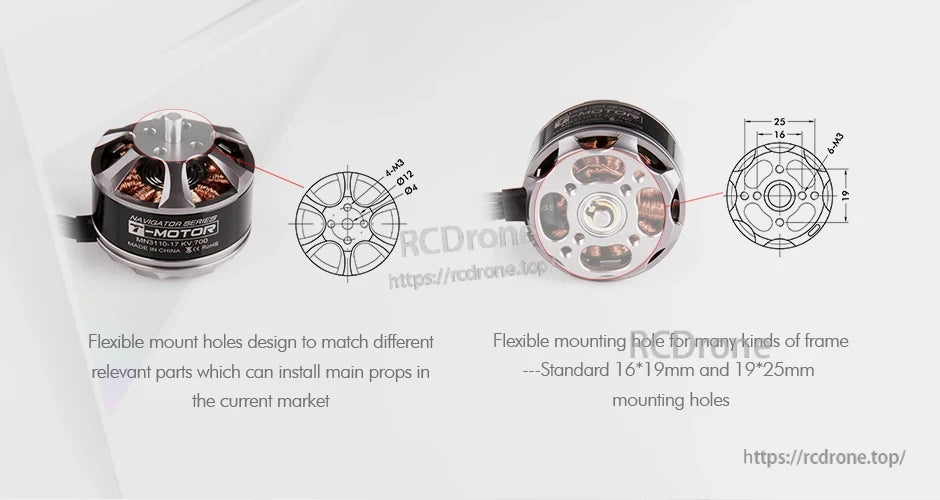

T-Motor Navigator brushless drone motor with mounting hole diagrams for 16×19 mm and 19×25 mm patterns

T-Motor’s flexible mounting hole design supports standard 16×19 mm and 19×25 mm patterns for compatibility with many frames.

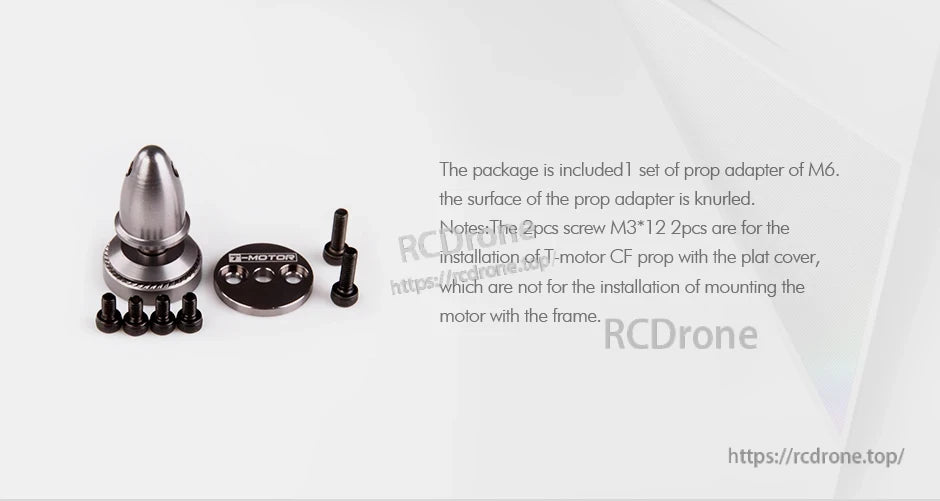

T-Motor M6 prop adapter set with knurled adapter, plate cover, and mounting screws for drone prop installation

The T-Motor M6 prop adapter kit includes a knurled adapter, a plate cover, and M3×12 screws for installing T-Motor CF props.

T-Motor brushless drone motor with installed prop adapter and carbon fiber propeller mounting example

The motor supports M6 prop adapter installation and pairing with matching T-Motor carbon fiber propellers.
